Milnor Washer/Extractor Suspensions with Shock Absorbers and Rubber Vibration Isolation Springs
Washer extractor suspension using rubber isolation springs (marsh mellows) and shock absorbers - marshmellows - shocks - suspension mounting

Overview

Milnor Washer/Extractors employ a number of suspension or vibration isolation systems.  Some units use Hydrocushions, some use Isolators, some use shock absorbers in conjunction with rubber springs, still others use various combinations of the systems listed above.  This article addresses the shock absorber / rubber spring suspension style.  Rubber springs are referred to as Marsh Mellows, from the Firestone trademark.  Milnor uses shock absorbers and Marsh Mellows, pictured below.  marsh mellows and how they're measured.  Below that, major components, assemblies, and links to parts diagrams will be listed according to model number.

Shock Absorbers

Milnor currently uses 4 sizes of shock absorbers.  These are listed smallest to largest.

60BS6836

User-added image

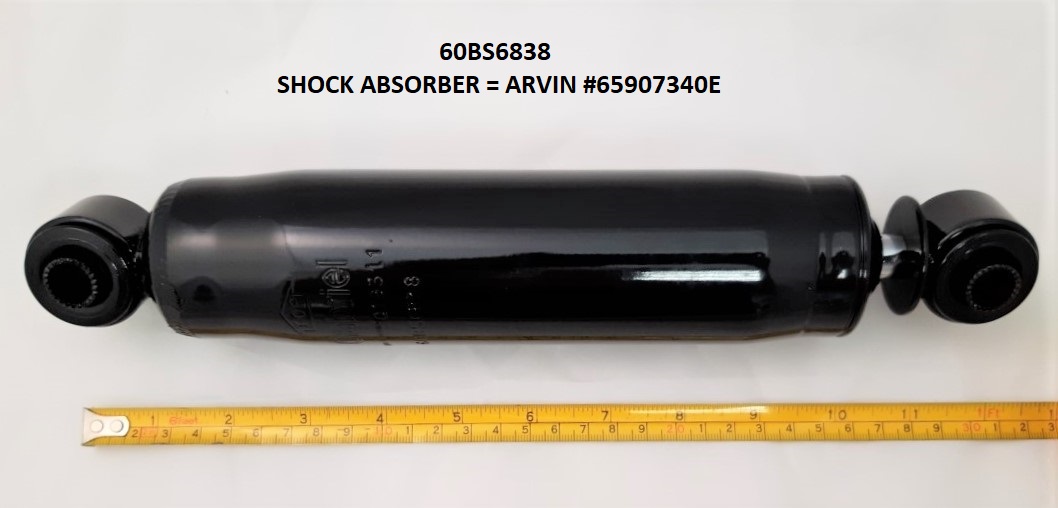

60BS6838

User-added image

60BS6832

User-added image

60BS6839

User-added image

Marsh Mellow™

There are many different sizes of Marsh Mellow™ isolators.  Milnor uses over 10 different sizes.  The description of the Marsh Mellow follows the O.D. x I.D. x H structure. The 60B131 / MM SPRG 4X2X7.5 for example is 4 inches in outer diameter, 2 inches in inner diameter, and 7.5 inches tall.
User-added image
PART NUMBERDESCRIPTION
60B127Marsh Mellow SPRG 4X2X6
60B131Marsh Mellow SPRG 4X2X7.5
60B133Marsh Mellow SPRG 5X1X7
60B134Marsh Mellow SPRG 4.5X1X7
60B135Marsh Mellow SPRG 3X1X4
60B136Marsh Mellow SPRG 4.5X2X6
60B139Marsh Mellow SPRG 6X1X10
60B140Marsh Mellow SPRG 6.5X3X8
60B141Marsh Mellow SPRG 6.5X2X8
60B144Marsh Mellow SPRG 8X3.5X12

FOR PART INFORMATION FOR MWF27 - MWF100 IMPORT MODELS CLICK HERE

30022F8J, 30022F8W

Models before 2002 may use isolators instead of Marsh Mellow springs. See Isolators and Hydrocushion Knowledge Article.
ASSEMBLY
SHOCK / Marsh Mellow
SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC30202 / GMS3020160BS6836 - Qty 260BS6838 - Qty 260B131 - Qty 4N/APARTS DIAGRAM

30022X8J, 30022X8R, 30022X8W

ASSEMBLY
SHOCK / Marsh Mellow		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC3022X8 / GMS3022X860BS6838 - Qty 2N/A60B135 - Qty 2N/APARTS DIAGRAM

36026X8J, 36026X8R, 36026X8W (***NOTE*** MACHINES MADE IN CHINA HAVE DIFFERENT SUSPENSION RODS)

ASSEMBLY
SHOCK / Marsh Mellow		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC3626X7 / GMS3626X760BS6838 - Qty 2N/A60B136 - Qty 2N/APARTS DIAGRAM
SEE PART DIAGRAM FOR IMPORT SUSPENSION RODS

36030F8J, 36030F8R, 36030F8S, 36030F8W, 36030J8P

Models before 2002 may use isolators instead of Marsh Mellow springs. See Isolators and Hydrocushion Knowledge Article.
ASSEMBLY
SHOCK / Marsh Mellow		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC35002A / GMS35000160BS6838 - Qty 4N/A60B127 - Qty 260B135 - Qty 2PARTS DIAGRAM
36030F8S Isolator to MM = AAN

42026X7W, 42026X7R, 42026X7J

ASSEMBLY
SHOCK / Marsh Mellow		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC4226X / GMS4226X60BS6832 - Qty 2N/A60B141 - Qty 2N/APARTS DIAGRAM

42032J7P, 42032F7W, 42032F7R, 42032F7J, 42032F7S

Models before 2002 may use isolators instead of Marsh Mellow springs. See Isolators and Hydrocushion Knowledge Article.
ASSEMBLY
SHOCK / Marsh Mellow		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC42002A / GIC42001A60BS6832 - Qty 260BS6838 - Qty 260B136 - Qty 260B134 - Qty 2PARTS DIAGRAM
Model Code break over Isolators to MM
4232F7W, F7J = AAW
4232F7R, F7S = AAK

42032X7J, 42032X7R, 42032X7W

ASSEMBLY
SHOCK / Marsh Mellow		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GIC4226X / GMS4232X60BS6832 - Qty 2N/A60B141 - Qty 2N/APARTS DIAGRAM

48040F7B, 48040F7D, 48040F7J, 48040F7N, 48040F7W, 48040F7Z

IMPORT MACHINES WITH AZ MODELS
ASSEMBLYSHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GSS4840F60BS6832 - Qty 4N/A60B133 - Qty 4N/APARTS DIAGRAM

48040H7K, 48040H7N, 48040H7R, 48040H7W

ASSEMBLY
SHOCK ONLY		SHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GSS4800160BS6832 - Qty 4N/A60B133 - Qty 4N/APARTS DIAGRAM

68036F5N, 68036F5P

ASSEMBLYSHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GSS6836F60BS6839 - Qty 4N/A60B139 - Qty 260B140 - Qty 2PARTS DIAGRAM
TWO ADDITIONAL
60BS6839 SHOCKS IN TILT SYSTEM

68036H5N, 68036H5K

ASSEMBLYSHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GSS6800160BS6839 - Qty 4N/A60B139 - Qty 260B140 - Qty 2PARTS DIAGRAM

48040M7K

ASSEMBLYSHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GSS4800260BS6832 - Qty 4N/A60B140 - Qty 4N/APARTS DIAGRAM

68036M5K, 72046M5K

ASSEMBLYSHOCK 1SHOCK 2Marsh Mellow 1Marsh Mellow 2ADDITIONAL INFO
GSS6800260BS6839 - Qty 8N/A60B144 - Qty 4N/APARTS DIAGRAM

IMPORT UNITS, MWF MODEL NUMBERS

MODEL #FRONT SHOCKSREAR SHOCKSFRONT Marsh MellowREAR Marsh Mellow
MWF27J860BS6838 - Qty 260BS6838 - Qty 260B135 - Qty 260B135 - Qty 2
MWF27Z860BS6838 - Qty 260BS6838 - Qty 260B135 - Qty 260B135 - Qty 2
MWF45J860BS6838 - Qty 260BS6838 - Qty 260B127 - Qty 260B135 - Qty 2
MWF45Z860BS6838 - Qty 260BS6838 - Qty 260B127 - Qty 260B135 - Qty 2
MWF63C760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B134 - Qty 2
MWF63J760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B136 - Qty 2
MWF63Y760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B134 - Qty 2
MWF63Z760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B136 - Qty 2
MWF77C760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B134 - Qty 2
MWF77J760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B136 - Qty 2
MWF77Y760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B134 - Qty 2
MWF77Z760BS6838 - Qty 260BS6832 - Qty 260B127 - Qty 260B136 - Qty 2
MWF100C760BS6832 - Qty 260BS6832 - Qty 260B133 - Qty 260B136 - Qty 2
MWF100J760BS6832 - Qty 260BS6832 - Qty 260B133 - Qty 260B136 - Qty 2
MWF100Y760BS6832 - Qty 260BS6832 - Qty 260B133 - Qty 260B136 - Qty 2
MWF100Z760BS6832 - Qty 260BS6832 - Qty 260B133 - Qty 260B136 - Qty 2
