Our parts managers have laid out the same data for other parts managers at the following article.
Drain Valves by Size and Voltage - For Parts ManagersModel numbers will also be added for reference, but the list may not be complete or accurate due to machine customization. Some Model numbers list more than one size drain valve in their service manual. Therefore, it is very important to know the size and voltage of the drain valve that needs to be replaced. For example, the service manual for model number 42032X7R lists part number 96D350A71 as well as 96D250A71. Customization of the machine determines which was shipped with the machine.
Drain valves are electrically opened and/or closed. Outlet valves that are actuated with pressurized air are called Dump Valves. For a list of Dump Valves, click
DUMP VALVES BY SIZE
2 INCH DRAIN VALVES
220 - 240 VOLT
Model Numbers | Part Number | Description | Additional Info | Pictures |
---|
36026X8J 36026X8R 36026X8W 42026X7R 42026X7J 42026X7W 42032X7R 42032X7J 42032X7W
| 96D250A71 | DRINVAL 2"N/O MTRDR240V 50/60C | .20 - .17 AMP |  |
96D250B71 | DRINVAL 2"N/C MTRDR240V 50/60C | .20 - .17 AMP |  |
Imported Machines MCR09E5 MCR12E5 MCR16E5 MWR09E5 MWR12E5 MWR12J5 MWR12X5 MWR16E5 MWR16J5 MWR16X5 MWT12E5 MWT12J5 MWT16E5 MWT16J5 MWT16X5
| 96D25RAA71 | 2005035A DRAINVALRTANG 2"N/O 240V 50/60 | .24 AMP / RIGHT ANGLE (90° |  |
3 INCH DRAIN VALVES
FOR INFO ON SEAL REPAIR KITS FOR 3 INCH DEPENDO DRAINS, CLICK
HERE
110 - 120 VOLT
Model Numbers | Part Number | Description | Additional Info | Pictures |
---|
36021C4E 36021V5J 36021V5Z 36021V7J 36021V7Z 36026V5J 36026V5Z 36026V7J 36026V7W 36026V7Z 42026V6J 42026V6W 42026V6Z 42030V6J 42030V6Z
| 96D350A37C Note: This part is the substitute for Part#: 96D350A37 | DRNVAL 3"N/O 120V50/60C W/COVER | .35 AMP |  |

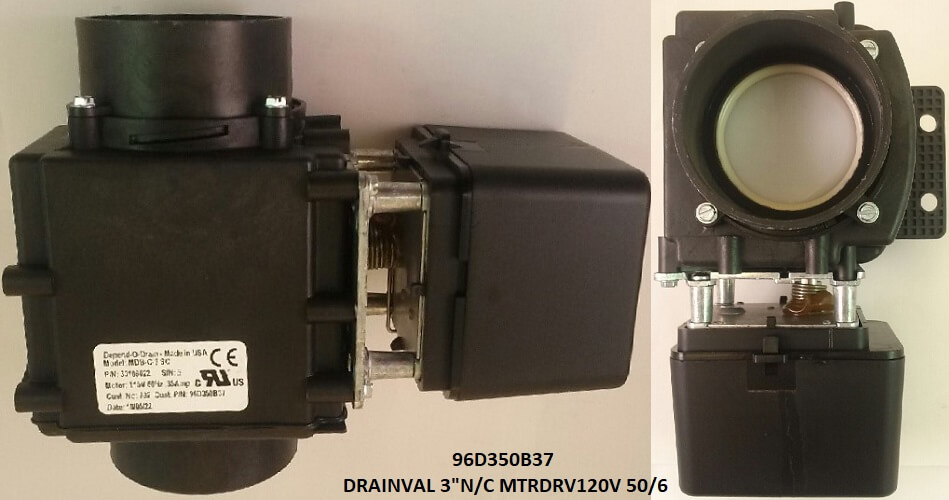

96D350B37 | DRAINVAL 3"N/C MTRDRV120V 50/6 W/COVER | .35 AMP |  |
Legacy Machines with a 90° drain valve 36026V5J 36026V7J 42026V6J

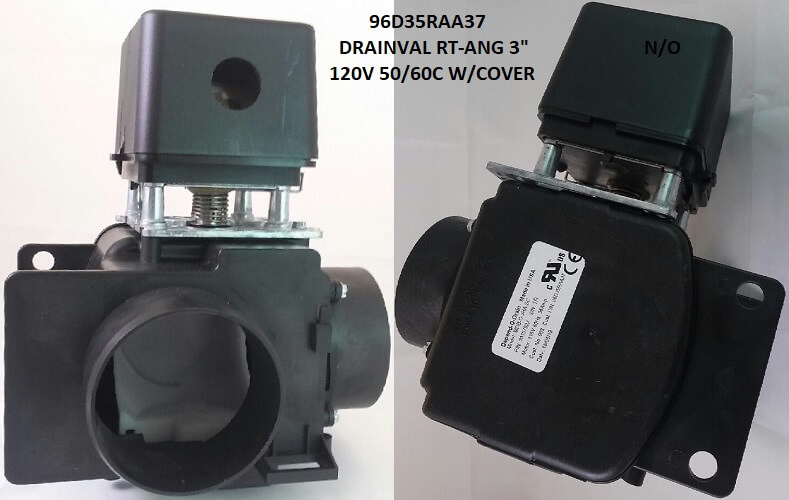

| 96D35RAA37 Note: THIS PART IS NO LONGER AVAILABLE. IF NEEDED YOU MUST PURCHASE KBKTMDDR01 Kit number KBKTMDDR01 Which uses a straight Dependo drain and a 90 degree hose connection for drain to rear applications | DRAINVAL RT-ANG 3" N/O 120V 50/60C W/COVER | .35 AMP |  |
220 - 240 VOLT
Model Numbers | Part Number | Description | Additional Info | Pictures |
---|
30010CGE 30010G5E 30010G5X 30015C4A 30015C4E 30015CGE 30015G5E 30015G5X 30015J4P 30015M4G 30015M4J 30015M5J 30015M6J 30015Q4J 30015T5E 30015T5J 30015T5X 30015T6X 30015V7J 30015V8Z 30015VRJ 30015VZZ 30020C4A 30020M5G 30020M4J 30020M5J 30020M6J 30020M7J 30022C4E 30022F8J 30022F8R 30022F8S 30022F8W 30022H7J 30022H8J 30022J8P 30022M4J 30022M5J 30022M6J 30022S4J 30022S5G 30022T5E 30022T5X 30022T6X 30022V6J 30022V8Z 30022VRJ 30022VZZ 30022X8J 30022X8R 36026X8R 42026FV7 42026X7J 42026X7R 42026X7W 42026XFJ 42032X7J 42032X7R 42032X7W

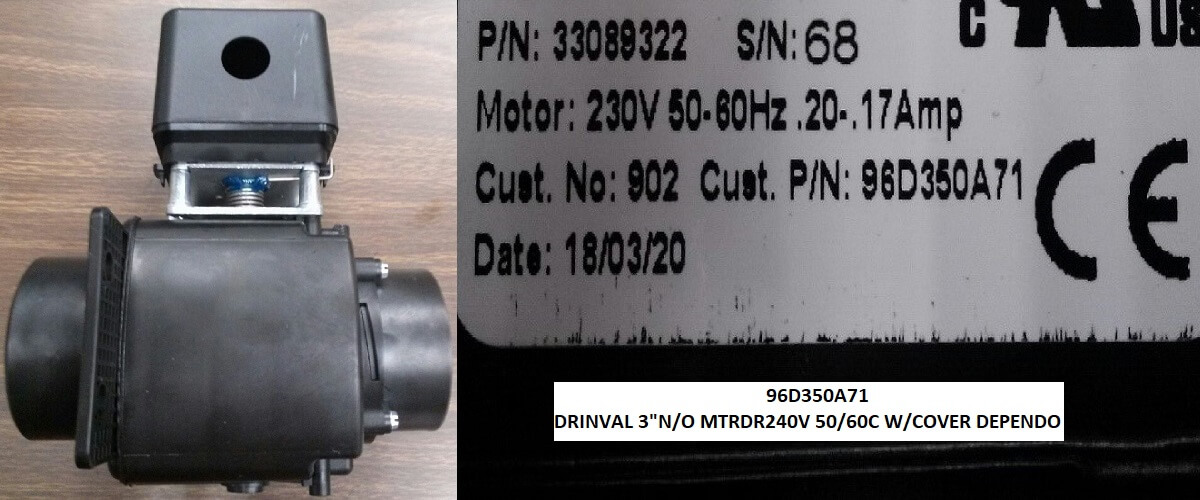

| 96D350A71 Note: If the machine is an AAZ model 36***X8J or 42***X8J machine check for an air operated drain. If air operated, buy 98CMCR3604. Note: Check Date Code for 30***T6X / 30***V6J / 30***V8Z / 30***VRJ / 30***VZZ machines. If manufactured after January 2016, buy 96D350A71A (below). | DRINVAL 3"N/O MTRDR240V 50/60C DEPENDO | .20 - .17 AMP |  |
96D350A71A Note: Check Date Code for 30***T6X / 30***V6J / 30***V8Z / 30***VRJ / 30***VZZ machines. If manufactured before January 2016, buy 96D350A71 (above). | DRAINVAL 3"N/O MTRDR240V 50/60C DEPENDO MDB-3 W/BYPASS | .20 - .17 AMP |  |
96D350B71 Note: Typically on machines with Reuse systems. | DRINVAL 3"N/C MTRDR240V 50/60 W/COVER | .20 - .17 AMP |  |
Imported Machines MCR27E5 MWF27J8 MWF27Z8 MWR27E5 MWR27J5 MWR27X5 MWT27E5 MWT27J5 MWT27X5 30022X8J 30022X8W 36026X8J 36026X8W 42026X7J 42026X7W 42032X7J 42032X7W
| 96D350A71 Note: If the machine is an AAZ model 36***X8J or 42***X8J machine check for an air operated drain. If air operated, buy 98CMCR3604. Note: Check Date Code for 30***T6X / 30***V6J / 30***V8Z / 30***VRJ / 30***VZZ machines. If manufactured after January 2016, buy 96D350A71A (below). | DRINVAL 3"N/O MTRDR240V 50/60C DEPENDO | .20 - .17 AMP |  |
96D350A71A Note: Check Date Code for 30***T6X / 30***V6J / 30***V8Z / 30***VRJ / 30***VZZ machines. If manufactured before January 2016, buy 96D350A71 (above). | DRAINVAL 3"N/O MTRDR240V 50/60C DEPENDO MDB-3 W/BYPASS | .20 - .17 AMP |  |
96D350B71 Note: Typically on machines with Reuse systems. | DRINVAL 3"N/C MTRDR240V 50/60 W/COVER | .20 - .17 AMP |  |
30022H7J 30022H8J

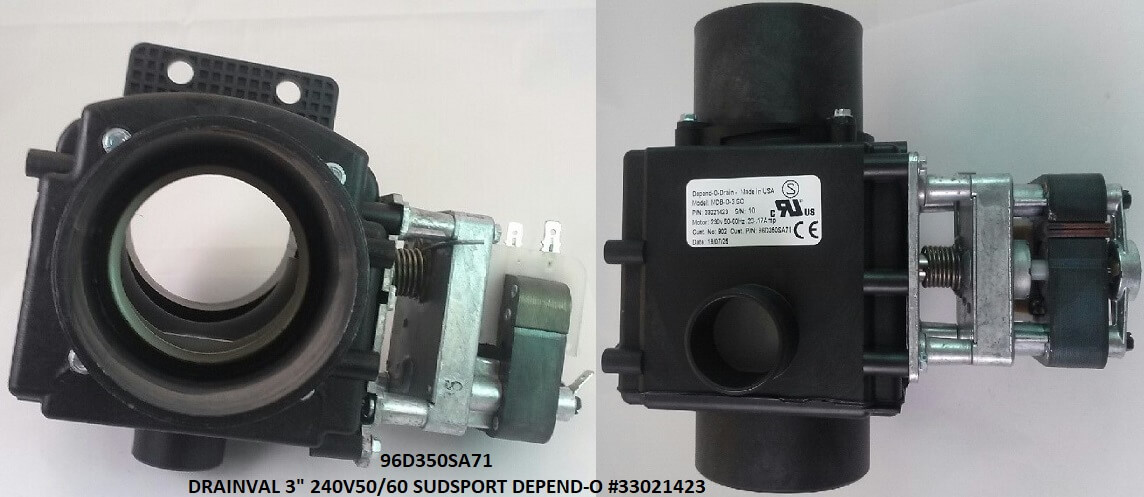

| 96D350SA71 | DRAINVAL 3" 240V50/60 SUDSPORT DEPEND-O #33021423 | .20 - .17 AMP |  |
MCR18E4 MWR18E4 MWR18J4 MWR18J6 MWR18X4 MWR18X6 MWT18E4 MWT18J6 MWT18X4
| 96D35RAA71 | DRAINVAL RT-ANG 3" 240V 50/60C | .20 - .17 AMP |  |
DEPENDO KITS TO REPLACE PINCH TUBE DRAIN ASSEMBLIES
SHOWN HERE
110 - 120 VOLT
KIT COMES WITH VALVE 96D350A37CPART NUMBER | DESCRIPTION | ADDTIONAL INFO |
---|
KHCDV00137 | PINCH TUBE TO DEPENDO-120V | .35 AMP |
220 - 240 VOLT
KIT COMES WITH VALVE 96D350A71KHCDV00171 | PINCH TUBE TO DEPENDO-240V | .20 - 17 AMP |


SOLENOID STILL AVAILABLE PART NUMBER 09K061D / SOLENOID 120V 60C #8940
