The attachment " ELECTRICAL CONNECTORS" shows various electrical connectors and pins (terminals / terminations) used on Milnor machines. The file shows pictures of the connector as well as the Milnor Part Number.
Some pins, Molex and AMP, require a "double W" crimper. If you do not have the crimper for Molex and Amp pins, we offer a harness with connector, crimped pins, and butt splices for use with a standard crimper.
See the attached document "MTAs WITH BUTT SPLICES" for pictures of the various harnesses that are offered. Click the link below for these assemblies
Kit
KZTRMKT001 contains a variety of the common electrical connectors and pins. Our field engineers order this for their stock.
Crimpers:

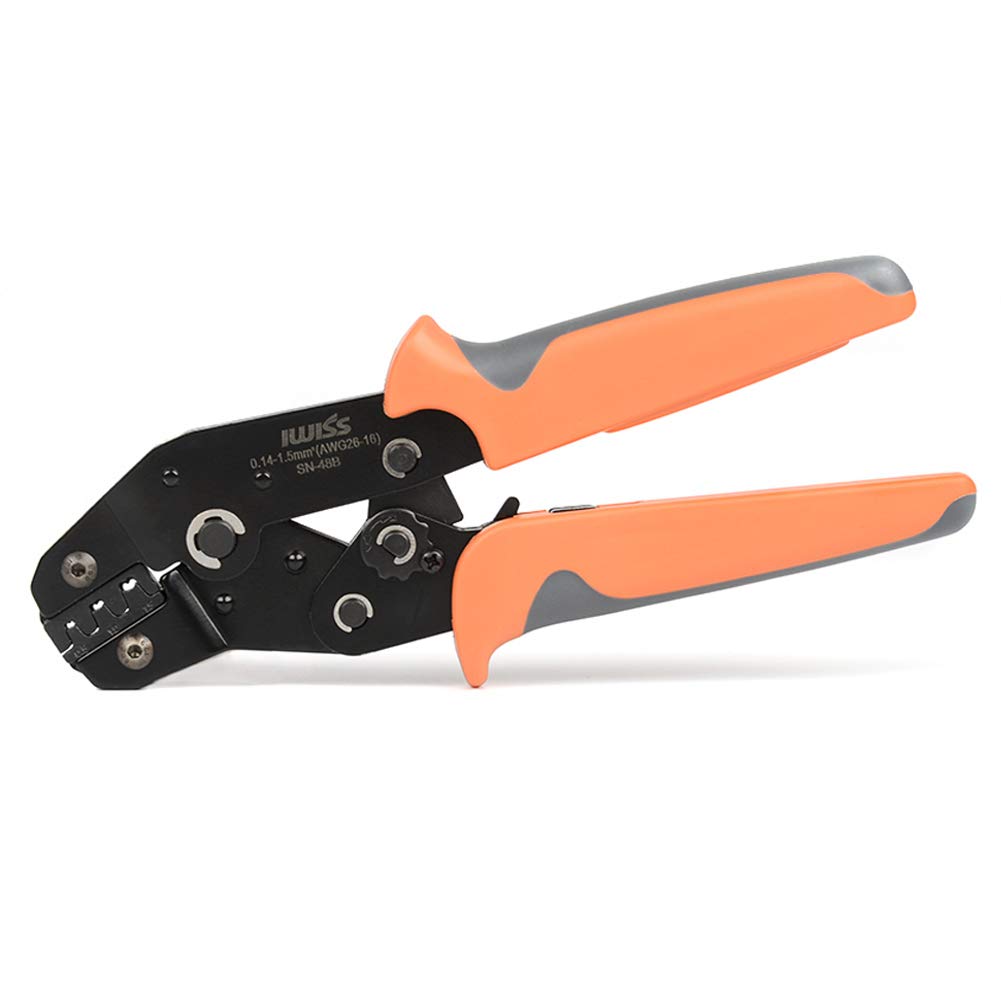

An inexpensive crimper is available online at Amazon. We have tested it and proved that it works well. It will crimp Double W pins that we use at Milnor for control cabling. You can also buy it from Milnor under part number 98R400C13. It is less expensive on Amazon. The model is a IWISS SN-48B. There are many versions of crimpers online. This is the best one we found for our pins.

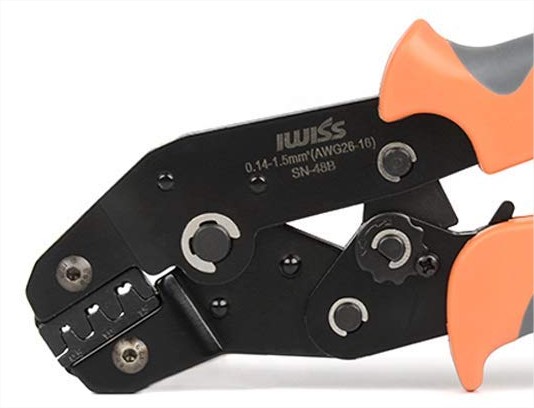

IWISS SN-48B
The Molex crimper below is available but is much more expensive (over $300) and the results are not markedly better than the less expensive version above.

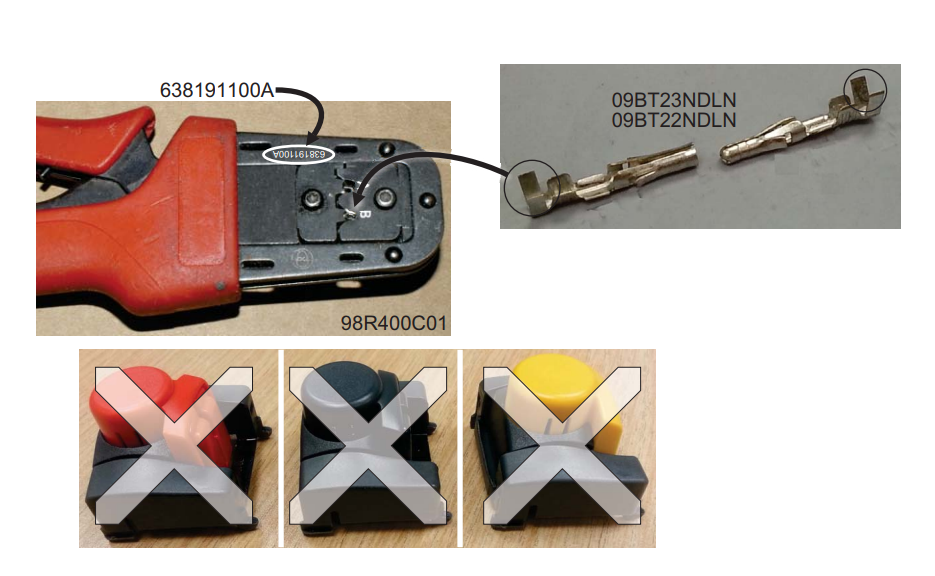

Molex Brand Crimper Part № 98R400C01

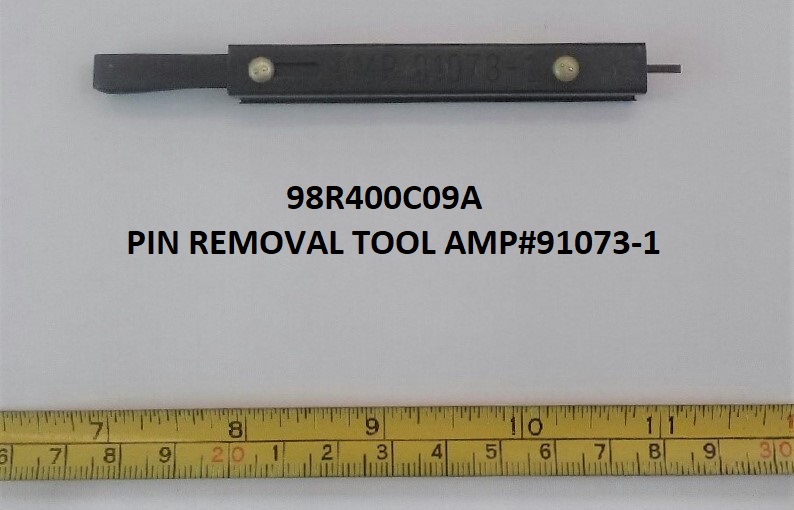

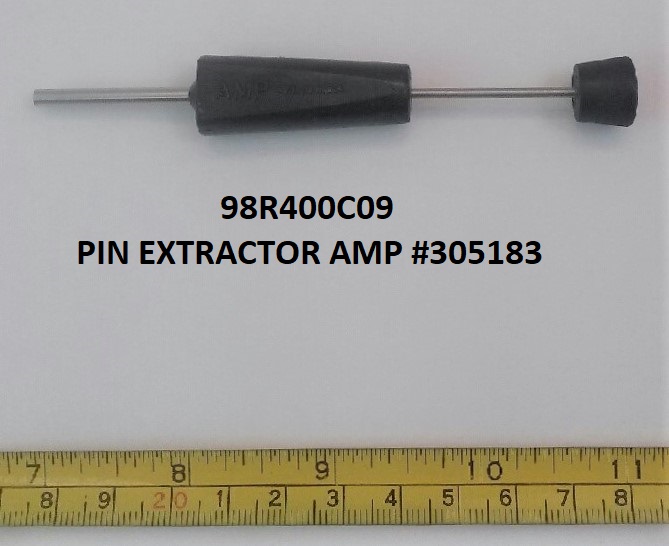

98R400C10 & 98R400C10B

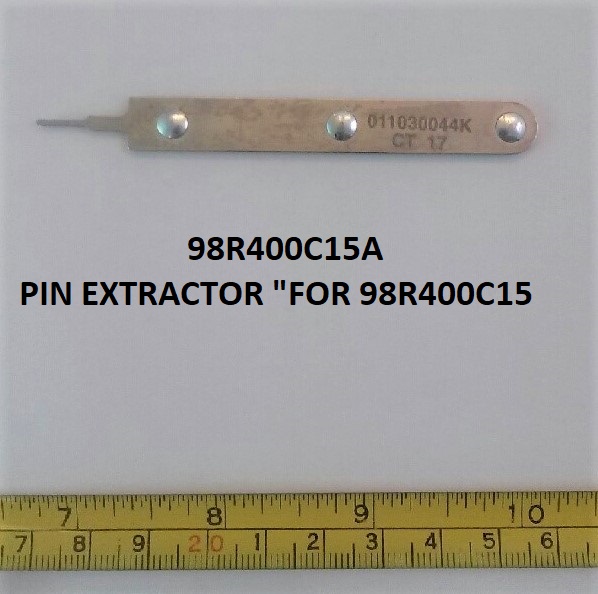

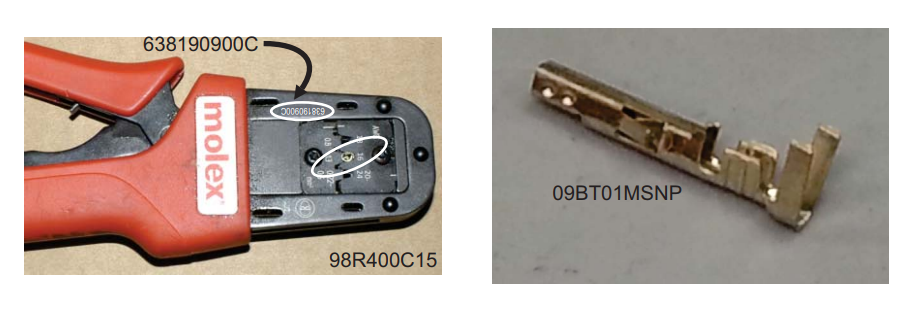

09R400C15

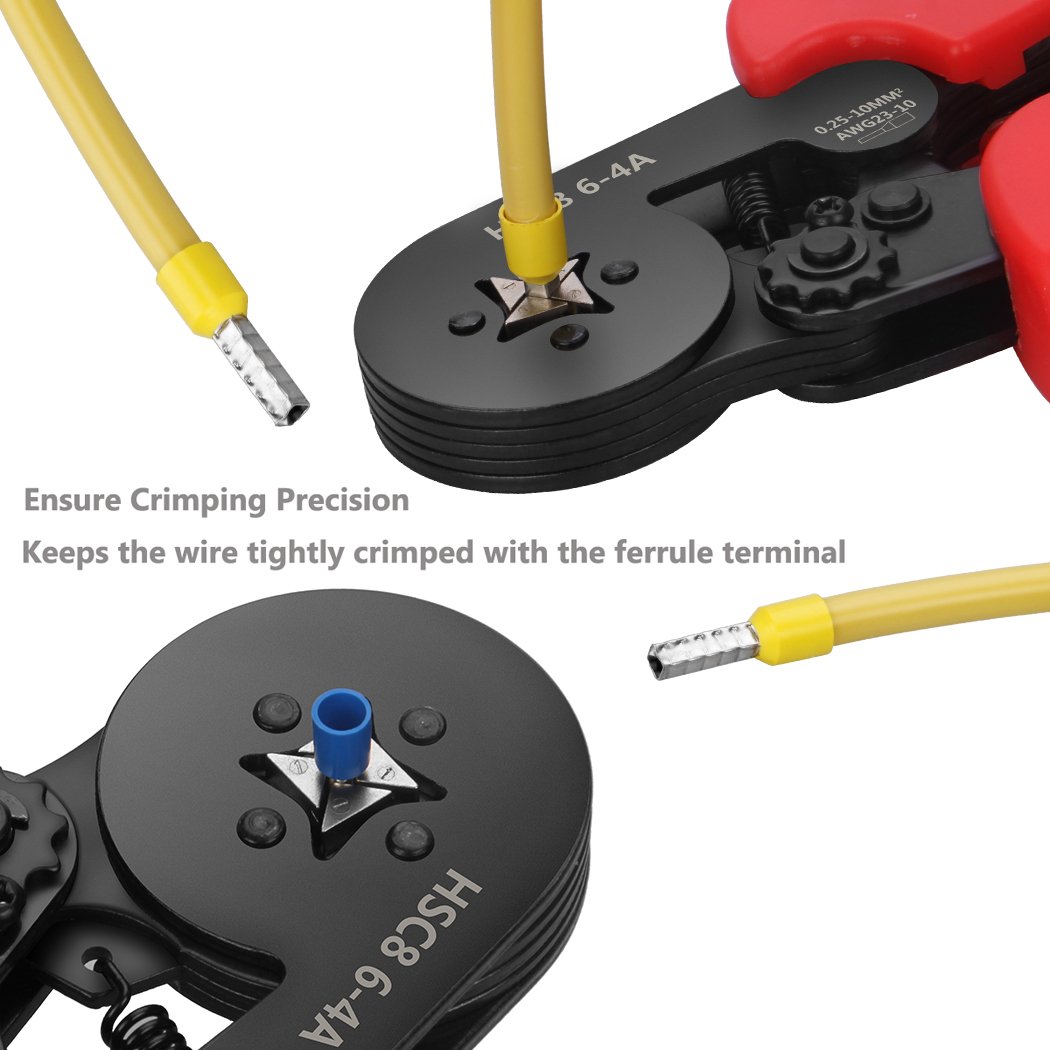

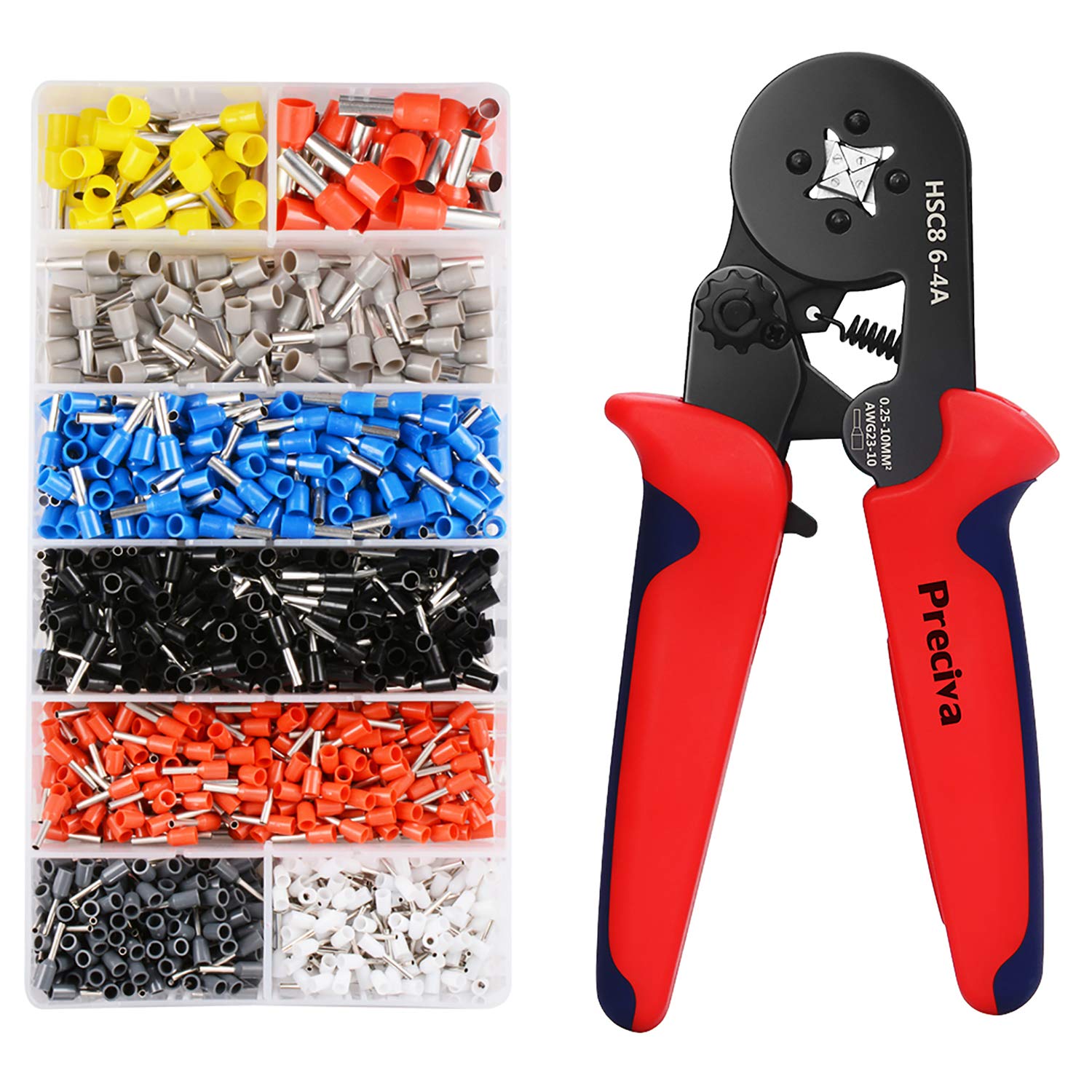

Find the ferrule crimper below on Amazon!
Motor Multit
