Motor Cable Connectors
Motor cables terminate at the motor junction box. Milnor uses multitaps for larger motor connections.

Motor Connections

Motors need secure connections to allow power to flow and power the motor. Loose connections can cause higher amp draw, excessive heat and possibly damage components. The multitap connection blocks help secure wires with screw clamps. Milnor carries 4 versions of these multitaps.

Multitaps for 14AWG - 2/0AWG

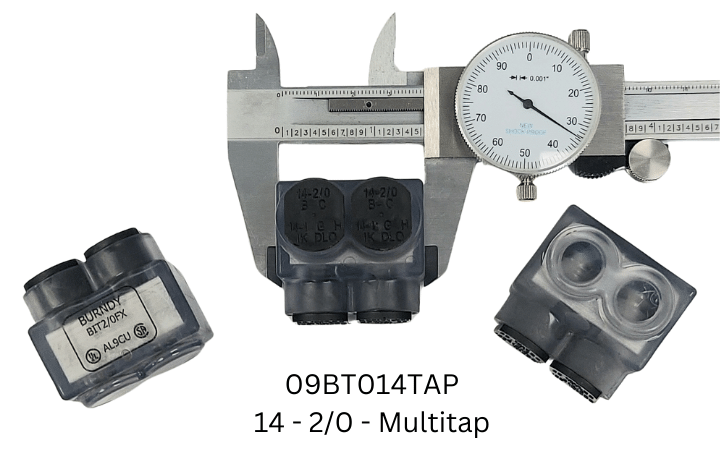

09BT014TAP (2 port)

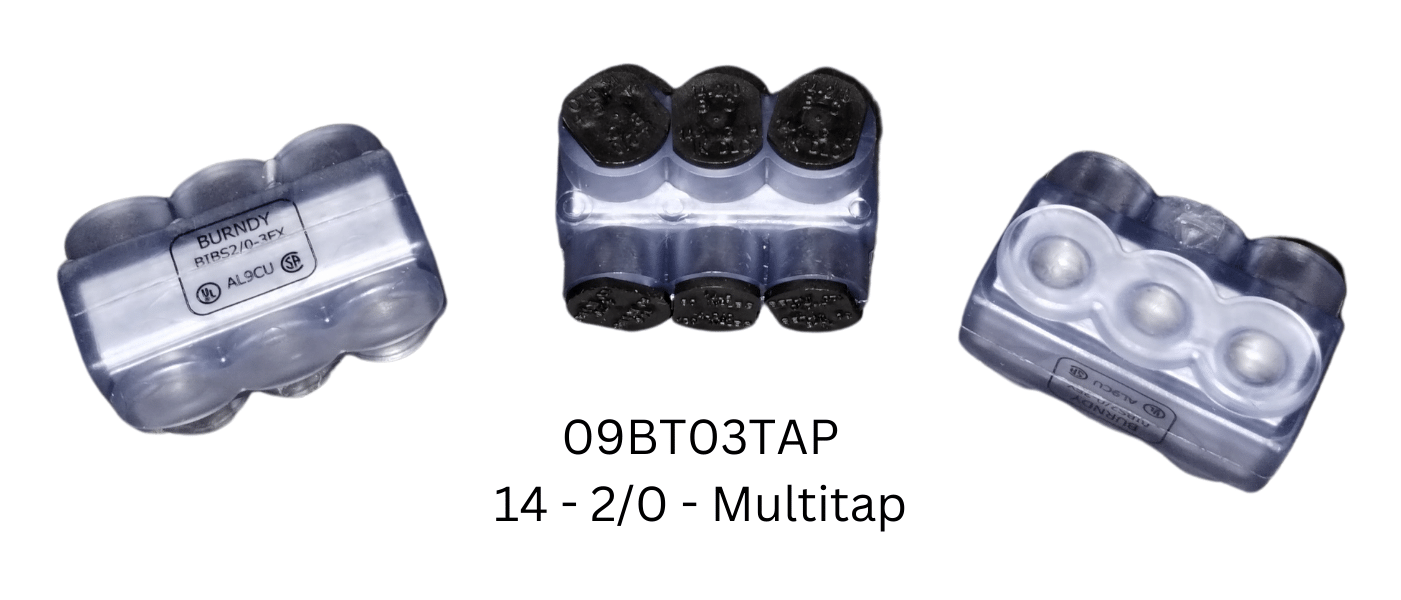

09BT03TAP (3 port)



Multitaps for 10AWG - 4.7/0AWG

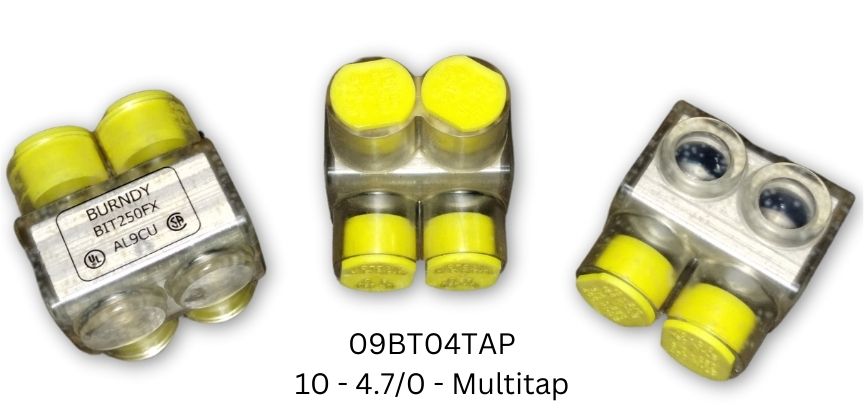

09BT04TAP (2 port)

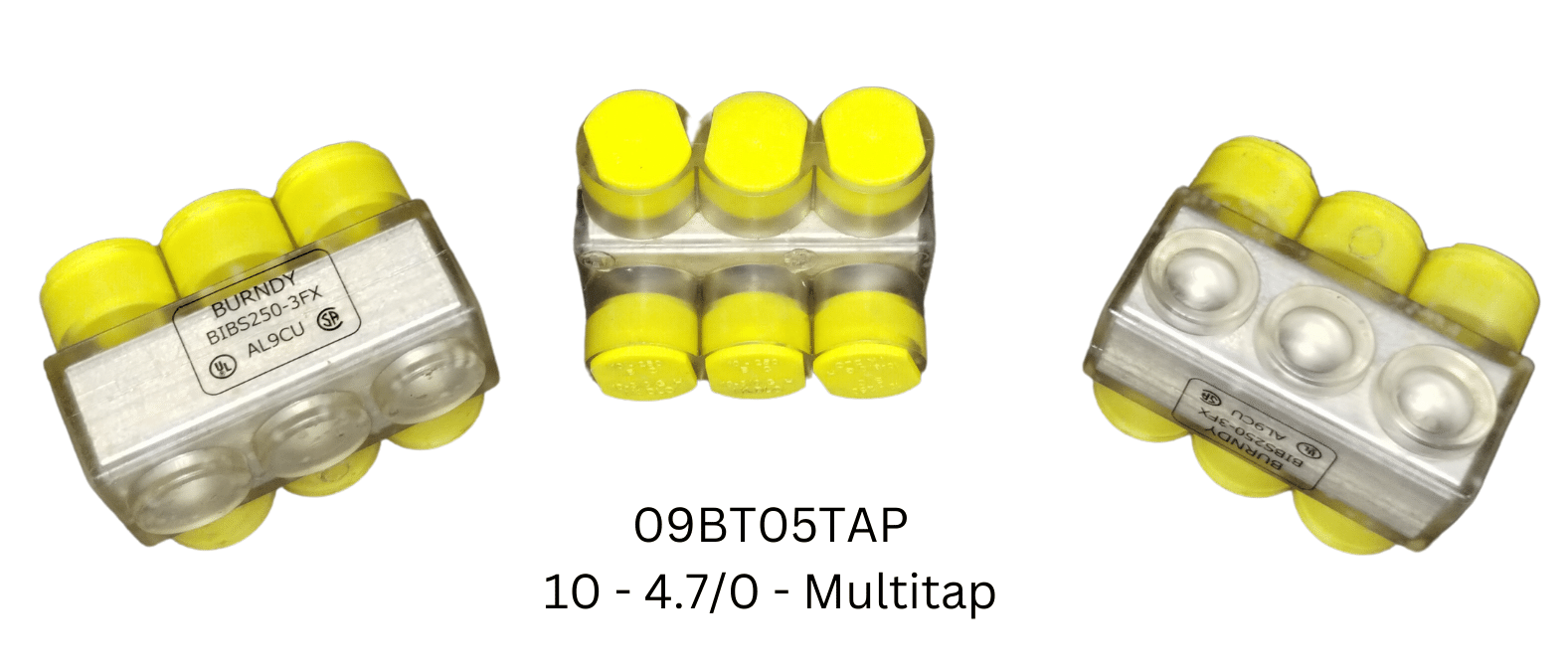

09BT05TAP (3 port)
