Vibration Switches in Electrical Boxes Part Numbers and Components
Vibration switches used in electrical boxes by type and model number. Component Parts
This Article lists the types of vibration switches used in electrical boxes, their part numbers, and their component parts. Model Number designation is supplied but check diagrams to ensure the correct parts are identified and/or ordered.
These switches are not intended for precision adjustment but rather to detect if a machine is loose from the floor or has a frame shaking beyond normal limits. These switches normally shut down the controls and stop the machine.
Vibration switches should not be confused with excursion switches which indicate excessive motion of a suspended machine. For part number information on Excursion Switches click HERE
Vibration Switch
There are 5 different configurations of the Vibration Switch. Listed in table below. Diagrams, Model listings, and Part Numbers below.
PART NUMBER
DESCRIPTION
NOTES

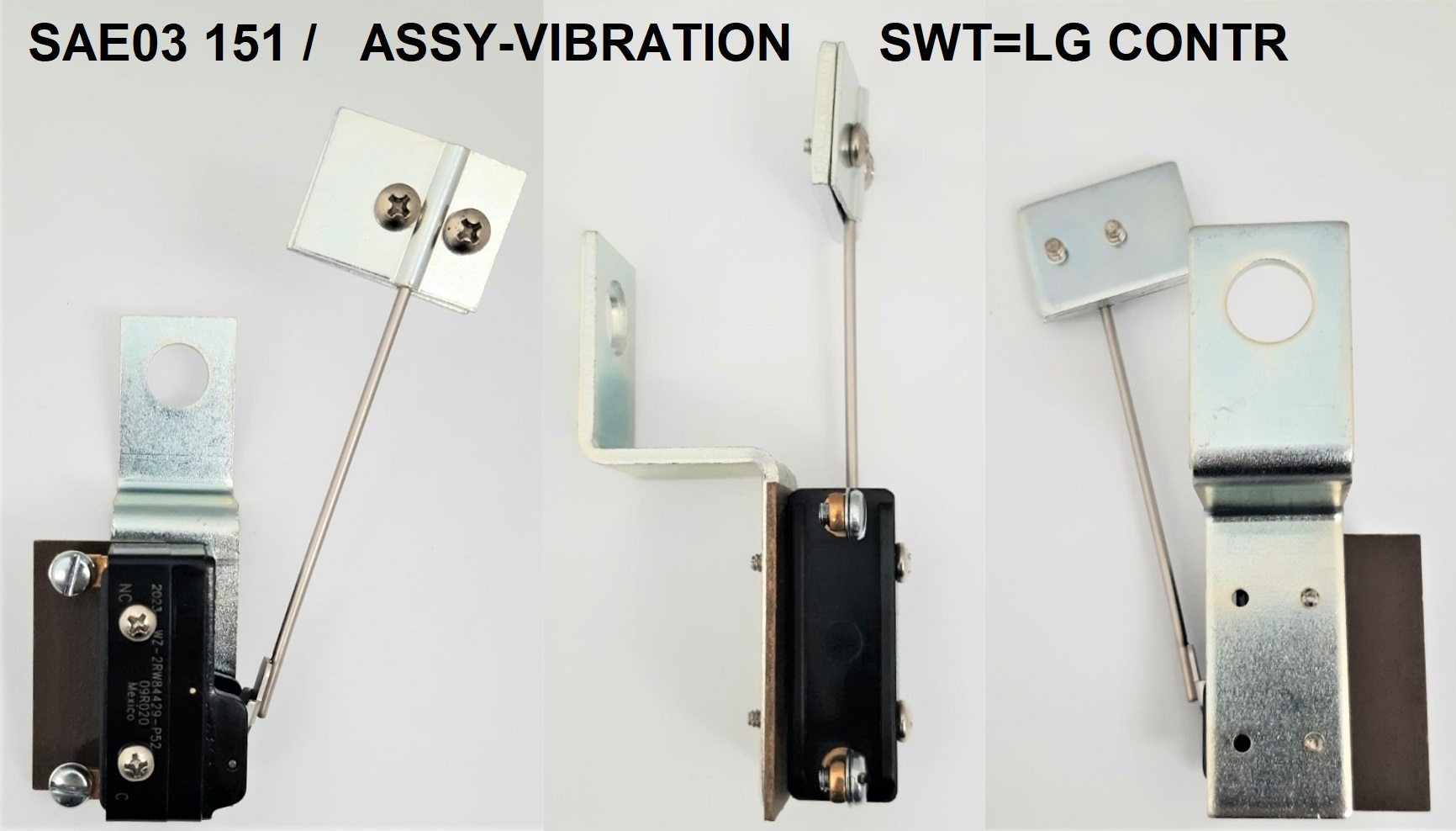

SAE03 151
ASSY-VIBRATION SWT=LG CONTR

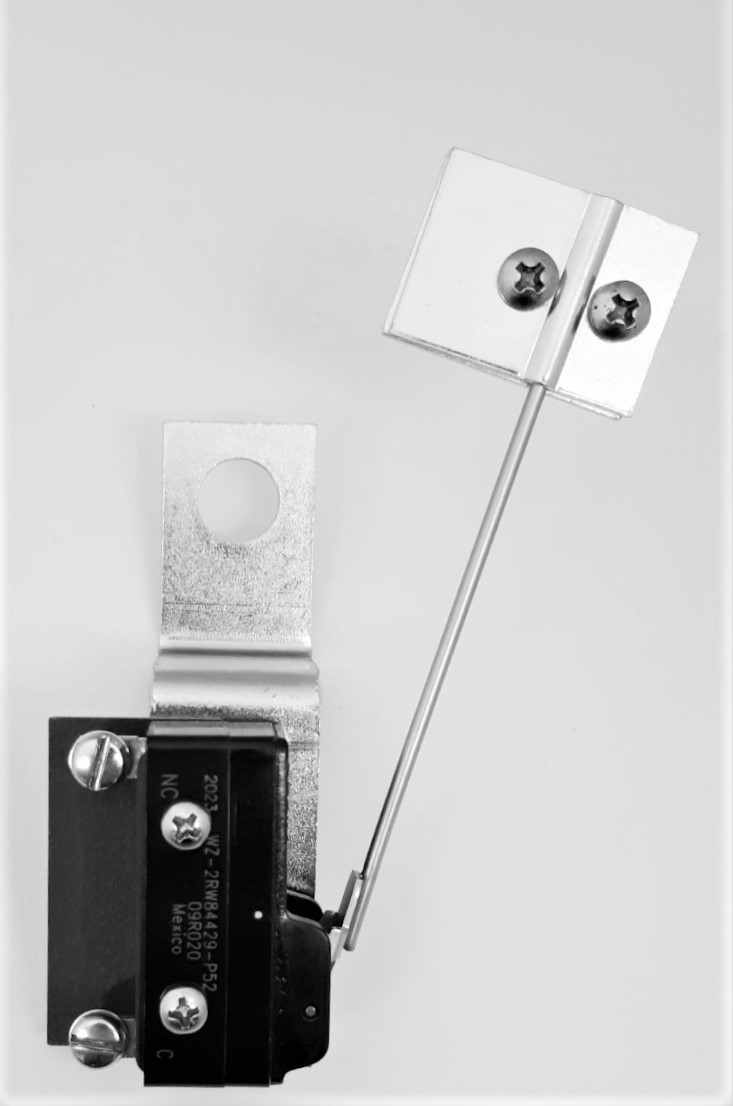

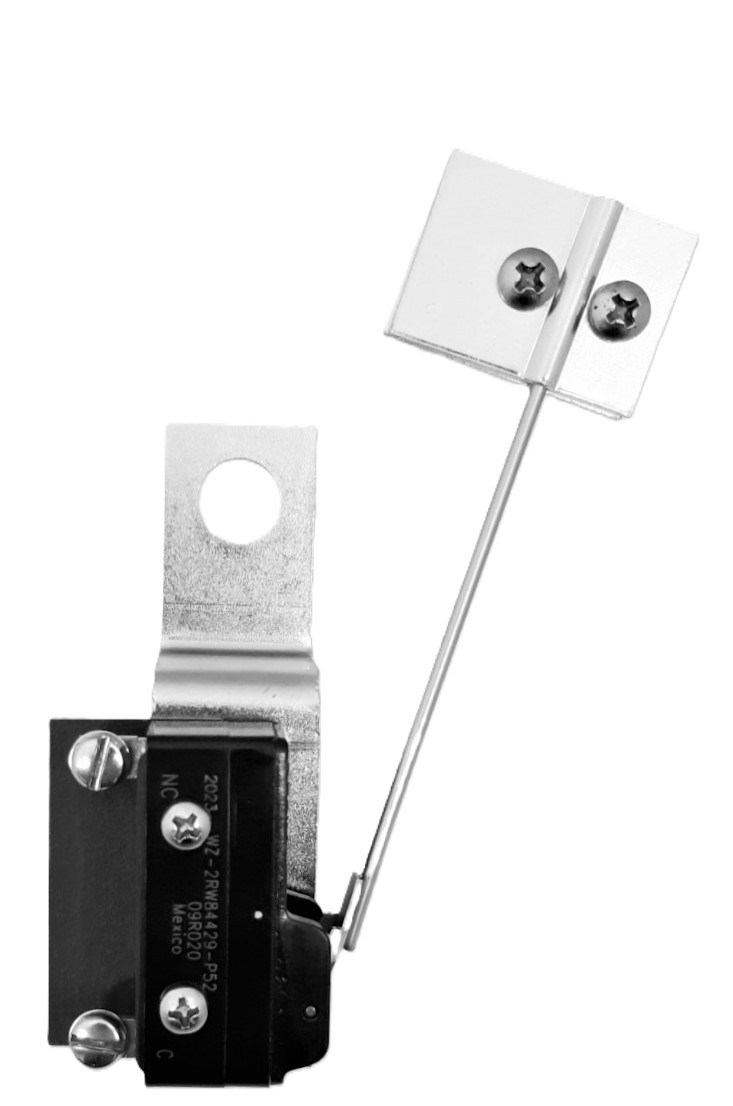

MOST COMMON (Pictured Below) NC SWITCH (NORMALLY CLOSED)

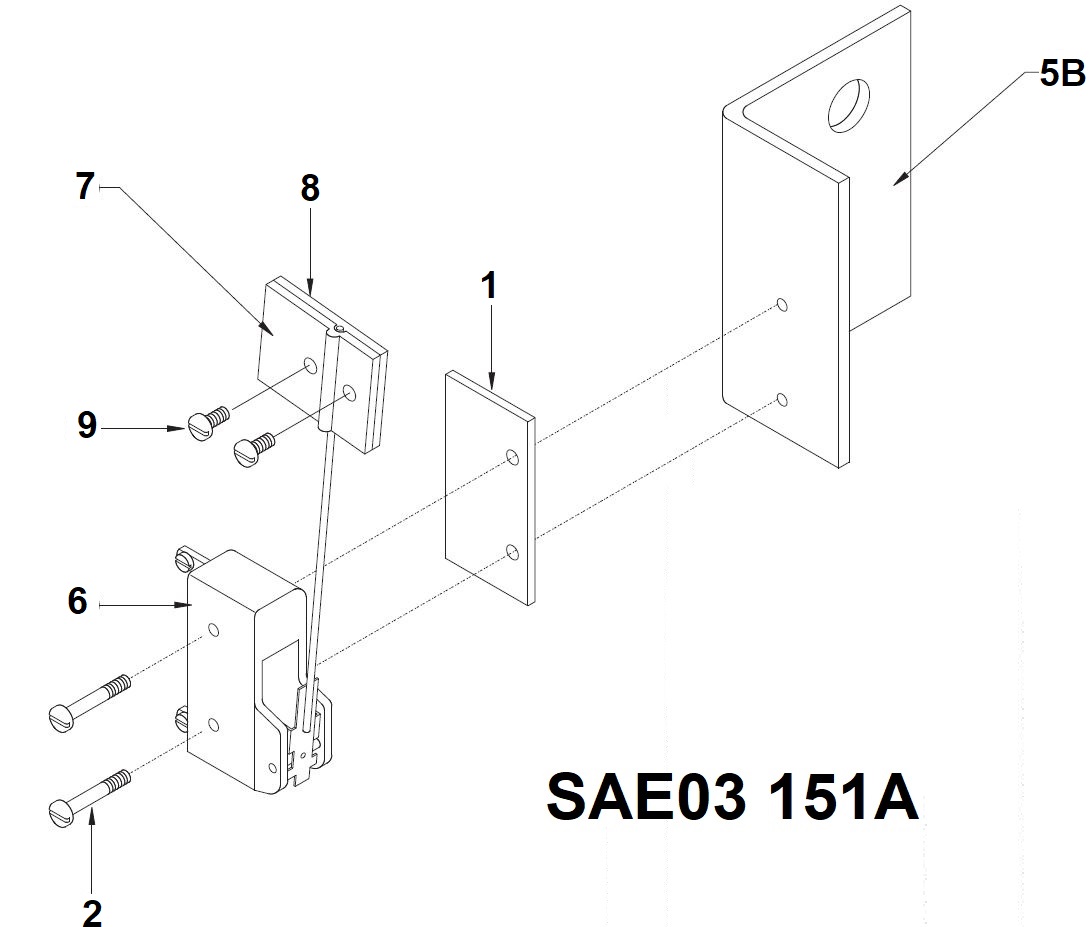

SAE03 151A
ASSY-VIBRATION SWT=BALCOM
SAME AS SAE03 151 WITH DIFFERENT BRACKET

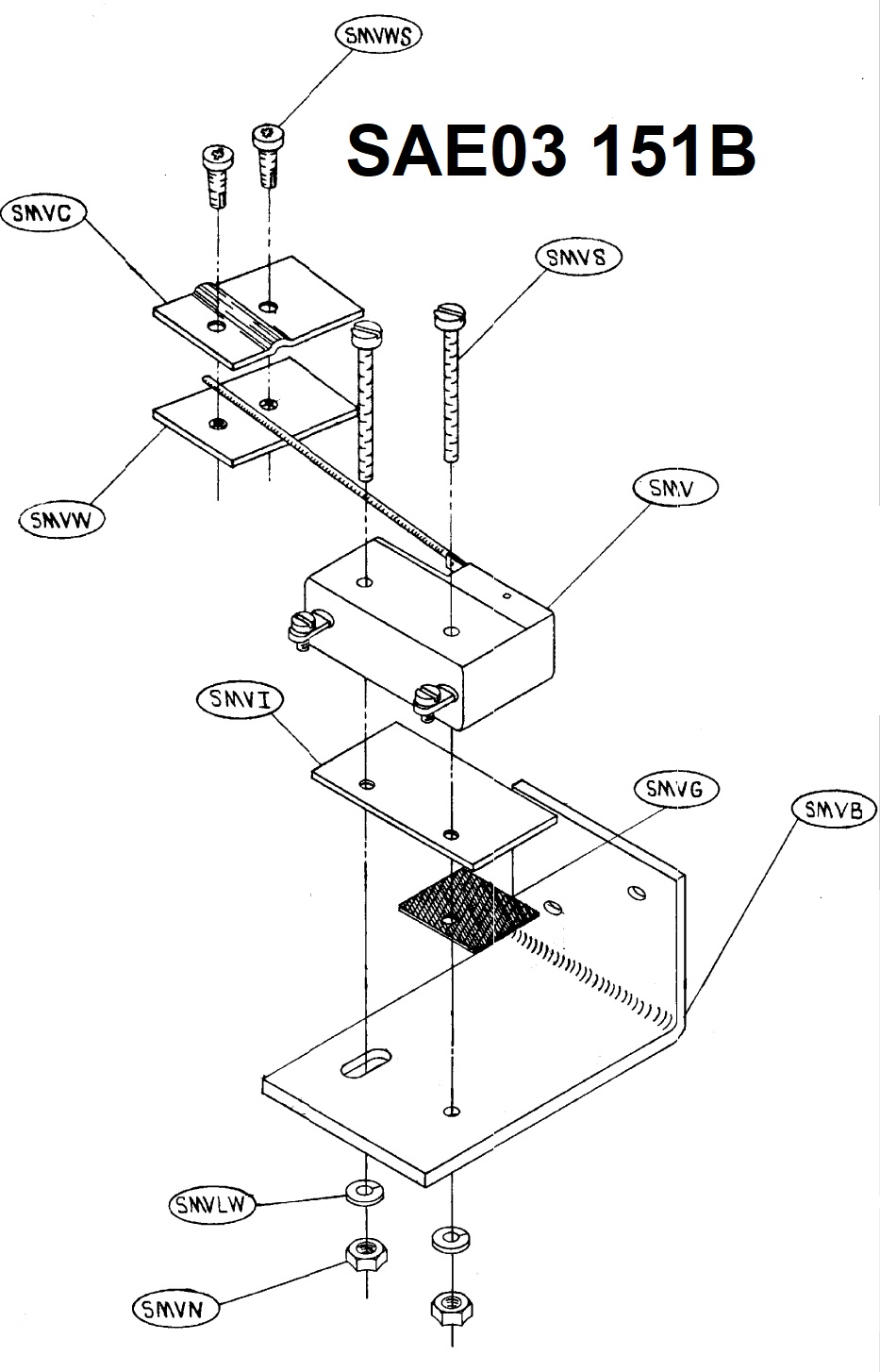

SAE03 151B
ASSY-VIBRATION SWITCH SGLE L
SWITCH USED ON LEGACY MODELS

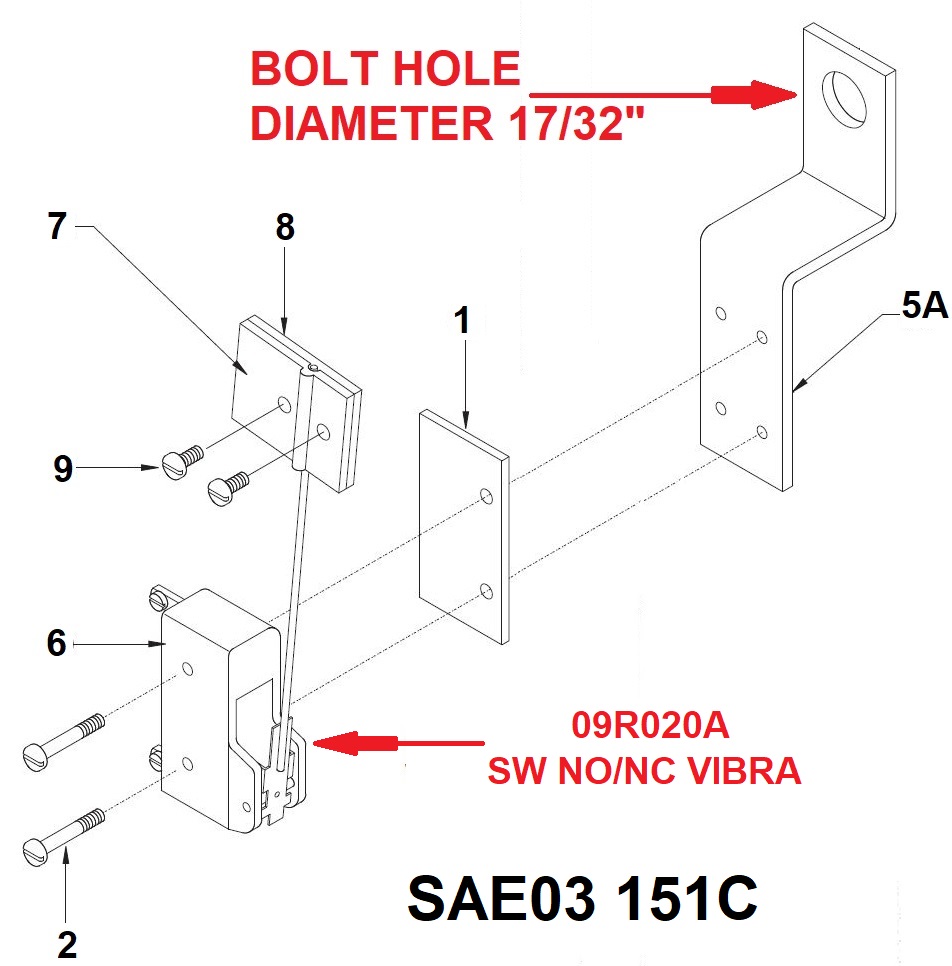

SAE03 151C
ASY-VIBRAT SWT=LG CNTR NC/NO
SAME AS SAE03 151 WITH NO/NC SWITCH (Switch Comparison Pictured Below)

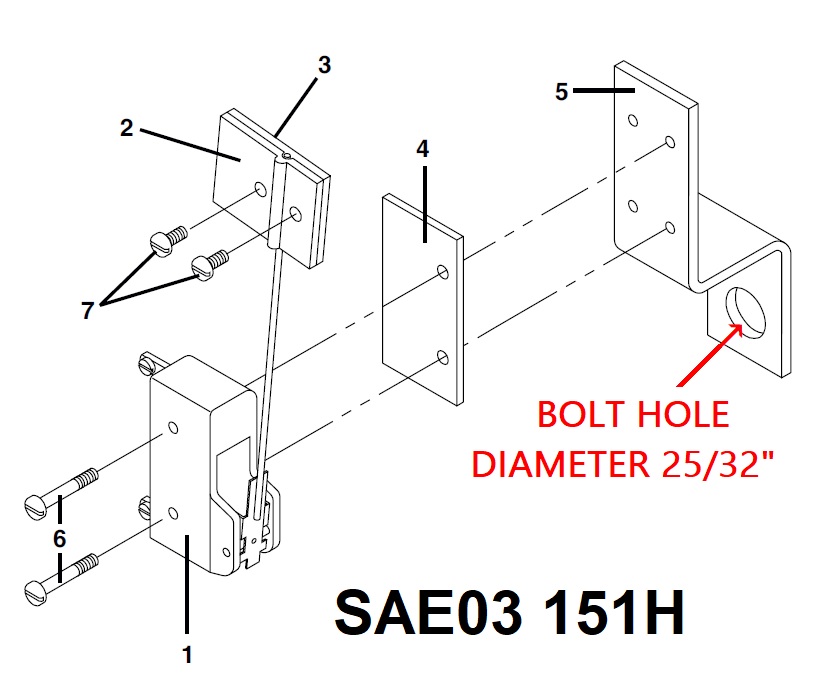

SAE03 151H
ASSY=VIBRATION SWT, 3022H7
SAME AS SAE03 151 WITH DIFFERENT BRACKET

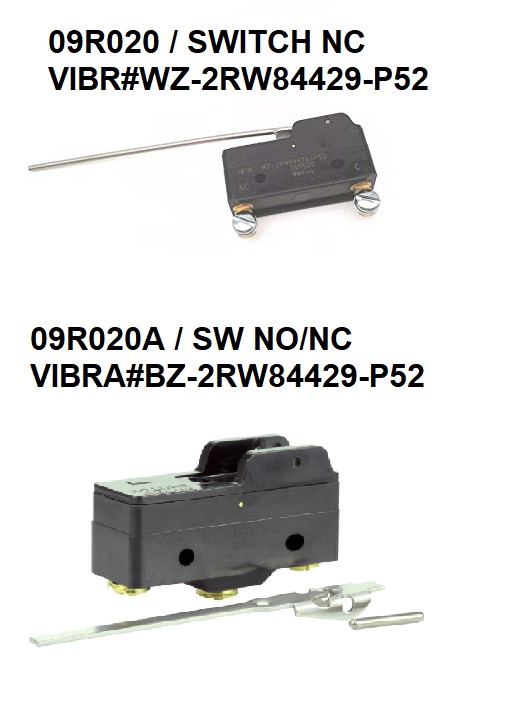

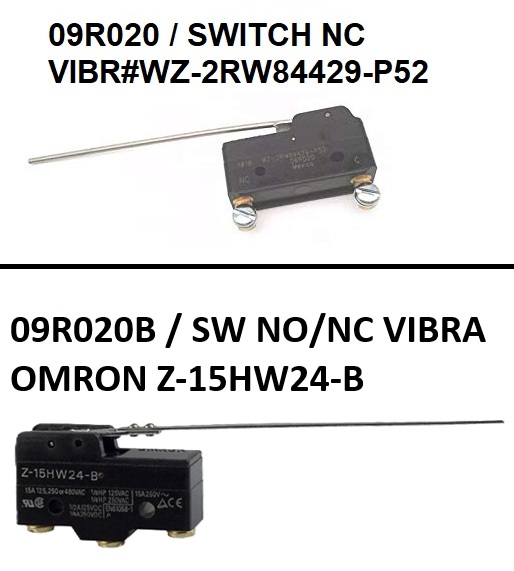

09R020 - 09R020A COMPARISON

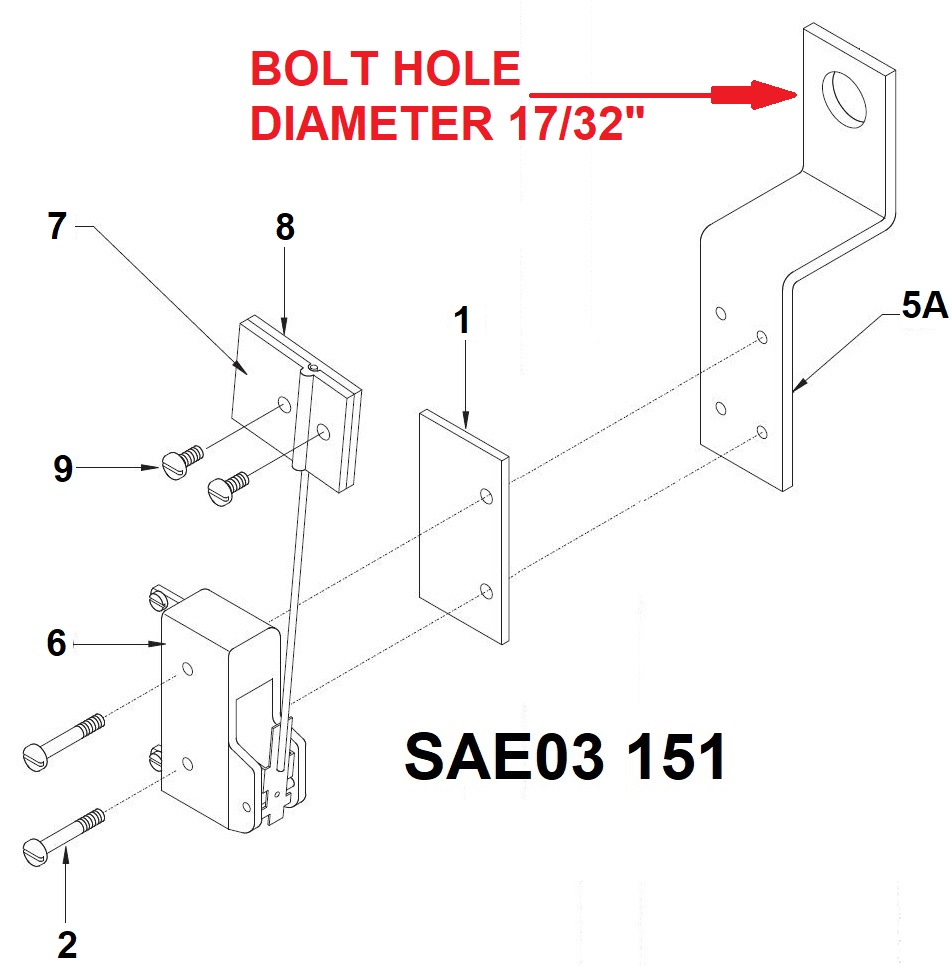

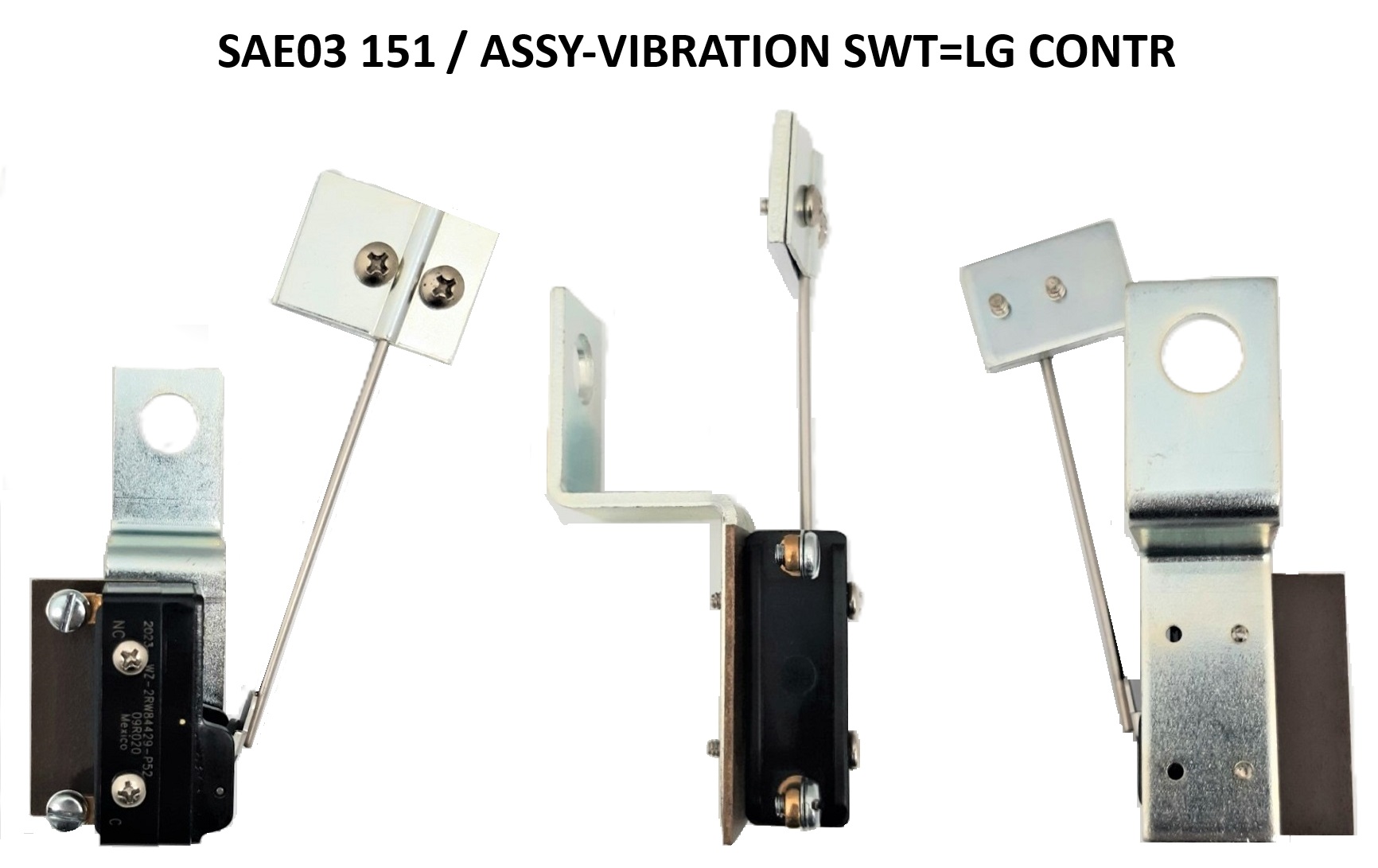

SAE03 151 By far the most common vibration switch. No models listed because this is probably the part you're looking for. If a webpage search for your model does not provide any results, this is probably the switch you need. Refer to diagrams and pertinent measurements.
