Excursion switch for excess movement with out of balance loads. Used on suspended Washer Extractors and Centrifugal Extractors

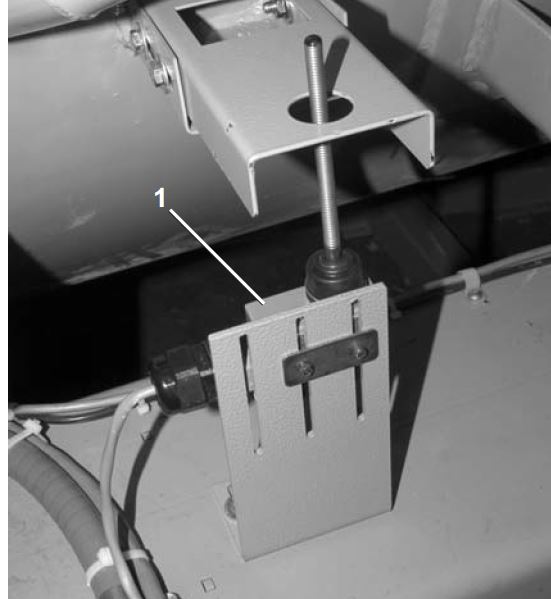

An Excursion Switch is a motion limit switch. You only find these on machines that have a suspension system integrated. There is no excursion switch on a rigid mount machine. The rat tail of the switch is aligned inside an actuator window, a bracket that has a circular or rectangular opening. Rectangular windows are often adjustable. If the switch makes (hit by the window) the machine is forced to stop extract and recycle back through a distribution cycle in order to rebalance the load.
There is also a vibration switch (a microswitch with a weight on the wand) on most machines, mounted in a control box or panel. Since the controls should not vibrate, the vibration switch is best described as "the machine is trying to leave the building" switch. It best indicates a frame not properly bolted the floor. It is not a precision device. Some folks try to adjust it as if it is a precision device and while that may prove entertaining, it was not intended for this use.
See pictures below for excursion switches. For information on Vibration Switches, click HERE
Below is a table of Bracket Assemblies and Cable Assemblies by model number.

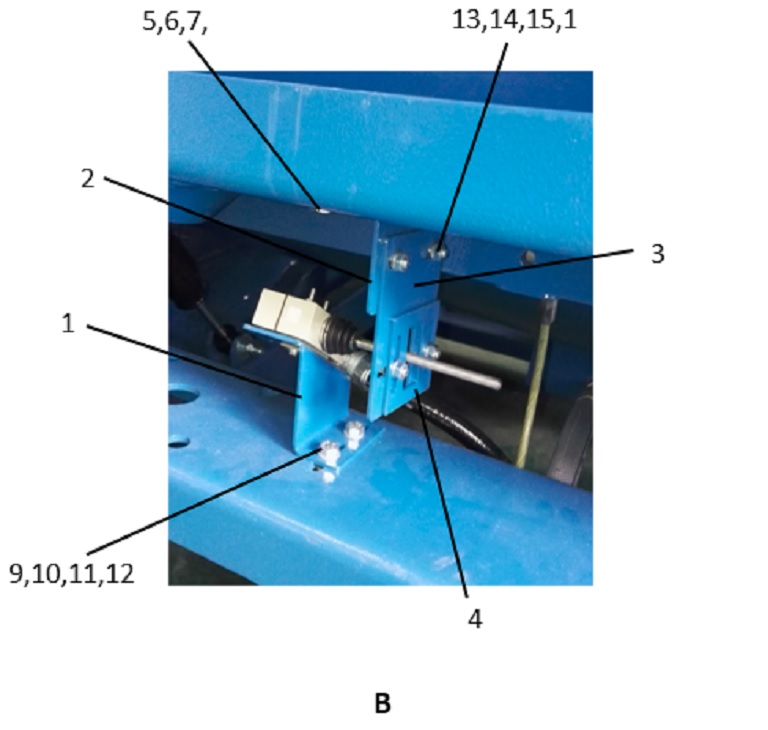

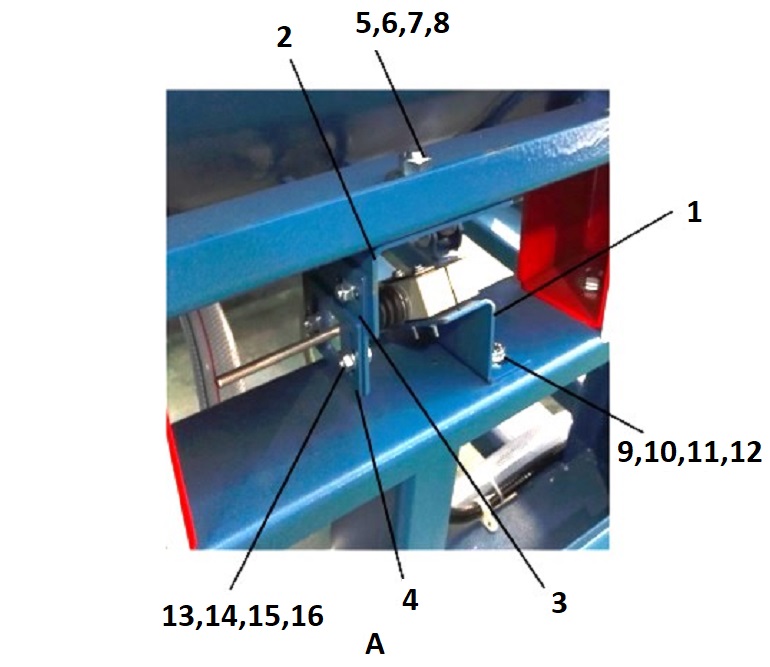

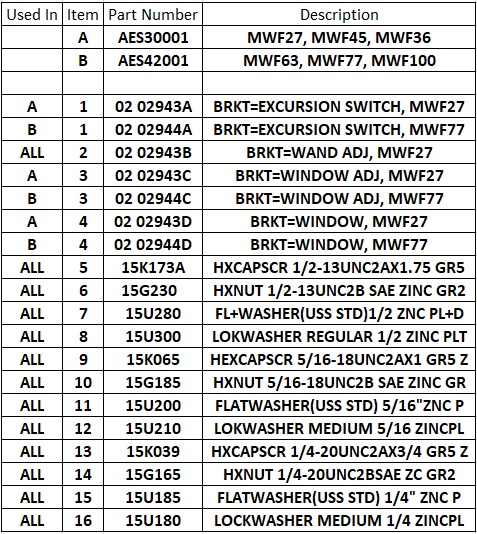

For Excursion part information on suspended import models - CSM - click HERE
EXCURSION SWITCH

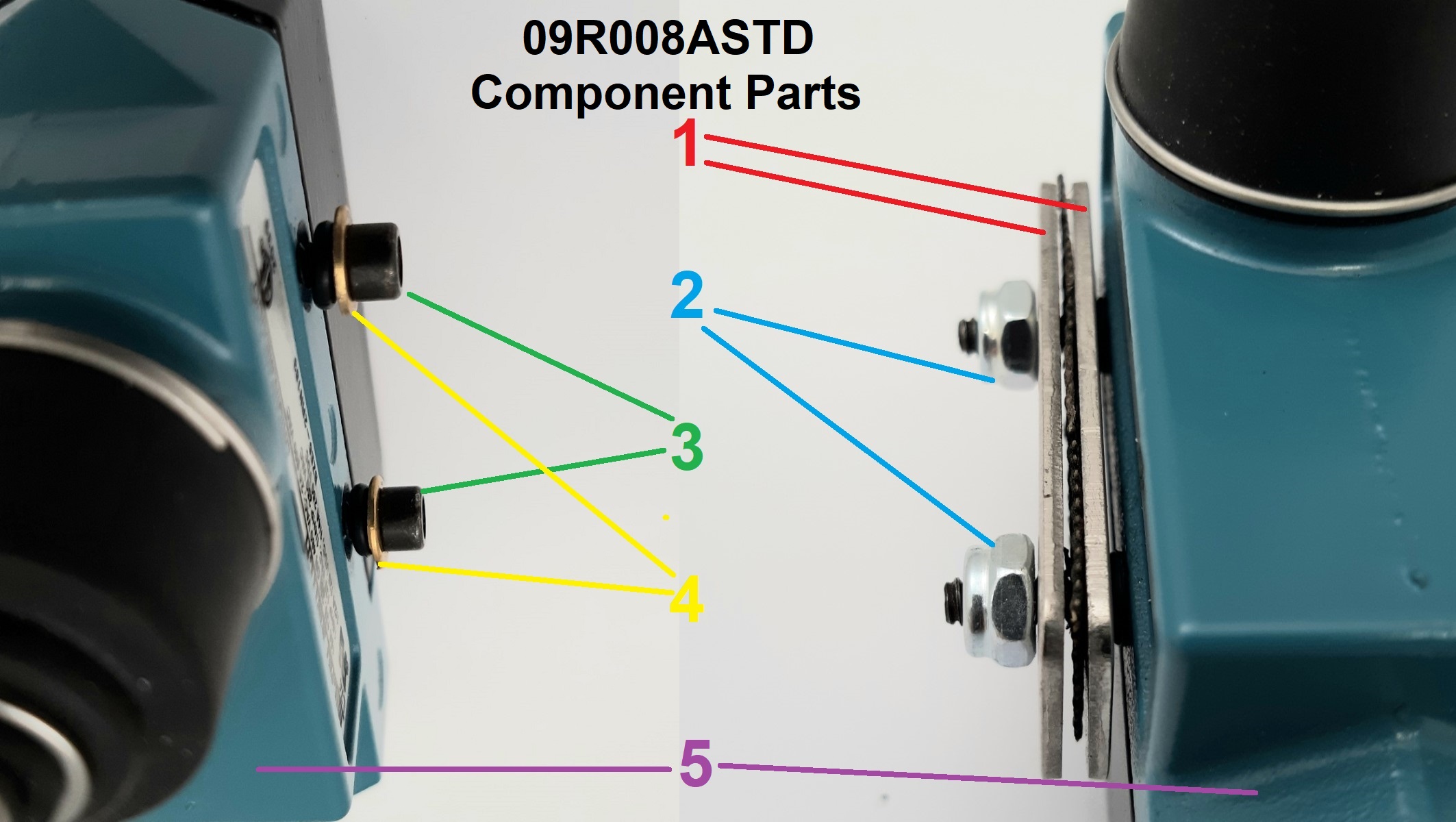

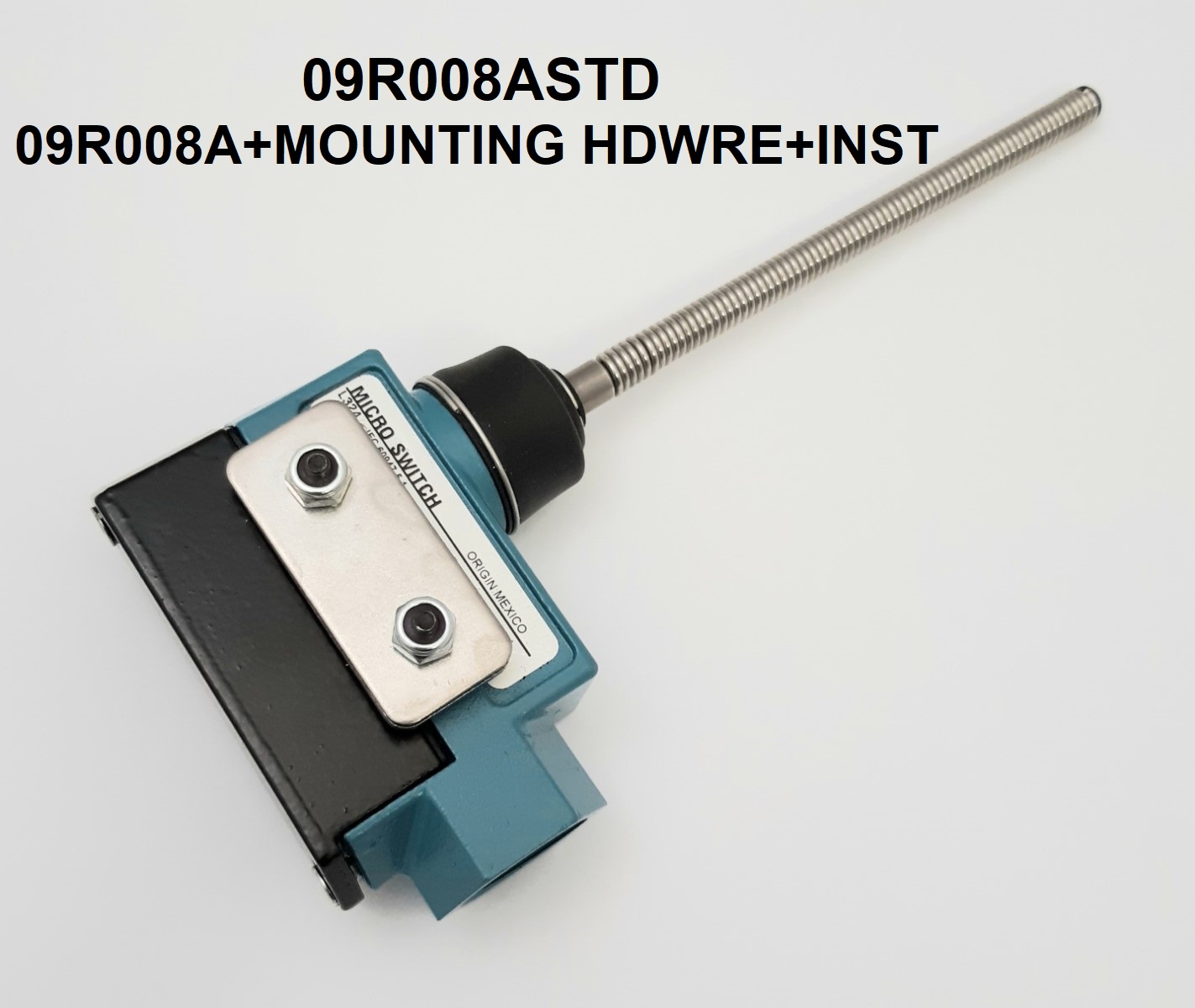

There are two Excursion Switches used on Milnor washers and extractors. The first and most common is 09R008ASTD / 09R008A+MOUNTING HDWRE+INST
NUMBER
PART NUMBER
DESCRIPTION
1
02 10391
COVER STRIP=MICRO SW #6-8
2
15G072
HXCTRLOKNUT 6-32IFI100 ZINC GR
3
15K009
SKCPSCR 6-32 3A1 5/8 ALLOY
4
15U060
FLAT WASHER#6 ANSI TYPEB BRASS
5
09R008A
MICSW SPDT BZE6-2RN183

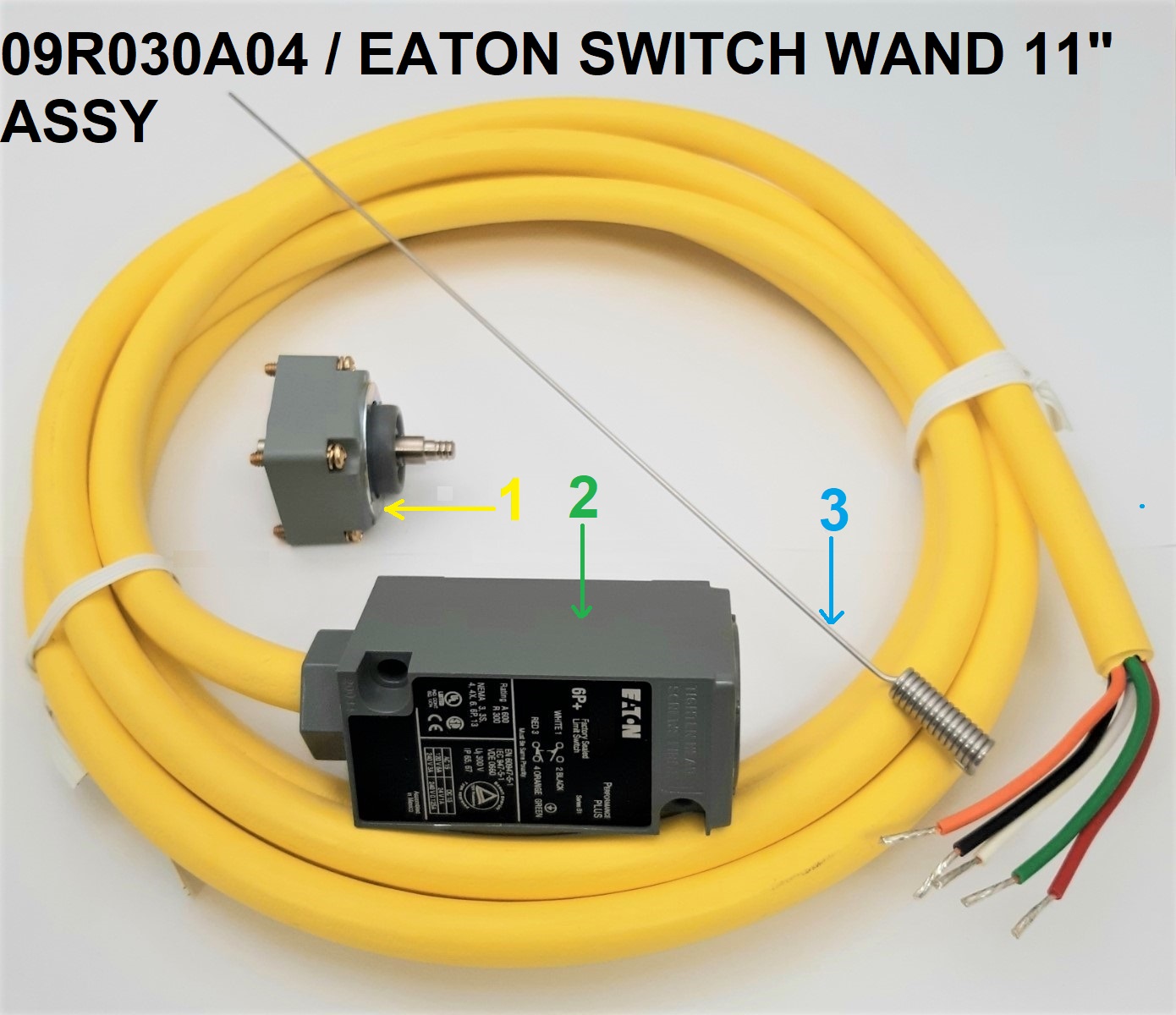

The second Excursion Switch is 09R030A04 / EATON SWITCH WAND 11" ASSY. Used on larger extractors after 2014. This is a stand alone part and not nested within a cable or bracket build of materials.
NUMBER
PART NUMBER
DESCRIPTION
1
09R030A02
EATON SWITCH
2
09R030A03
EATON ACUTATOR HEAD
3
09R030A01
EATON WAND 11"
BRACKET AND CABLE ASSEMBLIES BY MODEL NUMBER
30022F8J, 30022F8R. 30022F8S, 30022F8W
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES30201
10CV30FWE
bmp940035
09R008ASTD structured to cable assy
30022X8J , 30022X8R, 30022X8W
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES30212
10C75X8JEX
N/A
09R008ASTD structured to cable assy
36026X8J, 36026X8R, 36026X8W
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES36261
10C75X8JEX
BMP040018
09R008ASTD structured to cable assy
36030F8R, 36030F8S, 36030F8J, 36030F8W
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES35001S BEFORE 9/30/2002 GES42001 AFTER 10/1/2002
10CV36SE
BMP950013 BEFORE 9/30/2002 BMP010037 AFTER 10/1/2002
BMP950013 BEFORE 9/30/2002 BMP010037 AFTER 10/1/2002
09R008ASTD structured to cable assy
42044SP2, 42044SP3
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
E03 33100A
10C644SE
BMP060038
09R008ASTD structured to bracket assy
42044SP2 SM, 42044SR2, 42044SR3
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
E03 33100A
10C42SMSEX
BMP060038
09R008ASTD structured to bracket assy
42044D72, 42044WP2, 42044WP3
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
E03 33100
10C644DE 4244WP2 after 2-3-2015 - 10Y42WMSEX
BMP030028
09R008ASTD structured to bracket assy
42044CP2, 42044CP3, 42044NP2, 42044NP3, 42044WR2
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
E03 33100
4244CP2/3 4244NP2/3 NO CABLE INFO 42044WR2 - 10C42WMSEX
BMP030028
09R008ASTD structured to bracket assy
48032BHP, 48036QHP, 48036QTL, 48036J6P
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
ESL11001
10C648Q3E 4832BHP - 10C648B3E
BMP830043R
09R008ASTD structured to bracket assy
48040F7B, 48040F7J, 48040F7W
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES48001
10C7548ES
biiflm13
09R008ASTD structured to cable assy
48040F7N, 48040H7K, 48040H7N, 48040H7R, 48040H7W
Import models 48040F7Z, 48040F7B, 48040F7D, 48040F7J, and 48040F7Z use excursion switch 09R008ASTD. However, Bracket and Cable part info are unavailable at this time
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES48003
10C7648ES
BMP120053
09R008ASTD structured to cable assy
48040M7K, 68036M5K, 72046M5K
BRACKET ASSEMBLY
CABLE ASSEMBLY
PAGE IN MANUAL
ADDITIONAL INFO
GES68001
10C68MES
BMP150047
09R008ASTD structured to cable assy 48040M7K may have different parts in bracket assembly. See pictures at BMP150047 diagram
EXTRACTORS Some extractors used the 09R030A04 switch after 2014 other machines continued to use 09R008ASTD. Please refer to the pictures above to determine which you have. Similar models were shipped with each version. 09R030A04 comes with its own cable.
