Steam Spargers / Steam Injection Nozzles by Model Number
A list of Steam Spargers / Steam injection nozzles by model number. Pictures / Drawings provided for confirmation.

Below is a list of steam spargers / steam injection nozzles deliniated by model number.  Please search for your model number and check the picture or drawing for verification.

For information on Steam Inlet Valves and Y-Strainers click Steam Inlet valves, Y-Strainers parts for washer-extractor models



30022S4J / 30022S5G / 30015J4P / 30015M4J / 30015M5J / 30015M6J / 30020M5G / 30020M5J / 30022M5J / 30022M6J

PART NUMBERDESCRIPTIONADDITIONAL INFO

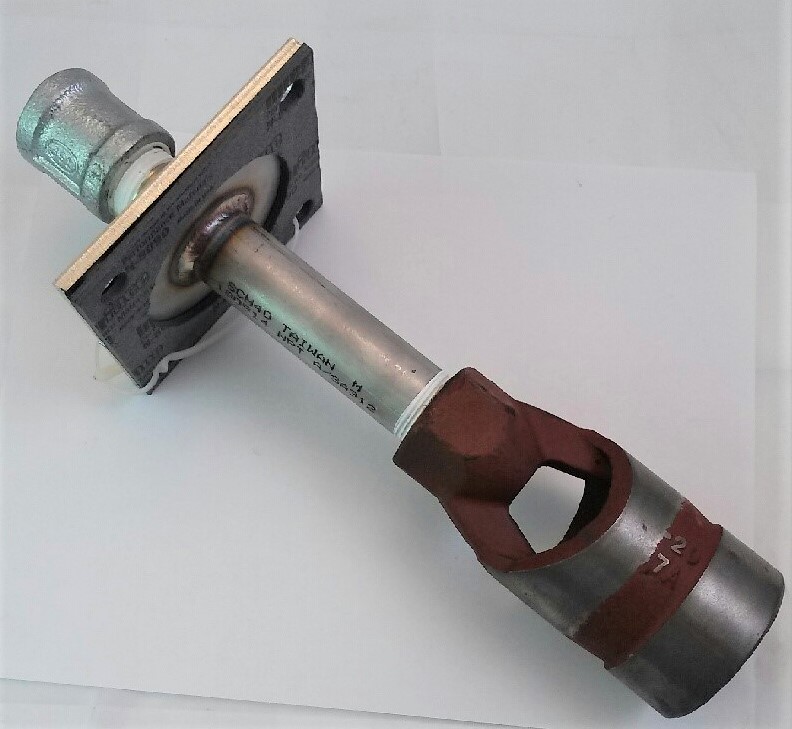

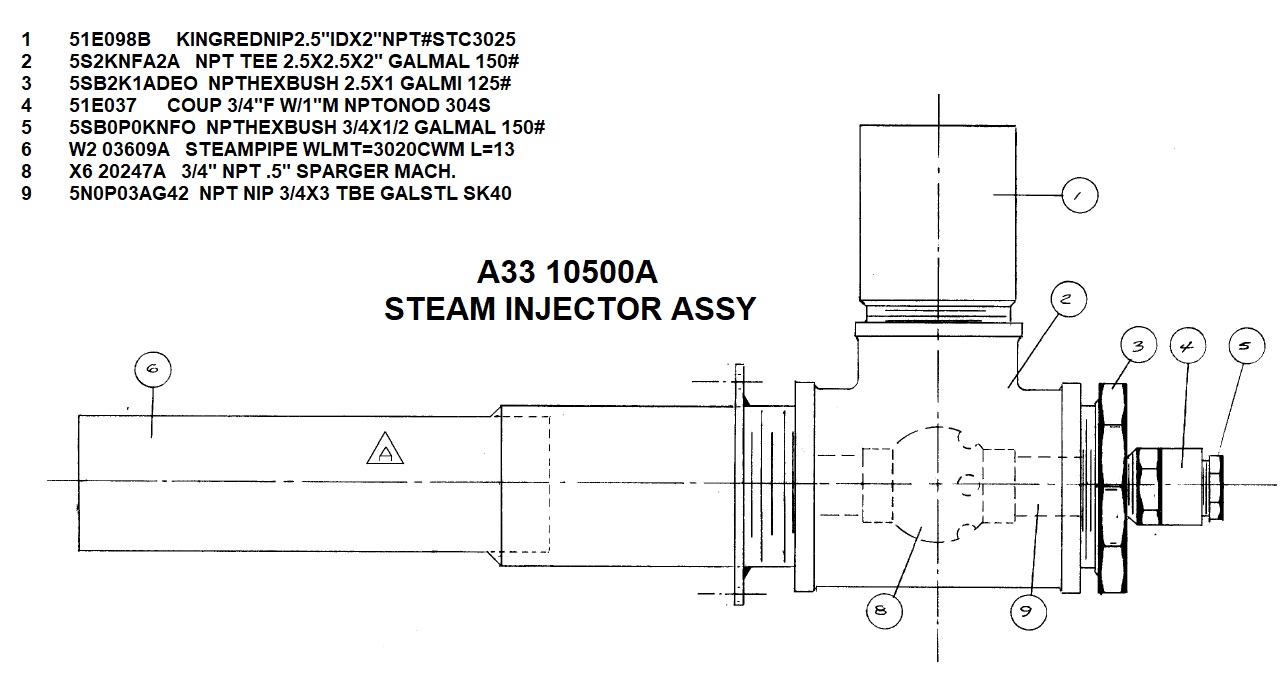

A33 10500A*STEAM INJECTOR ASSY C5MNozzle Assembly
User-added image




30022F8J / 30022F8W / 30022H7J / 30022H8J / 30015V5J / 30015V7J / 30015V8Z / 30015VRJ / 30022V6J / 30022V8Z / 30022VRJ / 30022VZZ / 36021V5J / 36021V5Z / 36021V7J / 36021V7Z / 36026V5J / 36026V5Z
36026V6J / 36026V7J / 36026V7W / 36026V7Z / 42026V6J / 42026V6W / 42026V6Z / 42030V6J / 42030V6Z / 36026Q4G / 36026Q4J / 36026Q4P / 36026Q6G / 36026Q6J / 36026Q6P / 36021BWE / 36026QWE / 42026Q4G
42026Q4J / 42026Q6G / 42026Q6J / 42026Q6P

PART NUMBERDESCRIPTIONADDITIONAL INFO

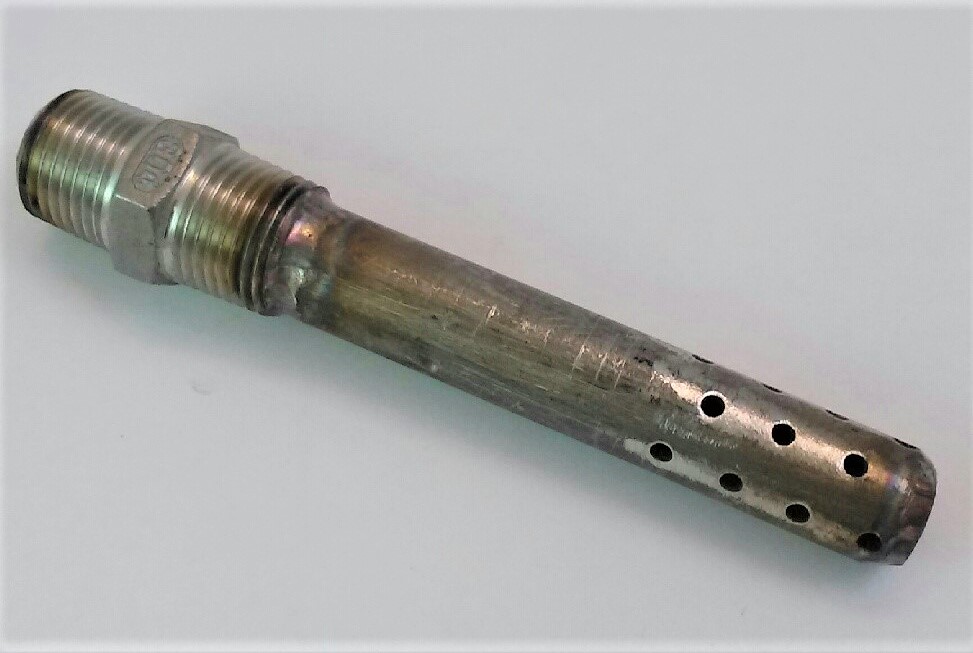

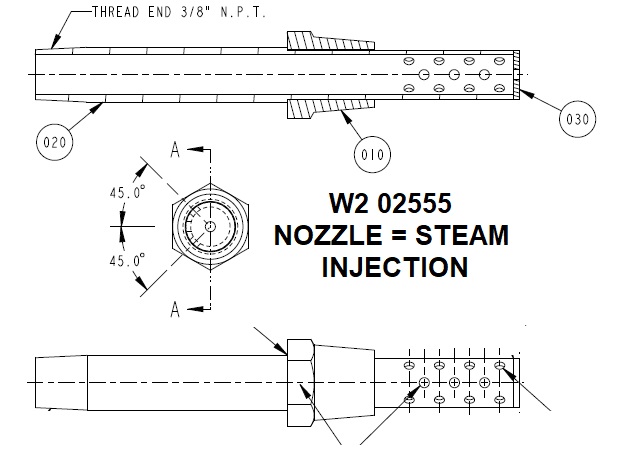

W2 02555NOZZLE=STEAM INJECTIONNozzle Assembly
User-added imageUser-added image







30022X8J / 30022X8R / 30022X8W / 36026X8J / 36026X8R / 36026X8W / 42026X7J / 42026X7R / 42026X7W / 42032X7J / 42032X7R / 42032X7W

PART NUMBERDESCRIPTIONADDITIONAL INFO

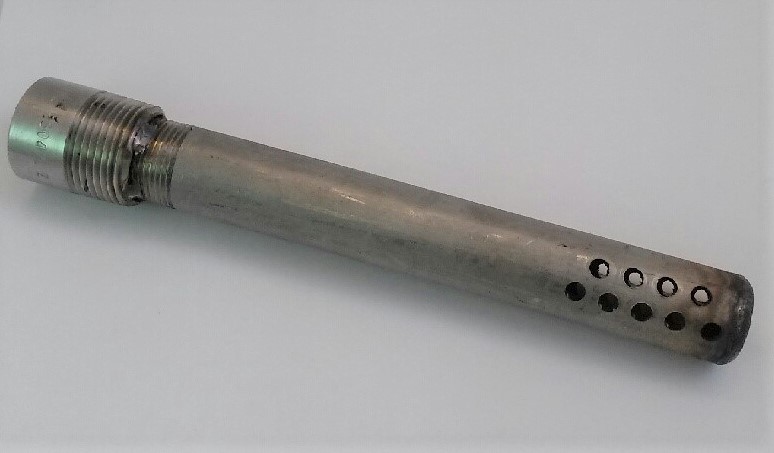

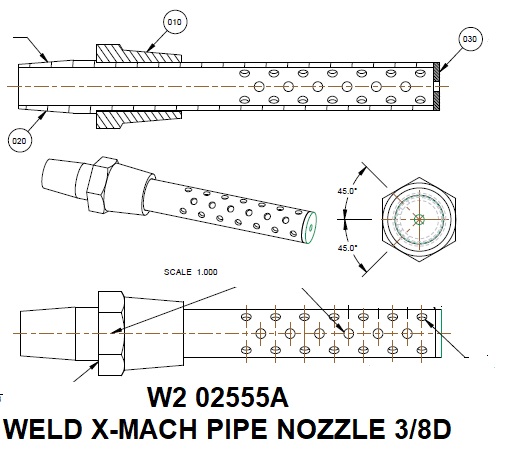

W2 02555AWELD X-MACH PIPE NOZZLE 3/8D
User-added imageUser-added image






36021F8P

PART NUMBERDESCRIPTIONADDITIONAL INFO

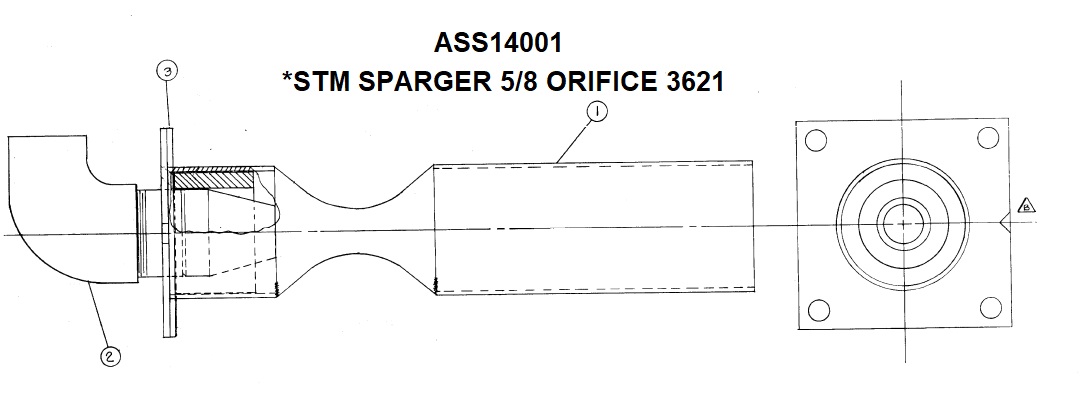

ASS14001*STM SPARGER 5/8 ORIFICE 3621Sparger Assembly
5/8 Inch Orifice
User-added image




42031CP2 / 42031CP3 / 42031WE3 / 42031WP2 / 42031WP3 / 42044CP2 / 42044CP3 / 42044NP2 / 42044NP3 / 42044WE2 / 42044WE3 / 42044WP2 / 42044WP3 / 42044WR2 / 42044WR3
52038WE1 / 52038WP1 / 52038WTB / 52038WTF / 52038WTG / 52038WTH / 52038WTL / 52038WTN / 60044WE2 / 60044WE3 / 60044WP2 / 60044WP3 / 60044WR2 / 60044WR3 / 64040E6N

PART NUMBERDESCRIPTIONADDITIONAL INFO

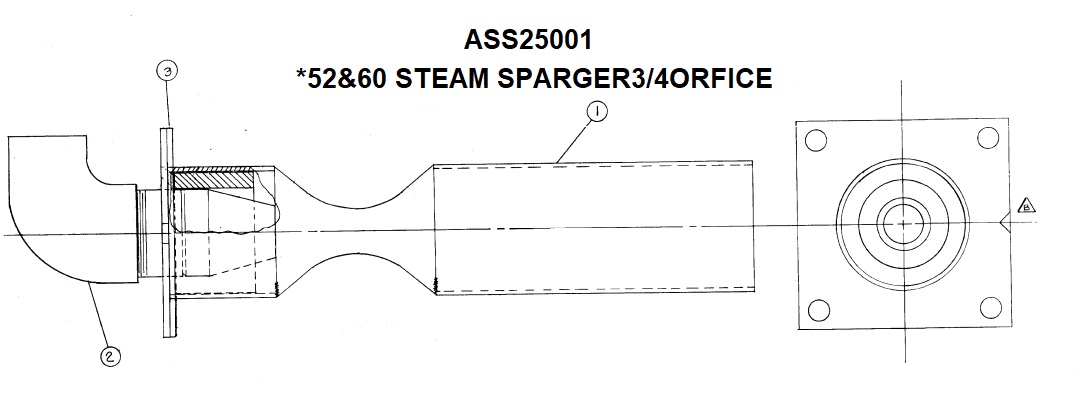

ASS25001*52&60 STEAM SPARGER3/4ORFICESparger Assembly
3/4 Inch Orifice
User-added image









42026QHP / 48032BHP

PART NUMBERDESCRIPTIONADDITIONAL INFO

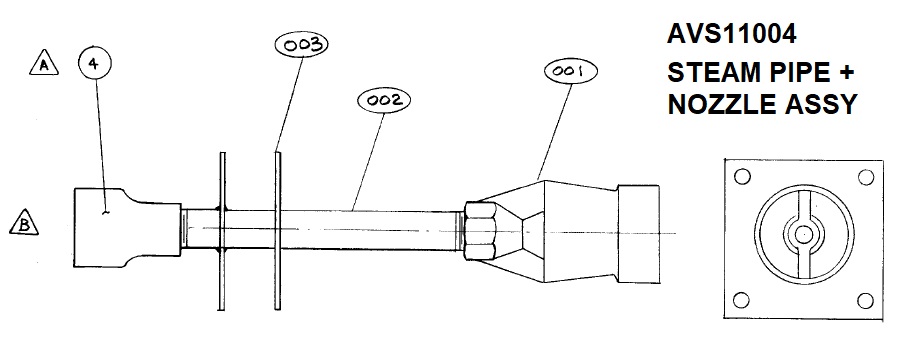

AVS11004*STEAM PIPE + NOZZLE ASSY
User-added image









36030F8J / 36030F8R / 36030F8S / 36030F8W / 36030J8P / 42032F7S / 42032F7W / 42032J7P / 42032F7R

PART NUMBERDESCRIPTIONADDITIONAL INFO

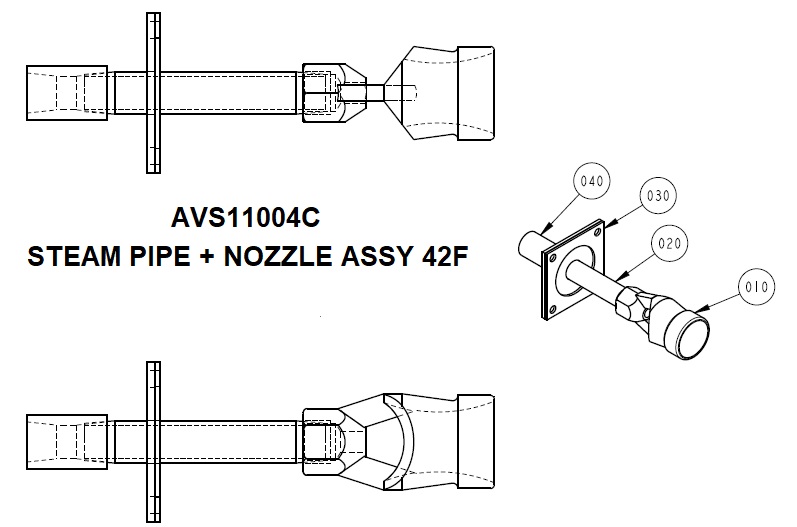

AVS11004CSTEAM PIPE + NOZZEL ASSY 42F
User-added imageUser-added image









42032F7J / 48040H7K / 48040H7N / 48040H7R / 48040H7W / 48040M7K / 48040F7B / 48040F7D / 48040F7J / 48040F7N / 48040F7W / 48040F7Z

PART NUMBERDESCRIPTIONADDITIONAL INFO

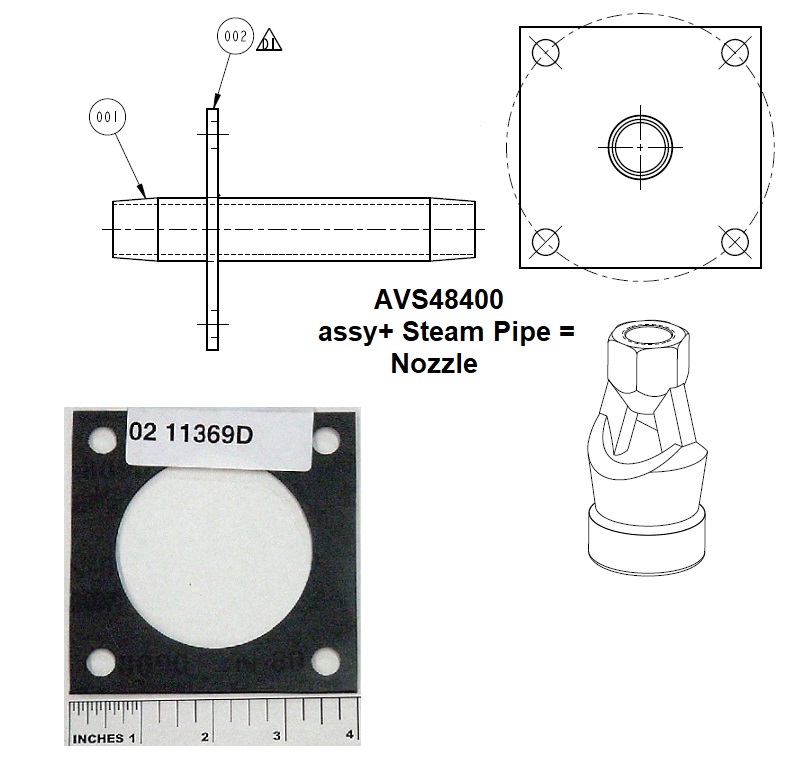

AVS48400ASSY=STEAM PIPE+NOZZLE,4840
User-added image










42031SG2 / 42031SG3 / 42031SP2 / 42031SP3 / 42044SP2 / 42044SP3 / 42044SR2 / 42044SR3 / 60044SG2 / 60044SG3 / 60044SP2 / 60044SP3 / 60044SR2 / 60044SR3

PART NUMBERDESCRIPTIONADDITIONAL INFO

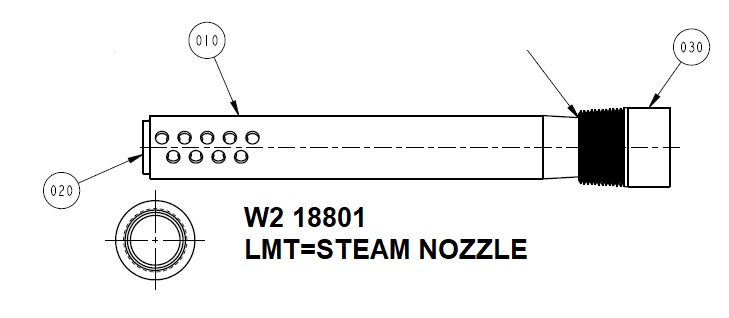

W2 18801*LMT=STEAM NOZZLE
User-added imageUser-added image








68036F5N / 68036F5P / 68036H5K / 68036H5N / 68036M5K / 72046M5K

PART NUMBERDESCRIPTIONADDITIONAL INFO

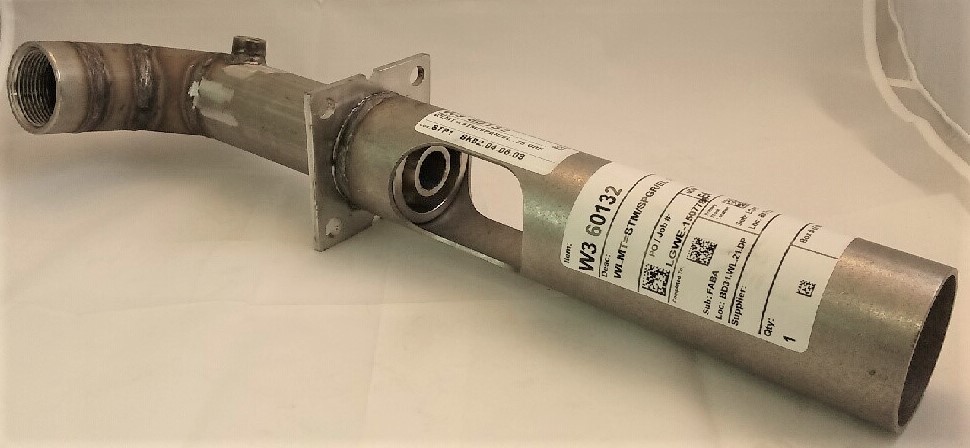

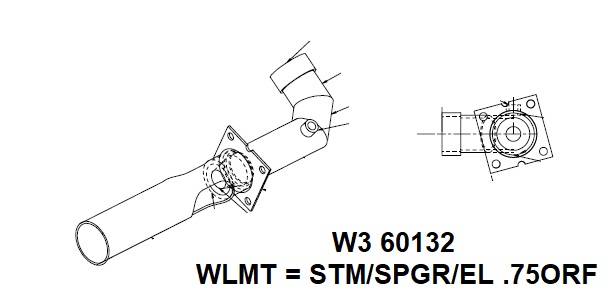

W3 60132WLMT=STM/SPGR/EL .75 ORF
User-added imageUser-added image









64046E6N / 64046J6N / 72044SP2 / 72044SP3 / 72044SR2 / 72044SR3 / 72044WP2 / 72044WP3 / 72044WR2 / 72044WR3

PART NUMBERDESCRIPTIONADDITIONAL INFO

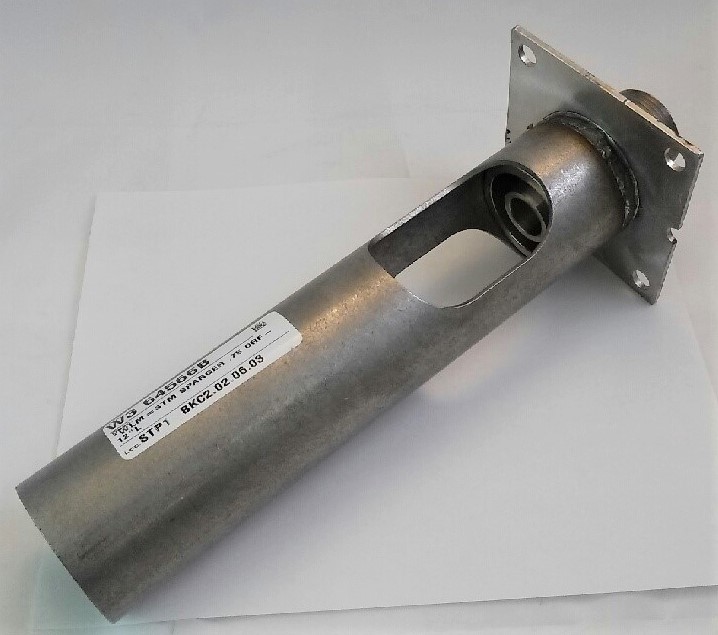

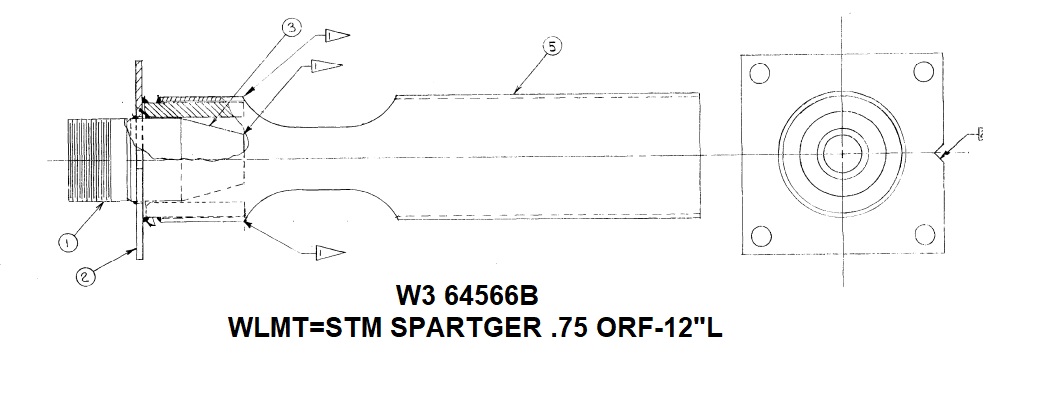

W3 64566B*WLM=STM SPARGER .75 ORF-12"L
User-added imageUser-added image







72046E5N

PART NUMBERDESCRIPTIONADDITIONAL INFO

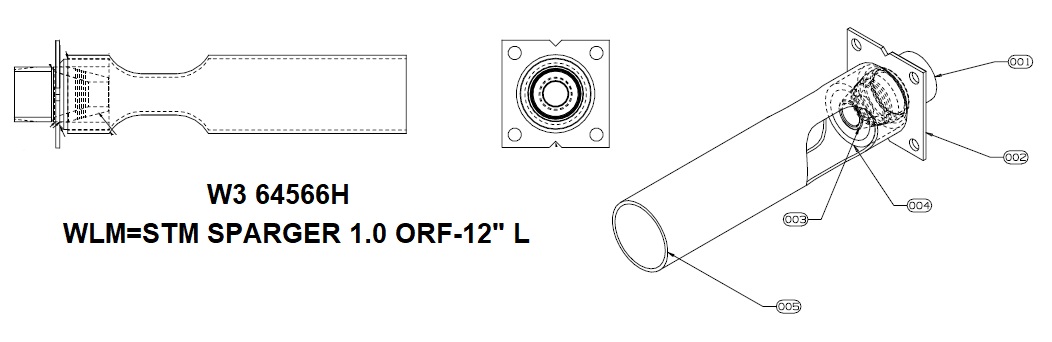

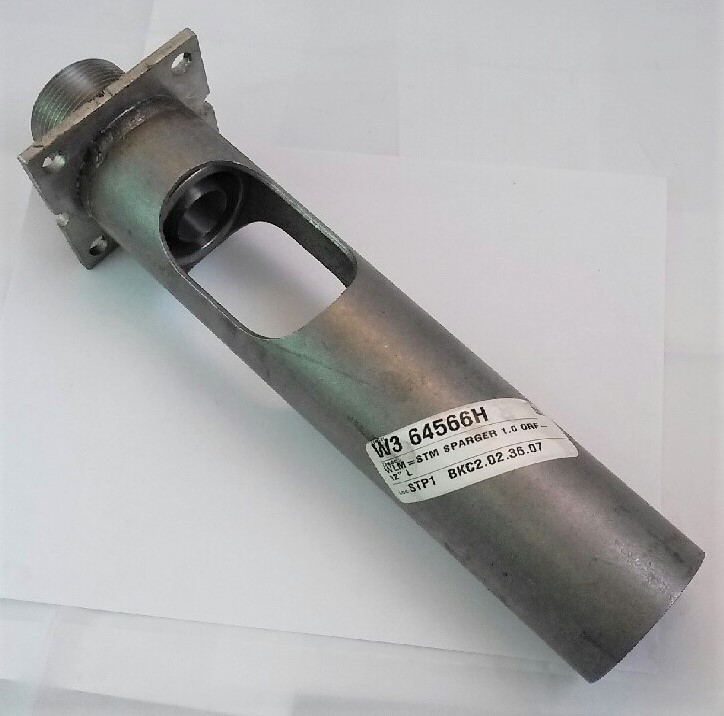

W3 64566HWLM=STM SPARGER 1.0 ORF-12" L
User-added imageUser-added image









64050E6N

PART NUMBERDESCRIPTIONADDITIONAL INFO

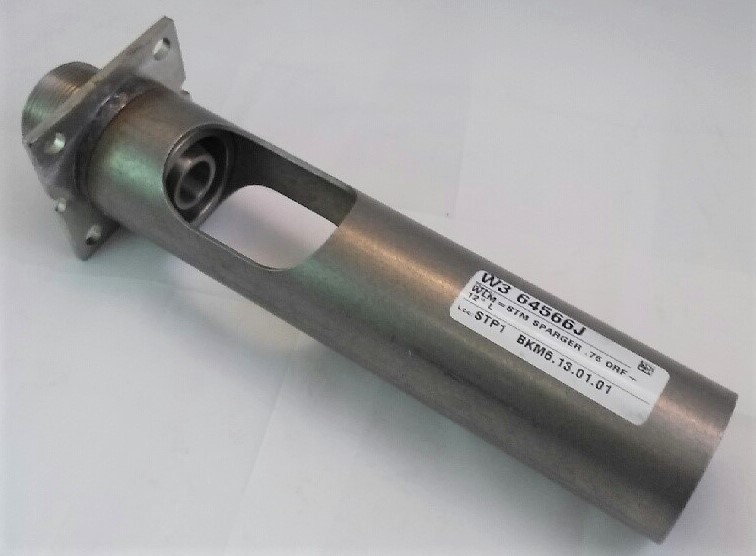

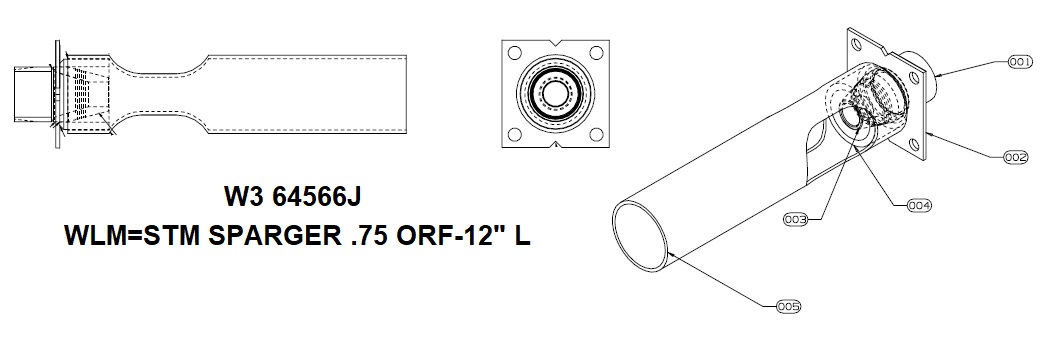

W3 64566JWLM=STM SPARGER .75 ORF-12" L
User-added imageUser-added image






MWF27J8 / MWF27Z8 / MWF45J8 / MWF45Z8 / MWF63J7 / MWF63Z7 / MWF77J7 / MWF77Z7

PART NUMBERDESCRIPTIONADDITIONAL INFO
98CX02555ASTEAM SPARGER 42XIMPORT MODELS
User-added image
