Steam Inlet valves, Y-Strainers parts for washer-extractor models
A list of Steam valve, Y-Strainer part numbers for applicable washer extractors

Below is a list of Inlet Valves and Y-Strainers for the Steam function on washer extractors.  Model numbers that use the pictured valve and strainer are listed above the picture.  Use this to search for your model number.  Note that because machine configurations can vary, the pictured listed under the model numbers may not be an exact match.  Please have the voltage and the pipe size to compare to the pictured part.  This is also necessary in case your model number is not listed.

24 Volt steam valves, 1/2 Inch, 1 Inch, 1 1/2 Inch, and 2 Inch air actuated steam valves as well as 1 inch and 3 inch Y-Strainers are pictured at bottom of page.  These parts are not usually used in washer extractors.

For Information on steam spargers and steam injection nozzles click: Steam Spargers / Steam Injection Nozzles by Model Number


30022F8J / 30022F8W / 30022H7J / 30022H8J  / 30022X8J / 30022X8R / 30022X8W

 Part NumberDescriptionAdditonal Info

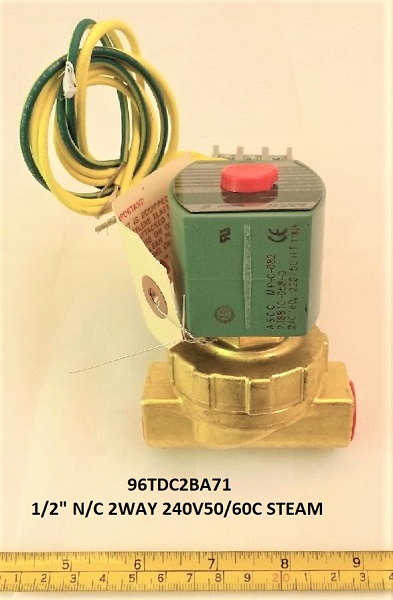

Steam Inlet Valve96TDC2BA711/2" N/C 2WAY 240V50/60C STEAM220-240 Volt

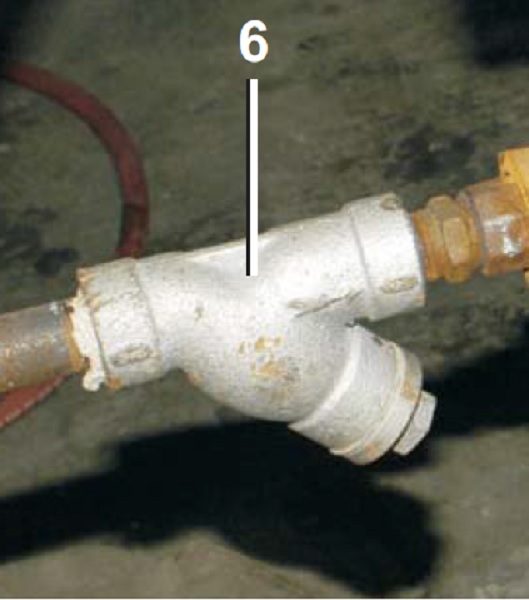

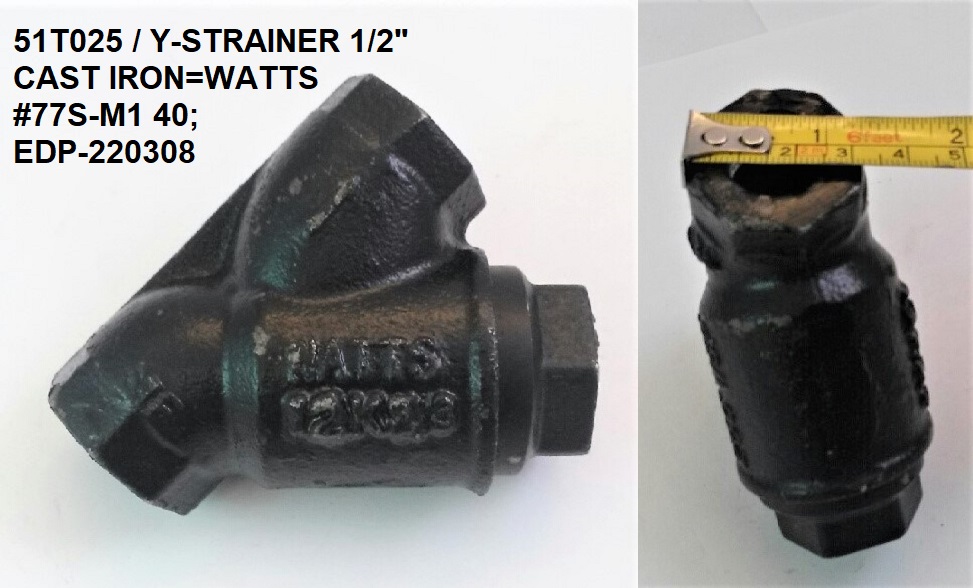

Y-Strainer51T025Y-STRAINER 1/2" CAST IRON=WATTS#77S-M1 40

User-added imageUser-added image





30022S4J / 30022S5G

 Part NumberDescriptionAdditional Info

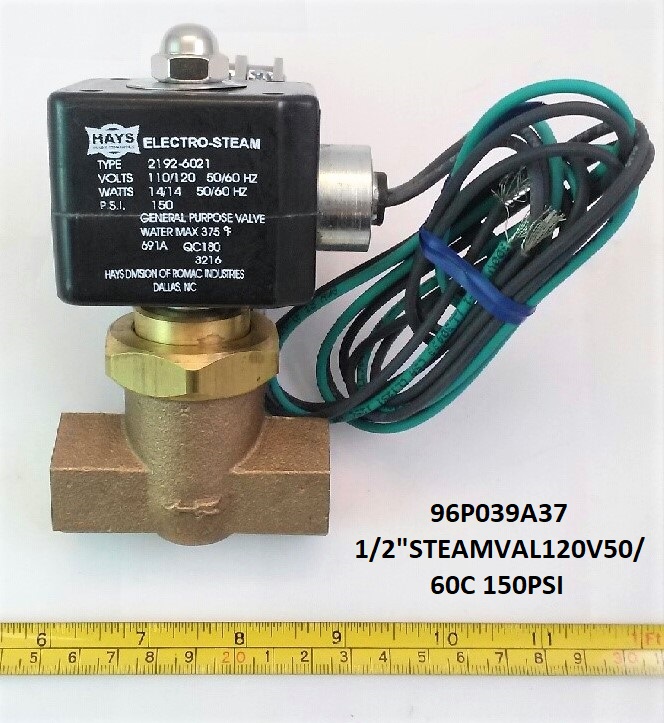

Steam Inlet Valve96P039A371/2"STEAMVAL120V50/60C 150PSI110-120 Volt
Y-Strainer51T025Y-STRAINER 1/2" CAST IRON=WATTS#77S-M1 40
User-added imageUser-added image






30015J4P / 30015M4J / 30015M5J / 30015M6J / 30020M5G / 30020M5J / 30022M5J / 30022M6J / 30015V5J / 30015V7J / 30015V8Z / 30015VRJ / 30022V6J / 30022V8Z / 30022VRJ / 30022VZZ

 Part NumberDescriptionAddional Info

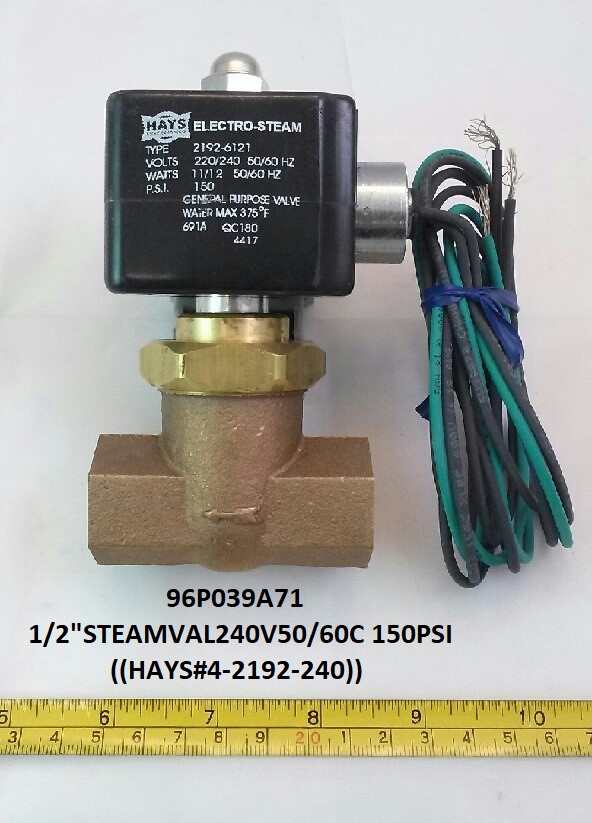

Steam Inlet Valve96P039A711/2"STEAMVAL240V50/60C 150PSI220-240 Volt
Y-Strainer51T025Y-STRAINER 1/2" CAST IRON=WATTS#77S-M1 40
User-added imageUser-added image






36021V5J / 36021V5Z / 36021V7J / 36021V7Z / 36026V5J / 36026V5Z / 36026V6J / 36026V7J / 36026V7W / 36026V7Z / 42026V6J / 42026V6W / 42026V6Z / 42030V6J / 42030V6Z

 Part NumberDescriptionAdditional Info

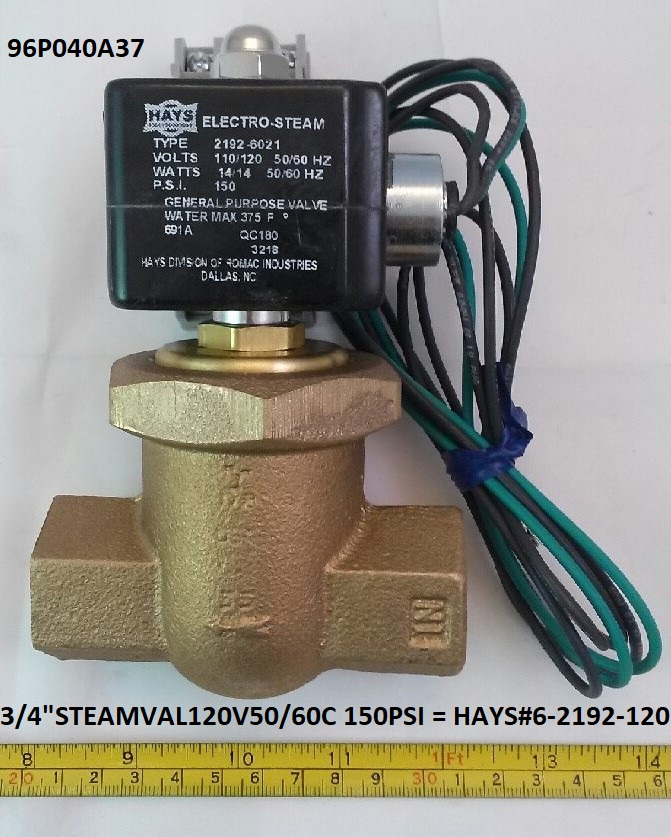

Steam Inlet Valve96P040A373/4"STEAMVAL120V50/60C 150PSI = HAYS#6-2192-120110-120 Volt

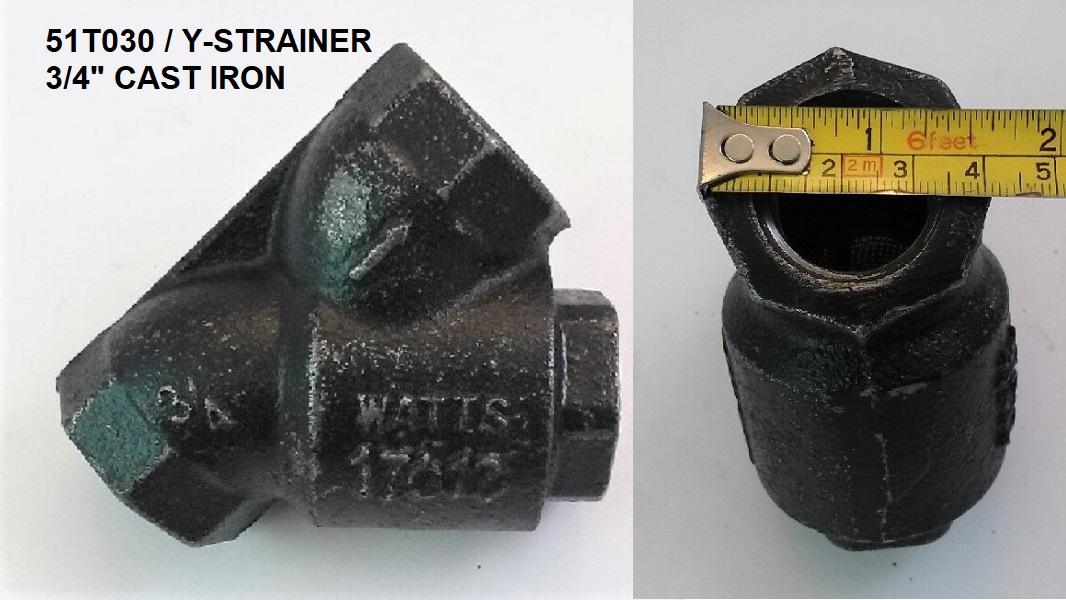

Y-Strainer51T03001Z Y-STRAINER 3/4" CAST IRON
User-added imageUser-added image






36026X8J / 36026X8R / 36026X8W / 42026X7J / 42026X7R / 42026X7W / 42032X7J / 42032X7R / 42032X7W

 Part NumberDescriptionAdditional Info

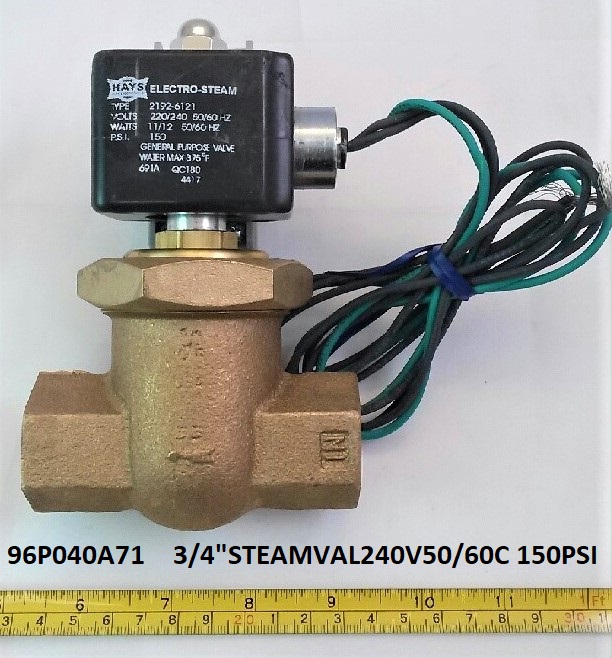

Steam Inlet Valve96P040A713/4"STEAMVAL240V50/60C 150PSI220-240 Volt
Y-Strainer51T03001Z Y-STRAINER 3/4" CAST IRONSee Note Below Picture
User-added imageUser-added image
NOTE: Some 36026X8J may have shipped with a 1 inch strainer, part number 51T040. (pictured at the bottom of page)





36030F8J / 36030F8R / 36030F8S / 36030F8W / 36030J8P / 36026Q4G / 36026Q4J / 36026Q4P / 36026Q6G / 36026Q6J / 36026Q6P

 Part NumberDescriptionAdditional info

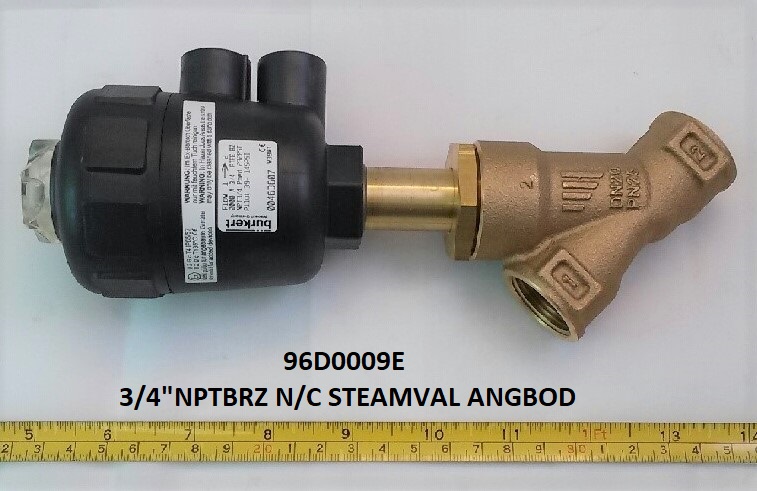

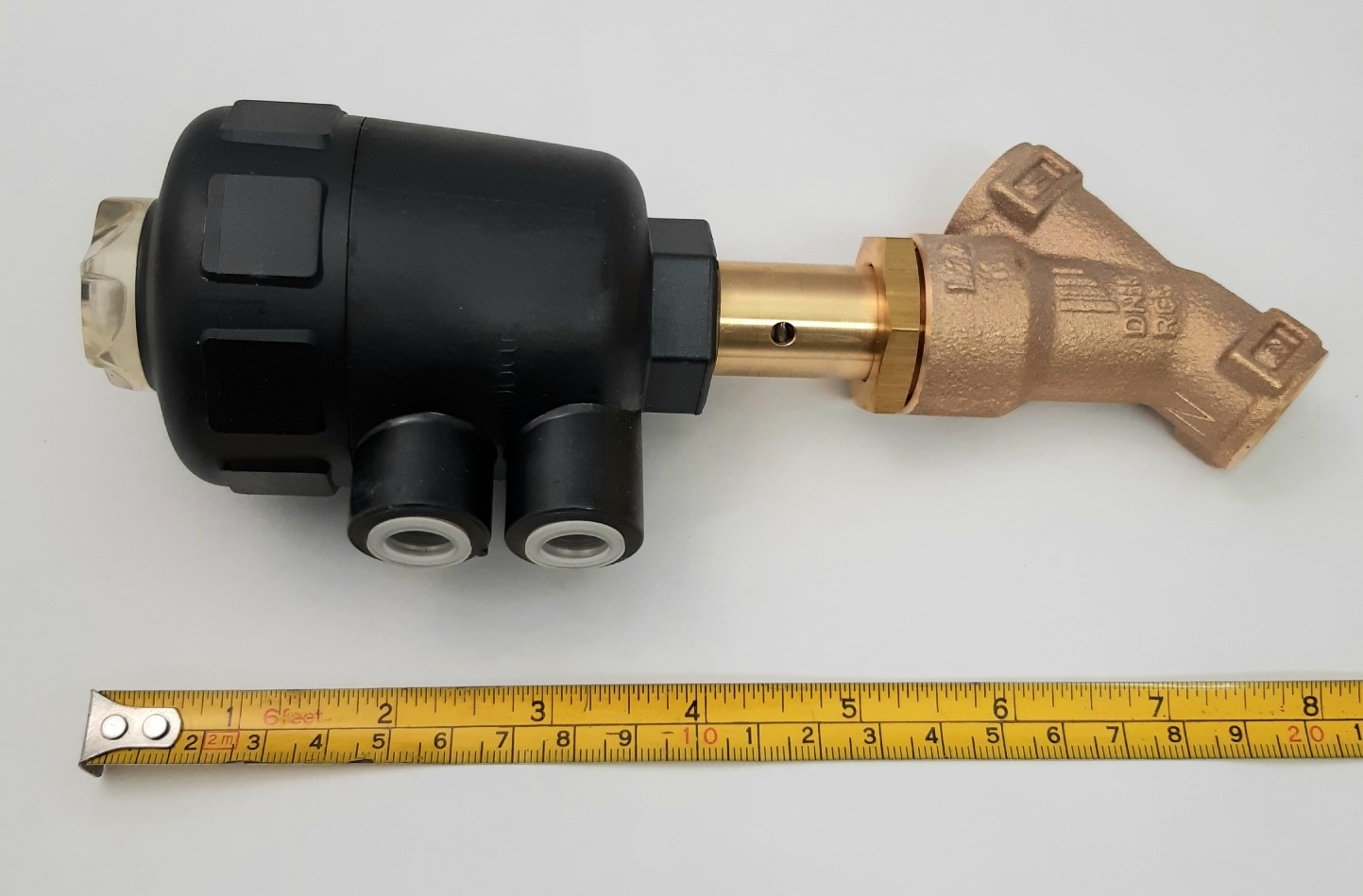

Steam Inlet Valve96D0009E05Z 3/4"NPTBRZ N/C STEAMVAL ANGBODAir Actuated / Normally Closed
Y-Strainer51T03001Z Y-STRAINER 3/4" CAST IRON
User-added imageUser-added image
NOTE: SOME 36026Q6J UNITS SHIPPED WITH 1 1/4" STEAM VALVE








36021BWE / 36021F8P / 36026QWE / 42026Q4G / 42026Q4J / 42026Q6G / 42026Q6J / 42026Q6P / 42026QHP / 42031CP2 / 42031CP3 / 42031SG2 / 42031SG3 / 42031SP2 / 42031SP3 / 42031WE3 / 42031WP2 / 42031WP3
42032F7J / 42032F7R / 42032F7S / 42032F7W / 42032J7P / 42044CP2 / 42044CP3 / 42044NP2 / 42044NP3 / 42044SP2 / 42044SP3 / 42044SR2 / 42044SR3 / 42044WE2 / 42044WE3 / 42044WP2 / 42044WP3 / 42044WR2
42044WR3 / 48032BHP / 48040H7K / 48040H7N / 48040H7R / 48040H7W / 48040M7K / 52038WE1 / 52038WP1 / 52038WTB / 52038WTF / 52038WTG / 52038WTH / 52038WTL / 52038WTN / 60044SG2 / 60044SG3 / 60044SP2
60044SP3 / 60044SR2 / 60044SR3 / 60044WE2 / 60044WE3 / 60044WP2 / 60044WP3 / 60044WR2 / 60044WR3 / 64040E6N / 64046E6N / 64046J6N / 64050E6N / 68036F5N / 68036F5P / 68036H5K / 68036H5N / 68036M5K
72044SP2 / 72044SP3 / 72044SR2 / 72044SR3 / 72044WP2 / 72044WP3 / 72044WR2 / 72044WR3 / 72046E5N / 72046M5K

 Part NumberDescriptionAdditional Info

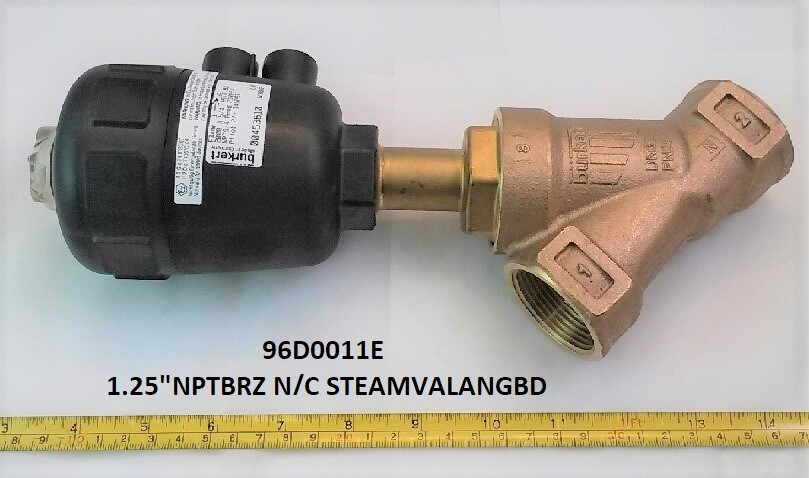

Steam Inlet Valve96D0011E1.25"NPTBRZ N/C STEAMVALANGBDAir Actuated / Normally Closed

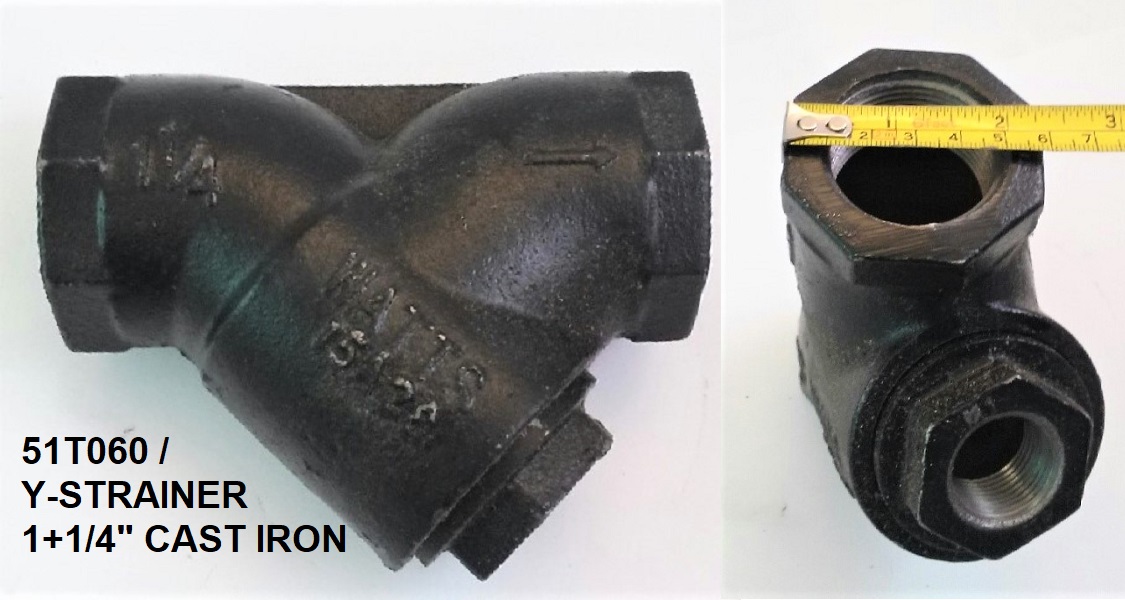

Y-Strainer51T060Y-STRAINER 1+1/4" CAST IRON
User-added imageUser-added image







48040F7B / 48040F7D / 48040F7J / 48040F7N / 48040F7W / 48040F7Z

Import Models
 Part NumberDescriptionAdditional Info
Steam Inlet Valve96D0011E1.25"NPTBRZ N/C STEAMVALANGBDAir Actuated / Normally Closed

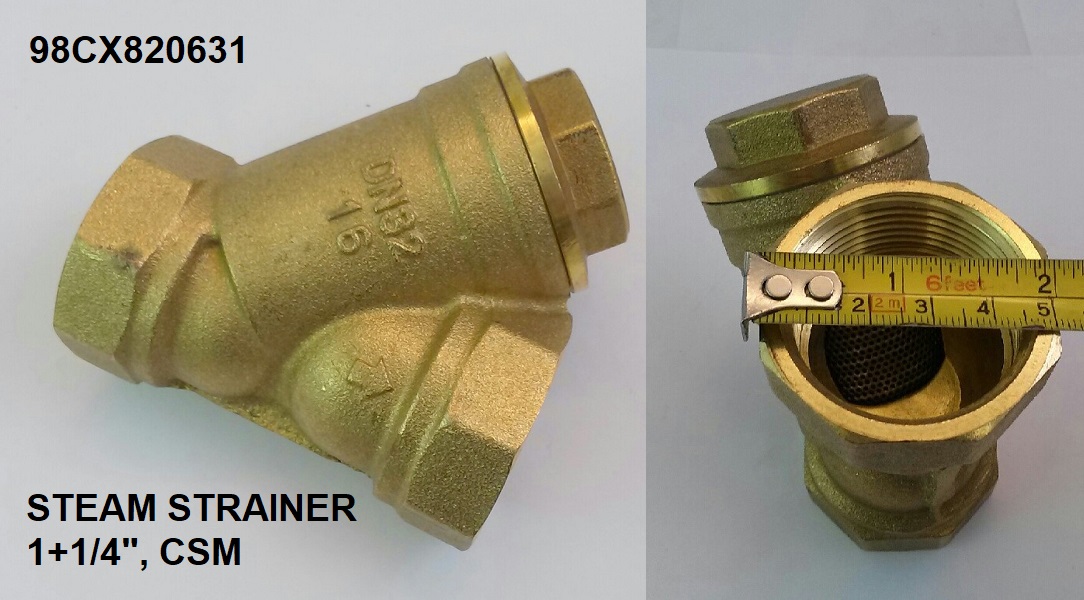

Y-Strainer98CX820631STEAM STRAINER 1+1/4", CSMBrass
User-added imageUser-added image








MWF27J8 / MWF27Z8 / MWR16J5

 Part NumberDescriptionAdditional Info
Import Models
Steam Inlet Valve96P039A711/2"STEAMVAL240V50/60C 150PSI220 - 240 Volt
Y-Strainer98CX820601Y-STRAINER, 1/2Half Inch Strainer
User-added imageUser-added image








MWF45J8 / MWF45Z8

 Part NumberDescriptionAdditional info
Import Models
Steam Inlet Valve96P040A713/4"STEAMVAL240V50/60C 150PSI220-240 Volt
Y-Strainer98CX820606Y-STRAINER, 3/4"No PIcture
User-added image







MWF63J7 / MWF63Z7 / MWF77J7 / MWF77Z7

 Part NumberDescriptionAdditional Info
Import Models
Steam Inlet Valve96D0009E3/4"NPTBRZ N/C STEAMVAL ANGBODAir Actuated / Normally Closed
Y-Strainer98CX820606Y-STRAINER, 3/4"No Picture
User-added image





Additional Valves and Y-Strainers

96D0008E = 1/2 Inch Steam Inlet Valve

Also Used in Air Operated Reuse systems
User-added image

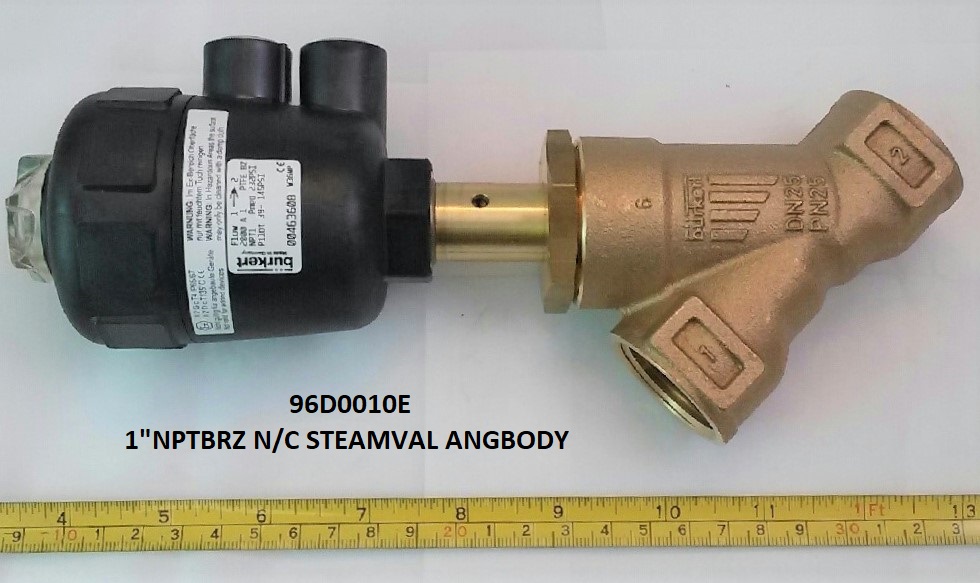

96D0010E = 1 inch Steam Inlet Valve

User-added image

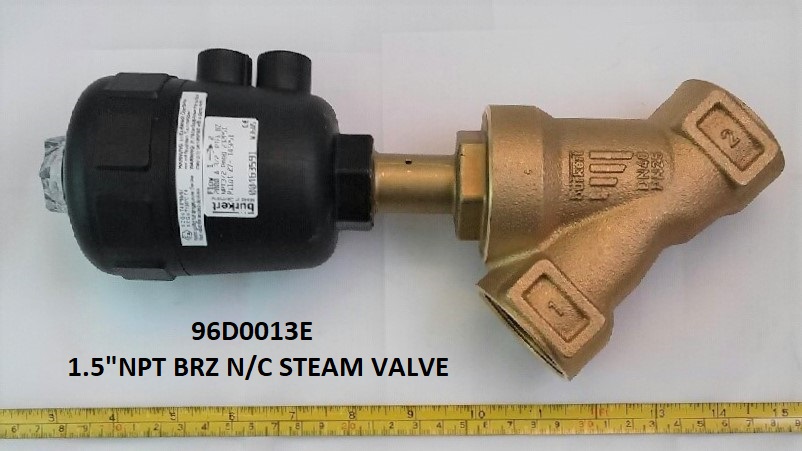

96D0013E = 1 and 1/2 Inch Steam Inlet Valve

User-added image

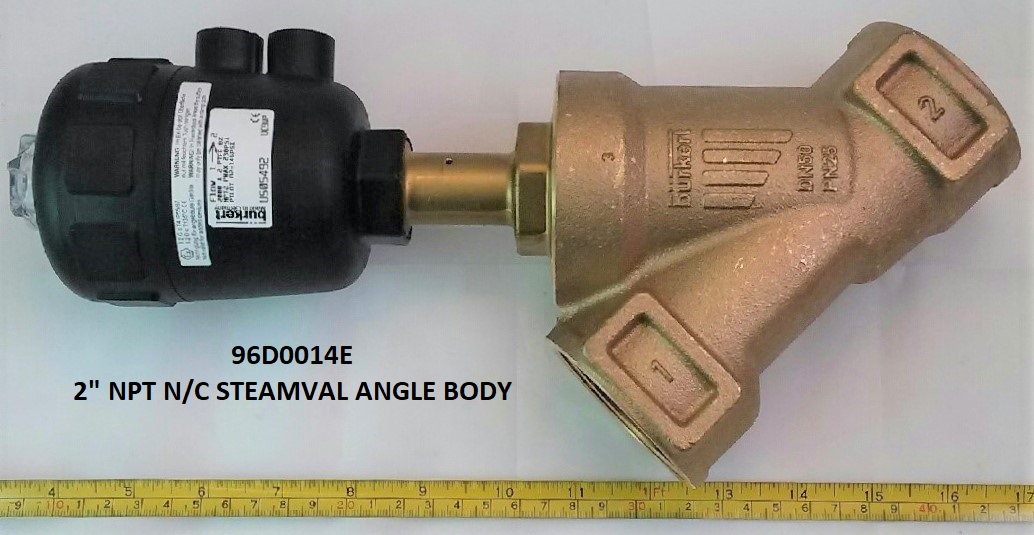

96D0014E = 2 inch Steam Inlet Valve

Used in some dryers and CBWs
User-added image

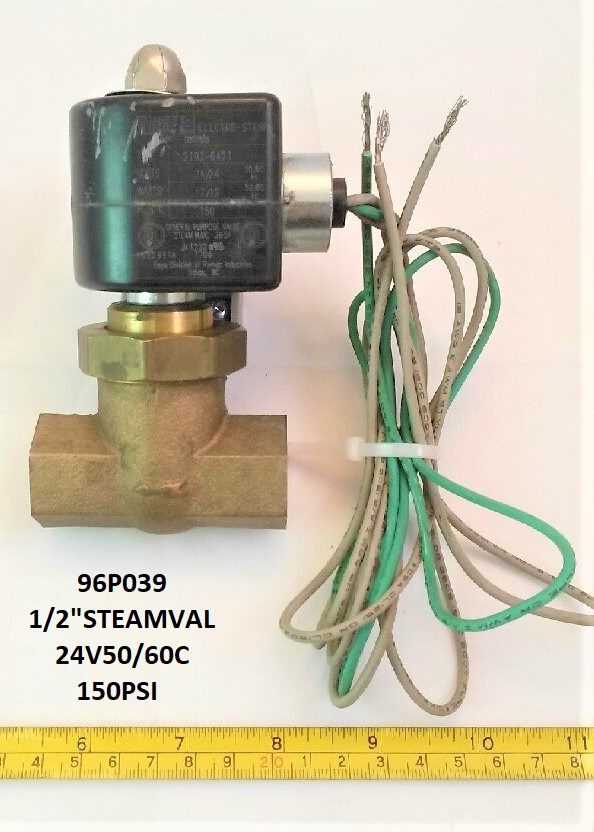

96P039 = 1/2 Inch 24 Volt Steam Valve

Used in Kit # PK10 0005 to provide steam for 3016WE machines.
User-added image

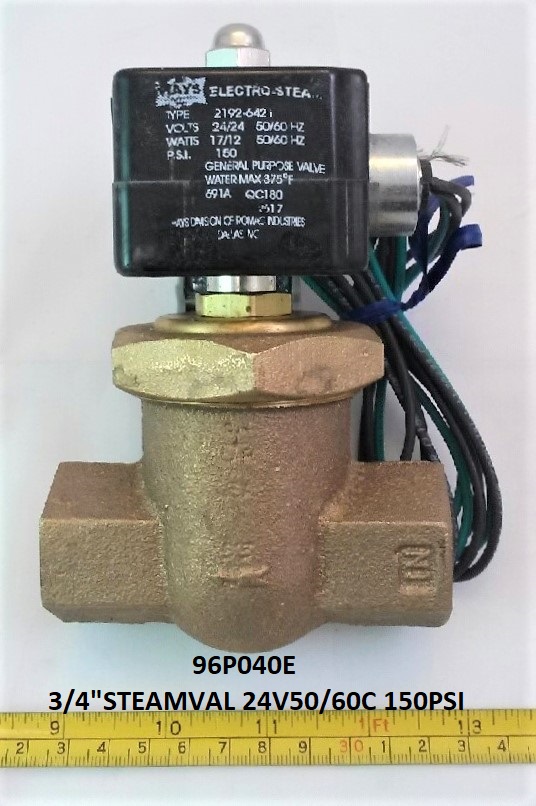

96P040E = 3/4 Inch 24 Volt Steam Valve

User-added image

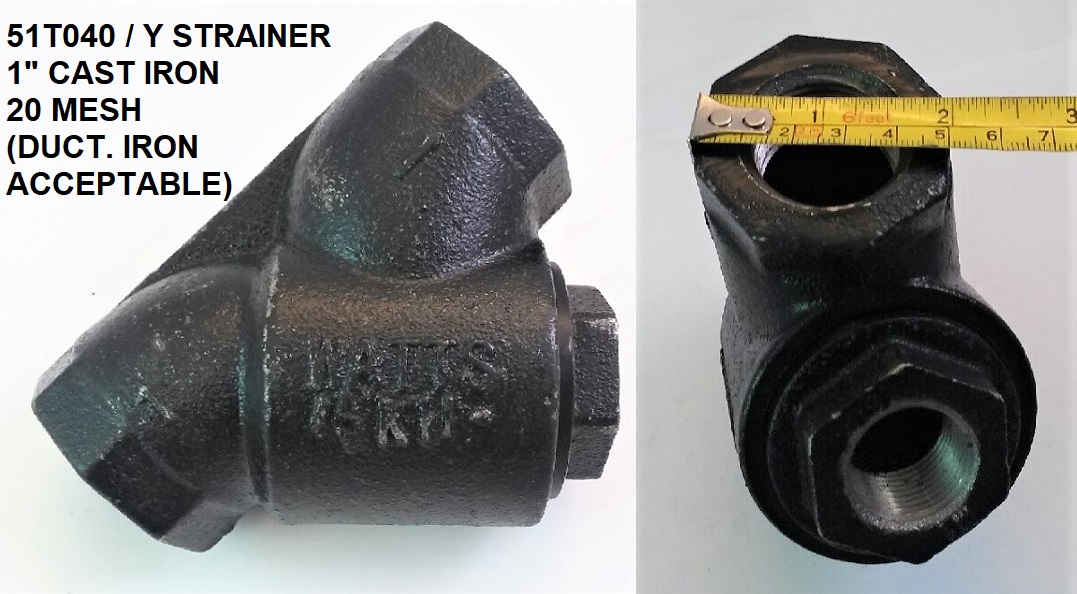

51T040 = 1 Inch Y-Strainer

used on some 36026X8* and dryer lint air install
User-added image

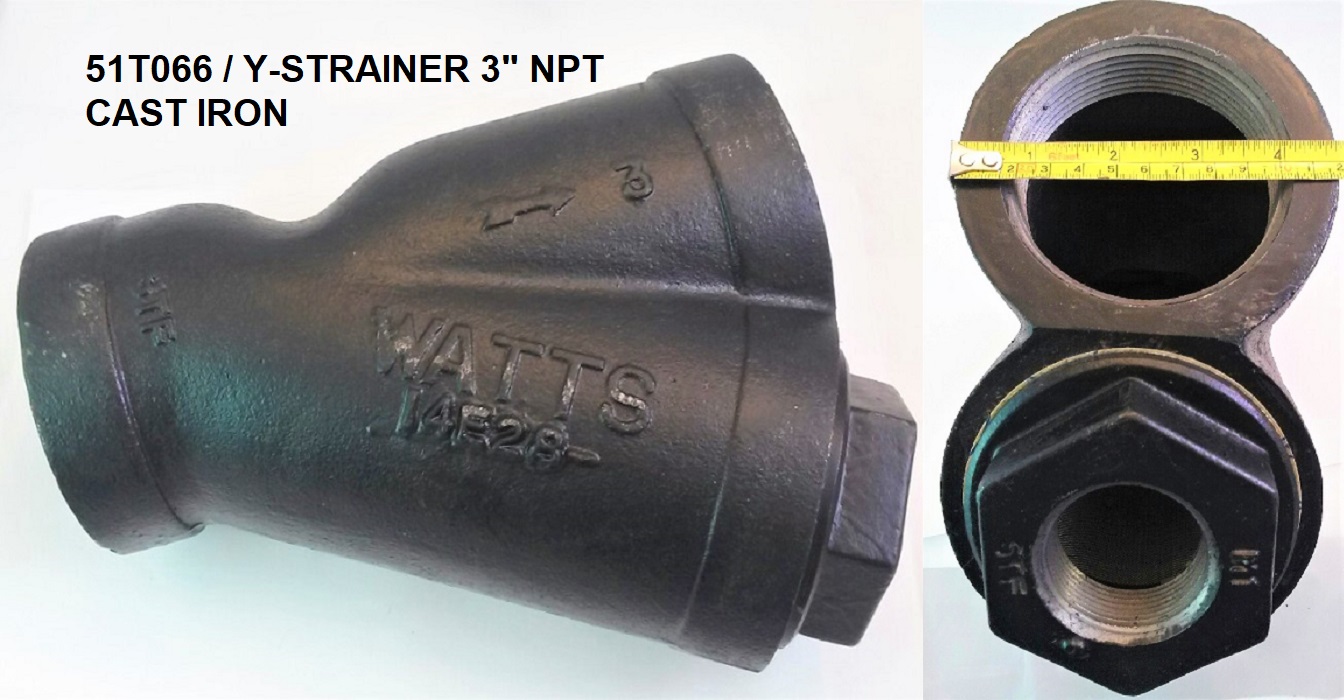

51T066 = 3 inch Y-Strainer

used on Steam components for CBW 9248
User-added image
