PUMP BELT AND DRIVE BELT PART NUMBERS FOR MILNOR 2 STAGE PRESSES
List of Drive and pump belt part numbers for a Milnor 2 stage press

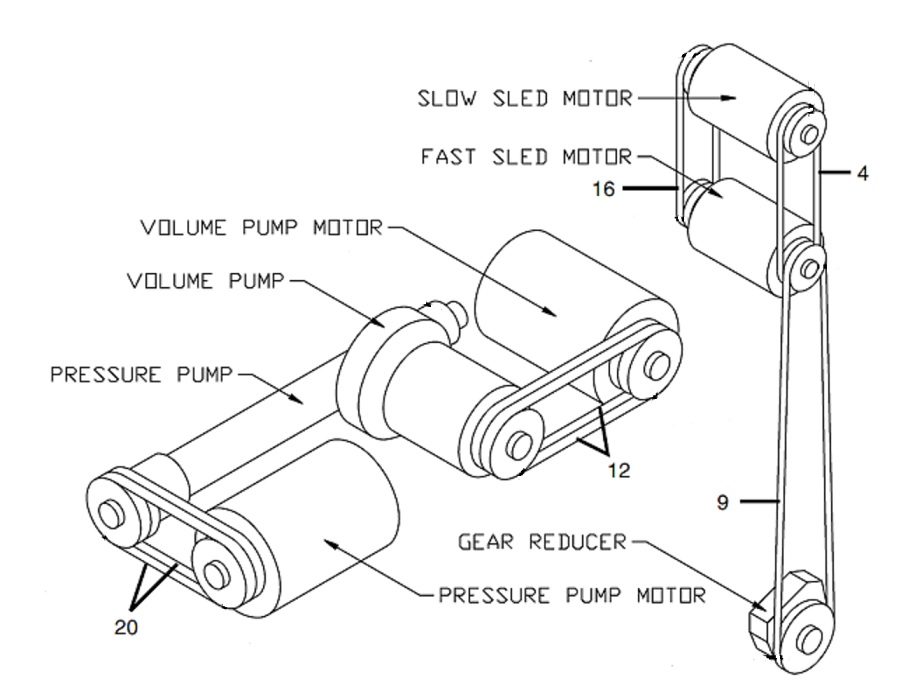

Milnor Two stage presses use belts to transfer power to the Sled assemblies and to the Volume and Power pumps.  Below is a diagram showing the belts.  Their numbers will correspond to the tables below the Model Number list.  For the MP2606 series, there are different belts for 50 Hz units and 60 Hz units.
In the table, they will be delinieated by a comma.  For example: 56VB042X,  56VB040X means that 56VB042X is for 50 Hz and 56VB040X is for 60 Hz

Please doublecheck the part number with the number on your belt.  Some models have different belt configurations due to machine customizations.
Help with locating the part number on the belt can be found How do I find the Part Number for the Belt on My Milnor Machine?


Press Drivechart MP2501, MP2601, MP2606

User-added image


MP2501CL / MP2501CR / MP2501L / MP2501R / MP2601CL / MP2601CR / MP2601L / MP2601R

49121620
50 Hz, 60 Hz
Slow Sled Motor to
Fast Sled Motor
Fast Sled Motor to
Gear Reducer
Volume Pump MotorSlow Sled Motor to
Fast Sled Motor
Pressure Pump Motor
56VA036X56VA124S56VB042X
x 2 belts
56VA036X56VB038X
x 2 belts


MP2606CL / MP2606CR / MP2606L / MP2606R

49121620
Slow Sled Motor to
Fast Sled Motor
Fast Sled Motor to
Gear Reducer
Volume Pump MotorSlow Sled Motor to
Fast Sled Motor
Pressure Pump Motor
56VA036X56VA156S56VB048XM3 / 56VB044X
 x 3 belts
56VA036X56VB042X / 56VB040X
x 3 belts
