Fireye Assembly and Component Part Numbers

Milnor uses Fireye scanners in pass-through dryers.  These accurately detect the presence or absence of flame in a combustion chamber.  There are two different assemblies used; one for Ratio Air dryers and one for Air Heat dryers.

To help understand which type of dryer is on hand, please visit this knowledge article:
Is my gas dryer Air Heat or Ratio Air?

On Ratio Air Dryers the assembly is 09X160K / THERMJET FIREYE NO BASE.  This system uses UV scanners to detect flame.   It is composed of 3 components and a base. Another part that may be necessary is the UV  scanner.

Components within and related to 09X160K pictured below.

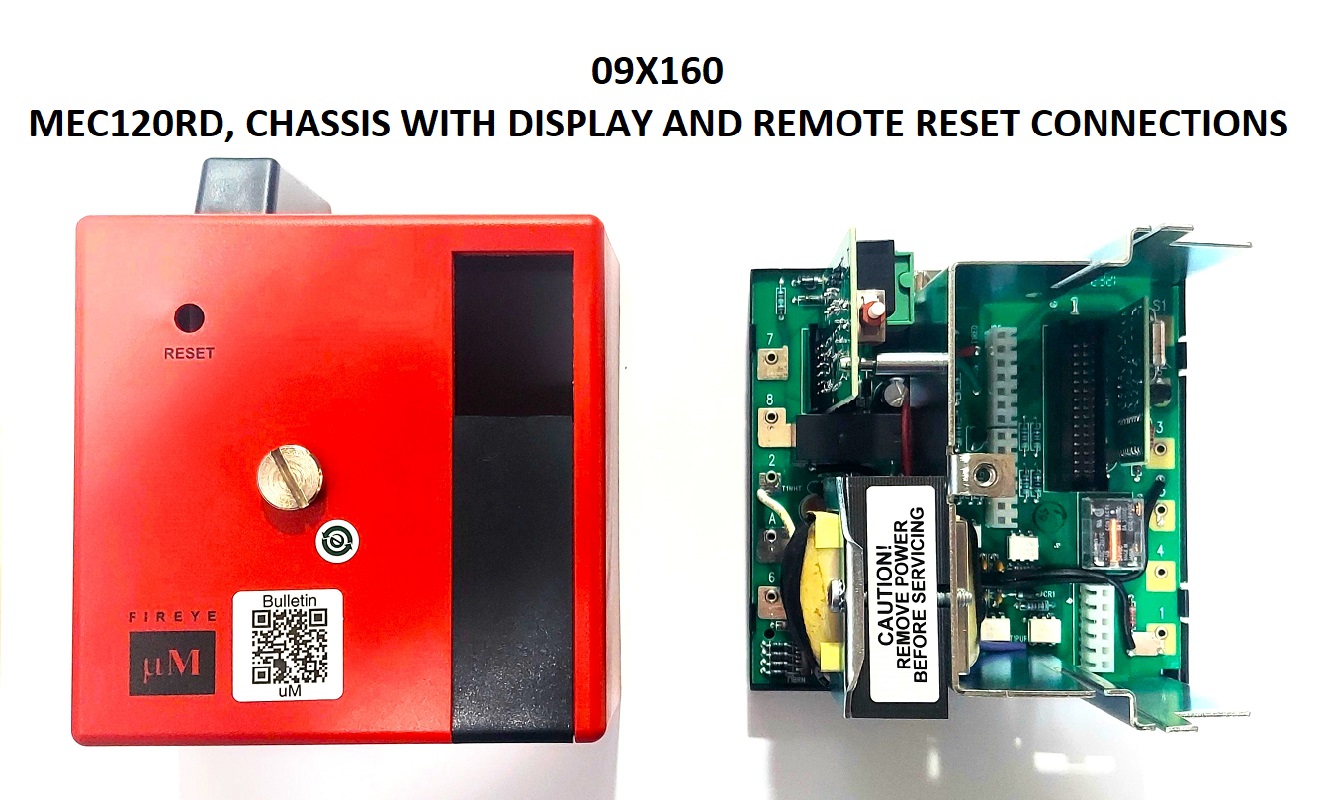

09X160 MEC120RD, CHASSIS WITH DISPLAY AND REMOTE RESET CONNECTIONS (INCLUDED IN 09X160K)
09X160A MEUV4 UV AMPLIFIER FOR MEC120 (INCLUDED IN 09X160K)
09X160P MEP100 PROGRAMMER FOR MEC120 (INCLUDED IN 09X160K)
09X160B 61-3060 WIRING BASE MEC120 (THIS PART NOT INCLUDED WITH 09X160K)
09X160U UV1A6 UV SCANNER FOR MEC120 (THIS PART NOT INCLUDED WITH 09X160K)

For Air Heat dryers the assembly is 09X150A3 / FLAMESAFE CTL ASSY #MC120.  This system uses infrared scanners to detect flame rod activity.   Visit this knowledge article for parts information on Flame Rods, Spark Plugs, and Spark Plug Wires: Dryer Igniter Cables, Spark Plugs, and Flame Rod

Components included with assembly 09X150A3 pictured below.

09X150A2 CHASSIS - FLAMESAFE CTL MC120R

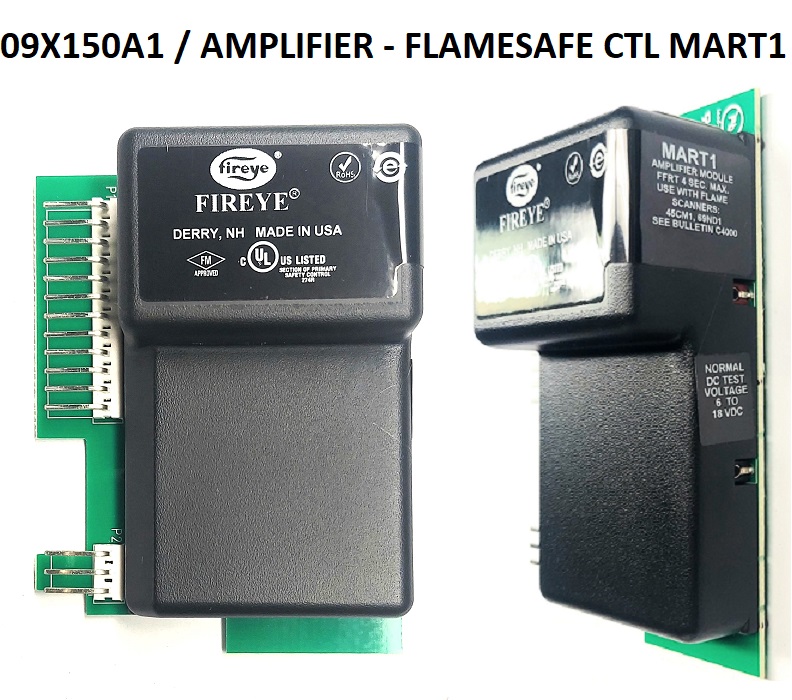

09X150A1 AMPLIFIER - FLAMESAFE CTL MART1
09X150A PROGRAMMER - FLAMESAFE CTL MP100
09X160B 61-3060 WIRING BASE MEC120
