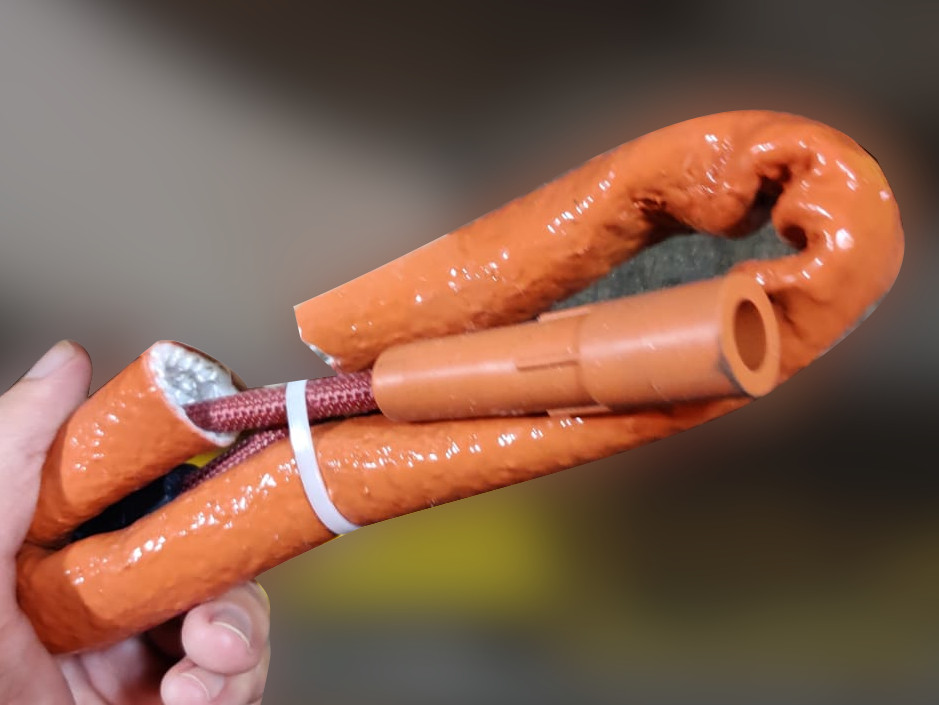

The igniter cable connect the igniter module to the spark plug. This is the conduit between the two to make the spark happen.

Milnor has different length cables for different applications. Measure your cable and order the appropriate cable for your machine.


Part Number	Description
09X250B	90 Plug Boot
09X250C	Spark Plug Snap Lock Belden
09X250D	Igniter End Snap Lock Belden
09X250E	Igniter Coil Nipple
09X250F	50" Cable Assembly
09X250H	53" Cable Assembly
09X250J	34" Cable Assembly
09X250K	19" Cable Assembly
09X250M	42" Cable Assembly
09X250N	100" Cable Assembly
09X250P	67" Cable Assembly
09X250Q	170" Cable Assembly



SPARK PLUGS

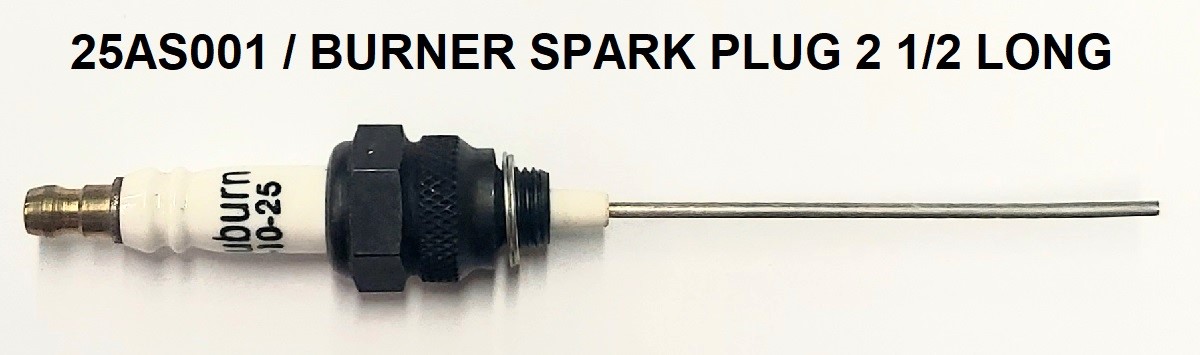

25AS001 / BURNER SPARK PLUG 2 1/2 LONG		FOR 58" AIR HEAT DRYERS WITH SMALL DIAMETER UNGROUNDED PLUG

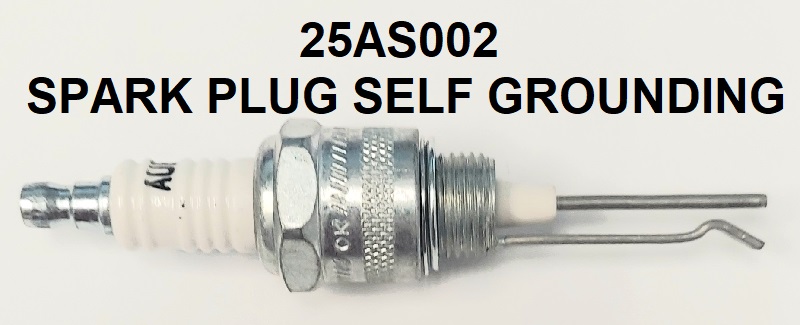

25AS002 / SPARK PLUG SELF GROUNDING		FOR 58" AIR HEAT DRYERS W/ LARGE DIAMETER GROUNDED PLUG

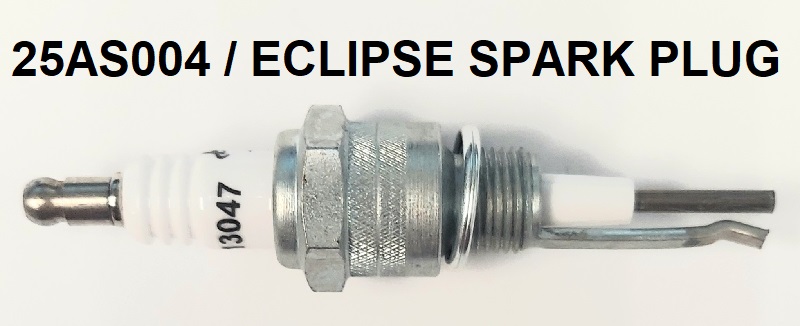

25AS004 / ECLIPSE SPARK PLUG		FOR 64" AIR HEAT DRYERS

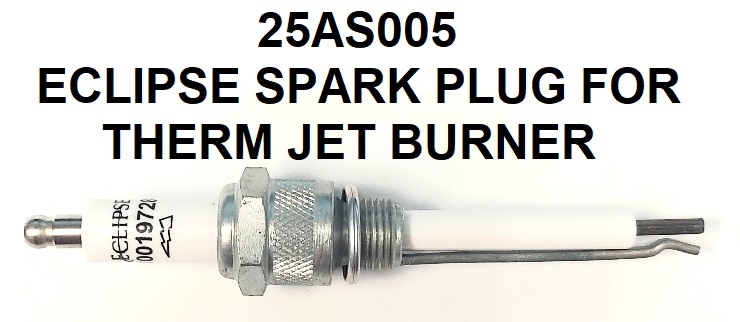

25AS005 / ECLIPSE SPARK PLUG FOR THERM JET BURNER		FOR ALL THERMJET / RATIO AIR DRYERS Is my gas dryer Air Heat or Ratio Air?



FLAME ROD

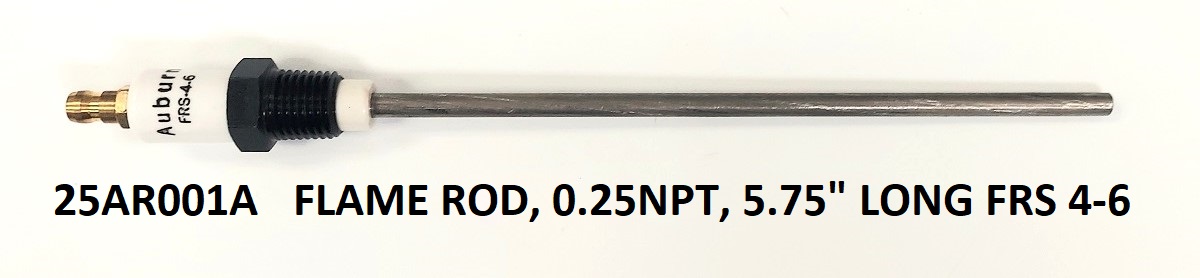

There is only one flame rod, part number 25AR001A / FLAME ROD, 0.25NPT, 5.75" LONG FRS 4-6, pictured below.
This is sold in Kit KTNFRWI001 / FLAME ROD W/INSTRUCTIONS.  For Flame Rod installation instructions and a copy of the instruction page that comes with the kit, please click HERE

IGNITION TRANSFORMER

Also called a Spark Generator, ignitor, spark ignitor or igniter module, it sends current thru the ignitor cable assembly (listed above) to the spark plug.

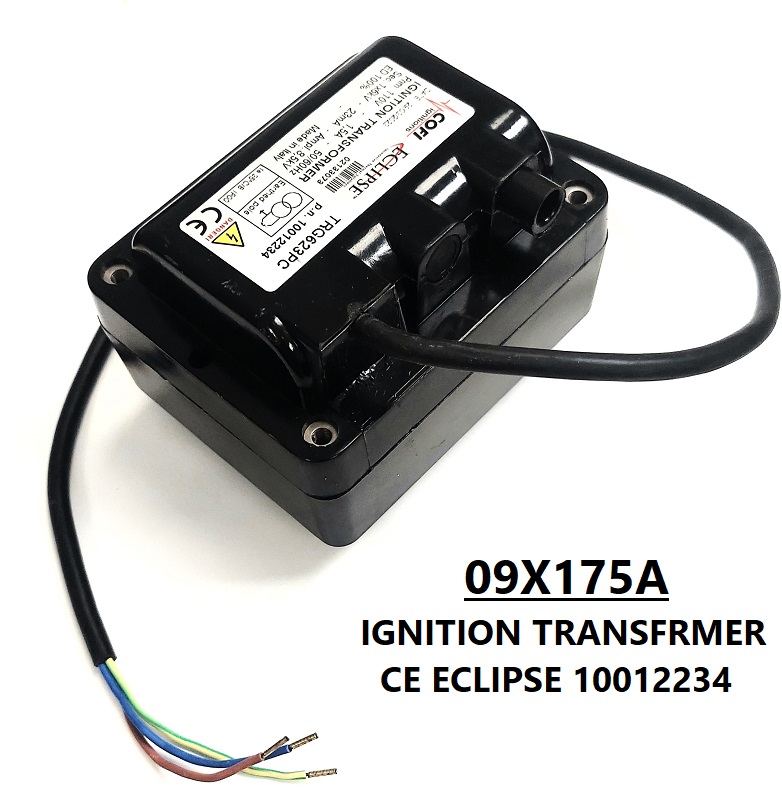

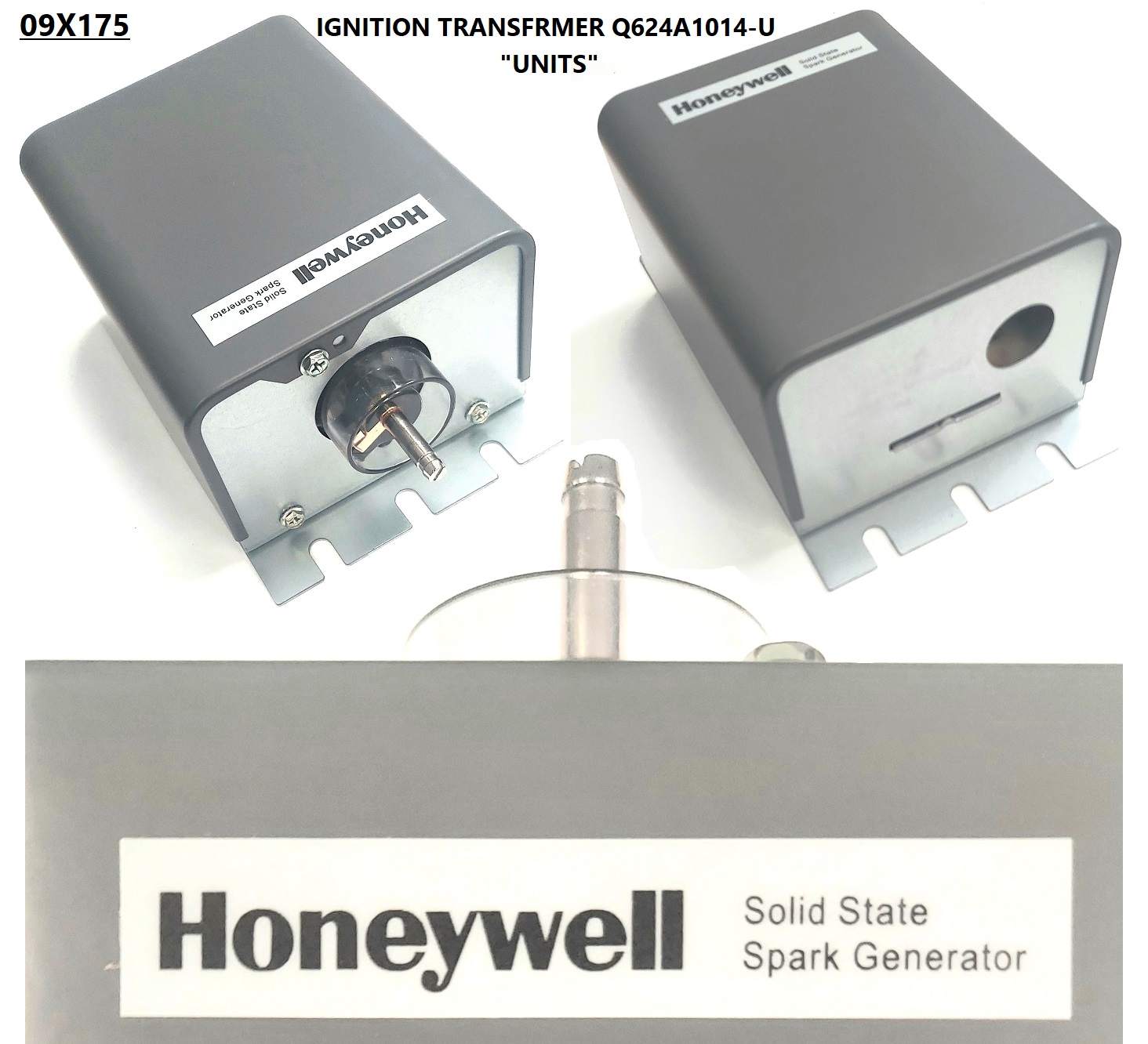

There are two ignition transformer part numbers: 09X175 and 09X175A.  Pictured Below.  09X175A is primarily used in European, Australian, and Australian Town Gas environments.  09X175A also requires a specific ignitor cable.

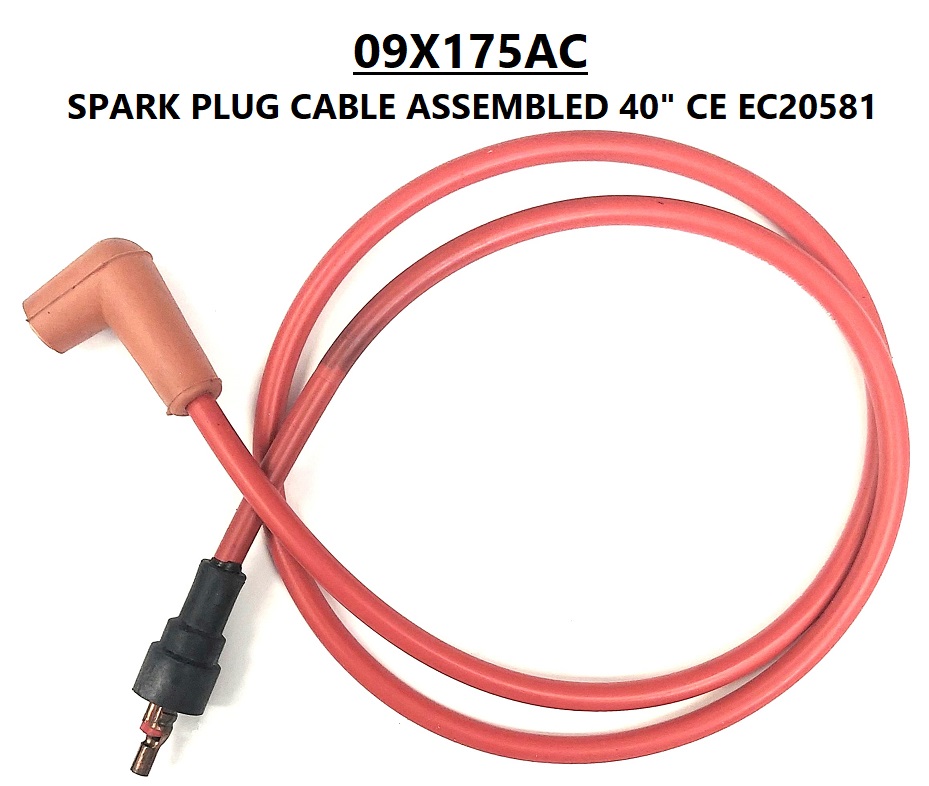

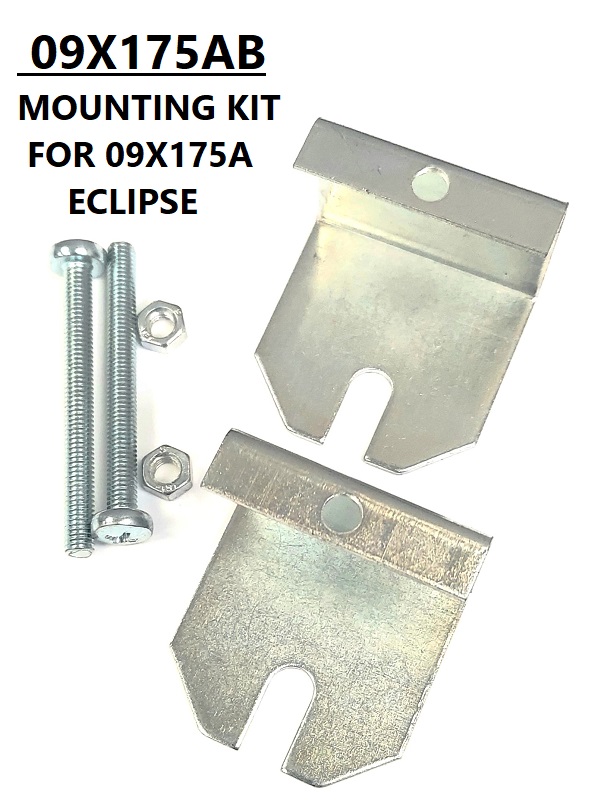

Additional parts necessary for 09X175A
