Many Washer-Extractors use Flush Valves to dilute and flush chemicals into the machine.
Some units use a 5 compartment dry supply that may use two different Flush Valves though some supply compartments use 5 of the same valve.

The following picture is an example of a 5 supply compartment with 2 different style valves.
Valve 1 is part number 96TCC2AA71
Valve 2 is part number 96TDC2AA71



Smaller Units without dry supply have only 1 flush valve that goes to the Peristaltic or the Soap Chute.
See item 3 below.  Part number 96P058A37



Some machines may have a dual valve supplying water to the soap chute and the peristaltic.
 where item 25 is part number 96P053D71





Below is a list of Flush valves arranged by Inlet size, then Voltage.  Pictures are provided for reference.
Helpful notes about the parts are included below the pictures where applicable.


1/4 INCH FLUSH VALVES

24 VOLT

PART NUMBER	DESCRIPTION	ADDITIONAL INFO

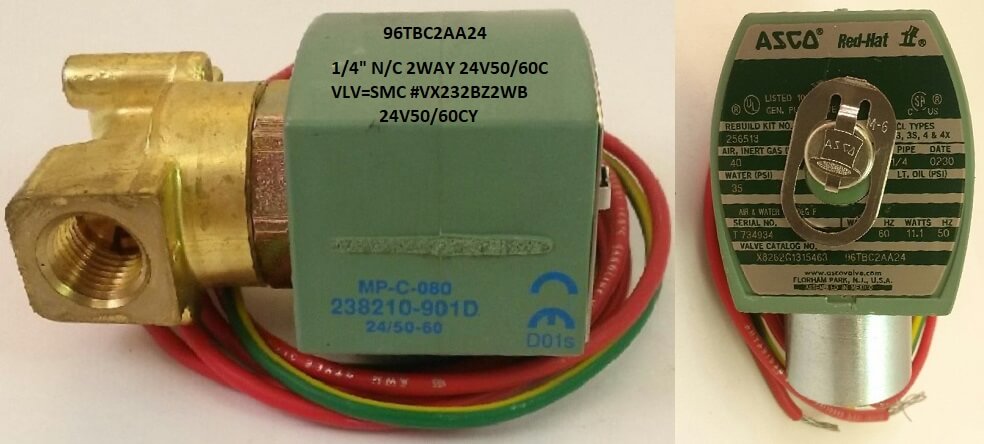

96TBC2AA24	1/4" N/C 2WAY 24V50/60C VLV=SMC #VX232BZ2WB 24V50/60CY	ASCO

110-120 VOLT



96P013D37

1/4"NPT 2WAY PLAS-VAL 110

HORTON



96TBC2AA37

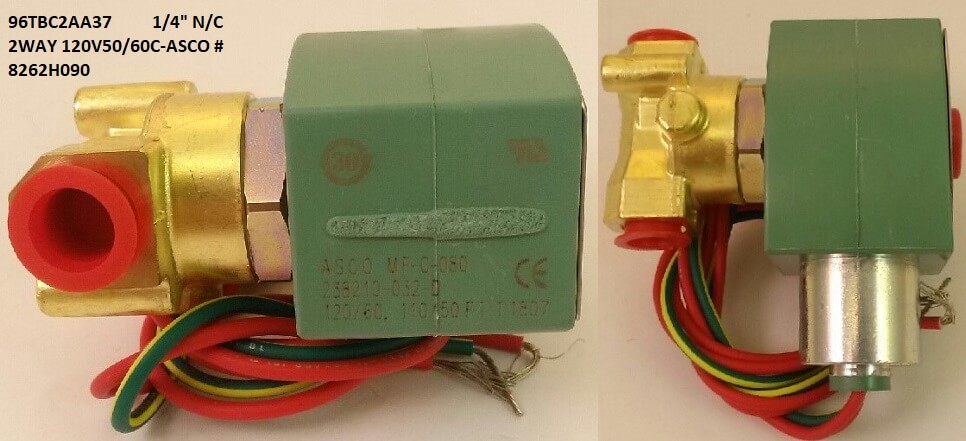

1/4" N/C 2WAY 120V50/60C-ASCO #8262H090

ASCO



96P058A37

1/4"NPT X 1/8"ORIFICE 120V 5/6- #6013

BURKERT

REPAIR KIT NOTES ON 96P058A37
96V403    REPKIT 1/4"X1/8" BURK (PLUNGER REPAIR KIT)
96V407    COIL MOLDCABLPLG CON 120V BURK (INCLUDED CABLE)
FOR MORE KIT INFO SEE KNOWLEDGE ARTICLE Burkert Valve Repair Kits

240 VOLT

96P058A71

1/4"NPT X 1/8"ORIFICE 240V 5/6

BURKERT

NOTES ON 96P058A71
IF CUSTOMER HAS NOT DONE THE RETRO KIT, MUST SELL THE RETRO KIT.
KIT NUMBERS ARE KHRPVWB001 AND KHRPVWB002- SEE PARTS PRICE LIST NOTES UNDER BOTH KITS.  W/ 1/4" ELECTRICAL FLAT TAB.

REPAIR KIT NOTES ON 96P058A71
96V403    REPKIT 1/4"X1/8" BURK (PLUNGER REPAIR KIT)
96V405    COIL FLAT TAB CONNEC 240V (COIL ONLY)
FOR MORE KIT INFO SEE KNOWLEDGE ARTICLE Burkert Valve Repair Kits





96TBC2AA71

1/4" N/C 2WAY 240V50/60C-ASCO#8262H090

ASCO



3/8 INCH FLUSH VALVES

24 VOLT

PART NUMBER	DESCRIPTION	ADDITONAL INFO
96TCC2DA24	3/8"N/C 2WAYSTRT 24V50/60C VLV	This part replaces part number 96TCC2AA24



110-120 VOLT

96TCC2DA37	3/8"N/C 2WAYSTR 120V50/60C VLV	ASCO

220-240 VOLT

96TCC2DA71	3/8" N/C 2WAY 240V50/60C VALVE	ASCO



1/2 INCH FLUSH VALVES

24 VOLT

PART NUMBER	DESCRIPTION	ADDITIONAL INFO
96TDC2AA24	1/2"N/C2WY 24V50/60C VLV	ASCO

120 VOLT

96TDC2AA37	1/2"N/C2WY120V50/60C VLV	ASCO

220-240 VOLT

96TDC2AA71	1/2"N/C2WY240V50/60C VLV	ASCO



96P057B71

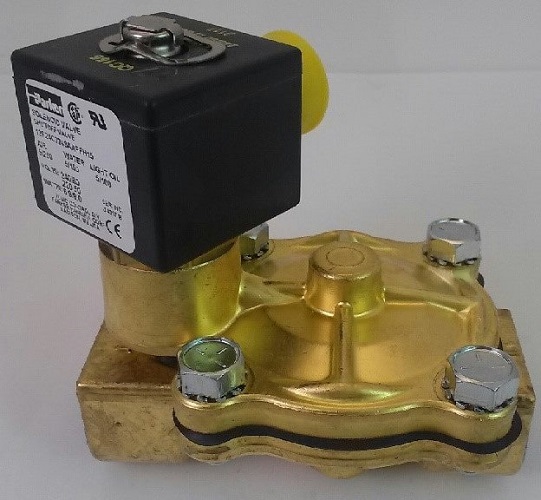

1/2"NPT X 1/2"ORIFICE 240V 5/6 PARKER 08F25C2232ACFPH15 VITON SEALS/DIAPHRAGM

PARKER

NOTES ON 96P057B71
96P057B71C = COIL  /   96P057B71R =  REPAIR KIT.

3/4 INCH FLUSH VALVES

110 - 120 VOLT

PART NUMBER	DESCRIPTION	ADDITIONAL INFO
96P013G37	3/4" 2WAYPLASTCVAL 120V60C (EA =0.4 LBS)	HORTON



96P013B37

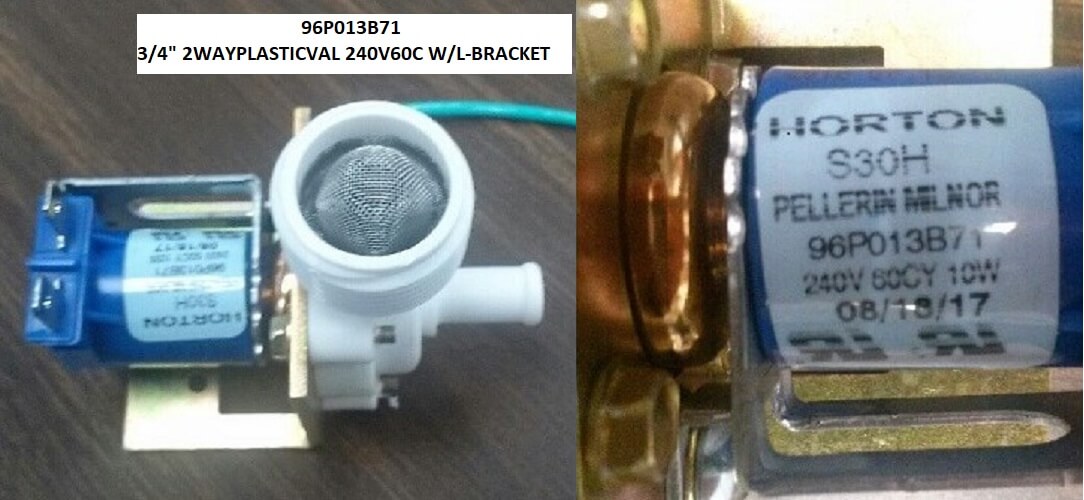

3/4" 2WAYPLASTICVAL 120V60C W/L-BRACKET

HORTON

NOTES ON 96P013B37
IMPORTANT*** DO YOU HAVE SOLID BRASS OR PLASTIC TYPE. IF BRASS TYPE CONNECTION IT MUST BE CONVERTED TO THE PLASTIC TYPE. THE CUSTOMER WILL NEED THE VALVE PLUS THE FOLLOWING PARTS: 1 EACH - 53A026A, 02 03732Z, 53A060HA, AND 53A060H.







96P053A37

3/4"VAL 120V HAYS 2110-6021GWIS

HAYS

NOTES ON 96P053A37
96V222 = PISTON ASSY FOR 96P053 / 96V222A = PISTON SPRING HAYS#82488 /  96V226 = NUT WASHER FOR 96P083 /  96V211 = COIL 120V50/60C.

220 - 240 VOLT

PART NUMBER	DESCRIPTION	ADDITIONAL INFO
96P013B71	3/4" 2WAYPLASTICVAL 240V60C	HORTON



96P013G71

3/4" 2WAY PLAS-VAL 240V/60C NC

HORTON



96P053D71

3/4"INLET 1/2"DUOHOSEOUT 220V

AUK MULLER



96P054D71

3/4" INLET 1/2"OUT DUOHOSE 90 DEG 240V 50/60 HZ

INVENSYS



96P056B71

3/4"NC 230V50/60 #5281

BURKERT

NOTES ON 96P056B71
Repair Parts: FOR VALVE STYLE 5281
96V415 = COIL 240V 50/60 FOR BURK 5281
96V607 = 3/4" OPERATOR WEAR KIT. (STEM/STOPPER)
96V608 = MAIN DIAPHRAGM KIT
DIN CONNECTOR W/ CABLE = 96P042VA37.
Repair Parts: FOR VALVE STYLE 6281EV
96V610    COIL KIT-BURKERT 6281EV 230/56
96V611    FKM STEM REBUILD KIT-BURKERT 6281EV
96V612    DN20 FKM DIAPHRAGM REP. KIT-BURKERT 6281EV
FOR MORE KIT INFO SEE KNOWLEDGE ARTICLE Burkert Valve Repair Kits







96P063B71

3/4"NC 230V 50/60 W/LEADS 12F24C2248AAFPH15

PARKER

NOTES ON 96P063B71
REPAIR KIT =  96P056C37R , COIL =  96P063B71C







98CMCR0938

3/4 INLET 13M 3 OUT 220/240V
