Title Burkert Valve Repair Kits

Summary List of Burkert valve part numbers, pertinent repair kits, and pictures of those kits. Including kit information for valve style changes by the manufacturer.

Article Text

Below is a grid of Milnor valve part numbers manufactured by Burkert. The repair kit part numbers will link to a picture of the kit components.

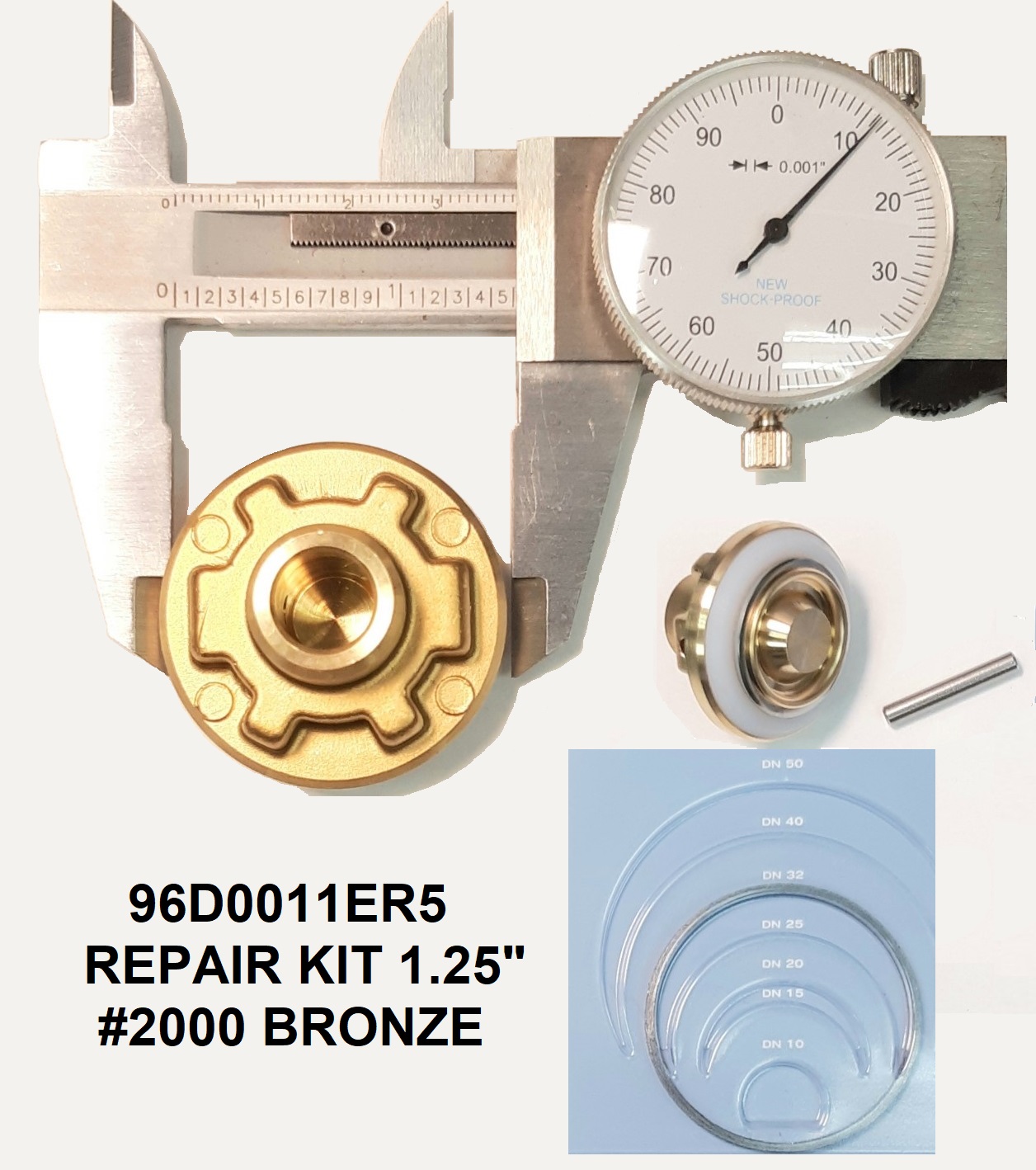

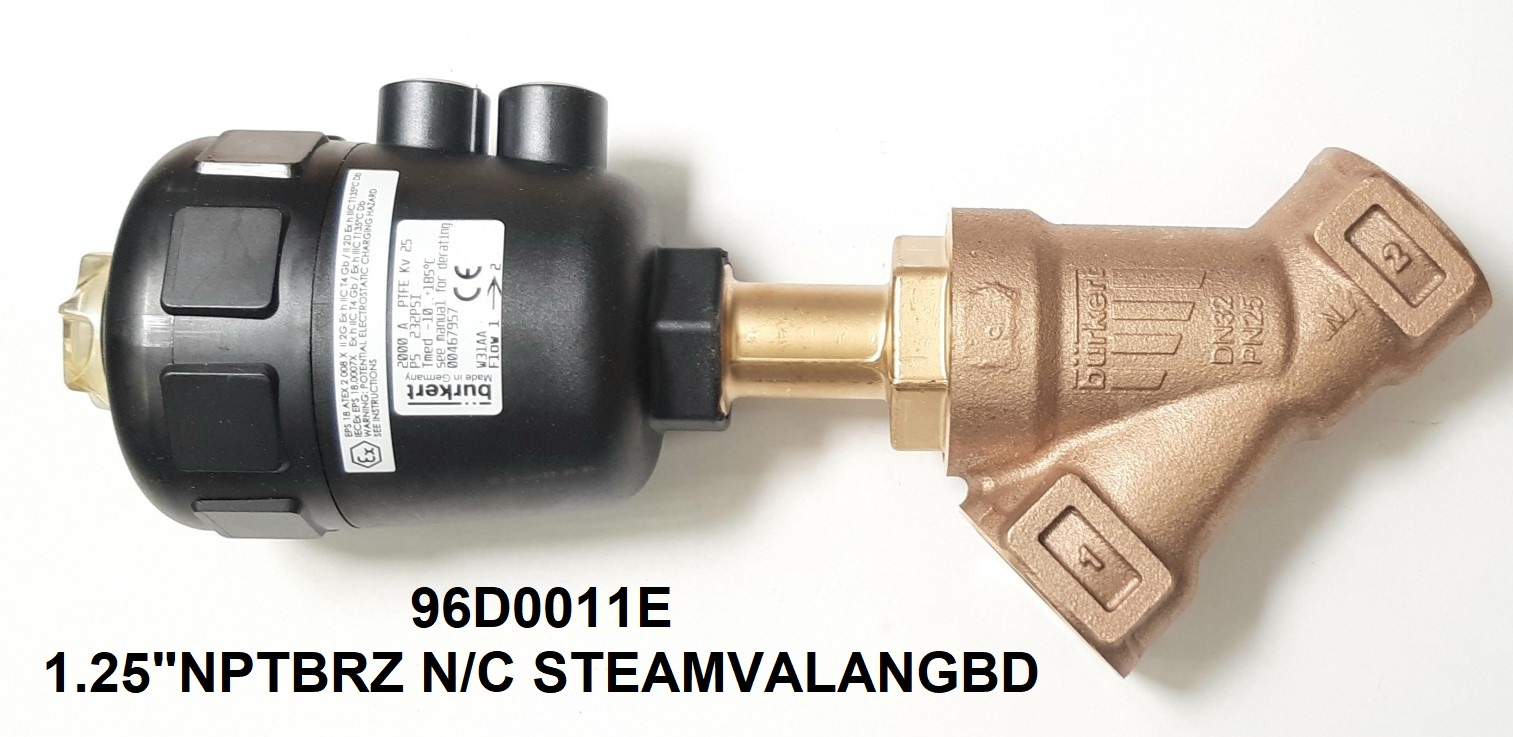

For Burkert air operated steam valves, click HERE

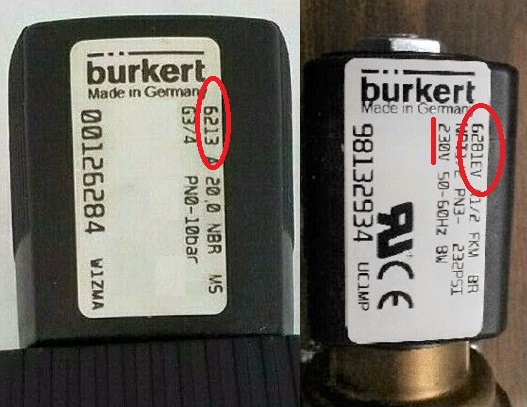

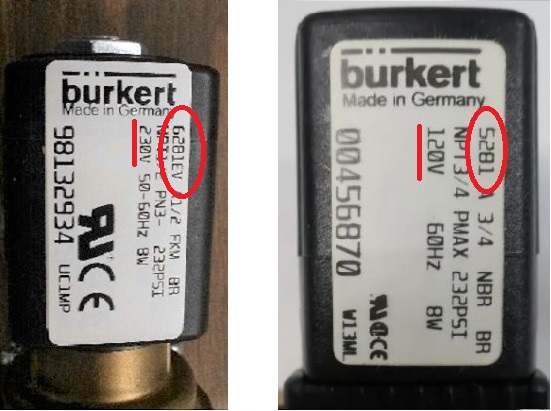

Valve Style Delineation on Burkert Valve Labels

PART NUMBER	DESCRIPTION	VALVE STYLE	COIL KIT	DIAPHRAGM	STEM	PLUNGER	REPAIR KIT

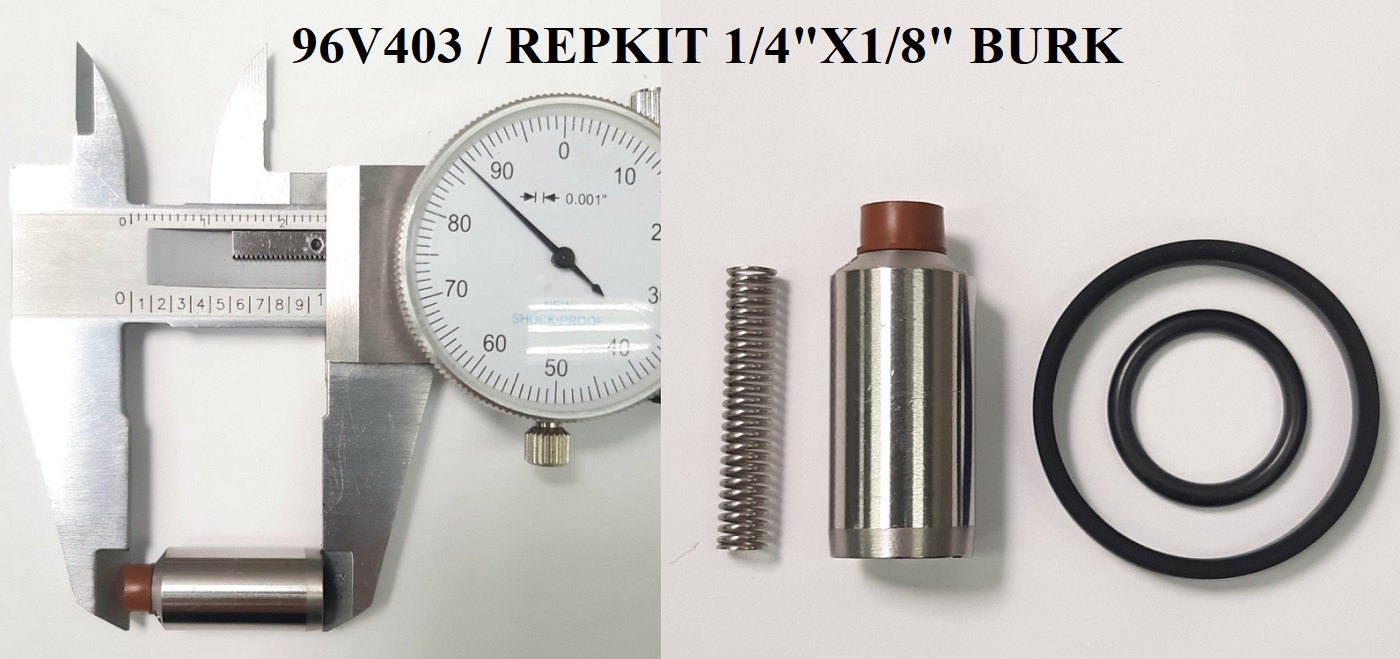

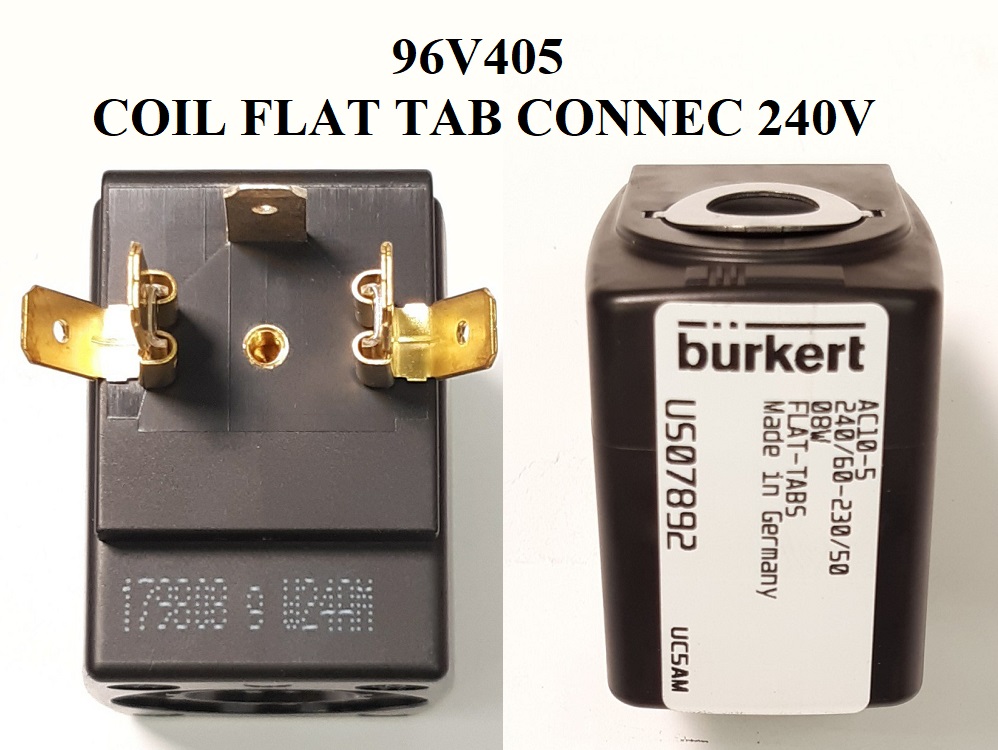

96P058A71	1/4"NPT X 1/8"ORIFICE 240V 5/6-BURKERT #6013	6013	96V405	N/A	N/A	96V403	N/A

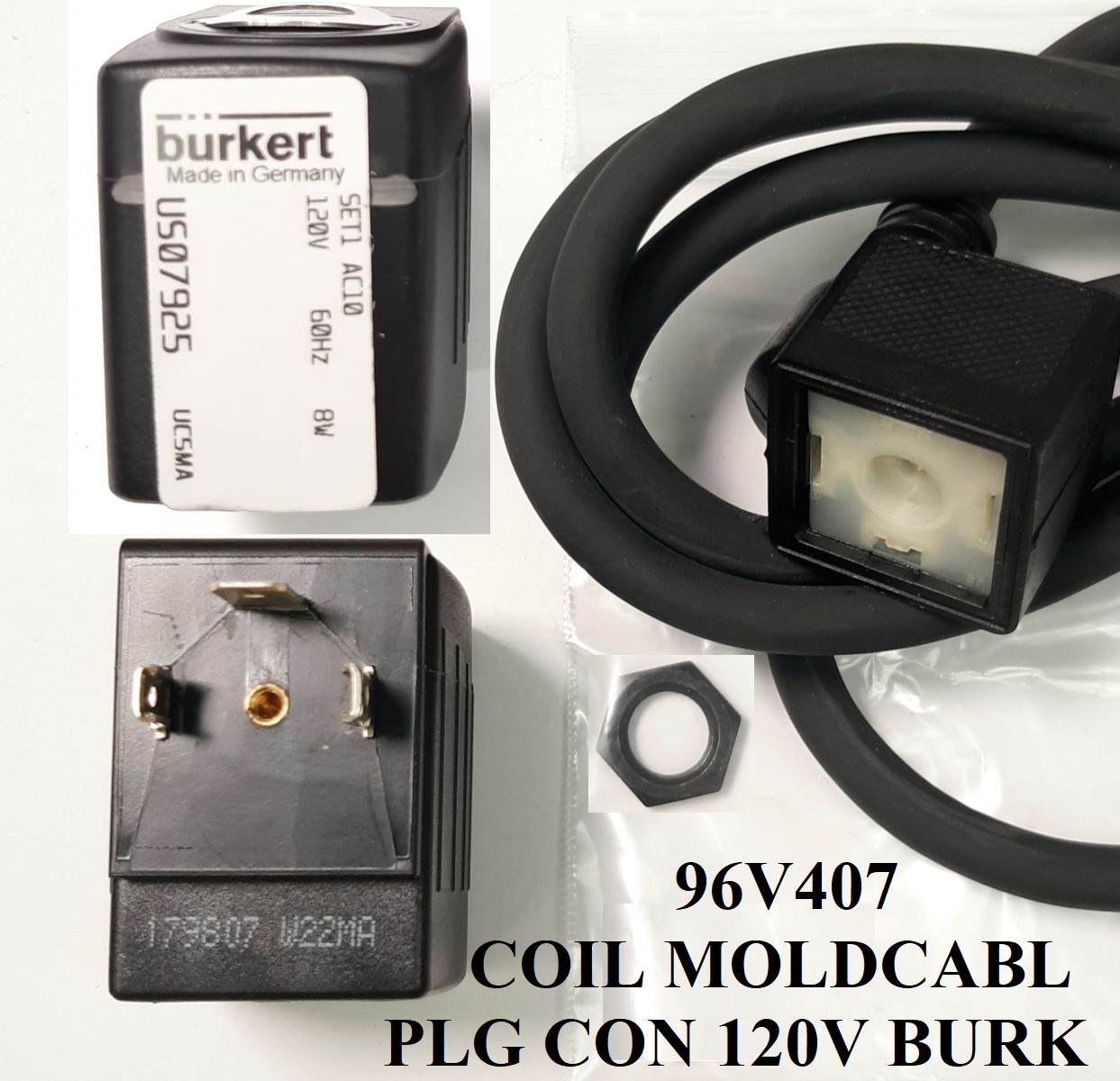

96P058A37	1/4"NPT X 1/8"ORIFICE 120V 5/6- #6013	6013	96V407	N/A	N/A	96V403	N/A

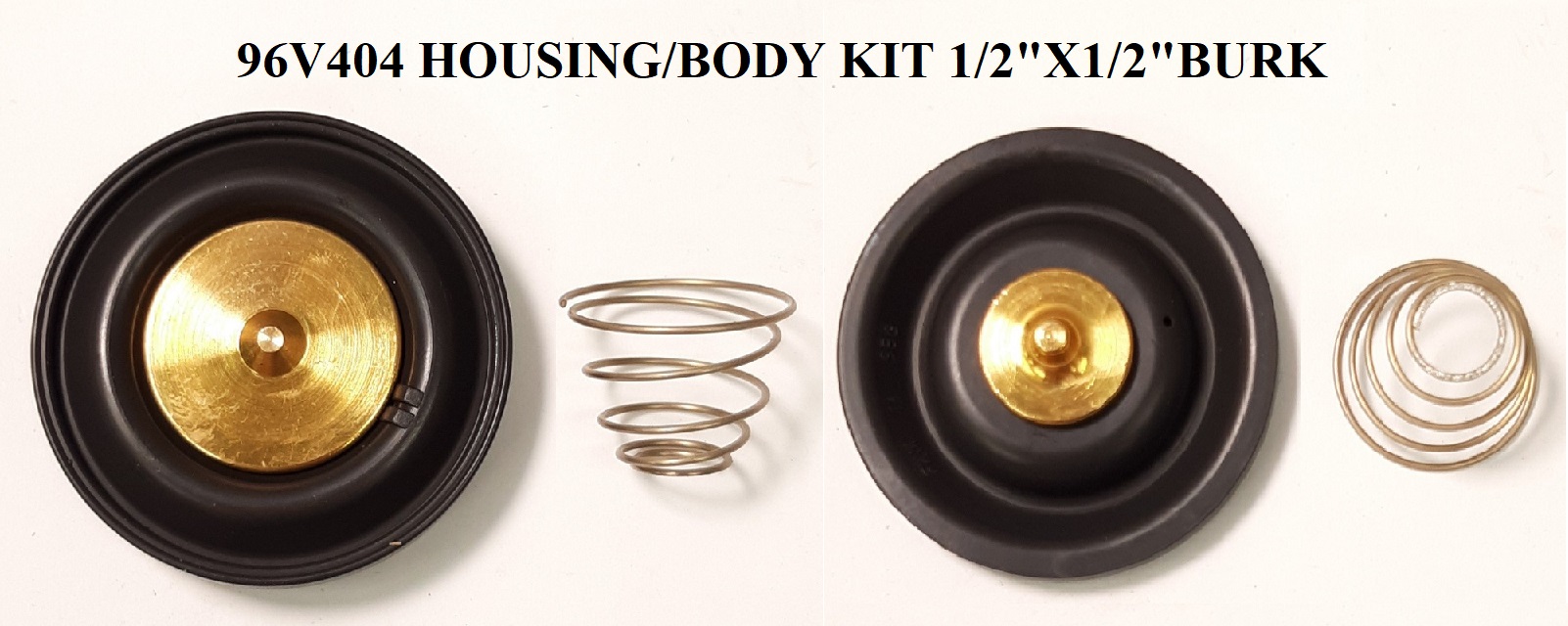

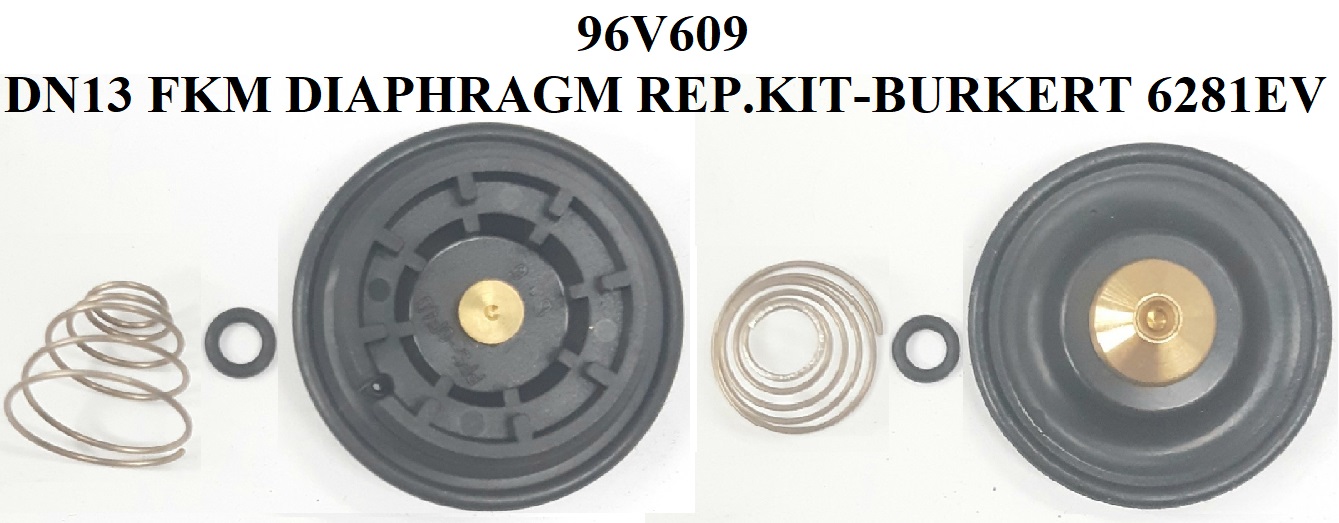

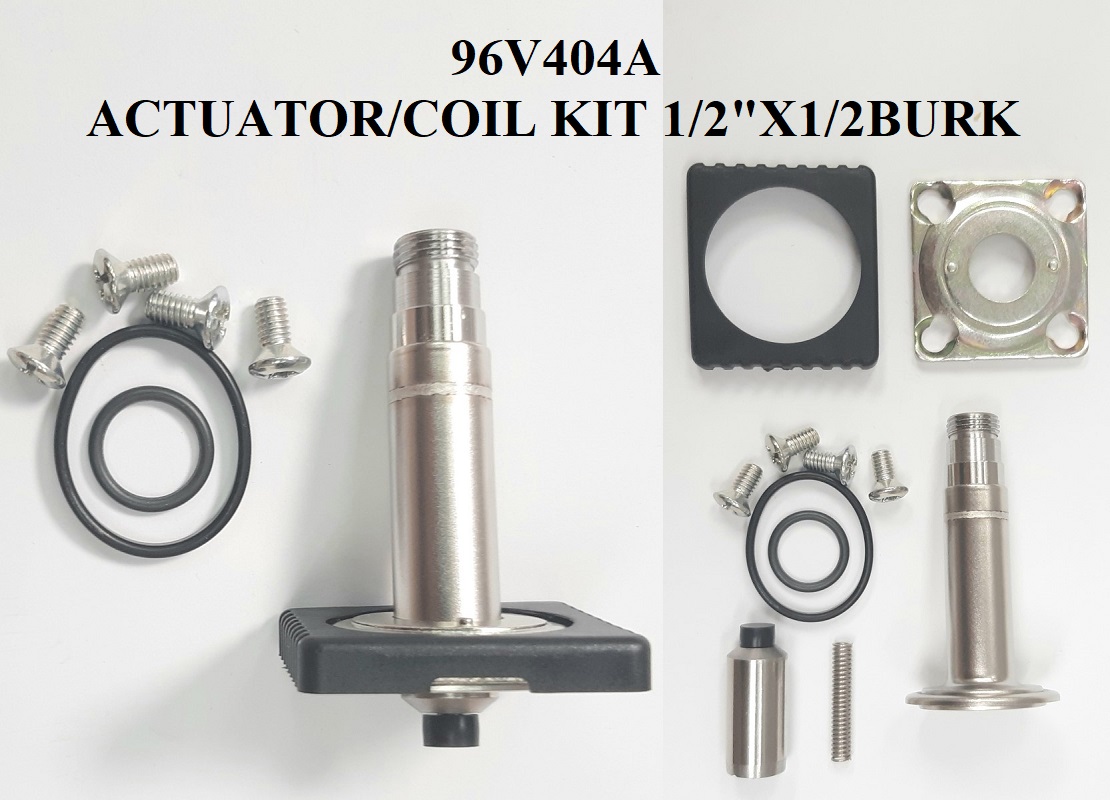

96P057A71	1/2"NPT X 1/2"ORIFICE 240V 5/6 - BURKERT	5281	96V405	96V404	96V404A	N/A	N/A

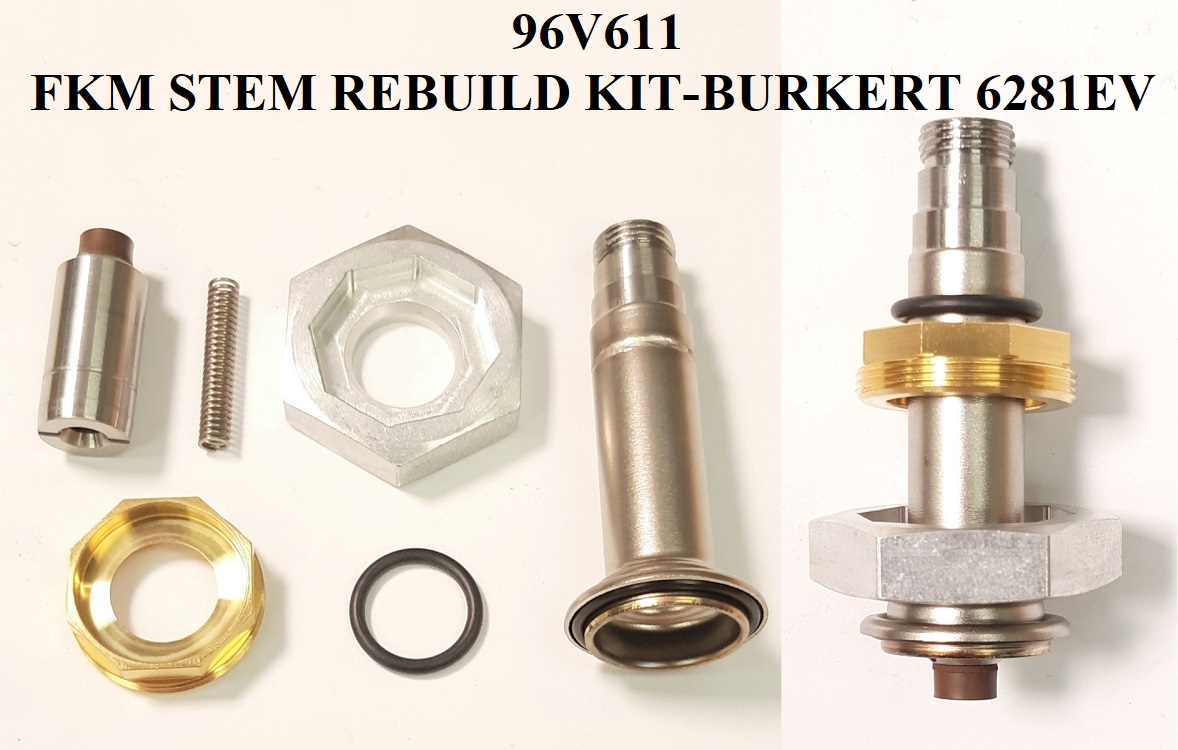

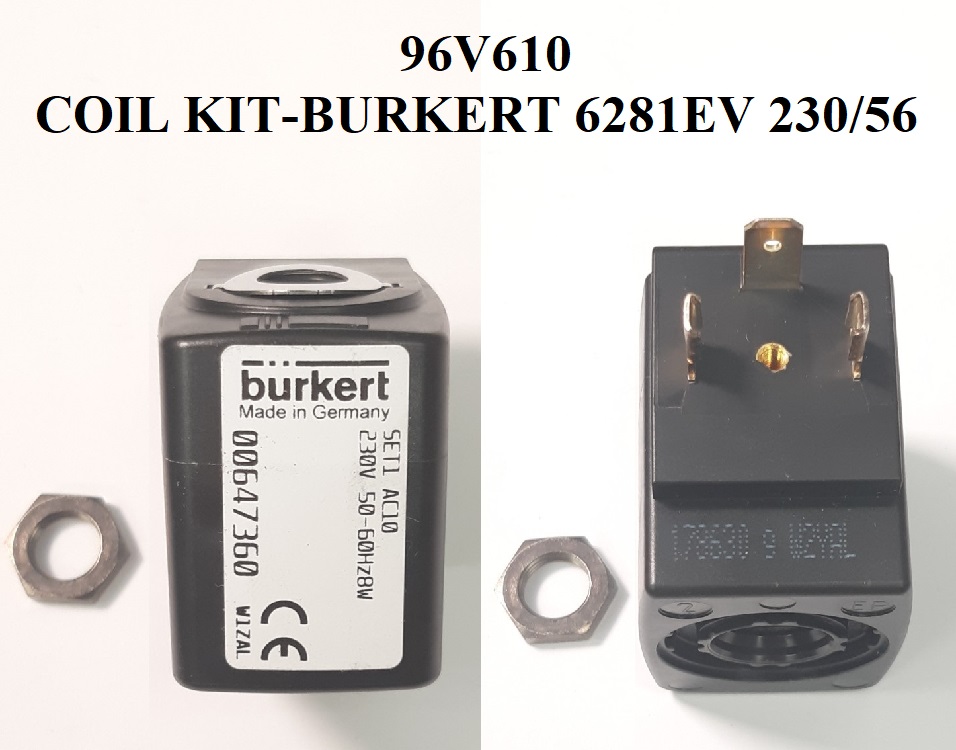

96P057A71	1/2"NPT X 1/2"ORIFICE 240V 5/6 - BURKERT	6281EV	96V610	96V609	96V611	N/A	N/A

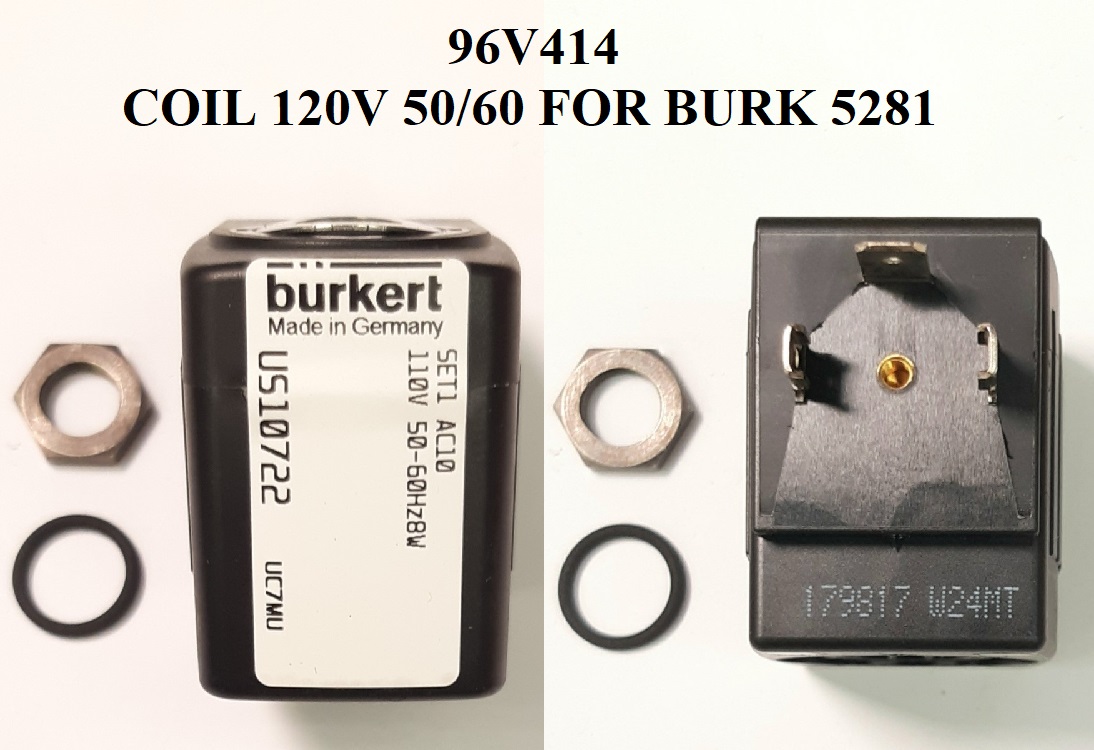

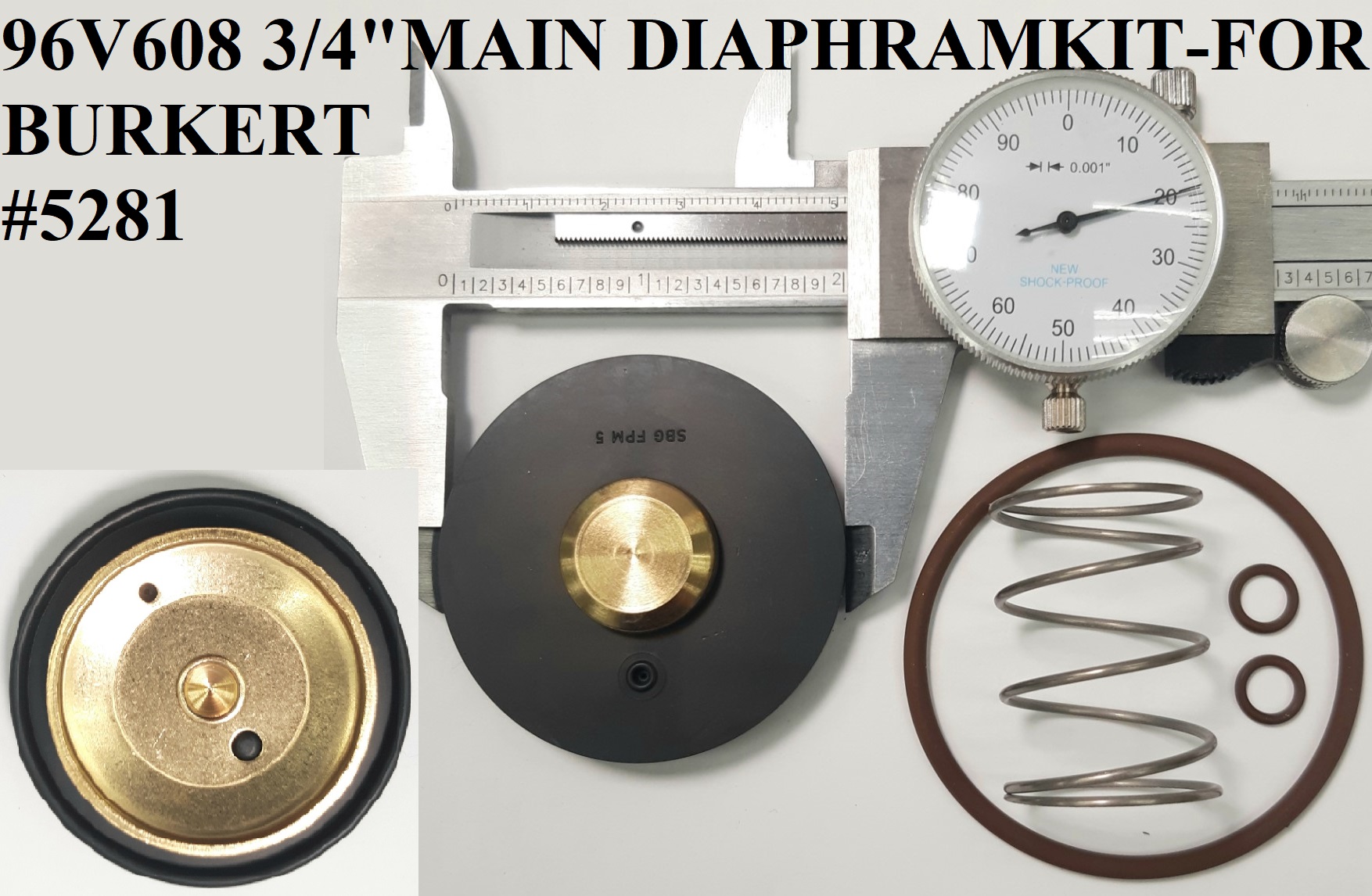

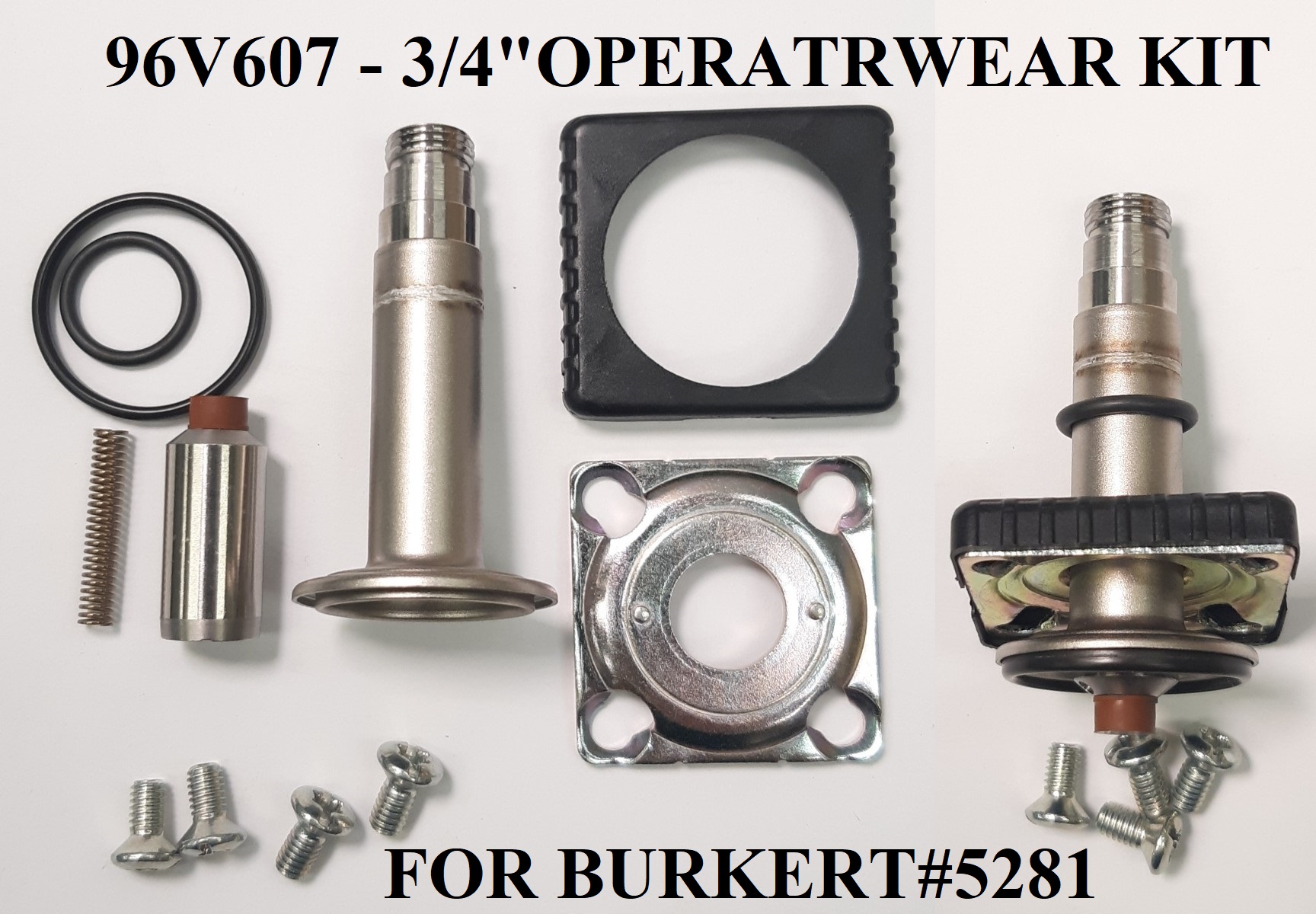

96P056B37	3/4"NC110V 50/60 W/LEADS BURKERT	5281	96V414	96V608	96V607	N/A	N/A

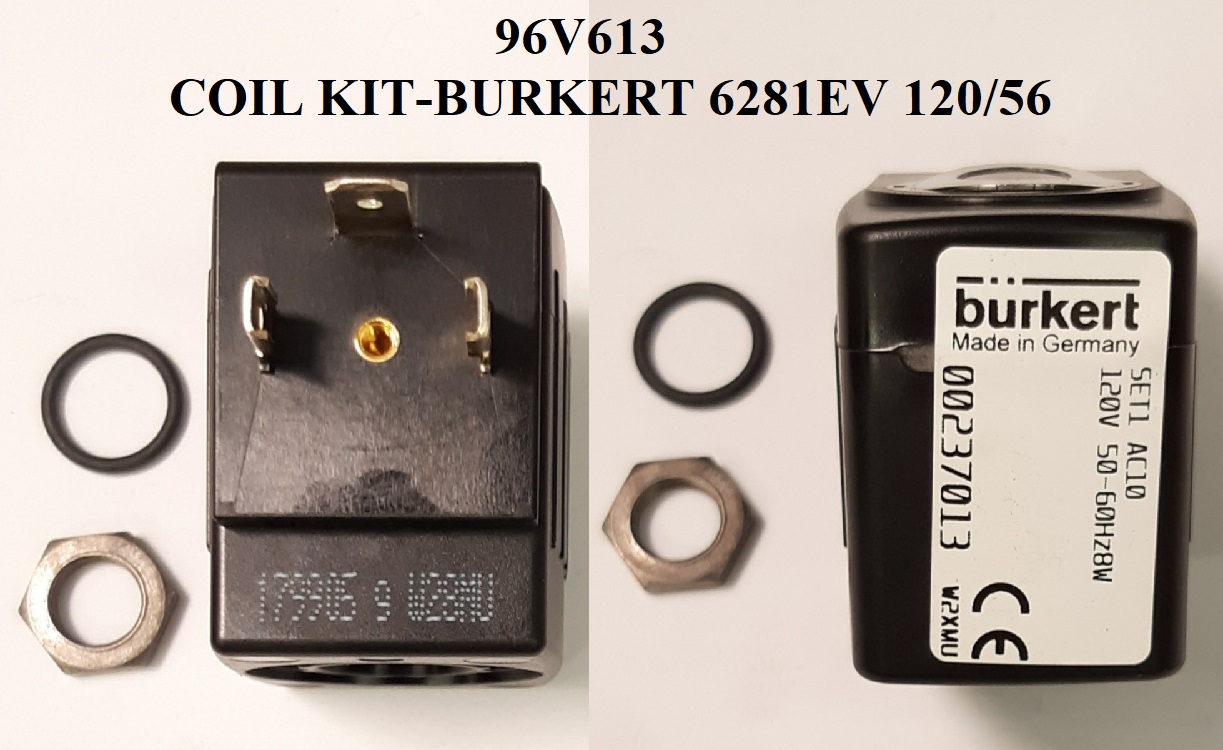

96P056B37	3/4"NC110V 50/60 W/LEADS BURKERT	6281EV	96V613	N/A	96V611	N/A	N/A

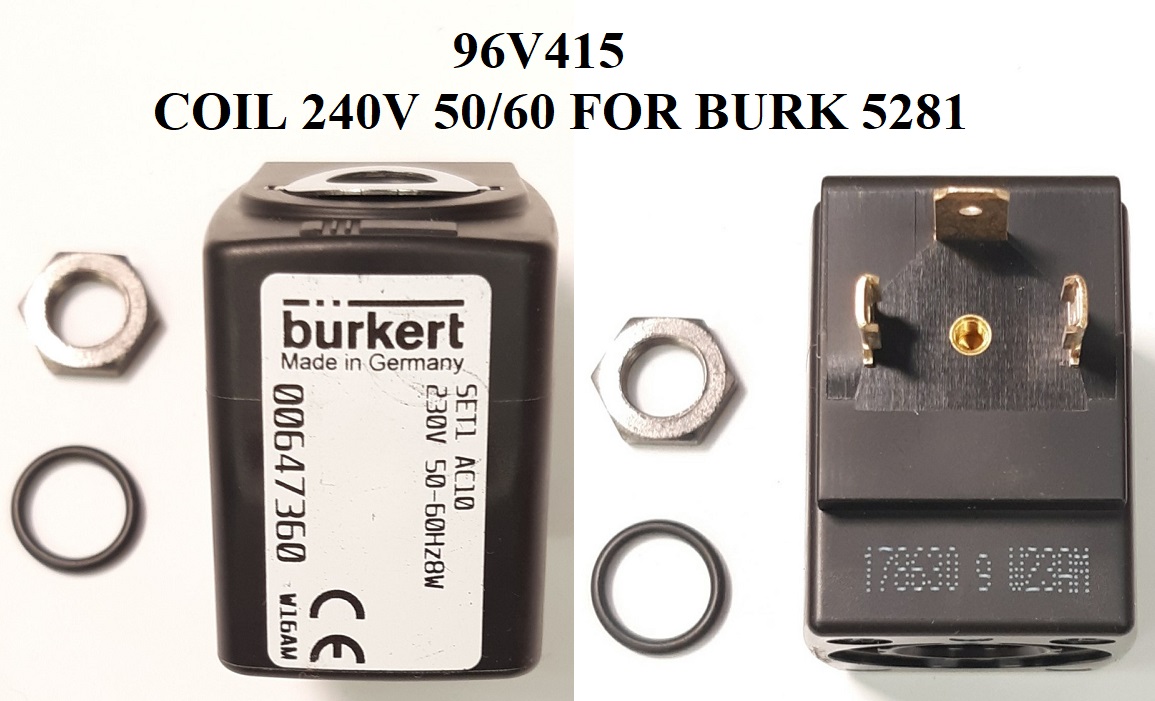

96P056B71	3/4"NC 230V50/60 W/LEADS BURKERT	5281	96V415	96V608	96V607	N/A	N/A

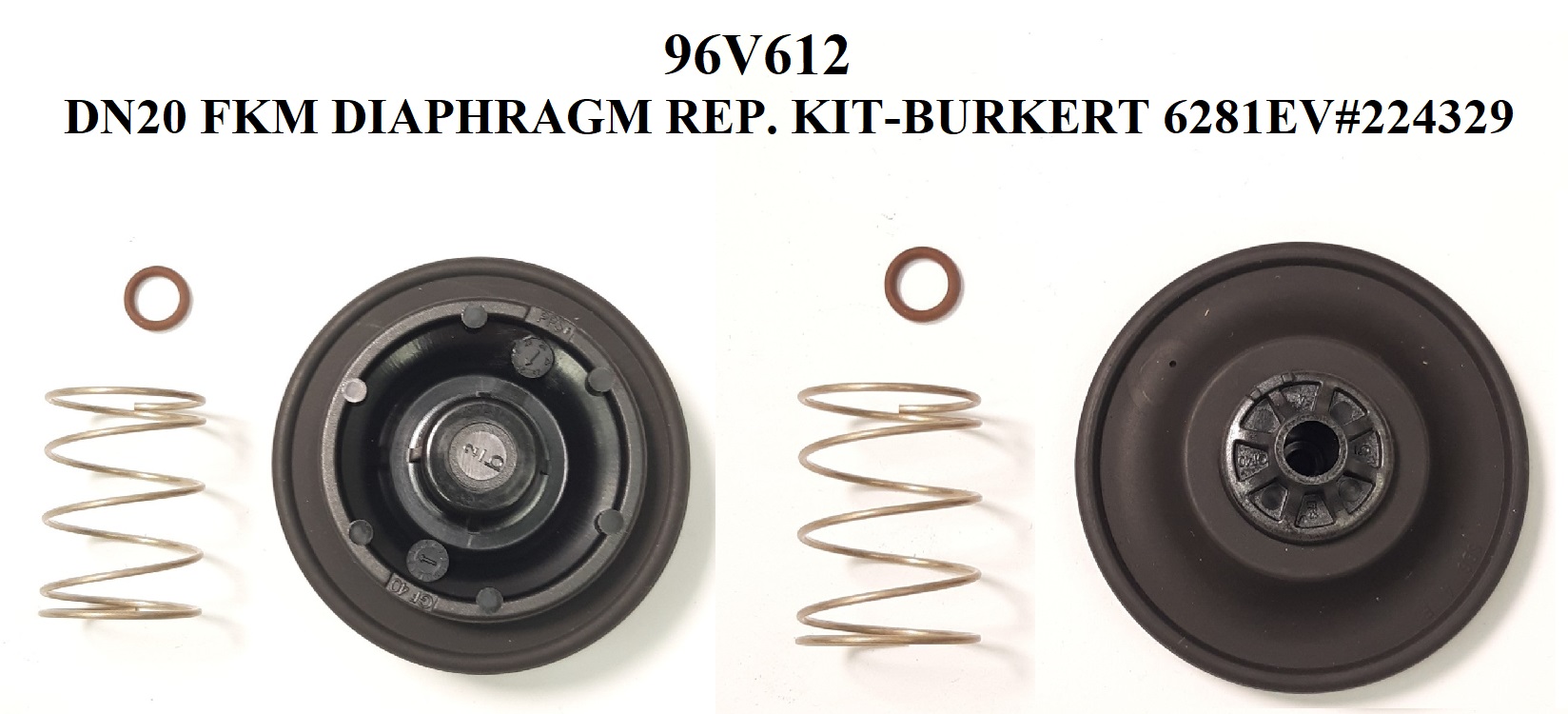

96P056B71	3/4"NC 230V50/60 W/LEADS BURKERT	6281EV	96V610	96V612	96V611	N/A	N/A

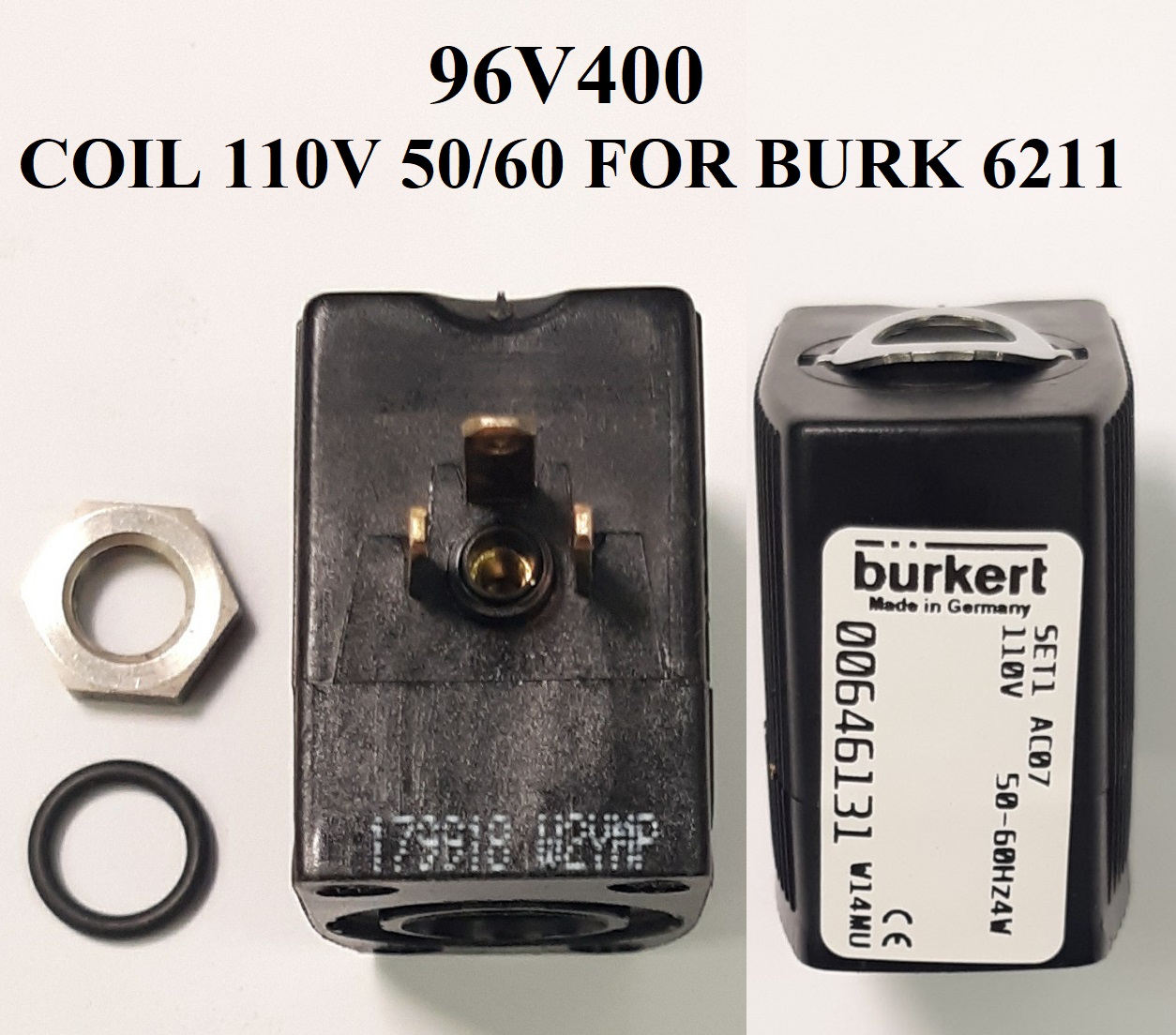

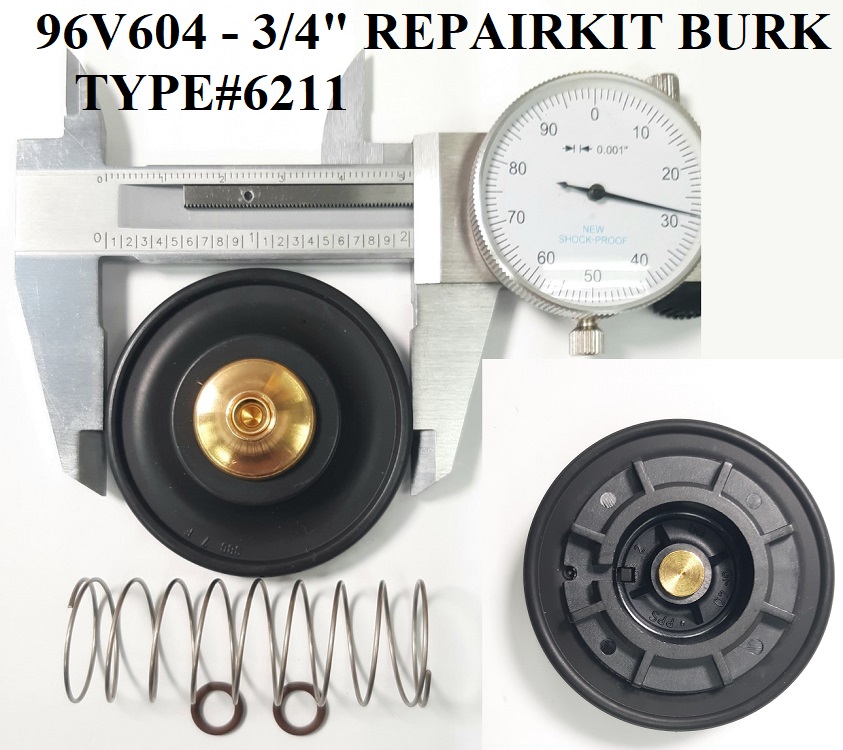

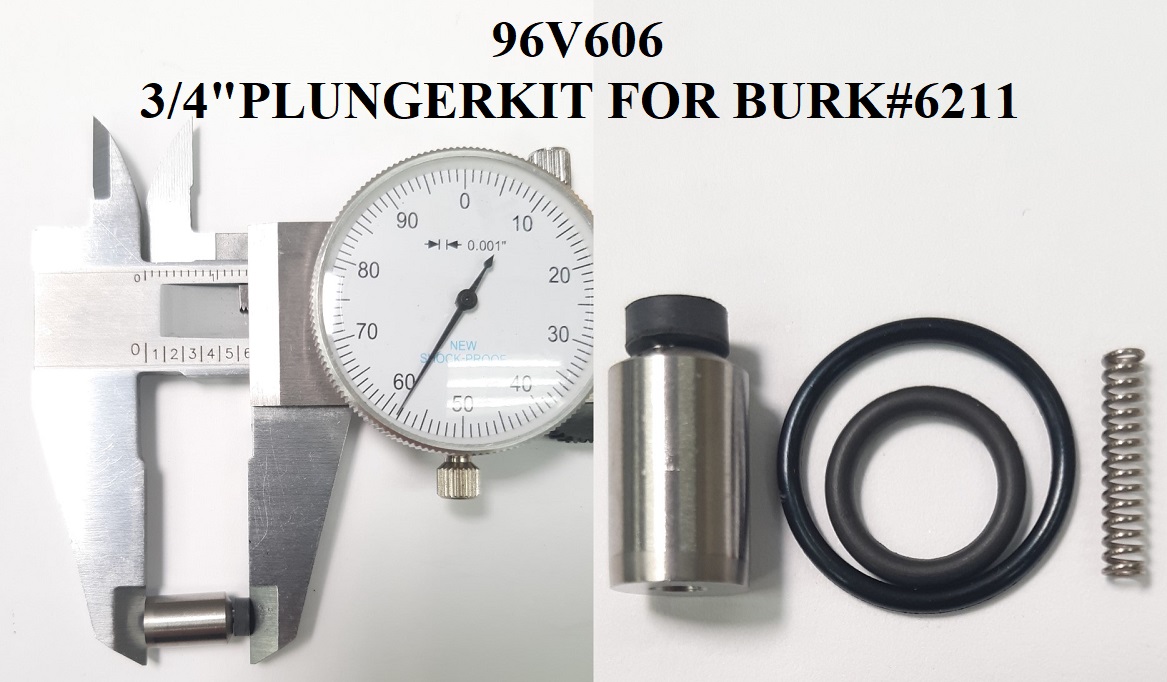

96P056A37	3/4"NC110V 50/60 BURKERT #6211	6211	96V400	96V604	N/A	96V606	N/A

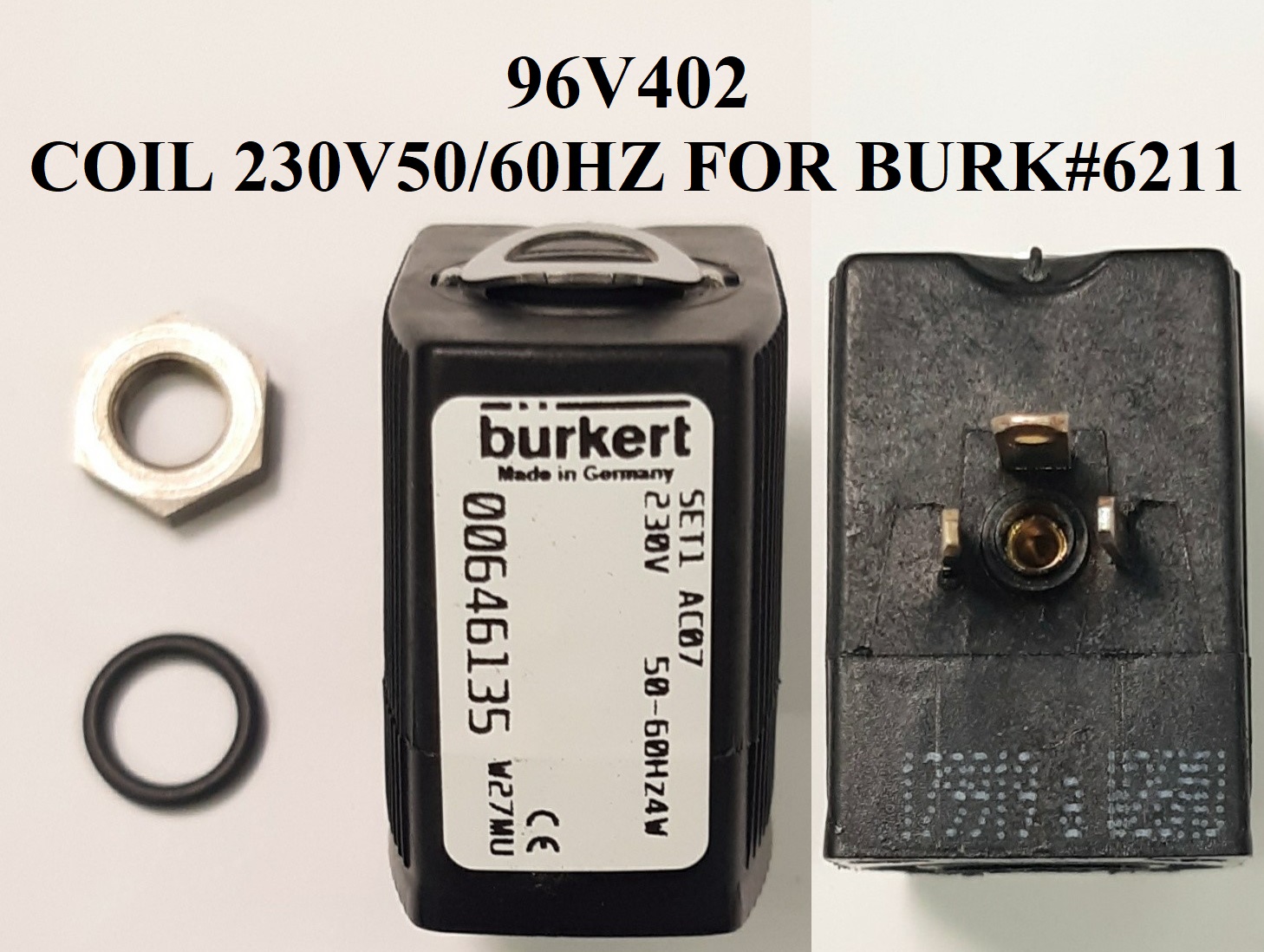

96P056A71	3/4"NC 230V50/60 BURKERT #6211	6211	96V402	96V604	N/A	96V606	N/A

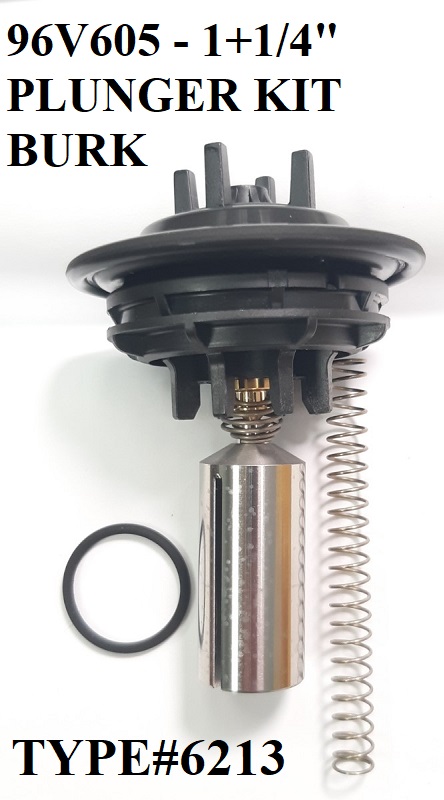

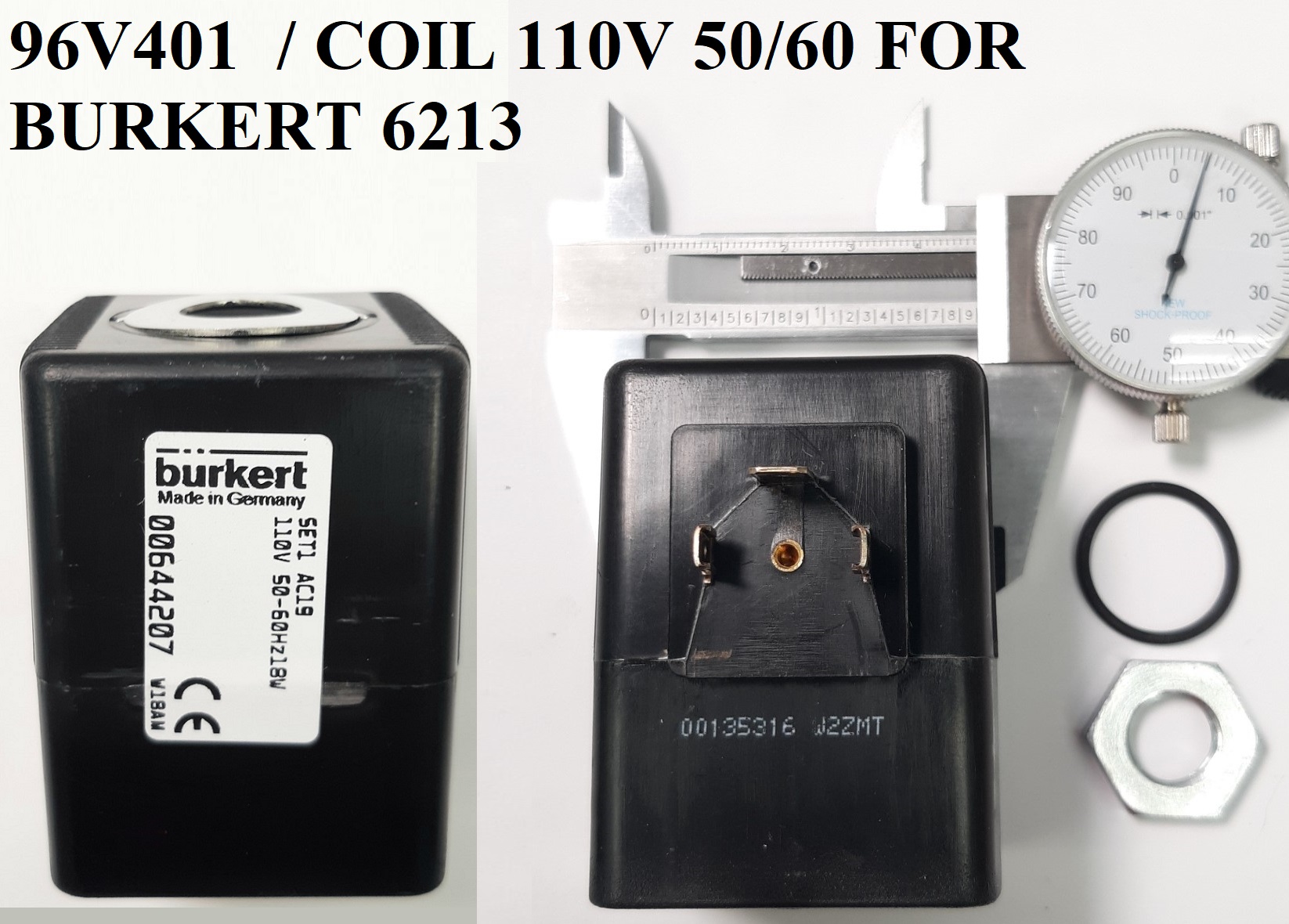

96P152A37	1+1/4"NC 110V W/LEADS BURKERT	6213	96V401	N/A	N/A	N/A	96V605

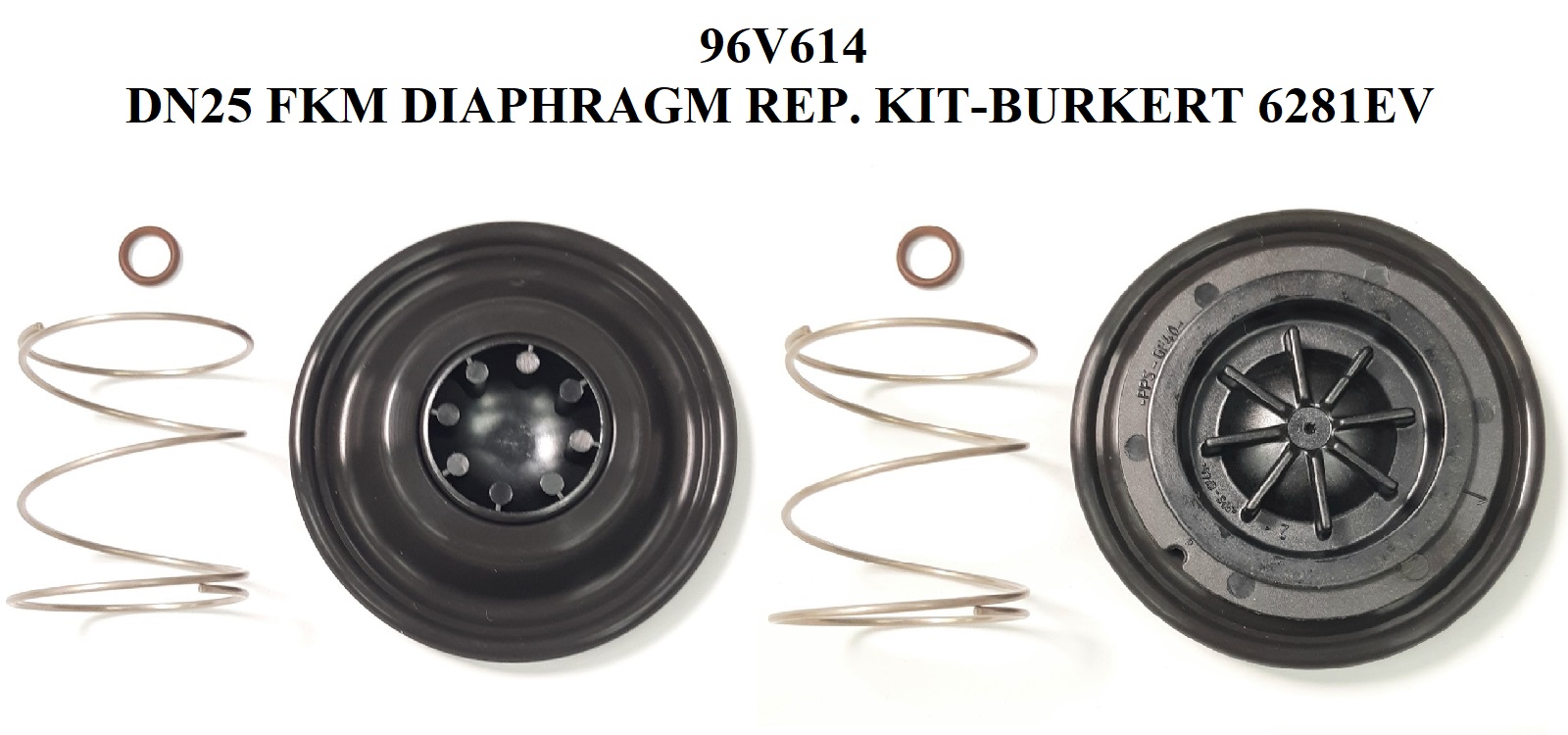

96P152A37	1+1/4"NC 110V W/LEADS BURKERT	6281EV	96V613	96V614	96V611	N/A	N/A

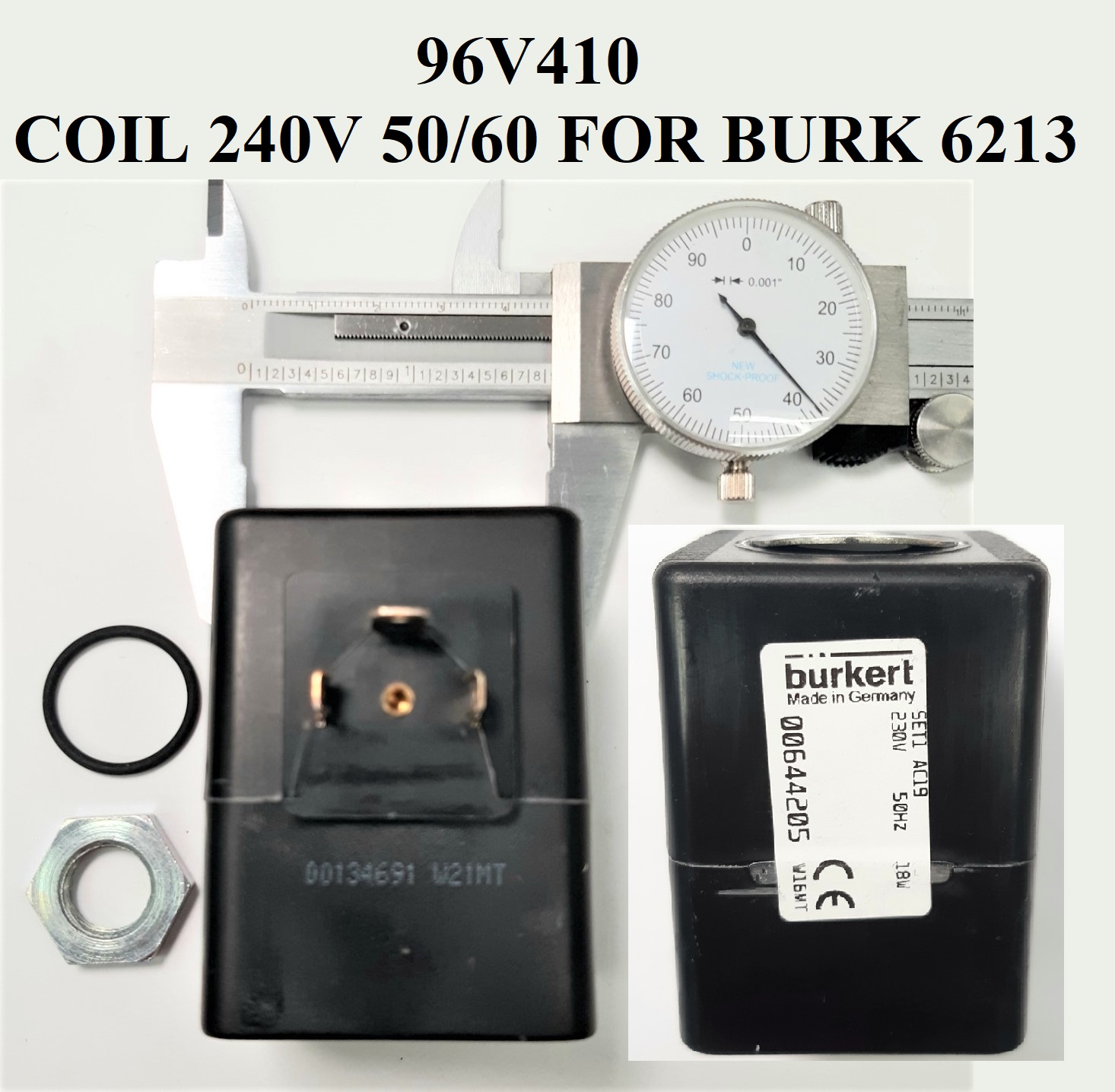

96P152A71	1+1/4"NC 240V W/LEADS BURKERT	6213	96V410	N/A	N/A	N/A	96V605
96P152A71	1+1/4"NC 240V W/LEADS BURKERT	6281EV	96V405	96V614	96V611	N/A	N/A
