Drive belt part number for multi motor washer extractors up to 48" diameter
Part numbers for various drive belts on washer-extractors with multiple motors up to 48" diameter.

Drive belt part number for multi motor washer extractors up to 48" diameter

Some Milnor Washer-Extractors use multiple motors and V belts.  Below is a List of Model numbers accompanied by a picture or drawing of the drive system.  The belts are marked by number.  The tables below have the corresponding part numbers.  Some Belts differ according to incoming power frequency (50 or 60 Hz).
Remember, some machines have configurations designed for specific customer needs.  Please compare the part number with the information found on your belt.


For 52" thru 72" washer diameters click HERE

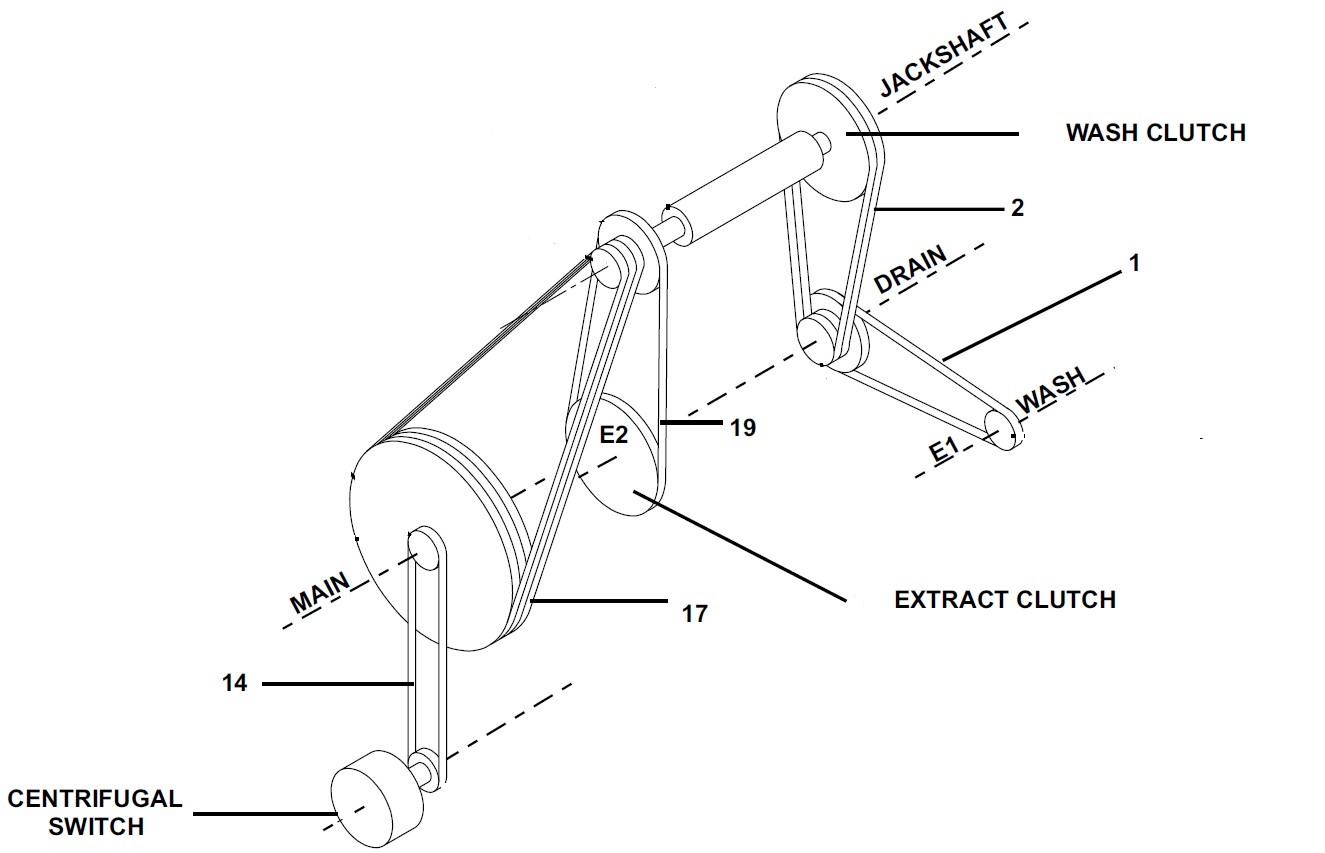

Drive Chart - Rigid Mount 30015C4A,M4J,M4G,M4T,M6J,M6G 30022 C4A,M5J,M5G,M5T

User-added image

30015C4A / 30015M4J / 30015M4G / 30015M4T / 30015N4E

50 Hz, 60 Hz
12191714
E1-WASH to DRAINDRAIN TO JACKSHAFTE2 to JACKSHAFTJACKSHAFT to MAINMAIN to Centrifugal switch
56VA035X (50 Hz)
56VA034X (60 Hz)		56VA035X x 2 belts56VA038356VA071X x 2 beltsN/A

30015M6J / 30015M6G

12191714
50 Hz, 60 Hz
56VA034X56VA035X x 2 belts56VA036X (50 Hz)
56VA036S (60 Hz)		56VA071X x 2 belts                 N/A

30022M5J / 30022M5G / 30022M5T

50 Hz, 60 Hz
12191714
56VA038X56VA038X x 2 belts56VA037X56VA079P (50 Hz)
56VA078X (60 Hz)
x 3 belts		               N/A

30020M5P / 30022M5P

50 Hz, 60 Hz
12191714
56VA037X56VA038X x 2 belts56VA037X56VA079P (50 Hz)
56VA078X (60 Hz)
x 3 belts		     56V40470S


30022C4A / 30020M4A / 30022C4T

12191714
50 Hz, 60 Hz
56VA038X56VA038X x 2 belts56VA038X56VA079P (50Hz)
56VA078X (60 Hz)
x 3 belts		               N/A

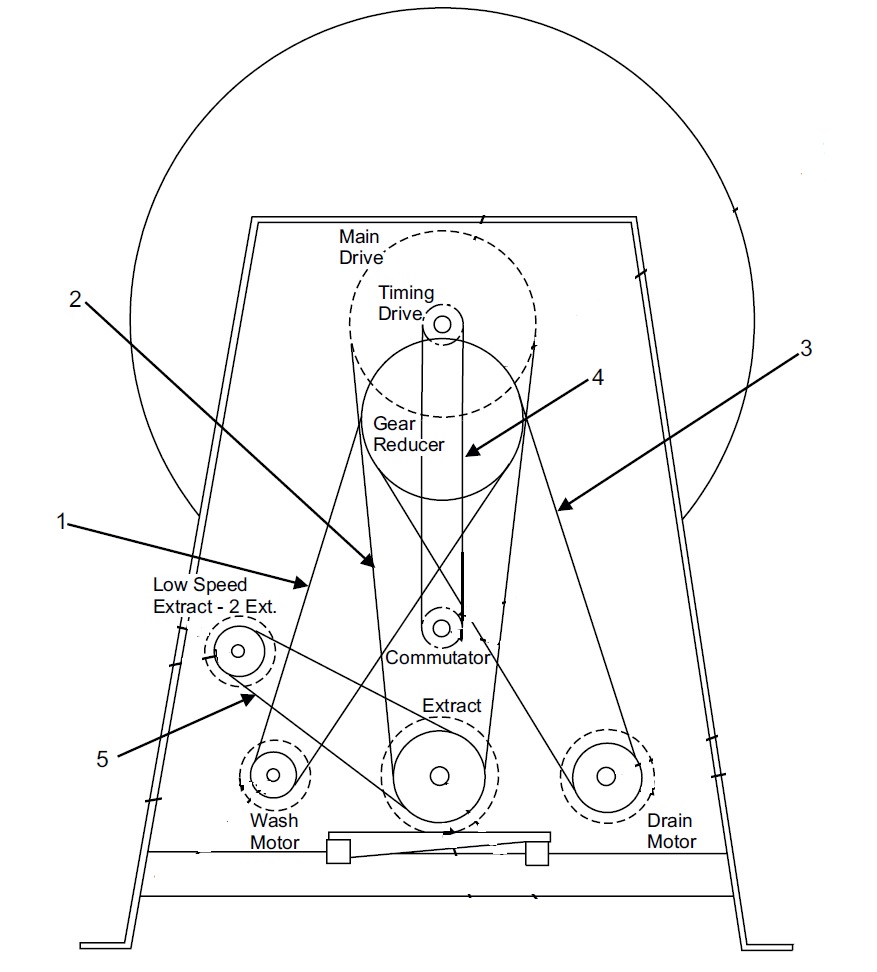

DRIVE ASSEMBLY 3621BWP,CPE,NSP

User-added image

36021BWP / 36021CPE

12354
50 Hz, 60Hz
Wash to Gear Red.Extract 1 to MainDrain to Gear RedLow Extract to ExtractCommutator to Main
56V50730S56VB087SM2 (50 Hz)
56VB085SM2 (60 Hz)
x 2 Belts		56VB075S (50 Hz)
56V50760S (60 Hz)		56VB042S (50 Hz)
56VB040S (60 Hz)		54C050

36021NSP

12354
56V50730S56VB083SM2 x 2 belts56V50750S56VB046X   54C050



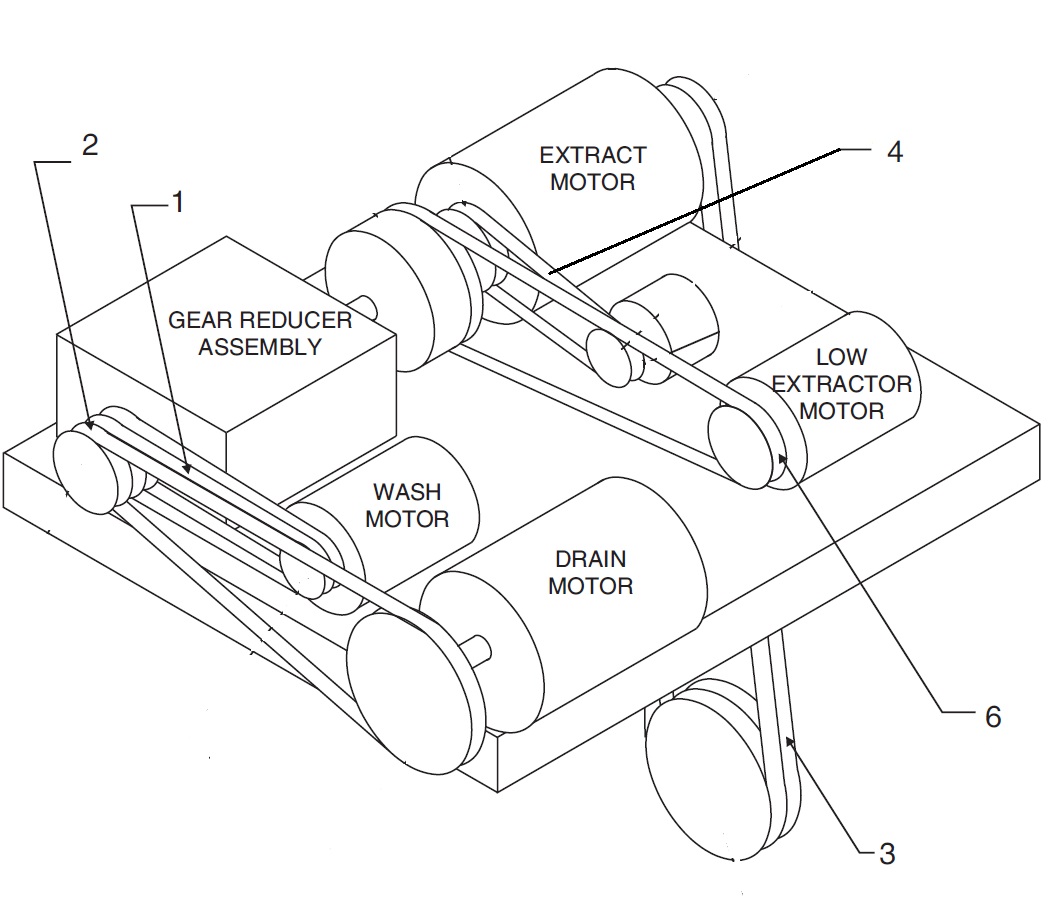

3621Q4G/J, 3626Q4G/J DRIVE CHART


User-added image

36021Q4J, 36021Q4G, 36026Q4J, 36026Q4G

231916512
WASH TO EXTRACTEXTRACT TO JACKSHAFTDRIVE TO JACKSHAFTJACKSHAFT TO MAIN       CENTRIFUGAL
56VA043X - 50hz
56VB044X - 60hz		56VA038X56VA043X x2 Belts56VA078X x3 Belts56VR0490X - 50hz
56VR050S - 60hz

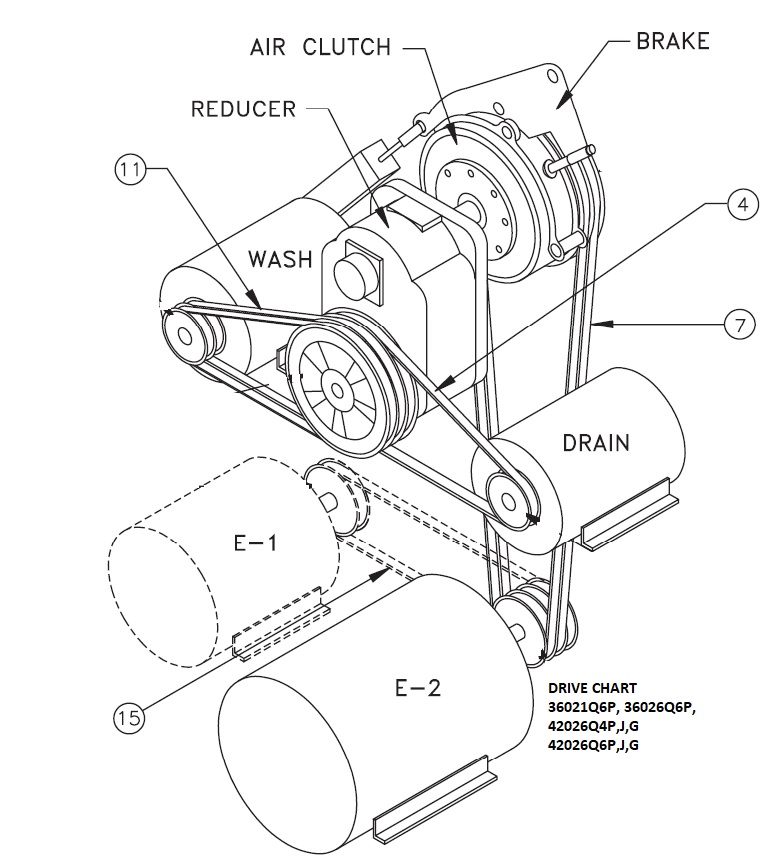

DRIVE CHART  3621Q6J,G,P 3626Q6J,G,P 4226Q4G,J,P & 3626Q6P 4226Q6P 2 EXTRACT UNITS

User-added image

36021Q6P, 36021Q6J, 36021Q6G, 36021Q6P w/ 2 Extract motors

 114715
MODEL WASH TO REDUCER DRAIN TO REDUCEREXTRACT TO CLUTCHOPTIONAL 2ND EXTRACT
3621Q6P/J/G 50CYC56VB042S x 2 Belts56VB046X56VB074S x 2 BeltsN/A
3621Q6P/J/G 60CYC56VB042X x 2 Belts56VB046X56VB074S x 2 BeltsN/A
3621Q6P 2EXT 50CYC56VB042X x 2 Belts56VB044S56VB074S x 2 Belts56VB046X 50hz
3621Q6P 2EXT 60CYC56VB042X x 2 Belts56VB046X56VB074S x 2 Belts56VB042X 60hz

36026Q6P, 36026Q6J, 36026Q6G, 36026Q6P w/ 2 Extract motors

 114715
MODEL WASH TO REDUCERDRAIN TO REDUCEREXTRACT TO CLUTCHOPTIONAL 2ND EXTRACT
3626Q6P/J/G 50CYC56VB042S x 2Belts56VB046X56VB075S x 2 Belts
3626Q6P/J/G 60CYC56VB040S x 2 Belts 56VB046X56VB074S x 2 Belts
3626Q6P 2EXT 50CY56VB040S x 2 Belts56VB046X56VB074S x 2 Belts56VB038X
3626Q6P 2EXT 60CY56VB040S x 2 Belts56VB046X56VB074S x 2 Belts56VB040S

42026Q4G, 42026Q4J, 42026Q4P, 42026Q6G, 42026Q6J, 42026Q6P, w/ 2 Extract motors

 114715
MODEL WASH TO REDUCERDRAIN TO REDUCEREXTRACT TO CLUTCHOPTIONAL 2ND EXTRACT
42026Q4G,J,P 50CYC56VB040S x 2 Belts56VB046X56VB072X x 2 Belts
42026Q4G,J,P 60CYC56VB038X x 2 Belts56VB044S56VB071XM2 x 2 Belts
4226Q6P/J/G 50CYC56VB040S x 2 Belts56VB046X56VB074S x 2 Belts
4226Q6P/J/G 60CYC56VB038X x 2 Belts56VB044S56VB071XM2 x 2 Belts
42026Q6P 2 EXT 50CYC56VB040S x 2 Belts56VB046X56VB074S x 2 Belts56VB040S
42026Q6P 2 EXT 60CYC56VB038X x 2 Belts56VB044S56VB071XM2 x 2 Belts56VB036X

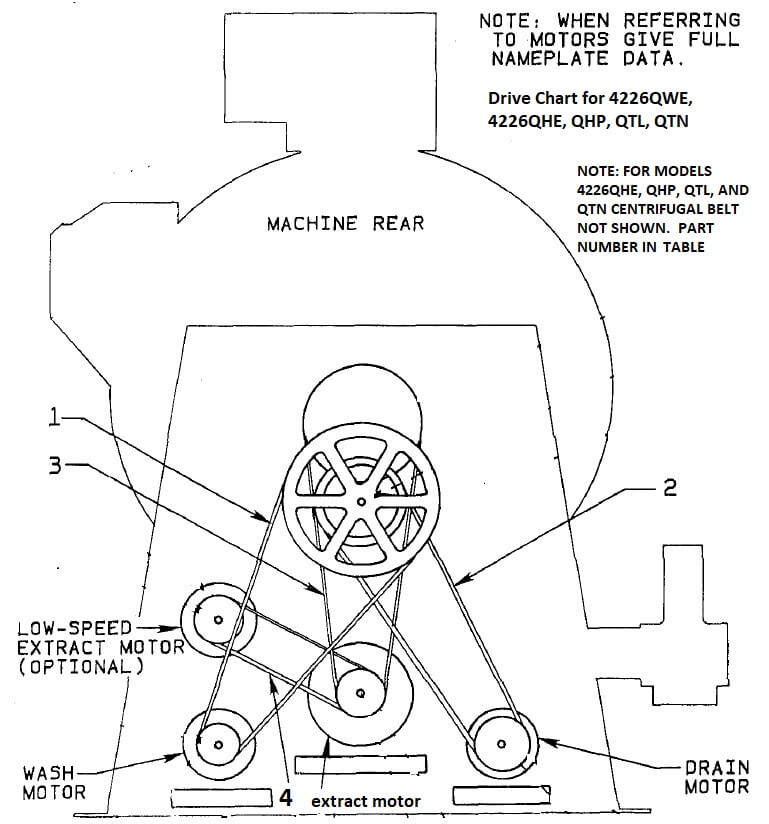

Drive Chart for 4226QWE, QHE, QHP, QTL, & QTN plus 2 Extract Machines

User-added image

42026QHE, 42026QHP, 42026QTL, 42026QTN, 42026QWE

 1234Not shown in Diagram
MODELSWASH TO REDUCERDRAIN TO REDUCEREXTRACT TO DRIVEEXT LOW TO EXT HIGHCENTRIFUGAL
42026QHE/P /QTL/N 50CYC56VB051X x 2 Belts56VB038X56VB112XM3 X3N/A56V40420S
42026QHE/P /QTL/N 60CYC56VB051X x 2 Belts56VB038X56VB112XM3 X3N/A56V40420S
42026QHE/P /QTL/N 2 EXT 50CYC56VB051X x 2 Belts56VB038X56VB112XM3 X356VB062X x 2 Belts56V40420S
42026QHE/P /QTL/N 2 EXT 60CYC56VB051X x 2 Belts56VB038X56VB112XM3 X356VB062X x 2 Belts56V40420S
42026QWE56VB064X56V50720SN/A56VB082XM2 x 2 BeltsN/A
42026QWE 2 EXT 50CYC56VB064X56V50740S56VB046X56VB083X x 2 BeltsN/A
42026QWE 2 EXT 60CYC56VB066X56V50720S56VB044S56VB082XM2 x 2 BeltsN/A


Drive Chart 42031& 42044 CP2, CP3, NP2, NP3, WP2, WP3

User-added image

42031CP2 / 42031NP2 / 42031WP2 / 42031WP3 / 42044CP2 / 42044CP3 / 42044NP2 / 42044NP3 / 42044WP2 / 42044WP3

12346
50 Hz, 60 Hz
WASH TO GEAR REDDRAIN TO GEAR REDEXTRACT TO DRIVECENTRIFUGAL TO EXTRACTLOW EXTRACT TO CLUTCH
(if applicable)
56VB038X x 2 belts56VB068B56VB120X x 5 belts56V40390S56VB075S x 2 belts




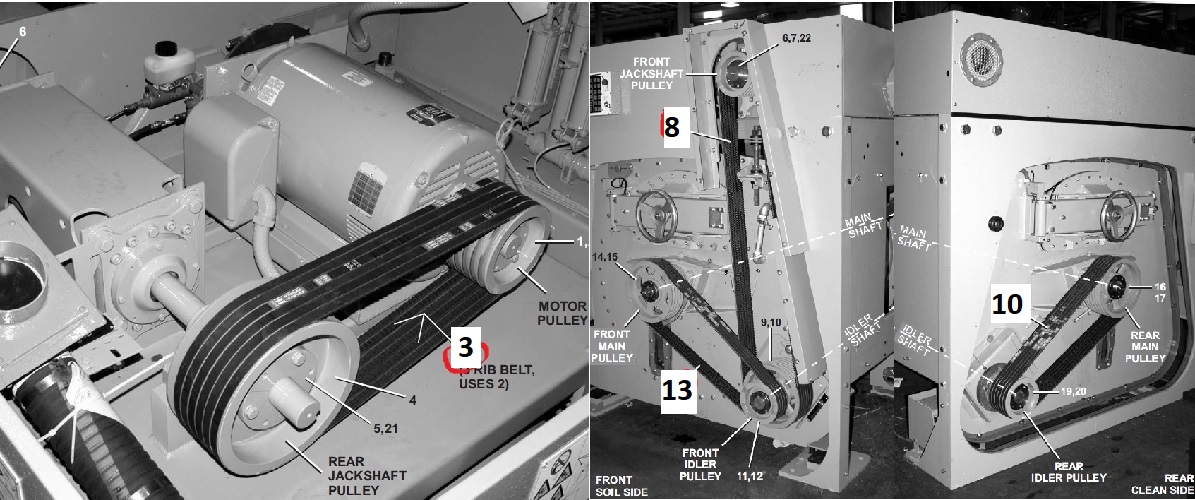

Drive Chart 4244SP2, 4244SP3, 4231SP2, 4231SP3

User-added image

42044SP2 / 42044SP3

50 Hz, 60 Hz
12345IF APPLICABLE
WASH TO GEAR REDDRAIN TO GEAR REDEXTRACT TO IDLER SHAFTIDLER TO MAIN CLEAN AND SOILCENTRIFUGAL TO MAINSLOW EXTRACT ONLY ON 4231SP2/3
56VB038X
x 2 Belts		56VB068B56VB133X
x 6 Belts		56VB085X (50Hz) 56VB083X (60 Hz)
x 10 Belts total		56V40390SN/A

42031SP2 / 42031SP3

12345SLOW EXTRACT
ONLY ON 4231SP2/3
50 Hz, 60 Hz
56VB038X
x 2 Belts		56VB068B56VB133X
x 4 belts		56VB085X (50Hz)
56VB083X (60 Hz)
x 8 belts total     		   56V40390S      56VB075S x 2



Drive Chart 4244SP2, SP3, SR2, SR3 (Single Motor)

User-added image

42044SP2 / 42044SP3 / 42044SR2 / 42044SR3

SINGLE MOTOR
381310
MOTOR TO JACKSHAFTJACKSHAFT TO FRONT IDLERFRONT IDLER TO MAINREAR IDLER TO MAIN
56VB070XB3 x 2 belts56VB133X x 6 belts56VB083X x 5 belts56VB083X x 5 belts

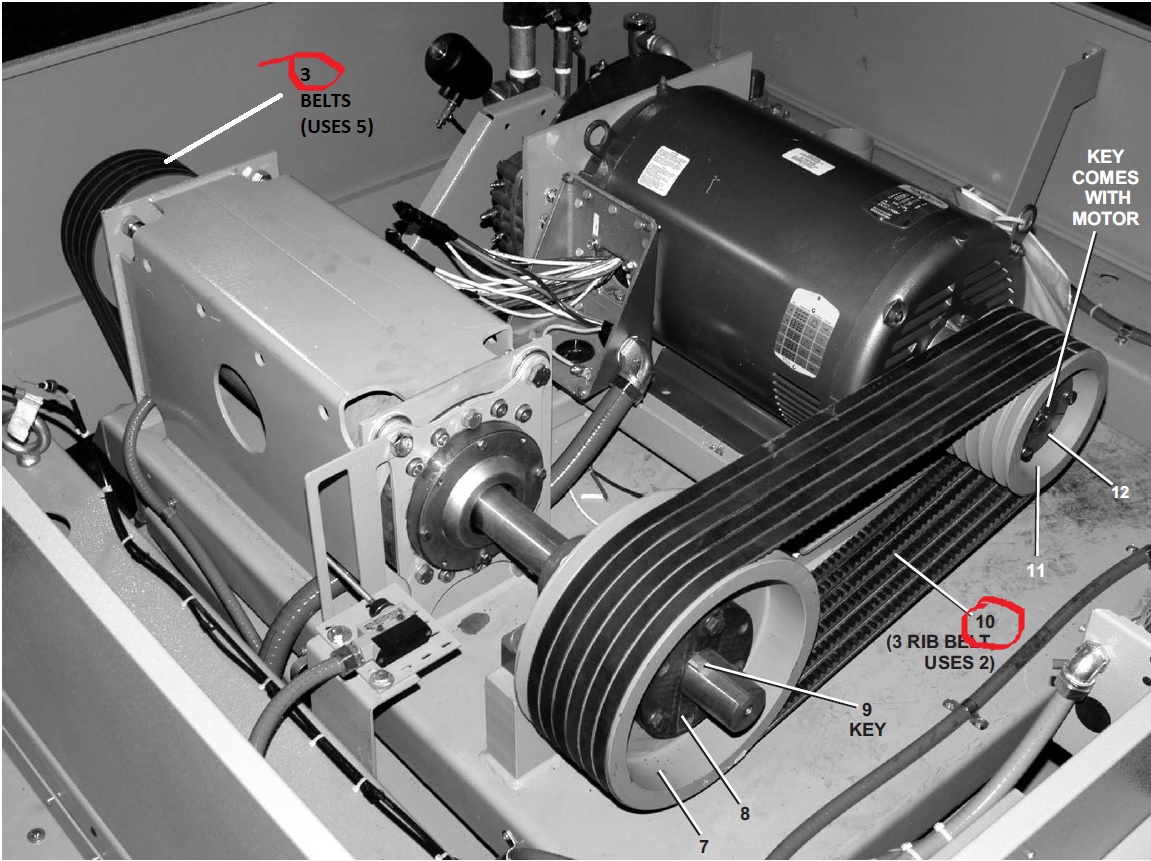

Drive Chart 42044CP2, CP3, NP2, NP3, WP2, WP3 42044WR2, WR3

User-added image

42044CP2 / 42044CP3 / 42044NP2 / 42044NP3 / 42044WP2 / 42044WP3 / 42044WR2 / 42044WR3

103
 Single Motor Drive
MOTOR TO JACKSHAFTJACKSHAFT TO MAIN
56VB070XB3
x 2 belts		56VB120X
x 5 belts

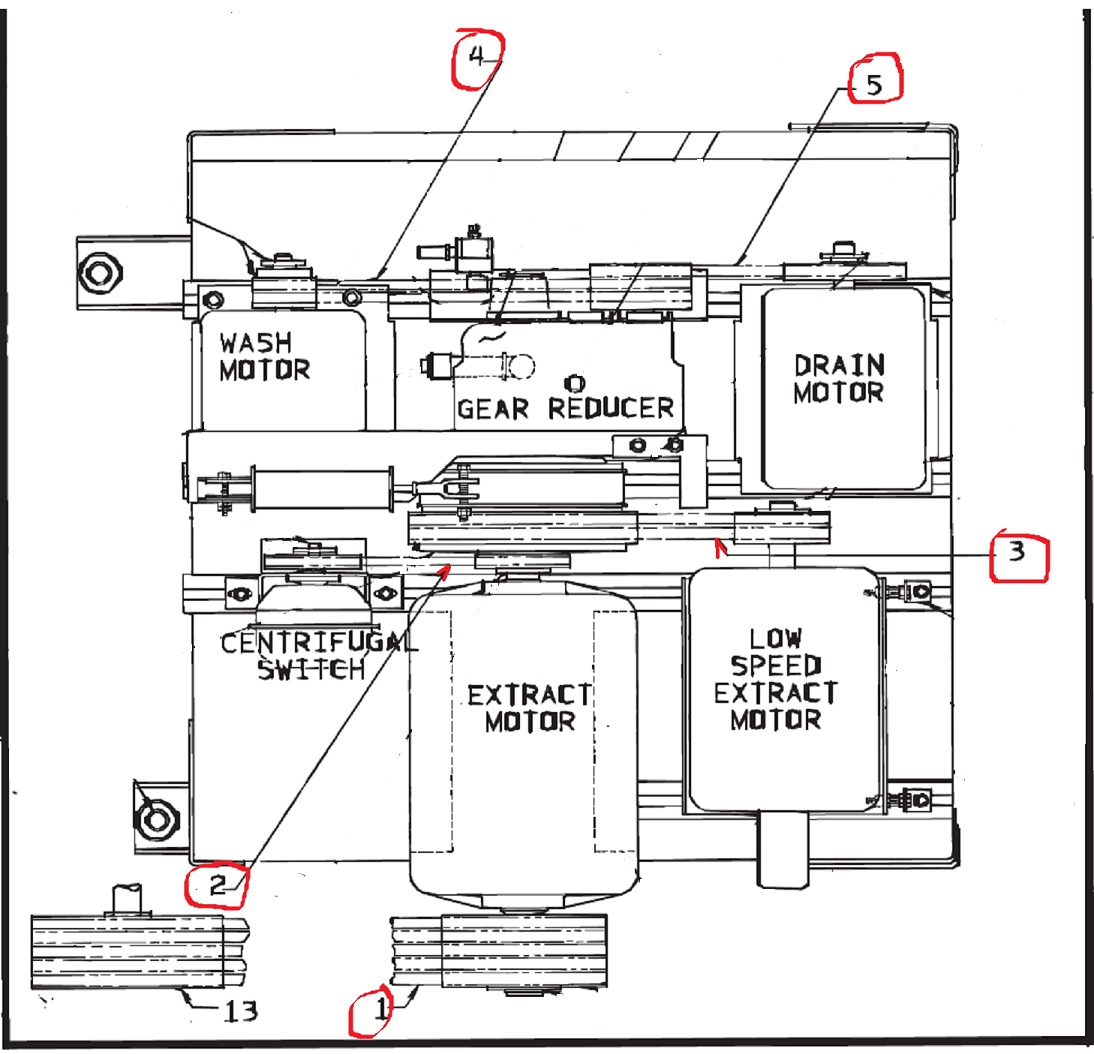

Belt drive chart 48032 BHP, BTL, BTN 48036 QHP, QTL, QTN 48036J6P

User-added image

48032BHE / 48032BHP / 48032BTL / 48032BTN / 48036QHE / 48036QHP / 48036QTL / 48036QTN / 48036J6P

50 Hz, 60 Hz
12345
EXTRACT TO MAIN DRIVECENTRIFUGAL SWITCH
TO EXTRACT		LOW EXTRACT TO EXTRACT
(if applicable)		WASH TO
GEAR RED		DRAIN TO
GEAR RED
56VB117XM5,  56VB115XM5
x 5 belts		56V40390S56VB055S
x 2 belts		56VR063S
x 4 belts		56VR053S
x 2 belts
