DRIVE BELT PART NUMBERS FOR 52" THRU 72" MULTI MOTOR DRIVE WASHER EXTRACTORS

Multi motor drive belts for model codes 52038 thru 72044 washer extractors.

For smaller washer extractors go to Drive belt part number for multi motor washer extractors up to 48" diameter

Remember, some machines have configurations designed for specific customer needs.  Please compare the part number you find with the information found on your actual belt.




5238 W Drive Chart

52038WP1 / 52038WTL / 52038WTN

1	2	4	6	7
WASH TO GEAR RED	DRAIN TO GEAR RED	EXTRACT 1 TO JACKSHAFT	EXTRACT 2 TO JACKSHAFT	JACKSHAFT TO MAIN
56VB066X x 2 belts	56VB046X	56VR063S x 4 belts	56VR0950M3 x 3 belts	56VS1600M8 x 8 belts







Drive Assembly 60036WE2-WE3,60044WE2-WE3, 60044WR2-WR3

60036WE2 / 60036WE3 / 60044WE2 / 60044WE3 / 60044WP2 / 60044WP3

50 Hz, 60 Hz

1	2	3	4	5
WASH TO GEAR REDUCER	DRAIN TO GEAR REDUCER	EXTRACT 1 TO JACKSHAFT	EXTRACT 2 TO JACKSHAFT	JACKSHAFT TO MAIN
56VR0425M4 x 4 belts	56VR0750M2 x 2 belts	56VR067S x 4belts	56VR071S x 3 belts	56VX1530W4 (50Hz), 56VS1505W4 (60Hz)

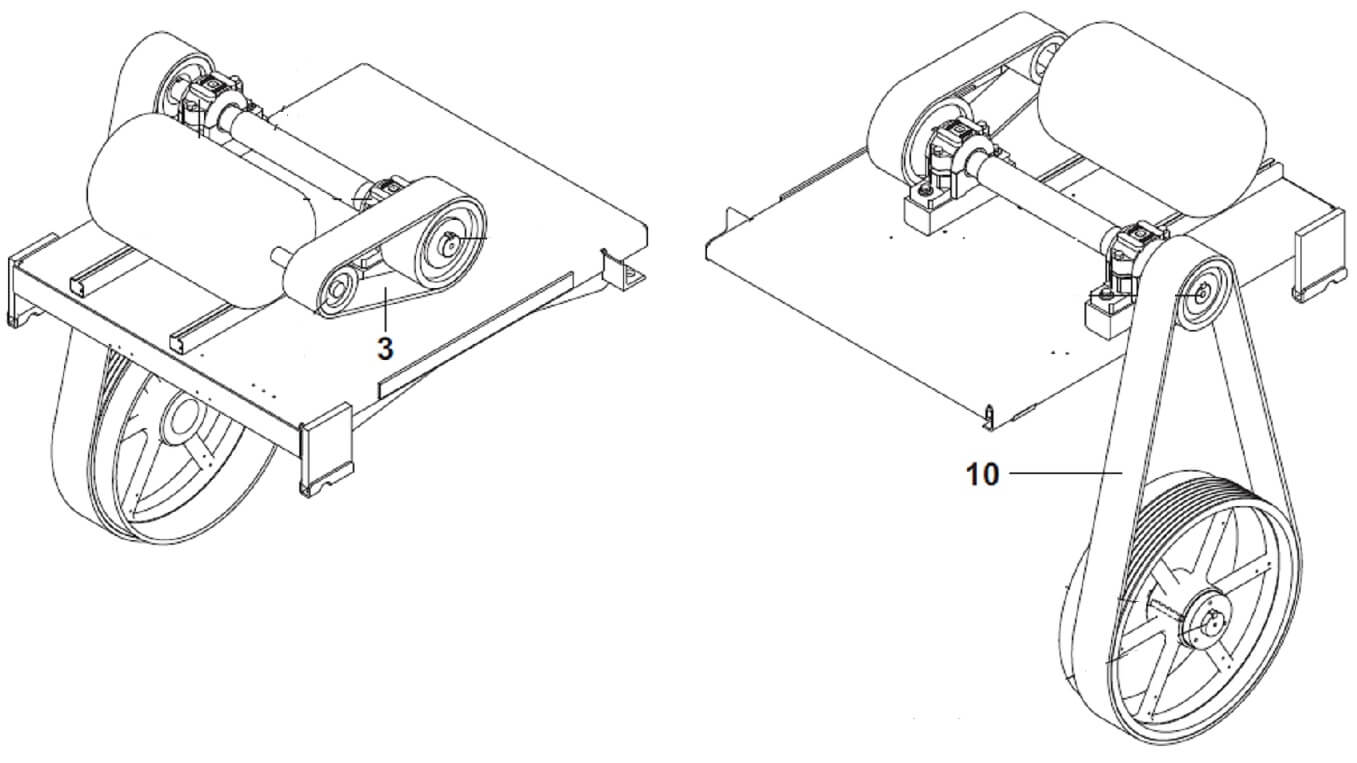

Single Motor Drive 6044WP2, WP3, 6044WR2, WR3

60044WP2 SM / 60044WP3 SM / 60044WR2 / 60044WR3

3 (used exclusively after 2/9/2012 but earlier models may have)	3 (phased out 2/9/2012 / check for 3 banded belts or 9 single belts)	10
MOTOR TO JACKSHAFT	MOTOR TO JACKSHAFT	JACKSHAFT TO MAIN
56VB060XB3 x 3 belts	56VB060X x 9 belts	56VS1505W4

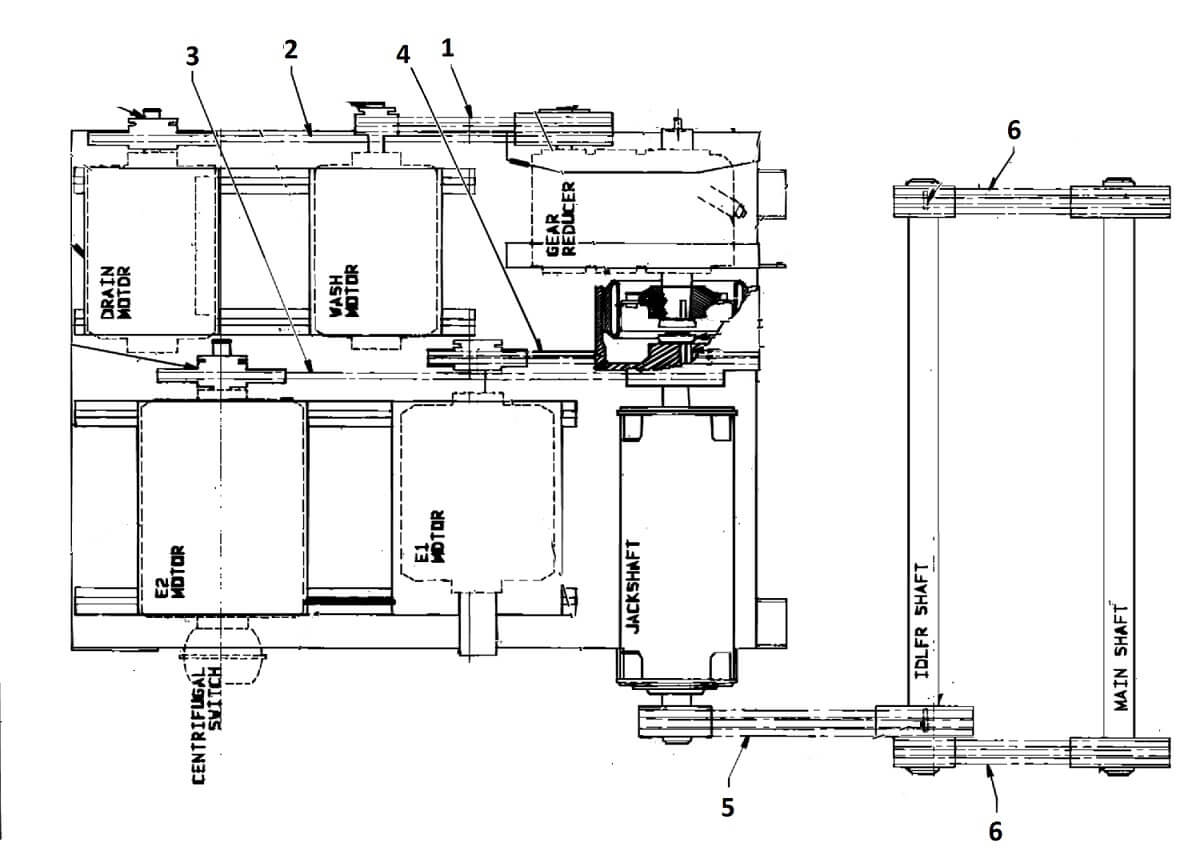

DRIVE CHART 4 MOTOR 60044 SP2-SP3

60044SP2 / 60044SP3

1	2	3	4	5	6
WASH TO GEAR REDUCER	DRAIN TO GEAR REDUCER	EXTRACT 2 TO JACKSHAFT	EXTRACT 1 TO JACKSHAFT	JACKSHAFT TO IDLER	IDLER TO MAIN (2 Places)
56VR053S x 4 belts	56VR0900M2 x 2 belts	56VR067S x 4 belts	56VR1060M3 x 3 belts	56VC173XBA x 3 belts	56VC107XBA

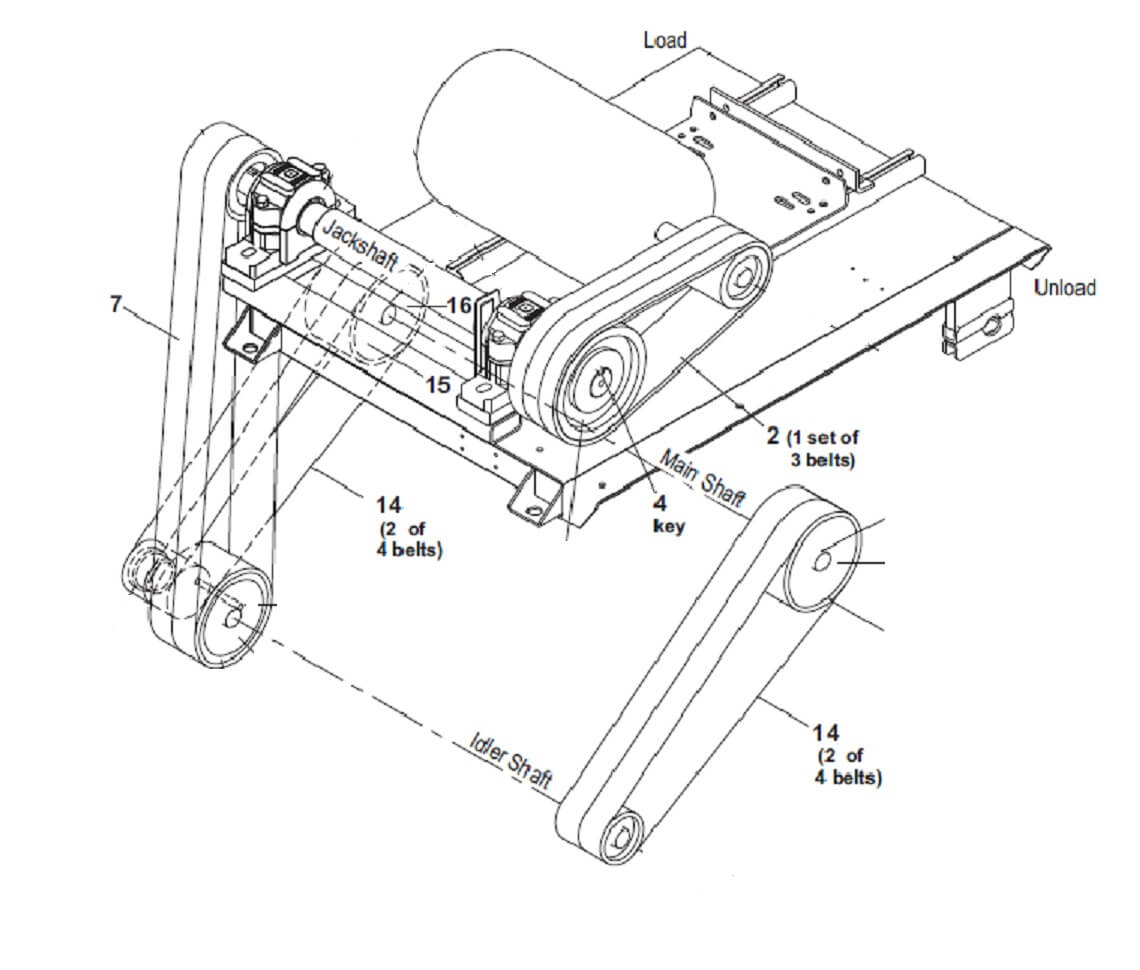

DRIVE CHART 60044SP2-SP3-SR2-SR3 SINGLE MOTOR

60044SP2 SM  / 60044SP3 SM / 60044SR2 SM / 60044SR3 SM

2 (used exclusively after 2/9/2012 but earlier models may have)	2 (phased out 2/9/2012 / check for 3 banded belts or 9 single belts)	7	14
MOTOR TO JACKSHAFT	MOTOR TO JACKSHAFT	JACKSHAFT TO IDLER	IDLER TO MAIN (2 Places)
56VB062XB3 x 3	56VB062X x 9	56VC173XBA	56VC107XBA



Drive Chart 6440 - 6450E6N / 72046M5K Single Motor

64040E6N / 64050E6N

9	3
MOTOR TO JACKSHAFT	JACKSHAFT TO MAIN
56VX1530W4	56VB062X x 7 belts

72046M5K

9	3
56VS780X5 x 2	56VS1800X5 x 2

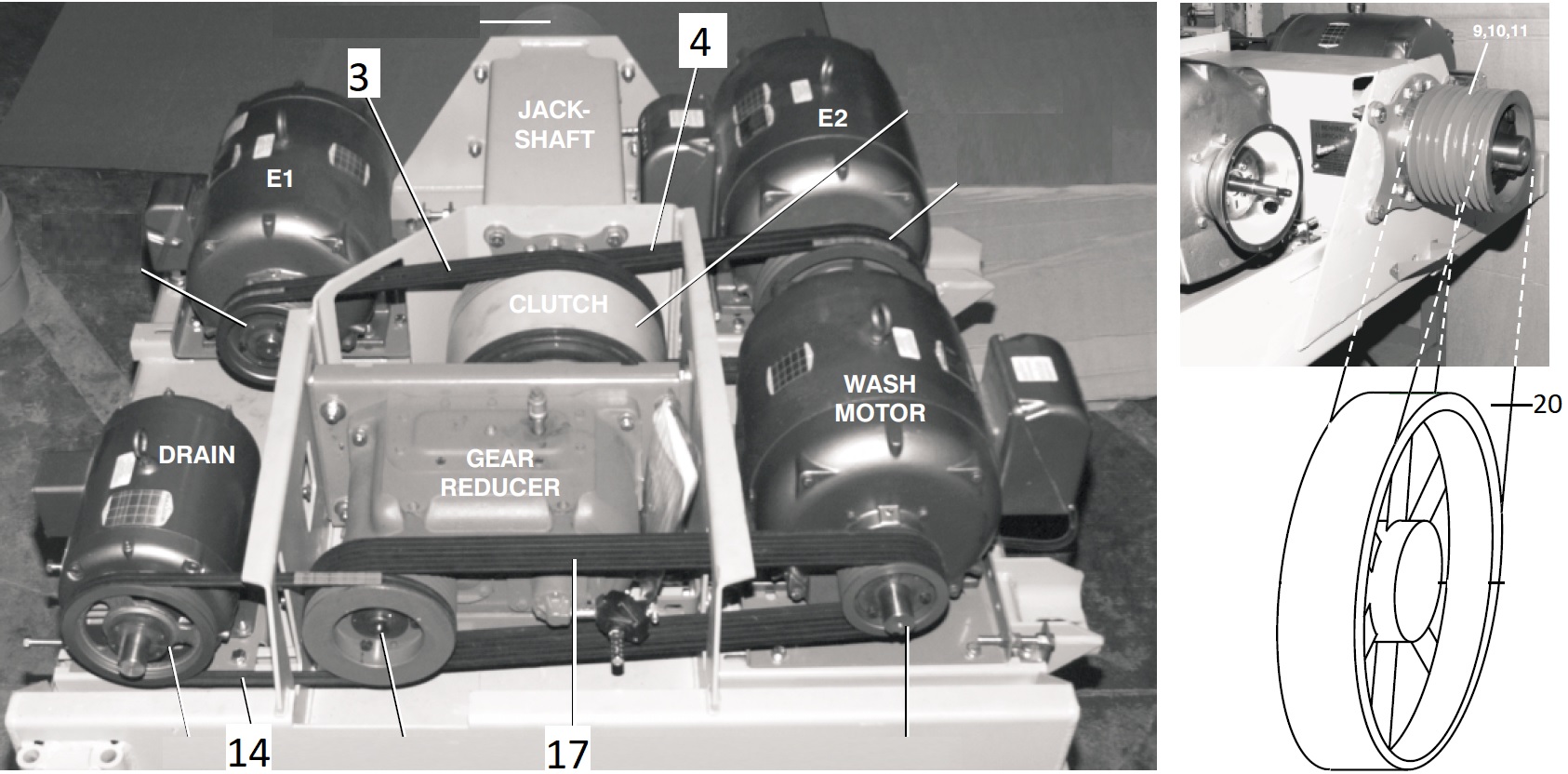

Drive Chart 64040, 64050, 64046E6N/J6N 72046E5N/J5N 72058J5N

64040E6N / 64050E6N

50 Hz, 60 Hz

17	14	3	4	20
WASH TO GEAR RED	DRAIN TO GEAR RED	E1 TO CLUTCH	E2 TO CLUTCH	JACKSHAFT TO MAIN
56VR0750M2 x 6 belts	56VR050S x 2 belts	56VR067S x 5 belts	56VS0670M3 x 3 belts	56VX1530W4 (50 Hz) 56VS1505W4 (60 Hz)

64046J6N / 64046E6N

17	14	3	4	20
56VR0750M2 x 5 belts	56VR050S x 2 belts	56VR067S x 5 belts	56VS0670M3 x 3 belts	56VX1530W4 (50Hz) 56VS1505W4 (60 Hz)

72046E5N / 72046J5N

17	14	3	4	20
56VR0750M2 x 6 belts	56VR0500 x 2 belts	56VR067S x 5 belts	56VR067S x 5 belts	56VX1700W5 50 Hz) 56VX1650W5 (60 Hz)

72058J5N

17	14	3	4	20
56VR0750M2 x 6 belts	56VR0500 x 2 belts	56VR067S x 5 belts	56VR063S x 5	56VX1700W5 (50Hz)  56VX1650W5 (60 Hz)



Drive Chart 72044SR2, SR3 72044SP2, SP3

72044SP2 / 72044SP3 / 72044SR2 / 72044SR3

29	5	8	11	22	26
WASH TO GEAR REDUCER	DRAIN TO GEAR REDUCER	EXTRACT 1 TO JACKSHAFT	EXTRACT 2 TO JACKSHAFT	JACKSHAFT TO IDLER	IDLER TO MAIN (2 PLACES)
56VR053X  x 6 belts	56VR0900M2  x 2 belts	56VR067S  x 5 belts	56VR112S  x 4 belts	56VC190XBA	56VC120XBA

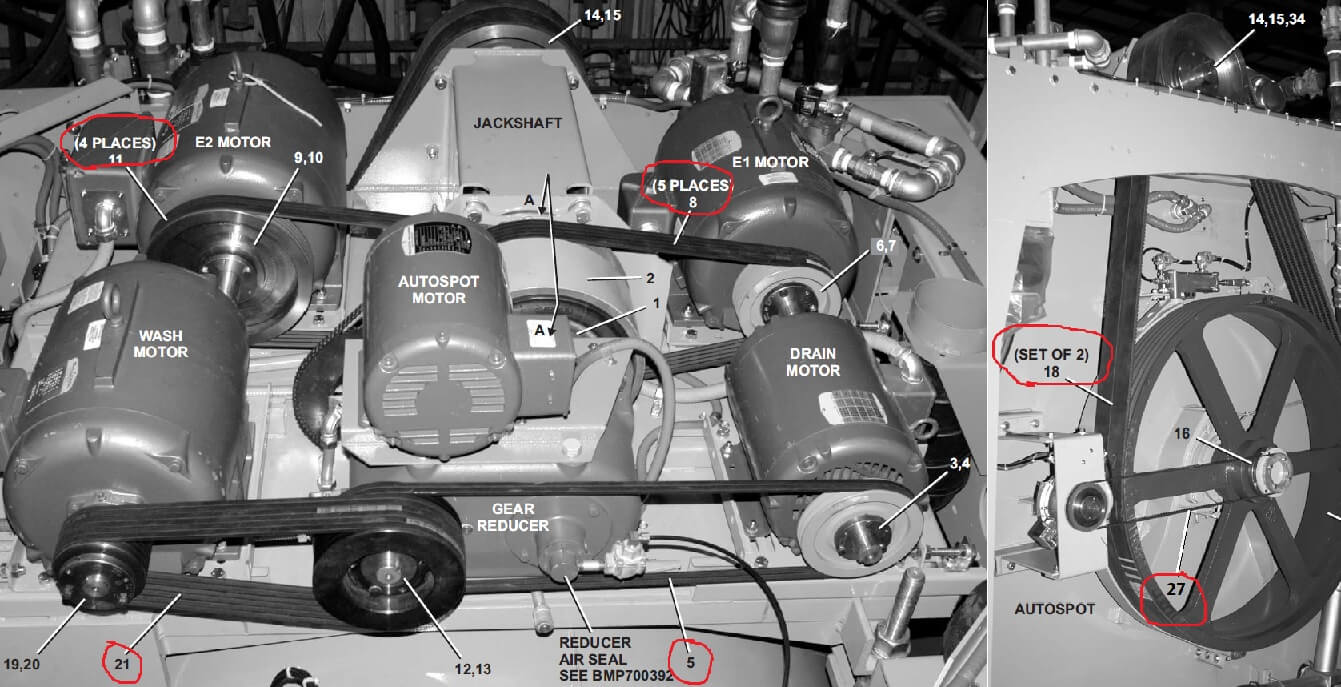

drive chart 72044WP2,WP3,WR2,WR3

72044WP2 / 72044WP3 / 72044WR2 / 72044WR3

50 Hz, 60 Hz

21	5	8	11	18	27
WASH TO GEAR REDUCER	DRAIN TO GEAR REDUCER	EXTRACT 1 TO JACKSHAFT	EXTRACT 2 TO JACKSHAFT	JACKSHAFT TO MAIN	AUTOSPOT
56VR050S x 6	56VR0750M2 x 2	56VR067S x 5	56VR071S x 4	56VC190XB6 / 56VC187XBA	54C160

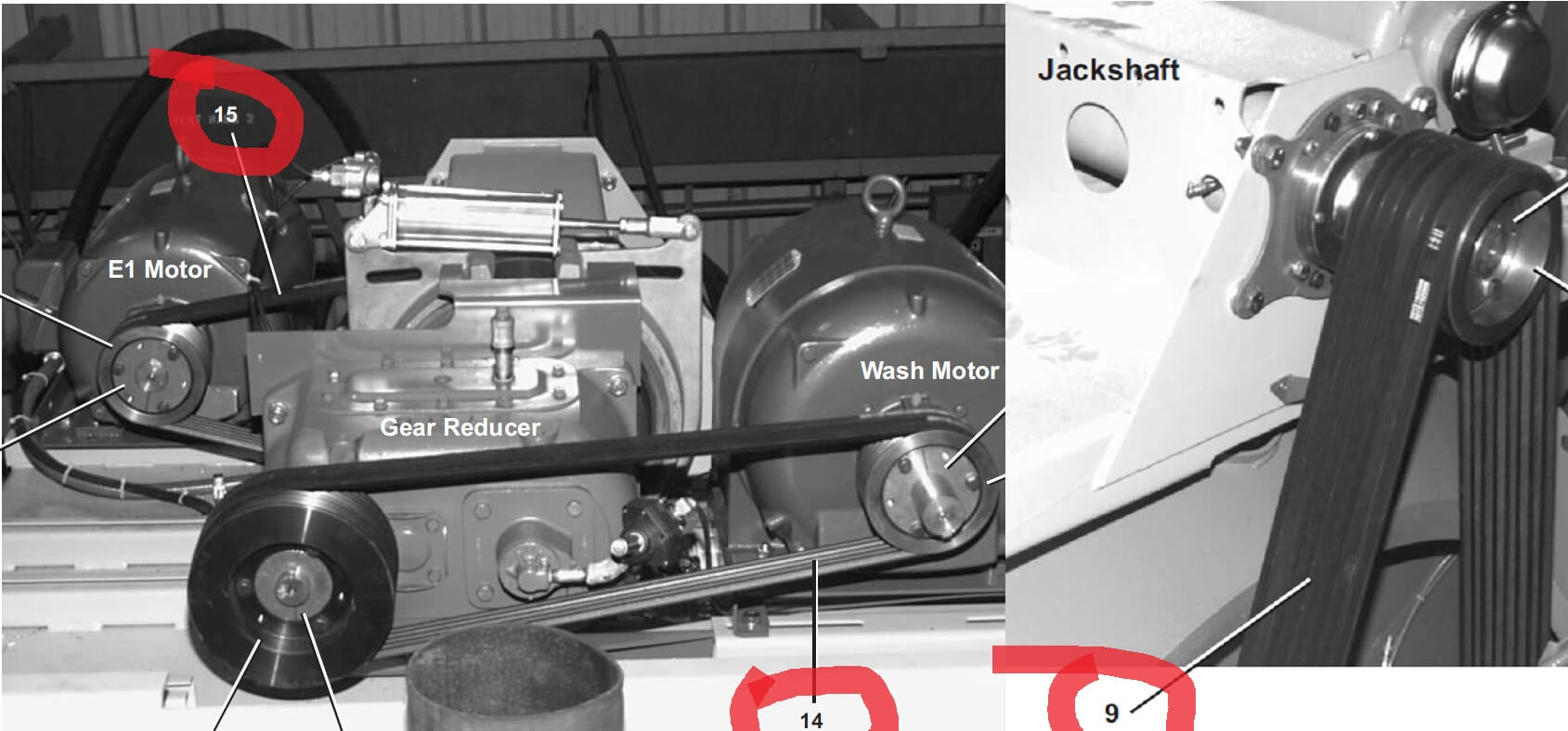

Drive Chart 72058-72075J2N

72075J2N / 72058J2N

50 Hz, 60 Hz

14	15	9
WASH TO GEAR REDUCER	EXTRACT TO JACKSHAFT	JACKSHAFT  TO  MAIN
56VR071S x 6 belts	56VR063X x 4 belts	56VX1700W5, 56VX1650W5

For smaller washer extractors go to Drive belt part number for multi motor washer extractors up to 64" diameter
