Door Gasket Part Numbers for Washer Extractors
Part number information for Washer extractor Door Gaskets by model #, machine age, and glass type.

Below is a list of Door Gaskets by model number.  Some model numbers have changed gasket part numbers over the years due to engineering changes.  Some gaskets have black and grey material options.  Also, many models have changed from a flat glass door construction to what we call a "pie dish" glass door construction.  We refer to it this way because the glass resembles a very large pie dish.  So, for a flat glass system there are multiple gasket parts while for a pie dish glass, only 1 door gasket is required. Please see diagrams below note on shims.

***NOTE***
When door gaskets are replaced on rigid mount machines, it is sometimes found that the door won't close properly when the new gasket is installed.  This could be because, as the old gasket compresses with use, customers remove the shims to get a better seal.  When the new, thicker gasket is installed, the door may not seal well unless the gaskets are re-installed.

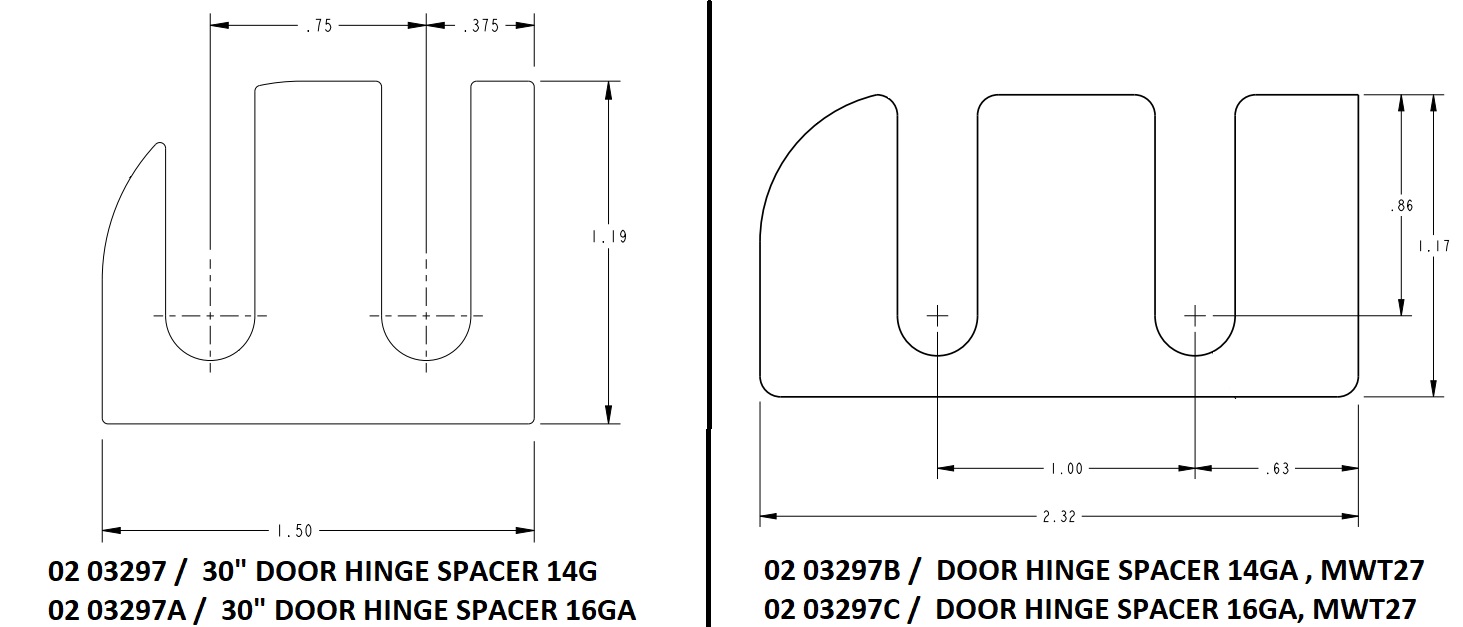

The most common shims on domestic machines and on some import machines are:
02 03297 / 30" DOOR HINGE SPACER 14G
02 03297A / 30" DOOR HINGE SPACER 16GA

On other import machines, 20kg to 27kg, the most common shims are:
02 03297B / DOOR HINGE SPACER 14GA, MWT27
02 03297C / DOOR HINGE SPACER 16GA, MWT27

rigid mount shims



For Gasket information on 'M' Series Import Machines Click HERE

Adhesive Part Number: 20C018C

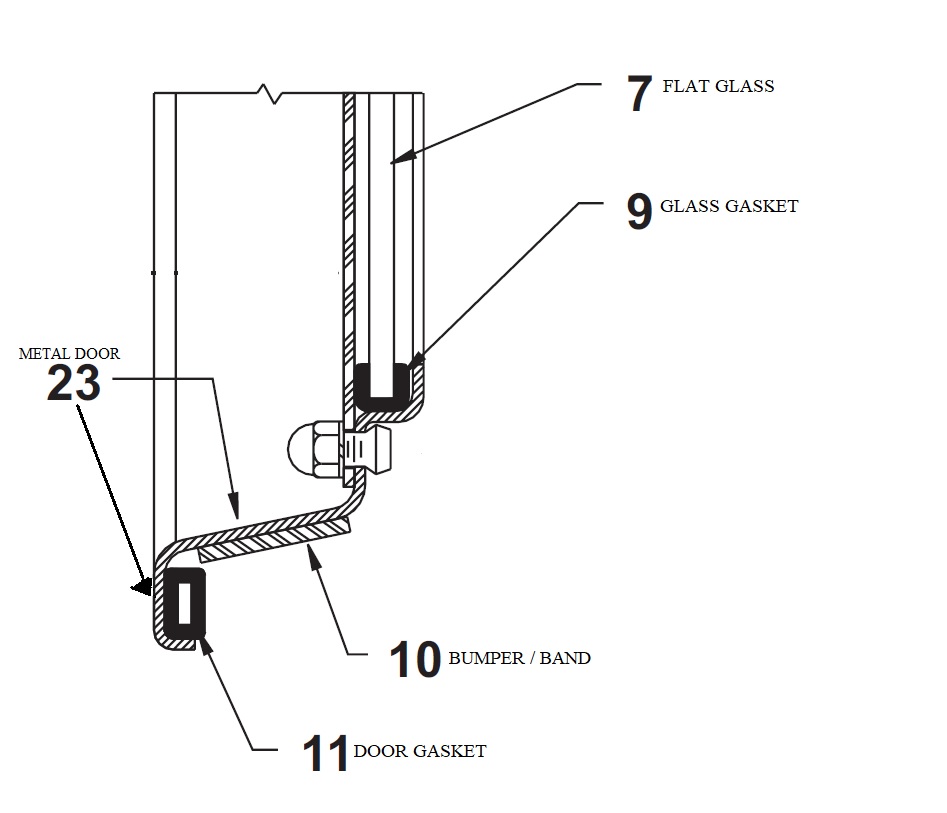

FLAT GLASS CONFIGURATION

FLAT GLASS DOOR GASKET SET UP

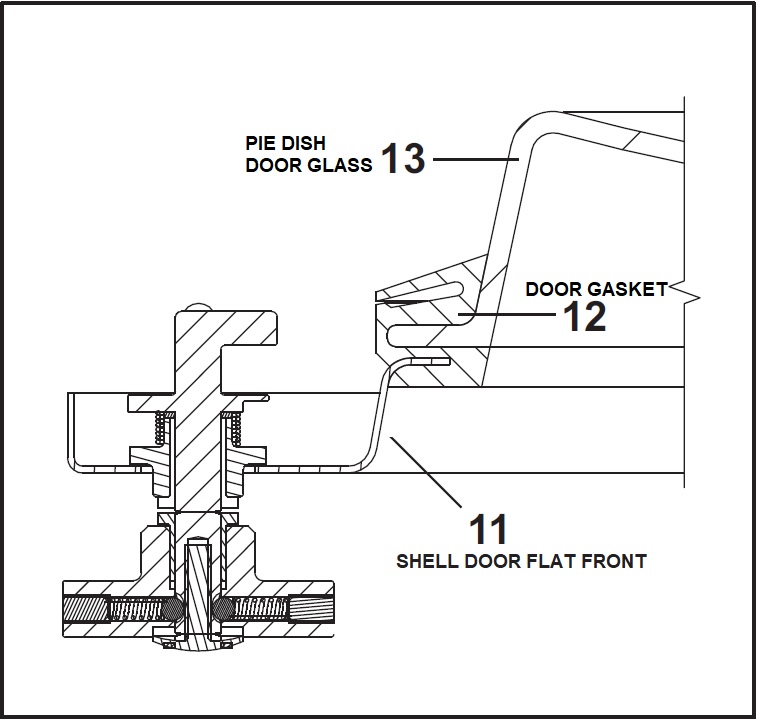

PIE DISH GLASS CONFIGURATION

PIE GLASS SETUP




Here are pictures of the different glass types for your reference.

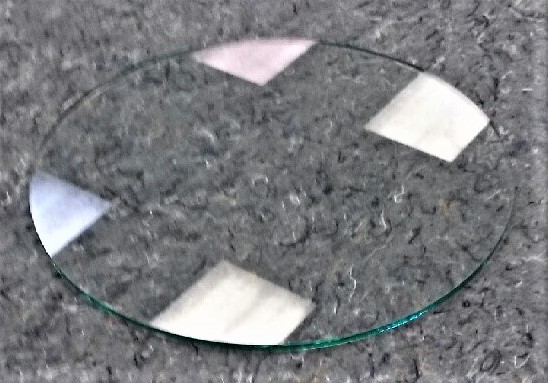

FLAT GLASS

FLAT GLASS
Flat Door Glass Configuration: Uses one gasket for Glass, one gasket for Door, and on smaller doors a Bumper/Band gasket.
Usually used before 2014 though some overlap exists.


PIE DISH GLASS

PIE DISH GLASS
 Pie Dish Door Glass Configuration: Uses single gasket.  Usually used after 2013 though overlap exists.
Note that M Series Models (MCR****, MWT**** etc.) have used the Pie Dish Door Glass circa 2002



30010CGE, 30010G5E, 30010G5X, 30015CWE, 30015C4A, 30015N4S, 30015N5E, 30015N6E, 30020CWE, 30020C4A, 30020N4S, 30020N5E, 30020N6E, 30015C4E, 30015CGE, 30015G5E, 30015G5X, 30015T5J, 30015T5E, 30015V7J, 30015J4P, 30015M4J, 30015N6E, 30015T5X, 30015T6X, 30015T6X, 30015V8Z, 30015VRJ, 30015VZZ, 30016BWE, 30022F8J, 30022F8R, 30022F8S, 30022F8W, 30022J8P, 30022M5J, 30022T5E, 30022T5J, 30022C4E, 30022T5X, 30022V6J, 3022S5G, 30022H8J, 30022T6X, 30022T6X, 30022V8Z, 30022VRJ, 30022VZZ, 30022X8J, 30022X8R, 30022X8W

 DOOR GASKETGLASS GASKETBUMPERGREY OPTIONGLASS OPTIONS
FLAT GLASS02 10342G02 0236602 105450210342X02 09215  /  DRGLASS 12 3/8DIA SS STAMPED
02 09215A  /  DORGLAS=DRAWN W/OMILNOR LOGO
02 10544  /   DOORGLASS=DRAWN DOOR=3016WE
02 09215D  /  DR GLASS=N4,5,6P W/MIL LOGO
PIE GLASS02 03200  02 03200G02 03251 /  DOOR GLASS, 3022H7


36021CPE, 36021NSP, 36021C4E, 36021V5J, 36021V5Z, 36021V7J, 36021V7Z, 36026V5J, 36026V5Z, 36026V7J, 36026V7W, 36026V7Z, 36026QXX, 36030F8J, 36030F8R, 36030F8S, 36030F8W, 36030J8P

 DOOR GASKETGLASS GASKETBUMPERGREY OPTIONGLASS OPTIONS
FLAT GLASS02 1416802 0914102 1443102 14168X02 09219A  /  DR GLASS=3621 C4E W/LOGO
02 09219  /   DRGLASS 14+13/16"36W+DRWN DR
02 14430   /  DOORGLASS=3621BWE DRAWN DOOR
PIE GLASS02 11993A   02 11994  /   20" DOOR GLASS FLAT FRONT


36026X8J, 36026X8R, 36026X8W

 DOOR GASKETGLASS GASKETBUMPERGREY OPTIONGLASS OPTIONS
FLAT GLASS02 11792D02 12054G  02 12008B  /  GLASS=20"DOOR 15.5"DIA 42F
02 12008C  /  GLASS=20"DOOR 15.5"DIA W/ HOLE


42026X7J, 42026X7R, 42026X7W

 DOOR GASKETGLASS GASKETBUMPERGREY OPTIONGLASS OPTIONS
FLAT GLASS03 4815203 48052 03 48152E03 48050  /  DR GLASS=26"DOOR OPENING 48
03 48050A  /  DOOR GLASS=26"DOOR W/ HOLE


42026Q4G, 42026Q4J, 42026Q4P, 42026Q6G, 42026Q6J, 42026V6J, 42026V6W, 42026V6Z, 42030V6J, 42030V6Z

 DOOR GASKETGLASS GASKETBUMPERGREY OPT.GLASS OPTIONS
FLAT GLASS02 11904V02 1205402 11904U 02 12008  /  DOORGLASS 17"DIA=4226W DOOR
PIE GLASS02 11993A   02 11994  /  20" DOOR GLASS FLAT FRONT


42026QHE, 42026QHP, 42026QTG, 42026QTH, 42026QTL, 42026QTN, 42026QWE, 42026QWP (LEGACY MACHINES)
4226 DYE MACHINES

FLAT GLASSDOOR GASKETGLASS GASKETBUMPERGLASS OPTIONSADDITIONAL INFO
AFTER ~199202 11792D02 12054 02 12008NO SPECIFIC CHANGE DATE FOR GASKETS
SEE DIAGRAM BELOW TO CONFIRM
BEFORE ~199202 11161A02 12054 02 12008DYE MACHINES HAVE NO GLASS OR GLASS GASKET

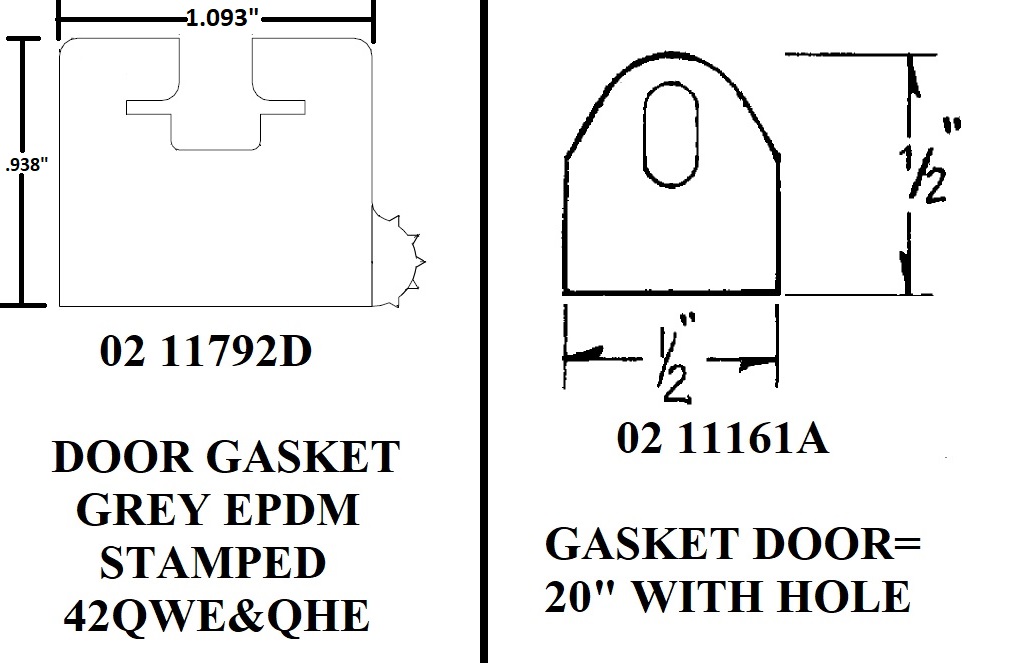

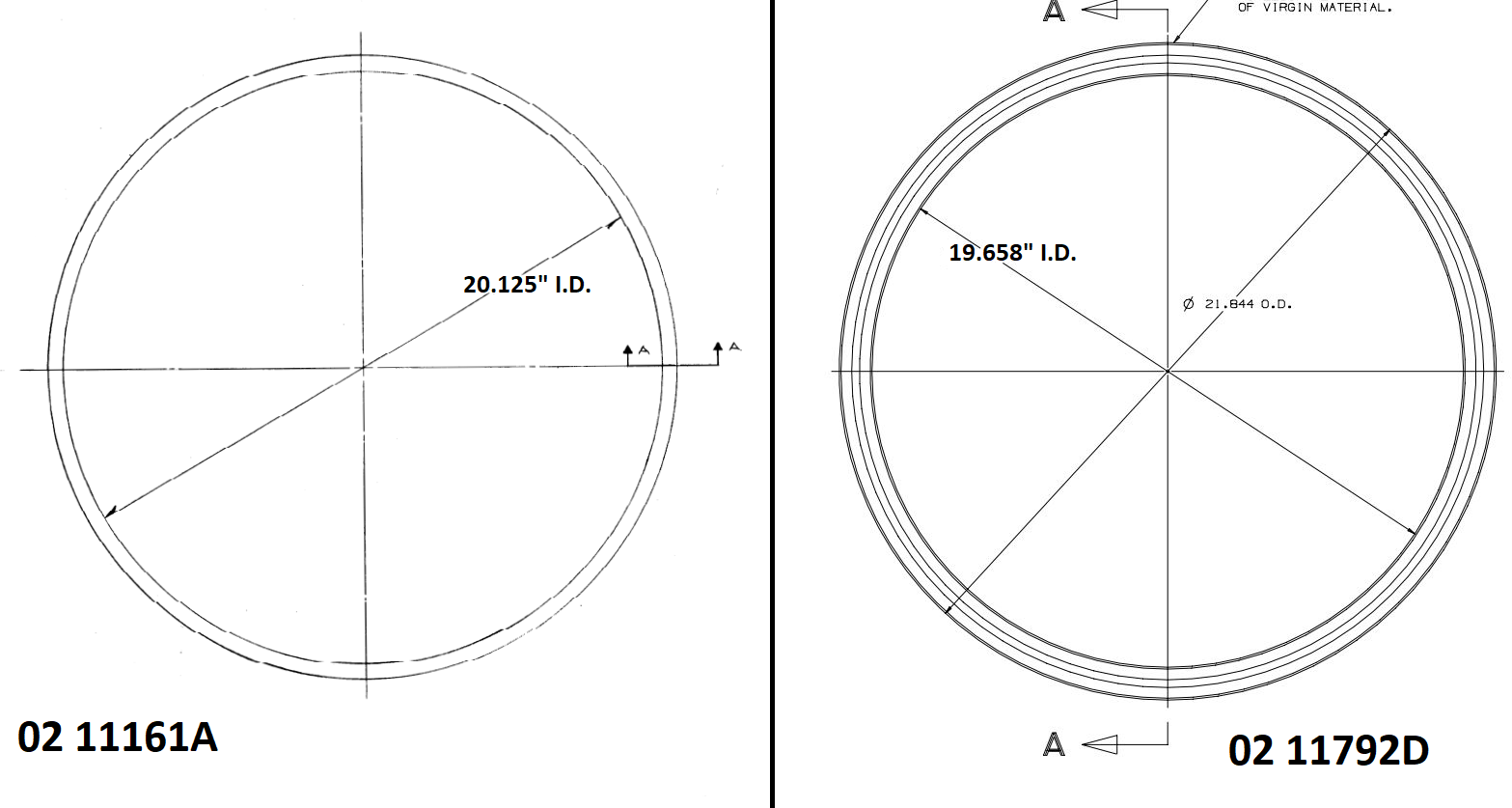

02 11792D vs 02 11161A Cross Section     02 11792D vs 02 1161A Inner Diameter


42032F7R, 42032F7S, 42032F7W, 42032F7J

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS03 4815203 48052 03 48152E03 48050  /  DR GLASS=26"DOOR OPENING 48
03 48050A  /  DOOR GLASS=26"DOOR W/ HOLE
LEGACY (built before June 2006)02 11792D02 12054  02 12008        DOORGLASS 17"DIA=4226W DOOR


42032J7P, 42032X7J, 42032X7R, 42032X7W, 48032BHP, 48032BTL, 48032BTN, 48036QHP, 48036QTL, 48036QTN, 48036J6P

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS03 4815203 48052 03 48152E03 48050  /  DR GLASS=26"DOOR OPENING 48
03 48050A  /  DOOR GLASS=26"DOOR W/ HOLE


48040F7B, 48040F7D, 48040F7J, 48040F7N, 48040F7W, 48040F7Z /
48040H7K, 48040H7N, 48040H7R, 48040H7W with 34" door /
52038WE1, 52038WP1, 52038WTL, 52038WTN

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS03 25085A03 25083  03 25013A  /  DOORGLASS-SIZE 26.5/26.4
03 25013B  /  DOORGLASS-26.5 W/ HOLE

NOTE: For import models 48040F7B, 48040F7D, 48040F7J, and 48040F7Z, (with AZ in the model code) the manuals will show the door gasket, glass gasket, and door glass being 98CF25085A, 98CF25083, and 98CF25013A respectively.  All these parts are substituted 03 25085A, 03 25083, and 03 25013A respectively.  Parts listed in table above.




48040H7K, 48040H7N, 48040H7R, 48040H7W  with 38" door / 48040M7K

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS03 25085H03 25083B  03 25013C    DOORGLASS-SIZE 33.94"


64046E6N, 64046J6N, 72046E5N, 72046J5N

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS05 20036D05 20034  05 20023  /  DOORGLASS SIZE=36"O.D.
05 20023A  /  DOOR PLT=36" 72STONEWASH


64040E6N, 64050E6N

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS
40" DOOR		03 6075103 60756  03 60755  /  GLASS=40"DR 3/8T X 34.5O OD
FLAT GLASS
48" DOOR		03 6085103 60856  03 60855  /  GLASS=48"DR 3/8T X 41.75 OD


68036F5N, 68036F5P, 68036H5K, 68036H5N, 68036M5K

 DOOR GASKETGLASS GASKETBUMPERGREY OPTGLASS OPTIONS
FLAT GLASS03 6085103 60856  03 60855  /  GLASS=48"DR 3/8T X 41.75 OD



42031CP2, 42031NP2, 42031SP2, 42031SP3, 42031WP2, 42031WP3, 42044CP2, 42044CP3, 42044NP2, 42044NP3, 42044SP2, 42044SP3, 42044SR2/SR3, 42044WP2, 42044WP3, 42044WR2/WR3

SHELL DOOR GASKETLINER GASKETSIGHT GLASS INNERSIGHT GLASS OUTERADDITIONAL INFOSITE GLASS
02 1505802 1505902 1585202 15851DDOOR & LINER ASSY ASD4200102 15006  /  GLASS=LEVEL INDICATE 1/42WEHU



60044SP2, 60044SP3, 60044SG2, 60044SG3, 60044SR2

SHELL DOOR GASKETPORON STRIPLOAD SIDE
DOOR TUBE		CLEAN SIDE
DOOR TUBE		ADDTIONAL INFO
02 17518060A006P02 18982G02 18981GShell Door Liner Assy Clean
SA 28 171
Shell Door Liner Assy Soil
SA 28 172



60044WR3, 60044WP3

SHELL DOOR GASKETPORON STRIPLOAD SIDE
DOOR TUBE		CLEAN SIDE
DOOR TUBE		ADDTIONAL INFO
02 17516960A006P02 18982GN/AShell Door Liner Assy
SA 28 159



60044SR3

SHELL DOOR GASKETPORON STRIPLOAD SIDE
DOOR TUBE		CLEAN SIDE
DOOR TUBE		ADDTIONAL INFO
02 17516960A006P02 18982G02 18981GShell Door Liner Assy Clean
SA 28 160
Shell Door Liner Assy Soil
SA 28 159


64042BTL

DOOR GASKETGLASS GASKETBUMPERADDITIONAL INFO
03 6404503 64033N/APARTS BREAKDOWN BMP890041


60044WP2, 60044WR2

DOOR SEAL KITADDITONAL INFO
K28 0005R02 18889B / 60"DORSEAL,G-28-6X100"
02 175134 / PATCH=SHELL DOOR GASKET
5SCC0CBE / NPT COUP 1/8 BRASS 125# 103A-A
53A047H /  MALCON 5/16X1/8POLY PH#68P-5-2
02 175267 / RUBBER STRIP=CORNERS+DR STEM
02 18954 / BUSHING=60"WEDU


72044WP2, 72044WR2

DOOR SEAL KITADDITONAL INFO
K36 0003R
03 06050B / 72"DORSEAL,G-28-6X124+1/2"
02 175134 / PATCH=SHELL DOOR GASKET
5SCC0CBE / NPT COUP 1/8 BRASS 125# 103A-A
53A047H /  MALCON 5/16X1/8POLY PH#68P-5-2
02 175267 / RUBBER STRIP=CORNERS+DR STEM
02 18954 /  BUSHING=60"WEDU
03 06209 / BKT=LOWER DOOR PLUNGER+$11SU



72044SP2, 72044SP3, 72044SR2, 72044SR3, 72044WP3, 72044WR3

72044WP3, 72044SP2, & 72044SP3 DATED BEFORE 01155 NEED SHELL DOOR GASKET 03 06127D
SHELL DOOR GASKETPORON STRIPDOOR TUBE
LOAD SIDE		DOOR TUBE
CLEAN SIDE		SECONDARY DOOR
TUBE (BOTH SIDES)
03 0613060A006P02 18981G02 18982G
(DOES NOT APPLY FOR
72044WP3, 72044WR3)		03 06225G


72046E5N, 72046J5N, 72058J2N

SHELL DOOR GASKETGLASS GASKETADDITIONAL INFOGLASS OPTIONS
72046E5N05 20034NO SAMPLE PORT ON DOOR05 20023  /  DOORGLASS SIZE=36"O.D.


72058J2N, 72058J5N

SHELL DOOR GASKETGLASS GASKETSAMPLE PORT GASKETADDITIONAL INFOGLASS OPTIONS
05 20036D02 0236603 66027Door w/ Sample Port02 09215  /  DRGLASS 12 3/8DIA SS STAMPED


72075J2N

SHELL DOOR GASKETGLASS GASKETSAMPLE PORT GASKETADDITIONAL INFOGLASS OPTIONS
03 6085102 0236603 66027Door w/ Sample Port02 09215  /  DRGLASS 12 3/8DIA SS STAMPED


72075J2N, 72046M5K

SHELL DOOR GASKETGLASS GASKETADDITIONAL INFOGLASS OPTIONS
03 6085103 60856NO SAMPLE PORT ON DOOR03 60855  /  GLASS=48"DR 3/8T X 41.75 OD
