The Door Gaskets on this page pertain to 'M' Series import models. (examples: MCR27E5, MCT18E4, MWF27J8, MWR27E5) Some gaskets have black and grey material options. Also, some models have a flat glass door construction. Others have a "pie dish" glass door construction. We refer to it this way because the glass resembles a very large pie dish. Example pictures of both below. For a flat glass system there are multiple gaskets while for a pie dish glass, only 1 door gasket is required. Please see diagrams below note on shims.
***NOTE***
When door gaskets are replaced on rigid mount machines, it is sometimes found that the door won't close properly when the new gasket is installed. This could be because, as the old gasket compresses with use, customers remove the shims to get a better seal. When the new, thicker gasket is installed, the door may not seal well unless the shims are re-installed.
The most common shims on domestic machines and on some import machines are:
02 03297 / 30" DOOR HINGE SPACER 14G
02 03297A / 30" DOOR HINGE SPACER 16GA
On other import machines, 20kg to 27kg, the most common shims are:
02 03297B / DOOR HINGE SPACER 14GA , MWT27
02 03297C / DOOR HINGE SPACER 16GA, MWT27
For gasket/glass information on Domestic Models, click HERE

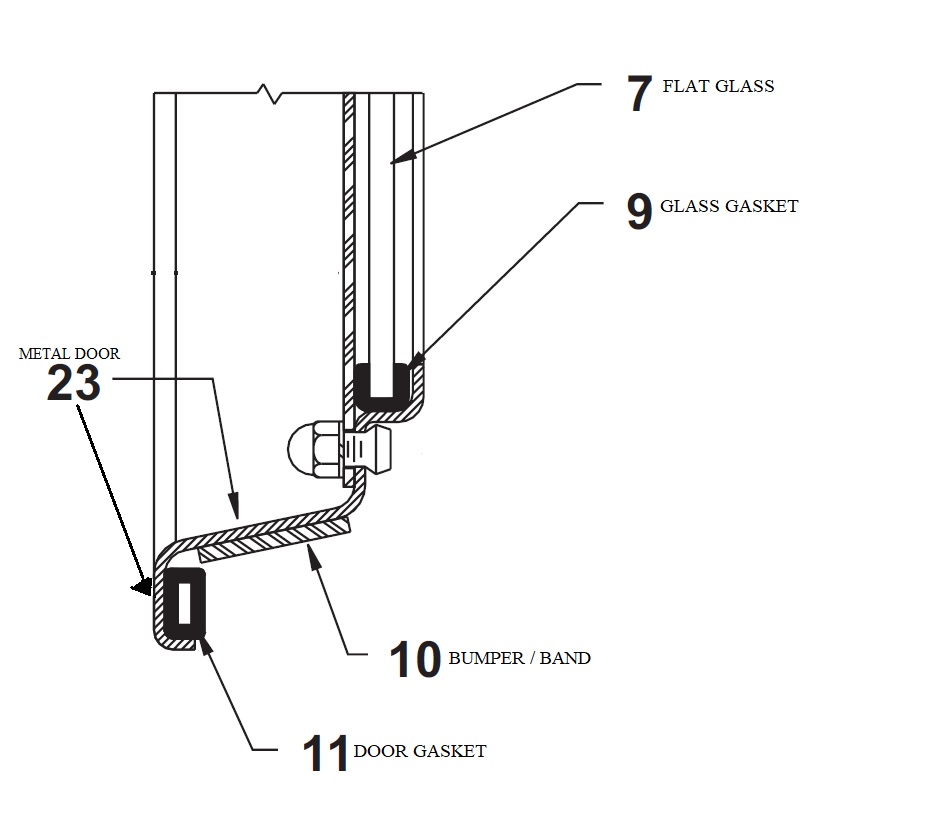

FLAT GLASS CONFIGURATION

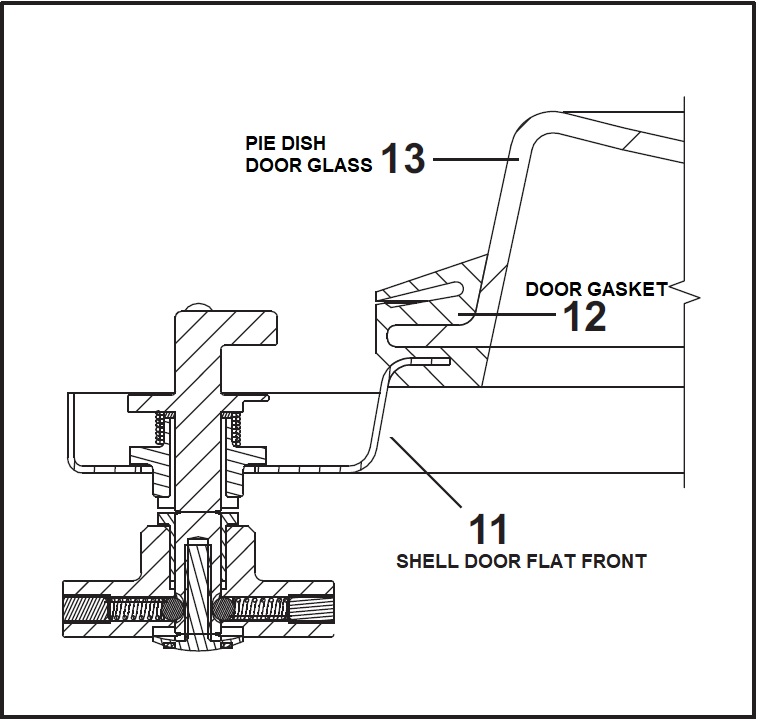

PIE DISH GLASS CONFIGURATION
Here are pictures of the different glass types for your reference.

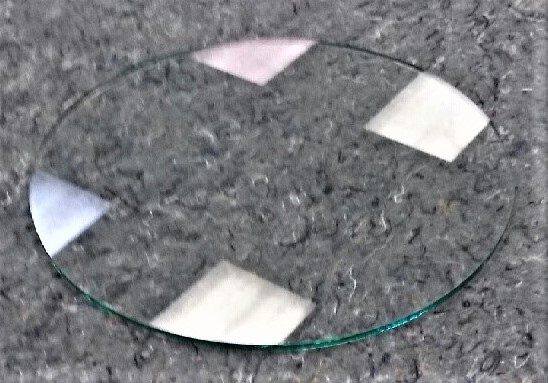

FLAT GLASS
Flat Door Glass Configuration: Uses one gasket for Glass, one gasket for Door, and on smaller doors a Bumper/Band gasket.
Usually used before 2014 though some overlap exists.

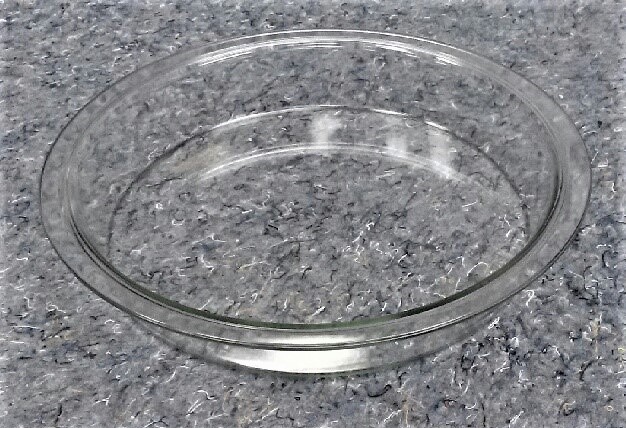

PIE DISH GLASS
Pie Dish Door Glass Configuration: Uses single gasket.
Note that M Series Models (MCR****, MWT**** etc.) have used the Pie Dish Door Glass circa 2002
M series Washer/Extractor 9KG, 12KG, 16KG
MCR09E5
MCT12E5, MCT16E5
MWR09E5, MWR12E5, MWR12J5, MWR12X5, MWR16E5, MWR16J5, MWR16X5
MWT12E5, MWT12J5, MWT16E5, MWT16J5, MWT16X5
| | DOOR GASKET | GLASS GASKET | BUMPER | GREY OPT | GLASS OPTIONS |
|---|
| PIE GLASS | 03 40022A | | | 03 40022C | 03 40022G / CSX DOOR GLASS 12" |
|---|
M series Washer/Extractor 18KG
MCR18E4
MWR18E4, MWR18J4, MWR18J6, MWR18X4, MWR18X6
| | DOOR GASKET | GLASS GSKT | BUMPER | GREY OPT | GLASS OPTIONS |
|---|
| PIE GLASS | 03 40222A | | | | 03 40222G / CSX DOOR GLASS DEEP 14" |
|---|
M Series Washer/Extractor 18KG, 27KG
MCR27E5
MCT18E4
MWF27J8, MWF27Z8
MWR27E5, MWR27J5, MWR27X5
MWT18E4, MWT18J6, MWT18X4, MWT27E5, MWT27J5, MWT27X5
| | DOOR GASKET | GLASS GASKET | BUMPER | GREY OPT | GLASS OPTIONS |
|---|
| PIE GLASS | 02 03200 | | | 02 03200G | 02 03251 / DOOR GLASS, 3022H7 |
|---|
Note 1
Some earlier versions of Model number MWF27 shipped with a gasket that is now discontinued. Part number 02 03200 is the correct part; however, shims on the handle and hinges may have to be removed to ensure a good seal.
Note 2

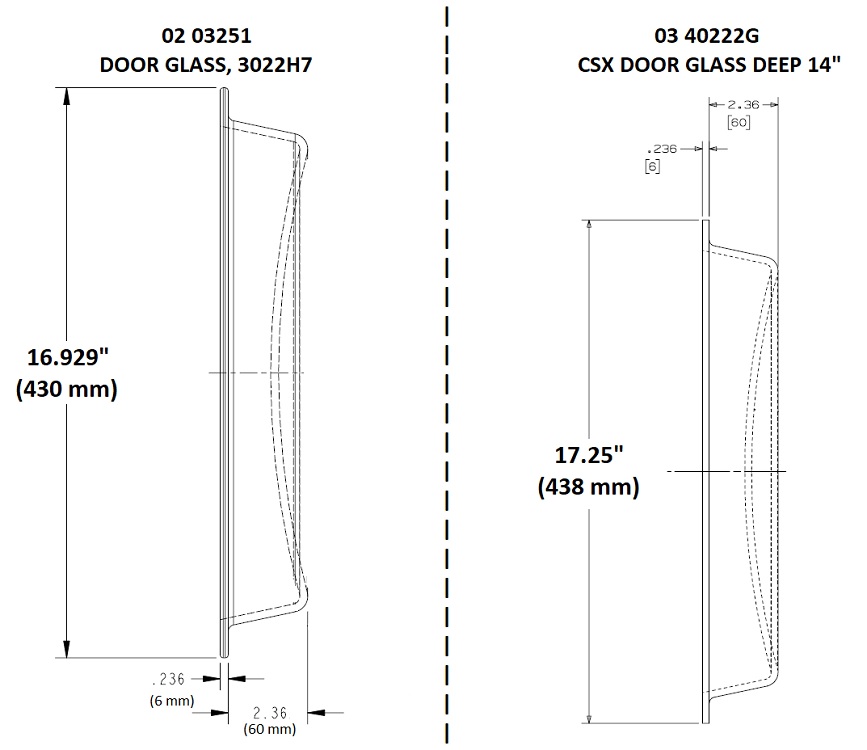

Please note that the 18 KG machines may have one of two gaskets. Gasket measurements are very similar but not exact and are not interchangeable.
See Diagram Below.

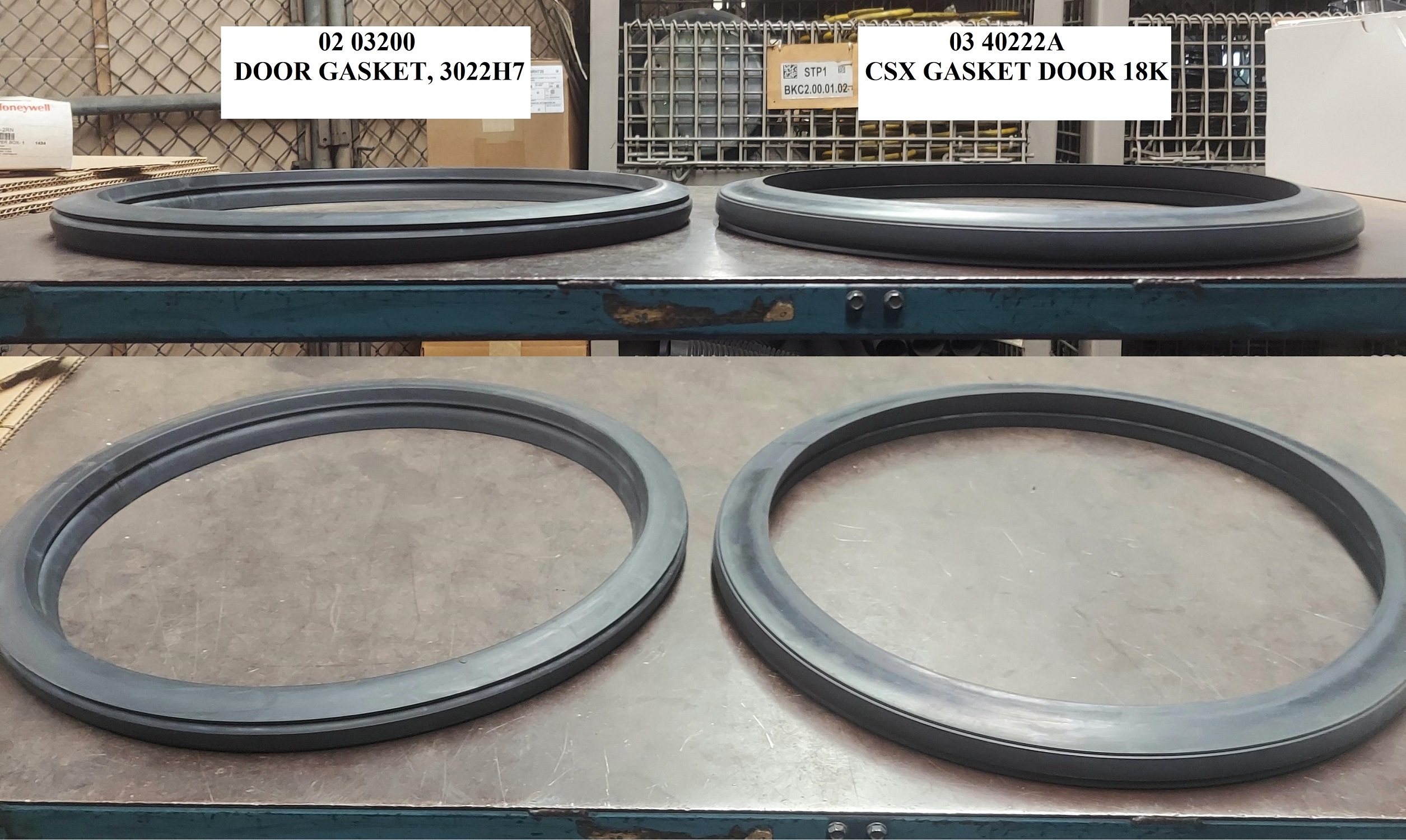

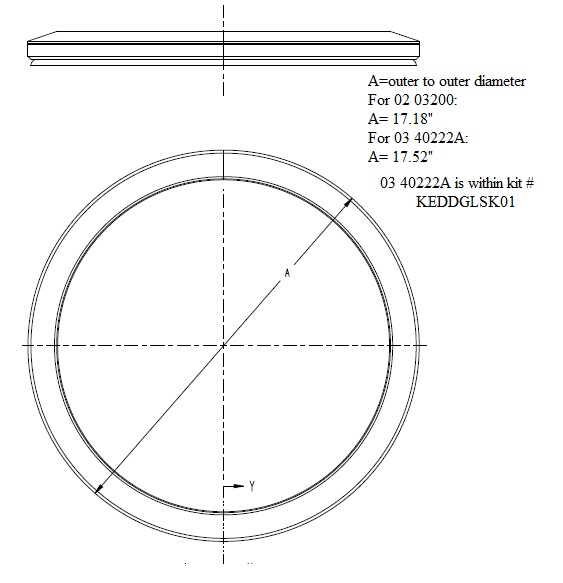

comparison of 02 03200 and 03 40222A
M Series Washer/Extractor 45KG
MWF45**
| | DOOR GASKET | GLASS GASKET | BUMPER | GREY OPT | GLASS OPTIONS |
|---|
| FLAT GLASS | 02 11792D | 02 12054G | | | 02 12008B / GLASS=20"DOOR 15.5"DIA 42F |
|---|
M Series Washer/Extractor 63KG, 77KG
MWF63**
MWF77**
| | DOOR GASKET | GLASS GASKET | BUMPER | GREY OPT | GLASS OPTIONS |
|---|
| FLAT GLASS | 03 48152 | 03 48052 | | 03 48152E | 03 48050 / DR GLASS=26"DOOR OPENING 48 |
|---|
M Series Washer/Extractor 100KG, 125KG
MWF100**
MWF125**
48040F**
| | DOOR GASKET | GLASS GASKET | BUMPER | GREY OPT | GLASS OPTIONS |
|---|
| FLAT GLASS | 03 25085A | 03 25083 | | | 03 25013A / DOORGLASS-SIZE 26.5/26.4 |
|---|
NOTE: The 100/125KG model manuals call for parts:
98CF25085A DOOR GASKET, 4840F CSM
98CF25083 DOOR GLASS GASKET, 4840F CSM
98CF25013A DOOR GLASS, 4840F CSM
However, the parts listed in Table are the appropriate part numbers.
