DRYER GUIDE ROLLER ASSEMBLY PART NUMBERS BY MODEL

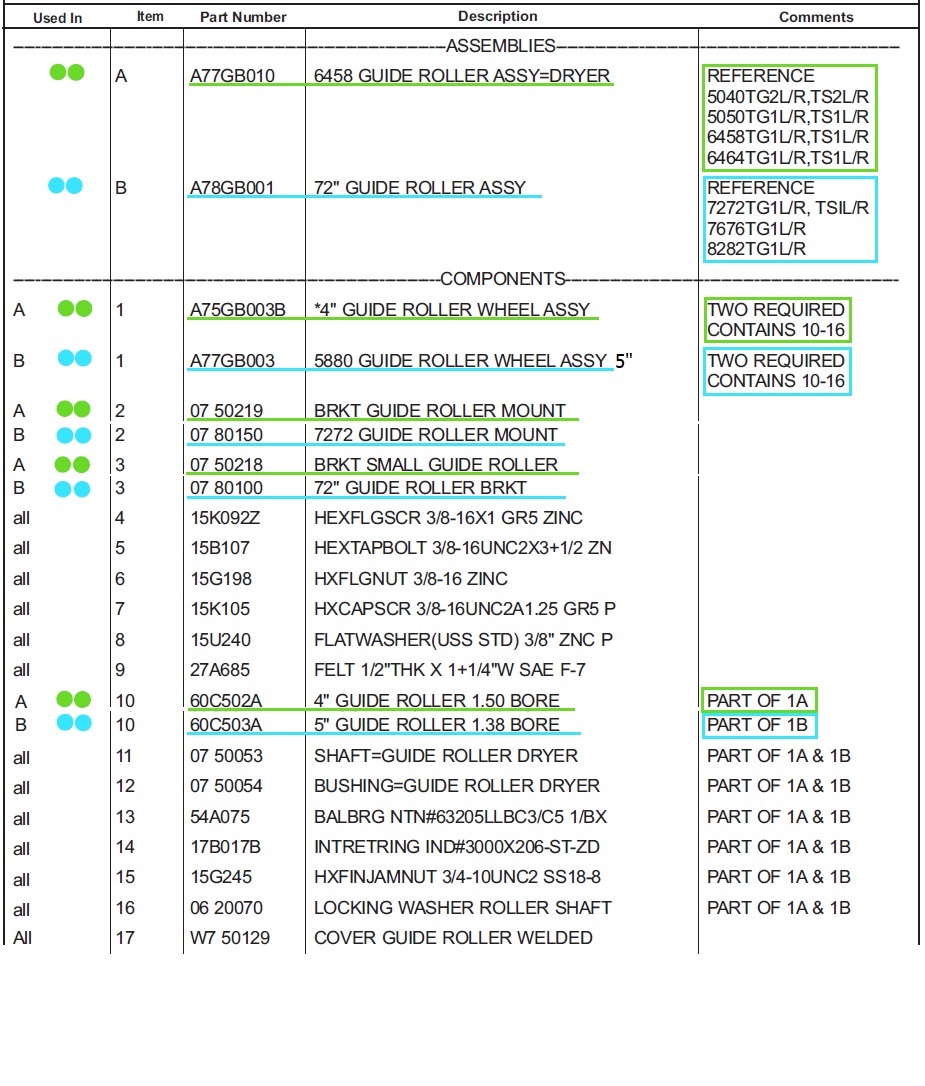

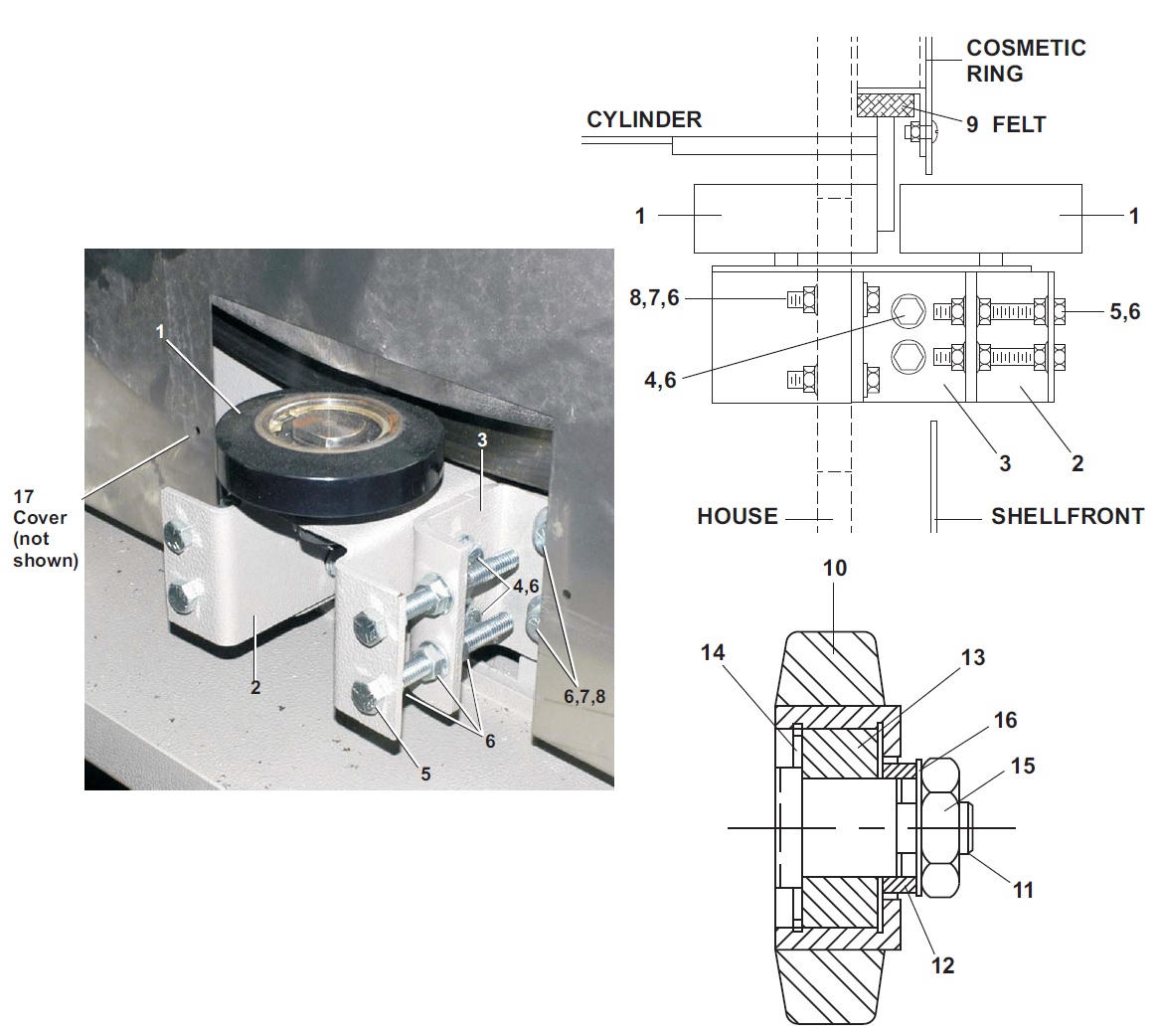

Guide Rollers on Milnor Dryers keep the cylinder (basket) aligned to the shell.  Over time, the roller wheels may need to be replaced.  The tables below list the roller wheel assembly, the roller wheel, and the guide assembly part numbers.  The diagrams of the guide assemblies are below.  They include complete part # information.  The tables are divided by guide wheel size; 4 inch or 5 inch.

If you are looking for information on dryer drive rollers and/or support rollers, please click HERE

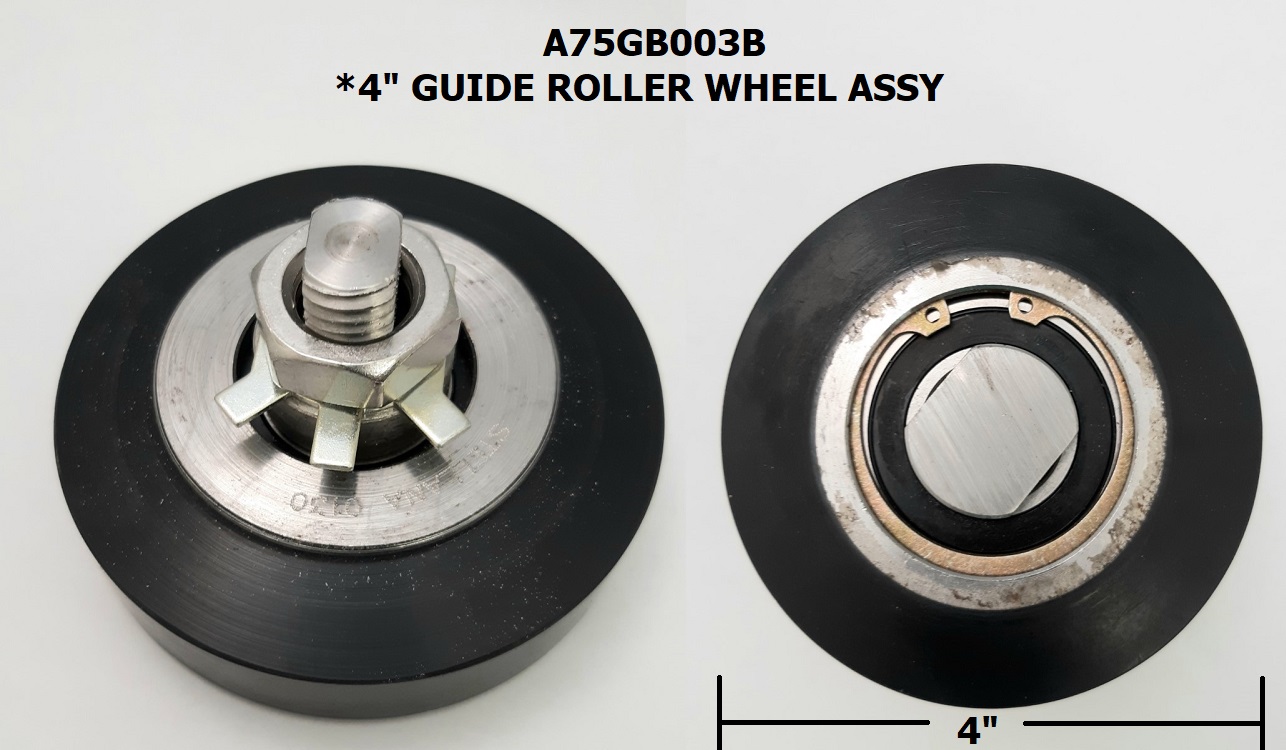

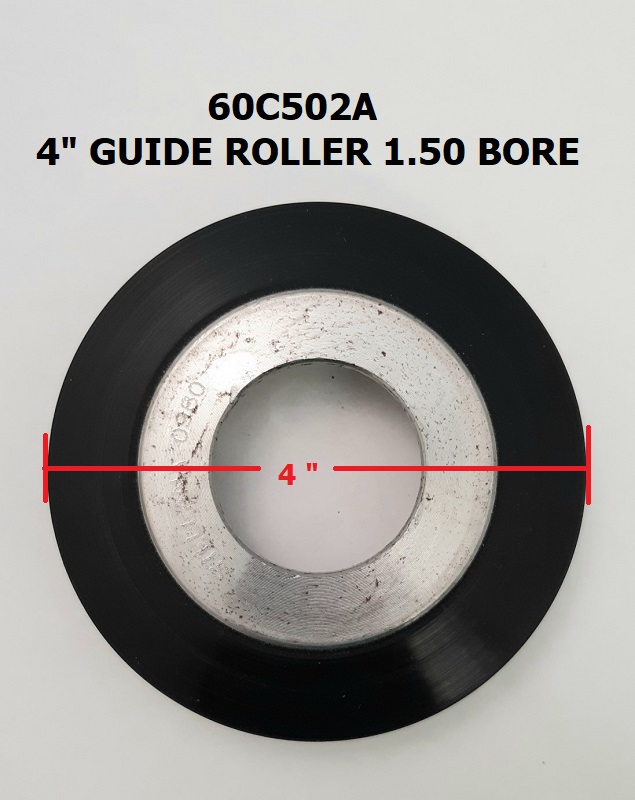

4 INCH ASSEMBLIES

MODELS: 50040TG1, 5040TG2R, 5040TG2L, 58040TG2, 58058TG2, 5050TG1R, 5050TG1L, 6450TG1L, 6450TG1R, 6458TG1L, 6458TG1R, 6464TG1R, 6464TG1L, 6464TG1L, 6464TG1R

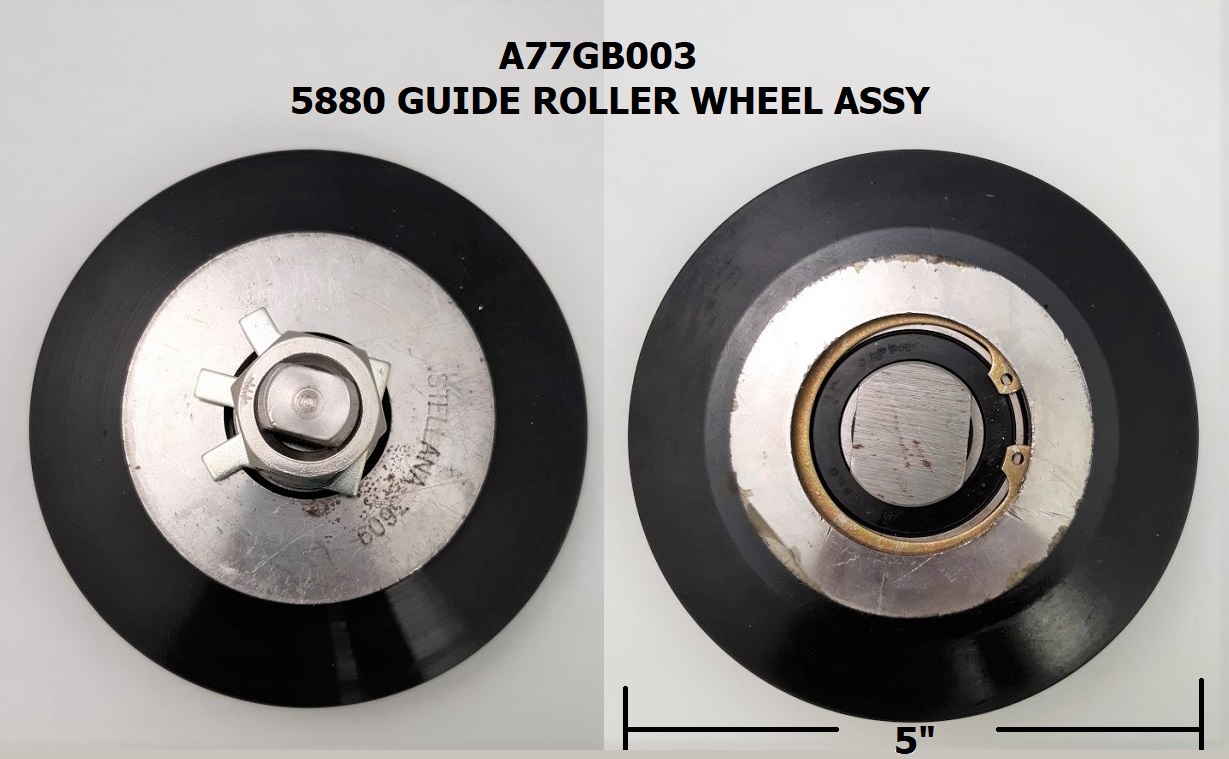

5 INCH ASSEMBLIES

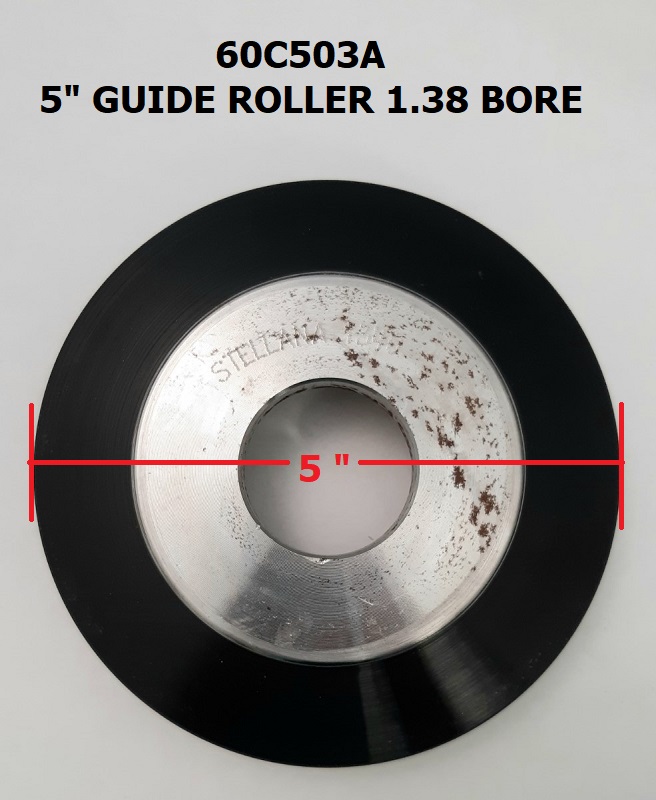

MODELS: 58080TG1, 7272TG1L, 7272TG1R, 7676TG1L, 7676TG1R, 8282TG1L, 8282TG1R
