DRYER DRIVE AND SUPPORT ROLLER ASSEMBLY PART NUMBERS BY MODEL

Printable View
« Go Back
Information
Validated
Published
DRYER-DRIVE-AND-SUPPORT-ROLLER-ASSEMBLY-PART-NUMBERS-BY-MODEL
Article Details
000001951
DRYER DRIVE AND SUPPORT ROLLER ASSEMBLY PART NUMBERS BY MODEL
Part numbers for Dryer Drive and Support roller assemblies.

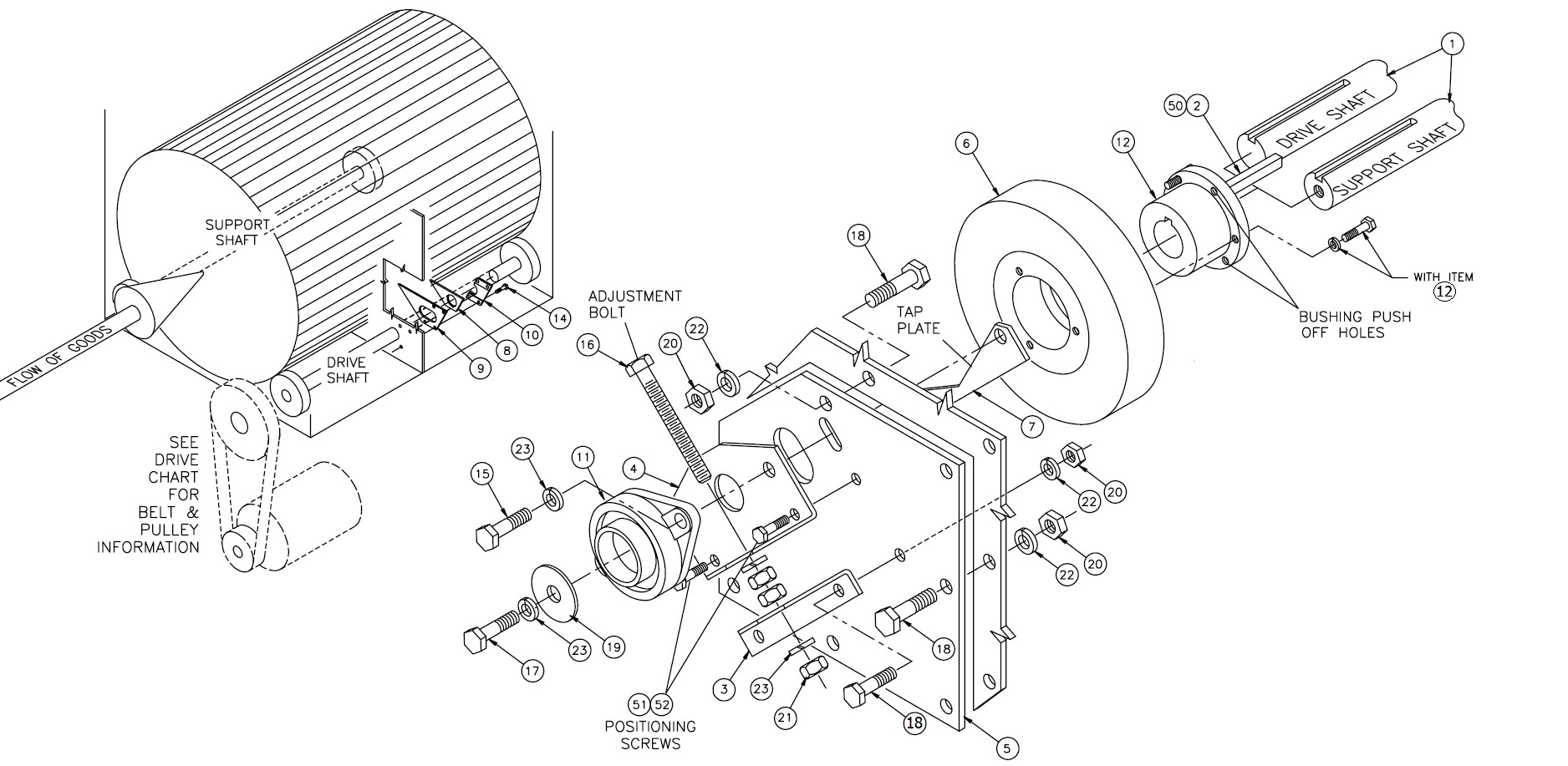

The Baskets in Milnor dryers are driven and supported by roller assemblies.  Usually they consist of a drive shaft with two urethane rollers and a support shaft also with two urethane rollers.  Some older units have a support roller assembly that consists of one roller.  Below are tables containing roller part numbers along with drive and support assembly part numbers.  They are organized by model number.  Diagrams and parts list are below the appropriate tables.

If you are looking for information on Guide Rollers, please click HERE





MODEL # 50040TG1

SUPPORT ROLLERSUPPORT ASSEMBLYDRIVE WHEELDRIVE ASSEMBLYADDITIONAL INFO

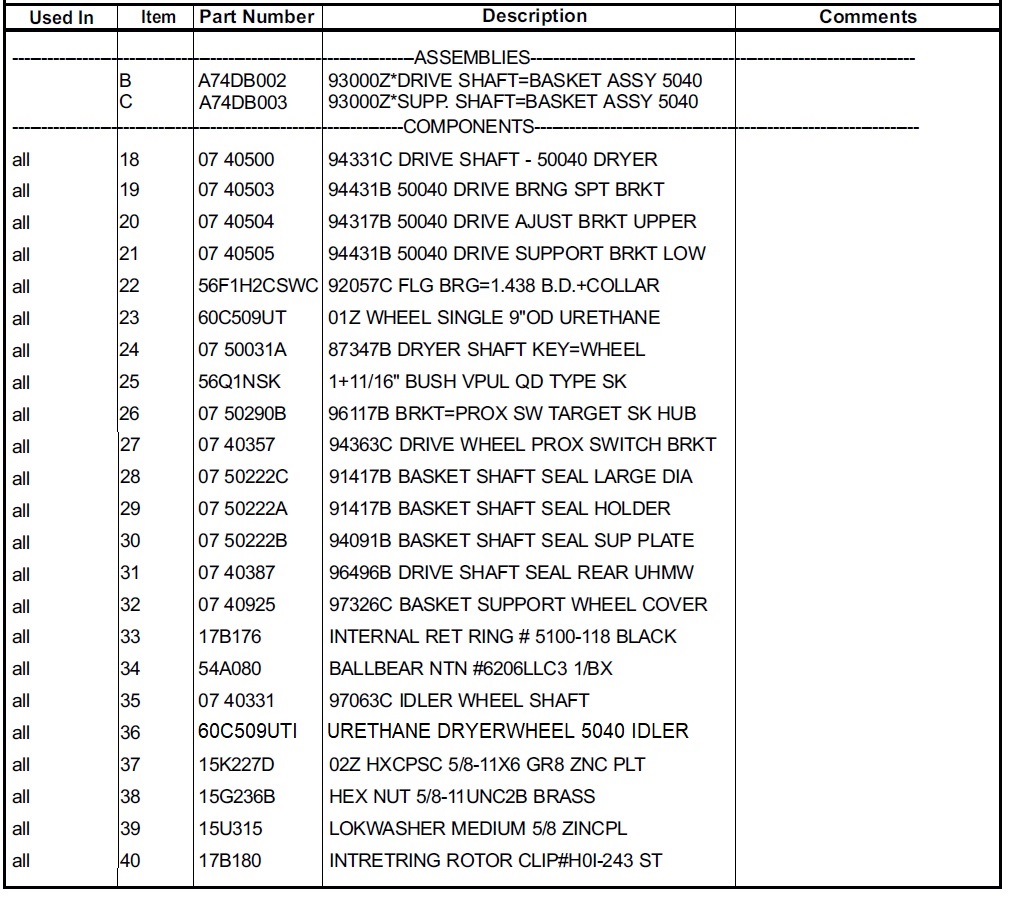

60C509UTIA74DB00360C509UTA74DB002 X 2

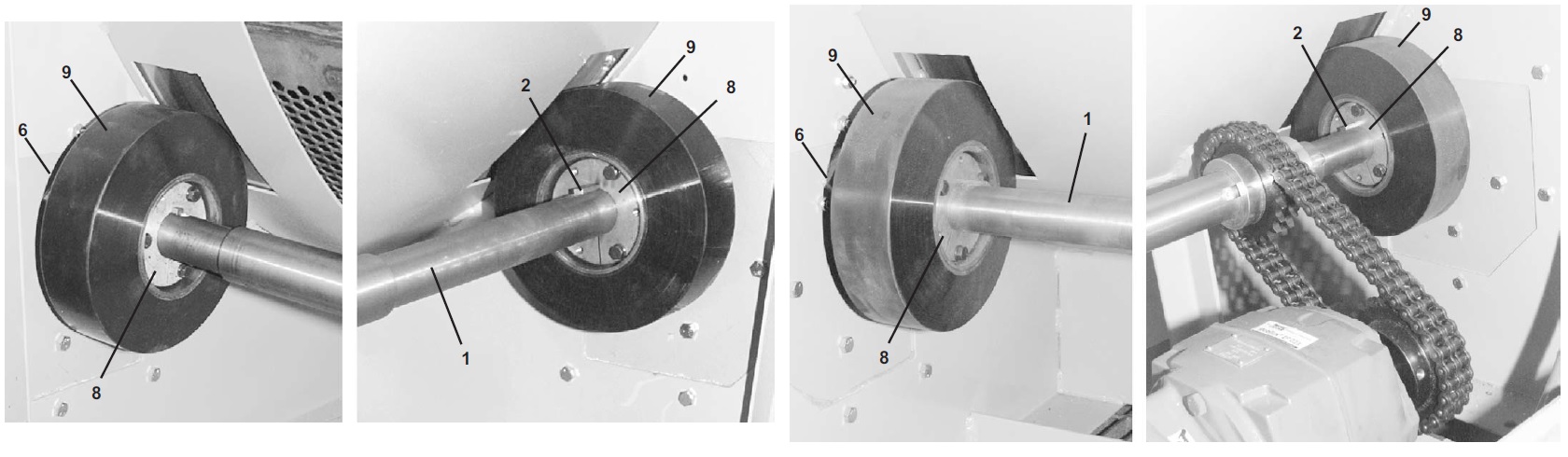

User-added image
User-added image





MODEL #S 5040, 5050

MODEL NUMBERSUPPORT ROLLERSUPPORT ASSEMBLYDRIVE ROLLERDRIVE ASSEMBLY

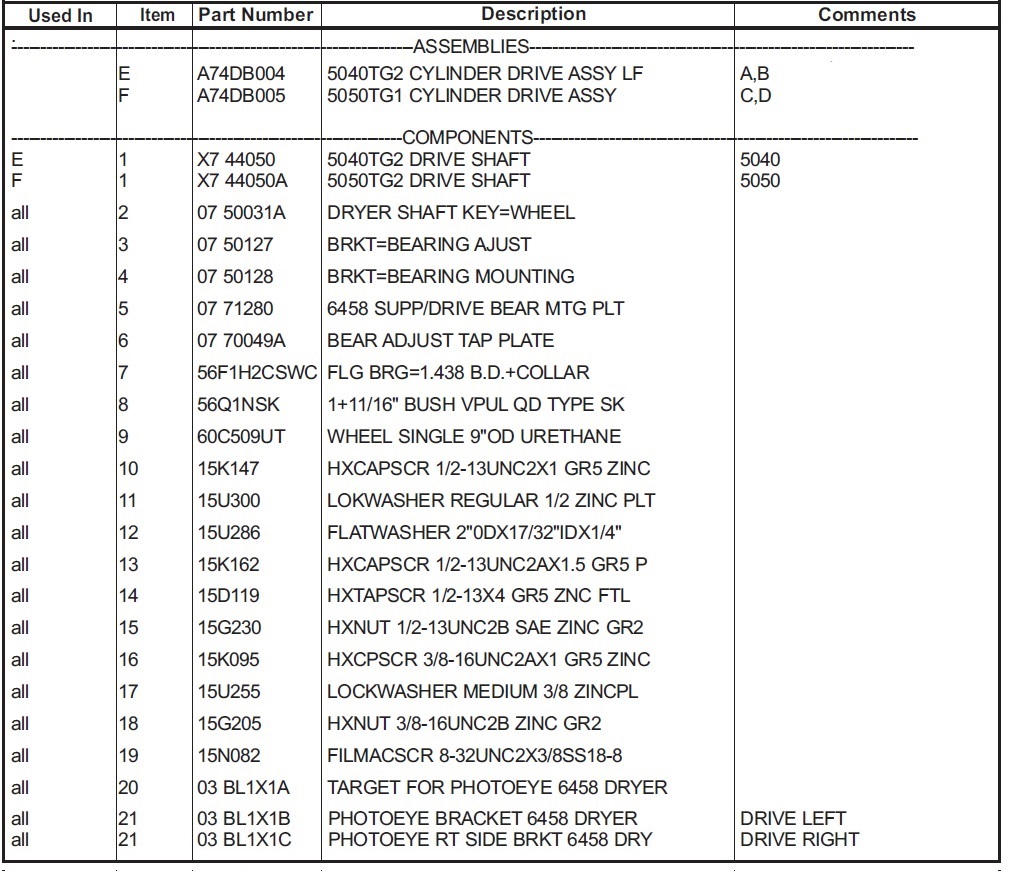

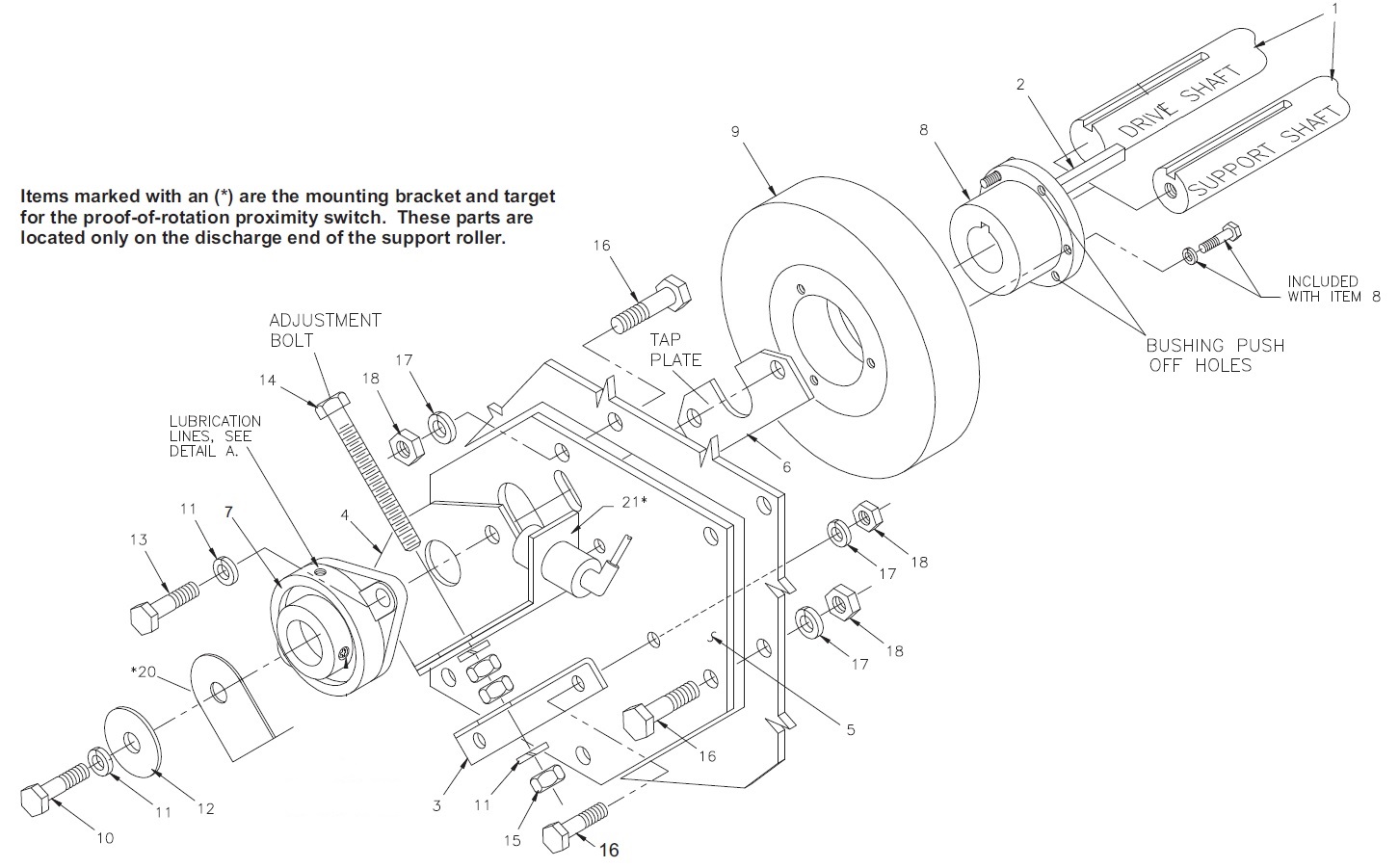

5040TG2R/L60C509UT X 2A74DB00460C509UT X 2A74DB004
5050TG1R/L60C509UT X 2A74DB00560C509UT X 2A74DB005

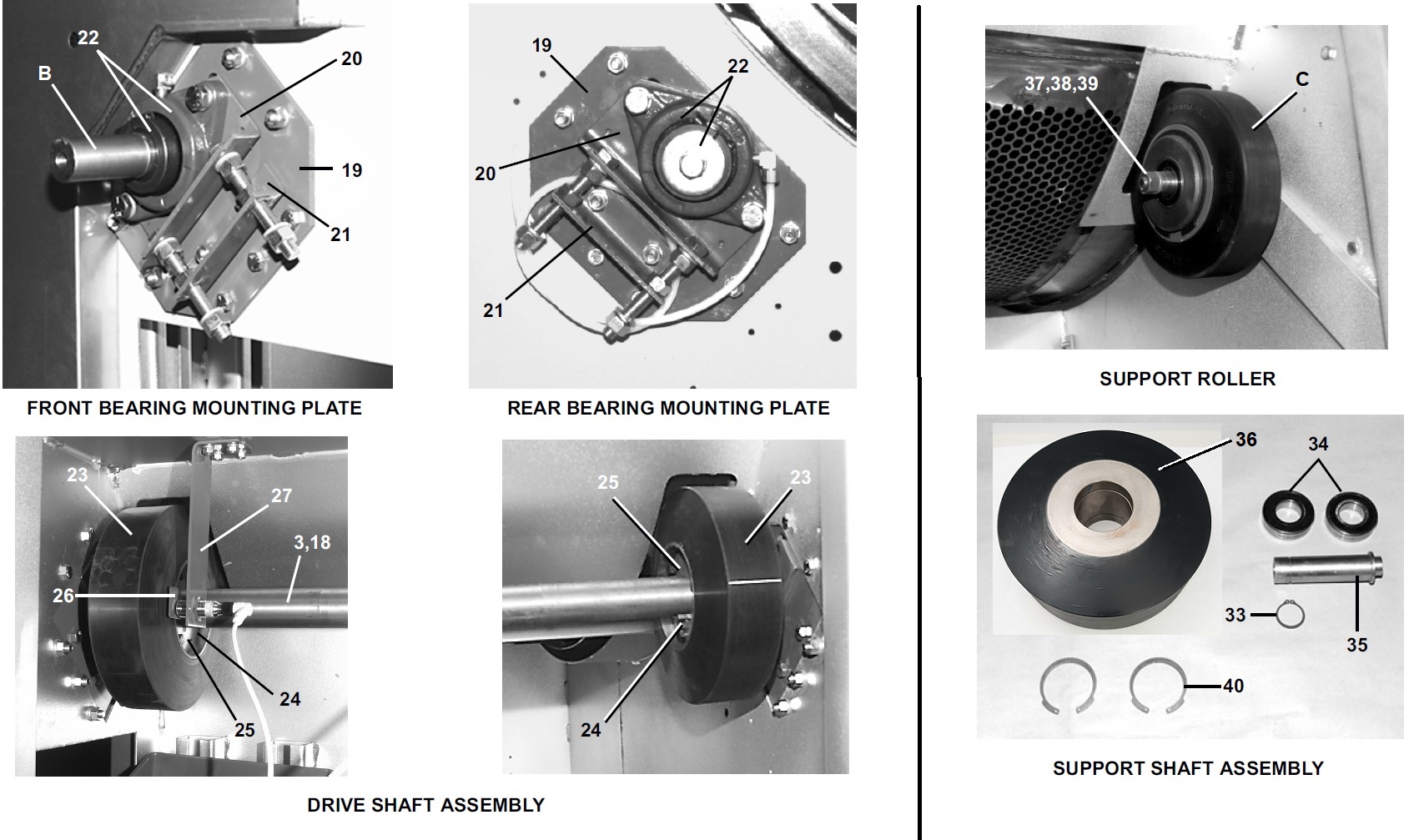

User-added image
User-added image
User-added image





MODEL#s 58040, 58058, 58080

MODEL NUMBERSUPPORT ROLLERSUPPORT ASSEMBLYDRIVE ROLLERDRIVE ASSEMBLY
5804060C509UT X 2A76DB00360C509UT X 2A76DB002
5805860C509UT X 2A75DB00360C509UT X 2A75DB002
5808060C510UT X 2A77DB00360C510UT X 2A77DB002

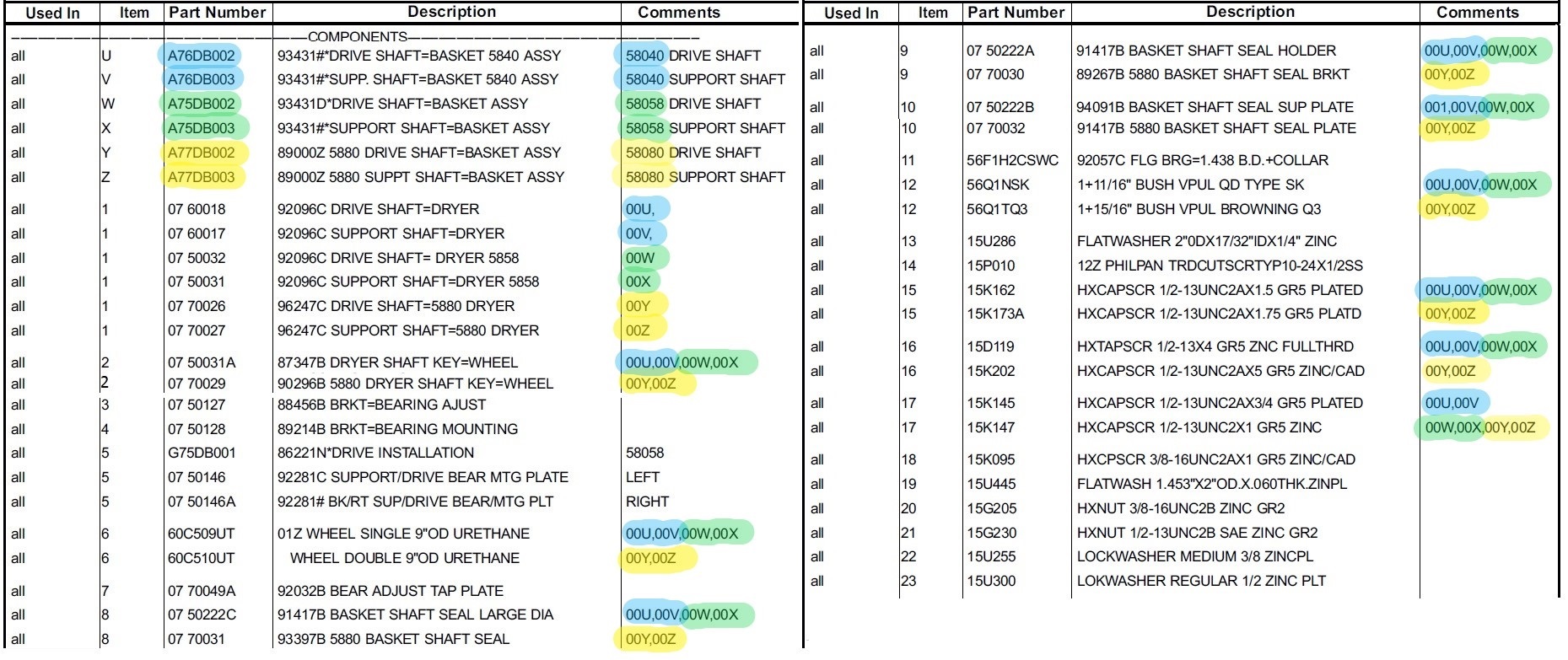

User-added image
User-added image







MODEL #s 6450, 6458, 6464

6458 Roller Configurations Changed Over Time
MODEL NUMBERSUPPORT ROLLERSUPPORT ASSEMBLYDRIVE ROLLERDRIVE ASSEMBLY

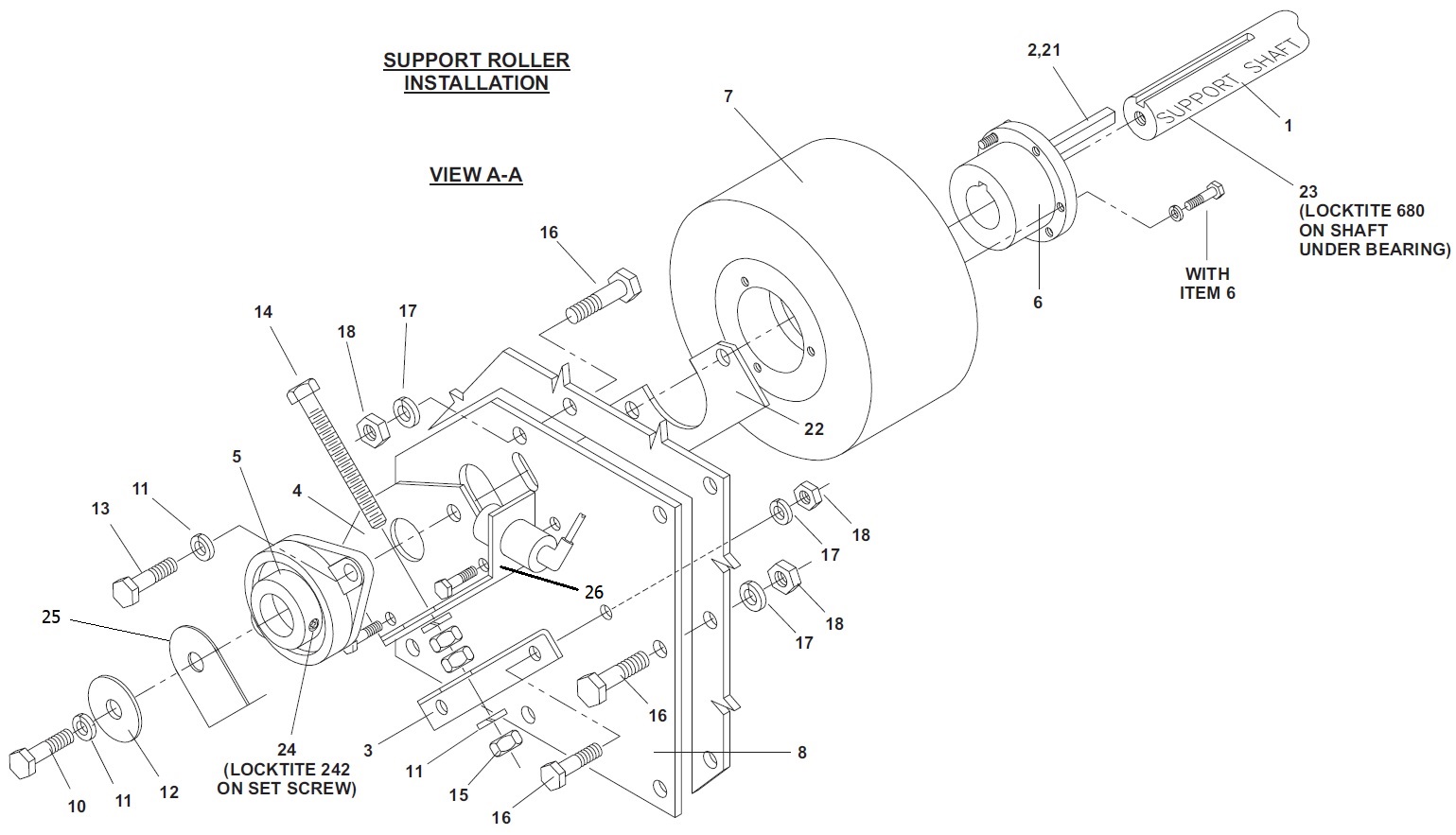

645060C509UT X 2G77DB03060C509UT X 2G77DB030
6458 (PRE - 2008)60C509UT X 2A77DB01060C509UT X 2A77DB010
6458 (2008 - 2011)60C509UT X 2A77DB01260C509UT X 2A77DB012
6458 (AFTER 2011)60C509UT X 2A77DB012A60C509UT X 2A77DB012A
646460C509UT X 2A77DB020A60C509UT X 2A77DB020A

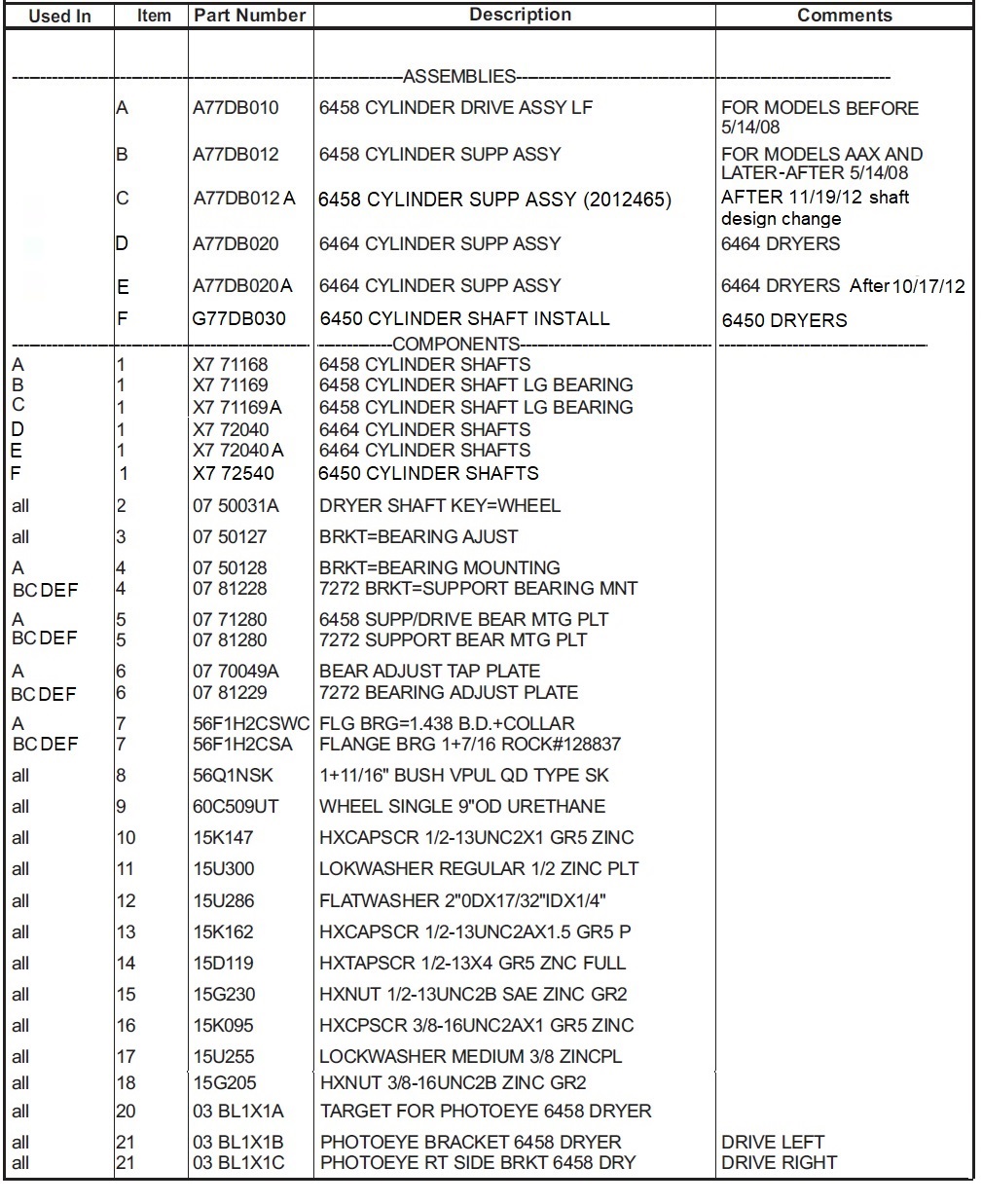

User-added image

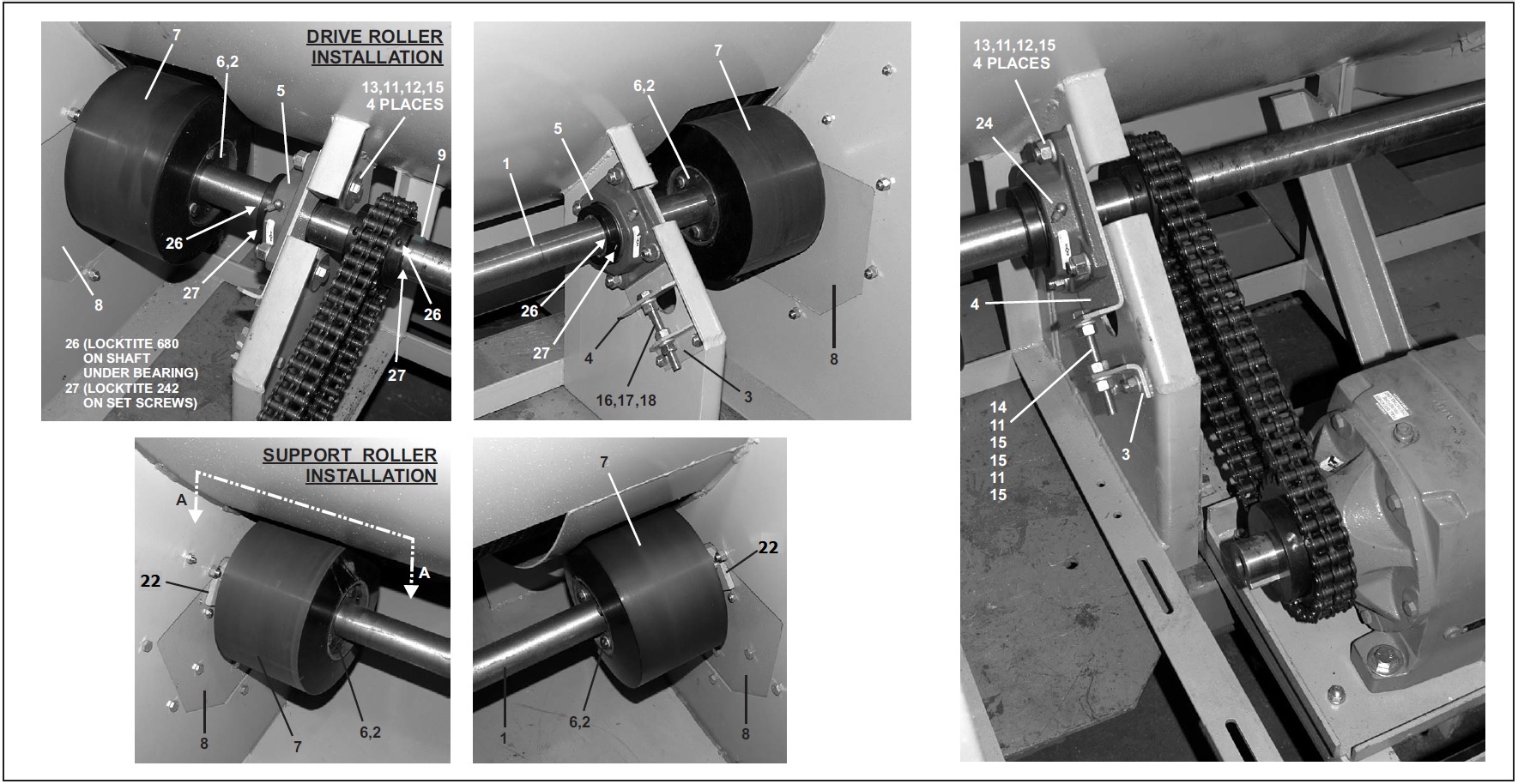

User-added image
User-added image







MODEL 7272 Legacy PRE-2004

Drive Pulley outside of rollers / end of drive shaft
SUPPORT ROLLERSUPPORT ASSEMBLYDRIVE ROLLERDRIVE ASSEMBLYADDITIONAL INFO
60C510UT X 2A78DGB00260C510UT X 2A78DGB001Model 72072 on
serial number tag

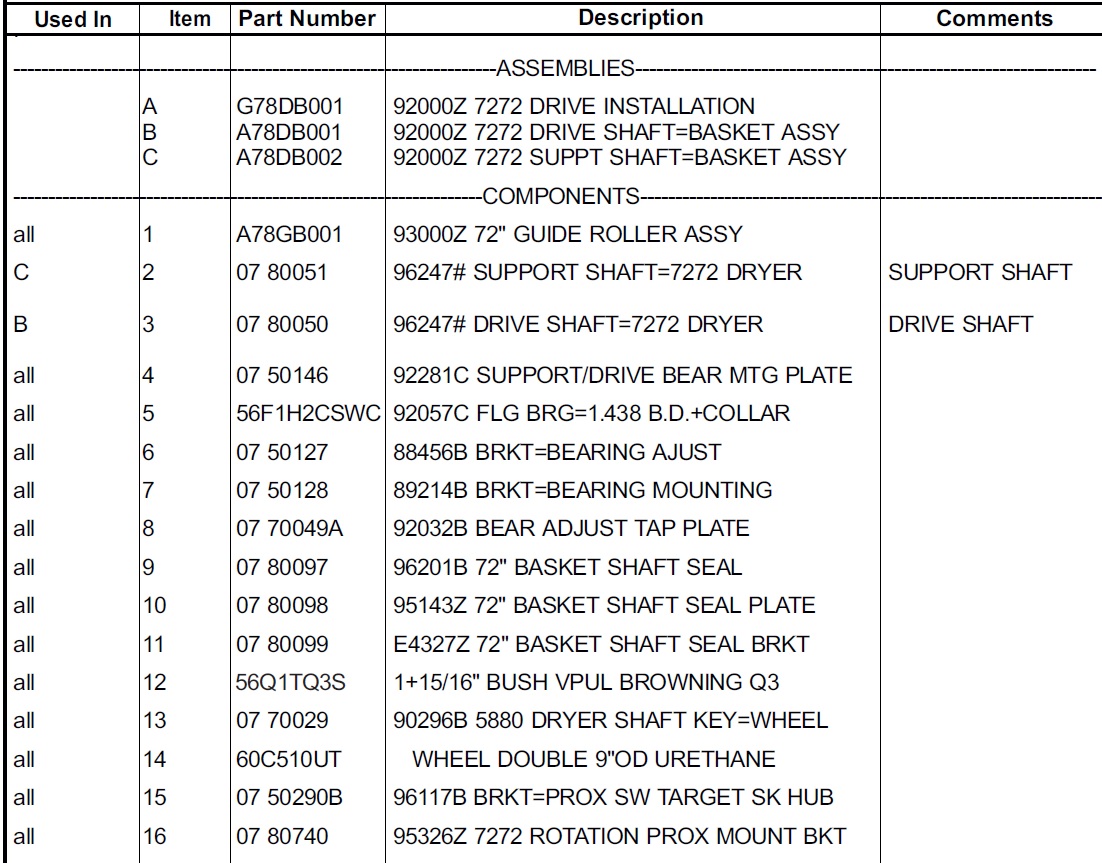

User-added image

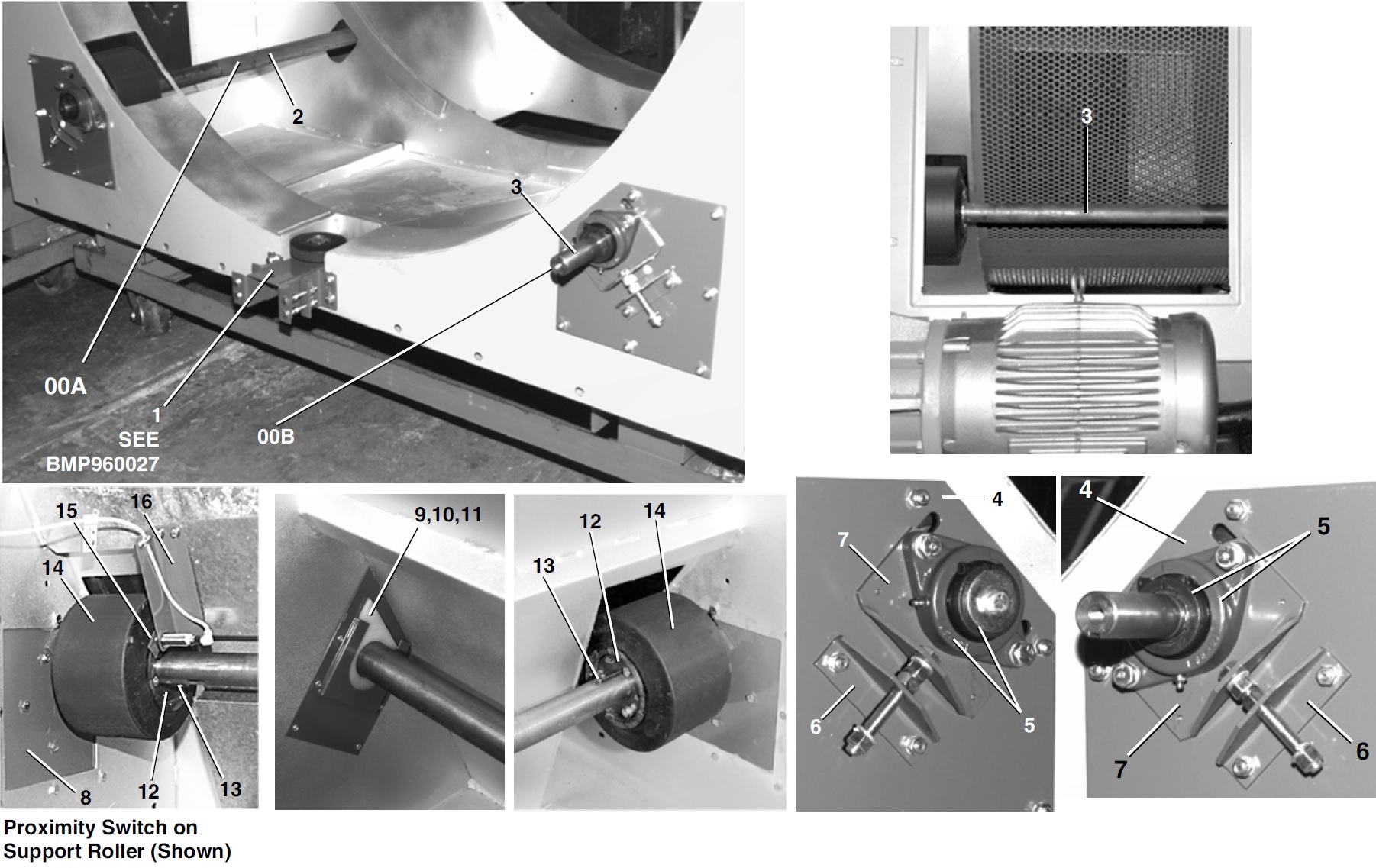

User-added image





MODEL # 7272 Post-2004

Chain drive sprockets between drive rollers
SUPPORT ROLLERSUPPORT ASSEMBLYDRIVE ROLLER DRIVE ASSEMBLYADDITIONAL INFO

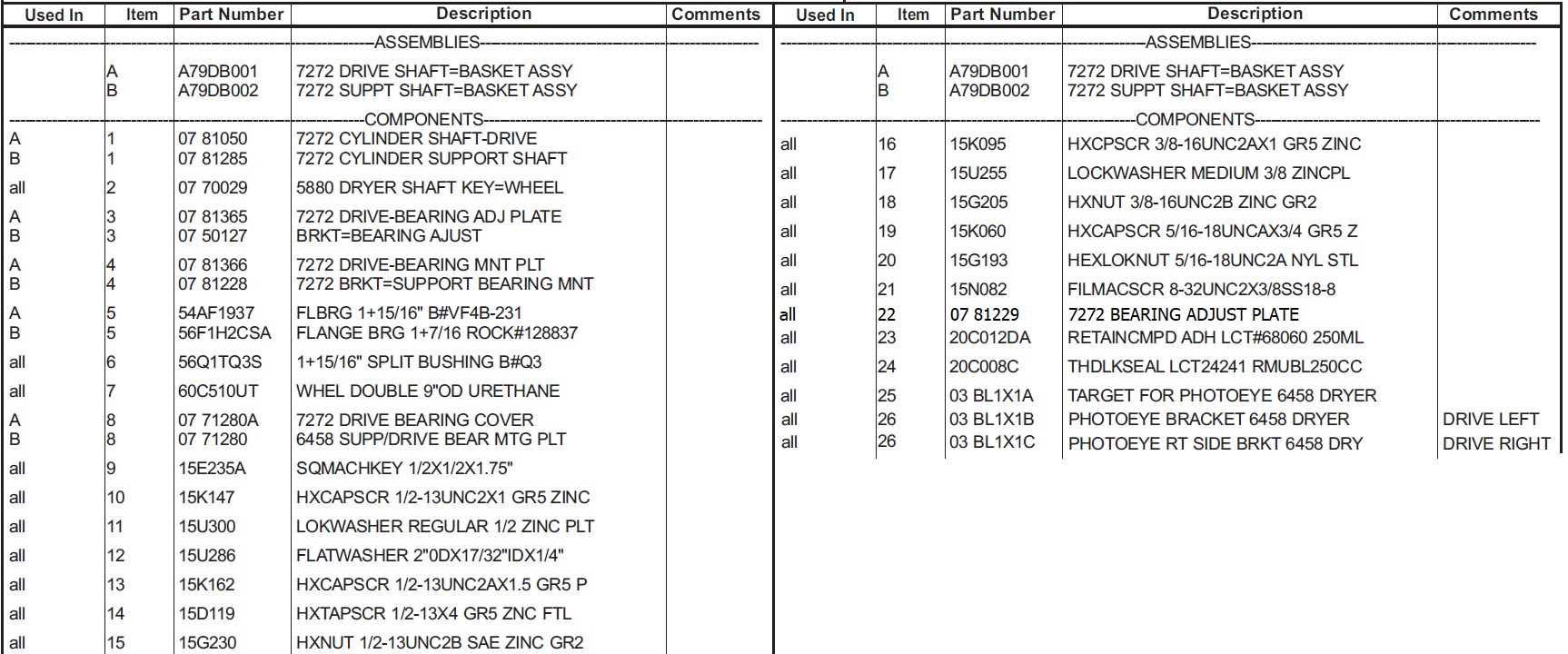

60C510UT X 2A79DB00260C510UT X 2A79DB001Model 7272
on serial tag

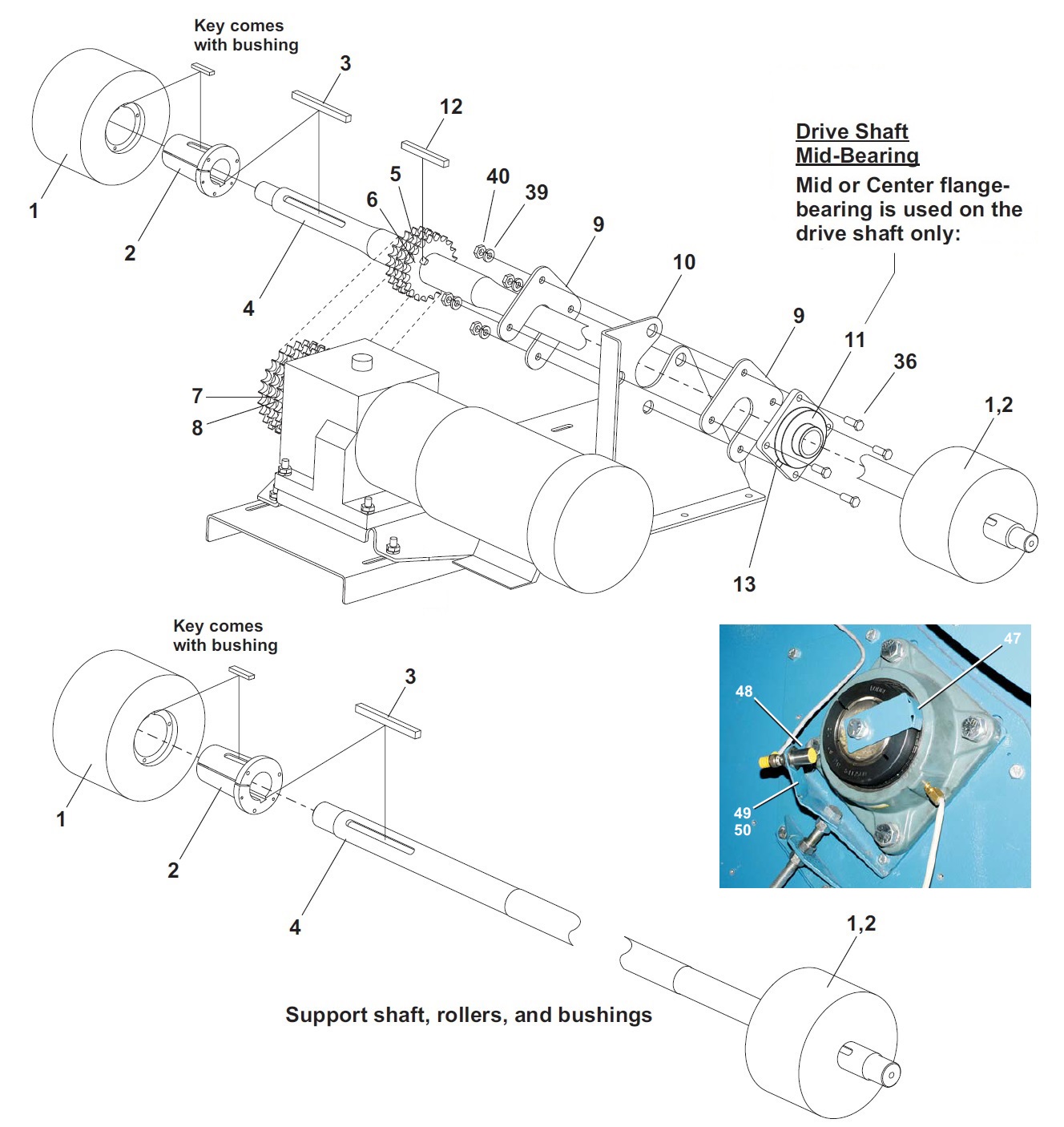

User-added image
User-added image
User-added image




MODEL # 7676,  8282

LEFT / RIGHT SUPPORT ROLLERSUPPORT ASSEMBLYDRIVE ROLLERDRIVE ASSEMBLY

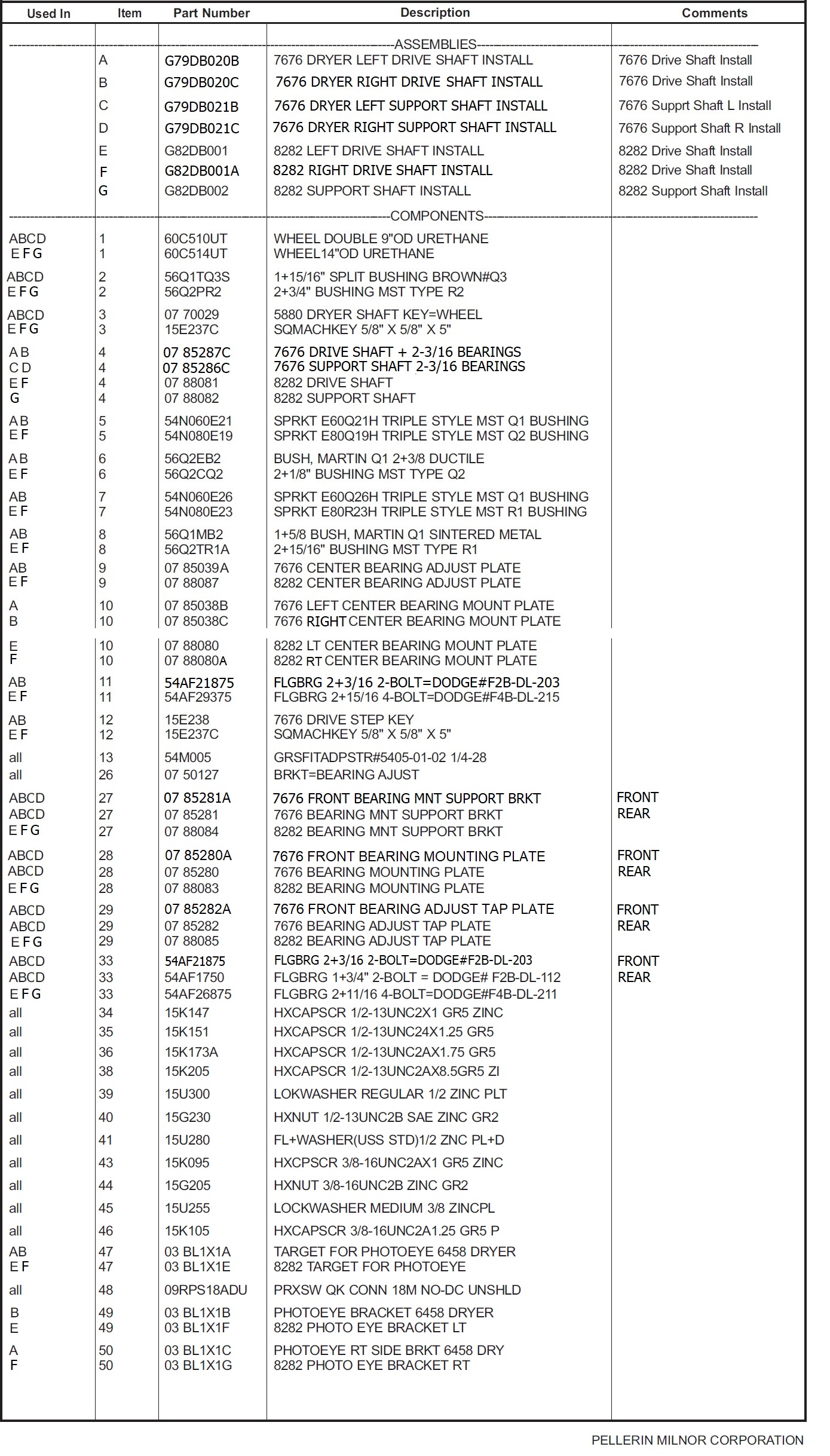

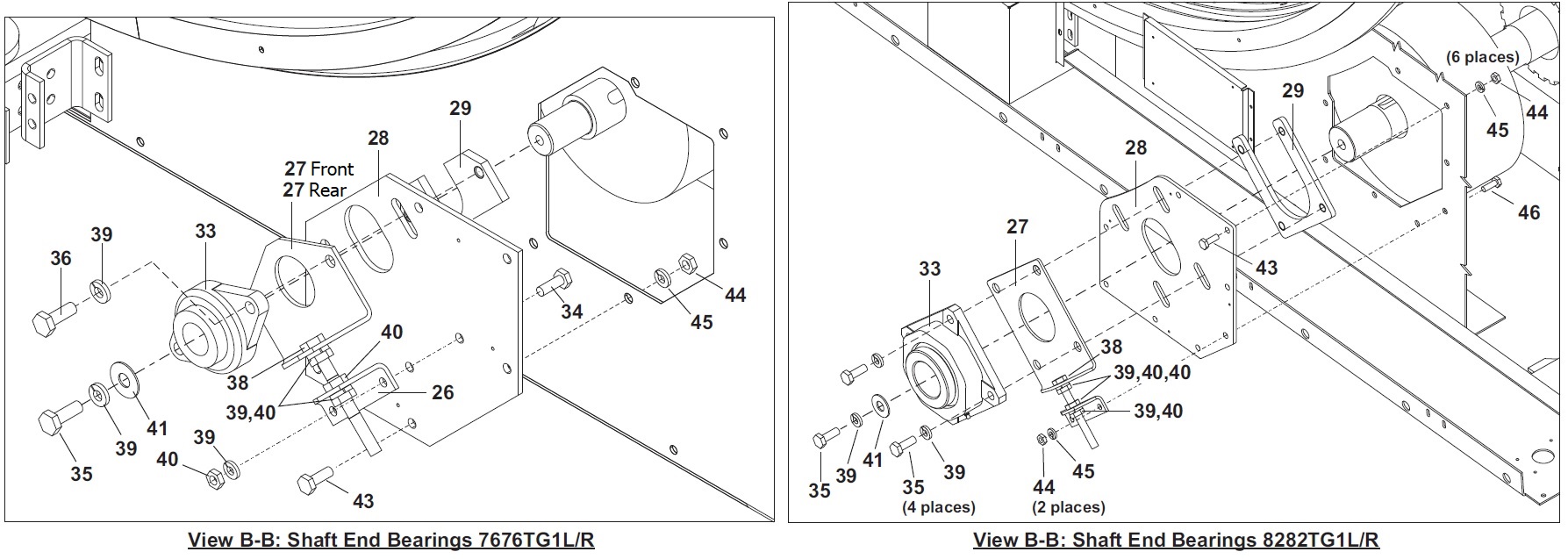

7676 LEFT DRIVE60C510UTG79DB021B60C510UTG79DB020B
7676 RIGHT DRIVE60C510UTG79DB021C60C510UTG79DB020C
8282 LEFT DRIVE60C514UTG82DB00260C514UTG82DB001
8282 RIGHT DRIVE60C514UTG82DB00260C514UTG82DB001A
User-added image
User-added image
User-added image
