Adding Ports for Air Pilot Valves with Air Pilot and Component Part Numbers

Air Pilot Valve Manifold hardware and adding additional ports to a machine.

Under normal circumstances an air manifold block and the parts with it should last a lifetime.  Valves may go bad but the manifold should be fine.
But, if you are adding options to an existing machine you may need more air pilot valves to control those added devices.  In CBW systems adding drain valves and fast fill valves is an example where you would need to add pilot valves.

Depending on how many ports you need you may choose a different manifold size.

Manifolds and part numbers:
X3 01507A - 12 ports - 1.875" spacing
X3 01507B - 18 ports - 1.875" spacing
X3 01507D - 6 ports - 1.875" spacing
X3 01507H - 10 ports - 0.938" spacing
X3 01507F - 22 ports - 0.938" spacing

When you buy a valve kit, we include the parts for the connection to the valve manifold.

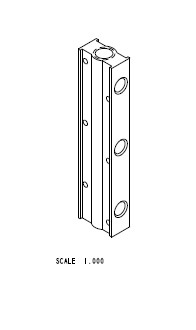

This example manifold 03 01507D (shown below) has port spacing of 1.875" between ports.  The 10 and 22 port manifolds use a spacing of .938" between ports.  The smaller spacing works with the micro air pilot valve in kits below.  Older ASCO green valve (red hat) used the larger spacing.



Spare ports can be plugged.  See the kit below for a 10 valve manifold and pick the parts you need for the plugs and hardware.  You many need differing quantities for your valve set.

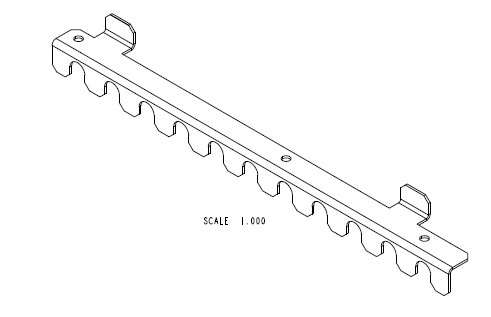

10 and 22 valve manifolds are most common today.  Locking bars hold the valves and ports in place.  The 22 port lock bar is 03 LF110K.  The 10 valve lock bar is 03 LF1X5K.

The 22 valve lock bar (11 valve positions per side) .  You need 2 lock bars.

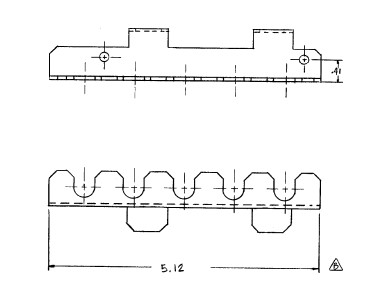

10 Valve lock bar, 5 per side.  You need 2 lock bars.

10 Port Kit - KZAVMR0010 - Contents

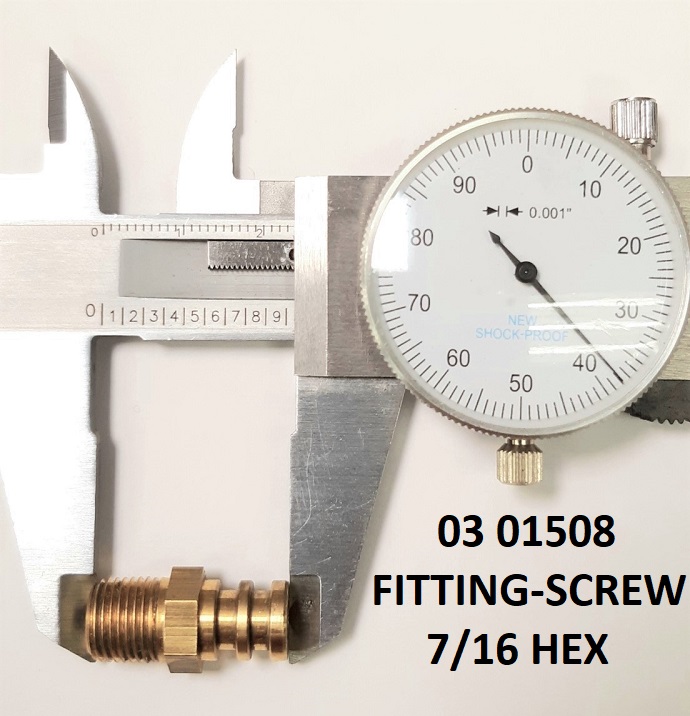

Common part pictures below

QTY	Part Number	Description
1	X3 01507H	Manifold with 10 ports
1	03 TC418K	Standoff Plate

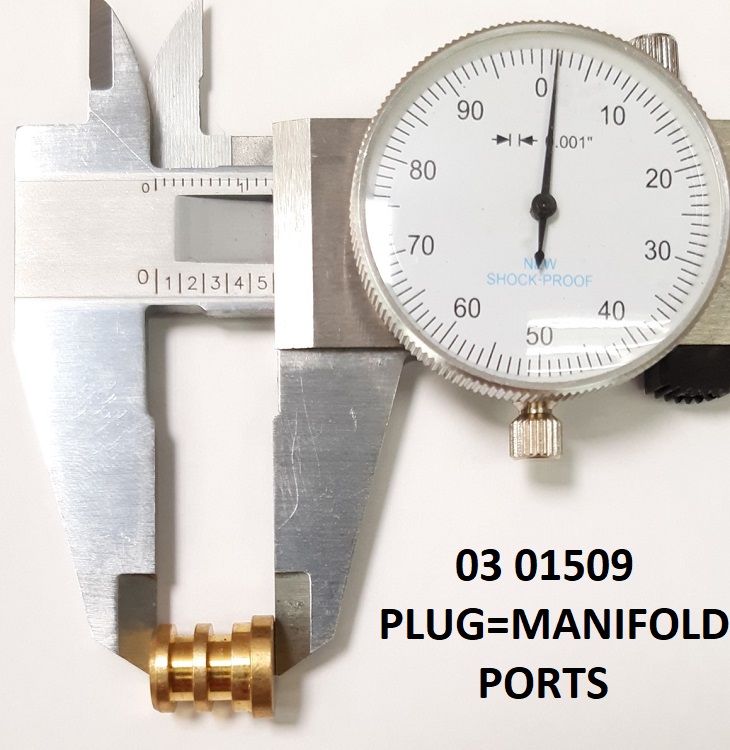

10	03 01509	Port Plug

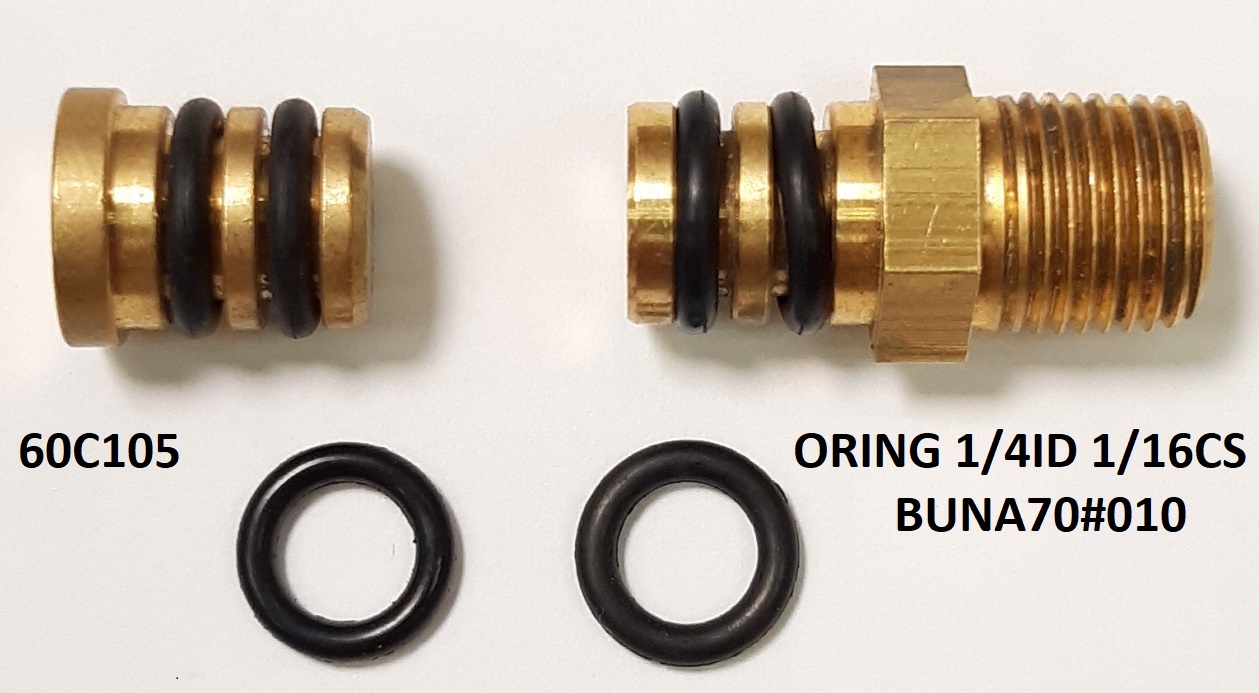

20	60C105	O-Ring 1/4" ID - 1/16"CS
2	03 LF1X5K	Locking Bar for Ports
24	15P100	#8 x 3/8 Screws
2	15N068	6-32 UNC-2A x 1.25" Screw

Micro Air Valves

VOLTAGE	PART NUMBER NORMALLY OPEN	PART NUMBER NORMALLY CLOSED
24V	96R302B24	96R301B24
120V	96R302B37	96R301B37
240V	96R302B71	96R301B71



Miscellaneous Parts

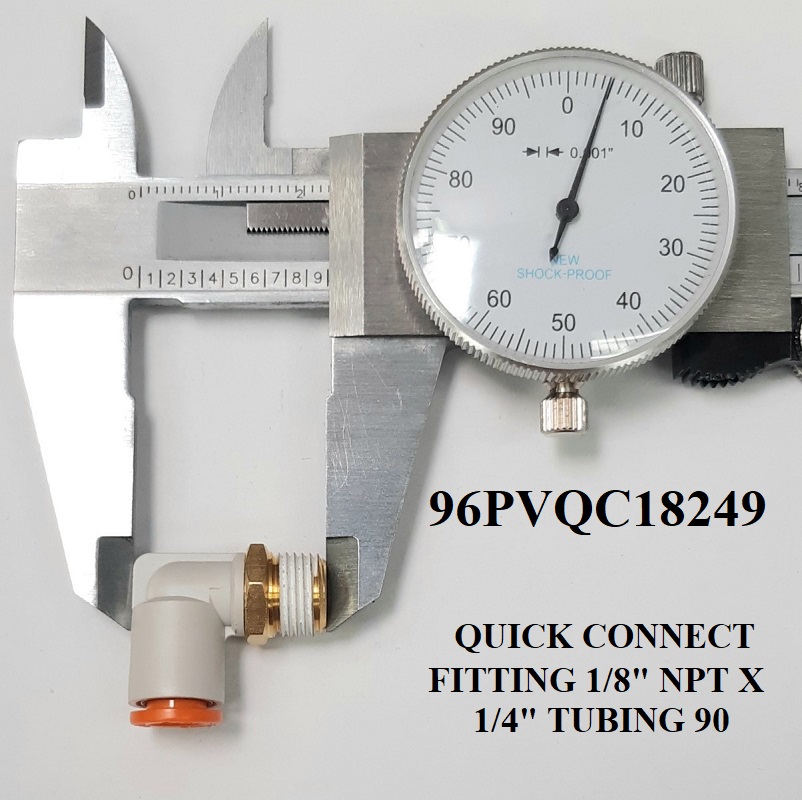

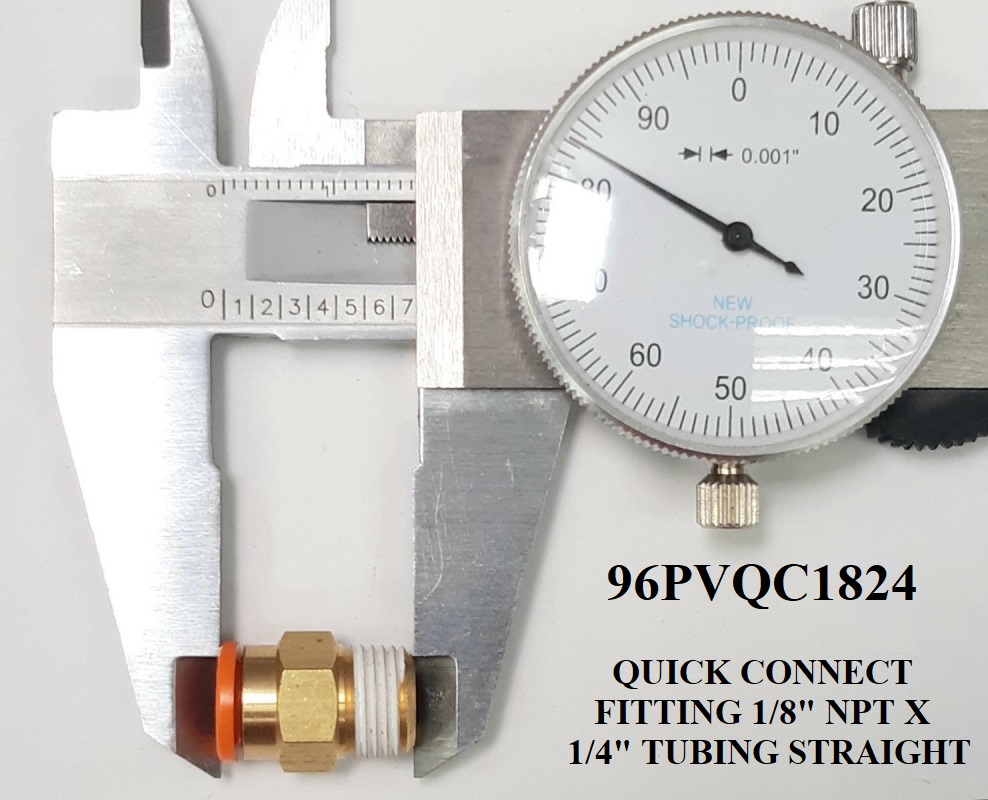

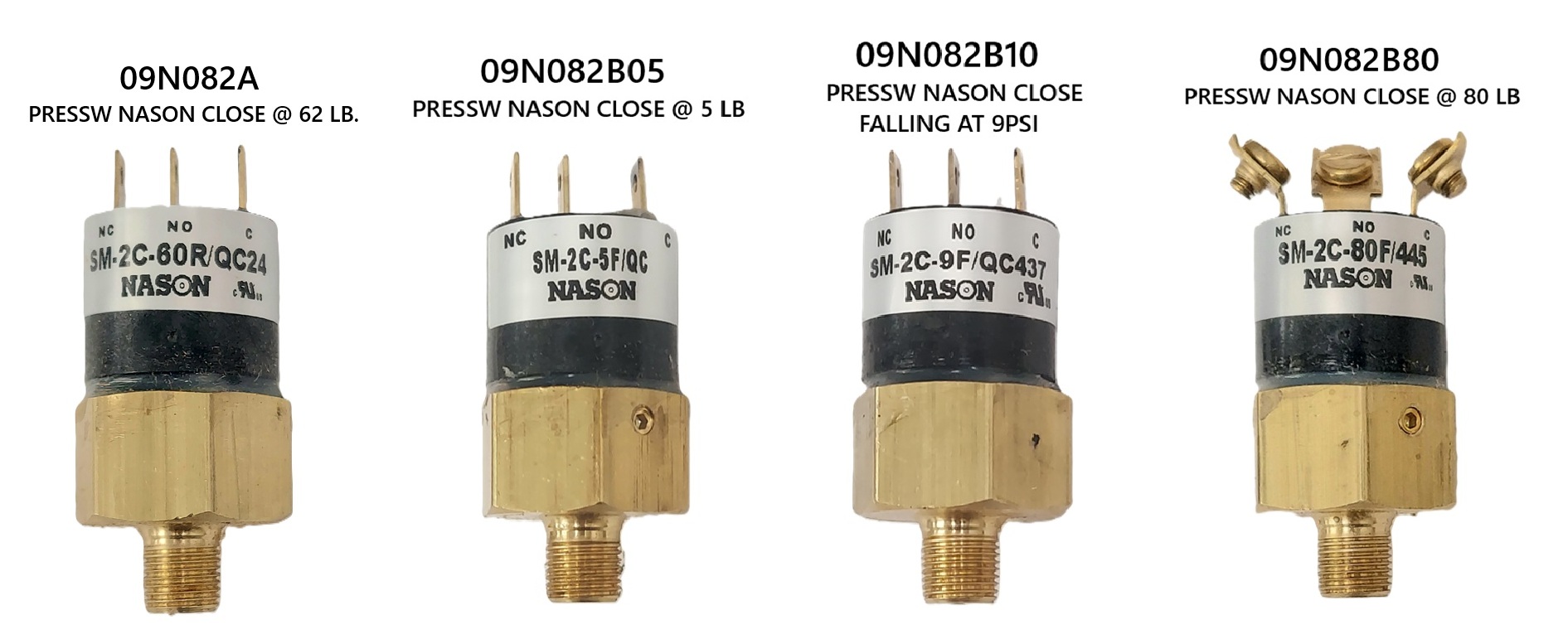

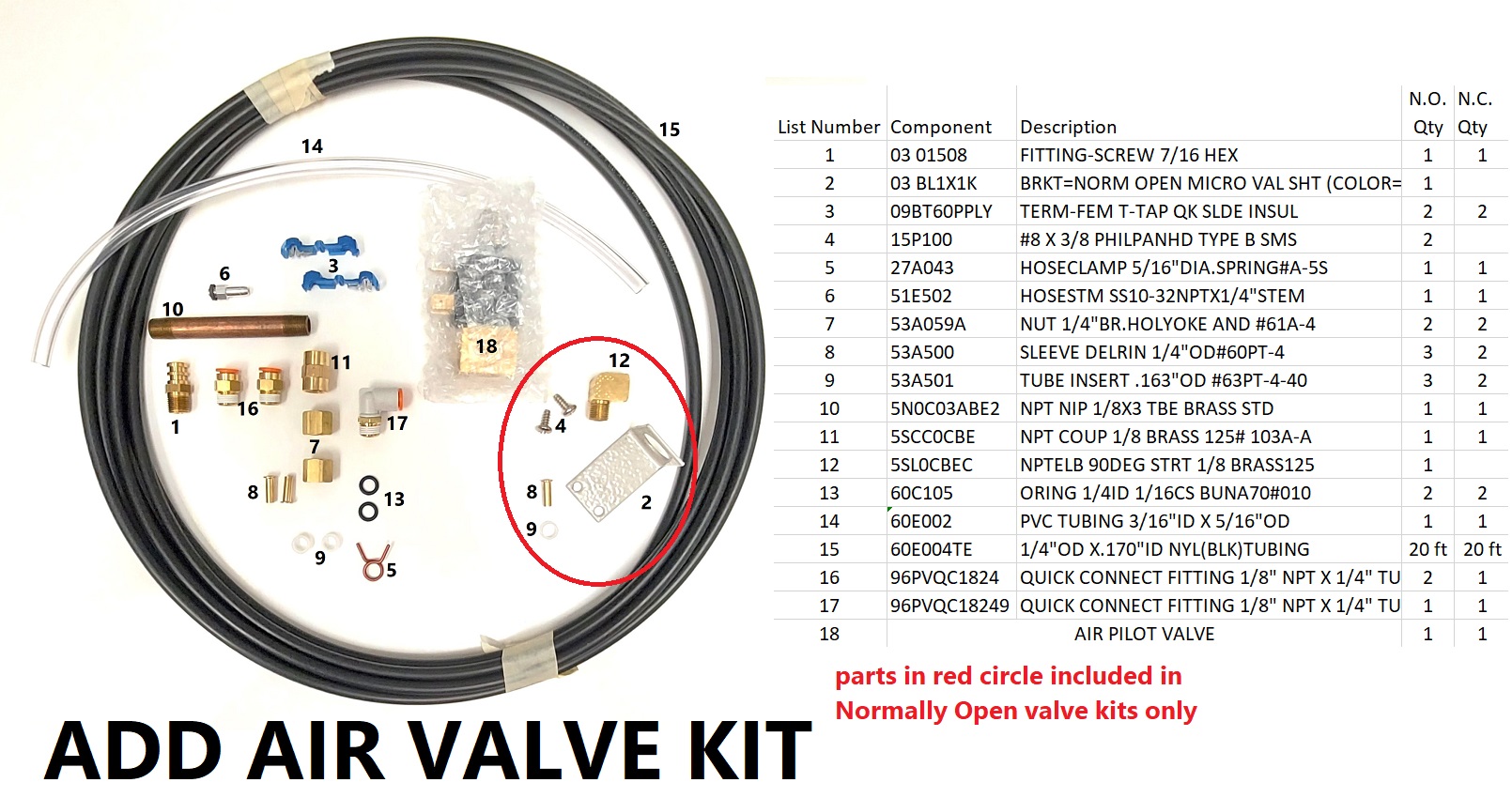

Air Valve Add-ons (Kits include all needed hardware to insert the valve into a manifold)  These are micro valves and can replace any larger pilot valves from the past to control air cylinders, water valves and drain valves.


Part Number	Desciption
KZAVNC0124	24V - Normally Closed
KZAVNC0137	120V - Normally Closed
KZAVNC0171	240V - Normally Closed
KZAVNO0124	24V - Normally Open
KZAVNO0137	120V - Normally Open
KZAVNO0171	240V - Normally Open



IP44 RATING AIR VALVES

IP44 Valves are protected against solid foreign objects of 1 mm and is protected against splashing water.  These are generally used on shipboard machines.

PART	PICTURE	INFO

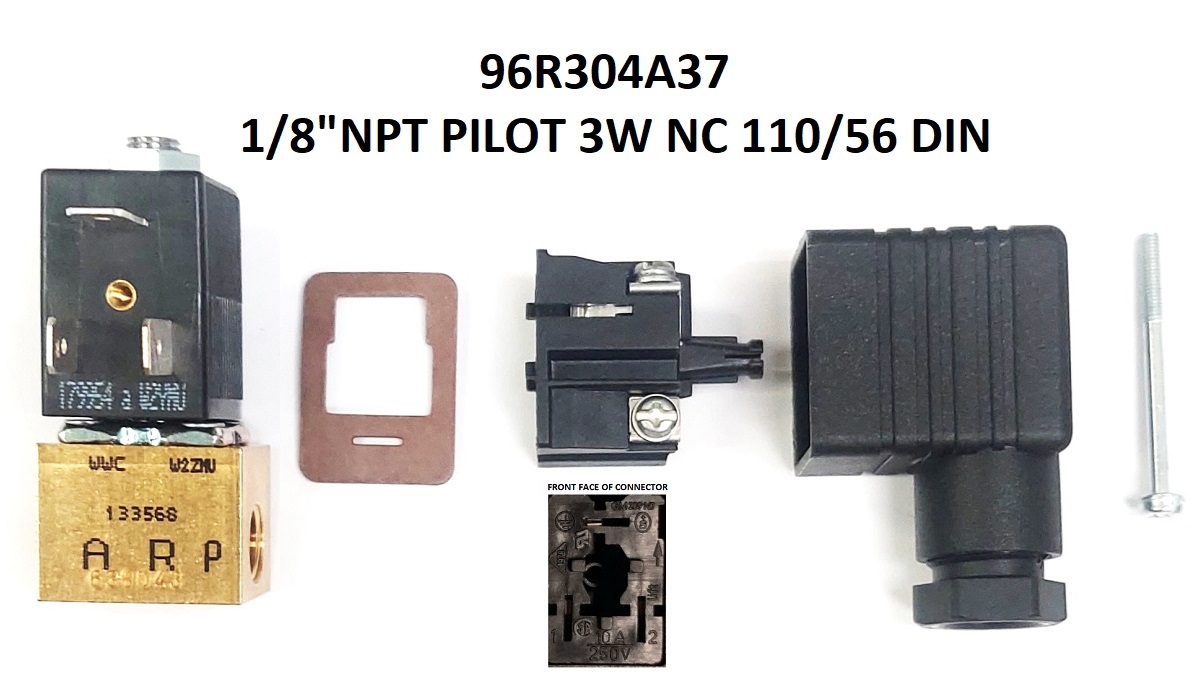

96R304A37 - 1/8"NPT PILOT 3W NC 110/56 DIN		240V number is 96R304A71

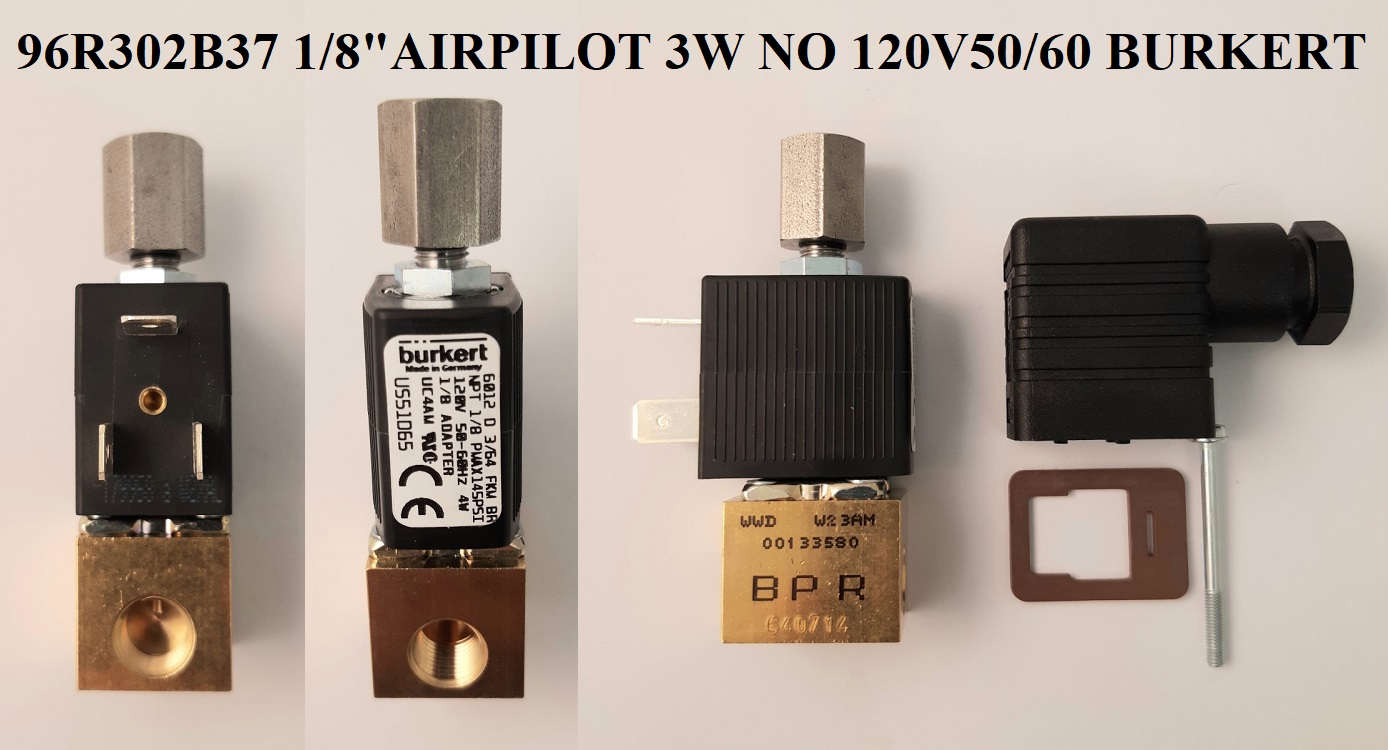

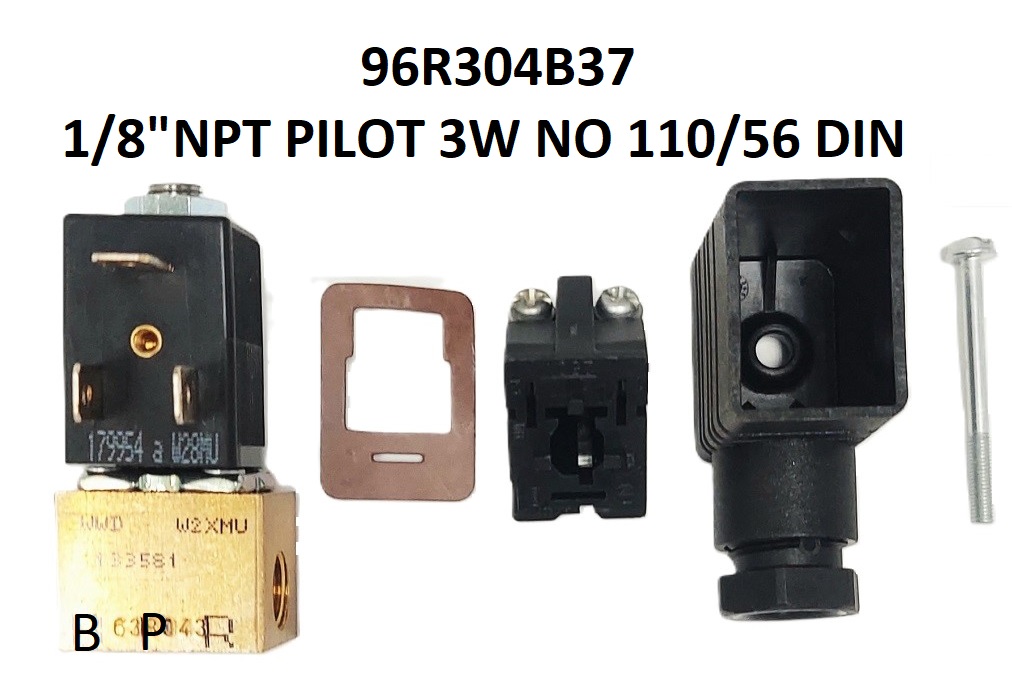

96R304B37 -1/8"NPT PILOT 3W NO 110/56 DIN		This part is being replaced by 96R302B37 Pictured above 240V number is 96R304B71  No Longer Available Substitute 96R302B71

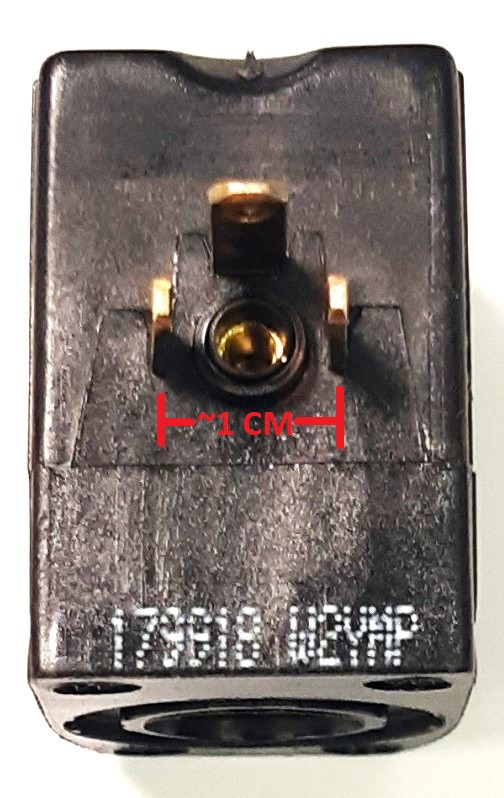

Before 2016 IP44 air valves had Burkert 6211 Style Contacts (pictured below)

This style is no longer available.  If you have this style valve, there are components you can purchase for repair while supplies last.

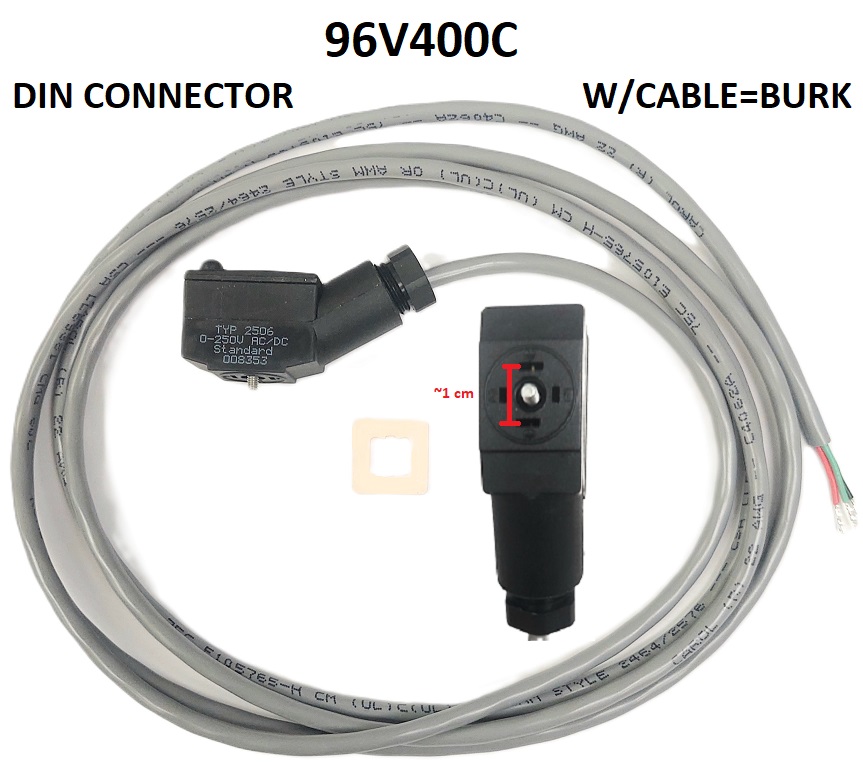

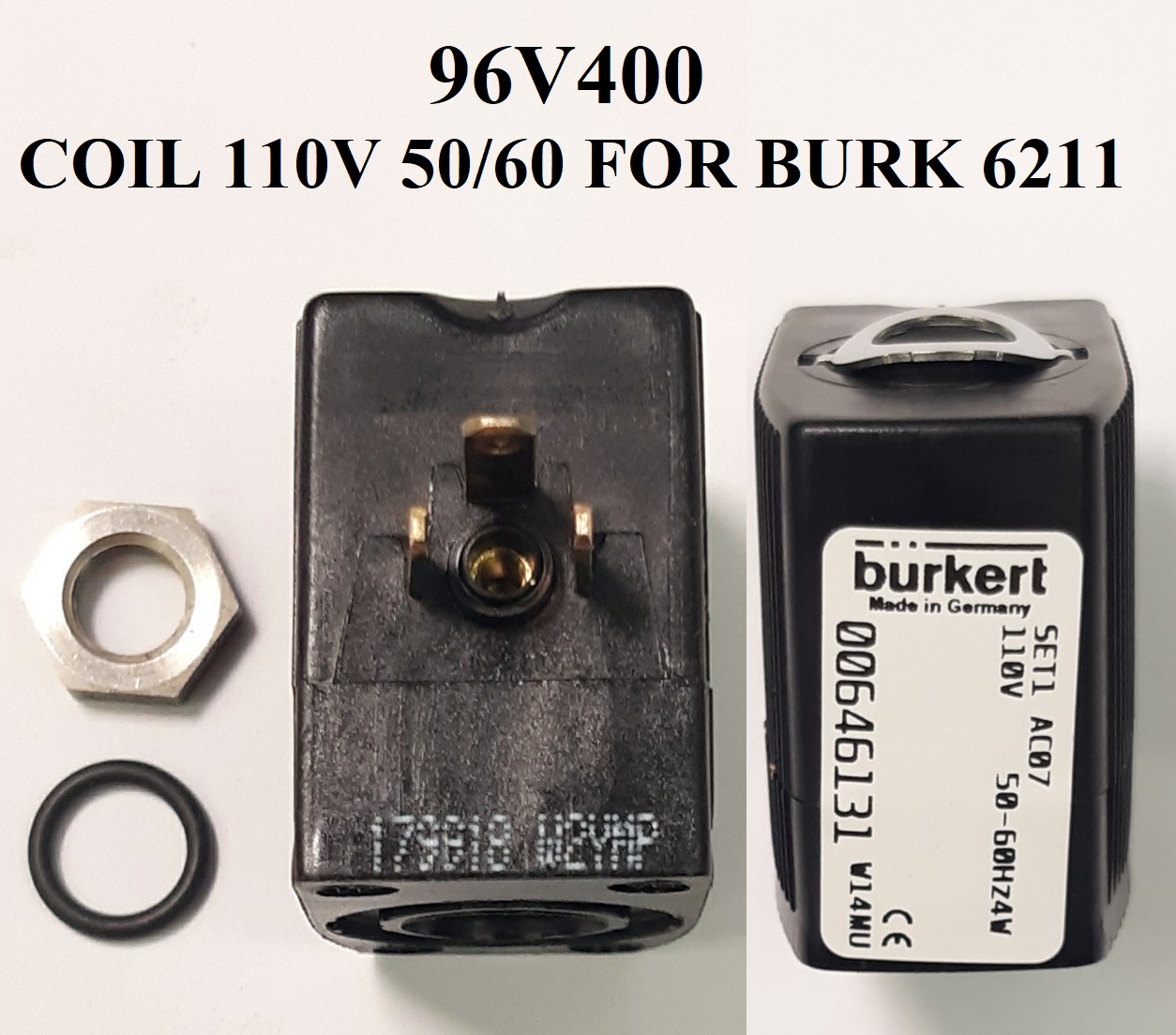

96V400C / DIN CONNECTOR W/CABLE=BURK	96V400 / COIL 110V 50/60 FOR BURK 6211 For other 6211 style repair parts click Burkert Valve Repair Kits
