Time Delay Relays w/ Base Parts

Search for the Part # you need to cross reference with the picture.

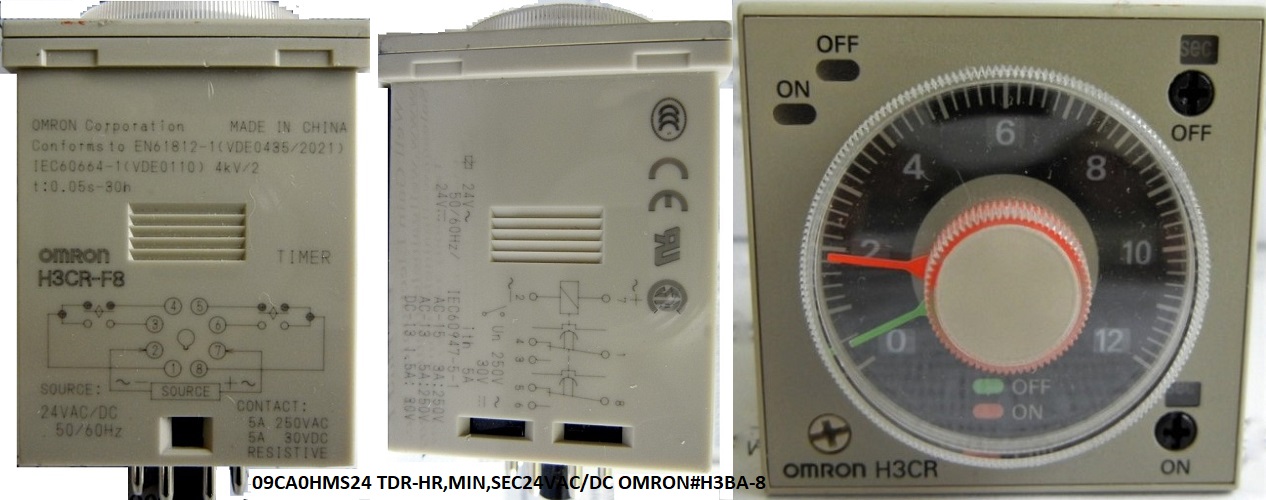

09CA0HMS24 TDR-HR,MIN,SEC24VAC/DC OMRON#H3BA-8



09CA0HMS37 TDR SET HOUR,MIN SEC 120V

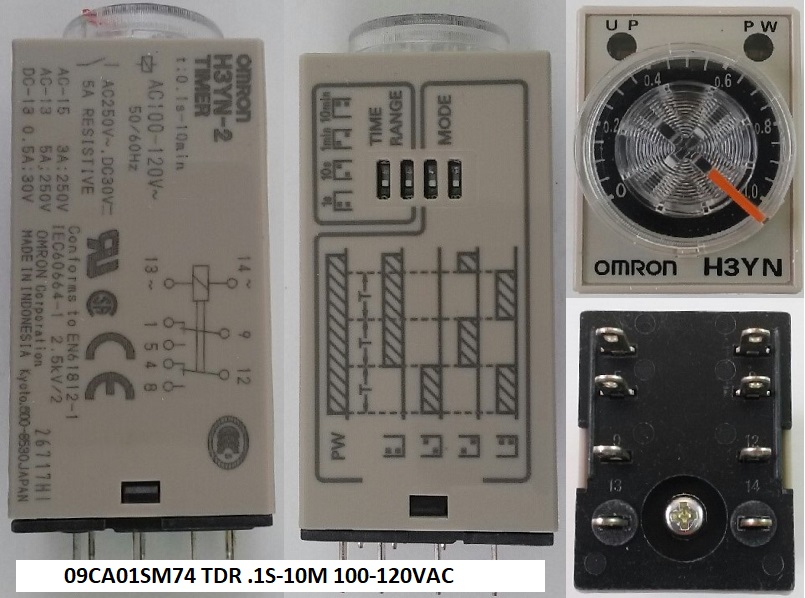

09CA01SM74 TDR .1S-10M 100-120VAC

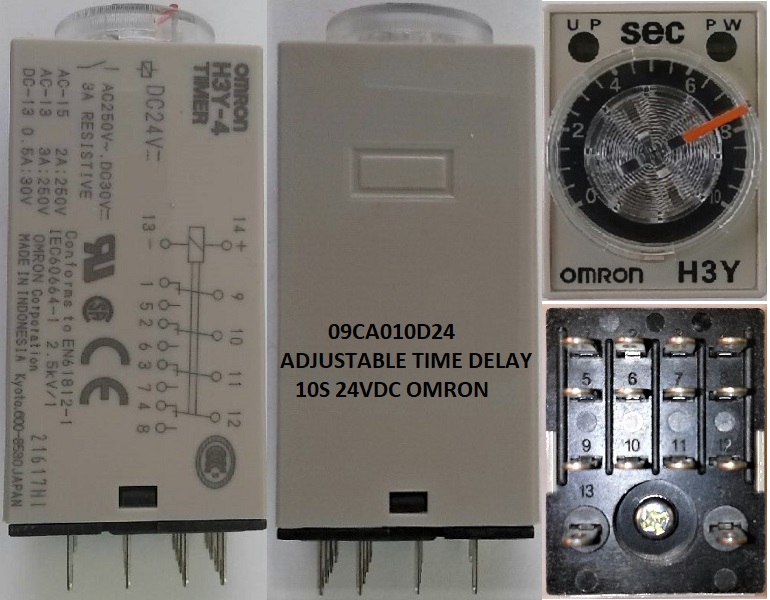

09CA010D24 ADJUSTABLE TIME DELAY 10S 24VDC OMRON

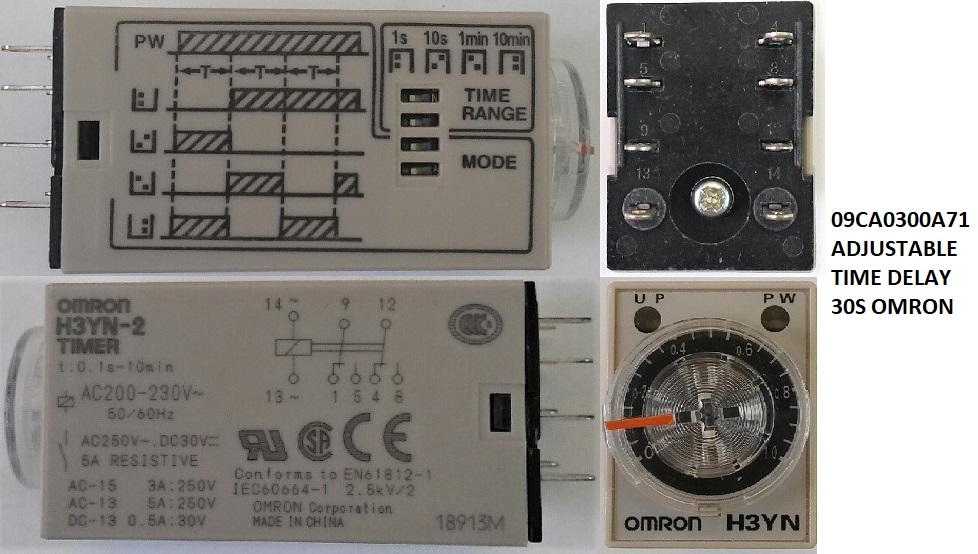

09CA0300A71 ADJUSTABLE TIME DELAY 30S OMRON

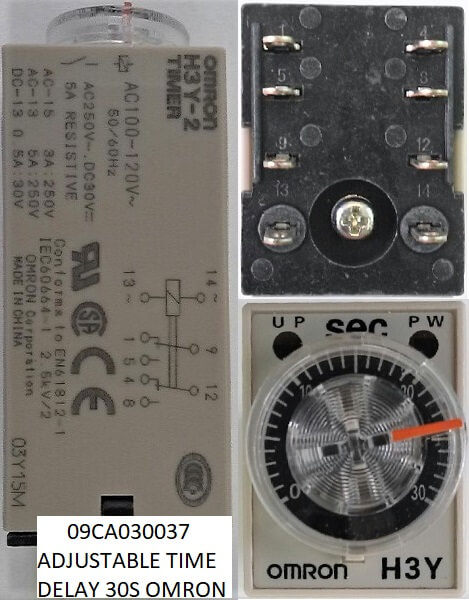

09CA030037 ADJUSTABLE TIME DELAY 30S OMRON

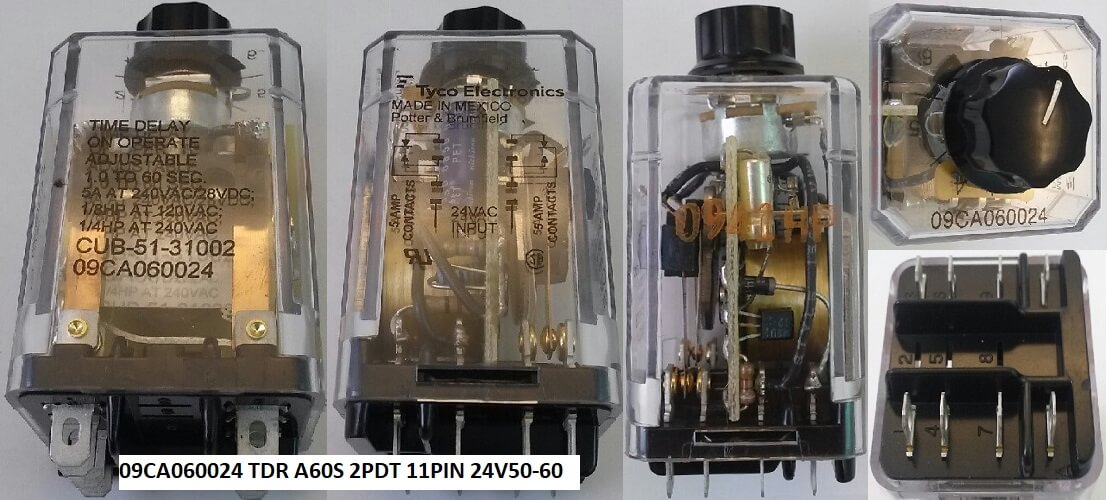

09CA060024 TDR A60S 2PDT 11PIN 24V50/60

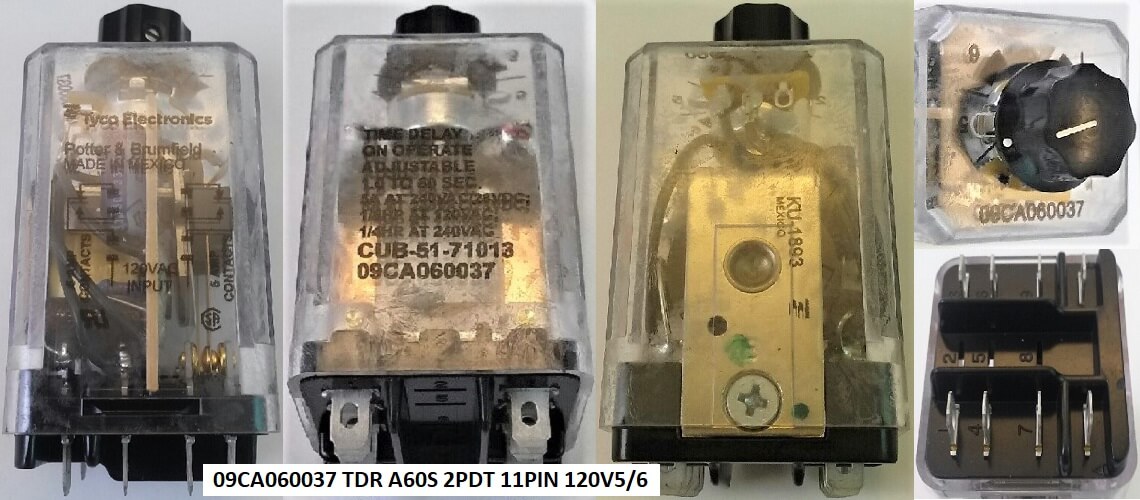

09CA060037 TDR A60S 2PDT 11PIN 120V5/6

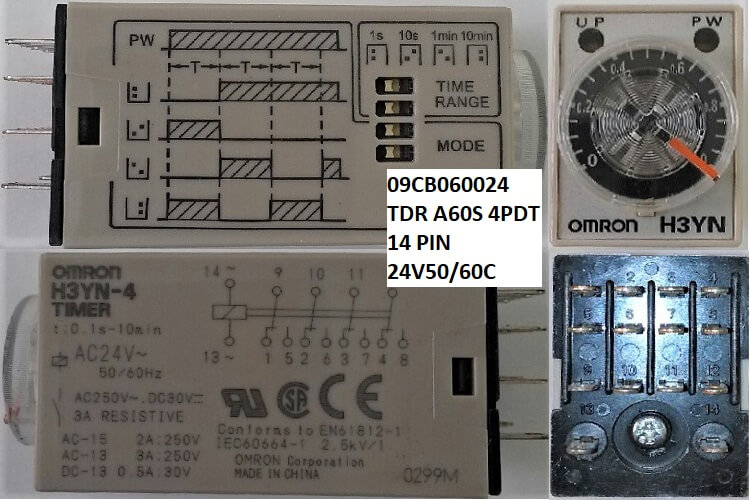

09CB060024 TDR A60S 4PDT 14 PIN 24V50/60C



09CB240024 TDR A240S 4PDT 14 PIN 24V50/60

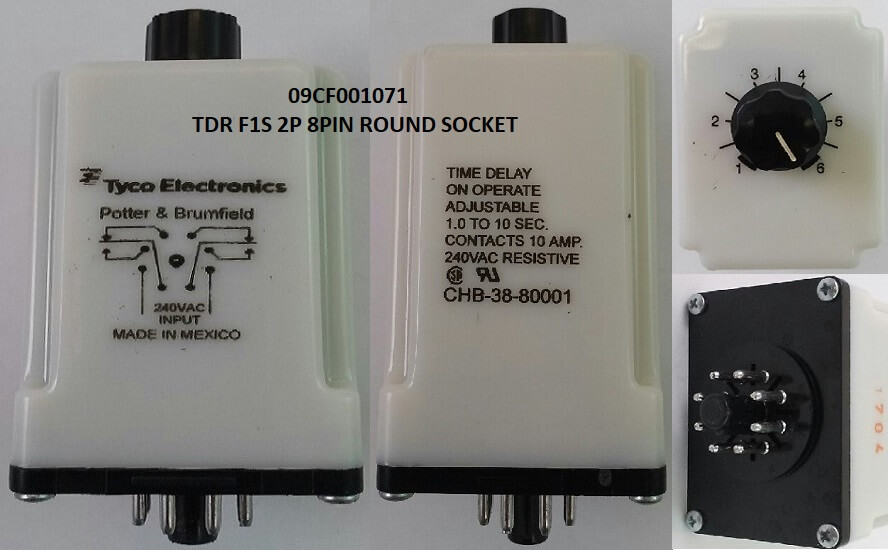

09CF001071 TDR F1S 2P 8PIN ROUND SOCKET

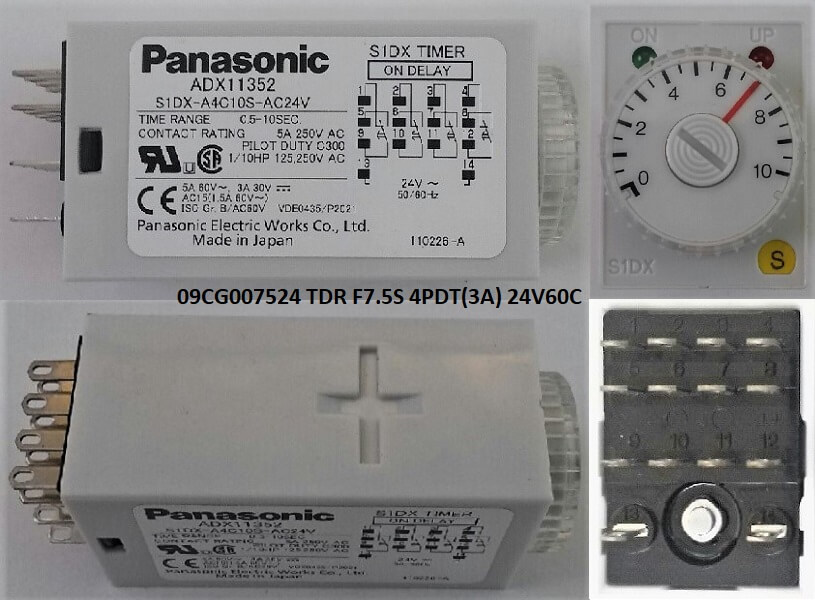

09CG007524 TDR F7.5S 4PDT(3A) 24V60C

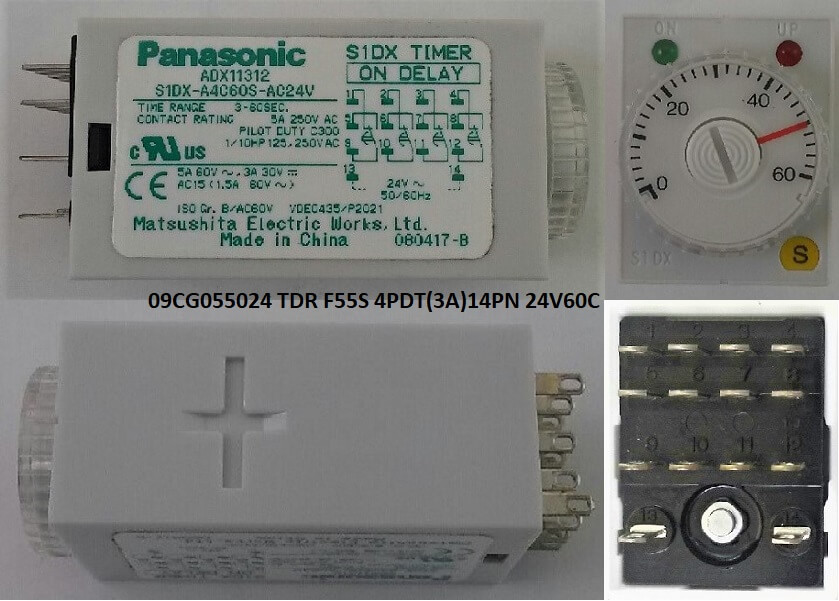

09CG055024 TDR F55S 4PDT(3A)14PN 24V60C

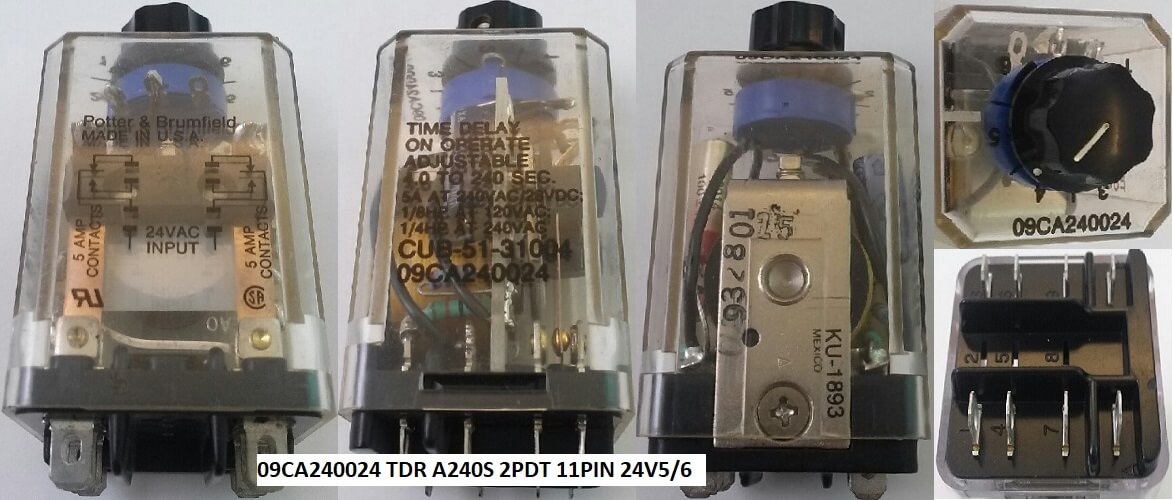

09CA240024 TDR A240S 2PDT 11PIN 24V5/6



09CF001024 TDR F1S 2PDT 11PIN 24V60/50C

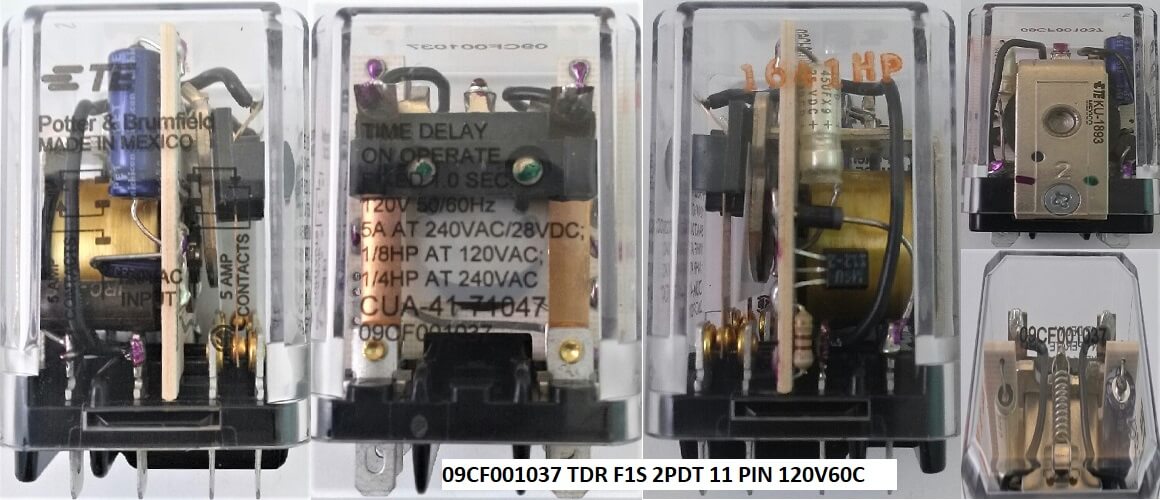

09CF001037 TDR F1S 2PDT 11 PIN 120V60C

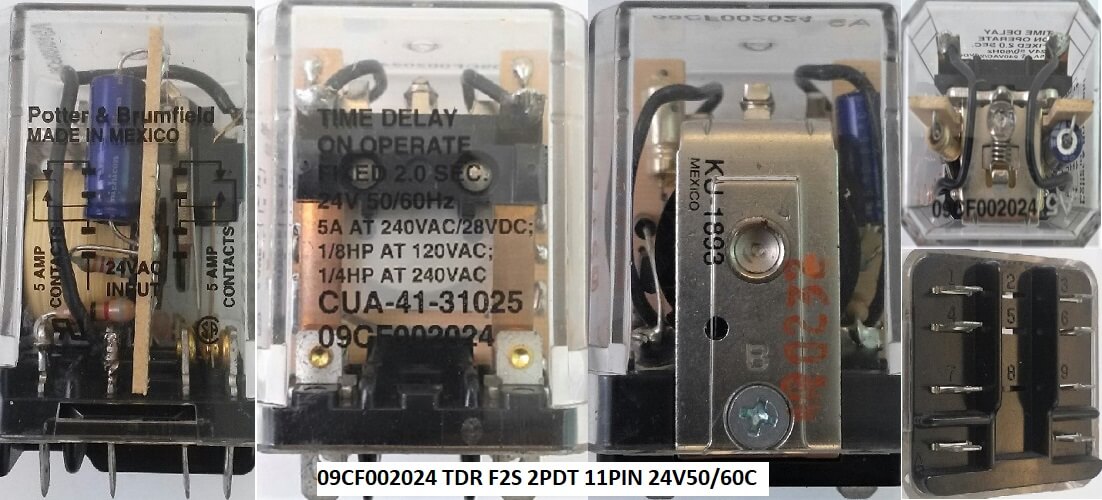

09CF002024 TDR F2S 2PDT 11PIN 24V50/60C

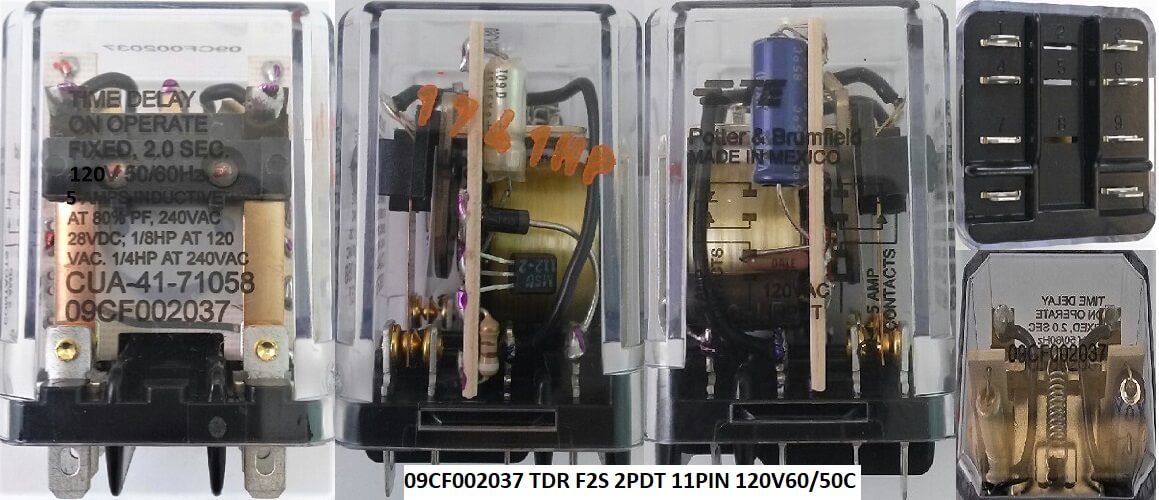

09CF002037 TDR F2S 2PDT 11PIN 120V60/50C

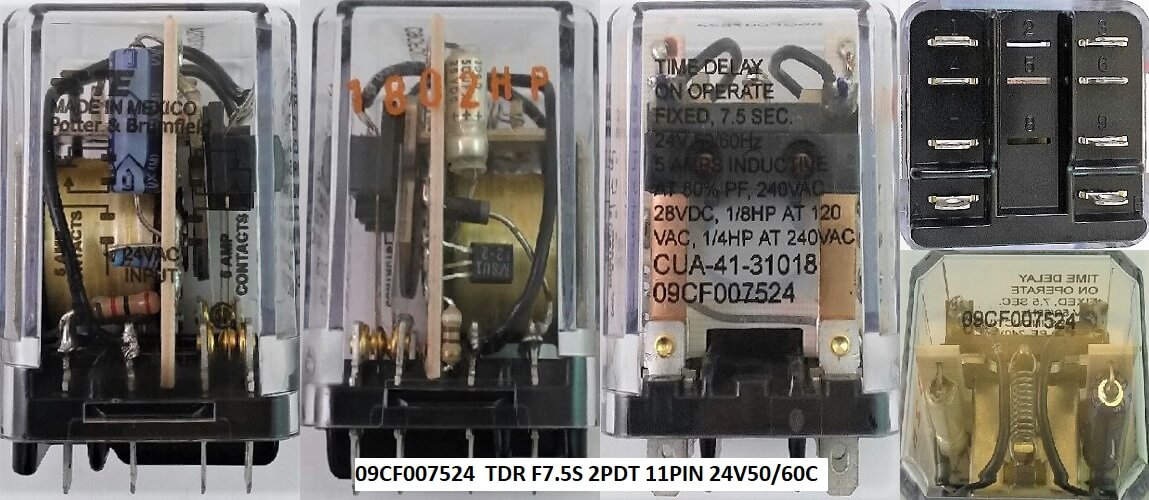

09CF007524 TDR F7.5S 2PDT 11PIN 24V50/60C

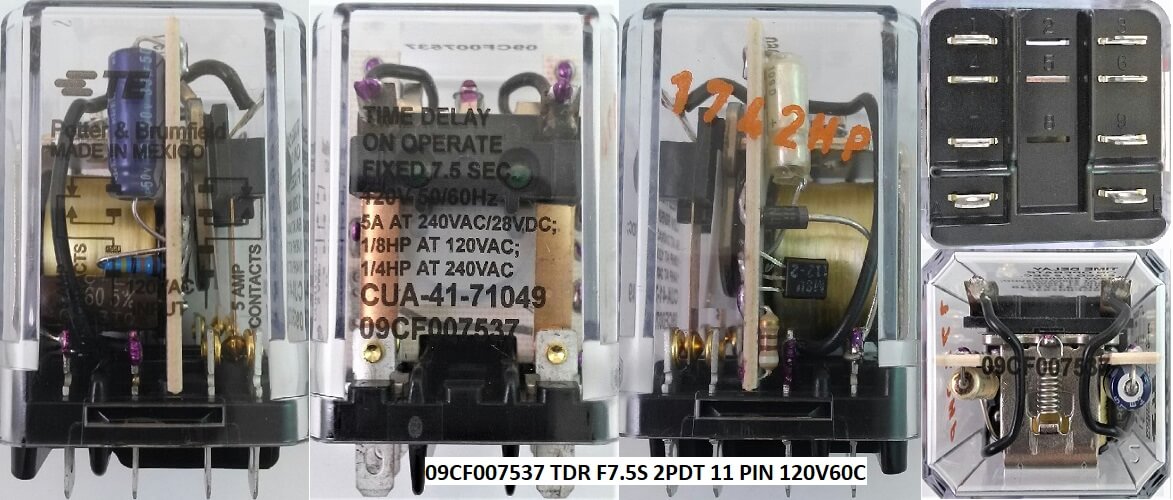

09CF007537 TDR F7.5S 2PDT 11 PIN 120V60C

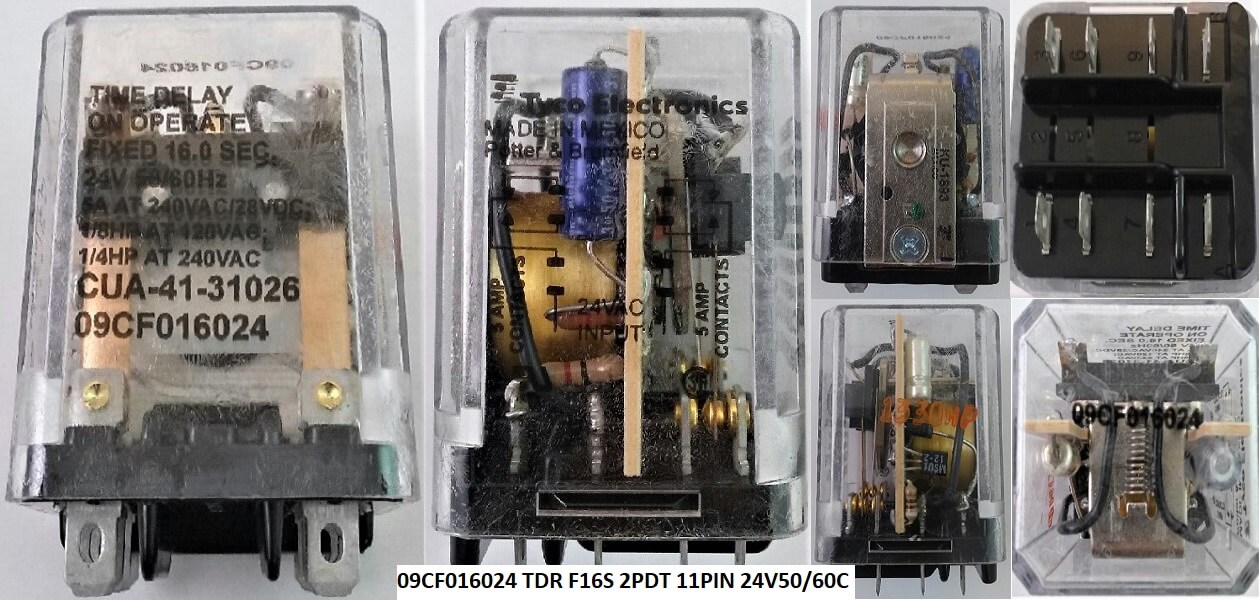

09CF016024 TDR F16S 2PDT 11PIN 24V50/60C

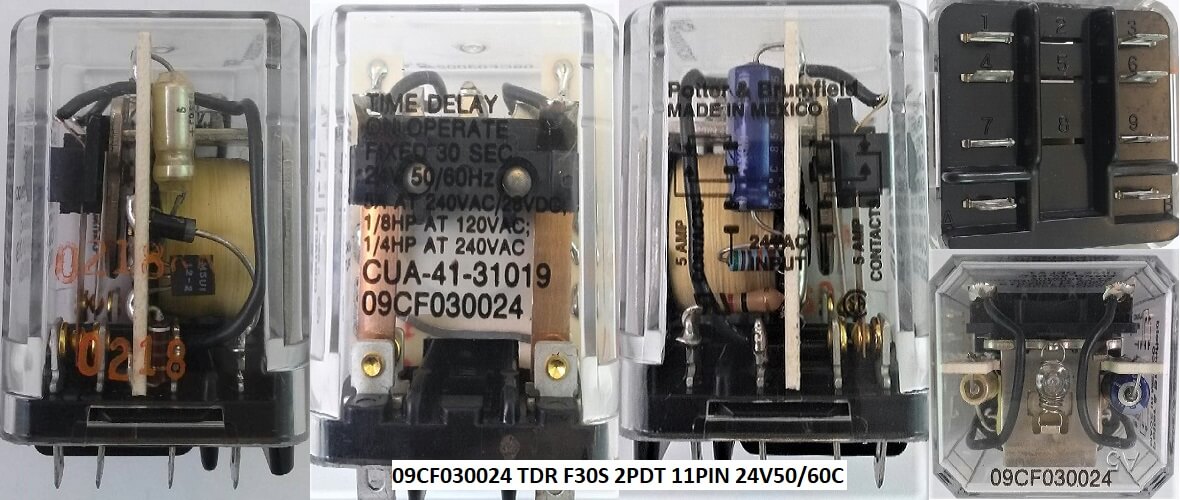

09CF030024 TDR F30S 2PDT 11PIN 24V50/60C

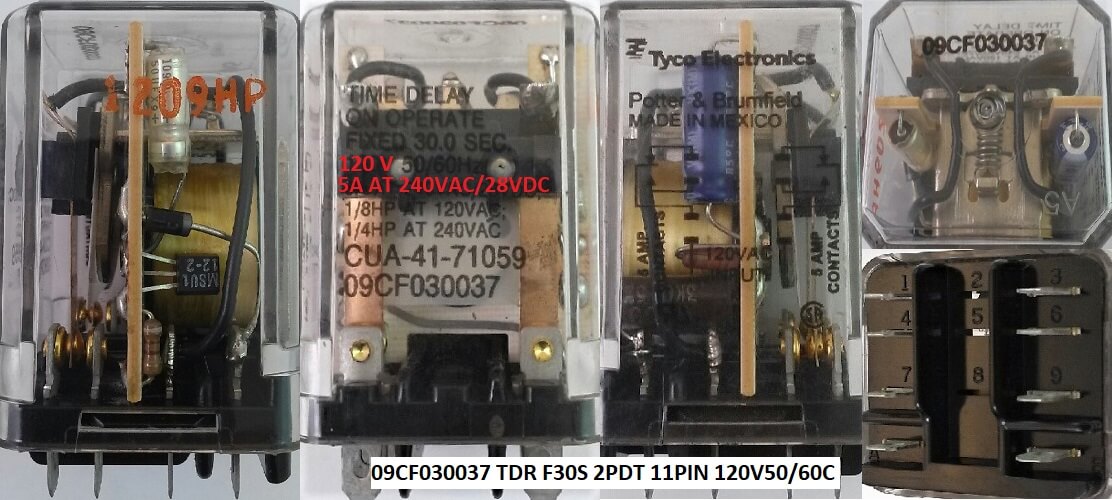

09CF030037 TDR F30S 2PDT 11PIN 120V50/60C

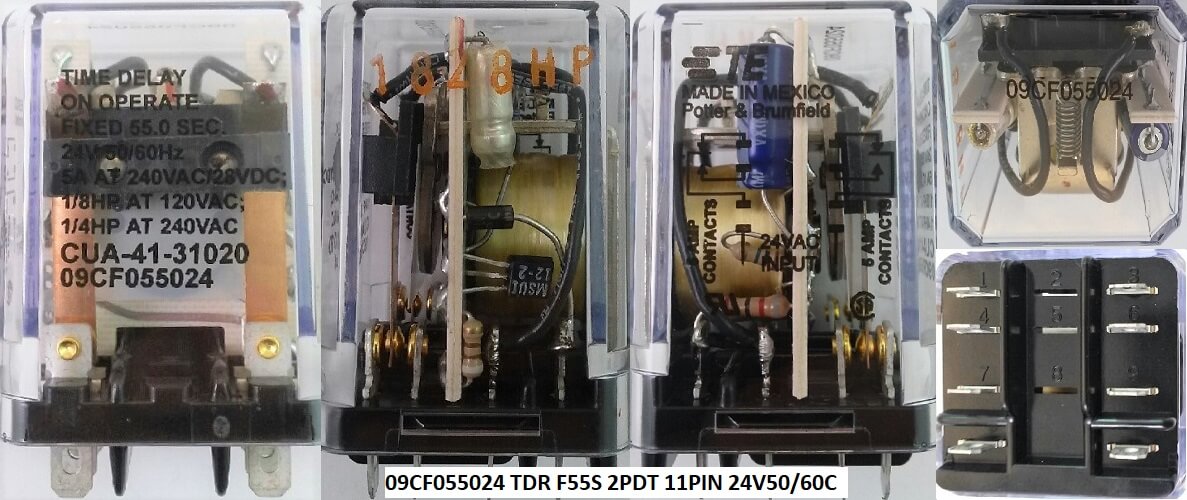

09CF055024 TDR F55S 2PDT 11PIN 24V50/60C

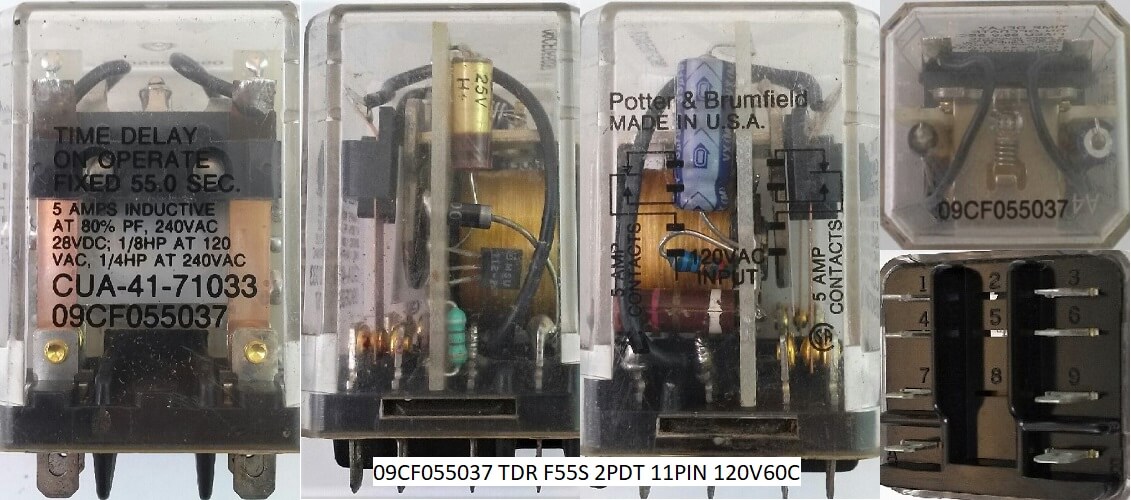

09CF055037 TDR F55S 2PDT 11PIN 120V60C

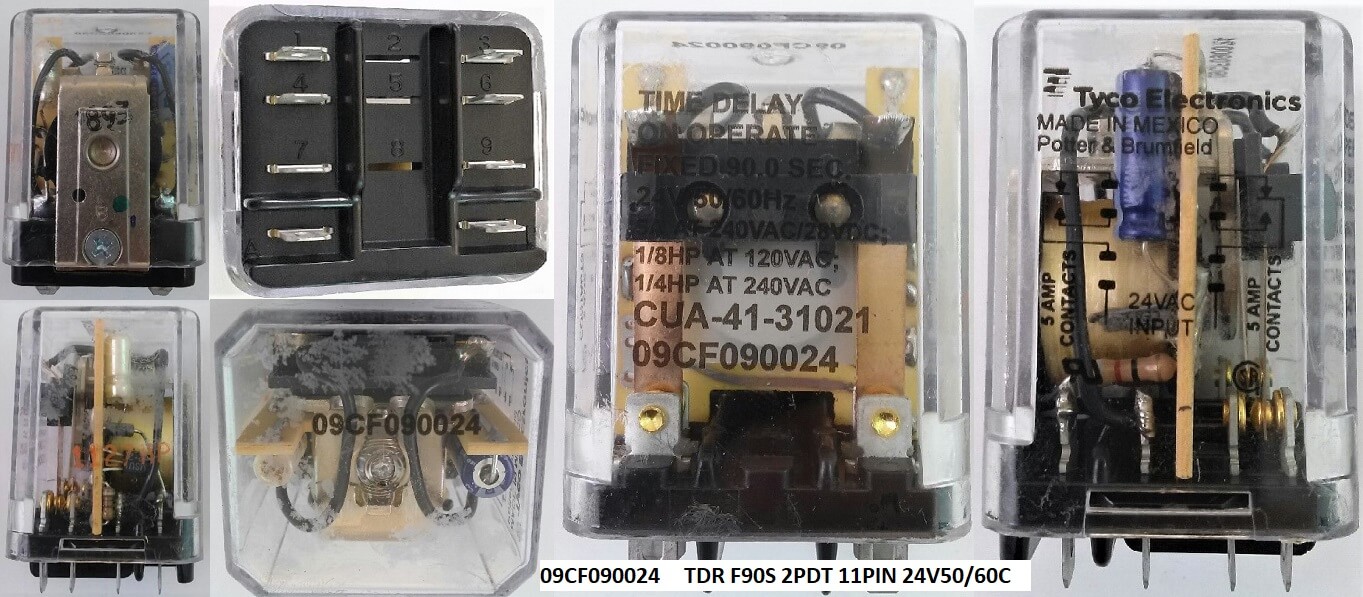

09CF090024 TDR F90S 2PDT 11PIN 24V50/60C

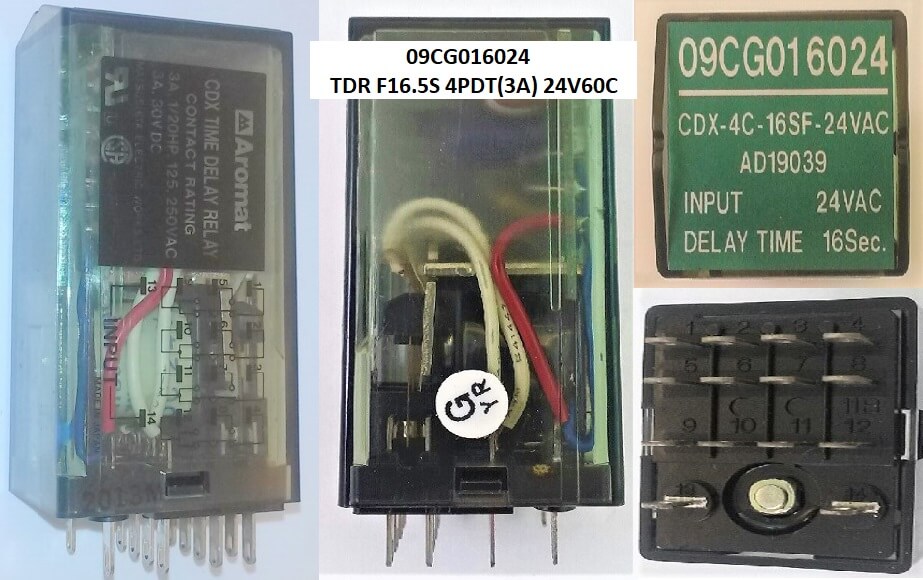

09CG016024 TDR F16.5S 4PDT(3A) 24V60C

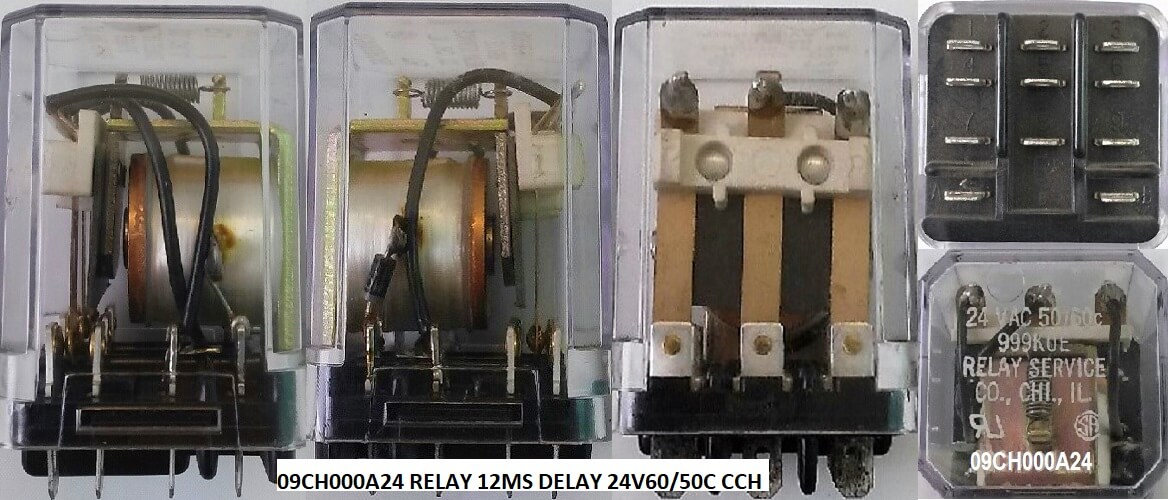

09CH000A24 RELAY 12MS DELAY 24V60/50C CCH

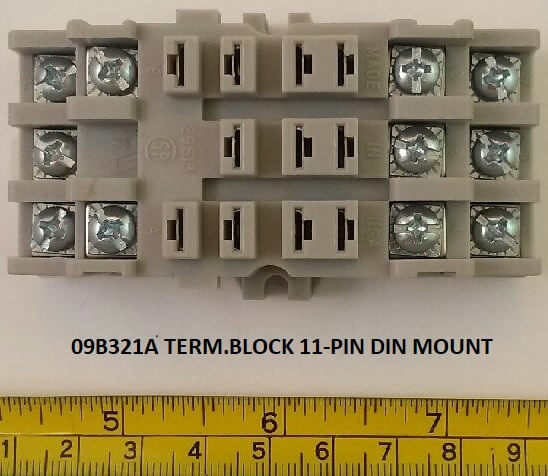

09B321A TERM.BLOCK 11-PIN DIN MOUNT

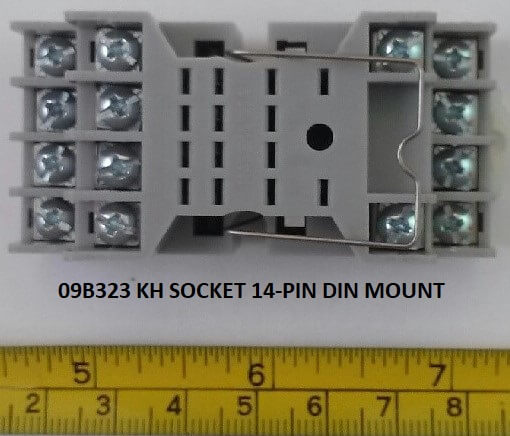

09B323 KH SOCKET  14-PIN  DIN MOUNT
09B323 should be used in place of the beige and black 14 Pin bases as they are no longer available.  Rewiring will need to take place.

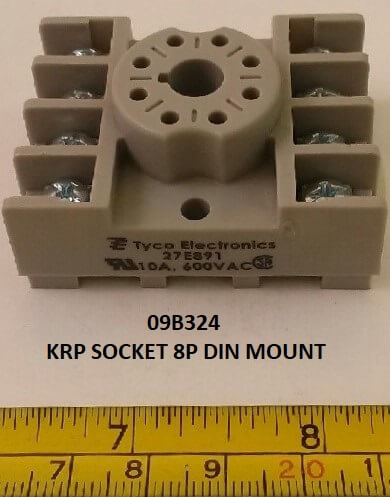

09B324 KRP SOCKET 8P DIN MOUNT

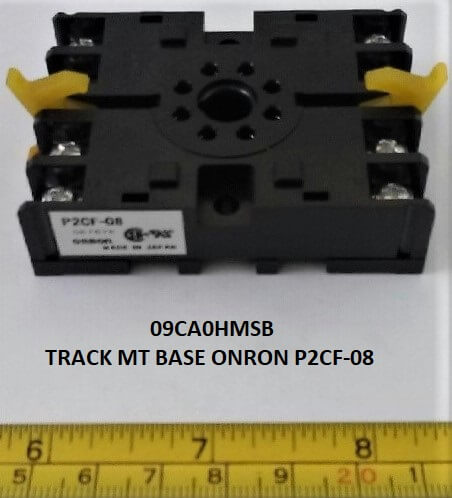

09CA0HMSB TRACK MT BASE ONRON P2CF-08



09CA08BASE OMRON TIME DELAY BASE 8 PIN

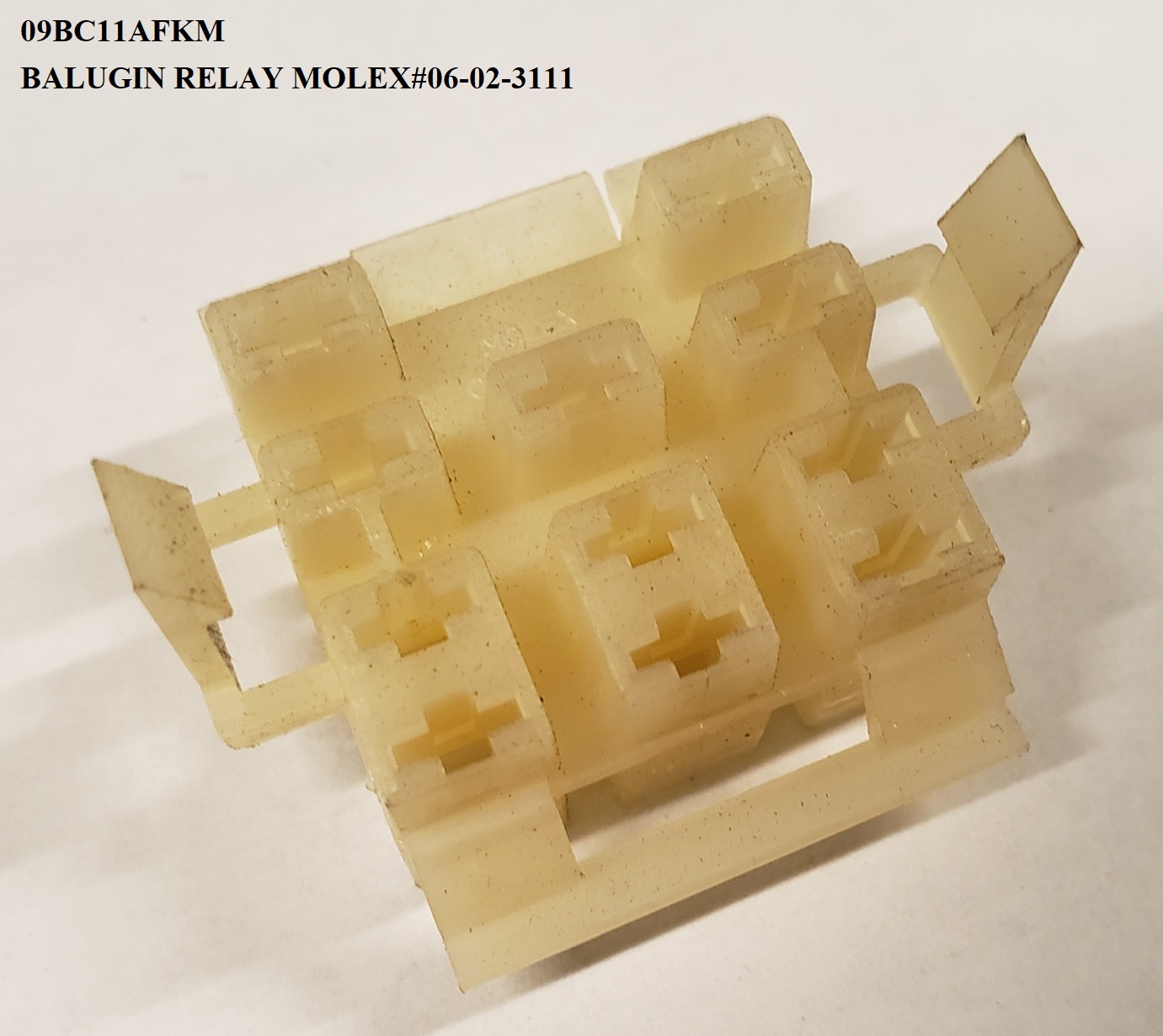

Relay Base 09BC11AFKM mounts in a relay tray in older machines.  These are no longer produced by Molex but some inventory might be available.

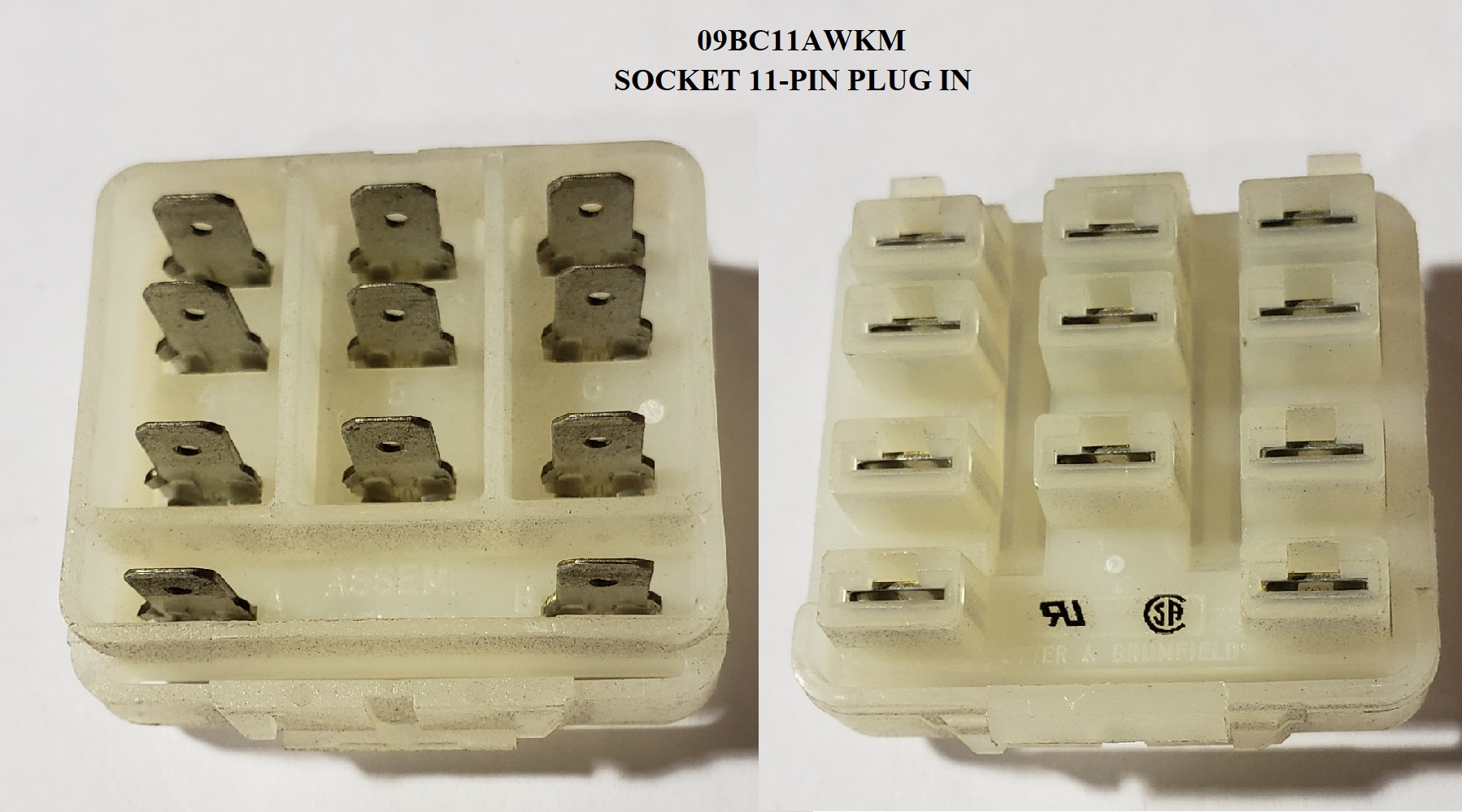

The replacement for 09BC11AFKM is part number 09BC11AWKM (pictured below)
Some modification to the relay tray is necessary to install the replacement part.
