What pre-fill valve do I have on my Milnor® press?
There are three versions of the pre-fill valve on a Milnor® press. Take a look at the options an order the one that most resembles yours.

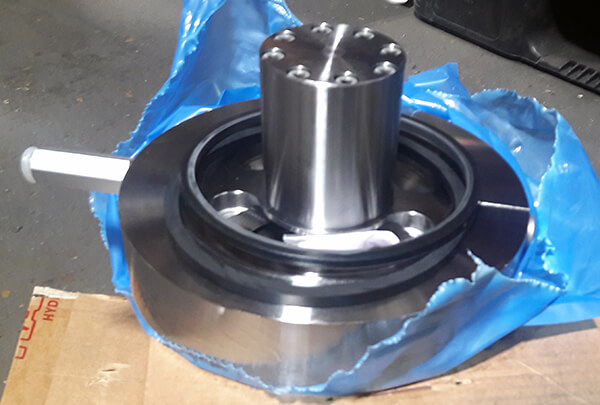

Hawe Valve

This valve will only work on a cylinder with a side port since it has no main flow inlet from the pump.  Note the port on the valve contains an orifice for proper functionality.

Part number:
96RH712F

HaVe Valve

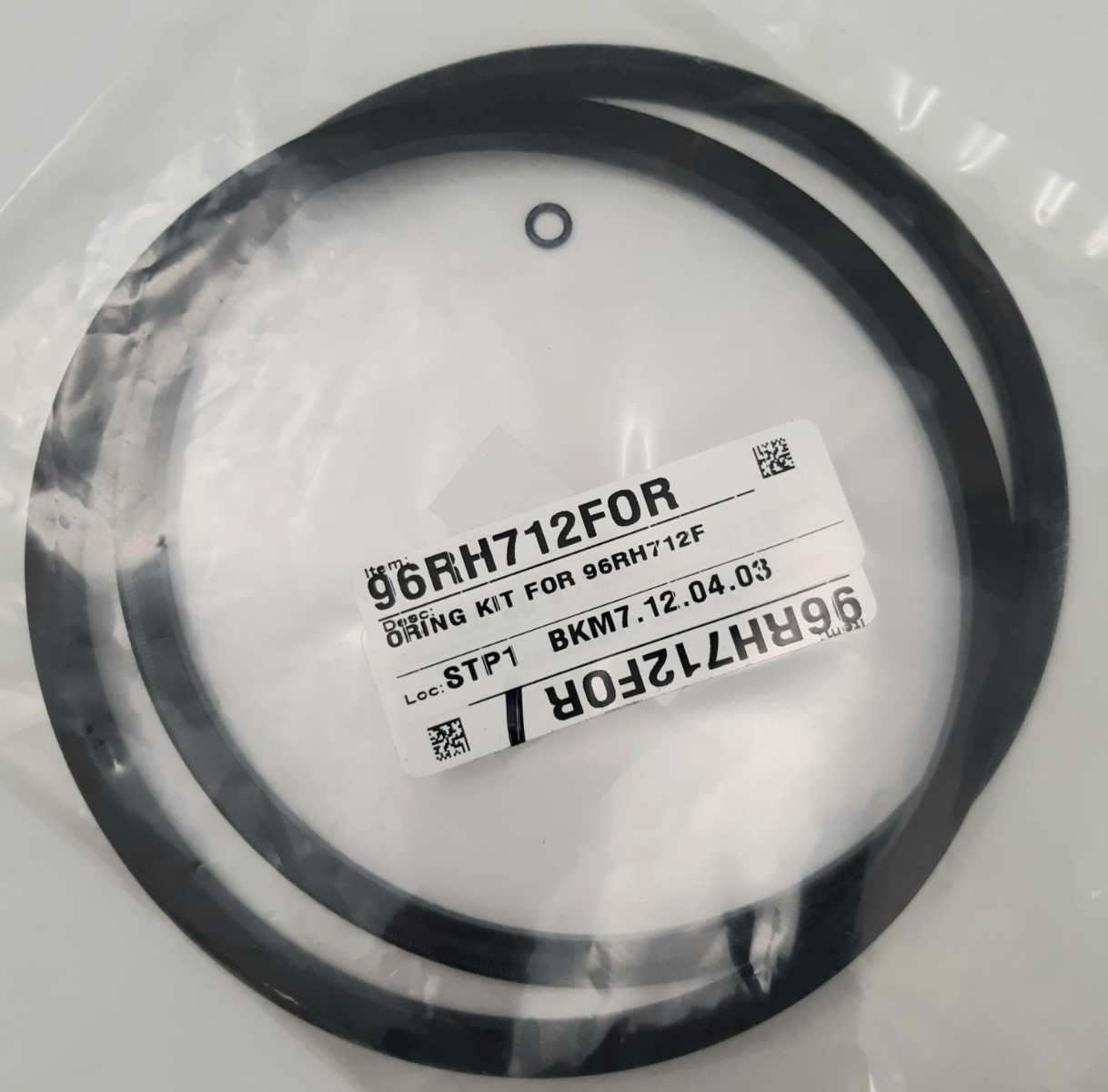

O-RING KIT PART NUMBER 96RH712FOR

User-added image

Rexroth without pre-fill pilot fitting (single port on side)

This valve may no longer be available.  A retrofit using the newer Rexroth valve may be needed.  On older presses with a bypass valve mounted in the Rexroth large port you need to move the bypass valve block and relocate the prefill valve pilot.  More research must be done to complete this conversion



Part Number:
96RH712E3B

Rexroth without pre-fill pilot fitting

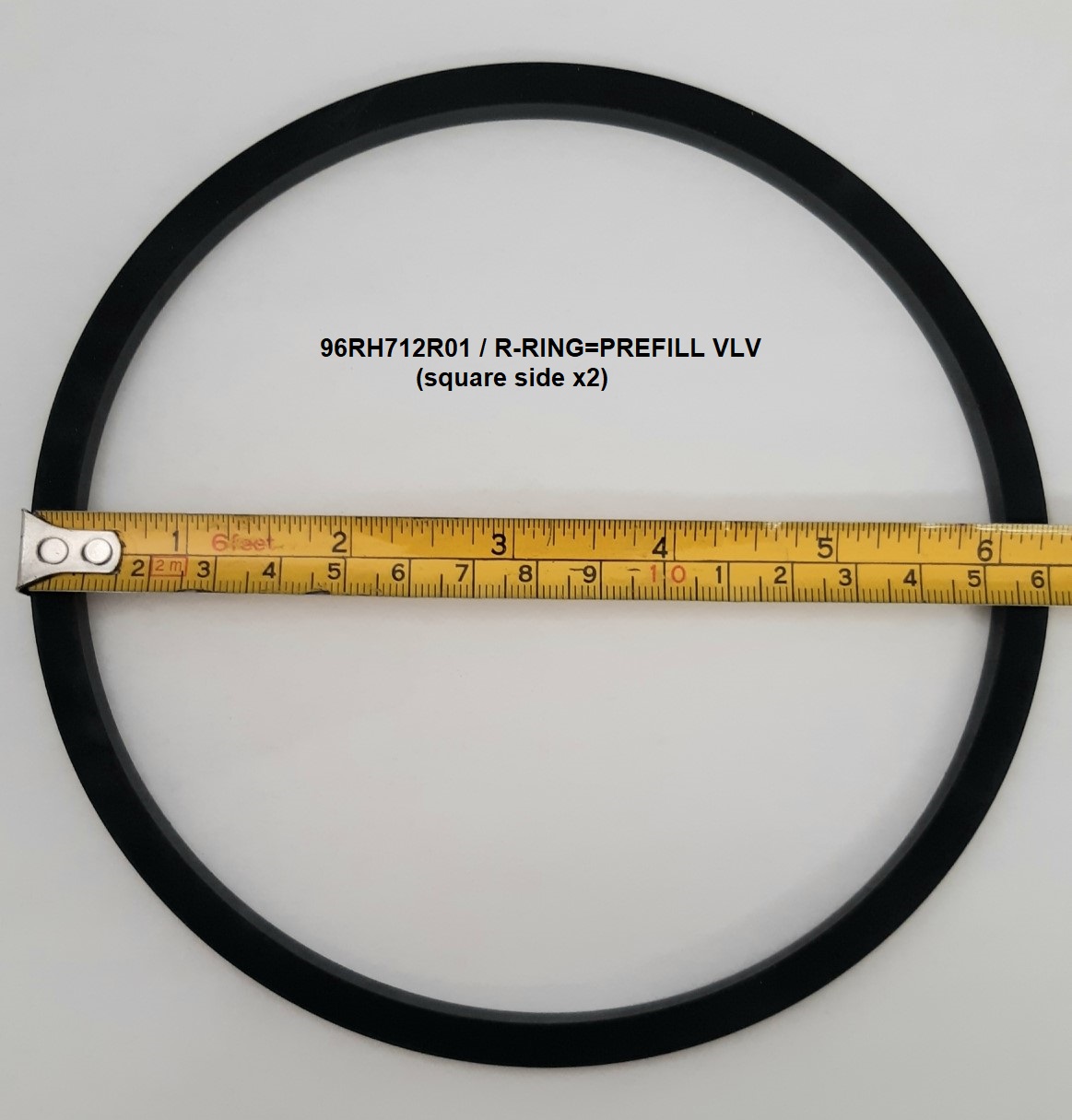

REPLACEMENT O-RINGS 96RH712R01 / R-RING=PREFILL VLV

User-added image

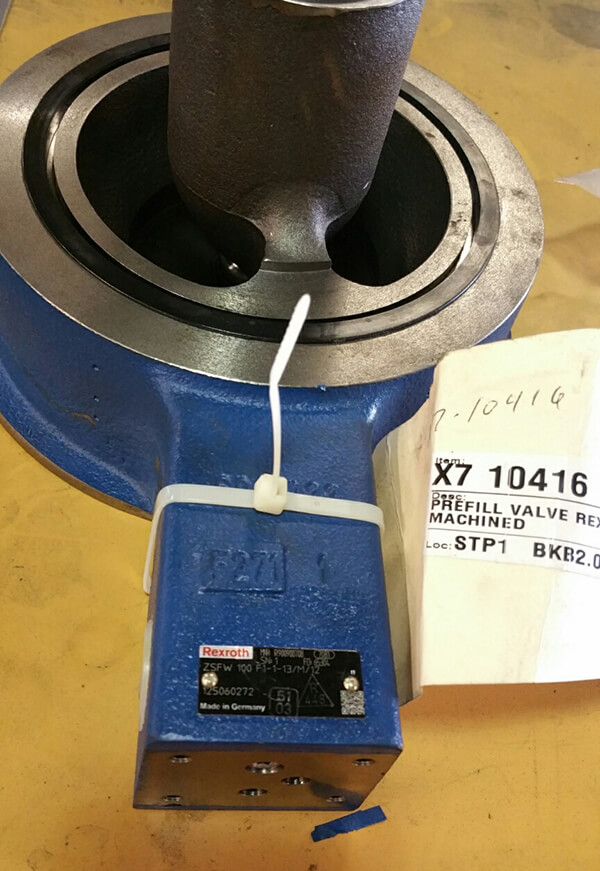

Rexroth with pre-fill pilot fitting (port and bolt holes on side)

Part Number:
X7 10416

Rexroth with pre-fill pilot fitting

REPLACEMENT O-RINGS 96RH712R01 / R-RING=PREFILL VLV

User-added image
