The CIMR number on the inverter is a definitive method of finding the proper inverter or cross referenced inverter. This allows us retrieve the Milnor part number. Model information may lead to multiple possible inverters causing you to order the wrong part.

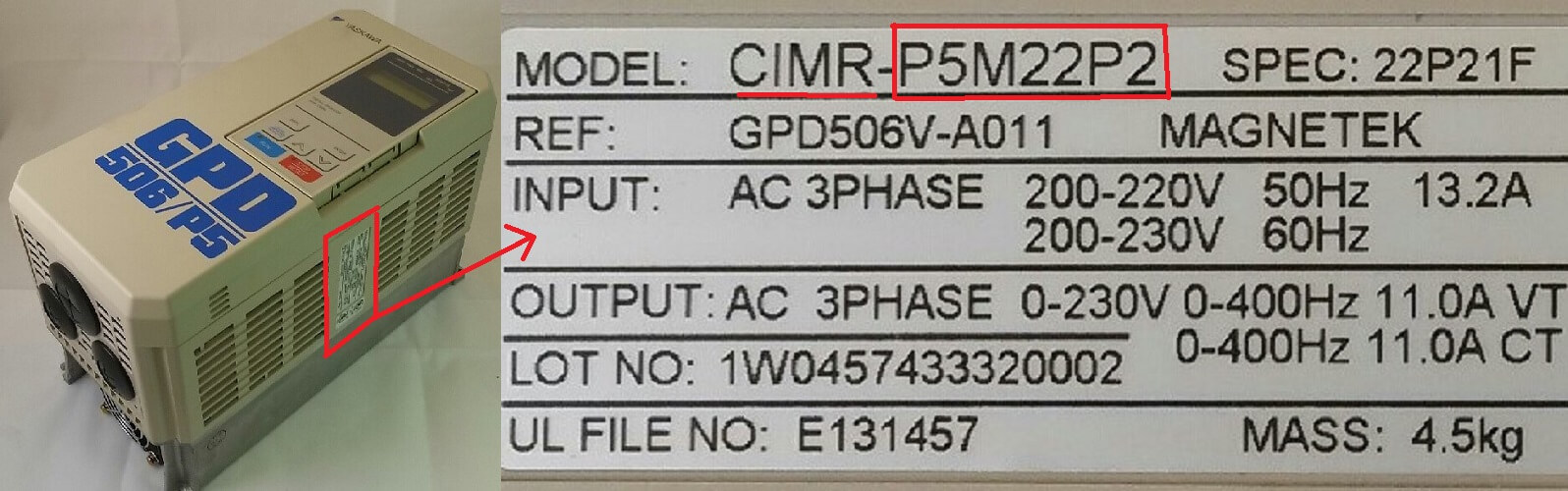

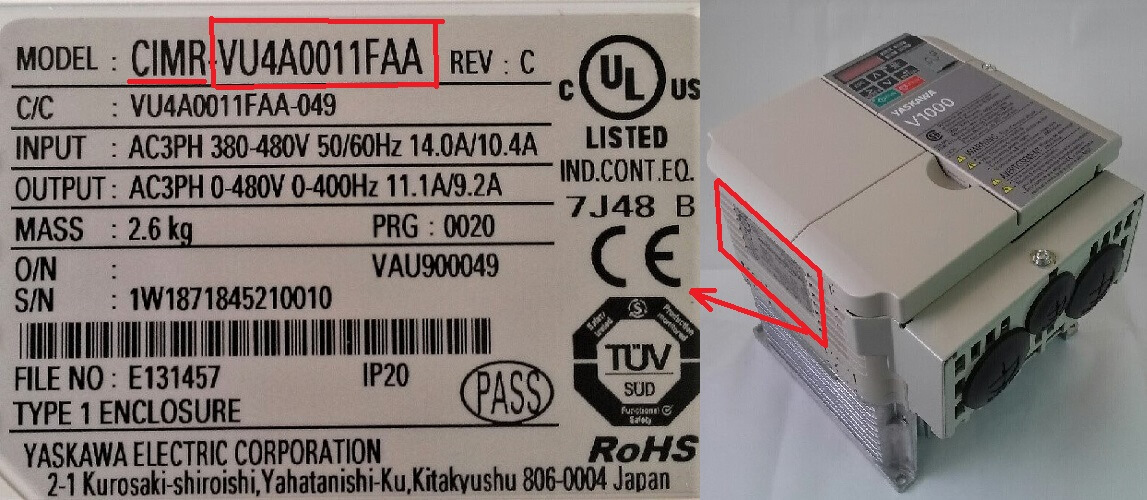

The CIMR number is found on the Model/Serial tag of the inverter. Below are two examples of how to locate the CIMR number.
The list below is designated by Yaskawa Model Type.
Yaskawa Models
YASKAWA MODEL GA800
| CIMR Number | Part Number | Voltage | Amperage | Description | Additional Info |
|---|
| GA80U2056ABM | 09MWE04774 | 240 V | 47 A | GA800 - 47 AMP 230V | |
| GA80U2070ABM | 09MWE06074 | 240 V | 60 A | GA800 - 60 AMP 230V | |
| GA80U2082ABM | 09MWE07574 | 240 V | 75 A | GA800 - 75 AMP 230V | |
| GA80U2138ABM | 09MWE11574 | 240 V | 115 A | GA800 - 115 AMP 230V | |
| GA80U2169ABM | 09MWE14574 | 240 V | 145 A | GA800 - 145 AMP 230V | |
| GA80U2211ABM | 09MWE18074 | 240 V | 180 A | GA800 - 180 AMP 230V | |
| GA80U2257ABM | 09MWE21574 | 240 V | 215 A | GA800 - 215 AMP 230V | |
| GA80U2313ABM | 09MWE28374 | 240 V | 283 A | GA800 - 283 AMP 230V | |
| GA80U4031ABM | 09MWE02496 | 480 V | 24 A | GA800 - 24 AMP 460V | |
| GA80U4044ABM | 09MWE03996 | 480 V | 39 A | GA800 - 39 AMP 460V | |
| GA80U4060ABM | 09MWE04596 | 480 V | 45 A | GA800 - 45 AMP 460V | |
| GA80U4075ABM | 09MWE06096 | 480 V | 60 A | GA800 - 60 AMP 460V | |
| GA80U4089ABM | 09MWE07596 | 480 V | 75 A | GA800 - 75 AMP 460V | |
| GA80U4103ABM | 09MWE09196 | 480 V | 91 A | GA800 - 91 AMP 460V | |
| GA80U4140ABM | 09MWE11296 | 480 V | 112 A | GA800 - 112 AMP 460V | |
| GA80U4168ABM | 09MWE15096 | 480 V | 150 A | GA800 - 150 AMP 460V | |
YASKAWA MODEL GA500
| CIMR Number | Part Number | Voltage | Amperage | Description | Additional Info |
|---|
| GA50U2006ABA | 09MWD00574 | 240 V | 5 A | GA500 - 5 AMP 230V | |
| GA50U2010ABA | 09MWD00874 | 240 V | 8 A | GA500 - 8 AMP 230V | |
| GA50U2012ABA | 09MWD01174 | 240 V | 11 A | GA500 - 11 AMP 230V | |
| GA50U2021ABA | 09MWD01774 | 240 V | 17 A | GA500 - 17 AMP 230V | |
| GA50U2030ABA | 09MWD02574 | 240 V | 25 A | GA500 - 25 AMP 230V | |
| GA50U2042ABA | 09MWD03374 | 240 V | 33 A | GA500 - 33 AMP 230V | |
| GA50U2056ABA | 09MWD04774 | 240 V | 47 A | GA500 - 47 AMP 230V | |
| GA50U4007ABA | 09MWD00596 | 480 V | 5.6 A | GA500 - 5.6 AMP 460V | |
| GA50U4009ABA | 09MWD00796 | 480 V | 7.3 A | GA500 - 7.3 AMP 460V | |
| GA50U4012ABA | 09MWD00996 | 480 V | 9.2 A | GA500 - 9.2 AMP 460V | |
| GA50U4018ABA | 09MWD01596 | 480 V | 15 A | GA500 - 15 AMP 460V | |
| GA50U4023ABA | 09MWD01896 | 480 V | 18 A | GA500 - 18 AMP 460V | |
| GA50U4031ABA | 09MWD02496 | 480 V | 24 A | GA500 - 24 AMP 460V | |
| GA50U4038ABA |
09MWD03196
| 480 V | 31 A | GA500 - 31 AMP 460V | |
YASKAWA MODEL A1000
| CIMR Number | Part Number | Voltage | Amperage | Description | Remanufactured Number |
|---|
| AU2A0056FAA | 09MWC04774 | 240 V | 47 A | A1000 - 47 AMP | 09MWC0477R |
| AU2A0069FAA | 09MWC06074 | 240 V | 60 A | A1000 - 60 AMP | |
| AU2A0081FAA | 09MWC07574 | 240 V | 75 A | A1000 - 75 AMP | 09MWC0757R |
| AU2A0138FAA | 09MWC11574 | 240 V | 115 A | A1000 - 115AMP | |
| AU2A0169FAA | 09MWC14574 | 240 V | 145 A | A1000 - 145AMPS | 09MWC1457R |
| AU2A0211FAA | 09MWC18074 | 240 V | 180 A | A1000 - 180AMPS | 09MWC1807R |
| AU2A0312FAA | 09MWC28374 | 240 V | 283 A | A1000 - 283 AMPS | |
| AU4A0031FAA | 09MWC02496 | 480 V | 24 A | A1000 - 24 AMP | |
| AU4A0044FAA | 09MWC03996 | 480 V | 39 A | A1000 - 39 AMP | |
| AU4A0058FAA | 09MWC04596 | 480 V | 45 A | A1000 - 45 AMP | |
| AU4A0072FAA | 09MWC06096 | 480 V | 60 A | A1000 - 60 AMP | 09MWC0609R |
| AU4A0088FAA | 09MWC07596 | 480 V | 75 A | A1000 - 75 AMP | 09MWC0759R |
| AU4A0103FAA | 09MWC09196 | 480 V | 91 A | A1000 - 91 AMP | |
| AU4A0139FAA | 09MWC11296 | 480 V | 112 A | A1000 - 112 AMP | |
YASKAWA MODEL V1000
| CIMR Number | Part Number | Voltage | Amperage | Description | Additional Info |
|---|
| VU2A0006FAA | 09MWB00574 | 240 V | 5 A | V1000 - 5AMP 230V | |
| VU2A0010FAA | 09MWB00874 | 240 V | 8 A | V1000 - 8AMP 230V | IF YOU ARE REPLACING A GPD/GPD315 IN A T5E, T5X OR C4E YOU MUST SELL 03 BL1X1 (1), 30RA175T (1), 09MV10DBBK (2), AND 09MV100RES (1) WITH THIS INVERTER |
| VU2A0012FAA | 09MWB01174 | 240 V | 11 A | V1000 - 11AMP 230V | REMANUFACTURED = 09MWB0117R
IF YOU ARE REPLACING A GPD/GPD315 IN A T5E, T5X OR C4E YOU MUST SELL 03 BL1X1 (1), 30RA175T (1), 09MV10DBBK (2), AND 09MV100RES (1) WITH THIS INVERTER. |
| VU2A0020FAA | 09MWB01774 | 240 V | 17.5 A | V1000 - 17.5 AMP 230V | REMANUFACTURED = 09MWB0177R
IF YOU ARE REPLACING A GPD/GPD315 IN A T5E, T5X OR C4E YOU MUST SELL 03 BL1X1 (1), 30RA175T (1), 09MV10DBBK (2), AND 09MV100RES (1) WITH THIS INVERTER |
| VU2A0030FAA | 09MWB02574 | 240 V | 25 A | V1000 - 25AMP 230V | REMANUFACTURED = 09MWB0257R |
| VU2A0040FAA | 09MWB03374 | 240 V | 33 A | V1000 - 33AMP 230V | REMANUFACTURED = 09MWB0337R |
| VU2A0056FAA | 09MWB04774 | 240 V | 47 A | V1000 - 47AMP 230V | REMANUFACTURED = 09MWB0477R |
| VU4A0007FAA | 09MWB00596 | 480 V | 5.5 A | V1000 - 5.5AMP 460V | REMANUFACTURED = 09MWB0059R
IF YOU ARE REPLACING A GPD/GPD315 IN A T5E, T5X OR C4E YOU MUST SELL 03 BL1X1 (1), 30RA175T (1), 09MV10DBBK (2), AND 09MV100RES (1) WITH THIS INVERTER |
| VU4A0009FAA | 09MWB00796 | 480 V | 7.2 A | V1000 - 7.2AMP 460V | |
| VU4A0011FAA | 09MWB00996 | 480 V | 9.2 A | V1000 - 9.2AMP 460V | REMANUFACTURED = 09MWB0099R |
| VU4A0018FAA | 09MWB01596 | 480 V | 15 A | V1000 - 15AMP 460V | REMANUFACTURED = 09MWB0159R |
| VU4A0023FAA | 09MWB01896 | 480 V | 18 A | V1000 - 18AMP 460V | REMANUFACTURED = 09MWB0189R |
| VU4A0031FAA | 09MWB02496 | 480 V | 24 A | V1000 - 24AMP 460V | REMANUFACTURED = 09MWB0249R |
| VU4A0038FAA | 09MWB03196 | 480 V | 31 A | V1000 - 31AMP 460V | |
YASKAWA MODEL F7 (Discontinued)
| CIMR NUMBER | PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| F7U20111E | 09MWA04574 | F7 - 45 AMP | REMANUFACTURED = 09MWA0457R
REPLACED BY 09MWB04774 (V1000)
ON 4226X OR 4232X
REPLACED BY 09MWC04774 (A1000)
ON ALL OTHER APPLICATIONS |
| F7U40111F | 09MWA02496 | F7 - 24 AMP | REPLACED BY 09MWB02496 |
| F7U27P51E | 09MWA03174 | F7 - 31 AMP | |
| F7U40151F | 09MWA03196 | F7 - 31 AMP | REMANUFACTURED = 09MWA0319R
REPLACED BY 09MWC03996 |
| F7U40181F | 09MWA03996 | INVERTER 39AMPS 480V F7 | REMANUFACTURED = 09MWA0399R
REPLACED BY 09MWC03996 |
| F7U40221E | 09MWA04596 | F7 - 45 AMP | REPLACED BY 09MWC04596 |
| F7U20151E | 09MWA05874 | F7 - 58 AMP | REPLACED BY 09MWC06074 |
| F7U40301E | 09MWA06096 | F7 - 60 AMP | REMANUFACTURED = 09MWA0609R
REPLACED BY 09MWC06096 |
| F7U20181E | 09MWA07174 | F7 - 71 AMP | REMANUFACTURED = 09MWA0717R
REPLACED BY 09MWC07574 |
| F7U40371E | 09MWA07596 | F7 - 75 AMP | REMANUFACTURED = 09MWA0759R |
| F7U40451E | 09MWA09196 | F7 - 91 AMPS | REMANUFACTURED = 09MWA0919R
REPLACED BY 09MWC09196 |
| F7U40551E | 09MWA11296 | F7 - 112 AMPS | |
| F7U20301E | 09MWA11574 | F7 - 115 AMP | REMANUFACTURED = 09MWA1157R
REPLACED BY 09MWC11574 |
| F7U20370E | 09MWA14574 | F7 - 145 AMPS | REMANUFACTURED = 09MWA1457R
REPLACED BY 09MWC14574 |
| F7U20450E | 09MWA18074 | F7 - 180AMPS | REMANUFACTURED = 09MWA1807R
REPLACED BY 09MWC18074 |
YASKAWA MODEL V7 (Discontinued)
| CIMR NUMBER | PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| V7AM45P51 | 09MV015F96 | VARSPEED 460V7.5HP14.8A GPD315 | REPLACED BY 09MWB01596 |
| V7AM47P51 | 09MV018F96 | VARISPEED 460V 10HP 18A
GPD315 | REPLACED BY 09MWB01896 |
| V7AM21P51 | 09MV020F74 | INVERTER 2HP 230V (GPD315) | REPLACED BY 09MWB00874 |
| V7AM25P51 | 09MV025F74 | VARISPEED 25A 230V GPD315 | REMANUFACTURED = 09MV025F7R
REPLACED BY 09MWB02574 |
| V7AM22P21 | 09MV030F74 | VARSPEED 3HP 11A 230V GPD315 | REMANUFACTURED = 09MV030F7R
REPLACED BY 09MWB01174 |
| V7AM42P21 | 09MV030F96 | VARSPEED 3HP 5.5A 460V GPD315 | REPLACED BY 09MWB00596 |
| V7AM27P51 | 09MV033F74 | VARISPEED 33A 230V GPD315 | REPLACED BY 09MWB03374 |
| V7AM23P71 | 09MV050F74 | VARSPEED V MACHINES 5HP 230V V7 | REPLACED BY 09MWB01774 |
| V7AM43P71 | 09MV050F96 | VARSPEED V MACHINES 5HP 460V V7 | REPLACED BY 09MWB00996 |
YASKAWA MODEL GPD506 (Discontinued)
| CIMR NUMBER | PART NUMBER | DESCRIPTION | ADDITTIONAL INFO |
|---|
| P5M22P21F | 09MV011A74 | VARSPEED 11 AMPS 230V GPD506 | |
| P5M44P01F | 09MV011A96 | VARSPEED 11 AMPS 460V GPD506 | REPLACED BY 09MV015F96 |
| P5M45P51F | 09MV014A96 | VARSPEED 14 AMPS 460V | REPLACED BY 09MWB02496 ON 3630F MACHINES ONLY.
REPLACED BY 09MV015F96 IN ALL OTHER APPLICATIONS. |
| P5M23P71F | 09MV017A74 | VARSPEED 17.5 AMPS 230V | REPLACED BY 09MWB01774 |
| P5M47P51F | 09MV021A96 | VARSPEED 21 AMPS 460V | REPLACED BY 09MWB02496 |
| P5M25P51F | 09MV027A74 | VARSPEED 27 AMPS 230V | REPLACED BY 09MWB03374 ON 36" MACHINE ONLY. REPLACED BY 09MWA03174 IN OTHER APPLICATIONS. |
| P5M40111F | 09MV027A96 | VARSPEED 27 AMPS 460V | REPLACED BY 09MWC03996 |
| P5M40151F | 09MV034A96 | VARSPEED 34 AMPS 460V | REPLACED BY 09MWC03996 |
| P5M40181F | 09MV041A96 | VARSPEED 41 AMPS 460V | REPLACED BY 09MWC04596 |
| P5M20111F | 09MV054A74 | VARSPEED 54 AMPS 230V | REPLACED BY 09MWC06074 |
| P5M20151F | 09MV068A74 | VARSPEED 68 AMPS 230V GPD506 | REPLACED BY 09MWC07574 |
YASKAWA MODEL J7 (Discontinued)
| CIMR NUMBER | PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| J7AM41P50 | 09MV030G96 | VARISPEED 460V 3HP 4.8A GPD305 | REPLACED BY 09MWB00596 |
| J7AM22P20 | 09MV030G74 | VARSPEED 3HP 11A 230V GPD305 | REPLACED BY 09MWB01174 |
| J7AM21P50 | 09MV020G74 | INVERTER 2HP 8A 230V (GPD305) | |
