Updating Mentor PC
Wiring changes when updating PC to Siemens 627

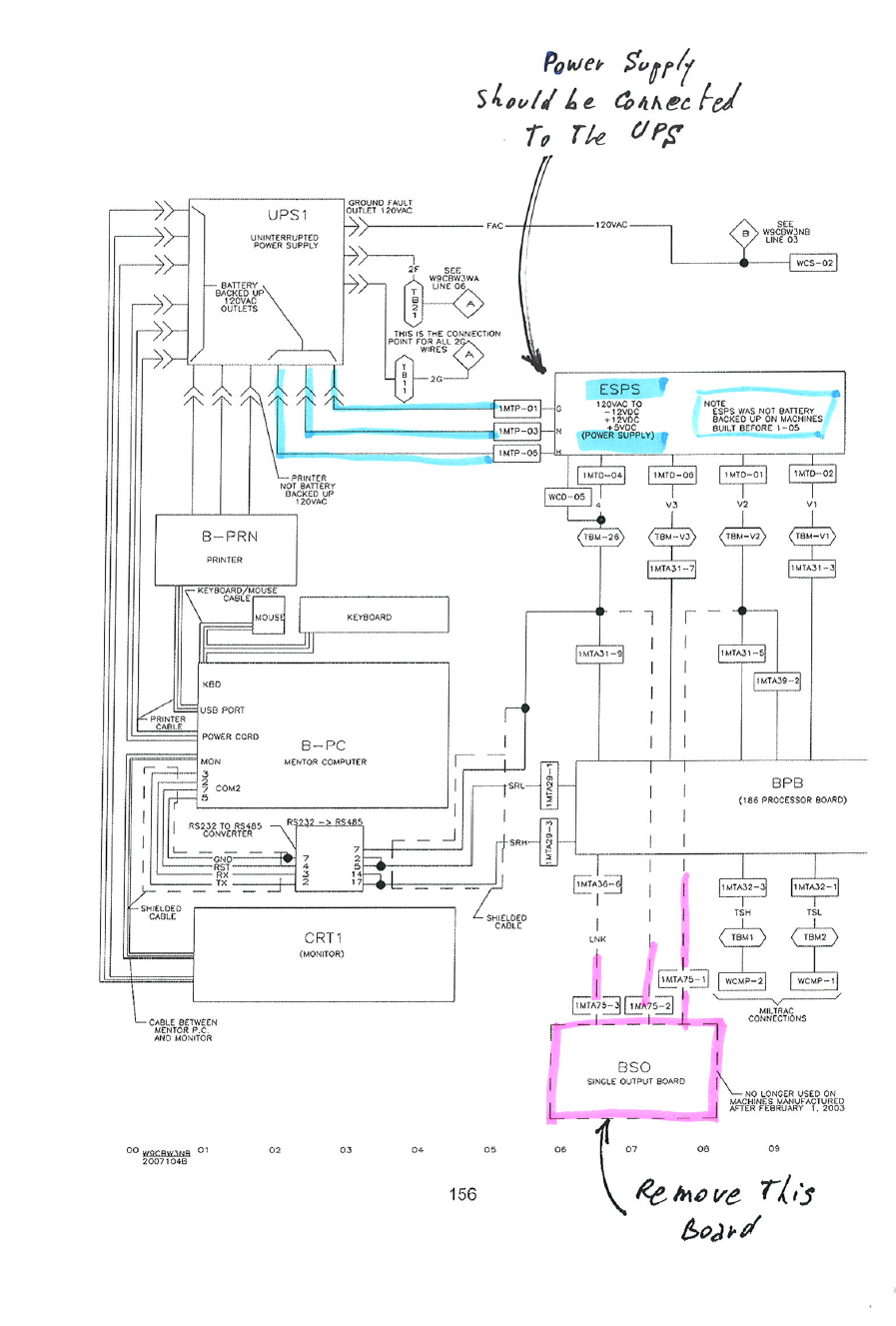

This document was written in 2011 and was targeted to Older industrial PC's replaced by A Siemens industrial box PC.  VErsions shown are old but the changes may be needs for any current PC upgrade.  The UPS circuit and the communication to the UPS is the primary target of these changes.

PC's with integral UPS may work without these changes.  See a current schematic for help with such a change.


When changing an old PC to the newer models there are some wiring changes that have to be made in the CBW Mentor cabinet.

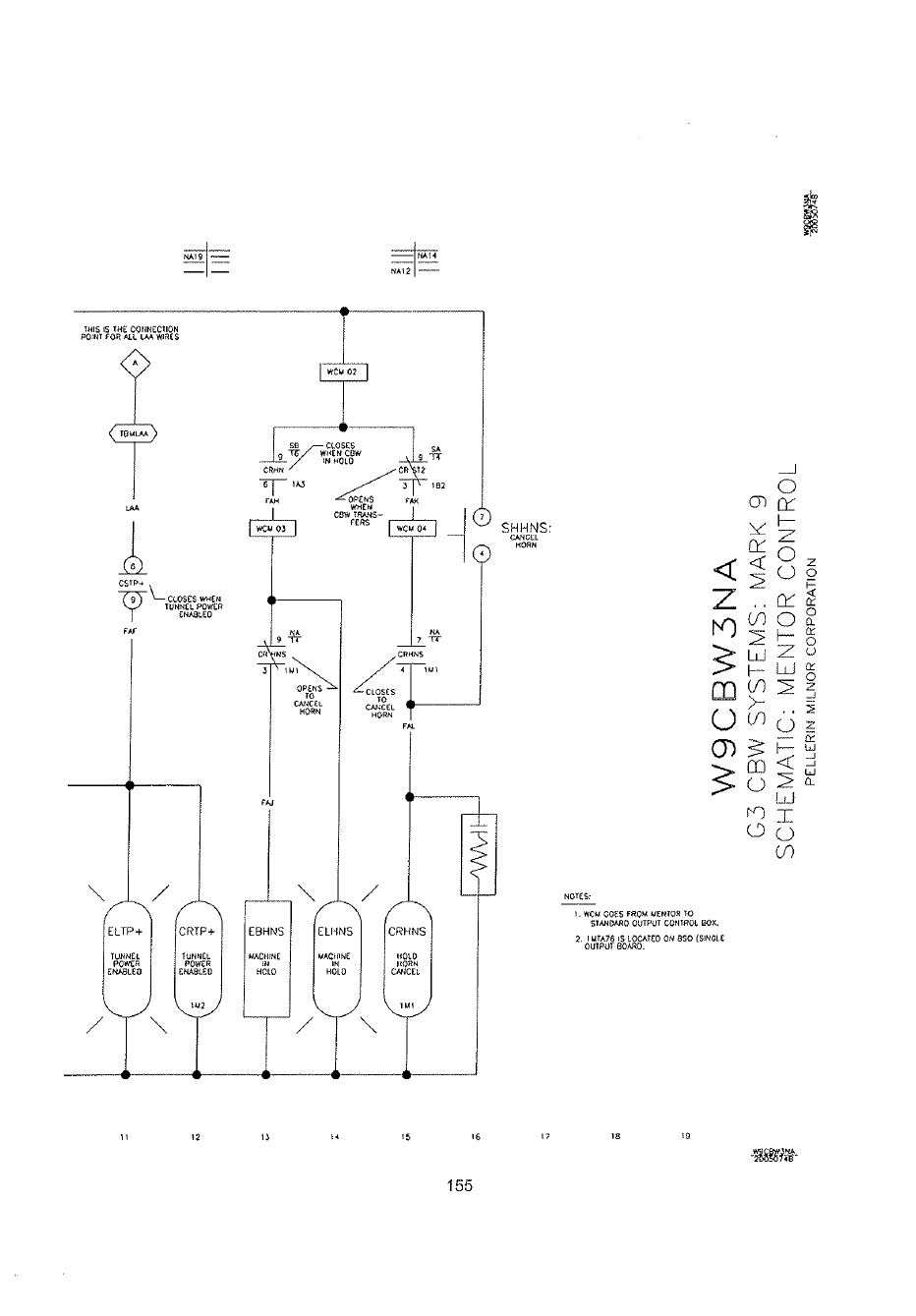

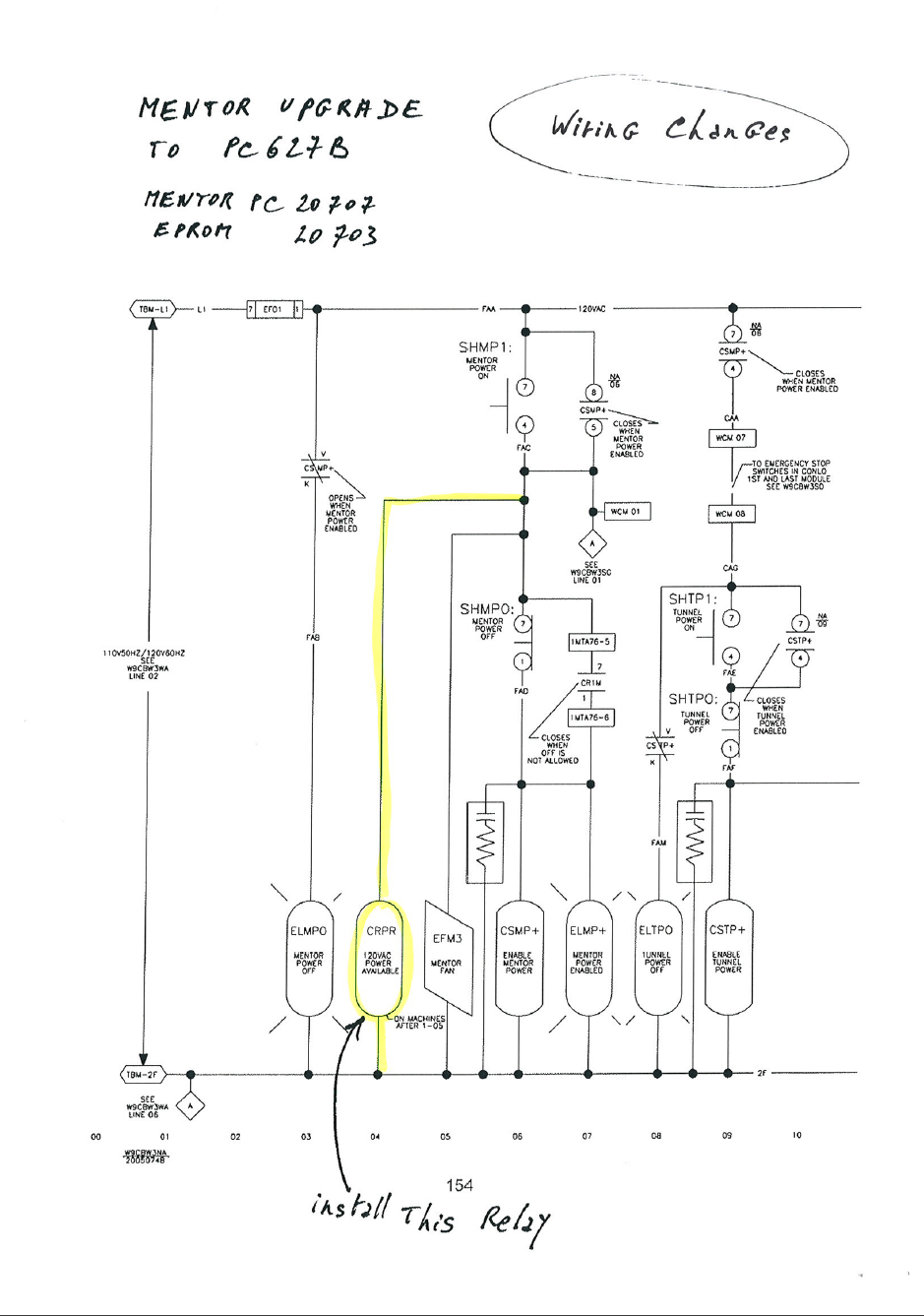

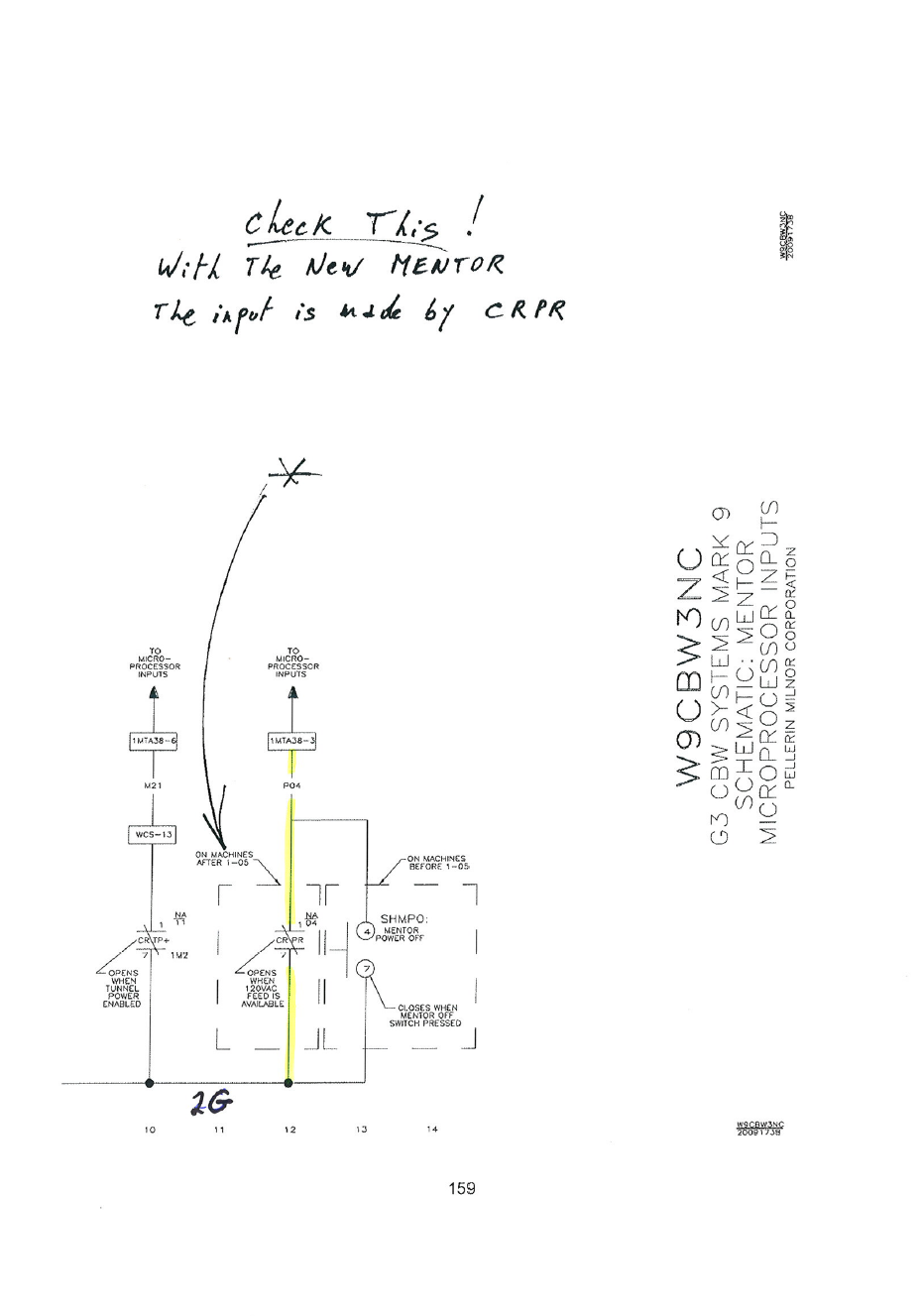

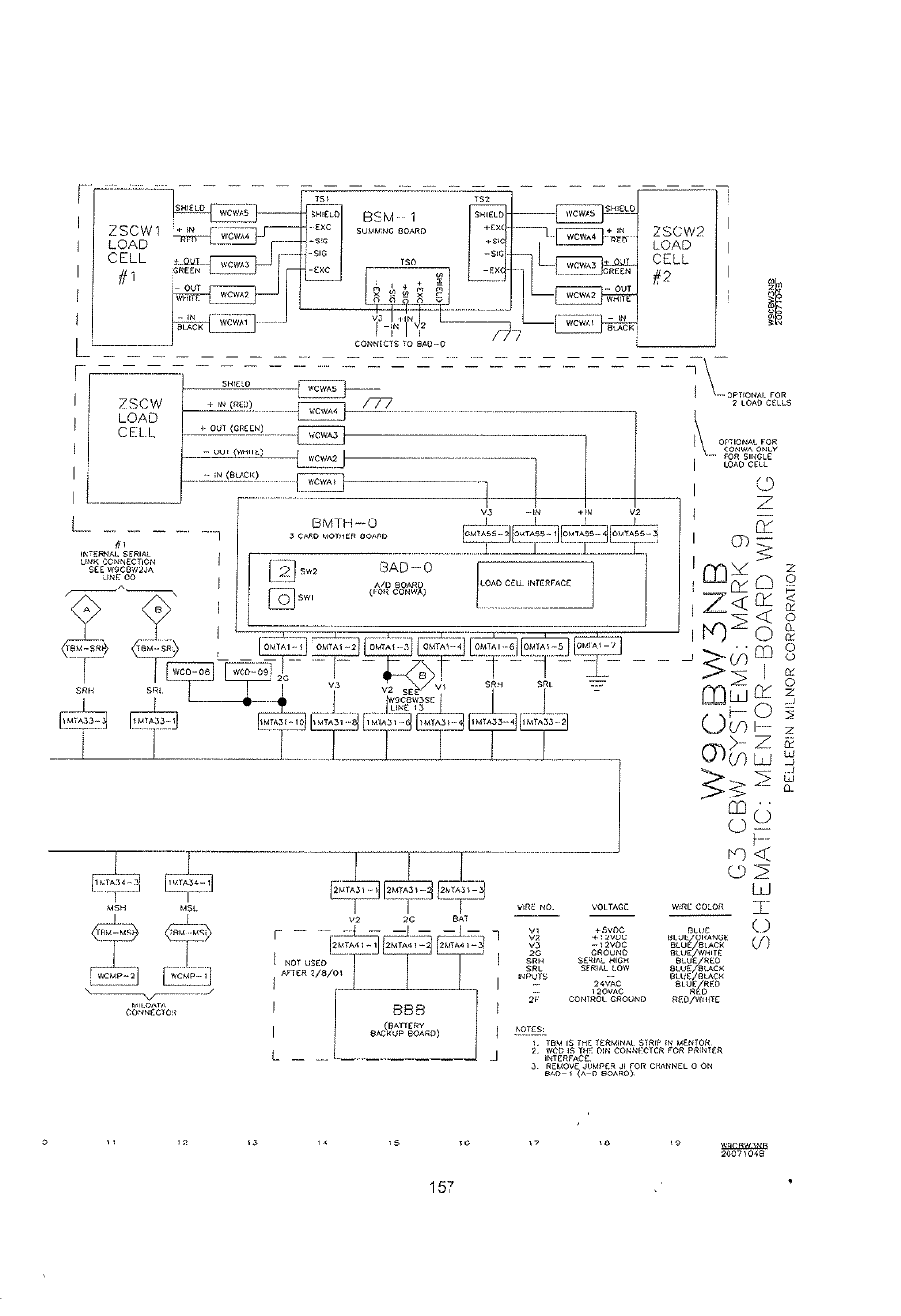

See the file drawings with the changes highlighted below.
User-added imageUser-added imageUser-added imageUser-added imageUser-added image
CSH 6-29-11
