Small Round Black Button Display vs Square White Button Display and Parts Needed for Replacement

« Go Back

Information

Validation Status	Validated

Publication Status	Published

URL Name	Small-Round-Black-Button-Display-vs-Square-White-Button-Display-and-Parts-Needed-for-Replacement

Article Details

Article Number 000002033

Title Small Round Black Button Display vs Square White Button Display and Parts Needed for Replacement

Summary The display on 30015/30022 machines pre 2005 often had displays that had small black buttons. This knowledge article is intended to delineate between the two styles of displays

Article Text

The display boards on pre 2005 rigid mount washer/extractor machines most often had small black buttons. These buttons failed over time.

These boards have part numbers
08BHEPSPT, 08BHEPSPAT
Found on, but not limited to Models: 30010G5X ,30015G5X, 30015T5X, 30022H7J, 30022T5X, 30022TXJ, 30022VXJ

and 08BHEPSPBT
Found on, but not limited to Models: 36021V5J, 36021V7J, 36026V5J, 36026V7J, 42026V6J, 42030V6J

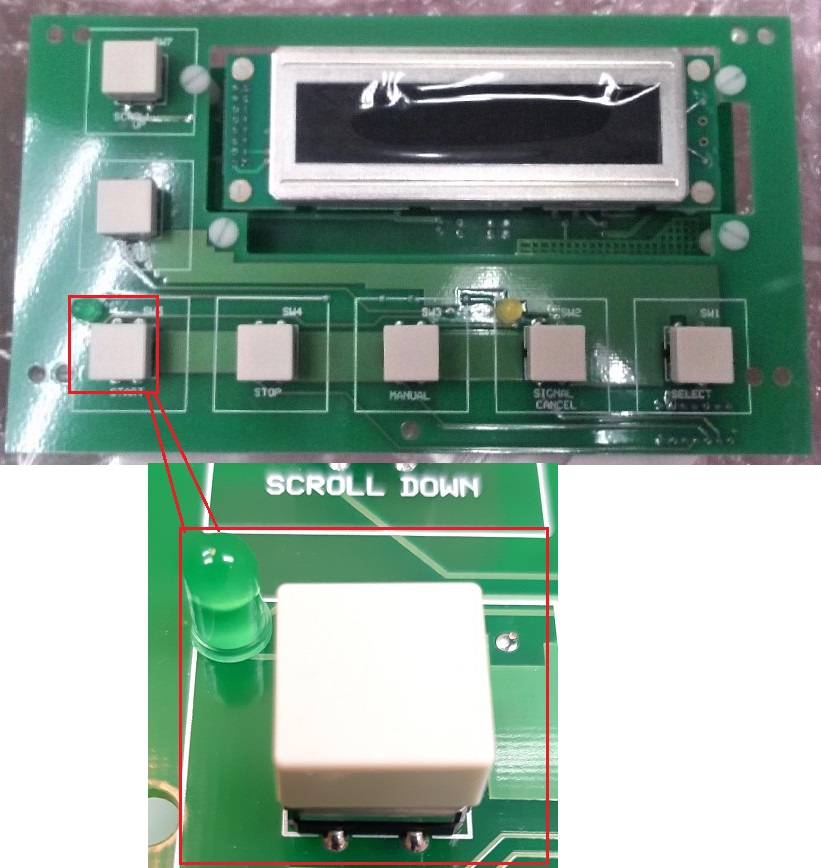

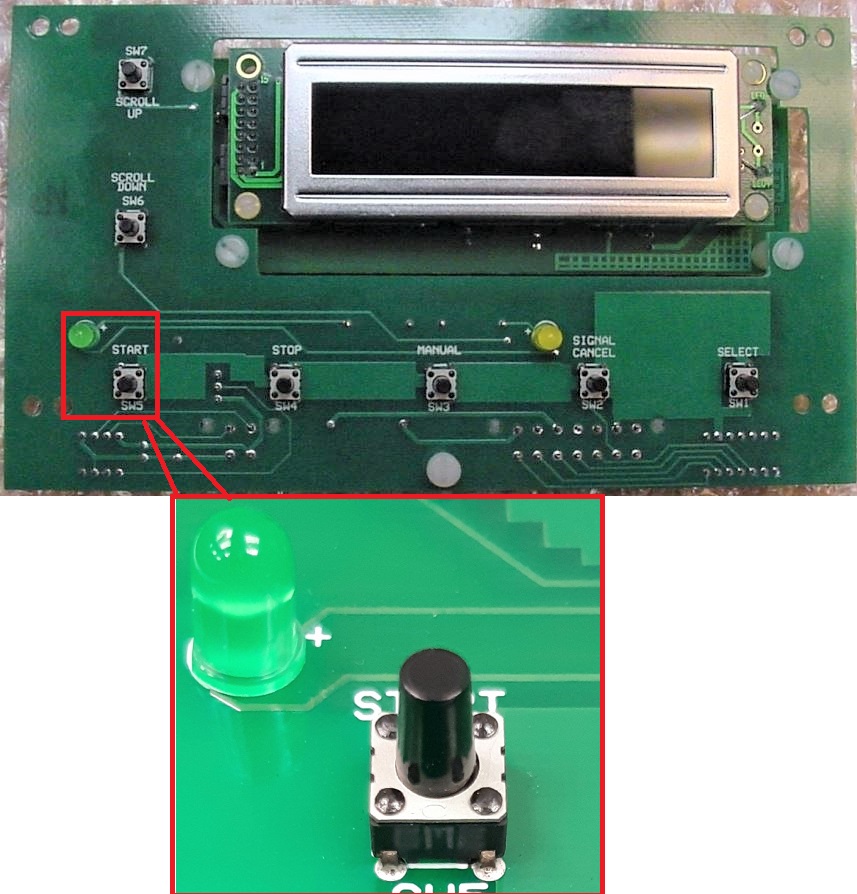

Not all of these display boards had small black buttons but in case they need to be replaced, it's important to know which type button the display has. Pictured below are examples of the button differences.

These boards will be found behind a graphic panel that looks like these.

If the display board needs to be replaced, the table below shows the board or kit that will need to be purchased.

ORIGINAL DISPLAY BOARD	08BHEPSPT
If Black Buttons	PURCHASE KIT # KKTEPPDC01 FOR EP PLUS OR KKTEPXDC01 FOR EP EXPRESS
If White Buttons	PURCHASE BOARD ONLY 08BHEPSPBT

ORIGINAL DISPLAY BOARD	08BHEPSPAT
If Black Buttons	PURCHASE KIT # KKTEPPDC01 FOR EP PLUS OR KKTEPXDC01 FOR EP EXPRESS
If White Buttons	PURCHASE BOARD 08BHEPSPDT 08BSELCD2T IS INCLUDED IN THIS BOARD IF MODEL 30022H8J SELL 02 03191 AND 01 10657F IN ADDITION TO THE BOARD

ORIGINAL DISPLAY BOARD	08BHEPSPBT
If Black Buttons	PURCHASE KIT KBKHCDC001
If White Buttons	PURCHASE 08BHEPSPBT ONLY

To return to the 08BH188AT / 08BH188BXT processor replacement knowledge article click HERE
