Milnor Presses have a plastic press bed underneath the conveyor belt, directly underneath the ram pressure point.  These are grooved to allow water to more easily drain to recirculation pumps.  From time to time these need to be replaced due to mushrooming (becoming concave) or cracking.  Or, if the orientation of the press is changed, a new press bed is necessary.

This article discusses which press bed might be needed.  This is determined by the model, shape, size, and the flow direction of the press bed.

Below are dimensional diagrams of the press beds and example pictures.  Model number tables with the corresponding press beds are provided.  Please note however, because of part changes over time and possible orientation changes, it is very important to collect measurement information and read the notes concerning the proper press bed to purchase.

Two shapes of Plastic Press Bed.  Octagonal and Rectangular

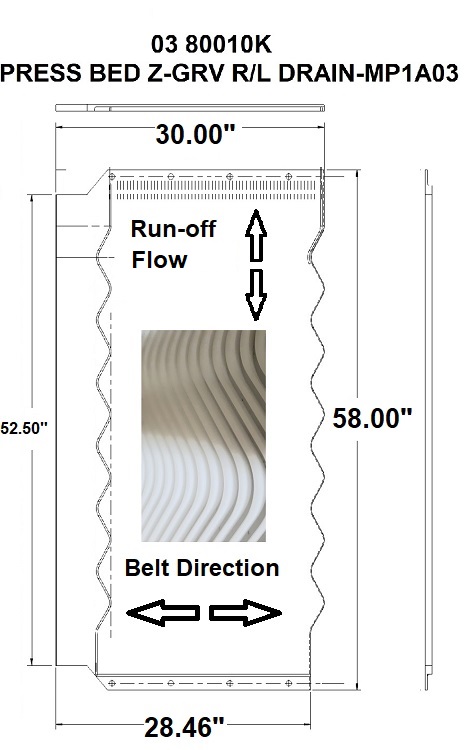

                                                                                                                                                                                                                        ***NOTE*** This example, 03 80010K, comes in sets of 2

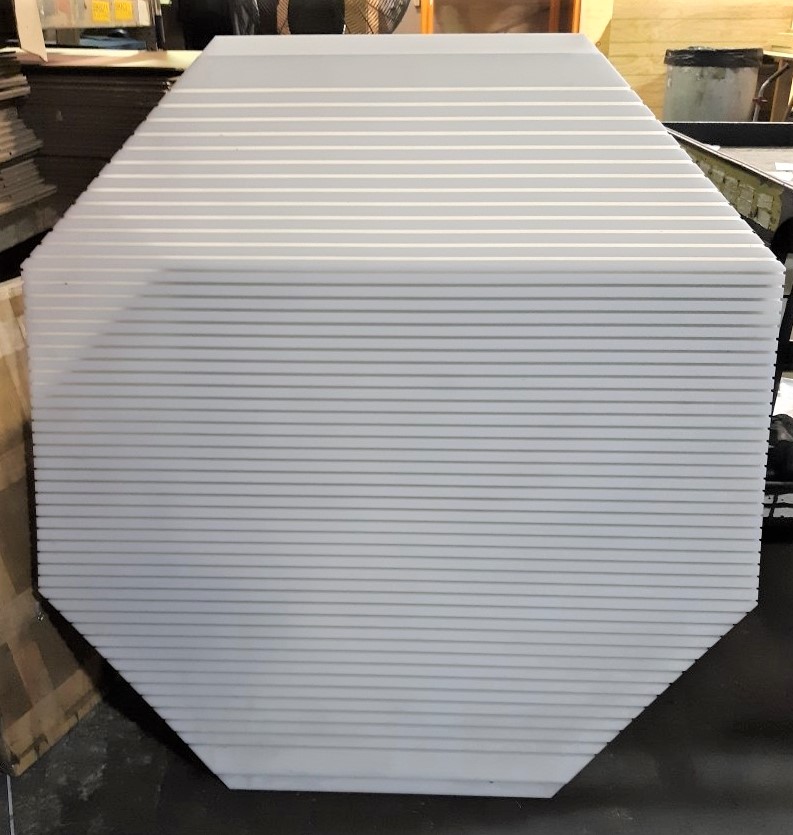

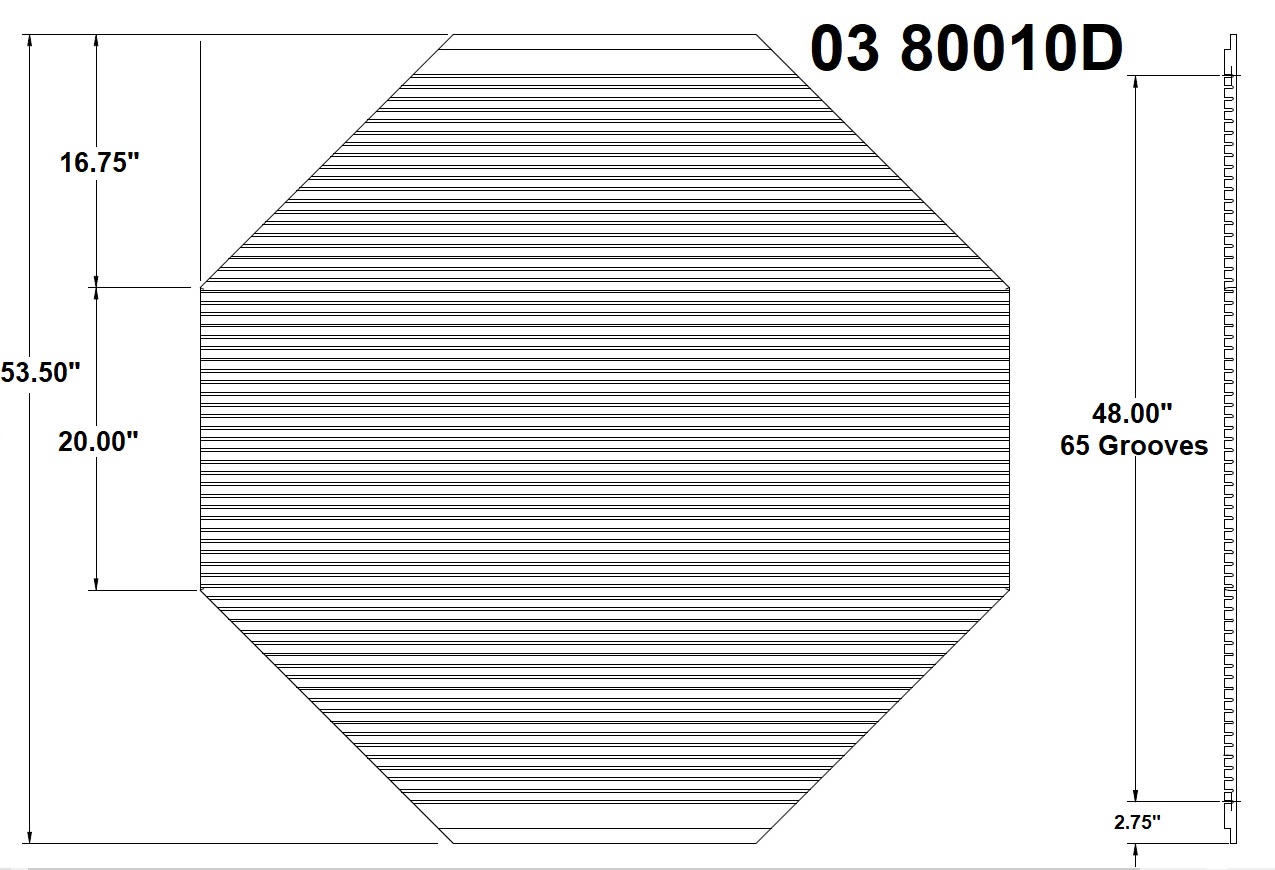

Octagonal Press Beds come in two sizes.  03 80010C / 44.5" width and 03 80010D / 53.5" width  (PART NUMBER 03 80010D IS NO LONGER AVAILABLE.  MUST PURCHASE TWO 03 80010DA)



Note that when purchasing 03 80010D Milnor sells 2 of part # 03 80010DA

Rectangular Beds come in 5 sizes.
For MP15XX and MP16XX - 03 80010F, 03 80010G and, 03 80010H.
Be sure to check the dimensions to ensure choosing the proper part number.

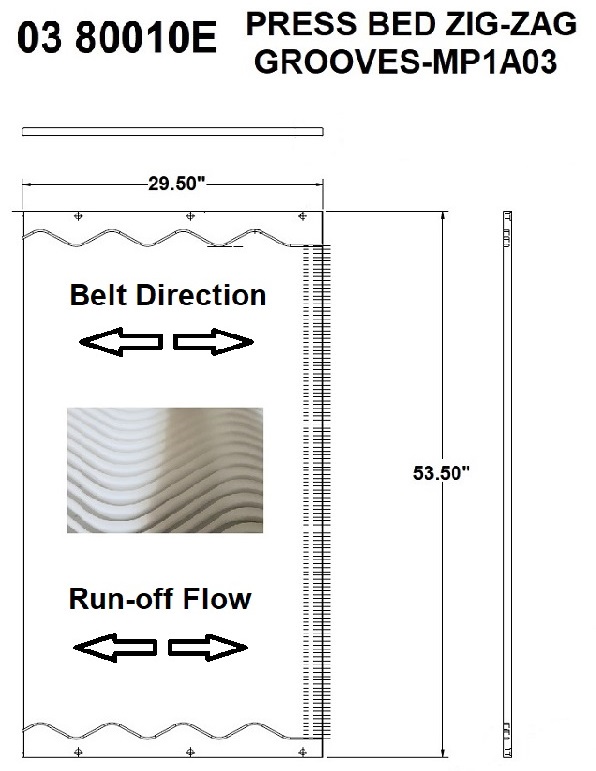

For MP1Axx the two rectangular sizes are 03 80010E and 03 80010K



PLASTIC PRESS BED BY MODEL NUMBER

SINGLE STAGE PRESS

MP1540CL, MP1540CR, MP1540L, MP1540R, MP1550CL, MP1550CR, MP1550L, MP1550R
MP1556CL, MP1556CR, MP1556L, MP1556R

MP1601CL, MP1601CR, MP1601LF, MP1601R, MP1602CL, MP1602CR, MP1602L, MP1602R,
MP1603CL, MP1603CR, MP1603L, MP1604CL, MP1604CR, MP1604L, MP1603R, MP1640CL, MP1640CR, MP1640L, MP1640R, MP1650CL, MP1650CR, MP1650L, MP1650R, MP1656CL, MP1656CR, MP1656L, MP1656R

NOTE - MPL556CL, MPL556CR, MPL556L, MPL556R, MPL640CL, MPL640CR, MPL640L, MPL640R, MPL650CL, MPL650CR, MPL650L, MPL650R, MPL656CL, MPL656CR, MPL656L, MPL656R



***PICKING THE CORRECT PRESS BED FOR A MP15xx & MP16xx:
IF THE PRESS BED IS SHAPED LIKE AN OCTAGON (THE SHAPE OF A STOP SIGN) BUY 03 80010C.
IF THE PRESS BED IS SHAPED LIKE A RECTANGLE, YOU WILL NEED TO PROVIDE THE DIRECTION THE PRESS DRAINS.
IF THE PRESS DRAINS PERPENDICULAR TO THE WAY THE BELT RUNS BUY 03 80010F.

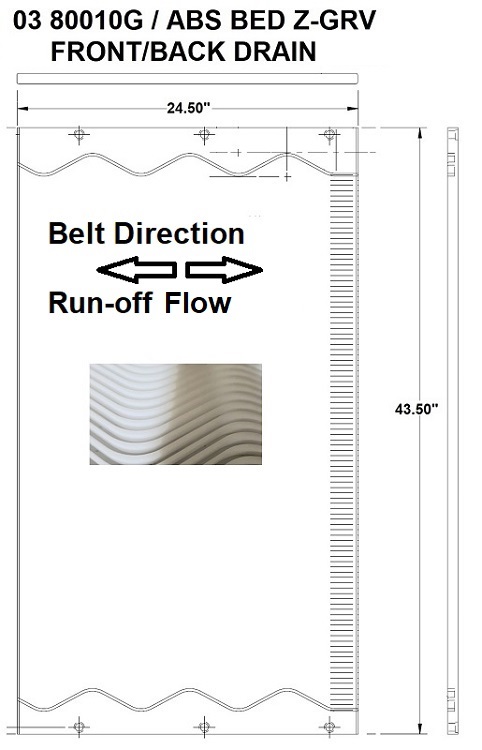

IF THE PRESS DRAINS PARALLEL TO THE WAY THE BELT RUNS BUY TWO 03 80010G.

NOTE - ALL MPL5*** & MPL6*** MACHINES LATE MODEL / USE RECTANGULAR ONLY

	FLOW DIRECTION PARALELL WITH THE BELT	FLOW DIRECTION PERPENDICULAR TO THE BELT	ADDITIONAL INFO
OCTAGONAL PRE CIRCA LATE 2007	03 80010C	TURN 90 DEGREES

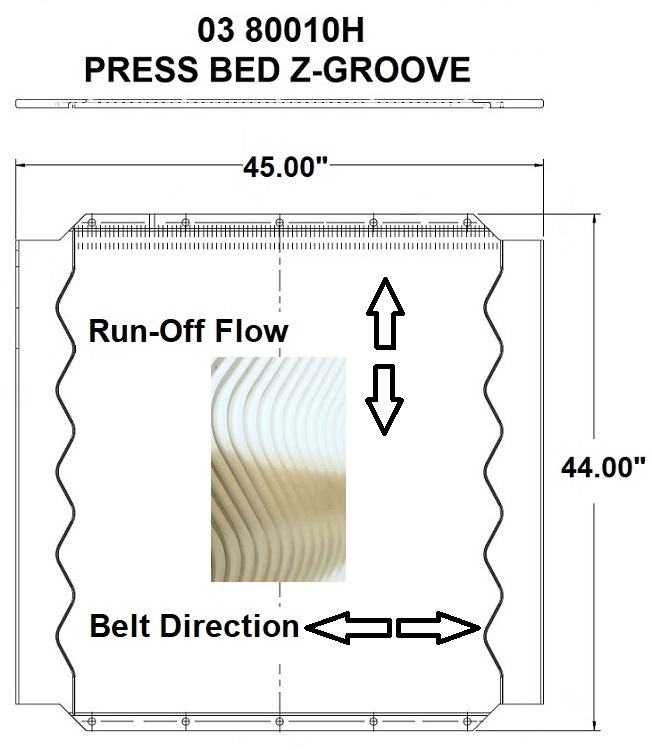

RECTANGULAR POST CIRCA LATE 2007	03 80010F	03 80010G (TWO NEEDED)	A FEW MP1550 UNITS BEFORE AND AFTER 2007 USED PLASTIC BED PART # 03 80010H (45" X 44") PLEASE COMPARE MEASUREMENTS TO PART DIAGRAMS ABOVE TO DETERMINE CORRECT PART



MP1A03CL, MP1A03CR, MP1A03L, MP1A03R, MP1A50CL, MP1A50CR, MP1A50L, MP1A50R

PICKING THE CORRECT PRESS BED FOR A MP1Axx:
IF THE PRESS BED IS SHAPED LIKE AN OCTAGON (THE SHAPE OF A STOP SIGN) BUY 03 80010DA (QTY 2).
IF THE PRESS BED IS SHAPED LIKE A RECTANGLE, YOU WILL NEED TO PROVIDE THE DIRECTION THE PRESS DRAINS.
IF THE PRESS DRAINS PERPENDICULAR TO THE WAY THE BELT RUNS BUY TWO 03 80010K'S.
IF THE PRESS DRAINS PARALLEL TO THE WAY THE BELT RUNS BUY TWO 03 80010E'S.

	FLOW DIRECTION PARALELL WITH THE BELT	FLOW DIRECTION PERPENDICULAR TO THE BELT	ADDITIONAL INFO
OCTAGONAL PRE CIRCA LATE 2007	03 80010DA (QTY 2)	TURN 90 DEGREES
RECTANGULAR POST CIRCA LATE 2007	03 80010E (QTY 2)	03 80010K (QTY 2)



TWO STAGE PRESSES

MP2501CL, MP2501CR, MP2501L, MP2501R
MP2601CL, MP2601CR, MP2601L, MP2601R
MP2606CL, MP2606CR, MP2606L, MP2606R

	PRESS BED ZIG-ZAG GROOVES	PRESS LINER ZIG ZAG ASSY	ADDITIONAL INFO
BEFORE DATE CODE AAQ CIRCA LATE 2001	A72BA002	W7 20504E	NO LONGER AVAILABLE RETRO WITH KIT RKPRESSB2 (PART LIST BELOW)
DATE CODE AAQ AND AFTER CIRCA LATE 2001	A72BA003	X7 20572 (DIAGRAM BELOW)



RKPRESSB2

COMPONENT	DESCRIPTION	QTY
W7 20571	PRESS LINER WLMT-ABS ZIG ZAG	1
X7 20564	2STG PRESS BED	1
07 20960E	PRESS BED HOLDER STRIP	1
X7 20572	PRESS ABS BED ZIG-ZAG GROOVES	1
07 20963	SHIELD/SPLASHUP EXITEND PRES	1
07 20962A	MK2 GAP COVER SLIDER BD RT	1
07 20962B	MK2 GAP COVER SLIDER BD LF	1
07 20504C	TIE DWN.BAR PERF.SHEET PRESS	6
15K084	TRUSS HXSOK 3/8-16 X 23/32SS	12
15K086	HXCAPSCR 3/8-16NCX3/4 SS18-8	13
15U245	FLTWASH 3/8 STD COMM 18-8 SS	13
15G201	HXLOKNUT 3/8-16 NYL/SS TYPE NE	13
07 20602A	LOWER TANK END-COVER BRACKET	1
07 20960	PRESS BED HOLDER ROD	8
