Part numbers and repair kits for Watts ball valves and pressure valves.

Through much of the Milnor product line, Watts valves are used to allow and regulate the flow of water in various applications.  Part number and repair kit information is listed below for 1", 1.25", 1.5", and 2" Watts ball valves as well as 1/2" and 3/4" pressure regulator valves.  Click here to jump to pressure regulator valves.

1" Ball Valve

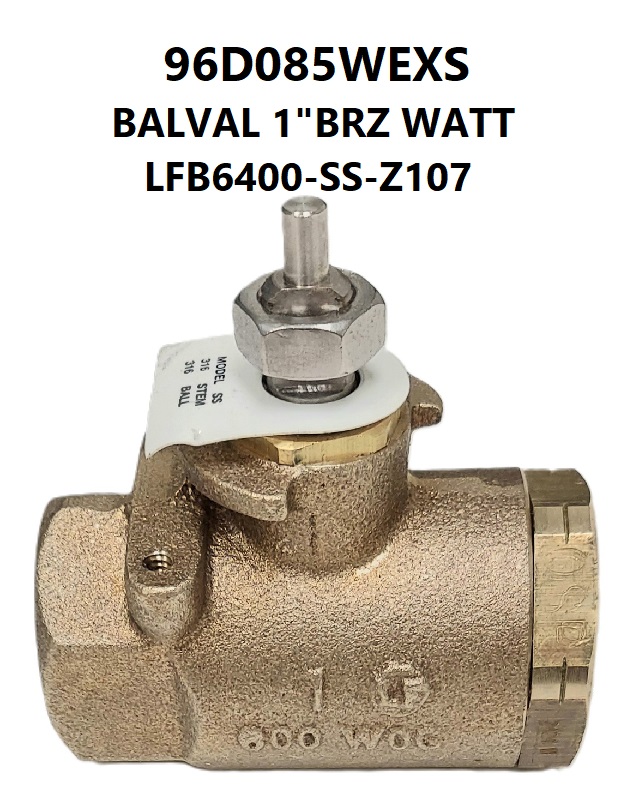

96D085WEXS - BALVAL 1"BRZ WATT LFB6400-SS-Z107

1" Watts repair kits

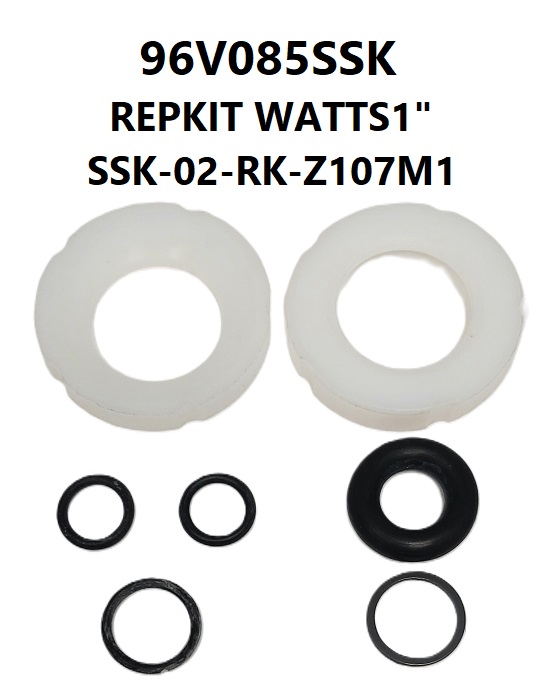

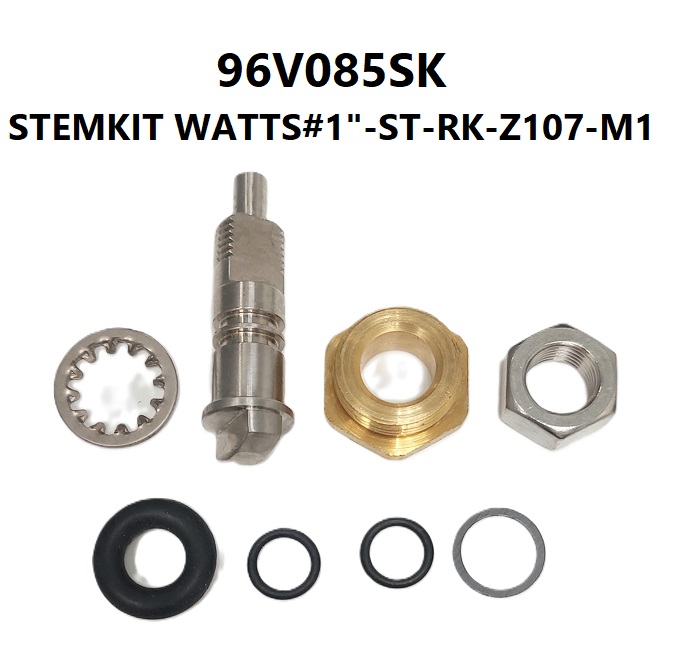

96V085SK - STEMKIT WATTS#1"-ST-RK-Z107-M1	96V085SSK - REPKIT WATTS1"SSK-02-RK-Z107M1

1 1/4" Ball Valve

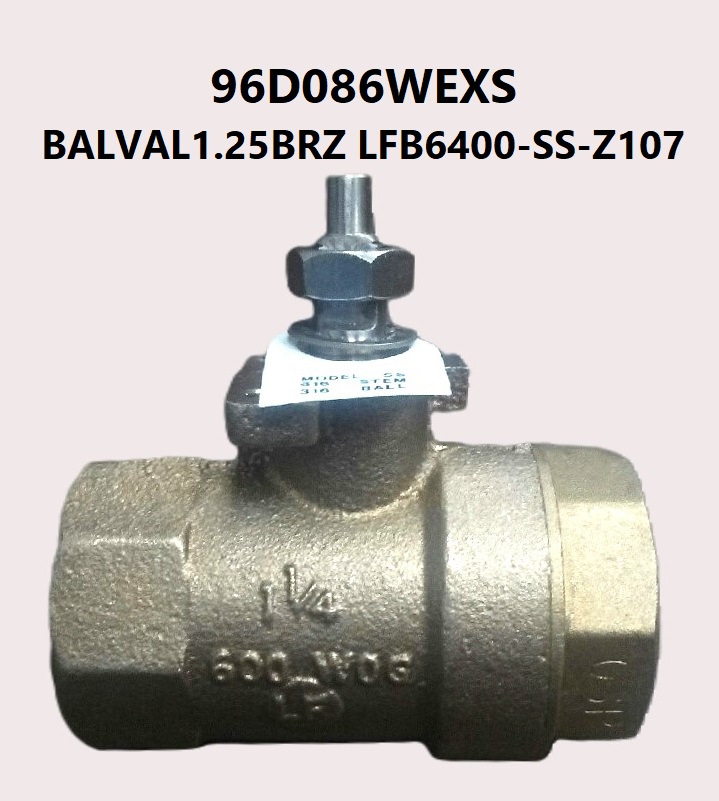

96D086WEXS - BALVAL1.25BRZ LFB6400-SS-Z107

1.25" Watts repair kits

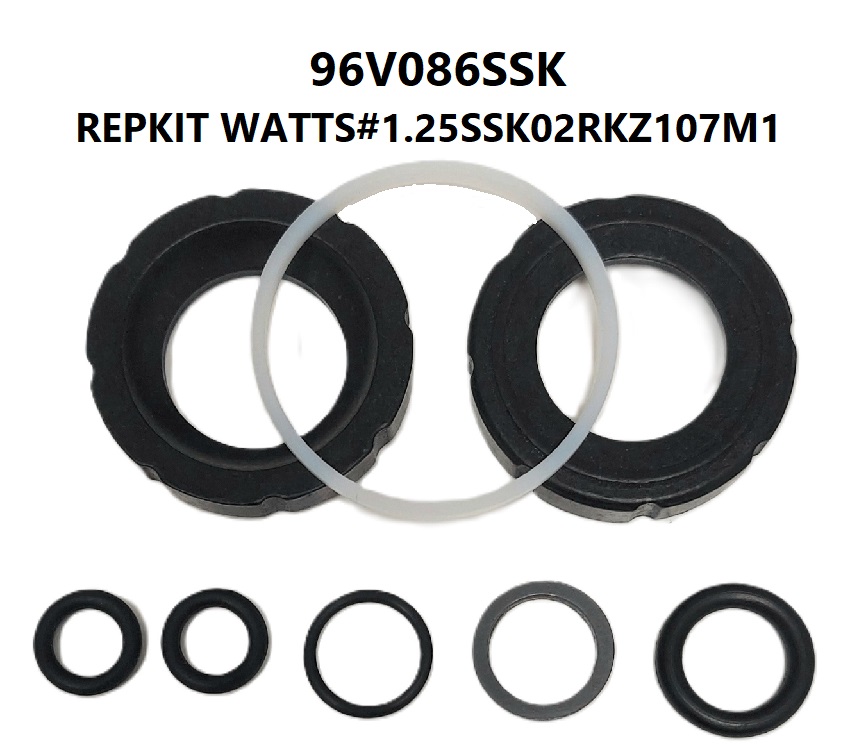

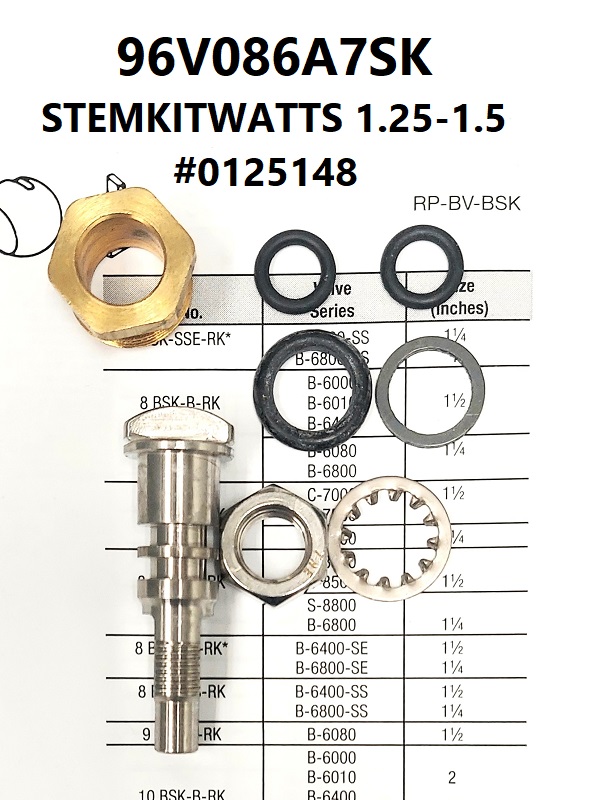

96V086A7SK - STEMKITWATTS1.25-1.5 #0125148 ***NOTE*** This stem kit also used on the 1.5" ball valve, 96D087WEXS	96V086SSK - REPKIT WATTS#1.25 SSK02RKZ107M1

1 1/2" Ball Valve

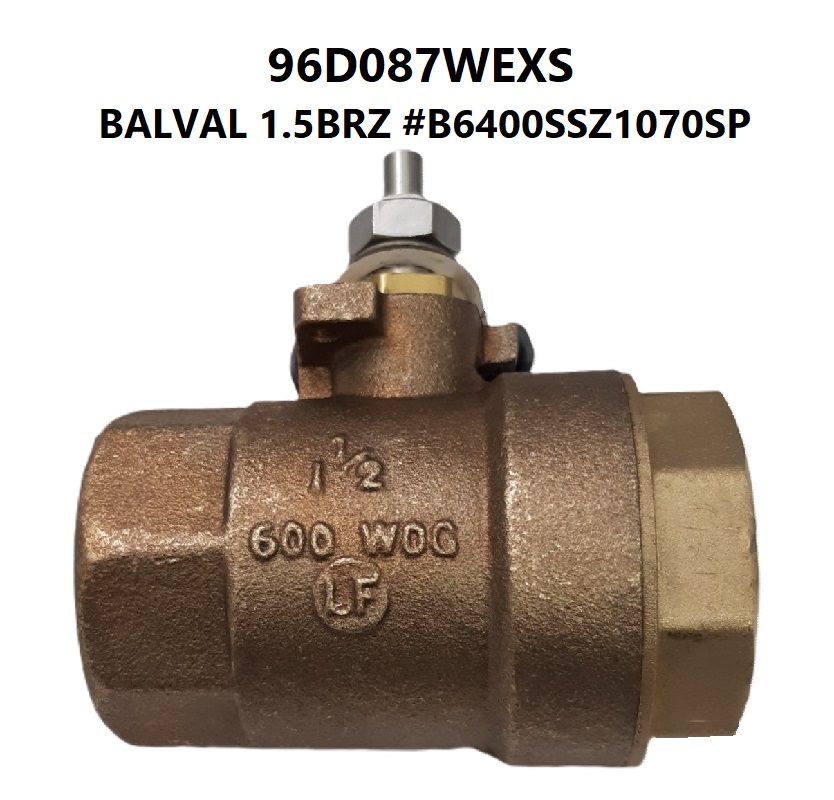

96D087WEXS - BALVAL 1.5 BRZ #B6400SSZ1070SP

1.25" Watts repair kits

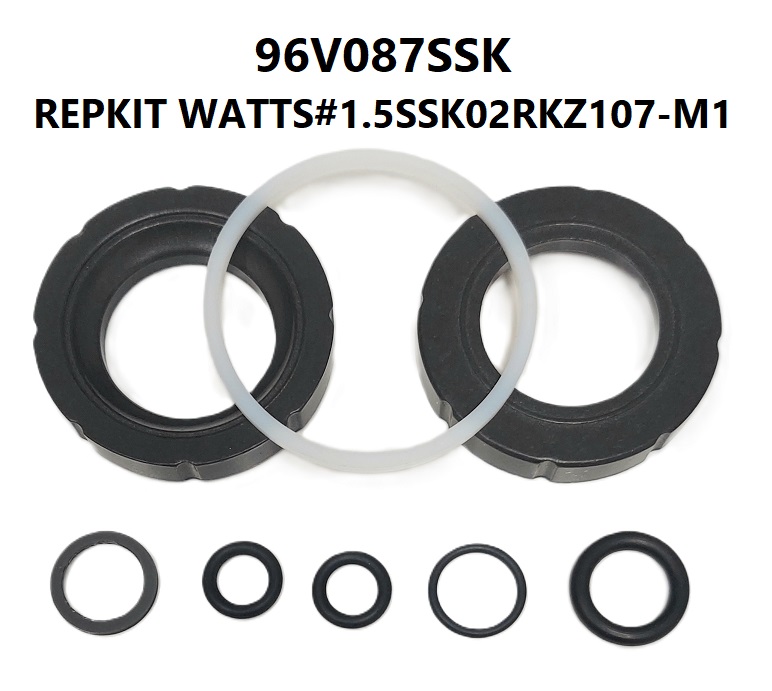

96V086A7SK - STEMKITWATTS1.25-1.5 #0125148 ***NOTE*** This stem kit also used on the 1.5" ball valve, 96D086WEXS	96V087SSK - REPKIT WATTS#1.5SSK02RKZ107-M1

2" Ball Valve

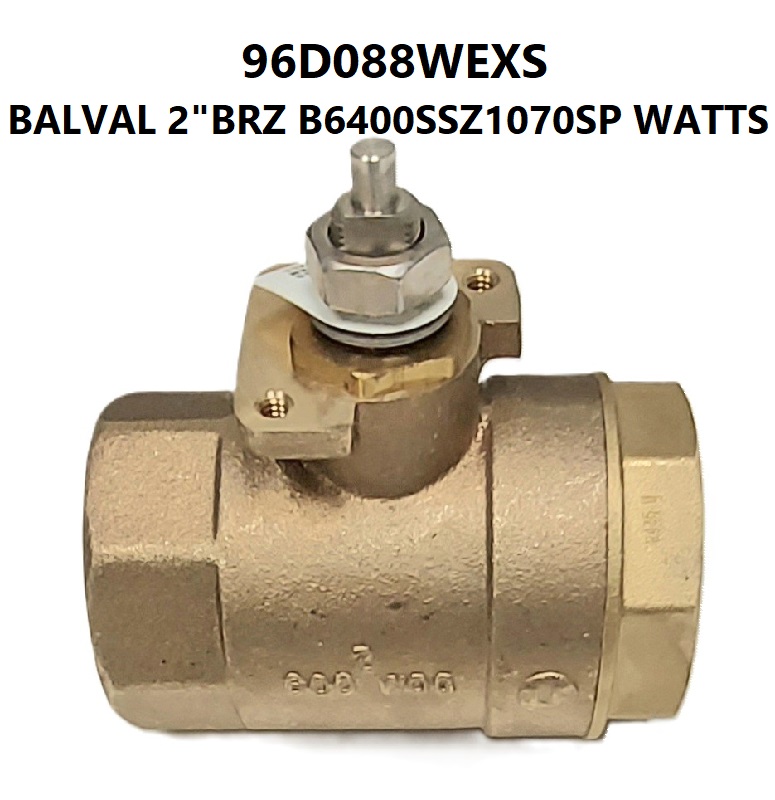

96D088WEXS - BALVAL 2"BRZ B6400SSZ1070SP

2" Watts repair kits

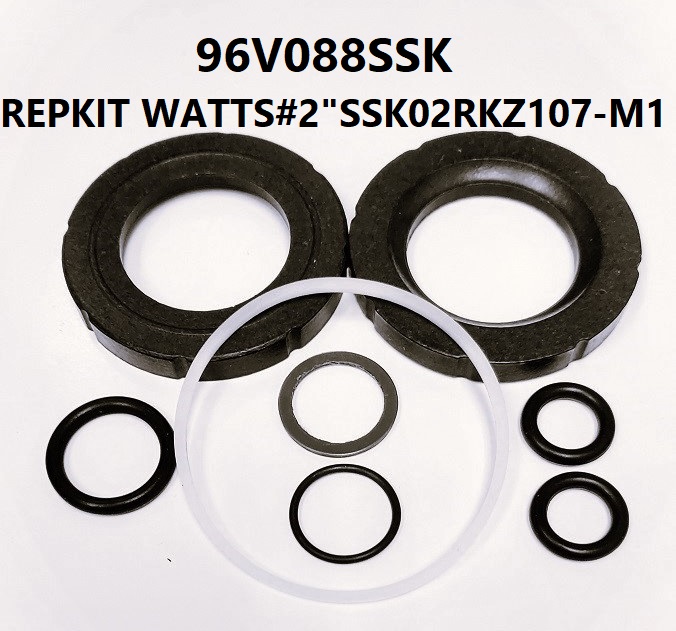

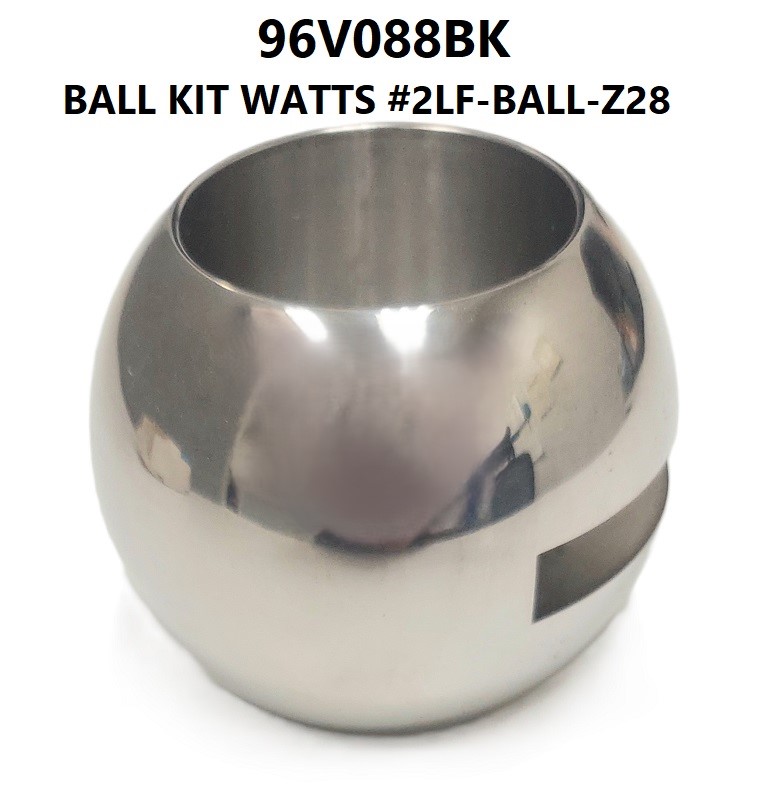

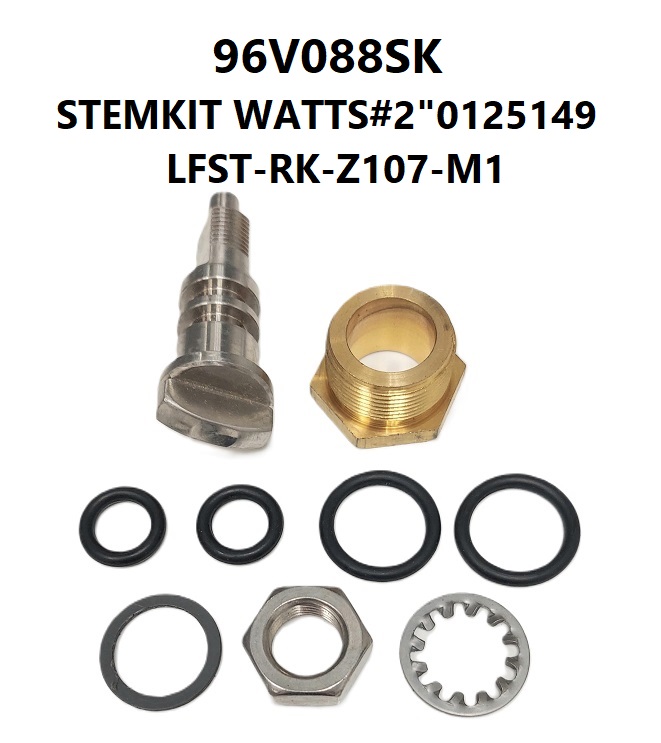

96V088BK - BALL KIT WATTS#2LF-BALL-Z28	96V088SK - STEMKIT WATTS#2"0125149	96V088SSK - REPKIT WATTS#2"SSK02RKZ107-M1

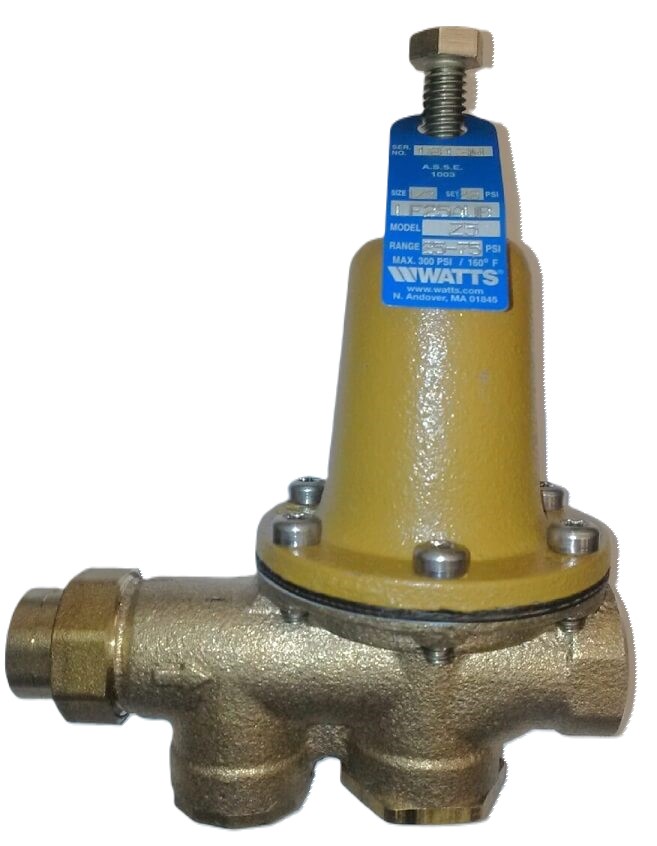

WATTS PRESSURE REGULATOR VALVES

PRESSURE REGULATOR VALVE	REPAIR KIT

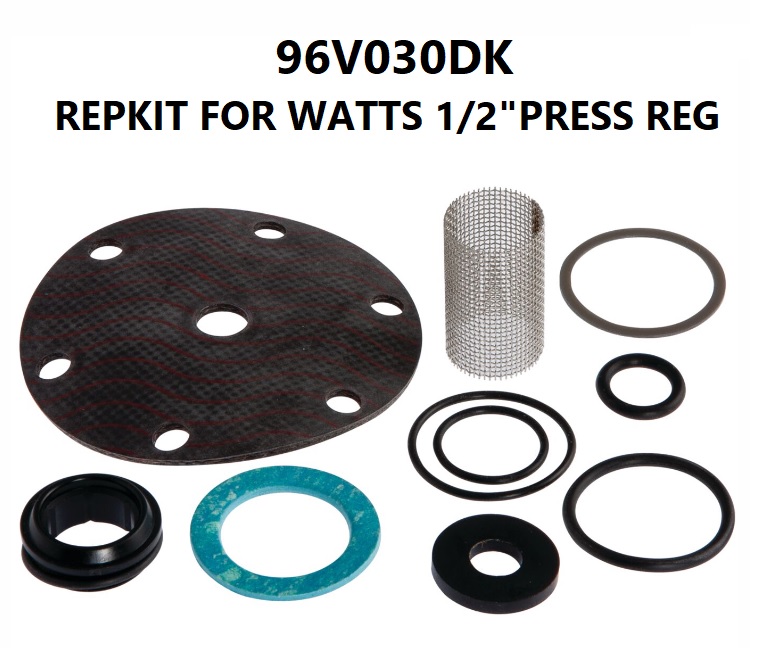

96J030D - 1/2"PRESSREG SET28# FEMXUN #LF25AUB-Z5 #0009255	96V030DK - REPKIT FOR WATTS 1/2"PRESS REG

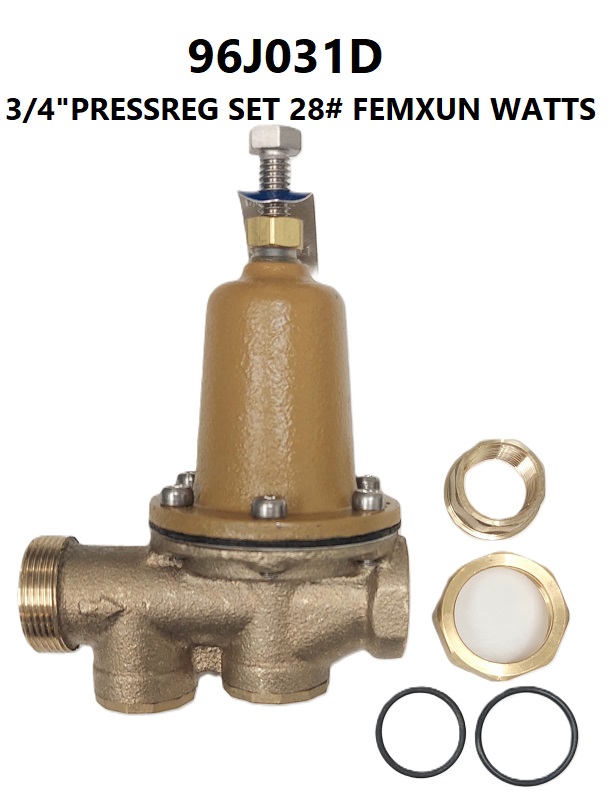

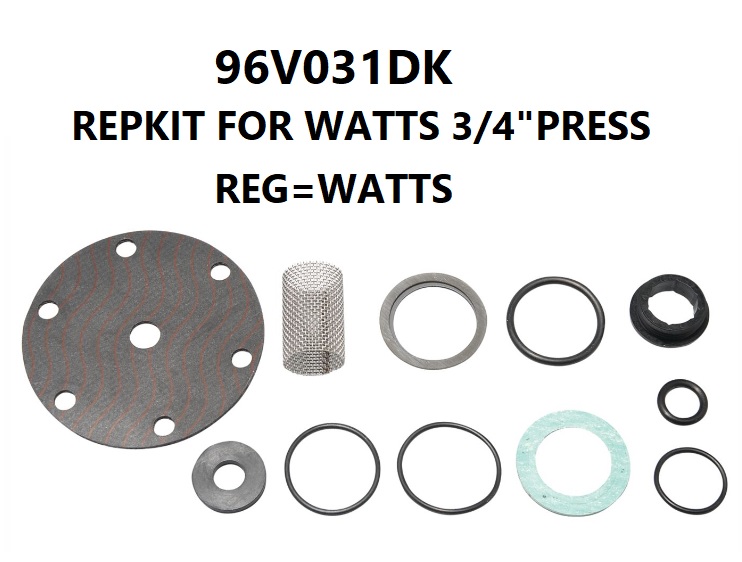

96J031D - 3/4"PRESSREG SET 28# FEMXUN=WATTS#LF25AUB-ZB	96V031DK - REPKIT FOR WATTS 3/4"PRESS REG=WATTS 3/4" 25AUB-RK
