Title Oil Level and temp indicator in a SS press

Summary The oil level and temp indicator in a Single Stage Press can be repaired with the parts below.

Article Text

Overview

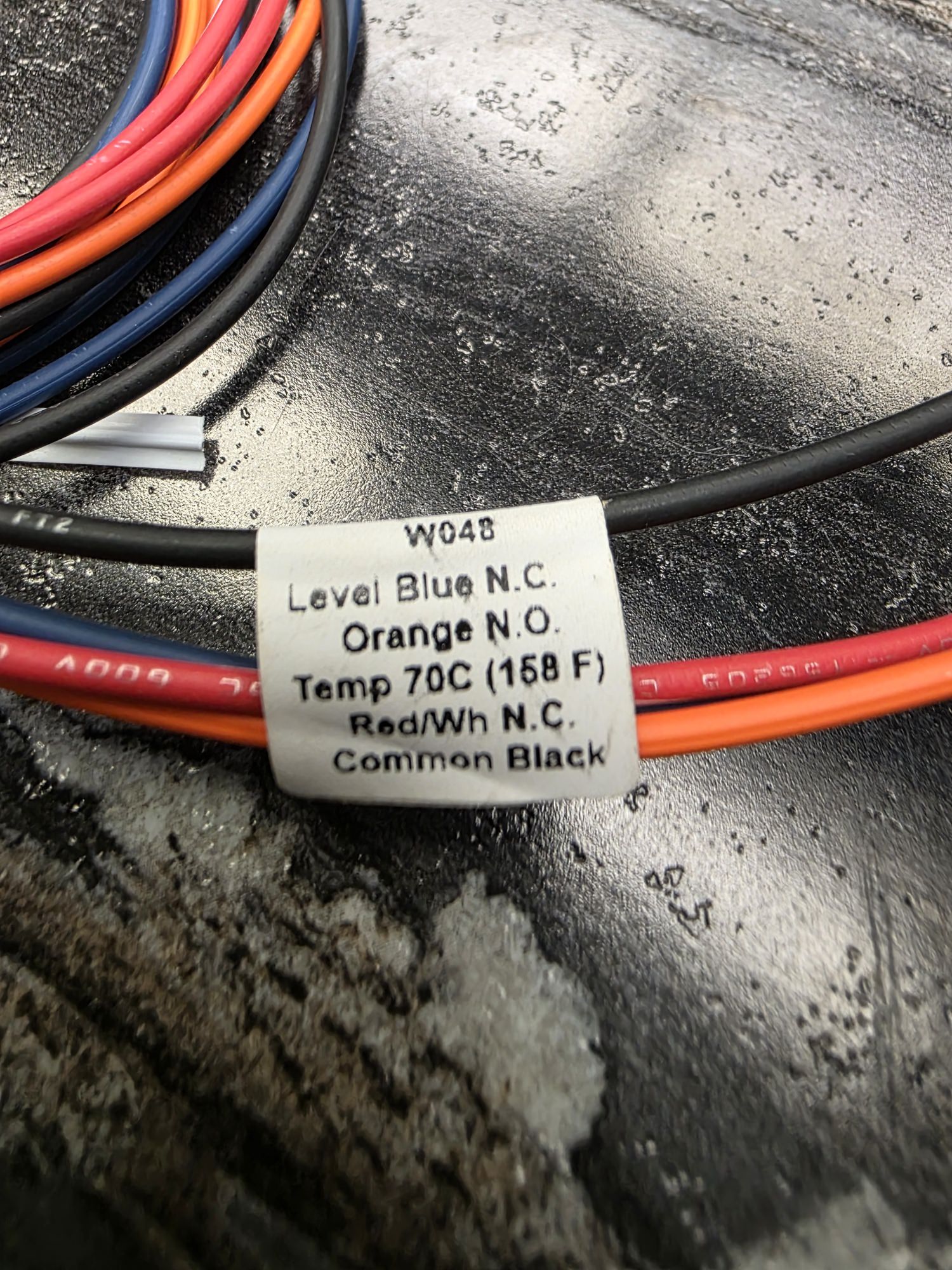

The level and temp switch on the hydraulic tank for all presses can be repaired. In some cases, the tube is elongated for deeper tanks. All parts can be reused and repaired with the spares kit. The oil temperature Trip Point is 158°F

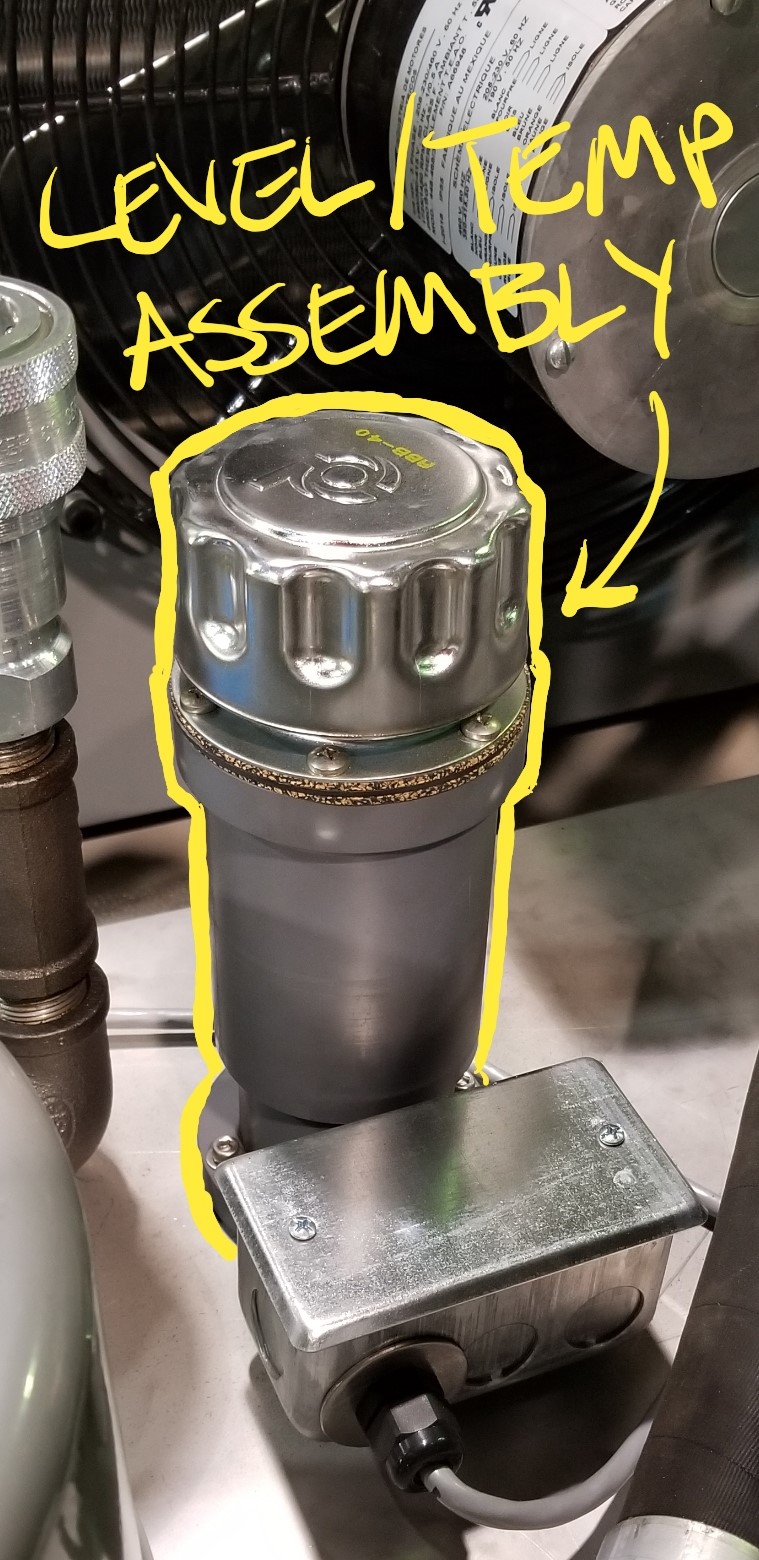

Complete Assembly

Part number 27E7200 - The whole assembly is made of multiple pieces including 27E7200 and the breather cap and fill tube.
User-added image

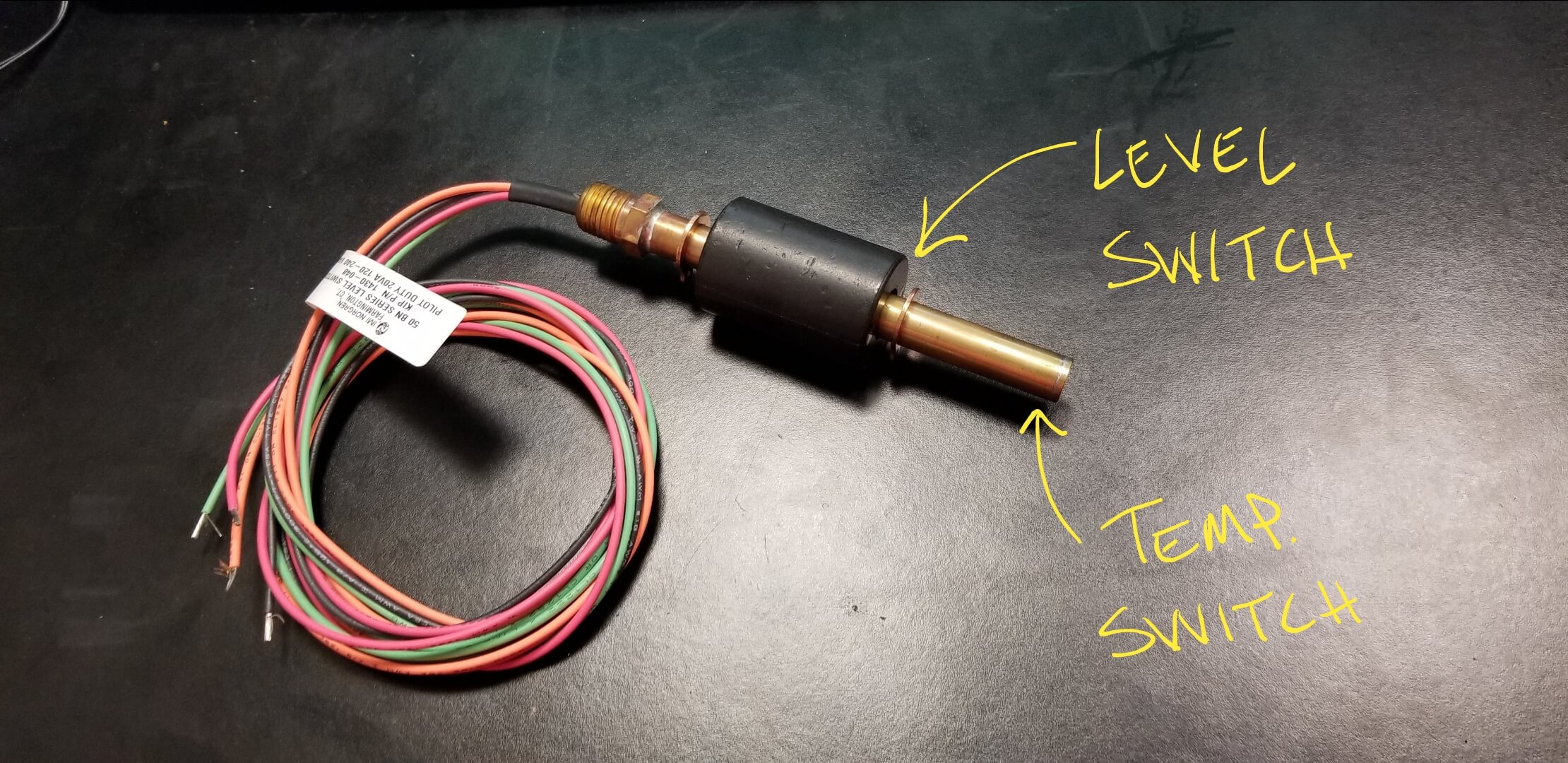

Level and Temp Sensor ONLY

Part number 27E7200A - This is only the sensing part.
User-added image
