Overload Relays by Type and Amperage
Overload Relays listed by Type and Amperage; the Types being Thermal, Magnetic, and Solid State. Pictures included for reference.
Overload Relays listed by Type and Amperage; the Types being Thermal, Magnetic, and Solid State.  Pictures included for reference.

Type Definitions:

Magnetic

Overload acts as a Circuit Breaker.  When tripped, no current moves thru the overload. Breaker must be manually reset.  Class 10 Overload

Solid State

Overload electrically disengages the associated contactor or machine 3 wire when wired properly.  Current flows thru overload when tripped.  Class 30 Overload

Thermal

Current Flows through metal alloy that melts suddenly at certain temp, releasing contact.  Must be maunally reset.  Class 30 Overload

MAGNETIC OVERLOAD PROTECTOR

AMPSPART NUMBERDESCRIPTION

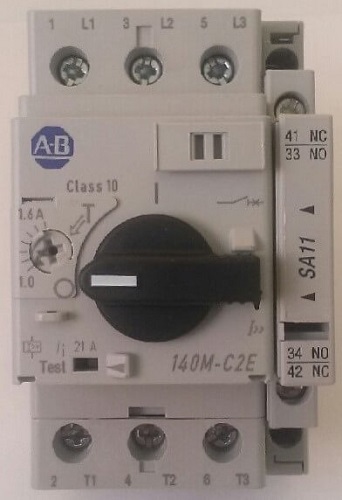

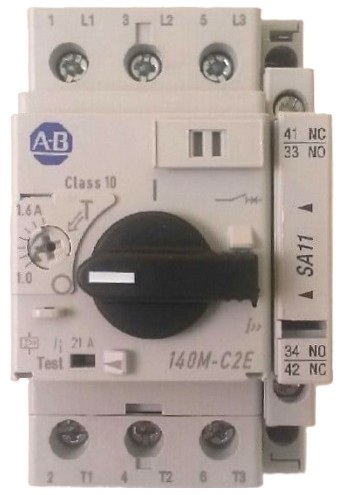

1.0 TO 1.609FTB001TOVERLOAD PROTECTOR ADJ. 1-1.6
User-added image





AMPSPART NUMBERDESCRIPTION

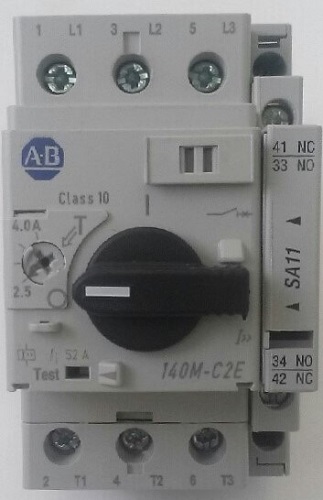

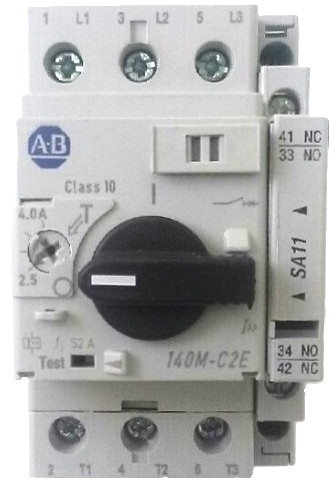

2.5 TO 4.009FTB004TOVERLOAD PROTECTOR ADJ. 2.5-4
User-added image





APMSPART NUMBERDESCRIPTION

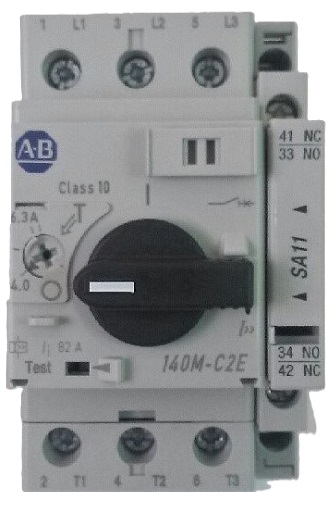

4.0 TO 6.309FTB006TOVERLOAD PROTECTOR  ADJ 4-6.3
User-added image

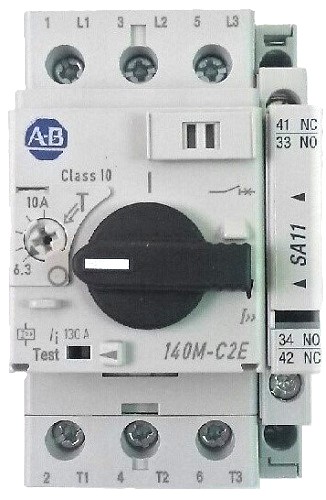

AMPSPART NUMBERDESCRIPTION

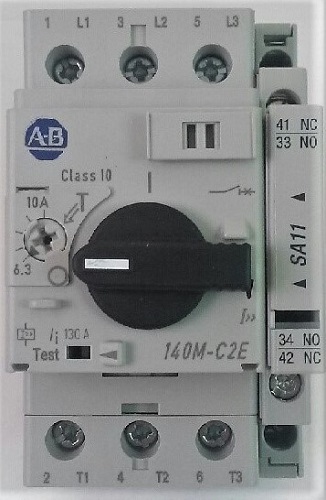

6.3 TO 1009FTB010TOVERLOAD PROTECTOR  ADJ.6.3-10
User-added image





AMPSPART NUMBERDESCRIPTION

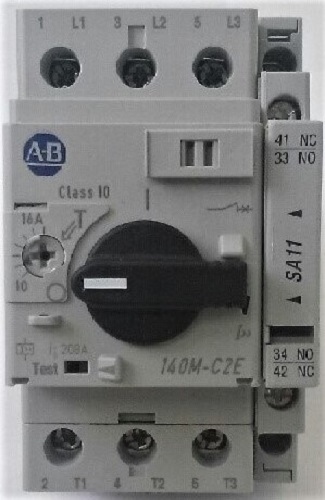

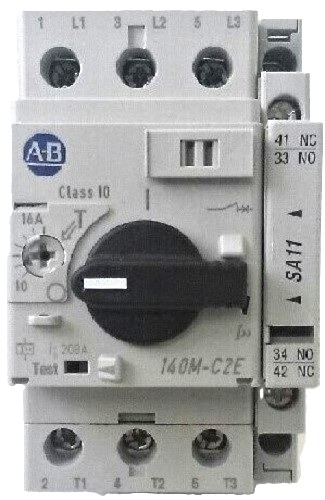

10 TO 1609FTB016TOVERLOAD PROTECTOR ADJ. 10-16
User-added image

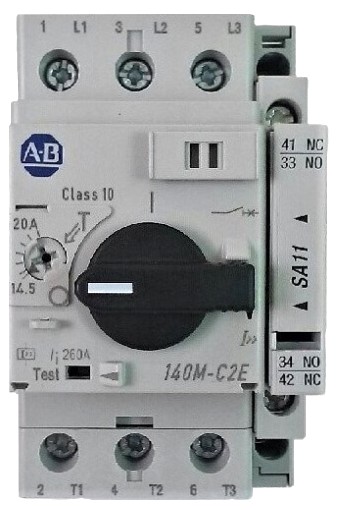

AMPSPART NUMBERDESCRIPTION

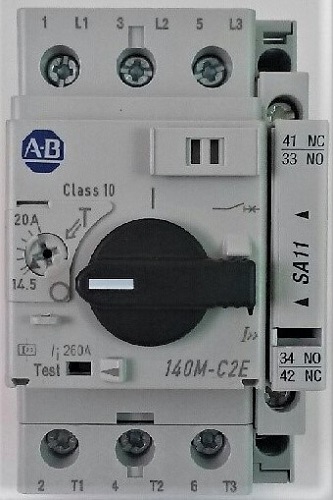

14.5 TO 2009FTB020TOVERLOAD PROT ADJ 14.5 - 20A
User-added image

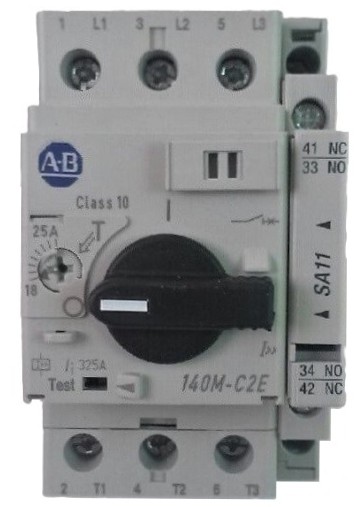

AMPSPART NUMBERDESCRIPTON

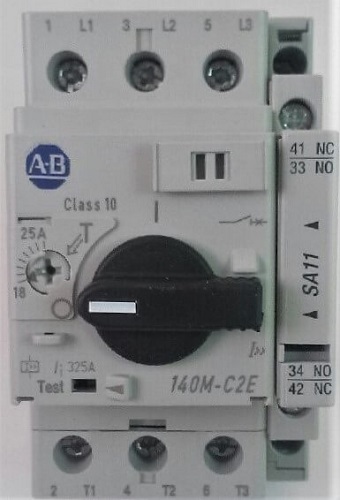

18 TO 2509FTB025TOVERLOAD PROTECTOR ADJ. 18-25
User-added image





AMPSPART NUMBERDESCRIPTION

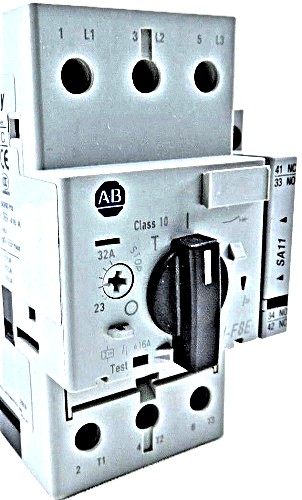

23 TO 3209FTB032TOVERLOAD PROTECTOR ADJ. 23-32
User-added image





AMPSPART NUMBERDESCRIPTION

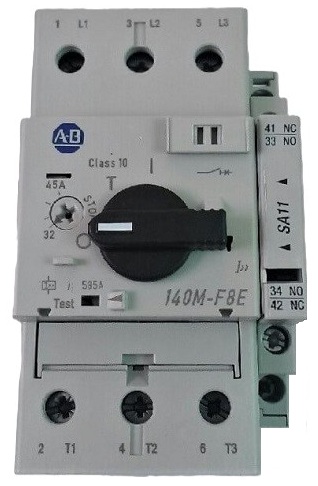

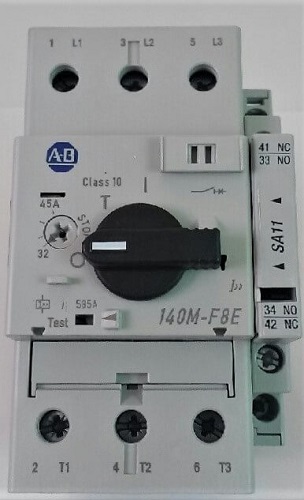

32 TO 4509FTB040TOVERLOAD PROTECTOR ADJ. 32-45
User-added image










SOLID STATE OVERLOAD RELAYS                            BACK TO TOP

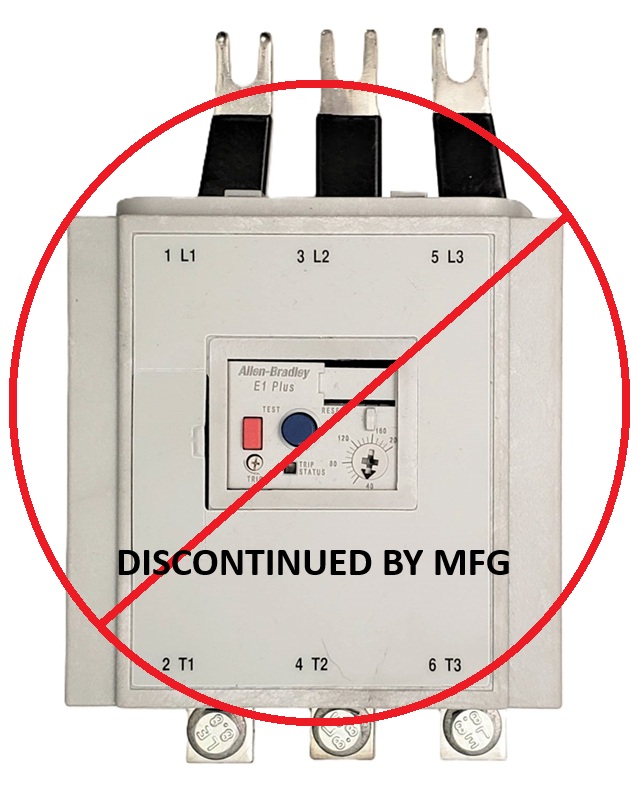

Many of the solid-state 09FTD overloads supplied by Allen Bradley have been discontinued.
Their replacements depend on the model and voltage of the machine.  If you don't find your model, send an email to parts@milnor.com to inquire about the correct replacement.

For pictures of the replacement overloads click HERE and select the link of the overload you need to replace.
If you don't find your model, send an email to parts@milnor.com to inquire about the correct replacement.


AMPSPART NUMBERDESCRIPTION

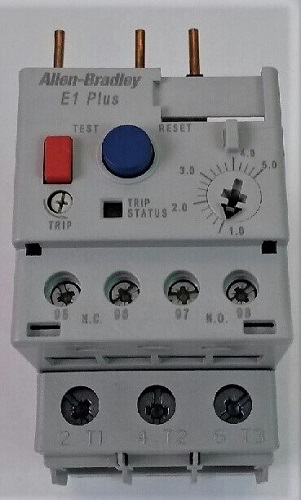

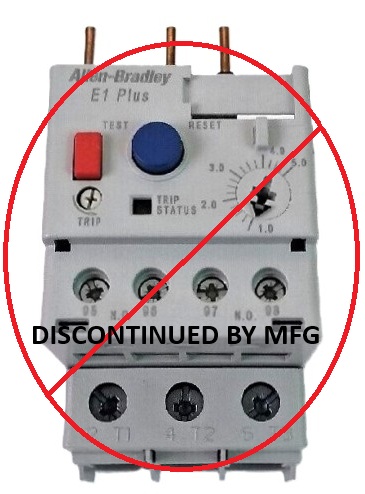

1.0 TO 5.009FTD0016TE1 PLUS OL RELAY 1.0-5.0A
REPLACEMENTS FOR 09FTD0016T
MODEL/ASSEMBLYREPLACEMENTDESCRIPTION
SINGLE STAGE PRESS
&

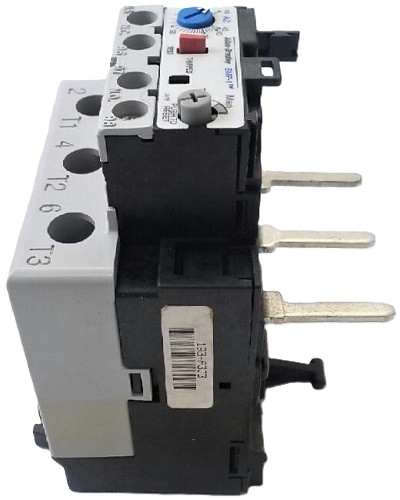

SHUTTLE / NO INVERTER BELT		09FTX0016TE100 AB 193-1EFCB OL 1-5A
SHUTTLE / TRAVERSE MOTOR (HIGH VOLT)09FTE0015TBIMETALLIC OL AB 100-C09-23 5.5-7.5 AMPS
  User-added image






AMPSPART NUMBERDESCRIPTION

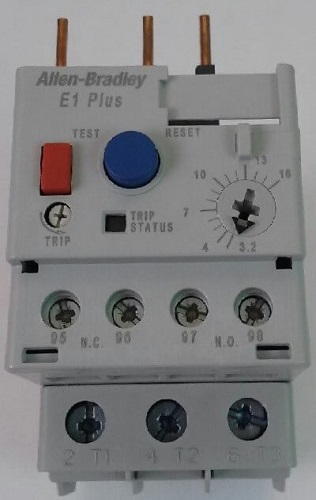

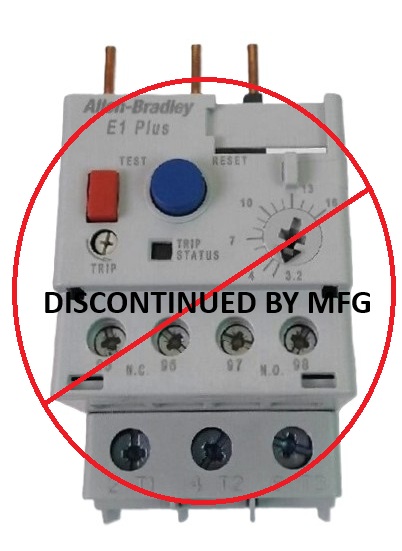

3.2 TO 1609FTD0037TE1 PLUS OL RELAY 3.2-16A
REPLACEMENTS FOR 09FTD0037T
MODEL/ASSEMBLYREPLACEMENTDESCRIPTION
SINGLE STAGE PRESS09FTX0037TE100 AB 193-1EFDB OL 3.2-16A
3022X8 F8 (LOW VOLT)09FTE0019TBIMETALLIC OL AB 100-C09-23 21-25 AMPS
3022X8 F8 (HIGH VOLT)
DRYERS COMB MOTOR (LOW VOLT)
DRYERS BASKET MOTOR (LOW VOLT)
SHUTTLE TRAVERSE MOTOR (LOW VOLT)		09FTE0017TBIMETALLIC OL AB   100-C09-23  9.0-12.5 AMPS
DRYERS COMB MOTOR (HIGH VOLT)
DRYERS BASKET MOTOR (HIGH VOLT)		09FTE0015TBIMETALLIC OL AB   100-C09-23  5.5-7.5 AMPS
SHUTTLE HOIST MOTOR (LOW VOLT)09FTE0016TBIMETALLIC OL AB   100-C09-23  7.2-10 AMPS
SHUTTLE HOIST MOTOR (HIGH VOLT)09FTE0013TBIMETALLIC OL AB   100-C09-23  2.9-4.0 AMPS
  User-added image






APMSPART NUMBERDESCRIPTION

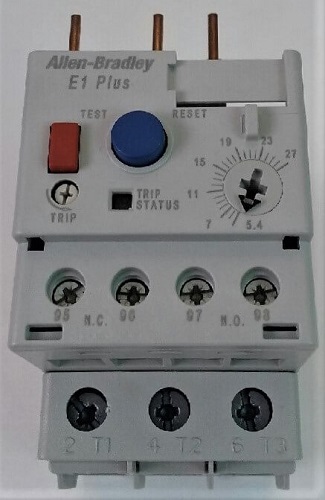

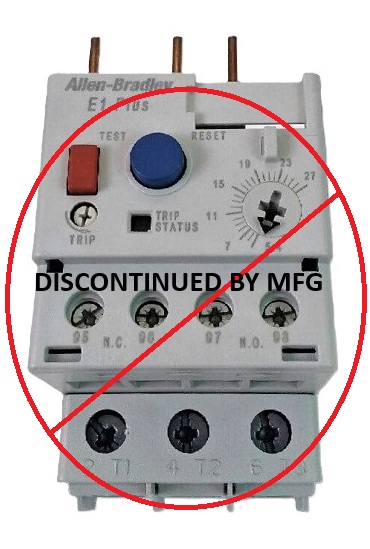

5.4 TO 2709FTD0039TE1 PLUS OL RELAY 5.4-27A
REPLACEMENTS FOR 09FTD0039T
MODEL/ASSEMBLYPART NUMBERDESCRIPTION
SINGLE STAGE PRESS09FTX0039TE100 AB 193-1EFEB OL 5.4-27A
  User-added image






For Import Model
AMPSPART NUMBERDESCRIPTION

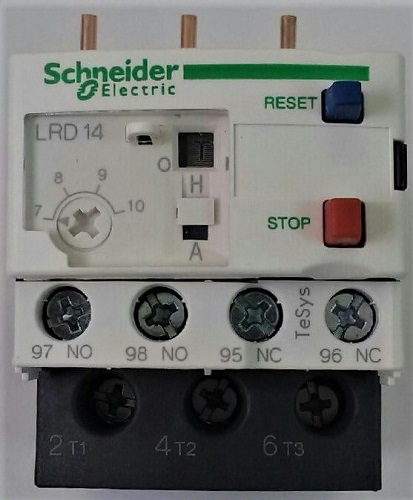

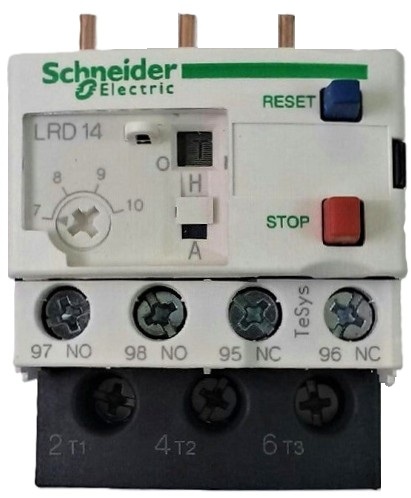

7 TO 1098CMCR3006OVERLOAD 3022X HI VOLT 7-10A
User-added image






AMPSPART NUMBERDESCRIPTION
For Import Models

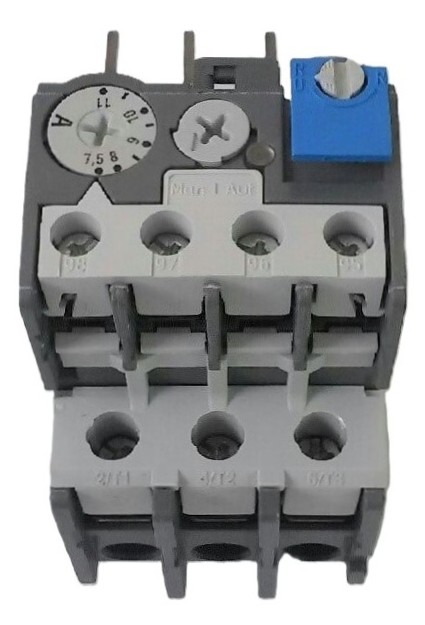

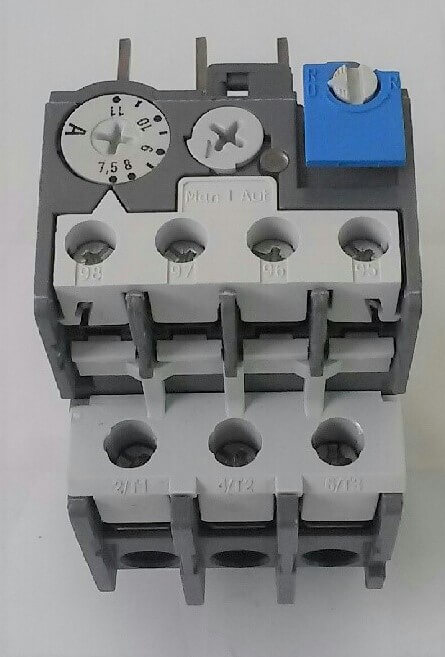

7.5 - 1198CMCR1829OVERLOAD MWR18 LOW VOLT 7.5-11
User-added image






AMPSPART NUMBERDESCRIPTION

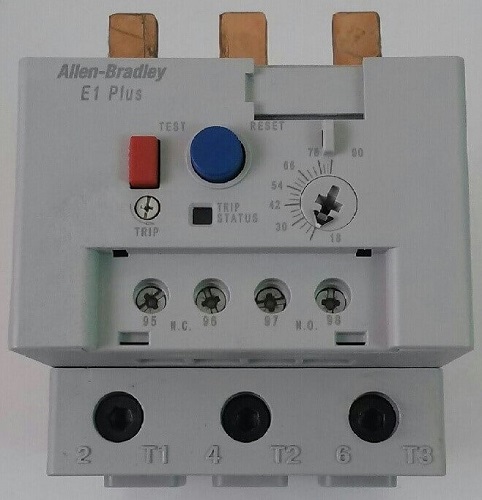

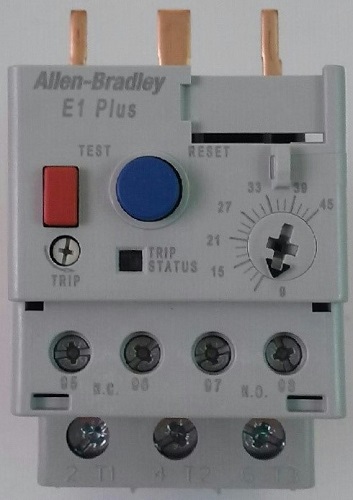

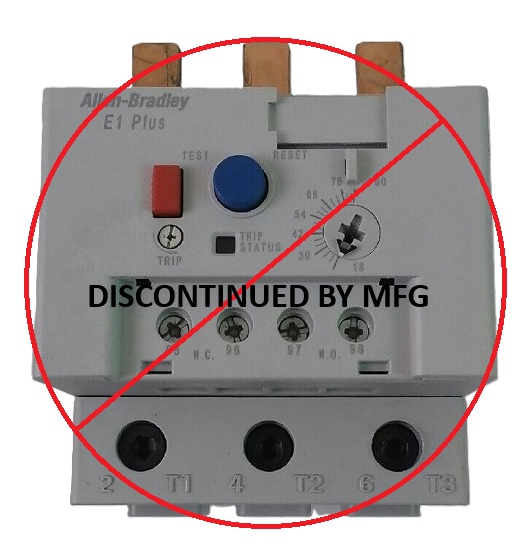

9 TO 4509FTD0121TE1 PLUS OL RELAY 9-45A
REPLACEMENTS FOR 09FTD0121T
MODEL/ASSEMBLYPART NUMBERDESCRIPTION
SINGLE STAGE PRESS
60044WP2 Multi Motor		09FTX0121TE100 AB 193-1EFFD   OL 11-55A
3626X8 F8 (LOW VOLT)09FTE0039TBIMETALLIC OL AB   100-C30-37 33-38A
3626X8 F8 (HIGH VOLT)09FTE0037TBIMETALLIC OL AB   100-C30-37 21-25A
4226X7 F7 & 4232 F7 (LOW VOLT)09FTE0042TBIMETALLIC OL AB   100-C43-55 45-60A
4244WR/SR (HIGH VOLT)09FTE0121TE100 AB 193-1EFFD   OL 11-55A
4840M7, H7, F7 (HIGH VOLT)
4226X7 F7 & 4232 F7 (HIGH VOLT)		09FTE0041TBIMETALLIC OL AB   100-C43-55 35-47A
  User-added image

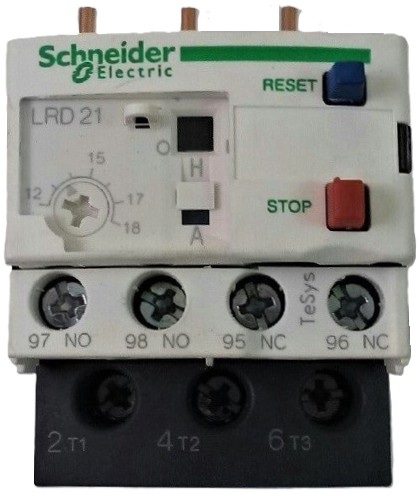

AMPSPART NUMBERDESCRIPTION
For Import Model / Substitute for 98CMCR3005

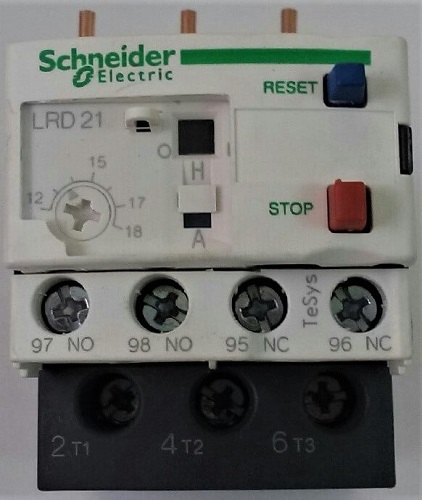

12 TO 1898CMCR3603OVERLOAD 3626X HI VOLT 12-18A
User-added image

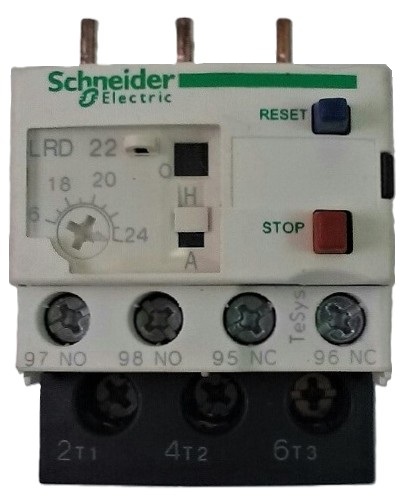

AMPSPART NUMBERDESCRIPTION
For Import Model

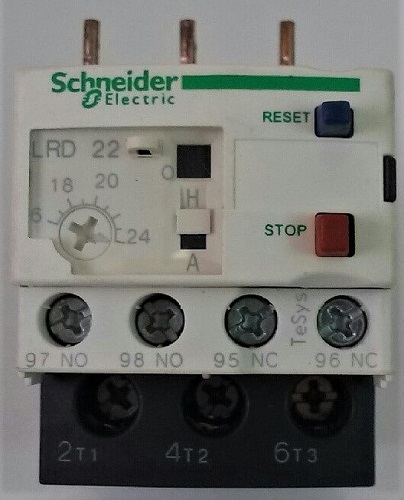

16 TO 2498CMCR4204OVERLOAD 42X HI VOLT 16-24A
User-added image






AMPSPART NUMBERDESCRIPTION
18 TO 9009FTD0230TE1 PLUS OL RELAY 20-100A
 REPLACEMENTS FOR 09FTD0230T
MODEL/ASSEMBLYPART NUMBERDESCRIPTION
SINGLE STAGE PRESS09FTX0230TE100 AB 193-1EFGE  OL 20-100A
4244WR/SR (LOW VOLT)
6044WR/SR (HIGH VOLT)
4840M7, H7, F7 (LOW VOLT)
6836M7, H7, F7 (HIGH VOLT)		09FTE0124TBIMETALLIC OL AB  100-C60-97 72-90A PANEL
7246M5K (HIGH VOLT)09FTG0063TABB TF140DU-135 THERMAL OL 100-135A AF116 ... AF146
***Note*** Requires CONTACTOR  09MC09S337 / 140A 3P MCS CONT NR 120V5/6-240V56 ABB
    User-added image





AMPSPART NUMBERDESCRIPTION
For Import Model. Substitute for 98CMCR4203

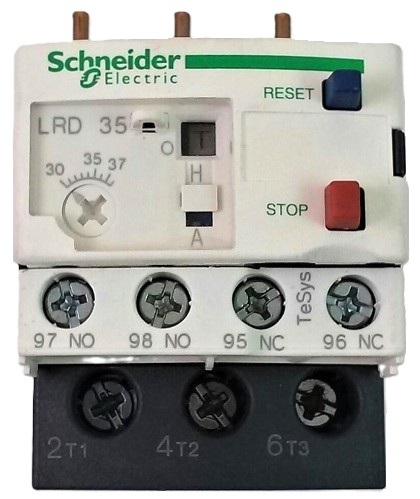

30 TO 3898CMCR3602OVERLOAD 3626X LOW VOLT 30-38A

User-added image

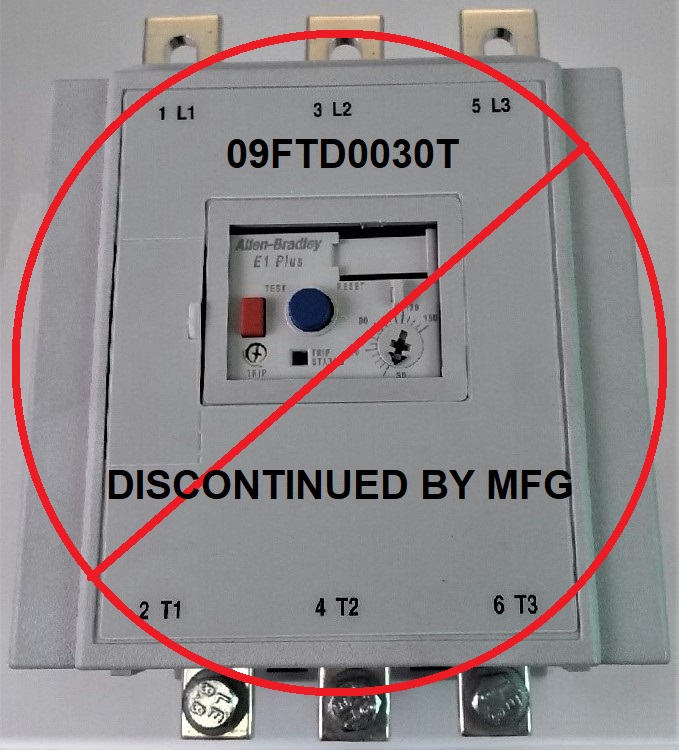

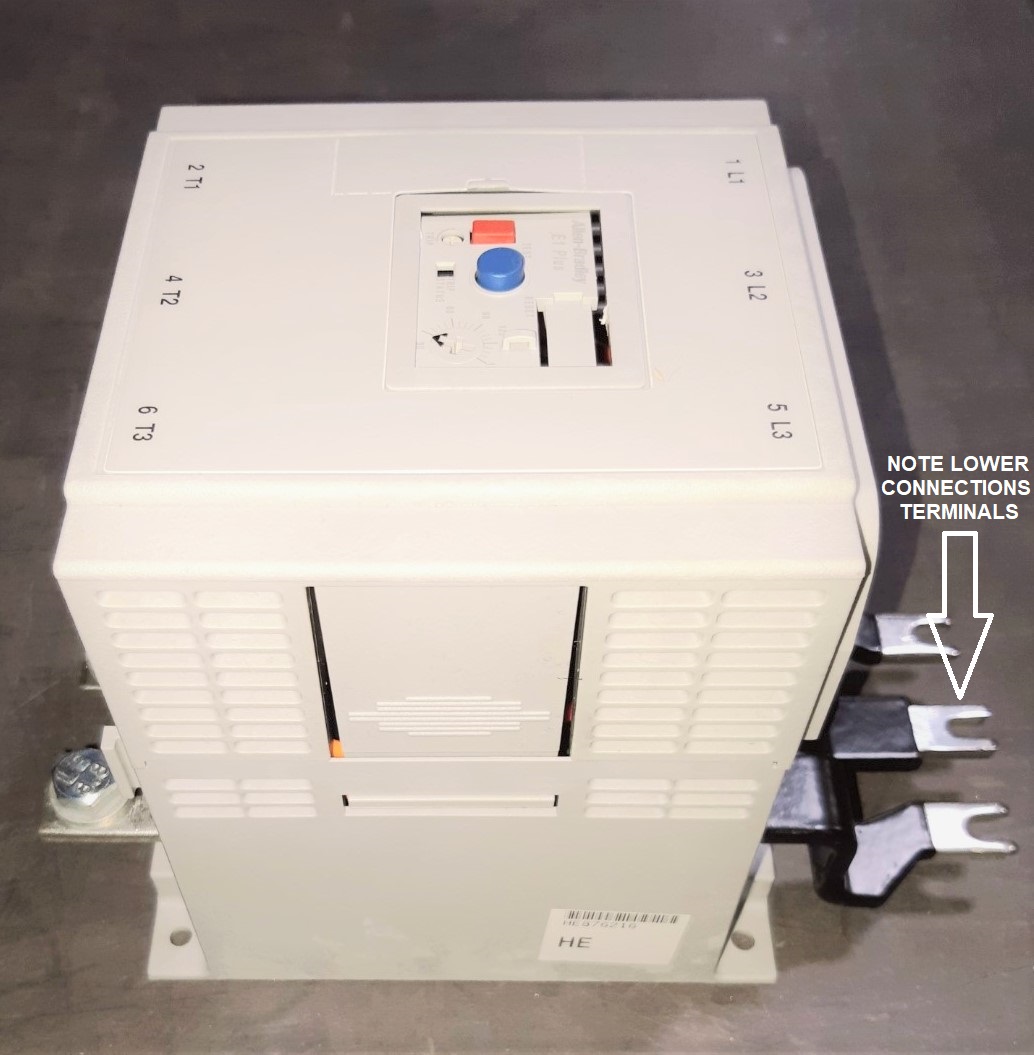

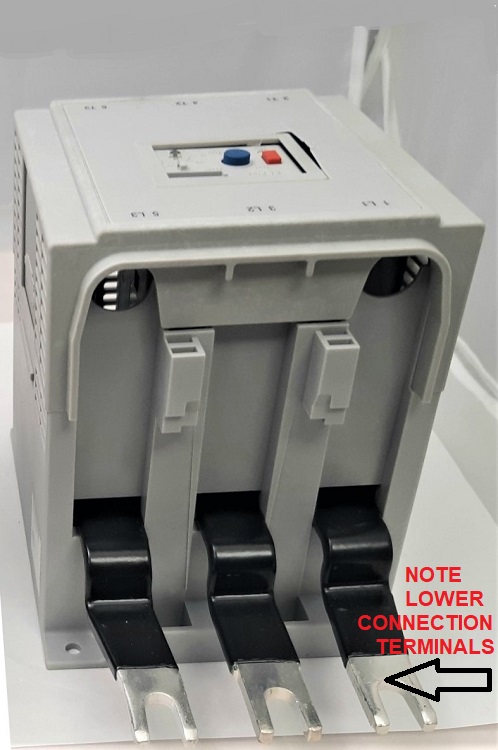

DOES NOT CONNECT WITH OLD CONTACTOR 09MC08T337
AMPS PART NUMBER DESCRIPTION

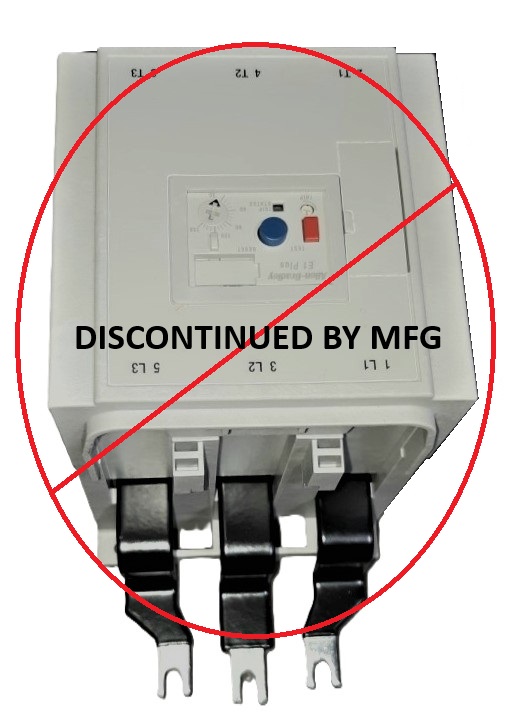

30-150A09FTD0030TA OL RELAY 30-150A AB #193-EEJJ
MUST USE NEW CONTACTOR 09MC08T337A
REPLACEMENTS FOR 09FTD0030TA
MODEL/ASSEMBLYPART NUMBER DESCRIPTION
6836M7, H7, F709FTG0064TABB TF140DU-142 THERMAL OL 110-142A  AF116 ... AF146
6458/6464 DRYERS - BLOWER MOTOR
(HIGH VOLT)		09FTD0025T

(O

09FTE0121T		OL RELAY E100 20-100A AB #193-1EEGP PASS THROUGH MAX WIRE 8AWG

R)

BIMETALLIC OL AB   100-C60-97 35-47A PANEL
  User-added image

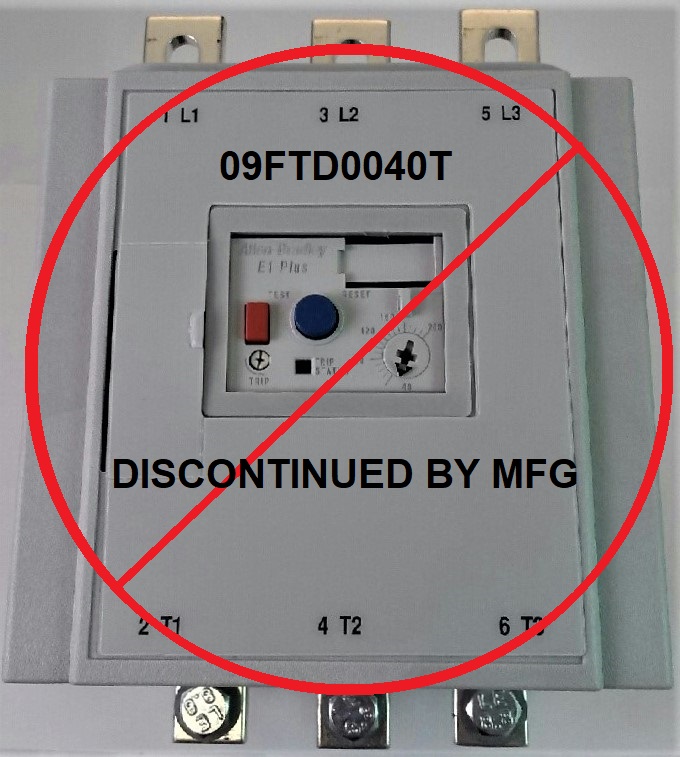

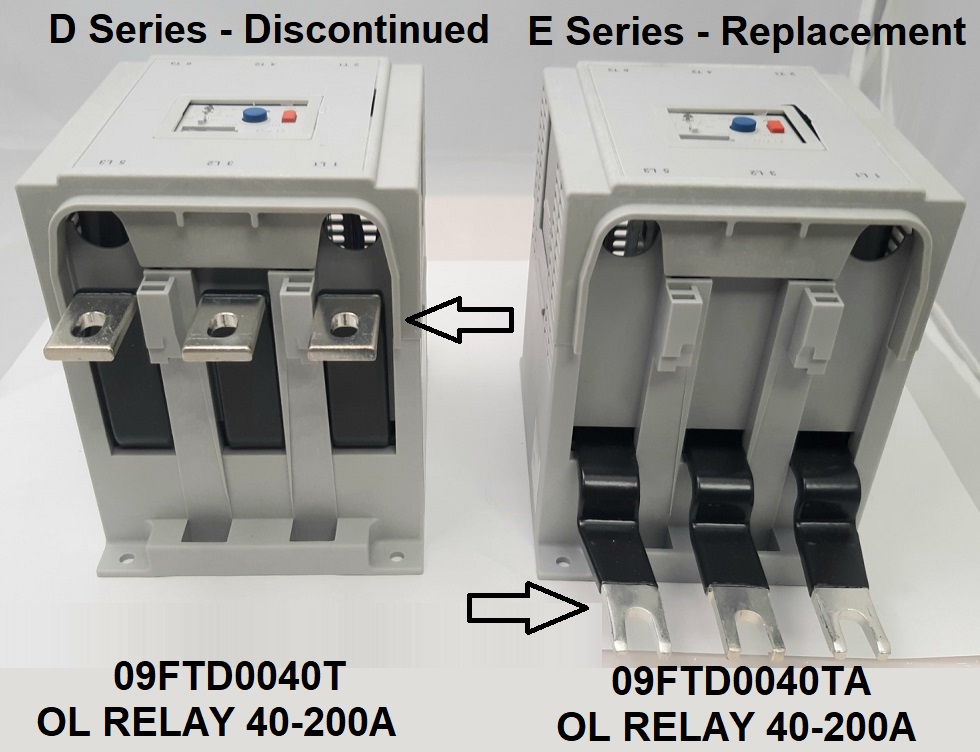

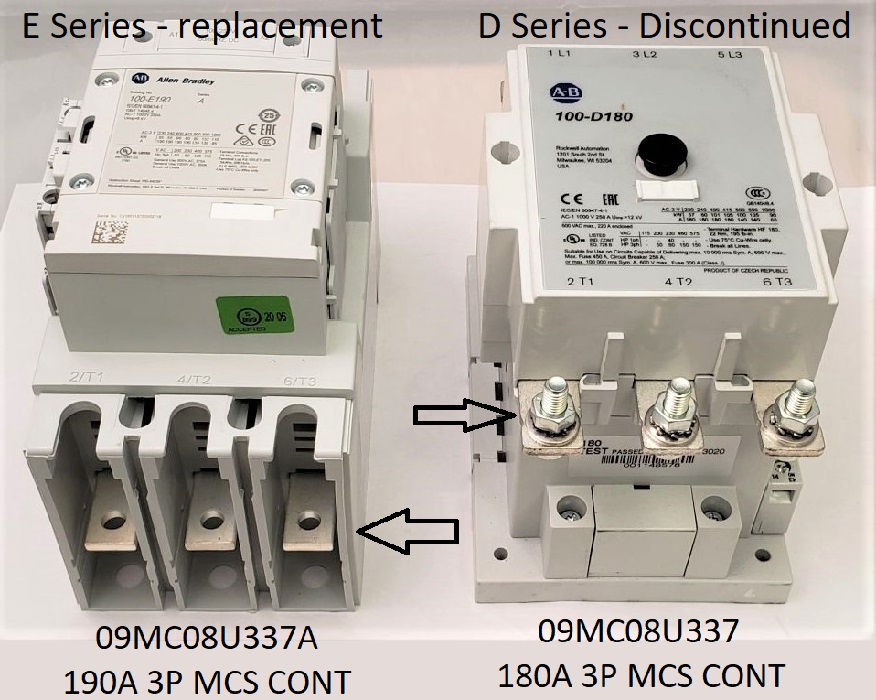

DOES NOT CONNECT WITH CONTACTOR 09MC08U337
AMPSPART NUMBERDESCRIPTION
40-200A     09FTD0040TAOL RELAY AB #193-EEHJ
MUST USE NEW CONTACTOR 09MC08U337A

REPLACEMENTS FOR 09FTD0040TA
MODEL/ASSEMBLYPART NUMBER DESCRIPTION
SINGLE STAGE PRESS09FTF0205T EF205-210 ELECTRONIC OL 63--210A ABB NOT FOR INVERTERS
***Note*** Requires CONTACTOR 09MC09U337 / AF185 190A 3P MCS CONT NR 120V5/6 ABB
6044WR/SR (LOW VOLT)09FTG0064TABB TF140DU-142 THERMAL OL 110-142A  AF116 ... AF146
***Note*** Requires CONTACTOR  09MC09S337 / 140A 3P MCS CONT NR 120V5/6-240V56 ABB

7246M5K (LOW VOLT)09FTG0200TABB TA200DU-200 THERMAL OL 66-200A AF145 ... AF205
***Note*** Requires CONTACTOR  09MC09U337 / AF185 190A 3P MCS CONT NR 120V5/6 ABB
6458/6464 DRYERS BLOWER MOTOR (LOW VOLT)09FTE0123TBIMETALLIC OL AB   100-C60-97 58-75A PANEL


User-added image






OLD STYLE OVERLOAD / FOR USE ONLY WITH OLD STYLE CONTACTORS (09MC04****)
AMPSPART NUMBERDESCRIPTION

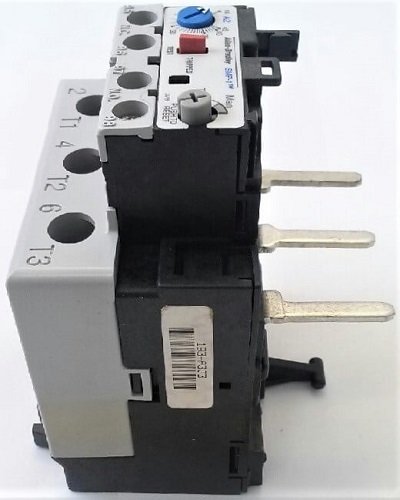

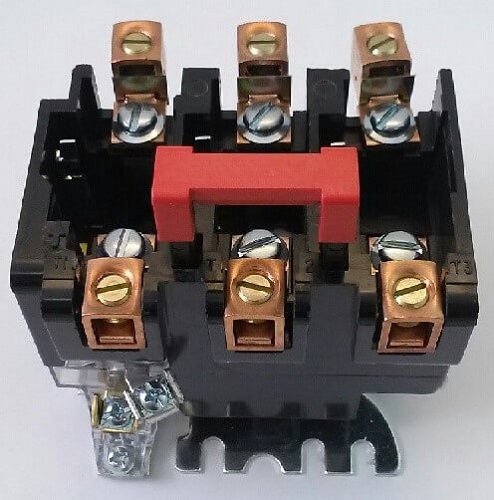

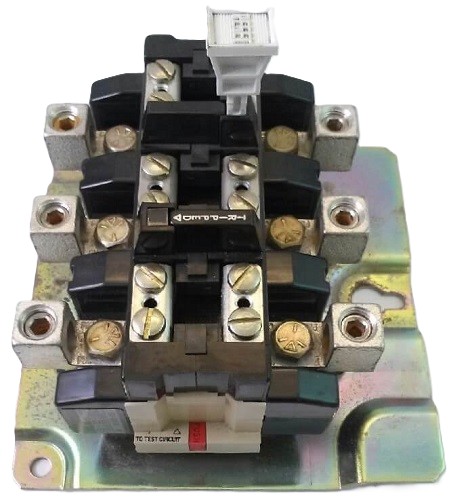

14 TO 4509FTC0141TOL RELAY 14-45A  AB #193-A3J3
User-added image

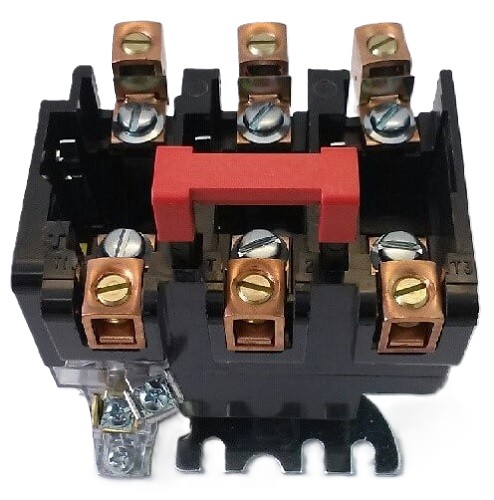

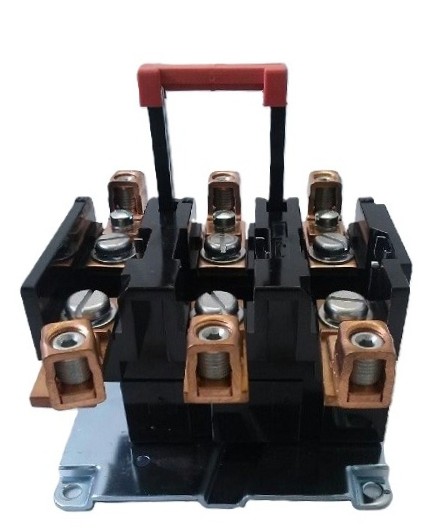

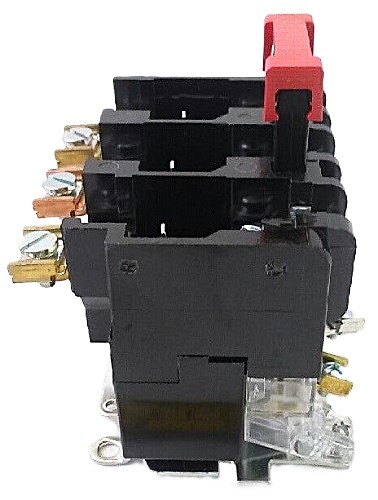

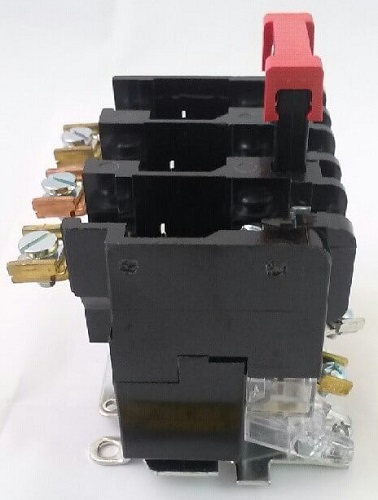

THERMAL OVERLOAD BLOCK - Requires a heater(s) sized for the load.  BACK TO TOP


AMPSPART NUMBERDESCRIPTIONPOLES

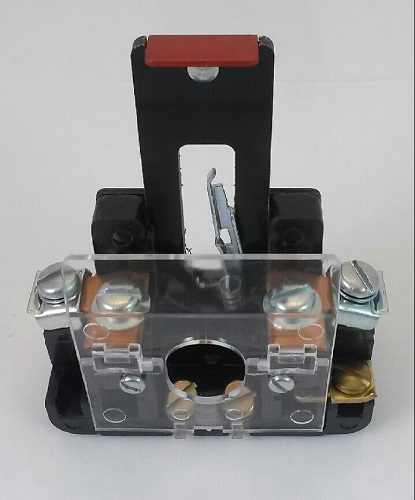

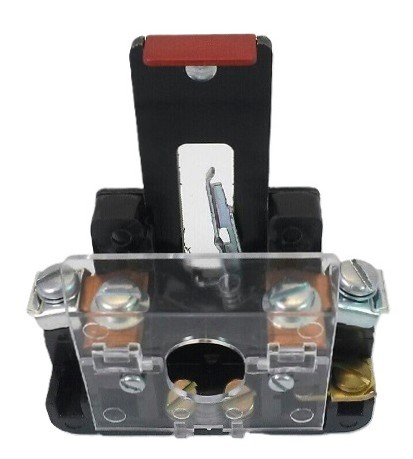

4509F024AOL RELAY 1P SZ1 SQD #9065-C011
User-added image



AMPSPART NUMBERDESCRIPTIONPOLES

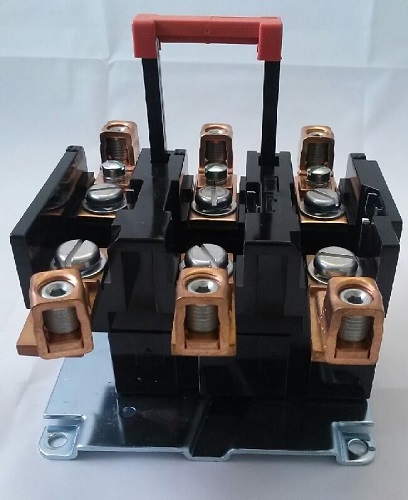

2609F025SAOL RELAY 3P SZ1 SQD #9065-SEO53
User-added image


AMPSPART NUMBERDESCRIPTIONPOLES
4509F0263SAOL RELAY 3P SZ2 SQD #REQ 28443
User-added image


AMPSPART NUMBERDESCRIPTIONPOLES

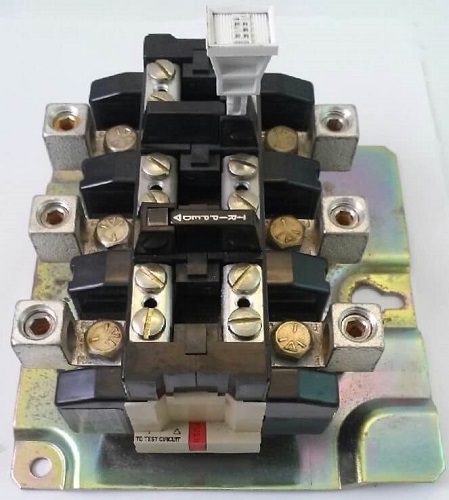

8609F0273SAOL RELAY 3P SZ3 SQD #REQ28123
User-added image



AMPSPART NUMBER DESCRIPTIONPOLES
10009F0273SOL RELAY 3P SZ3  AB #592-D0V163
User-added image
