Latch Relay Part Numbers
LATCH KEEP RELAY SINGLE COIL DOUBLE COIL

Latch relays, also called keep relays, are relays that maintain contact position after the control power has been removed.  They are set (ON) or reset (OFF) by the input of a pulse voltage.  Even after the input voltage is interrupted, the relay maintains its set or reset condition.  Latching relays allow a customer to control a circuit by simply providing a single pulse to the relay control circuit.

They are used in various applications throughout Milnor's product line.  Some examples include door seal inflation / deflation and error warnings that must be addressed.

Milnor has used two types of latch relays, single coil and double coil.  Single coil relays were used in older models.
The difference between the two latching relay types are:
Single Coil are set and reset when the polarity of the coil is changed.
Double Coil are set when a pulse is applied to the set coil and reset when a pulse is applied to the reset coil.

Each type has 24 volt, 120 volt, and 240 volt variation.

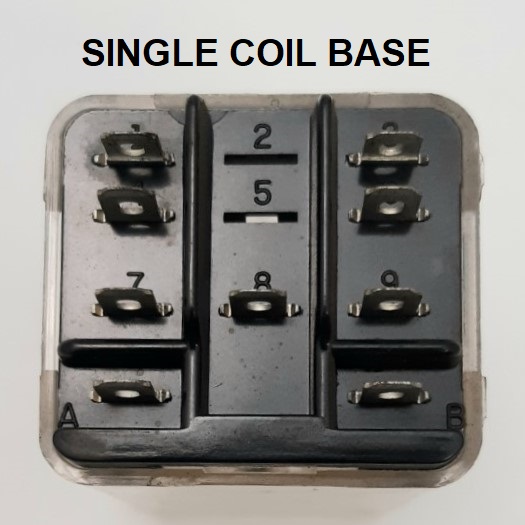

SINGLE COIL

User-added image

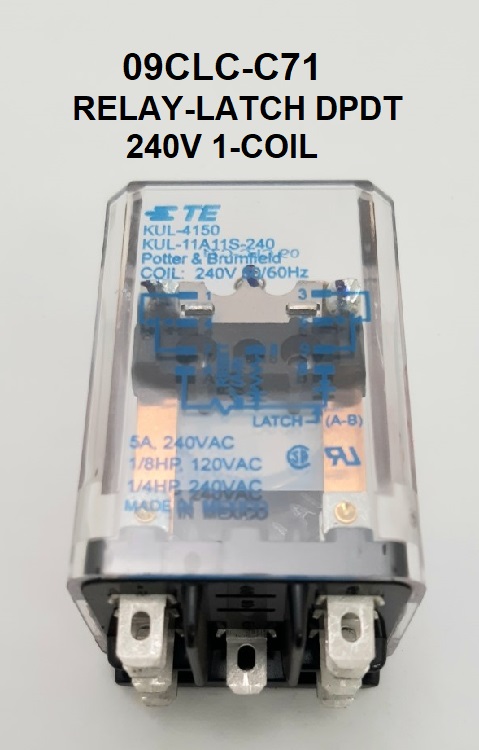

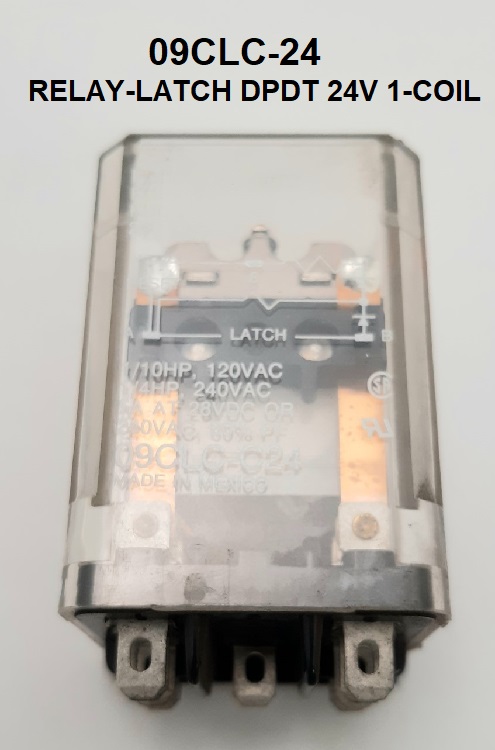

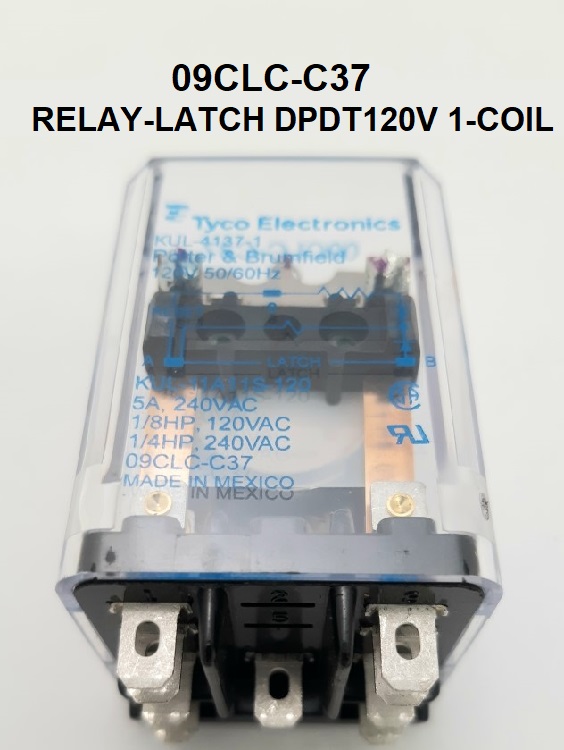

09CLC-24 / RELAY-LATCH DPDT 24V 1-COIL    09CLC37 / RELAY LATCH DPDT 120V 1 COIL            09CLC-C71 / RELAY-LATCH DPDT 240V 1-COIL
 User-added imageUser-added imageUser-added image




DOUBLE COIL

User-added image

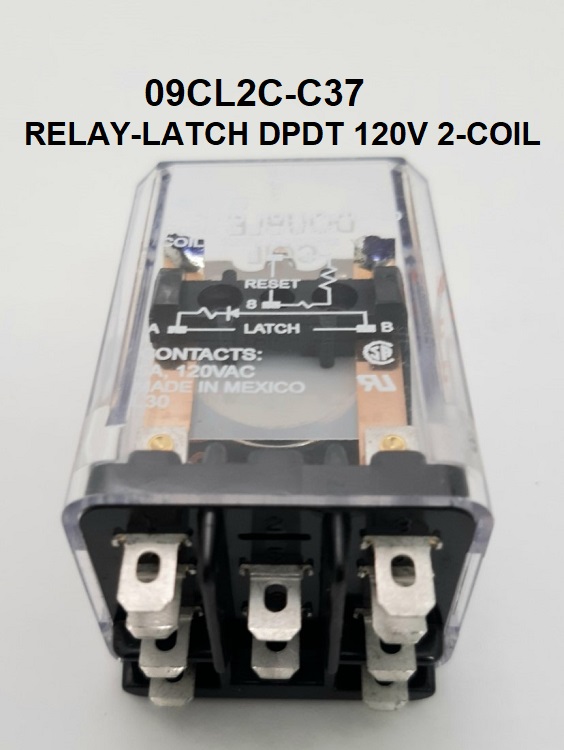

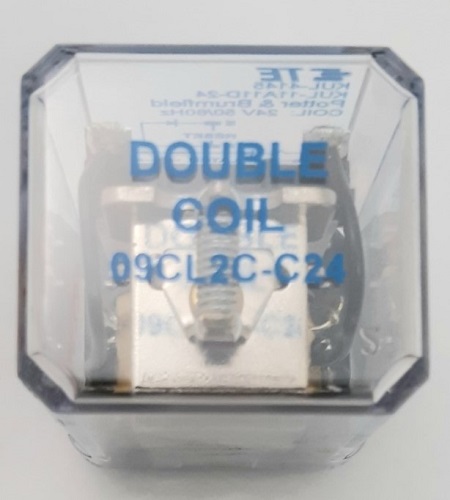

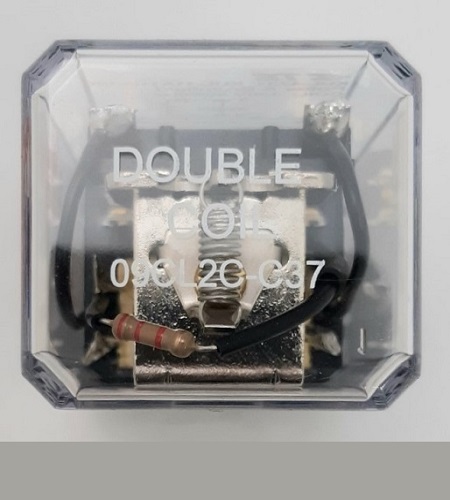

    09CL2C-C24 / RELAY-LATCH DPDT 24V 2-COIL          09CL2C-C37 / RELAY-LATCH DPDT 120V 2-COIL    09CL2C-C71 / RELAY-LATCH DPDT 240V 2-COIL
User-added image User-added image User-added image
User-added image User-added image User-added image
