Kit Instructions – Intra-module Seal – KTW INTSEL
This is the seal that will go between two sections of tunnel to prevent water from dripping on the chain.
Note: Another option would be the 6-Rib Intra-Module Seal

This intra-module seal was originally intended to connect to the bolt flange on the "female" or load end of the CBW section. An extra unit-to-unit transition
ring seal can be added. It is installed on the male portion of the CBW. The T-bolt clamp which is included in the kit will fasten the rubber seal on the male
portion of the CBW. This seal will overlap the seal attached to the bolt ring. The idea is to have an overlapping condition which would "contain" the lip of the seal which is connected to the bolt ring.

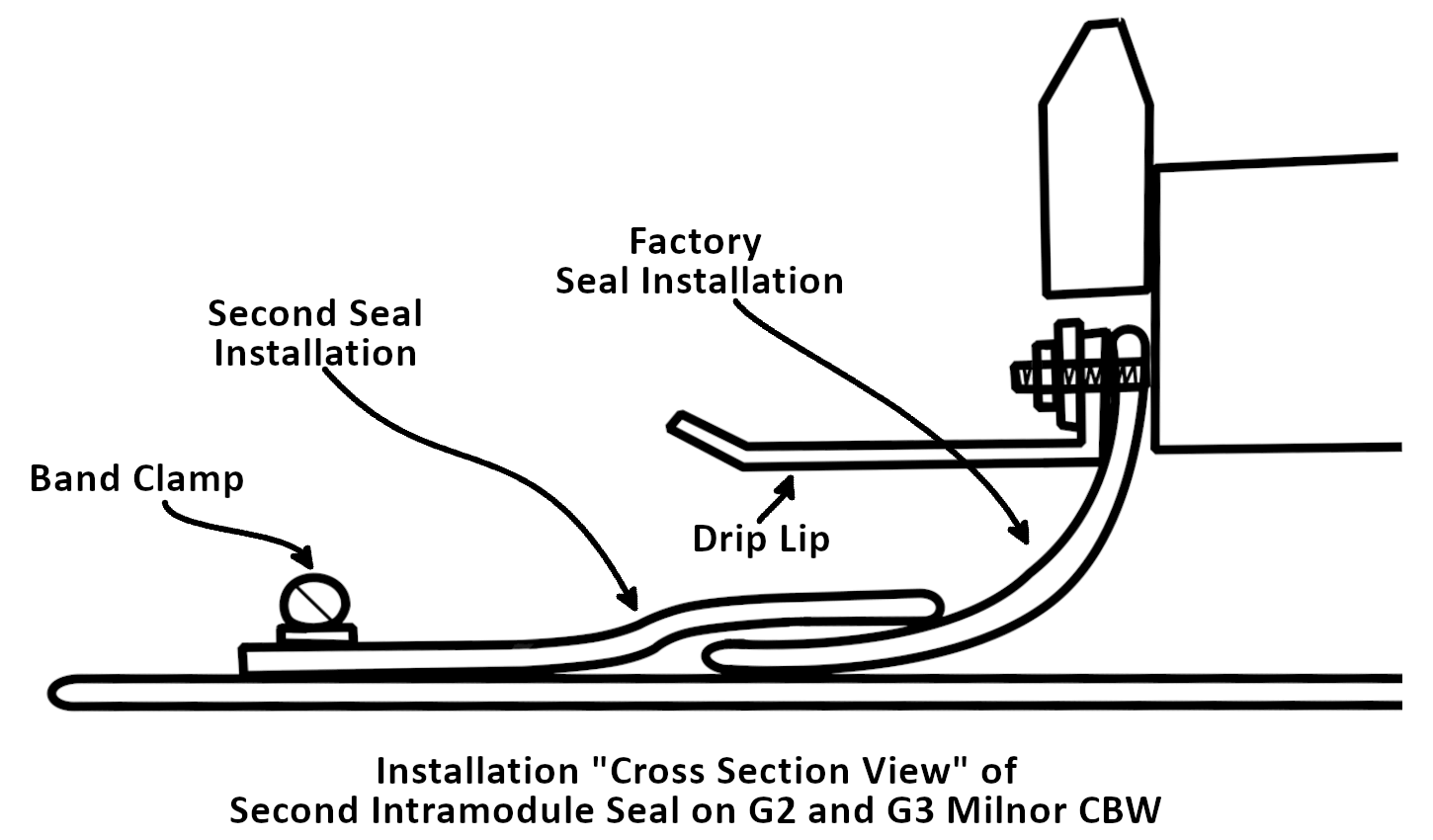

A cross-section picture is shown below:
Intra-module Seal Installation Diagram
