Hydraulic Valve Electrical Connector
What is the part number of the hydraulic valve electrical connector for a single stage press?
For a 24VDC coil, there are 2 options depending on the required length.

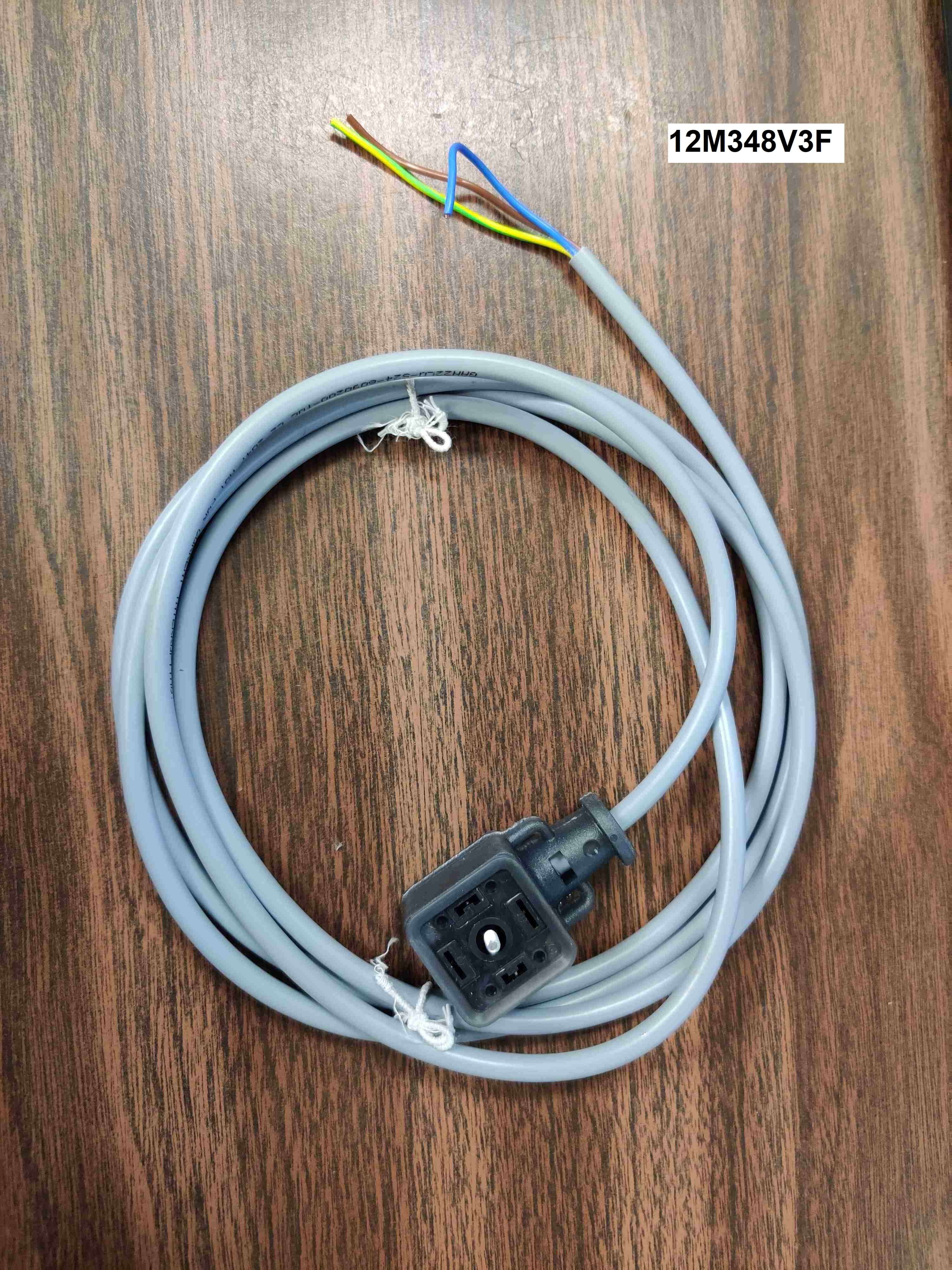

The part number for the connector with a 2 meter long cable is 12M348V3F

User-added imageUser-added image

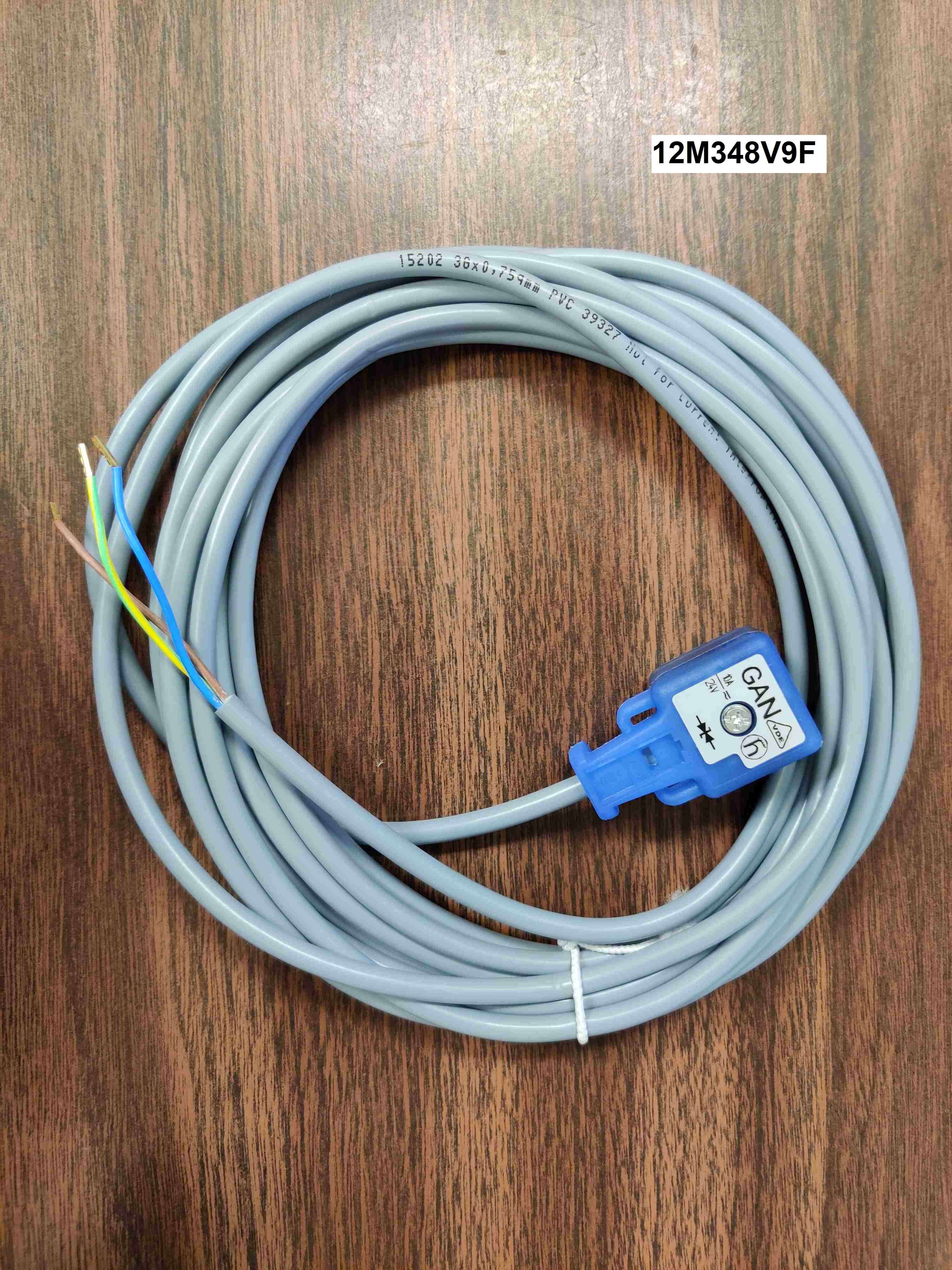

The part number for the connector with a 5 meter long cable is 12M348V9F


User-added imageUser-added image



For a 115VAC coil, there are 2 options depending on the required length.

The part number for the connector with a 4 foot long cable is 12M3240V3F.

User-added imageUser-added image

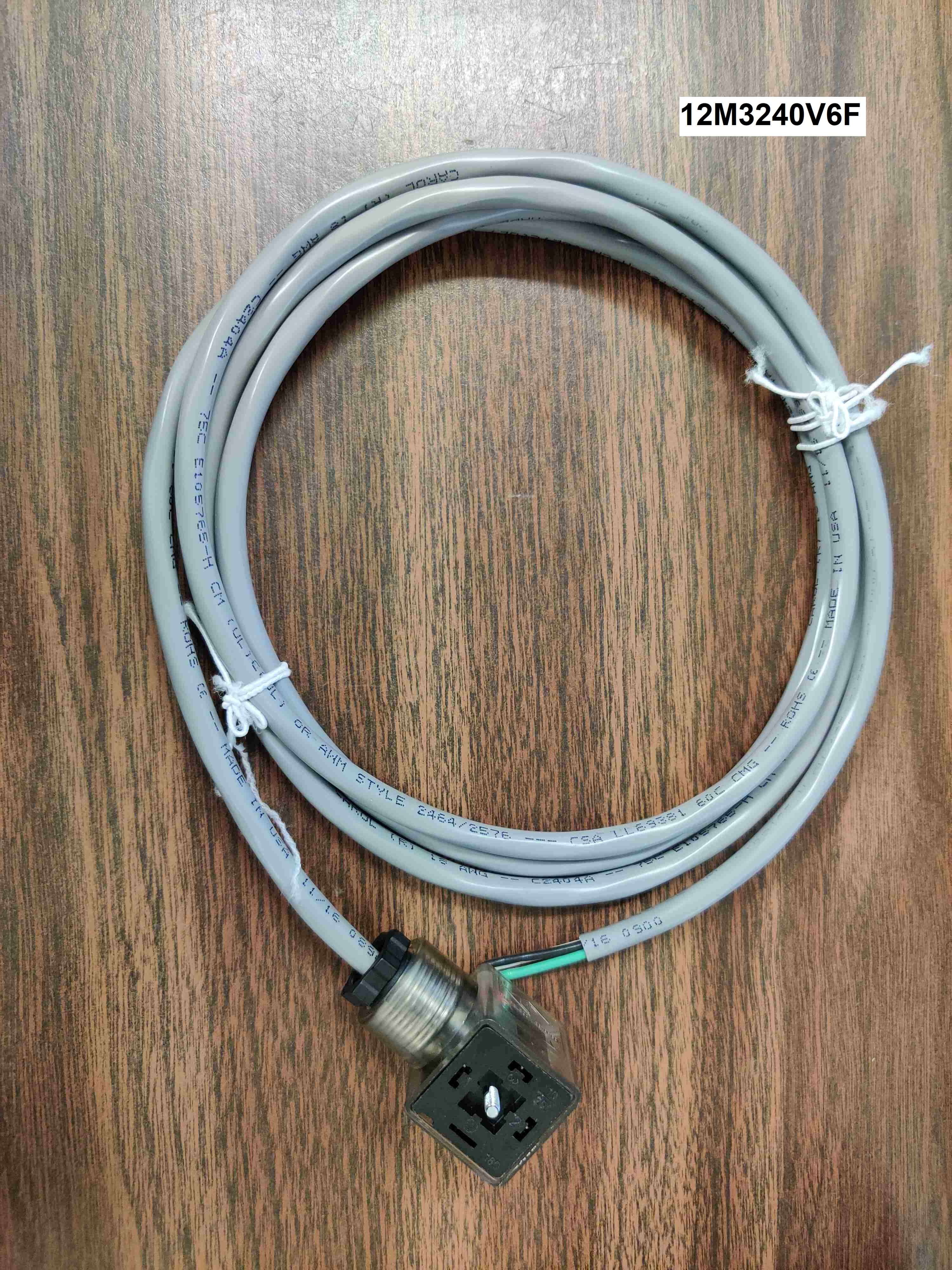

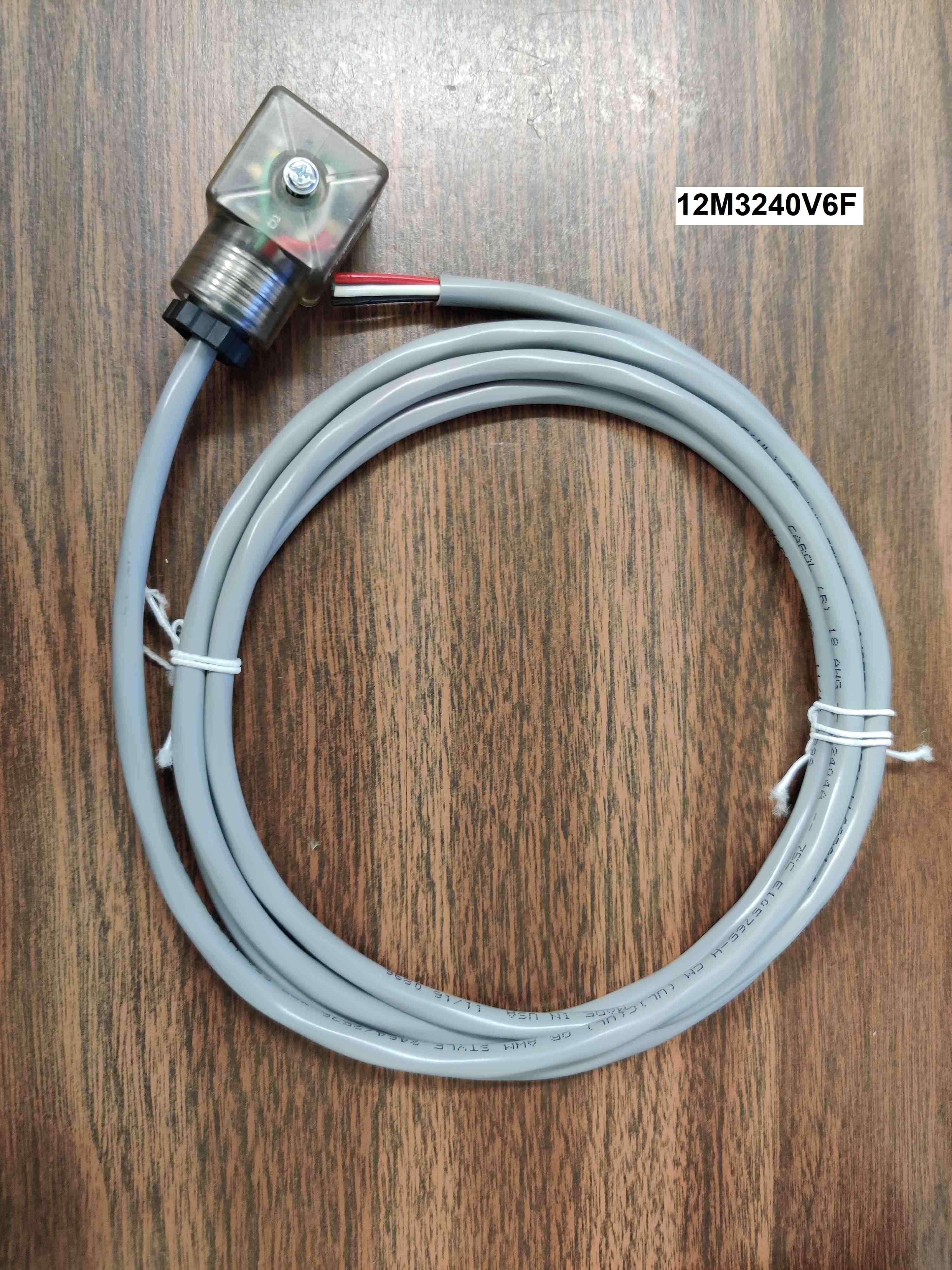

The part number for the connector with a 6 foot long cable is 12M3240V6F.

User-added imageUser-added image
