How do I wire a Banner PhotoEye?
Banner PhotoEye wiring.

DC Models:

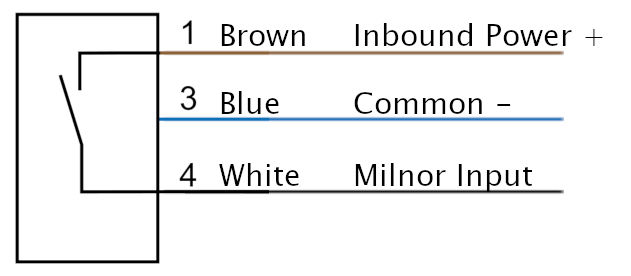

SM912LV (09RPE011)  10 - 30 VDC photo eyes:
Brown is + DC voltage
Blue is the common wire
White is the sinking output (This is wired to the input on the Milnor board to "make" the input).
VALU-BEAM SM912LV Wiring


AC Models:

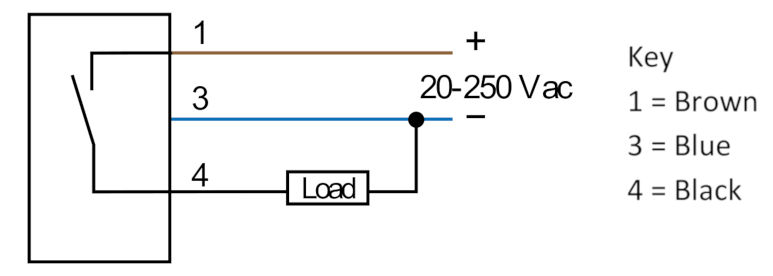

Q40RW3LP (09RPE004) - 3 Wire 20-250V AC
Brown is inbound power
Blue is the common
Black is outbound power to the load (relay or etc)

Q40RW3LP
Banner SM2A-912

Only 2 wires are available and the load is in series with the Photo eye and the power source.
