The Milnor CBW uses chain to connect the cylinder to the drive system. These chains need to be lubricated.
Error "Oil Level Low" on a CBW
This error occurs when the amount of chain lubricant in the reservoir falls below a low-level set point. When this error occurs, add Milnor Chain Lubricant immediately, part number 20H000A.
Chains fail due to wear!
Most chains fail due to a lubrication failure, not a load issue. And, despite popular belief, chains do not stretch! chains get longer due to wear between the pin and the bushing. The anatomy of a roller chain will show that the pin to bushing and bushing to roller is where the wear occurs and mostly due to a lack of lubrication.
Get great chain lube!

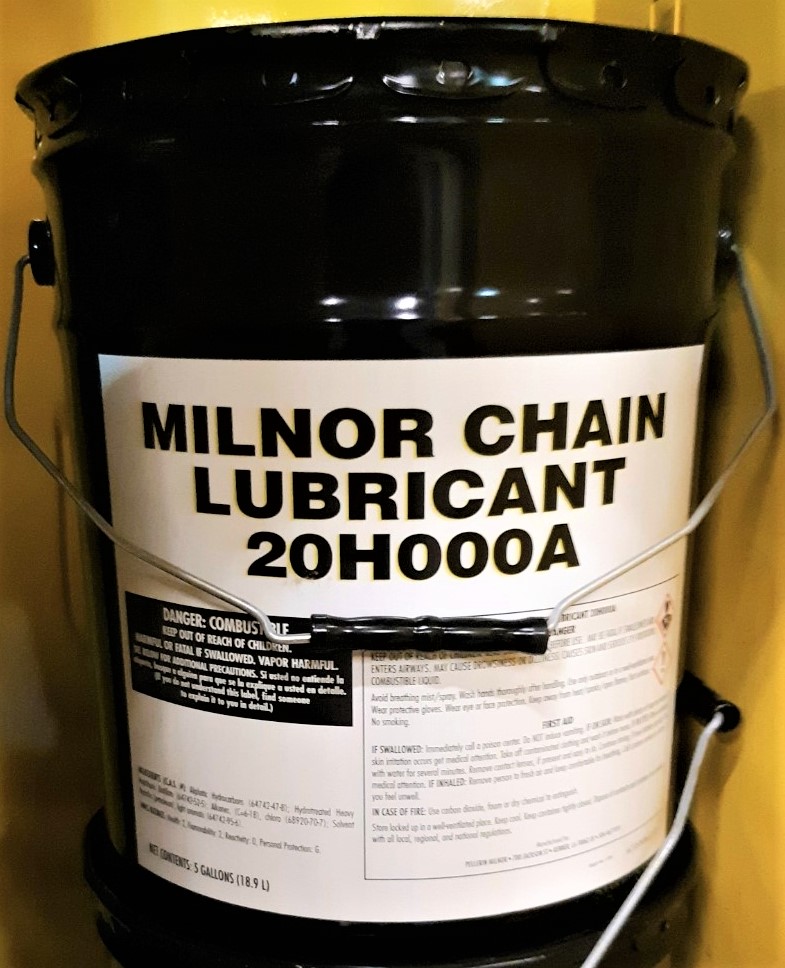

Milnor uses a chain lubricant that has a viscosity similar to mineral spirits. This allows for great atomization and flow to the right areas of the chain. It is not oil; it is a lubricant. Customers also apply this elsewhere around the laundry with rave results. The lubricant part number is 20H000A for a 5 gallon bucket.
Chain Anatomy

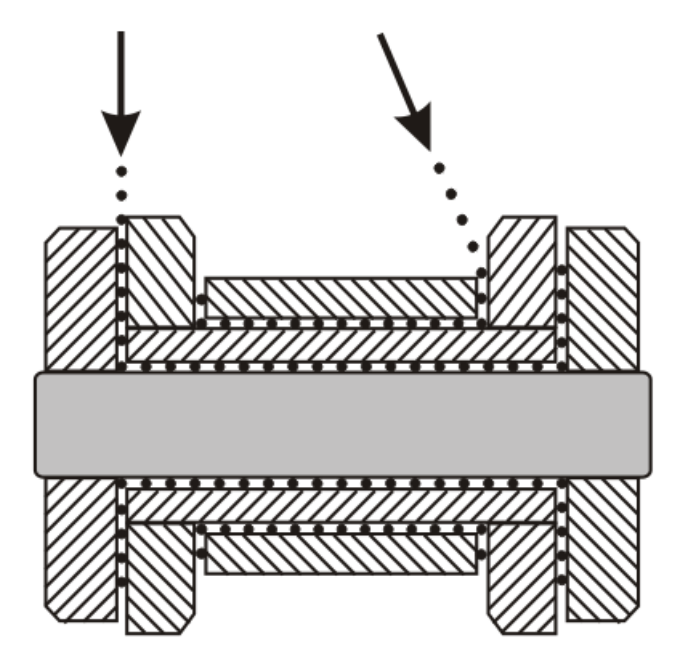

The inside link of the chain is swaged to the bushing. So, no lube can get to the pin from the outside of the bushing. You must get the lube into the side plate to bushing gap.
Fix the leaks!
In addition, any water leaking onto the chain is BAD! Remember that the wash bat has detergent which washes off lubricants. So, prevent leaks by maintaining the inter-module seals.
Point the nozzles properly!

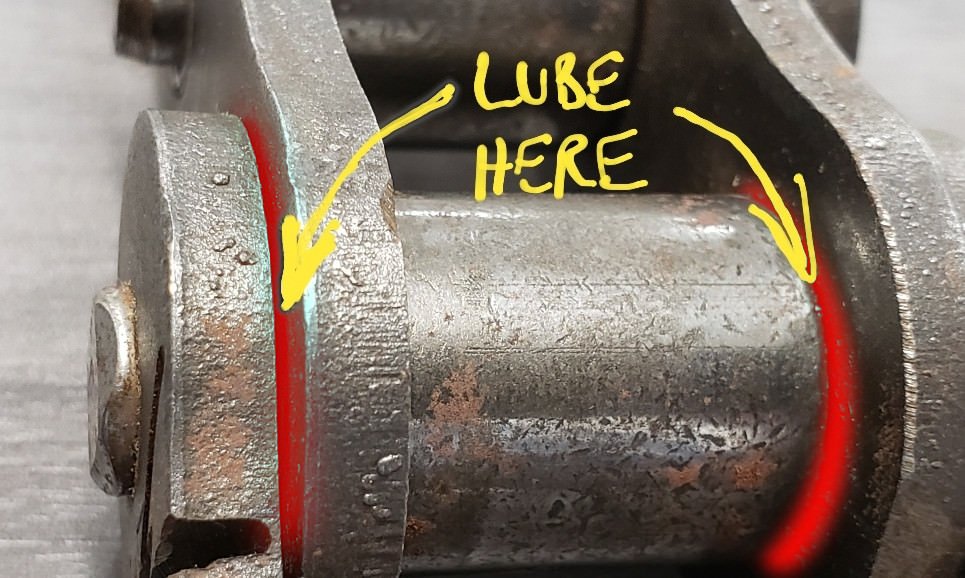

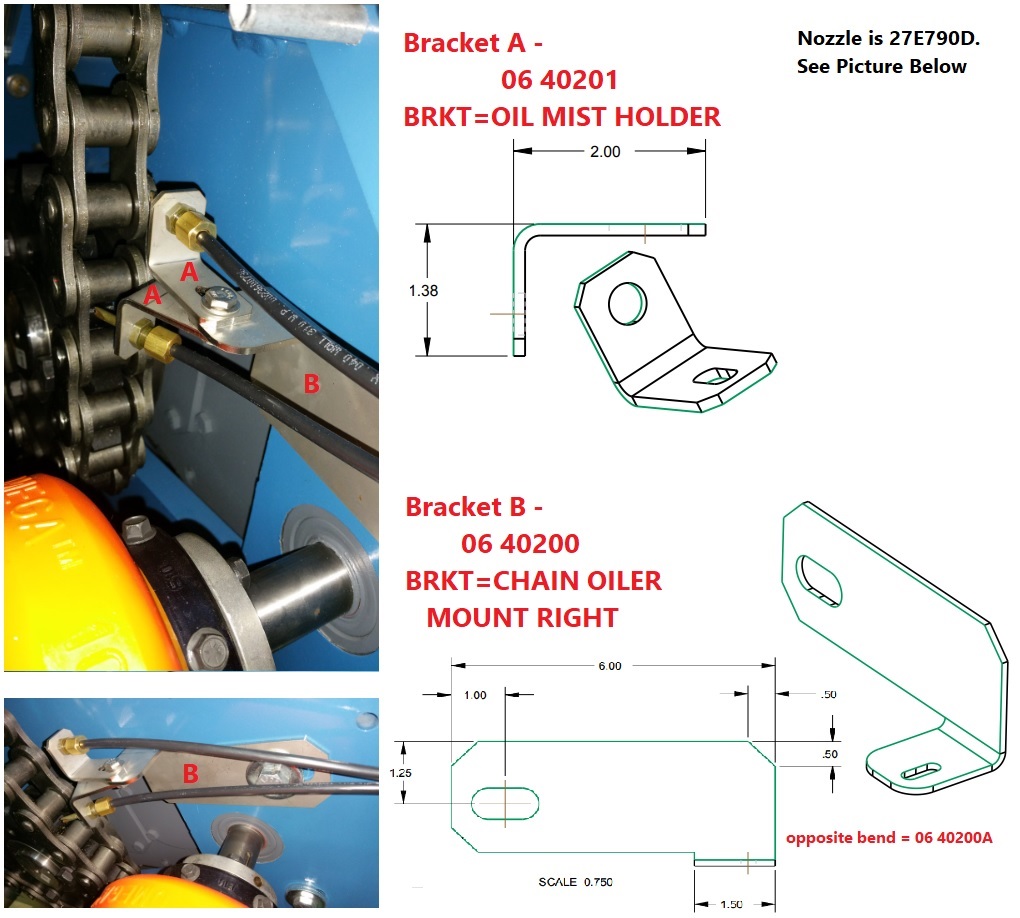

The oiler nozzles must be pointed at these points below marked LUBE.
Older machines had nozzles on the large sprocket. Newer models move the nozzle to the small sprocket so the perfect alignment can be accomplished. At the large sprocket, cylinder runout prevents perfect nozzle alignment.
Set Pressure properly!
When oiling 2 chains, pressure should be set to 40PSI. When oiling 4 chains, pressure should be set to 50PSI. This is necessary for proper dispersal of the oil to each chain.
Pin Wear

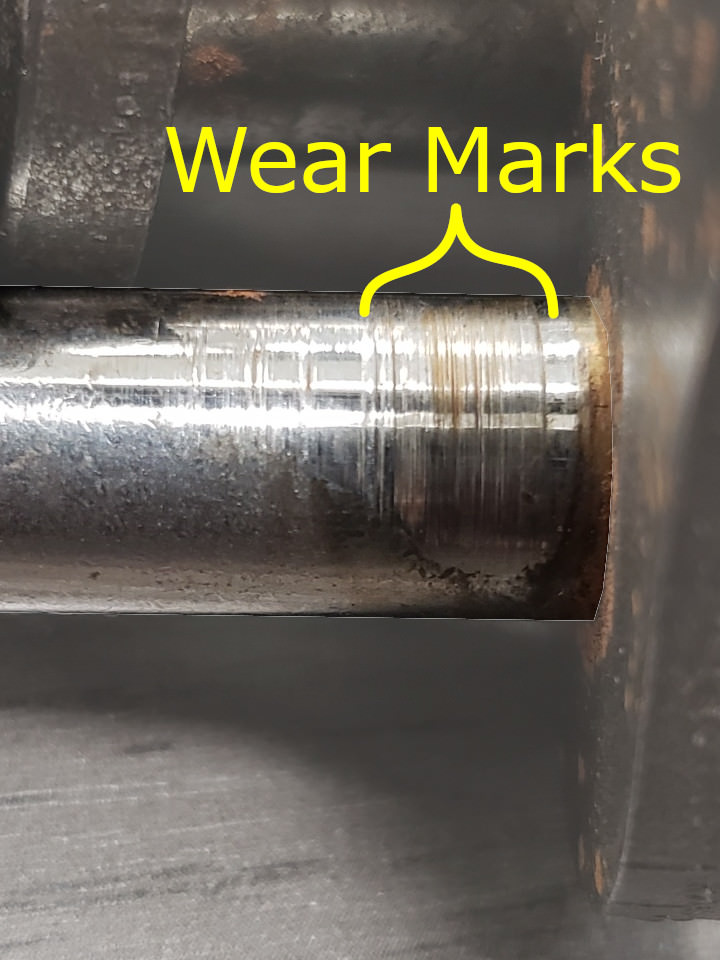

This is caused by a lubrication problem at the pin to bushing.
Swaged Bushing

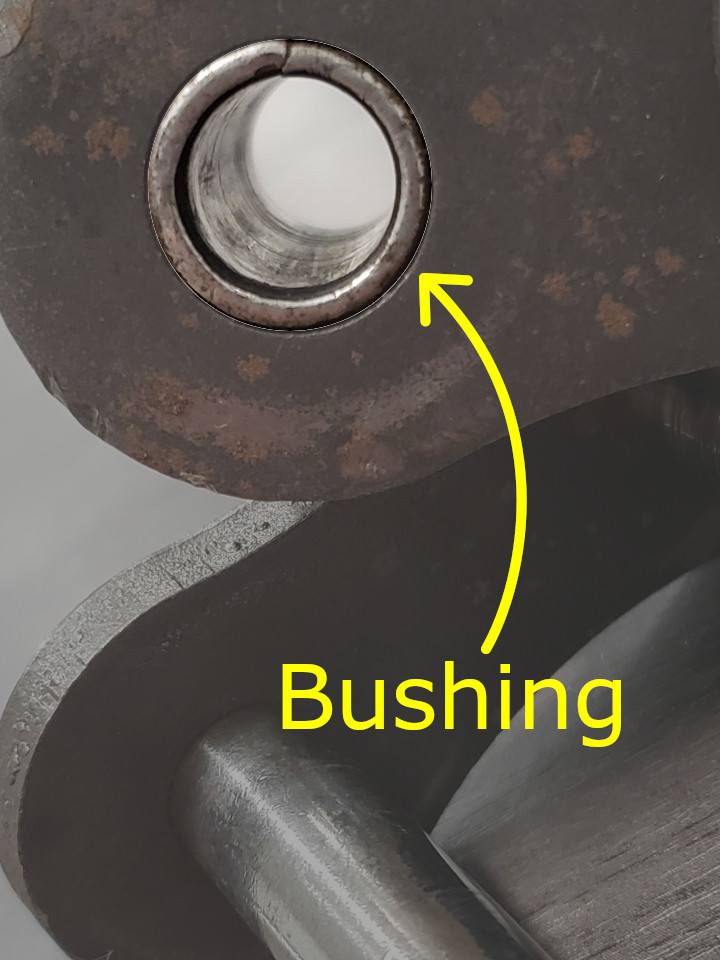

Note that the bushing is solid and swaged into the link. So the only way to get lubrication to it is between the side plates and onto the pin.
Lubrication points
Point lubrication nozzles at the areas indicated below.
Latest oiler nozzle location near lower sprocket

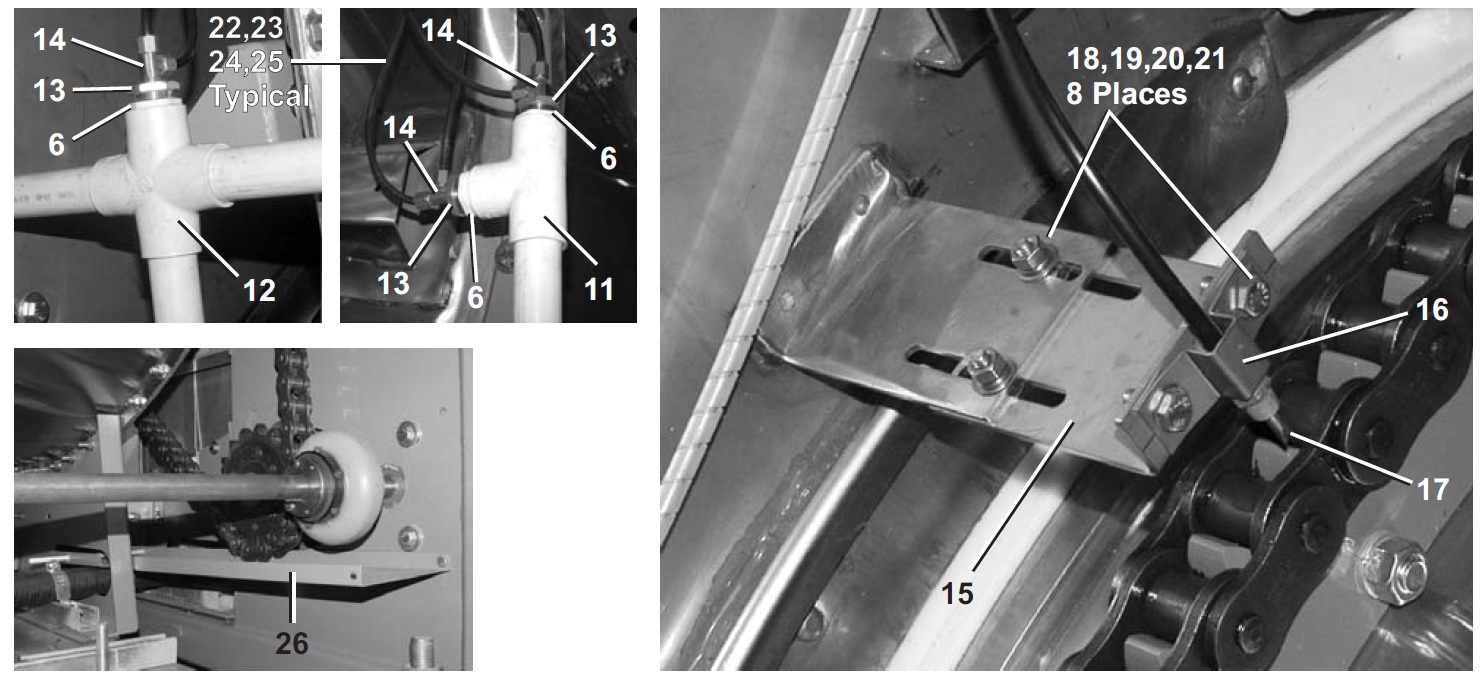

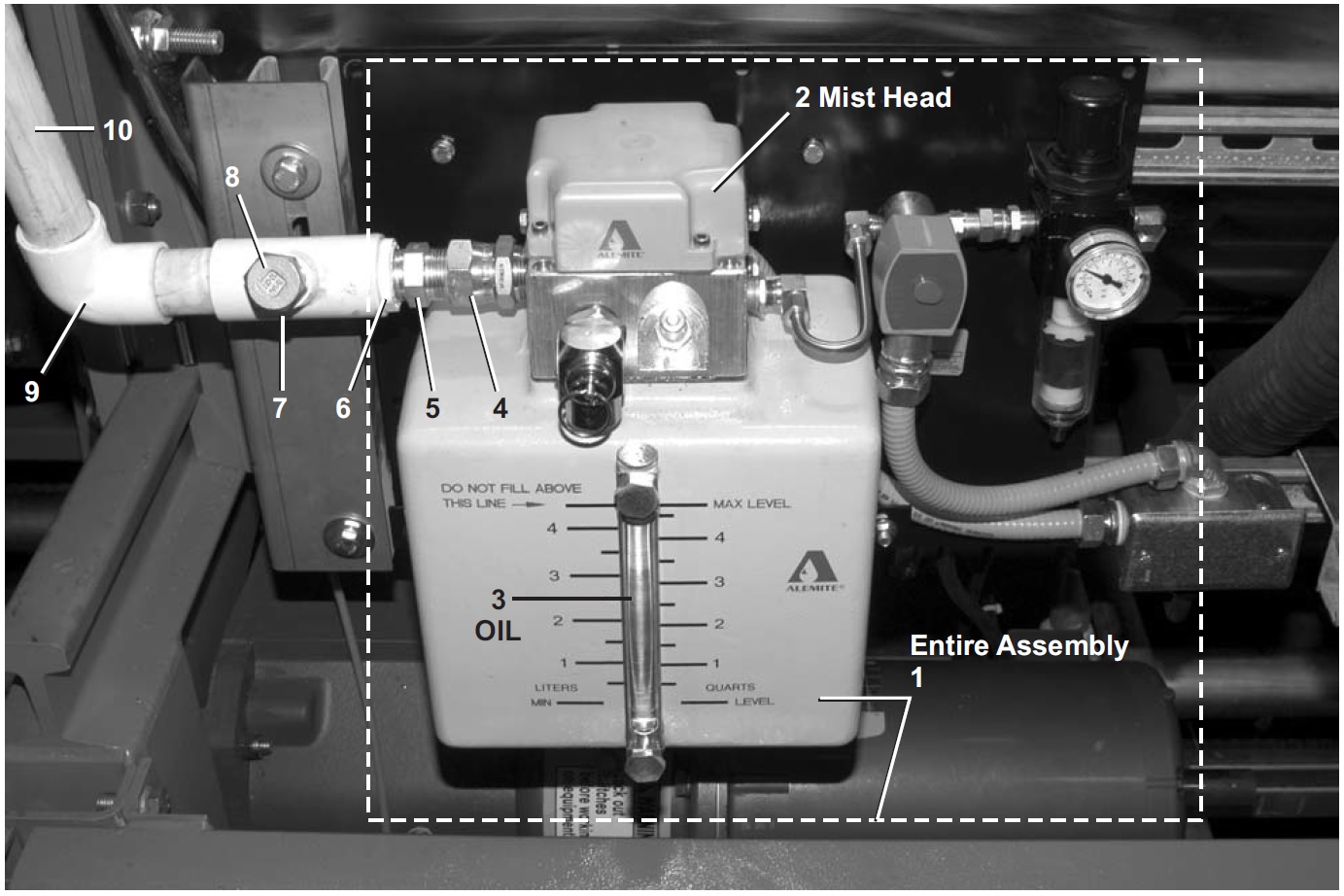

A67CL001 Oiler Resv G3
DIAGRAM
NUMBER | PART NUMBER | DESCRIPTION | | DAIGRAM
NUMBER | PART NUMBER | DESCRIPTION |
|---|
| 1 | 27E790E | ALEMITE OILMIST SYSTEM | | 14 | 53A043S | TEE=TUBEXMPXTUBE 1/4"#B71A-4B |
|---|
| 2 | 27E790F | REPAIR PART-ALEMITE MIST HEAD | | 15 | 06 40199 | 7626 BRKT OILER BRUSH |
|---|
| 3 | 20H000A | MILNOR CHAIN LUBRICANT | | 16 | 06 20187 | BRKT BRUSH HOLDER OILER 1/MD |
|---|
| 4 | 52ZC0PS004 | TUBEFITMALESW 3/4"#1404-12-12 | | 17 | 27E790D | SPRAYFITT=ALEMITE |
|---|
| 5 | 52ZC0PS003 | TUBEFITMALECON 3/4"#2404-12-12 | | 18 | 15K039 | HXCAPSCR 1/4-20UNC2AX3/4 GR5 Z |
|---|
| 6 | 5KC1AP4D0P | SOKADAPTER 1"SX3/4"FPT PVC S40 | | 19 | 15G165 | HXNUT 1/4-20UNC2BSAE ZC GR2 |
|---|
| 7 | 5K1AP4A0K | TEE 1"SX1"SX1/2"FP PVC S40 | | 20 | 15U180 | LOCKWASHER MEDIUM 1/4 ZINCPL |
|---|
| 8 | 5SP0KDEHK | NPT PLUG 1/2 HXCTRSNK GALSTL | | 21 | 15U185 | FLATWASHER(USS STD) 1/4" ZNC P |
|---|
| 9 | 5KL1AP4A | SOK ELBOW 90DEG 1" PVC SCH40 | | 22 | 53A509 | TUBE INSERT 5/16"OD X .53"LG. |
|---|
| 10 | 5P1AP4EN | 1" PIPE PVC SK40 20RML | | 23 | 53A059 | SLEEVE 1/4"BRASS PH#60C-4 |
|---|
| 11 | 5K1AP8A | SOKTEE 1" PVC SCH40 | | 24 | 53A059A | NUT 1/4"BR.HOLYOKE AND #61A-4 |
|---|
| 12 | 5KX1AP4 | SOK CROSS 1" PVC SK40 | | 25 | 60E004TE | 1/4"OD X.170"ID NYL(BLK)TUBING |
|---|
| 13 | 5SB0P0CNFA | NPTHEXBUSH 3/4X1/8GALV150#CORD | | 26 | 06 40193C | 7639G3 CONN OIL CATCH SID |
|---|
Low Oil Level in CBW® with Alemite Lubrication Mist System and Component Part Information
There is a low level switch in the oil distribution system on a CBW®. This switch makes an input to the CBW® Controller. If made the CBW® will not transfer. Fill the system with Milnor® Chain Lubricant.
There is a breakdown of the parts that make up this oiler from Alemite in the attached Service Guide and this part can be purchased.
| Part Number | Description | Part Picture |
|---|
| 20H000A | Milnor® Chain Lubricant
(5 gallons) |  |

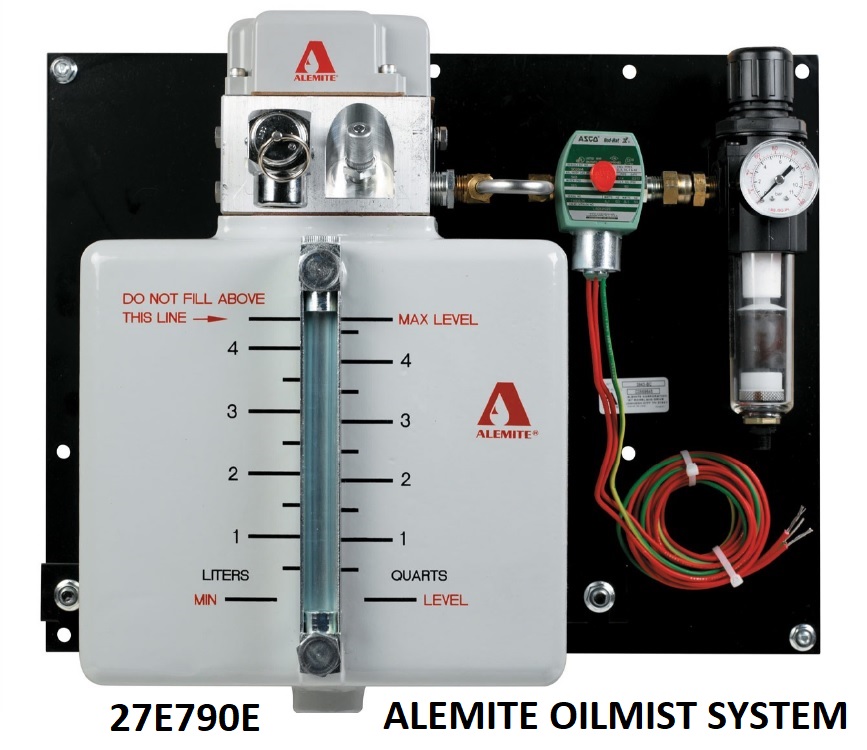

| 27E790E | Alemite® OilMist System |  |

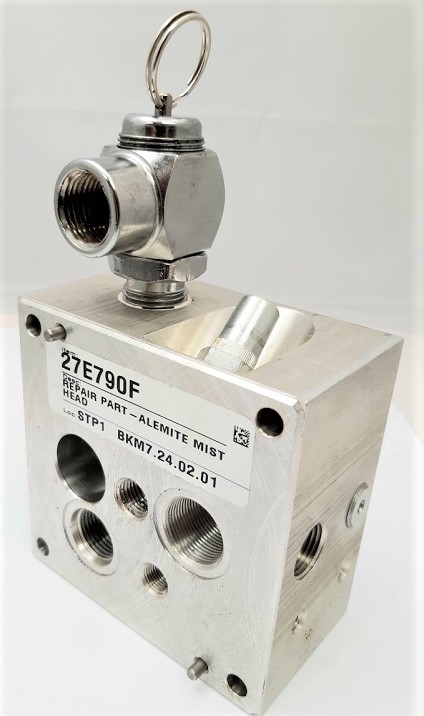

| 27E790F | Mist Head |  |

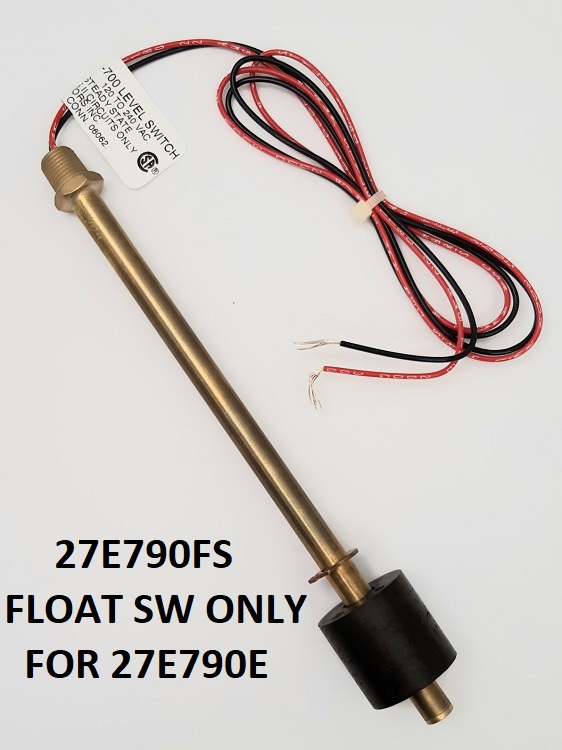

| 27E790FS | Float Switch
(for oil level) |  |

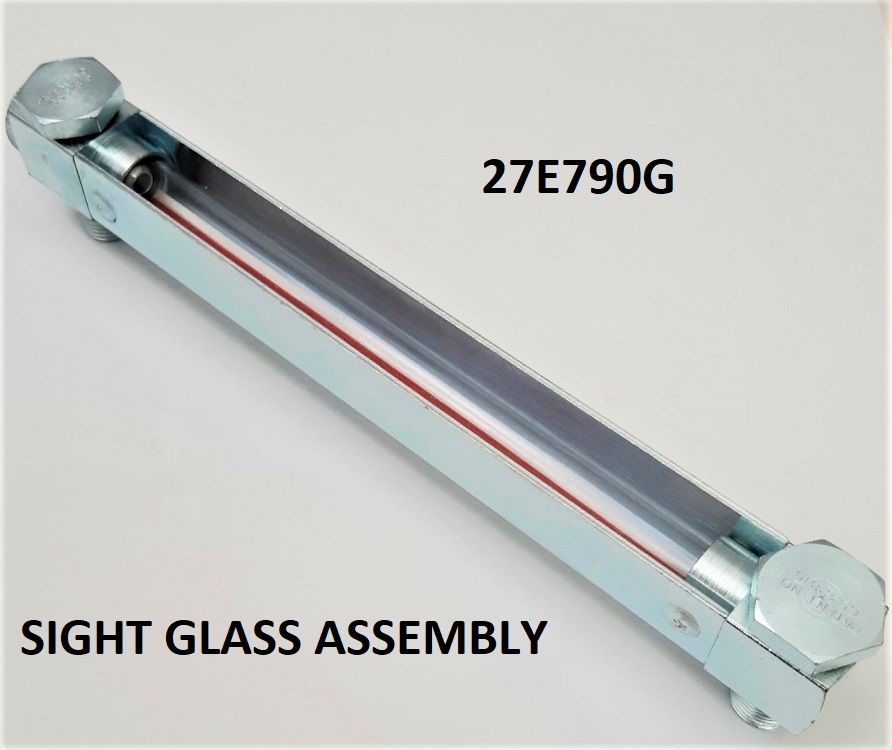

| 27E790G | Sight Glass Assembly |  |

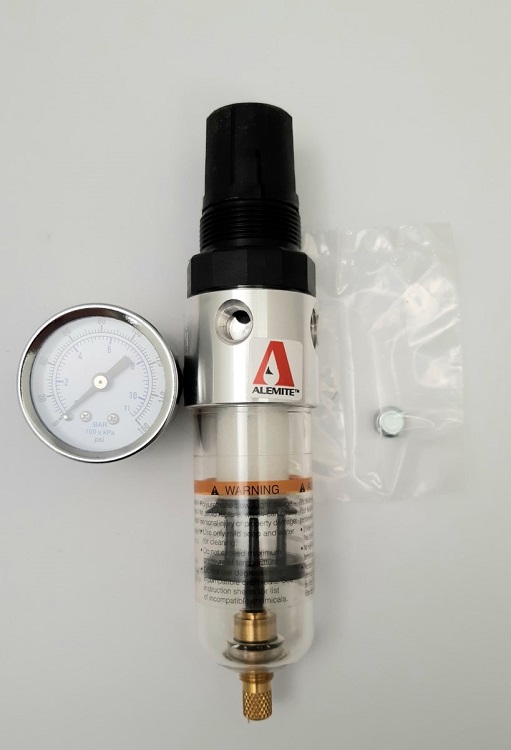

| 27E790RF | Regulator/Filter |  |

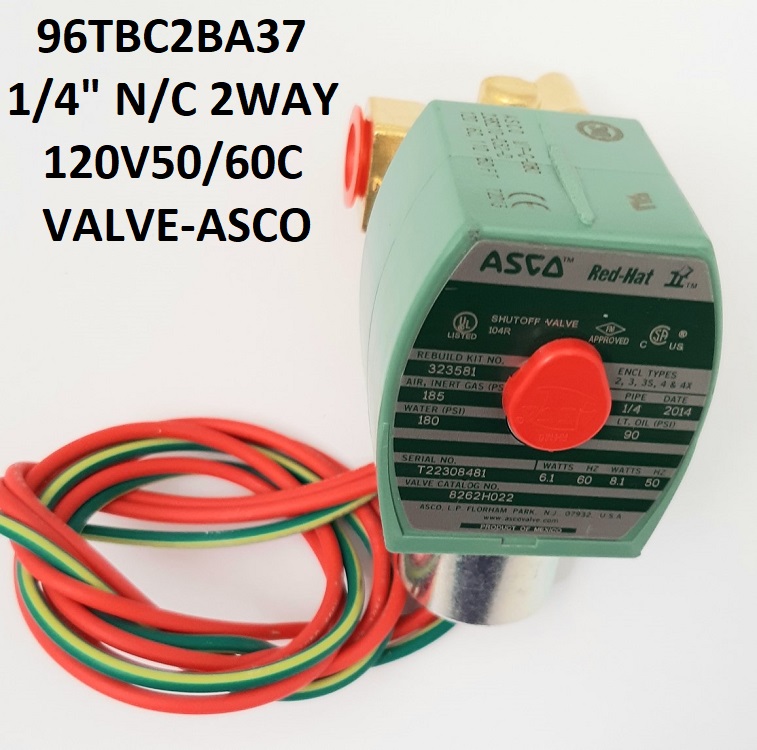

| 96TBC2BA37 | 1/4" NC 2WAY 120V |  |

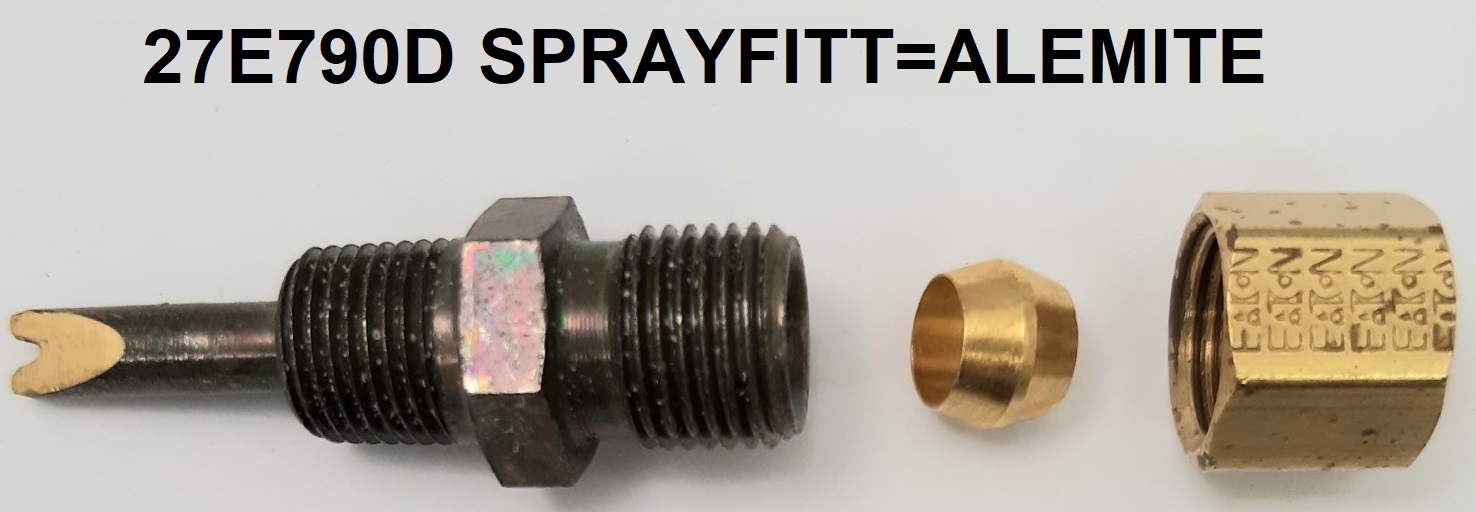

| 27E790D | SPRAYFITT=ALEMITE |  |

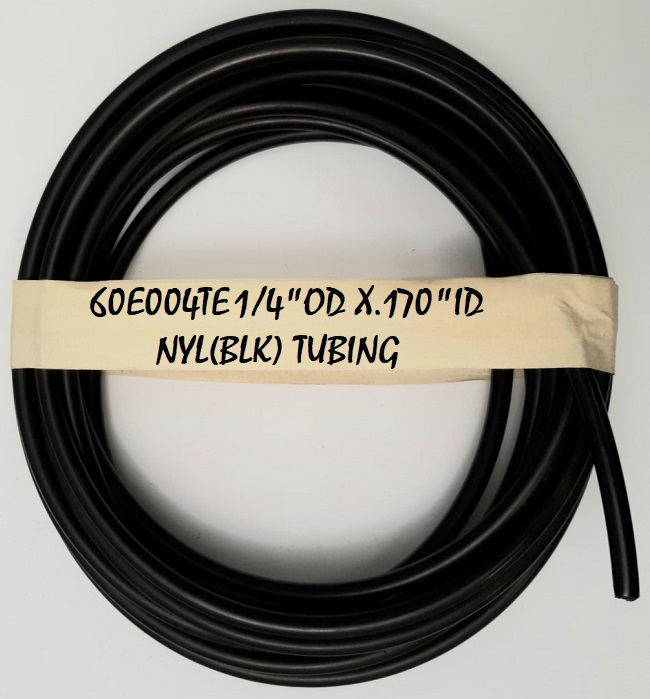

| 60E004TE | 1/4"OD X.170"ID NYL(BLK)TUBING |  |
