How do I install my new IC chip / EPROM?
This article walks through aligning the IC chip properly.

Procedure:

  1. Remove the IC chip from the socket using a IC chip extractor or lifter.
  2. Align the new IC chip with the socket. (See note below)
  3. Press the IC chip into the socket.

Note:

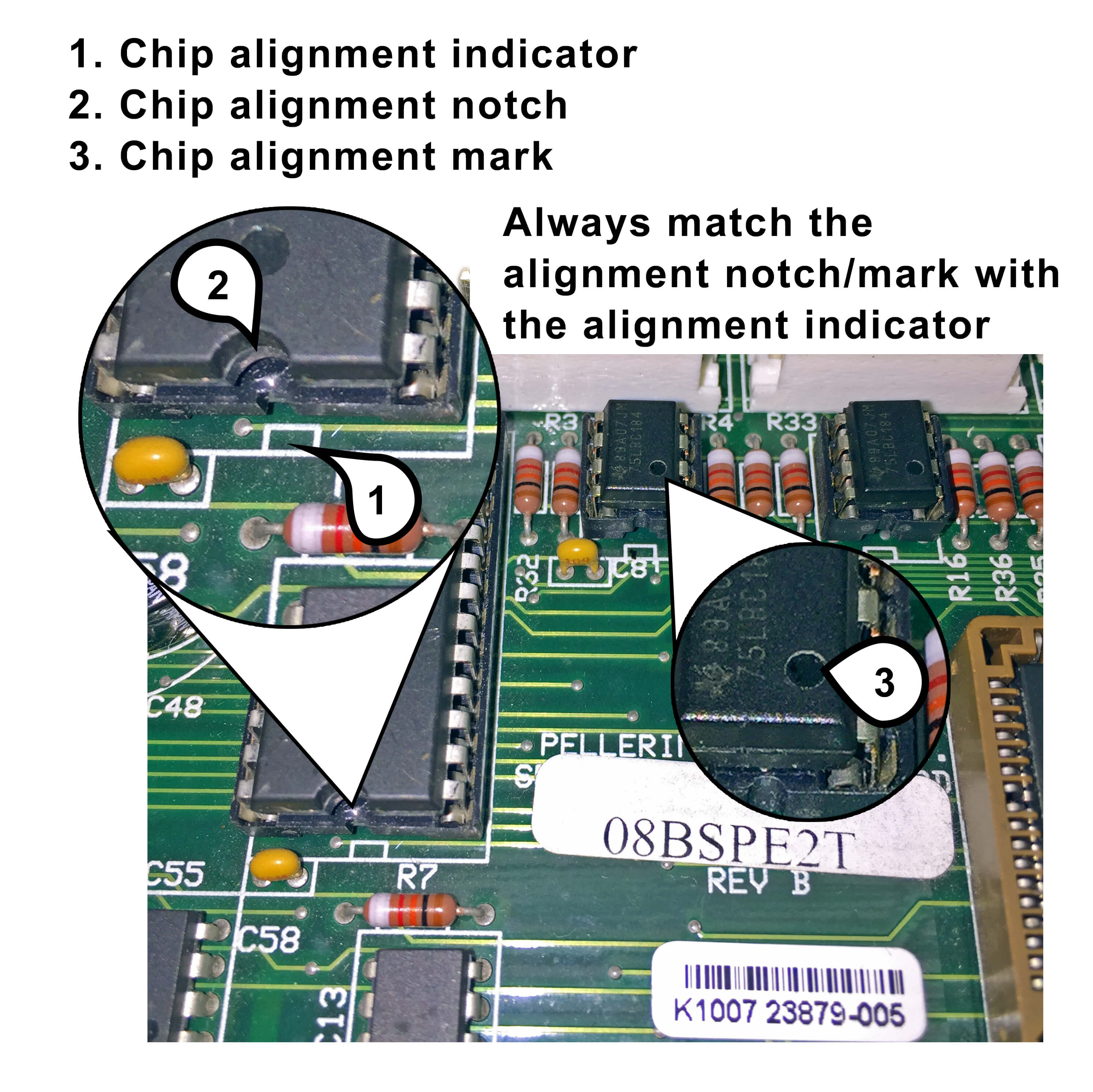

The IC chip must be installed in the proper direction. The board has an alignment indicator marked on the board. The IC chip will have either an alignment notch or mark. Always match the alignment indicator with the notch or the mark depending on the chip being used.
