Overview
Gear reducers convert the higher motor RPM to a slower drive RPM that has a higher torque. Before inverters became widely used, many washer/extractors utilized gear reducers with and air clutch to engage the drive system. Today, gear reducers are typically found on tunnel and conveyor drive systems.
Below is a list of gear reducers with their corresponding air clutch and rotary air seal kit. The parts are organized by machine model number. Any notes specific to model numbers will be written beneath the table of part numbers.

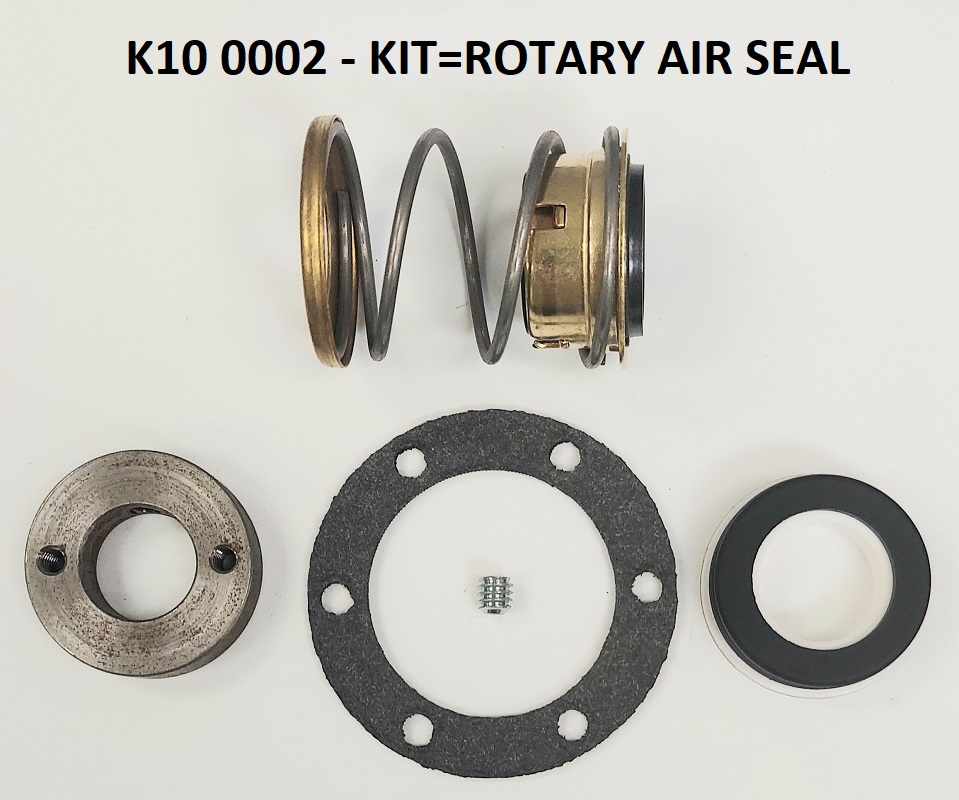

There is only one rotary air seal, and two air clutch assemblies. These are noted in the tables, and pictured below.
For CBW Drive Gear Reducers, click HERE
Gear Reducers for Washer/Extractors
36021BWE / 36021BWP / 36021C4E / 36021CME / 36021CPE / 36021F8P / 36021NSE / 36021NSP / 36021Q6J / 36021RWE / 36021RWP
36026Q6G / 36026Q6J / 36026Q6P / 36026QWE / 36026SWE
42026FV7 / 42026J5A / 42026RWE / 42026RWP
48032BTN / 48032BHP
48036J6P / 48036J6N / 48036D6N / 48036QTL / 48036QTN / 48036QHP
| GEAR REDUCER | ROTARY AIR SEAL KIT | AIR CLUTCH | ADDITIONAL INFO | |
|---|
| 54S014PK | K10 0002 | PK14 0001 | Customer may also want to purchase

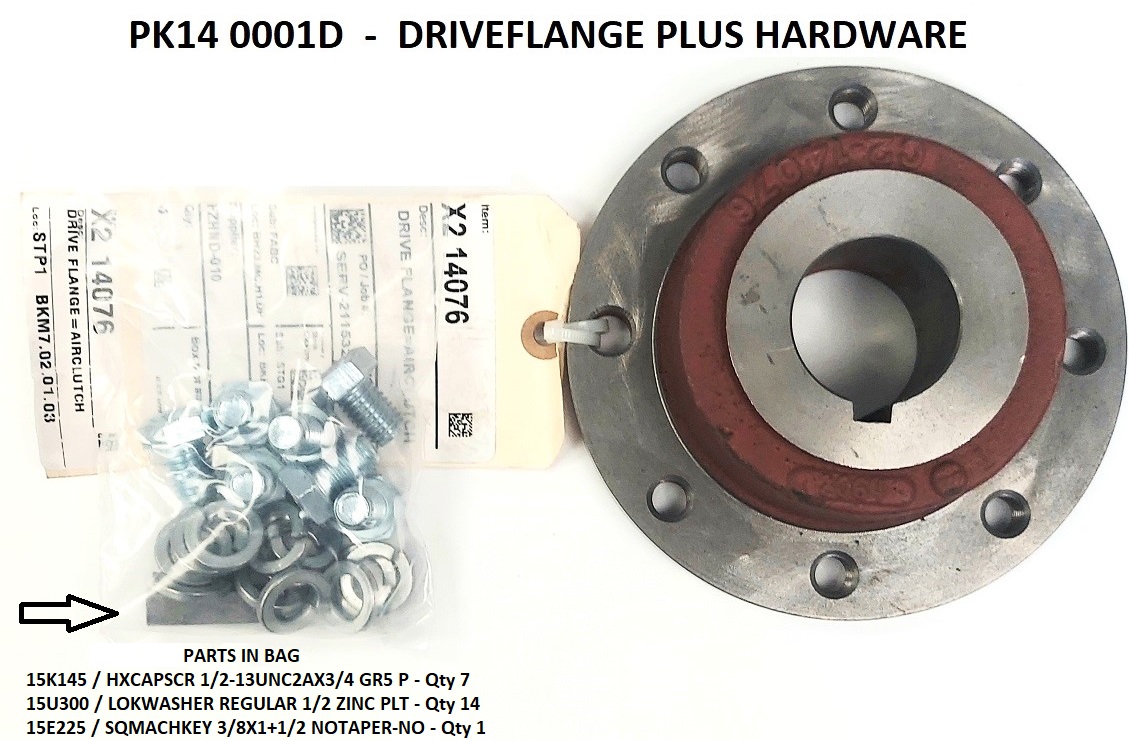

Drive Flange + Hardware
part number PK14 0001D |  |
42026Q4G / 42026Q4J / 42026Q4P / 42026Q6G / 42026Q6J / 42026Q6P / 42026QHE / 42026QHP / 42026QTG / 42026QTH / 42026QTL / 42026QTN / 42026QWE / 42026QWP
| GEAR REDUCER | ROTARY AIR SEAL KIT | AIR CLUTCH | ADDITIONAL INFO |
|---|
54S014PK
see notes below table | K10 0002 | PK14 0001 | May need Gear Reducer 54S015 |
In the late 80's many customers substituted the original gear reducer 54S014PK for gear reducer 54S015 on the 42026Q** machines.
If the customer's machine was retrofited to the 54S015 they will have to purchase 54S015.
42026D5A / 42026D5P / 42026DP1 / 42026DYA / 42026DYP / 42026DYT
| GEAR REDUCER | ROTARY AIR SEAL KIT | AIR CLUTCH | ADDITIONAL INFO |
|---|
| 54S015 | K10 0002 | PK14 0001 | |
42031CP2 / 42031CP3 / 42031DA2 / 42031DA3 / 42031DP2 / 42031DP3 / 42031NP2 / 42031NP3 / 42031SG2 / 42031SG3 / 42031SP2 / 42031SP3 / 42031WE3 / 42031WP2 / 42031WP3
42044CM2 / 42044CM3 / 42044CP2 / 42044CP3 / 42044D2A / 42044D2P / 42044D3A / 42044D3P / 42044D72 / 42044DA2 / 42044DA2 / 42044DA3 / 42044DP2 / 42044DP3 / 42044DYA / 42044MN2 / 42044NP2 / 42044NP3 / 42044NS2 / 42044NS3 / 42044SG2 / 42044SG3 / 42044SP2 / 42044SP3 / 42044WE2 / 42044WE3 / 42044WP2 / 42044WP3
52038DA1 / 52038DAL / 52038DAN / 52038DYA / 52038DYS / 52038LWH / 52038LWN / 52038WE1 / 52038WP1 / 52038WTB / 52038WTF / 52038WTG / 52038WTH / 52038WTL / 52038WTN
| GEAR REDUCER | ROTARY AIR SEAL KIT | AIR CLUTCH | ADDITIONAL INFO |
|---|
54S022A
see notes and pictures below | K10 0002 | K15 0002 | May need Air clutch PK14 0001 |
Some 42044S** were manufactured with air clutch part number PK14 0001. Check the inside of the wheel to check the size.

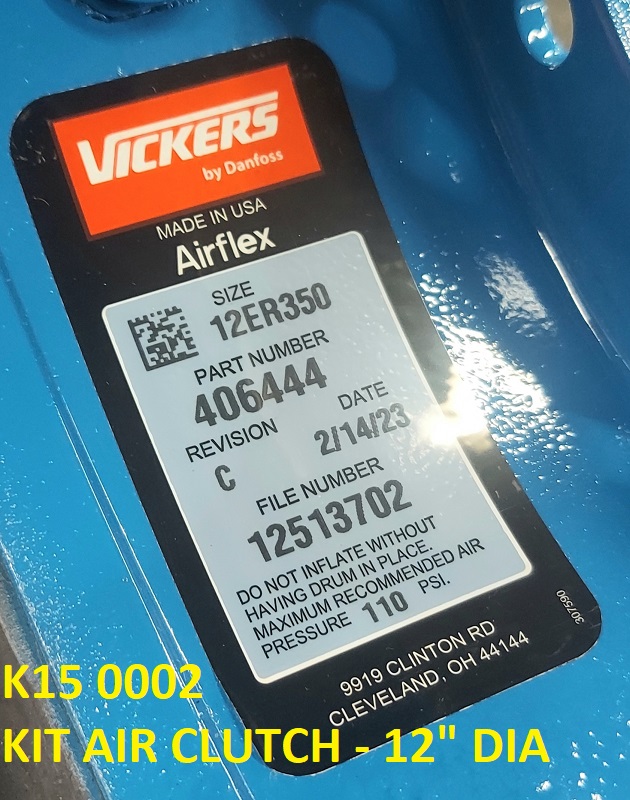

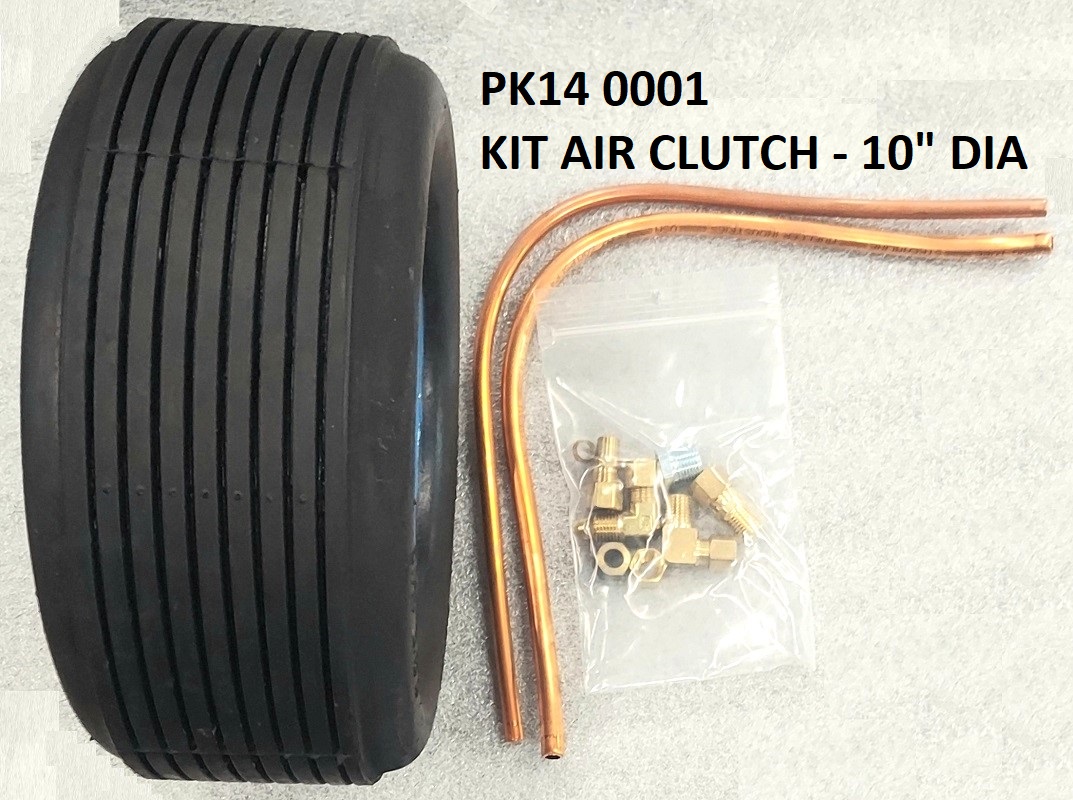

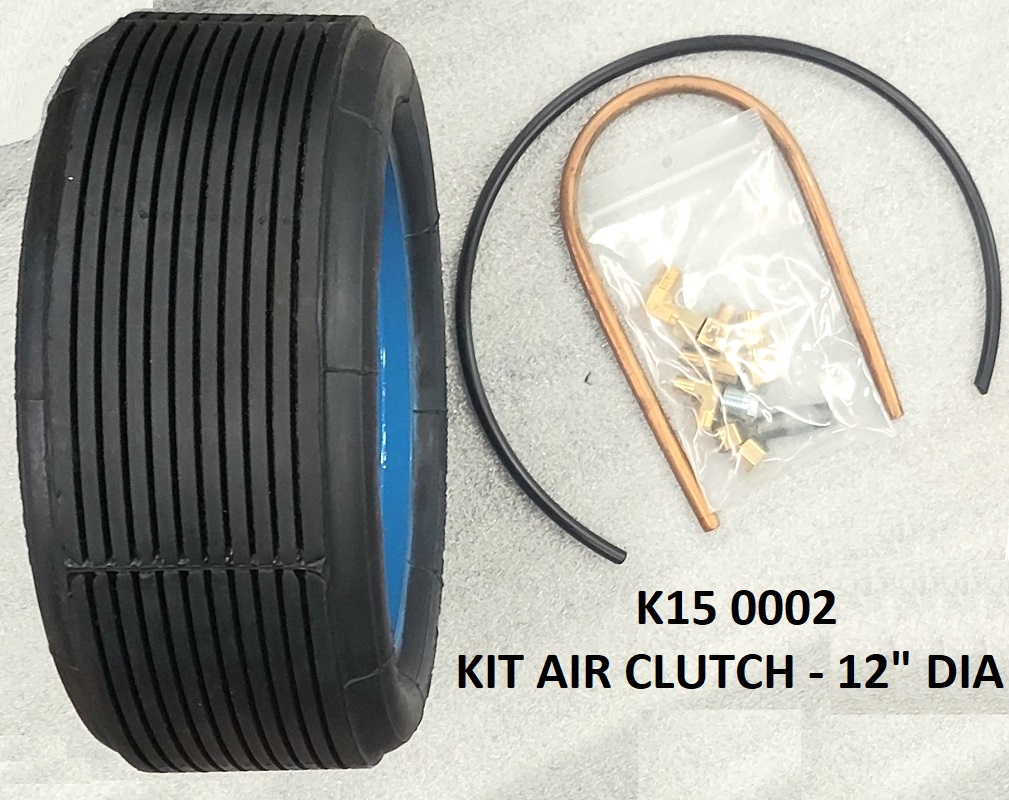

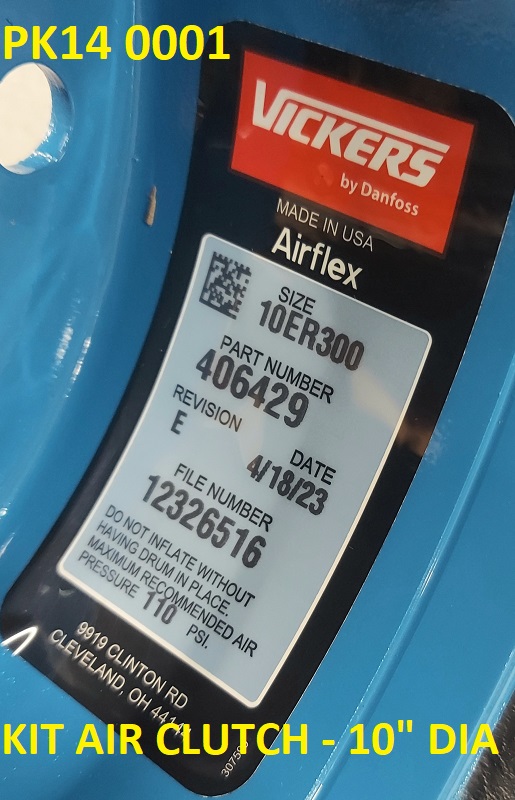

The K15 0002 is size 12ER350, 12". The PK14 0001 is size 10ER300, 10". See pictures below
60036SG2 / 60036SG3 / 60036SP2 / 60036SP3 / 60036WE2 / 60036WE3 / 60036WP2 / 60036WP3
60044D3A / 60044D4A / 60044DA3 / 60044SG2 / 60044SG3 / 60044SP2 / 60044SP3 / 60044SR2 / 60044SR3 / 60044WE2 / 60044WE3 / 60044WED / 60044WEH / 60044WP2 / 60044WP3
| GEAR REDUCER | ROTARY AIR SEAL KIT | AIR CLUTCH | ADDITIONAL INFO |
|---|
| 54S023RK | K10 0002 | K15 0002 | |
64040E6N
64042BTL / 64042BTN / 64042BHP / 64042BHP / 64042BTL / 64042BTN / 64042D6A / 64042D6L / 64042D6N / 64042DA1 / 64042DAL / 64042DAN / 64042TTL / 64042TTN
64046D6N / 64046D6N / 64046E6N / 64046J6N / 64046T6N
64050E6N
72044SG3 / 72044SG3 / 72044SP2 / 72044SP3 / 72044WE1 / 72044WE2 / 72044WE3 / 72044WP1 / 72044WP2 / 72044WP3 / 72044WTB / 72044WTG / 72044WTH / 72044WTL / 72044WTN
72046E6N / 72046J5N
72058E5N / 72058J2N / 72058J5N
| GEAR REDUCER | ROTARY AIR SEAL KIT | AIR CLUTCH | ADDITIONAL INFO |
|---|
| 54S025PK | K10 0002 | K15 0002 | |
CBW GEAR REDUCERS
| MODEL | GEAR REDUCER | DESCRIPTION | ADDITIONAL INFO |
|---|

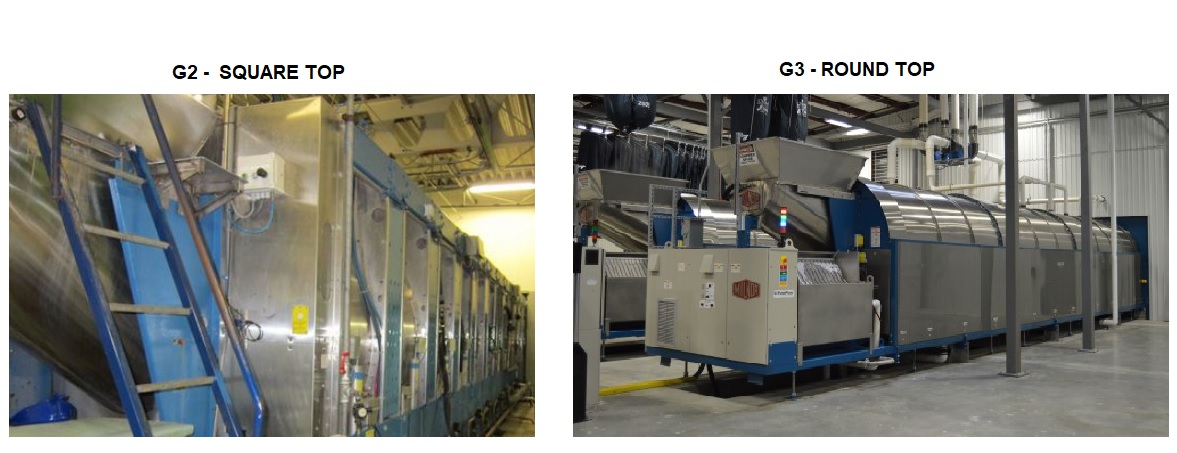

G2 VERSIONS
760222 / 76028 / 76039 | 54S026A | MILNOR, 19.59:1 7.5 HP | BELT DRIVE, PULLEY, BUSHING ON MOTOR |
|---|
G3 VERSIONS
76028 / 76039 | 54S027
54S029 | MILNOR, 24.59:1 180TC,12.5HP
MILNOR, 24.59:1 210TC 23HP | 10HP REDUCER/05-06HP MOTOR ASSY
20HP REDUCER/10HP MOTOR ASSY |
|---|
G4 VERSION
92048 | 54S027 | MILNOR, 24.59:1 180TC,12.5HP | |
|---|
