Milnor uses many different fuses of many types and sizes throughout the product line.
This knowledge article will lists many of the fuses used now and over the years though some of those fuses may be obsolete and not found in this list.
There are also fuses within our machines that can't be replaced by Milnor.

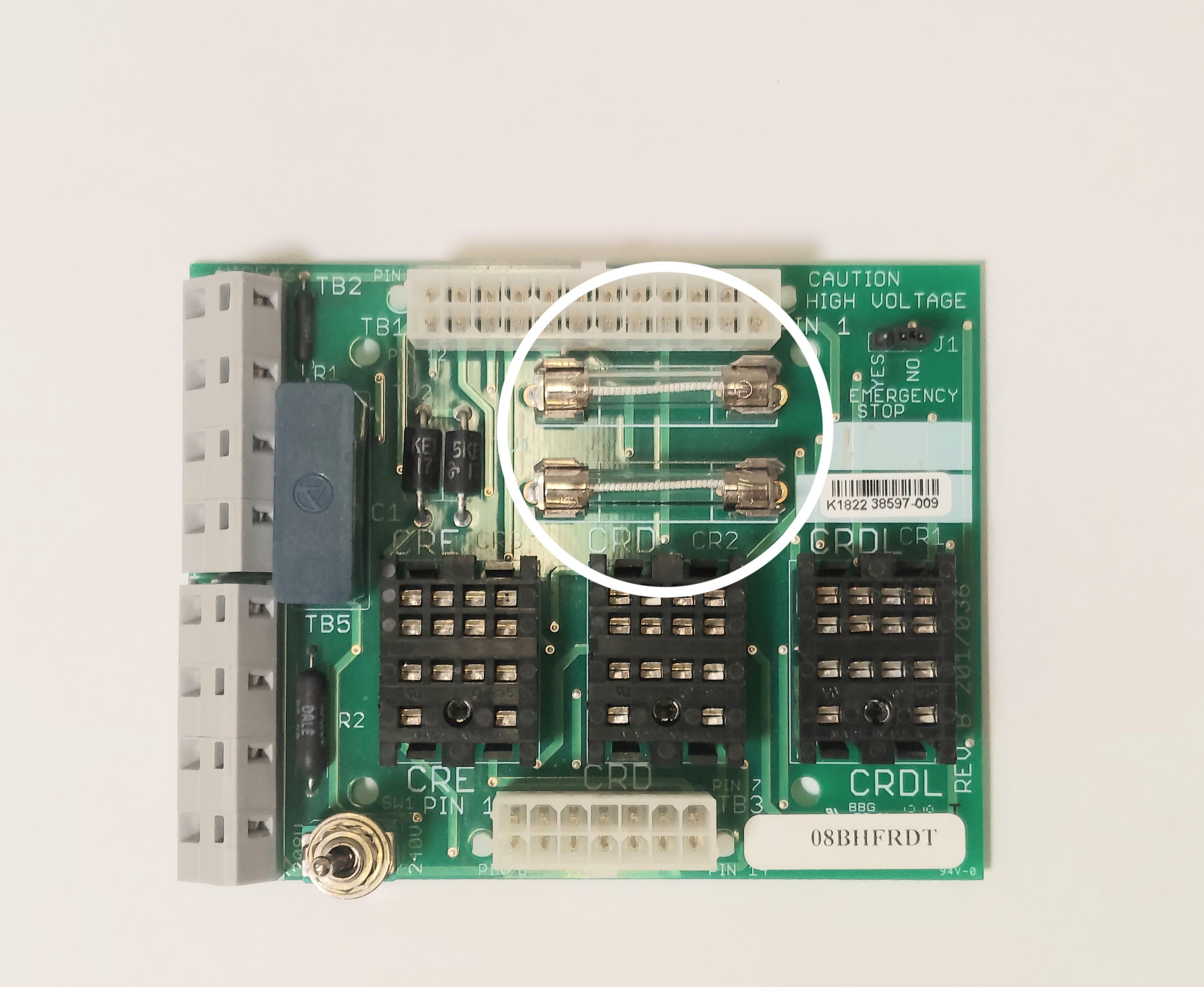

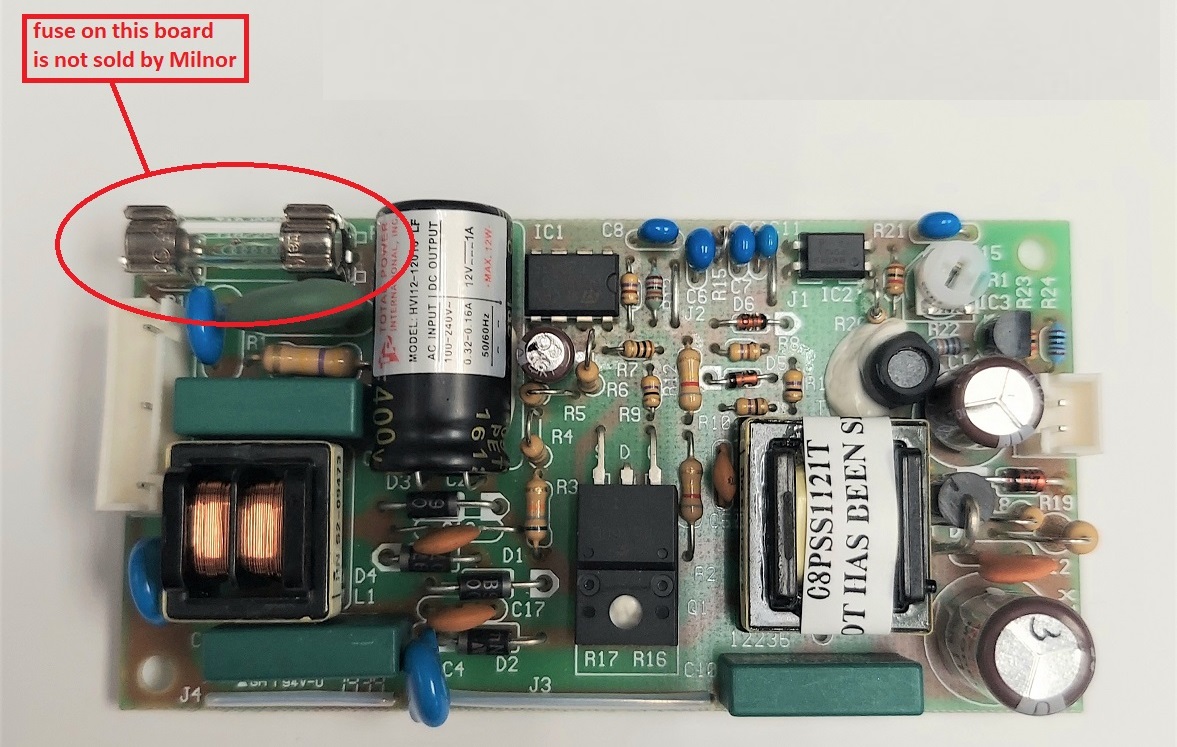

Fuses in inverters are not supported by Milnor nor are the small glass fuses on the 08PSS1121T power supply.  We do support the fuses that are on the start up board 08BHFRDT.  That fuse is  09FF002AMG

FUSE HOLDERS AND PICTURES OF ALL FUSES LISTED CAN BE FOUND HERE

                                                                                                                                       pictures not to scale





FUSES BY SIZE

The first size is 1+1/4" by 1/4"  (31.75mm x 6.35mm)
The chart below lists the fuses by style, part number, description, and where used. The part numbers are links to corresponding pictures.

FUSE STYLE	MILNOR PART NUMBER	DESCRIPTION	AMPERAGE	WHERE USED
MDL Time-delay glass tube fuses	09FF001AHG	FUSE BK/MDL 15/100A 250V	15/100	LEGACY TIME DELAY RELAY TEST BOX
MDL Time-delay glass tube fuses	09FF001AMG	FUSE MDL 1+1/2 AMP  250V  MAX	1.5
MDL Time-delay glass tube fuses	09FF001AMX	FUSE 1AMP 250VAC BUSS #MDL-1 YASKAWA CONTROL FUSE	1	LEGACY VARISPEED INVERTERS
MDL Time-delay glass tube fuses	09FF002AHG	FUSE BK/MDL 2+8/10A 125/250V	2.8	CONVEYOR CONTROL BOXES
MDL Time-delay glass tube fuses	09FF002AMG	FUSE BK/MDL 2 AMP 250V BUSS	2	CONTROL BOXES 30T5X, 3076X, 30V6-V7-V8, 30VRJ, 30VZ, 30X8, 3642V, 42X7, 48XF7,  7244SP,  EXPKDD1,  PRESS2
MDL Time-delay glass tube fuses	09FF003AHG	FUSE BUSS #MDL 3 AMP	3	LEGACY 31 BAR PRESS
MDL Time-delay glass tube fuses	09FF004AHG	FUSE BK/MDL 4 AMP 125V BUSS	4	4244SP, 4244WP, 4844W, 6044SP, 6044WP, PRESS, PRESS2
MDL Time-delay glass tube fuses	09FF006AHG	FUSE #BK/MDL 6 AMP 125V	6	LEGACY START CIRCUITS
AGC Fast-acting glass tube fuses	09FF001APB	FUSE 1 AMP 250V BUSS AGC-1	1	PURE PULSE CONTROLS
AGC Fast-acting glass tube fuses	09FF002APB	FUSE BK/AGC 1+1/2A 250V	2	METERING CONTROLS, SIMULATORS
ABC Fast-acting ceramic tube fuses	09FF006AMA	FUSE BK/ABC 6 AMP 250V  BUSS	6	CONTROL BOXES 3630F8R/S, 36X8J/W, 4232F7R/S,4232MXT, 4226/32X8J, 6044SP/WP, 60SP2/3, 7244SP, 7258J2N, 72SP2/3, COSH, COSHA, 42/48 EXTRACT CONTROLS
ABC Fast-acting ceramic tube fuses	09FF010APA	FUSE #BK/ABC 10A 250V LF#314	10	7244SP/WP, PURE PULSE,
MDA Time-delay ceramic tube fuses	09FF010APG	FUSE BUSS #MDA 10   10AMP 250V	10

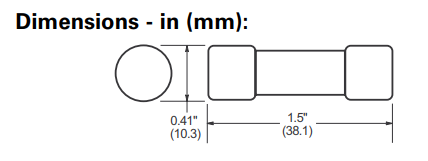

The Second Size is 1.5" x .41" (38.1mm x 10.3mm)

FUSE STYLE	MILNOR PART NUMBER	DESCRIPTION	AMPERAGE	WHERE USED
FNM  250Vac time-delay supplemental fuses	09FF005AMT	FUSE BUSS FNM 5 AMP 250V	5	CBW MK1
FNM  250Vac time-delay supplemental fuses	09FF010AMT	FUSE BUSS FNM 10 AMP 250V	10	CBW MK1
FNM  250Vac time-delay supplemental fuses	09FF015AMT	FUSE BUSS FNM-15 AMP 250V	15	MDCBW, MDCBW G1, MDCBW G3, MDCBW G3 FIRST, MDCBW G4, MDCBW G4 MENTOR, MDCBW G5, MDCONTROL, MDCONTROLD
KTK  600Vac fast-acting supplemental fuses	09FF002AWN	FUSE BUSS #KTK 2 1/2 AMP 600V	2.5	Legacy electric boxes for ENERGENIC LINT SYSTEM 24VAC, 30015T5E, 30015V7J, 30022H8J, 30022T5E, 30022T5X, 30022X8J, 36021V7J, 36026V5J, 36026V7J, 36026X8J, 42026V6J, 42026V6W
KTK  600Vac fast-acting supplemental fuses	09FF003AWN	FUSE #KTK 3A600V=HPS HOLDER	3	Legacy electric boxes Dry-Vac, 36021Q4G, 36021Q4J, 36021V5J, 36026Q4G, 36026Q4J, 42026V6J, 42030V6J, 42032X7J, 42032X7W

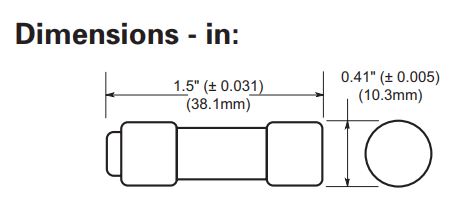

The Third Size is 1.5" x .41" (38.1mm x 10.3mm) with a slightly different shape.

FUSE STYLE	MILNOR PART NUMBER	DESCRIPTION	AMPERAGE	WHERE USED
FNQ-R Class CC 600Vac, 1⁄4-30A, time-delay fuses	09FF003AWV	FUSE BUSS STYLE CC TYPE FNQ-R 3 AMP 600V TIME DELAY	3	30022H8J, 30022T5E, 30022T5X, MD30T6X, MD30V67 SERIES, MD30V8 SERIES, MD30VRJ  SERIES, MD30VZ SERIES, MD30X8 SERIES, MD36V SERIES, MD36X8 SERIES, MD4232MXT  SERIES, MD4244SP SERIES, MD4244WP SERIES , MD42V SERIES, MD42X7 SERIES, MD4844WA SERIES, MD6044SP SERIES, MD6044WP SERIES, MDEXTRACTOR, MDPRESS
FNQ-R Class CC 600Vac, 1⁄4-30A, time-delay fuses	09FF006AWV	FUSE BUSS STYLE CC TYPE FNQ-R 6 AMP 600V TIME DELAY	6	MD30COIN SERIES, 30022H8J, 3015/22T5E/X , MDCOIN 36C4E ,36/42 V5/6/7 SERIES , MD4232MXT , MD4244SP  , 4226/30V , 42WP2/3 , MD4844WA, MD60SP2/3, MD60WP, MD7258J2N , 7244WP2/3, MDCOSH, COSHA, COSHA J RAIL, PURE PULSE, MDEXTRACTOR, MODEL FOR ALL PRESSES, 2 STAGE PRESS MODEL



Fuse Style type takes precedent as the following fuse styles have different sizes.

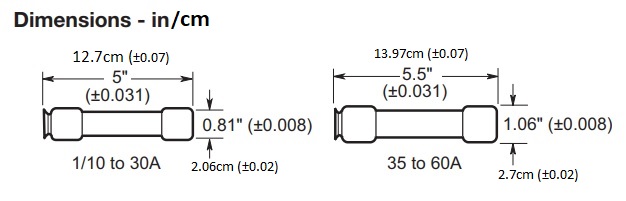

FRS-R

FUSE STYLE	MILNOR PART NUMBER	DESCRIPTION	AMPERAGE	WHERE USED
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF003AVV	FUSE #FRS-R-3+2/10 AMP 600V	3.2
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF004AVV	FUSE #FRS-R-4 600V	4
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF006AVV	FUSE BUSS FRS 6A 600V	6	Dryer Models 5040TG2/TS2 LEFT AND RIGHT, 6450TG1 AND TS1, 6458/64TG1/TS1 LEFT AND RIGHT, MDDRYER 7272T
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF015AVV	FUSE #FRS-R-15A 600V	15	7244SP2/3, 7244WP2/3, 2 STAGE PRESS MODEL, Legacy Machines 4226P5A, 4231SP2/3, 4231WP2/3, 4244CP2, 4244NP2, 4244SP2/3, 4244WP2/3, 4832BHP/L/N, 4836D6A/L/N, 4836J6L/N/P, 4836QHP/L/N, 5040TS1, 5238DA1/L/N, 5238LWN, 5238WP1, 5238WTL/N, 6044D3A, 6044SP2/3, 6044WP2/3, 7272TG1L/R
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF017TVV	FUSE #FRS-R-17.5A 600V	17.5	Legacy Machines 4244SP2/3, 4244WP2/3, 6044D3A, 6044SP2/3, 6044WP2/3
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF020AVV	FUSE #FRS-R-20A 600V	20	7244SP2/3, 7244WP2/3, Legacy machines 4244SP2/3 50C, 4244WP2/3 50C, 5238DA1/L/N, 5238LWN, 5238WP1, 5238WTL/N, 6044SP2/3 50C, 6044WP2/3 50C, 6446D/E/J 6N, 7244SP2/3, 7244WP1/2/3, 7244WTL/N, 7246J/E 5N, 7258J2/5N, MP2501, MP2601, MP2606
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF025AVV	FUSE #FRS-R-25A  600V	25	2 STAGE PRESS MODEL, Legacy High Volt Machines 5238DA1/L, 5238DAN, 5238LWN, 5238WP1, 5238WTL/N, 6044SP2/3, 6044WP2/3, 6446E/D/J 6N, 7244DA1/N, 7244SP2/3, 7244WP1/2/3, 7244WTL/N, 7246E/J 5N, 7258J2N
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF030AVV	FUSE #FRS-R-30A  600V	30	MODEL 7258J2N, 2 STAGE PRESS MODEL, Legacy High Volt Machines 5238LWN, 5238WP1, 5238WTL/N, 6044SP2/3, 6044WP2/3, 6446E6N, 7244SP2/3, 7244WP2/3, 6044D3A/6N, 6446J6N, 7244DA1/AN, 7246E5N, 7246J5N, 7258J2N
FUSES BELOW ARE 5.5"				FUSES BELOW ARE 5.5"
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF035AVV	FUSE #FRS-R-35A  600V	35	MODEL 7258J2N, 2 STAGE PRESS MODEL
FRS-R 600Vac/300Vdc, 1/10-60A, Dual Element, Time-Delay Fuses	09FF050AVV	FUSE #FRS-R-50A  600V	50

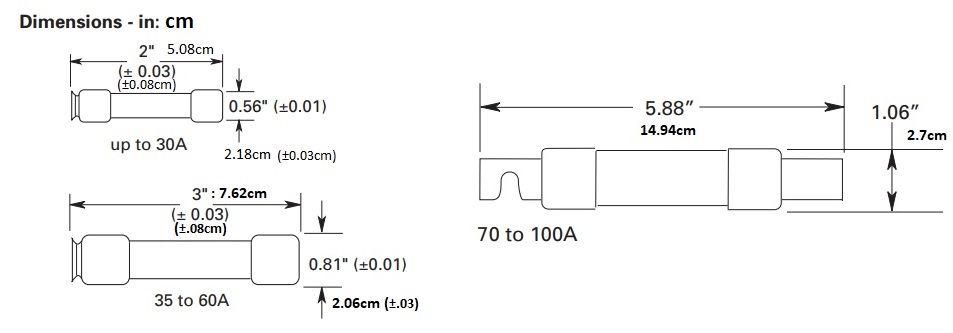

FRN-R

FUSE STYLE	MILNOR PART NUMBER	DESCRIPTION	AMPERAGE	WHERE USED
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF005AMU	FUSE #FRN-R-5+6/10 AMP 250V	5.6
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF010AMU	FUSE #FRN-R-10A 250V	10
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF015AMU	FUSE #FRN-R-15A 250V	15	Legacy 3621BWP, 3621CPE, 3621NSP, 4226P5A, 4226QHP, 4226QTN, 4231CP2, 4231SP2/3, 4231WP2/3, M7E42A EXTRACTOR, M9E42 EXTRACTOR
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF020AMU	FUSE #FRN-R-20A 250V	20	Legacy 4231C/NP2, 4231SP2/3, 4231WP2/3, 4244C/NP2, 4244SP2/3, 4244WP2/3, 4832BHP, 4832BTL/N, 4836D6A/L/N, 4836J6L/N/P, 4836QHP, 4836QTL/N , 5238DA1/L/N, 5238LWN, 5238WP1, 5238WTL/N, A1 SHKR , S1 STEAM DRYER, T1 THERMAL OIL
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF025AMU	FUSE #FRN-R-25A  250V	25	Legacy 4832BHP, 4832BTL/N, 4836D6A/L/N, 4836QHP, 4836QTL/N, 5238DA1/L/N, 5238LWN, 5238WP1, 5238WTL/N
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF030AMU	FUSE #FRN-R-30A 250V	30	Legacy 4231N/CP2, 4244NP2, 4244SP2/3, 4244WP2/3, 6044D3/4A, 6044SP2/3, 6044WP2/3, M7E42A EXTRACTOR, M9E42 EXTRACTOR
FUSES BELOW ARE 3 INCHES				FUSES BELOW ARE 3 INCHES
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF035AMU	FUSE #FRN-R-35A   250V	35	Legacy 4244SP2/3 50C, 4244WP2/3 50C, 6044SP2/3 50C, 6044WP2/3 50C
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF050AMU	FUSE #FRN-R-50A  250V	50	2 STAGE PRESS, 7246E5N, STDFLO PRESSURE PUMP, 6044SP2/3, 6044WP2/3, 6446E6N, 7244SP2/3, 7244WP1/2/3, 7244WTL, 6044D3A/4A, 6446D/J 6N, 7244DA1/N, 7246J5N, 7258J2N
FRN-R Class RK5 250Vac/125Vdc 1/10-100A, dual element, time-delay fuses	09FF060AMU	FUSE #FRN-R-60A  250V	60	2 STAGE PRESS, 7246E5N, HI-FLO PRESSURE PUMP, 6044SP2/3, 6044WP2/3, 6446D/E/J 6N, 7244SP2/3, 7246J/T 5N, 7258J2N
FUSE BELOW IS BLADED 5.88 INCHES				FUSE BELOW IS BLADED 5.88 INCHES
FRN-R 100 A, Dual, Class RK5, Non-indicating, Blade end x blade end	09FF100AMU	FUSE #FRN-R-100A  250V	100



S501 & KTF Fuses




FUSE STYLE	MILNOR PART NUMBER	DESCRIPTION	AMPERAGE	WHERE USED
S501 5 mm x 20 mm Fast-acting ceramic tube fuses	09FF002F2H	2A 250V F2H CONTROL FUSE	2	MWR09, MWR16, MCR09, MCR16, MCR18, MWR18X, MCR27
KTF	09FF016OU9	FUSE 16A 500V  #NH00CKTFMK-16	16	VDE FUSING
