Festoon can hang from a track or run on the floor through a plastic "gator" track.
For hanging festoon applications, the cables hang on trolleys and the trolleys are supported by track. Milnor uses 14 ga and 12 ga track. 14 ga is no longer used but repair parts are available. If the 14 ga parts are worn and require replacement we recommend a 12 gauge replacement.
For Festoon Cable and Connector part numbers click
HERE
Complete 12GA track replacement includes :
| 27A765 | 10ft. section of track -12 GA |

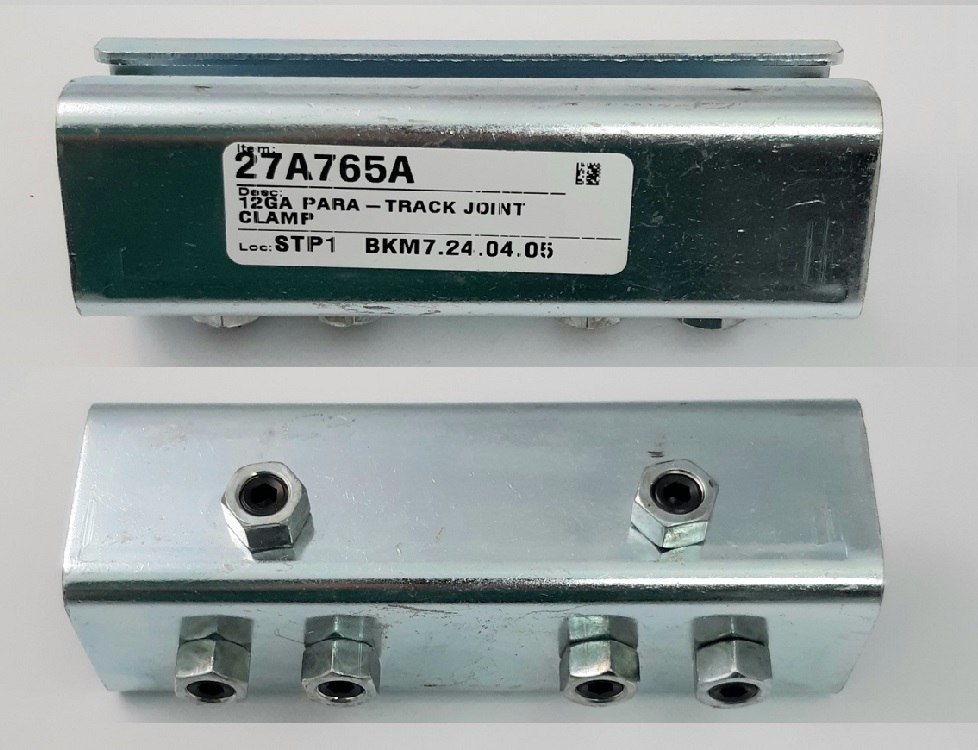

| 27A765A | Joint Clamp (1 per section of track)
 |

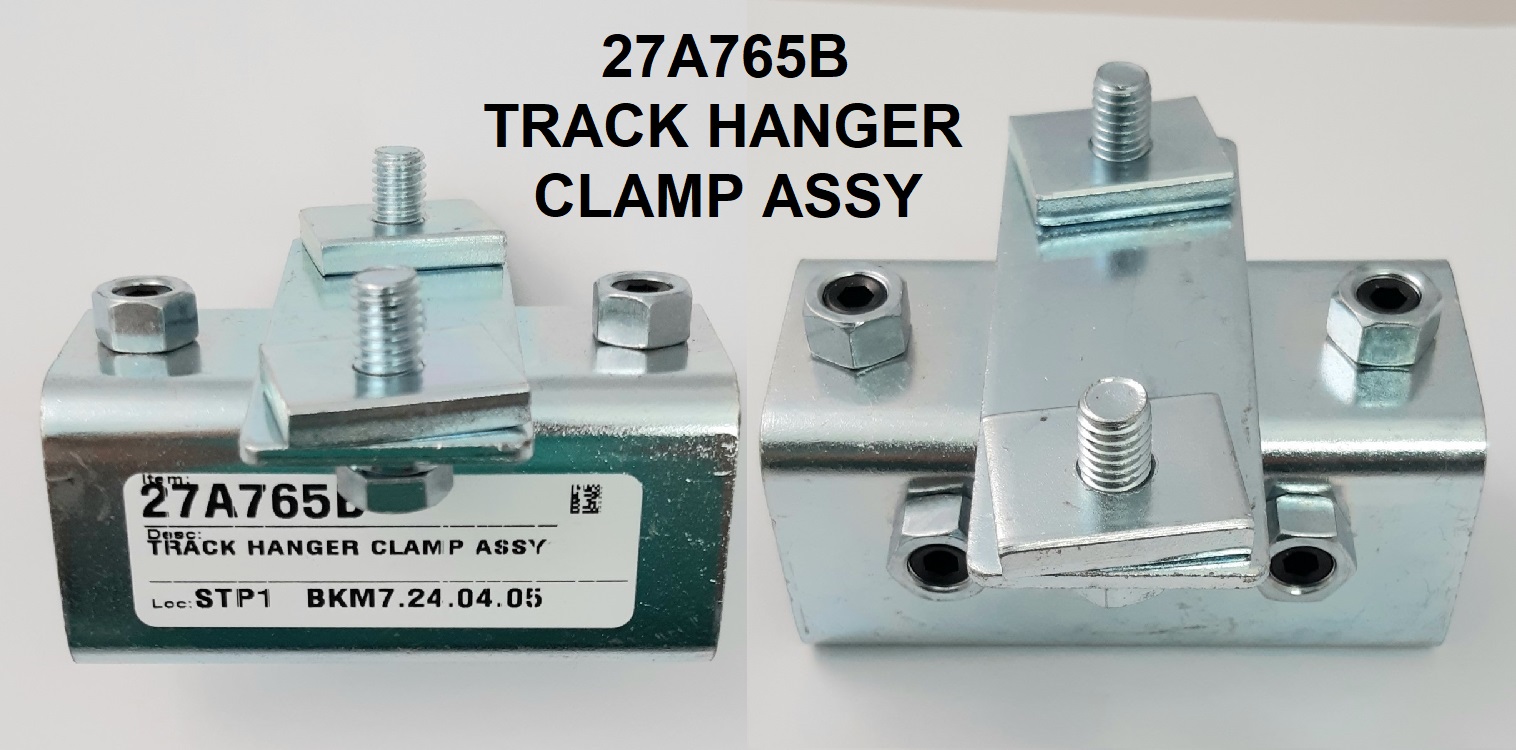

| 27A765B | Hanger Clamp (3 per 10ft. section of track)
 |

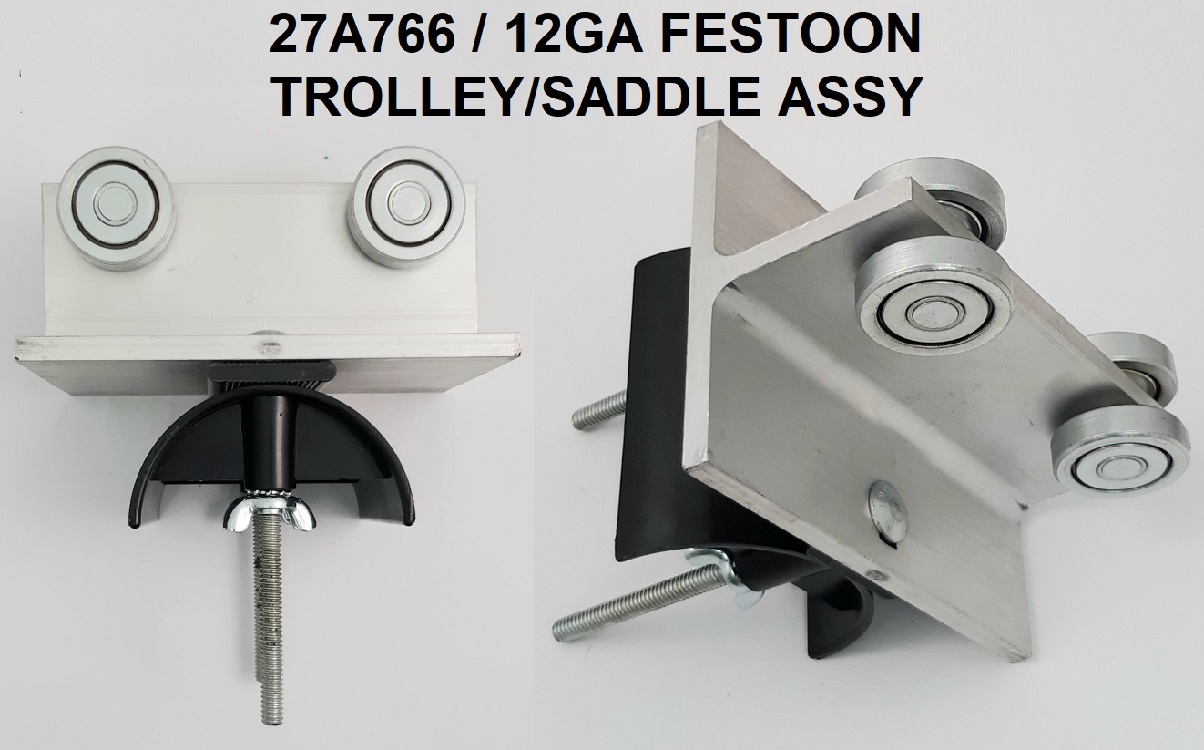

| 27A766 | Festoon Trolley Car (1 per section of track or count the existing cars)
 |

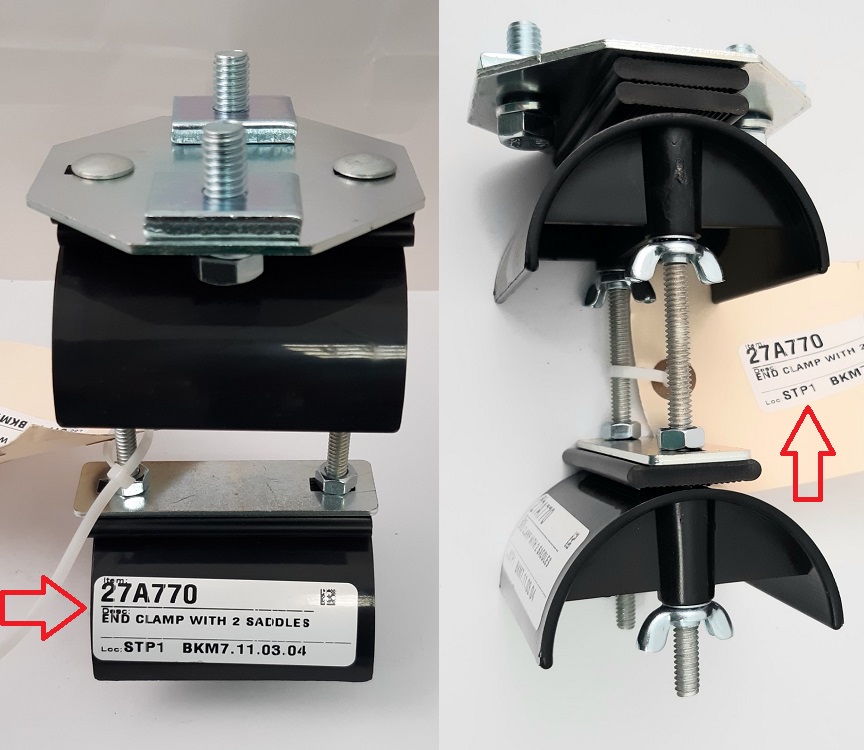

| 27A770 | End Clamp with 2 Cable Saddles (need 1 total)
 |

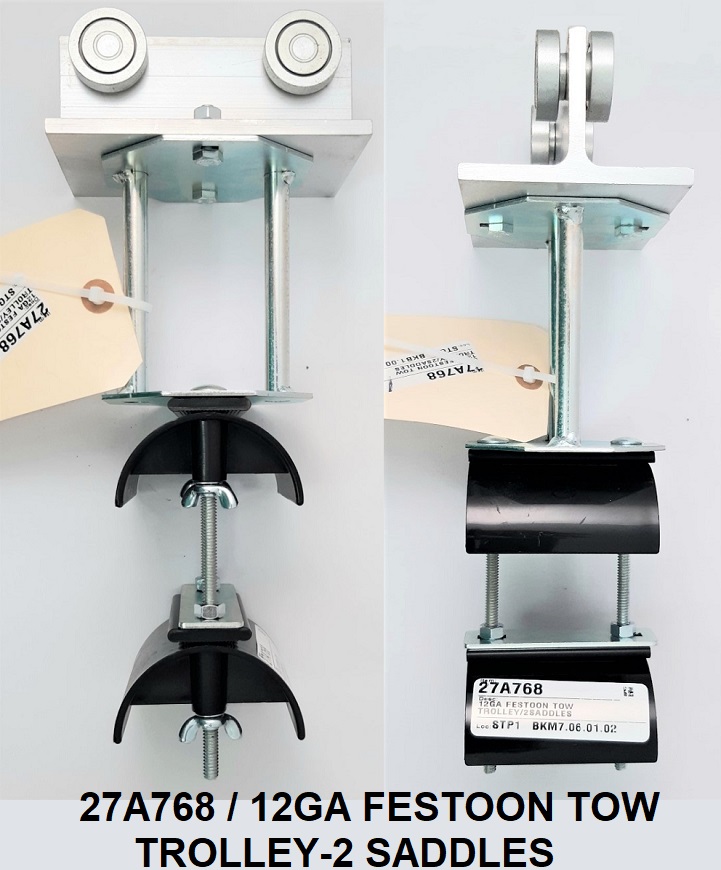

| 27A768 | 12GA FESTOON TOW TROLLEY/2SADDLES
You only need one of these for the shuttle end tow bar attachment
 |
If you need the dryer hanging bracket (you should have this already if you are replacing 14 ga with 12 ga)

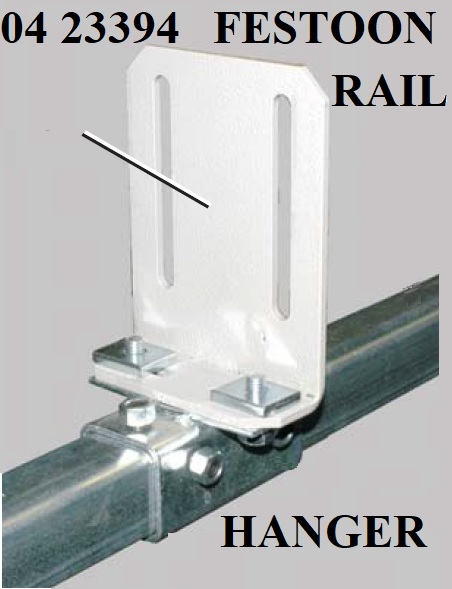

| 04 23394 | FESTOONRAIL HANGER-DRYER
 |
| 15K095 | HXCPSCR 3/8-16UNC2AX1 GR |
| 15U240 | FLATWASHER(USS STD) 3/8" |
| 15U255 | LOCKWASHER MEDIUM 3/8 ZI |
| 15G205 | HXNUT 3/8-16UNC2B ZINC G |

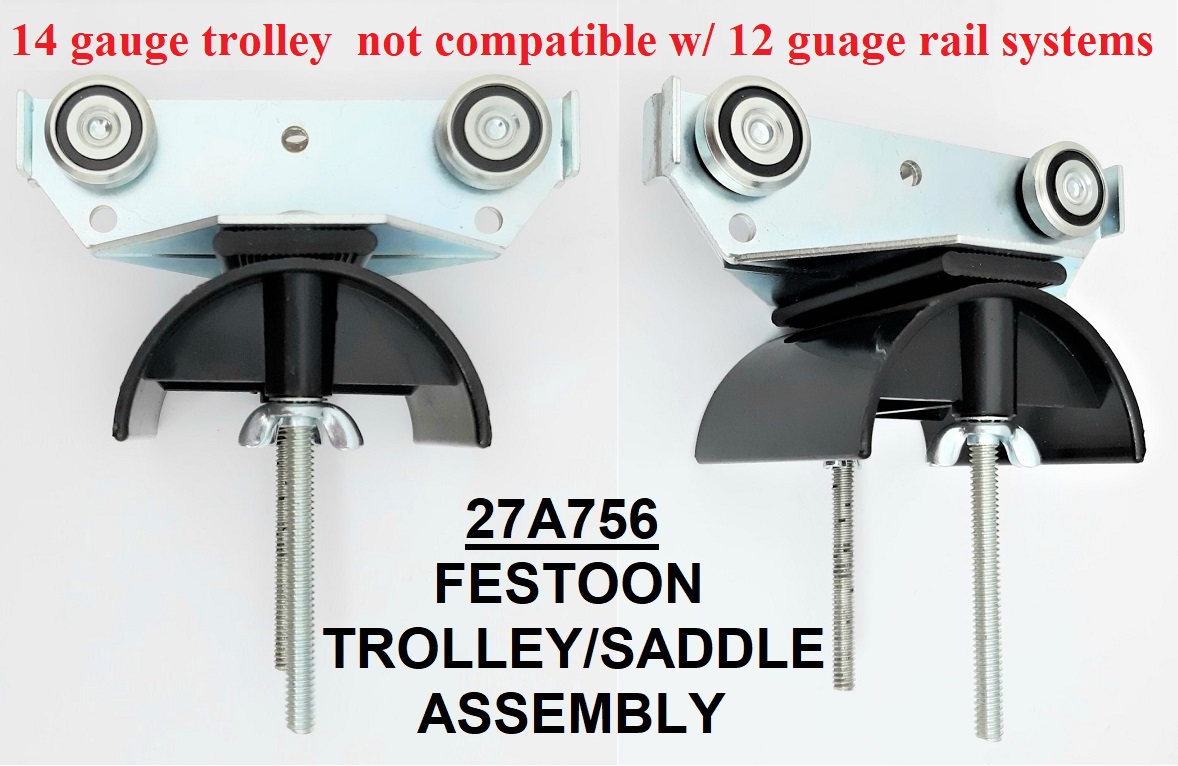

14 ga and 12 ga trolleys are not compatible. You need the heavier rail for 12 ga trolleys.

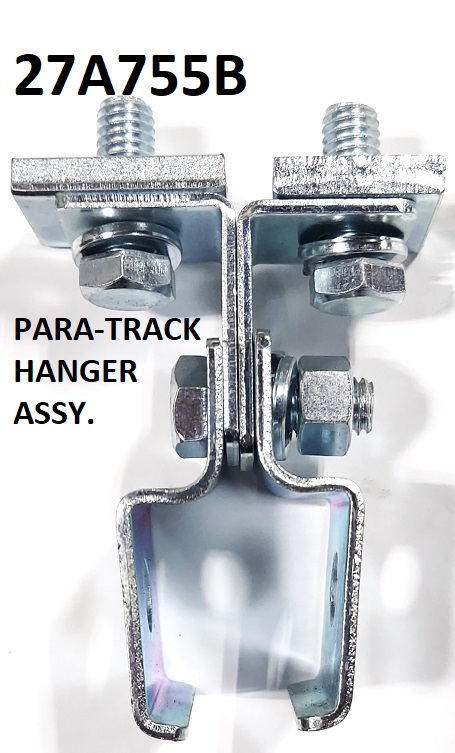

The 14 GA hanger, clamp, and trolley looks like this:
| 27A755 | 14GA FESTOON PARA-TRACK 10' |

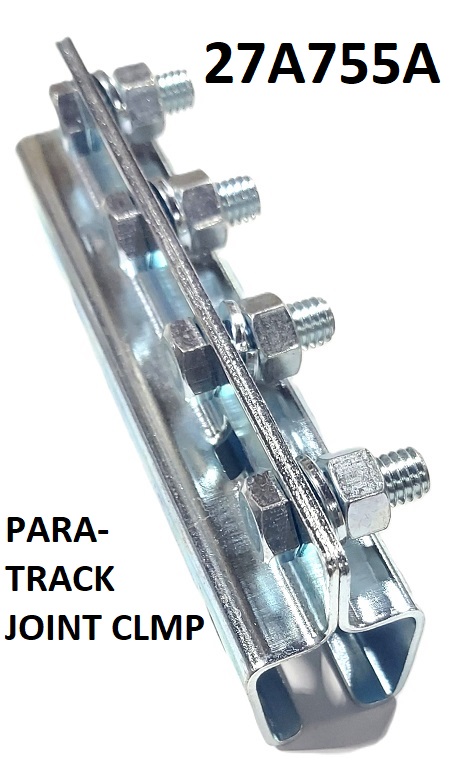

| 27A755A |  |
| 27A755B |  |
| 27A756 |  |
If you have 2 saddles on your trolley...
27A768 (Festoon Tow Trolley/ 2 SADDL) is the stationary trolley.

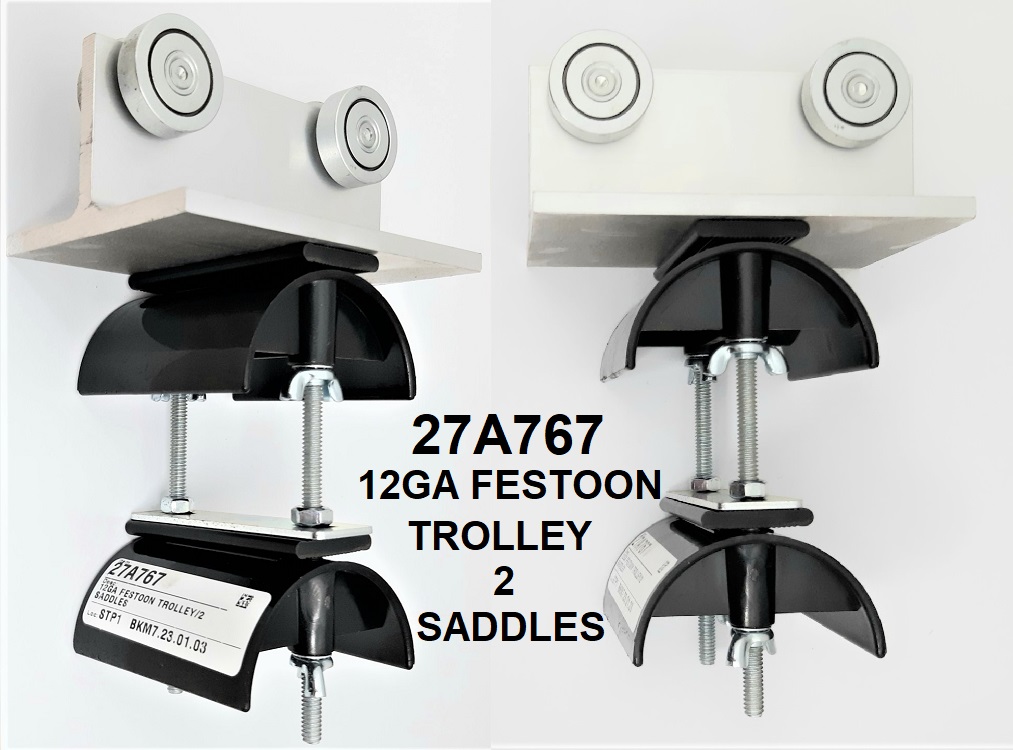

27A767 ( Festoon Trolley / 2 SADDL) is the moving trolley
ALC50074 is the Festoon pull assembly (tow bar)
OTHER ATTACHMENTS

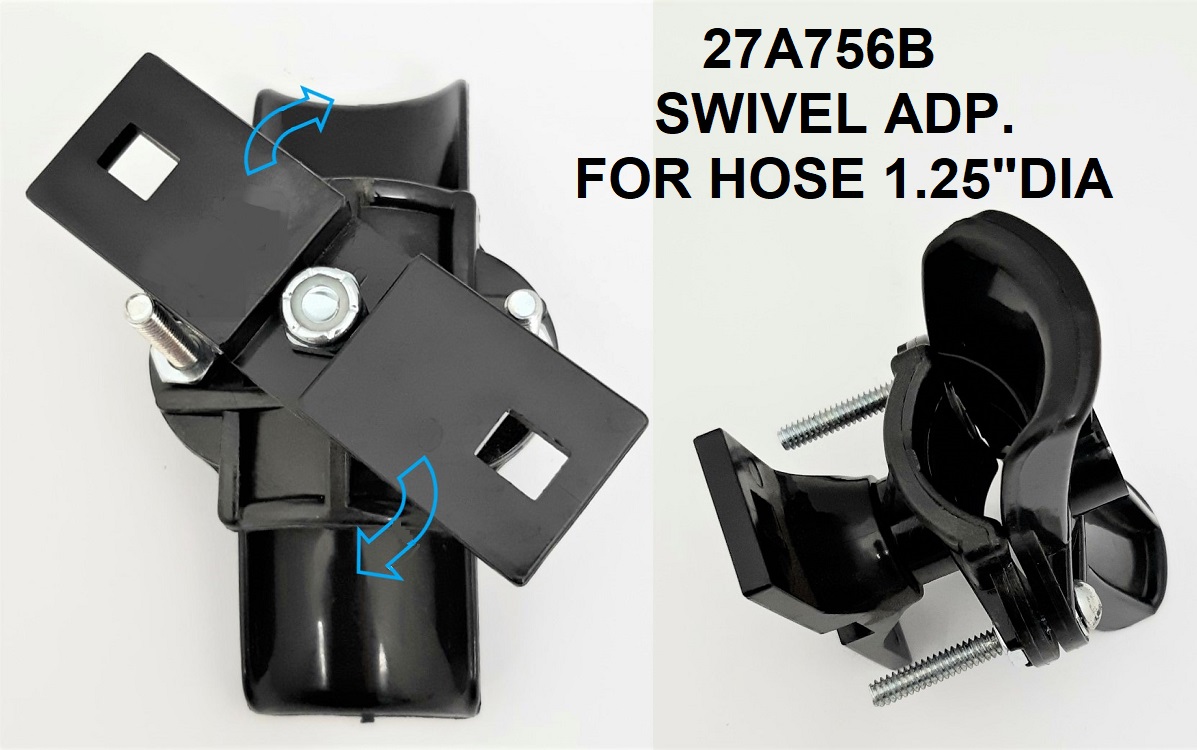

27A765 / SWIVEL HOSE ADAPTOR:
FESTOON PULLING ASSEMBLY

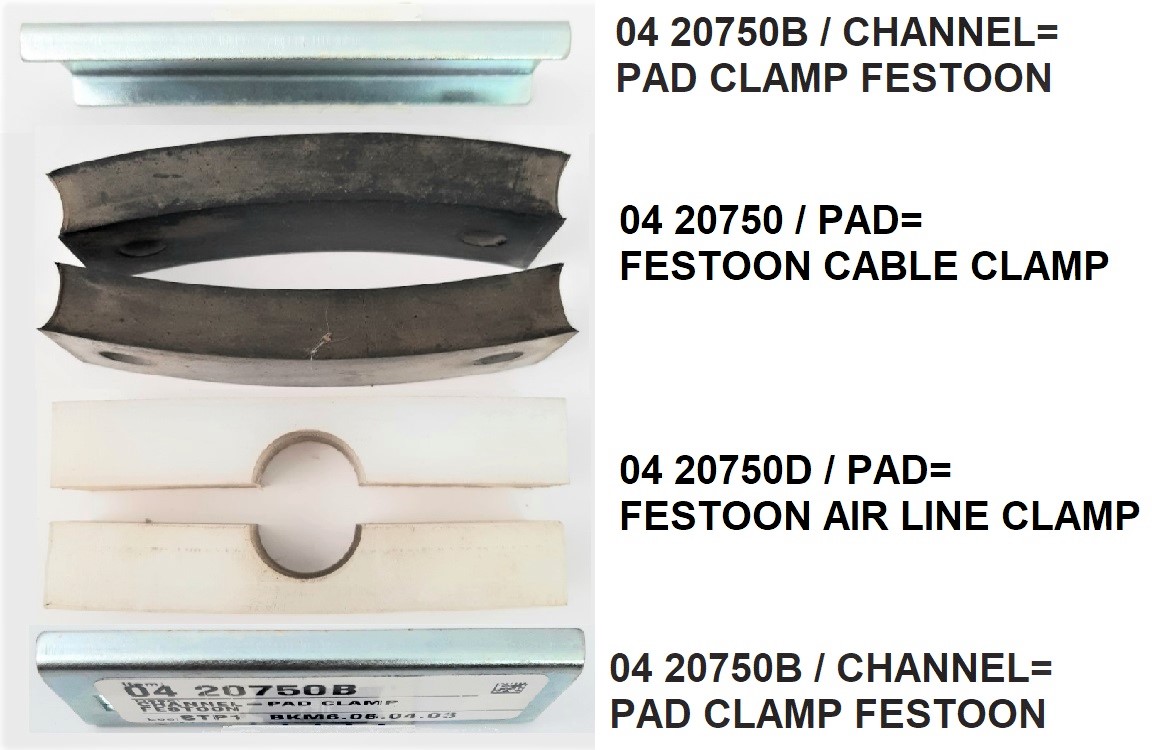

04 20750B PAD CLAMP
04 20750 PAD CABLE CLAMP
04 20750D PAD AIR LINE CLAMP
Festoon cable part numbers:

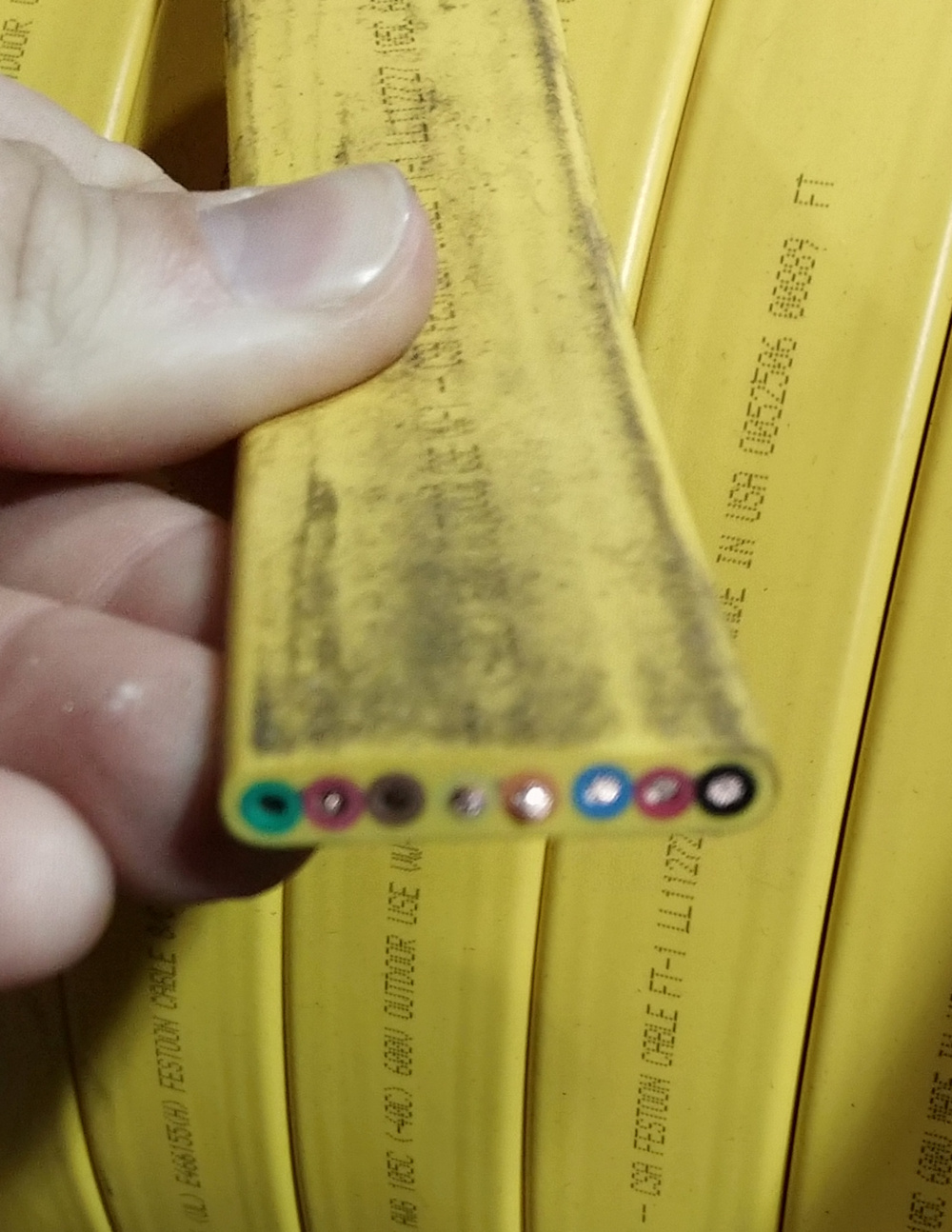

09VFF0814 (Yellow 14 AWG with 8 conductors)This cable is not shielded. We use this for the control wires such as photo eyes and proximity switches.

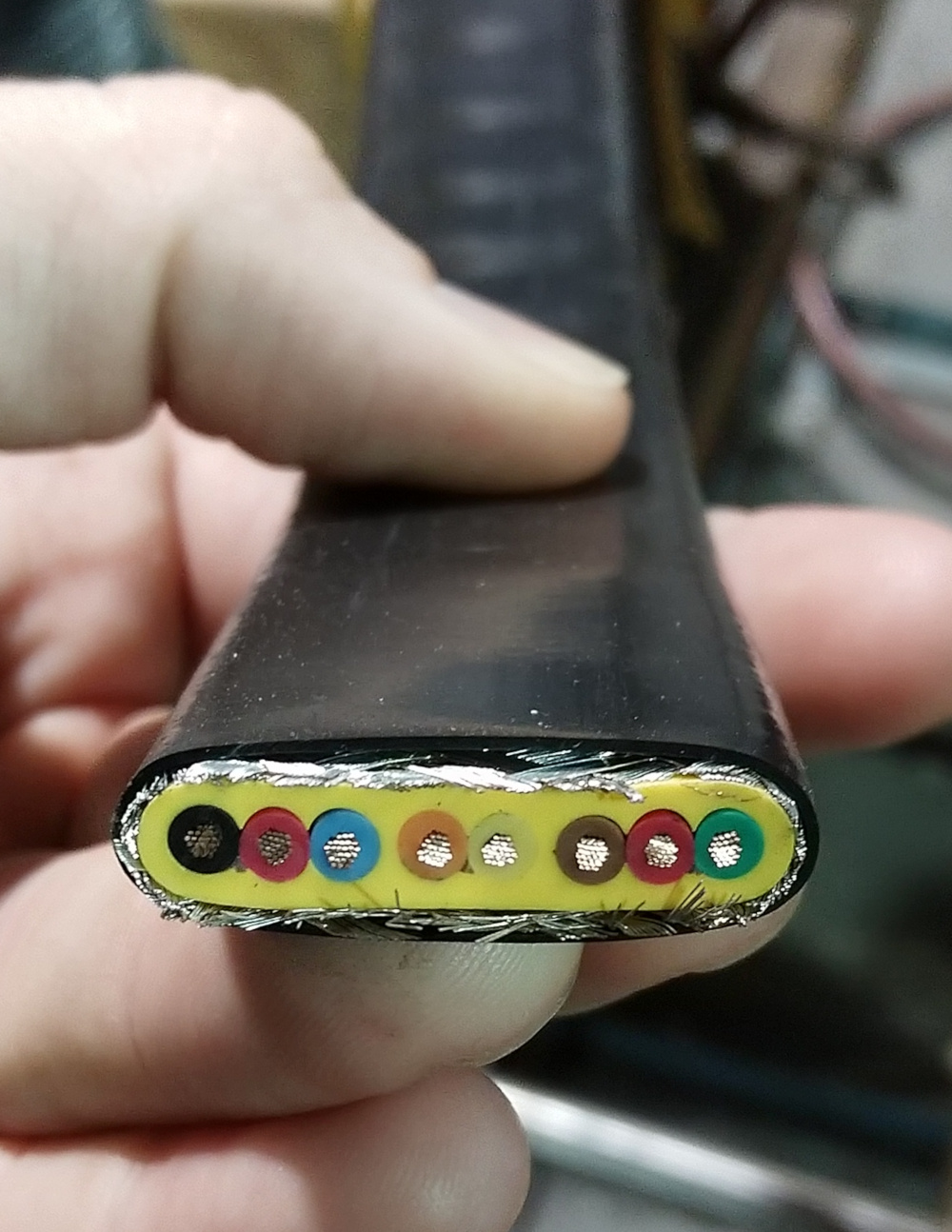

09VFF0816S (Black 16 AWG with 8 conductors)This cable is shielded. It used for the motor power leads. Inverter driven motors may create Electromagnetic interference (EMI) with other control signals. The shield prevents problems with EMI.

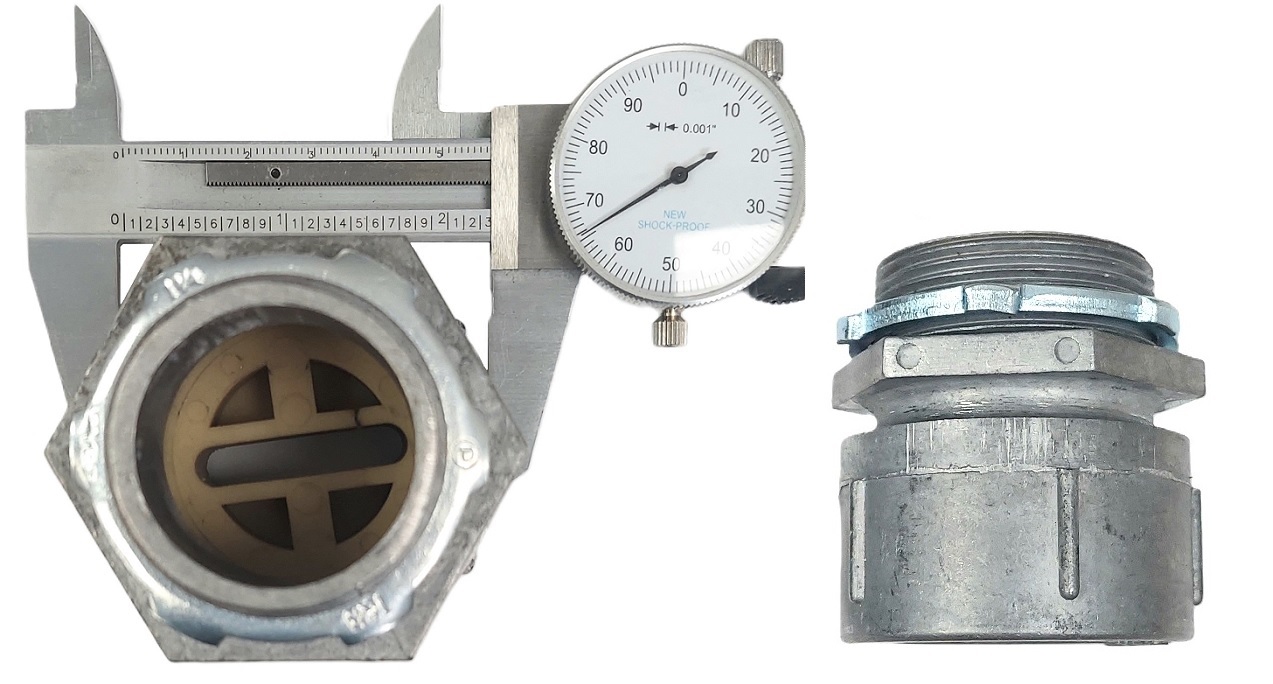

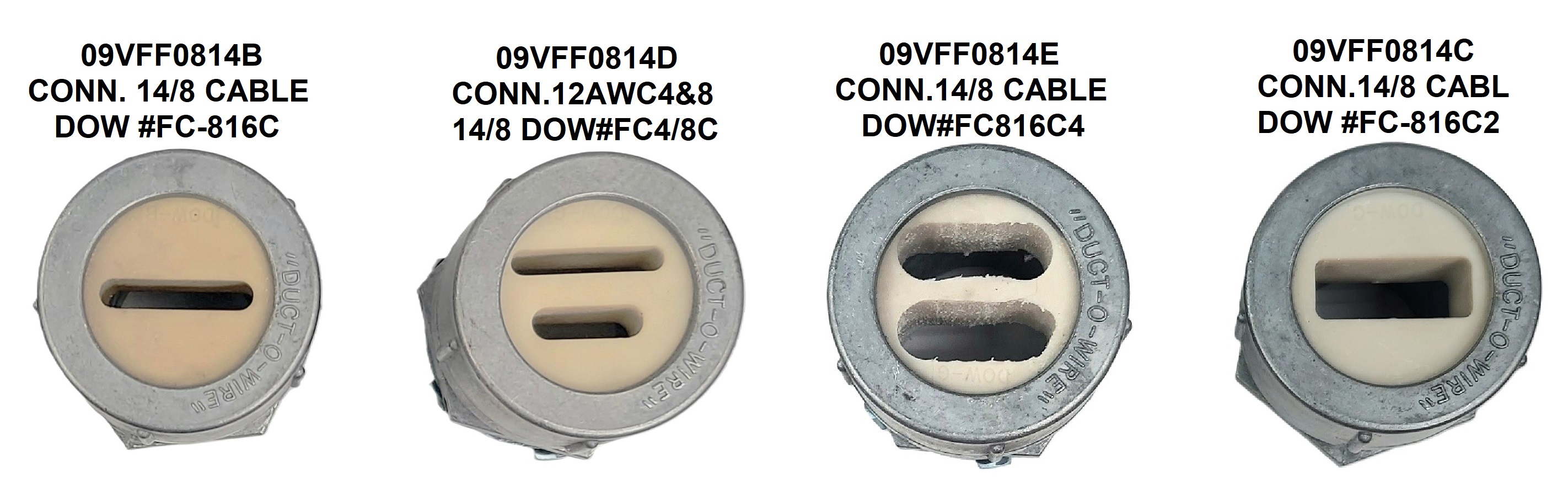

Festoon cable connectors
09VFF0814B / CONN. 14/8 CABLE DOW #FC-816C
09VFF0814D / CONN.12AWC 4&8 14/8 DOW#FC4/8C
09VFF0814E / CONN.14/8 CABLE DOW#FC816C4
09VFF0814C / CONN.14/8 CABL DOW #FC-816C2
