Title Extrusion Shell Part Numbers

Summary Part numbers for extrusion gaskets placed between the front plate (Chime Ring) and the shell of the machine. Held in place by a ring clamp.

Article Text

This article provides part numbers for extrusion shell gaskets for rigid mount machines.
Our extrusion gaskets are made of the same material, but cut in different lengths

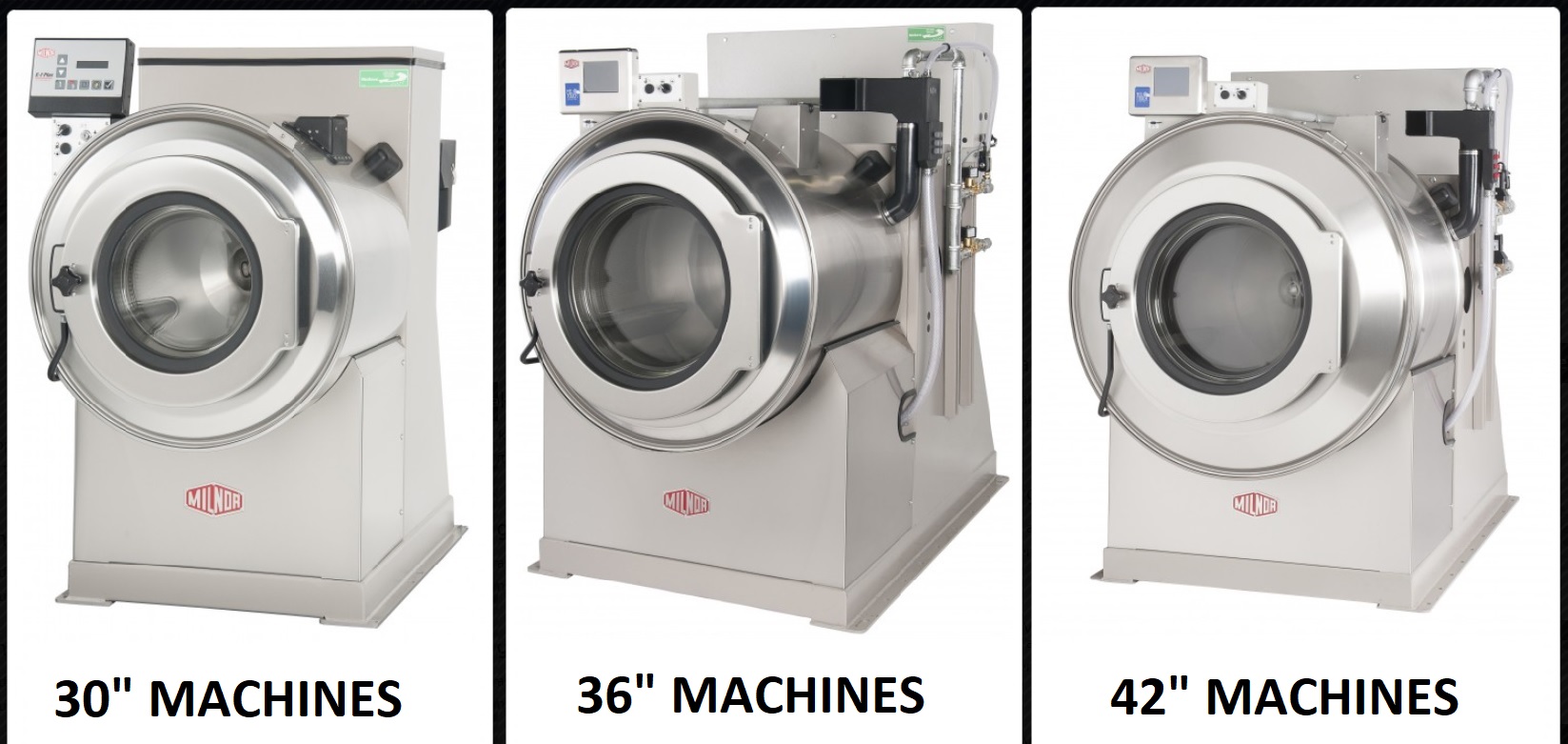

	30 INCH	36 INCH	42 INCH

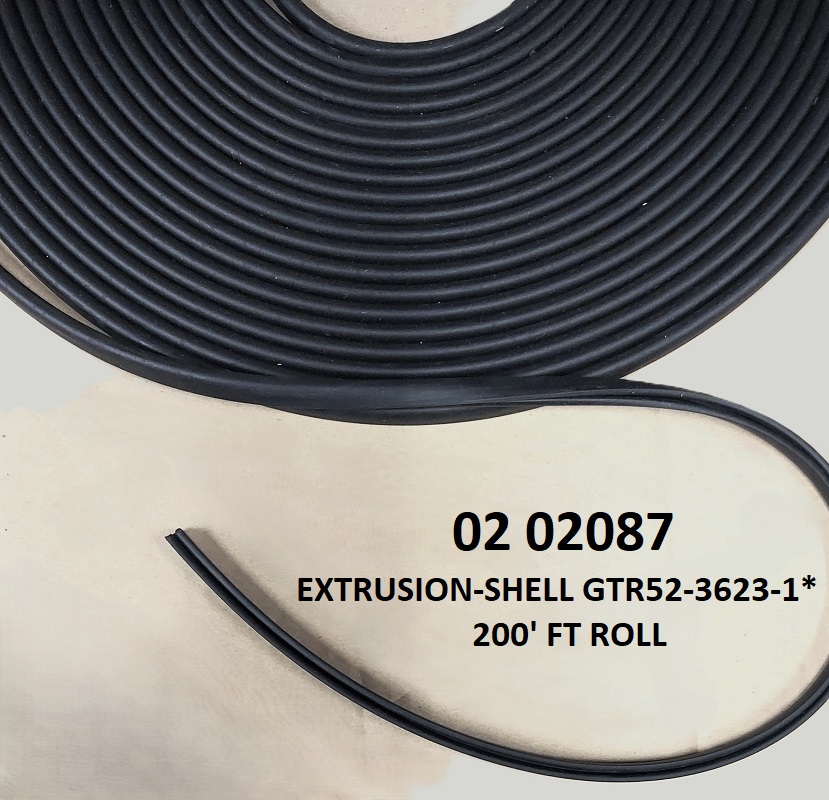

EXTRUSION SHELL GASKET	02 02087C EXTRUSION-SHELL=30"MACHINES 8' 8" of 02 02087	02 02087A EXTRUSION-SHELL=36"MACHINES 10' 2" of 02 02087	02 02087B EXTRUSION-SHELL=42"OEW (12.5 12" 8" of 02 02087
CLAMP RING	Y2 02059 SHELL CLAMP RING=30" MACHINE	Y2 09031 SHELL CLAMP RING=36" MACHINE	Y2 12053 SHELL CLAMP RING=42" MACHINE

#	Part/Description	Picture
14 15	CLAM RING (LISTED ABOVE) EXTRUSION SHELL GASKET (LISTED ABOVE)

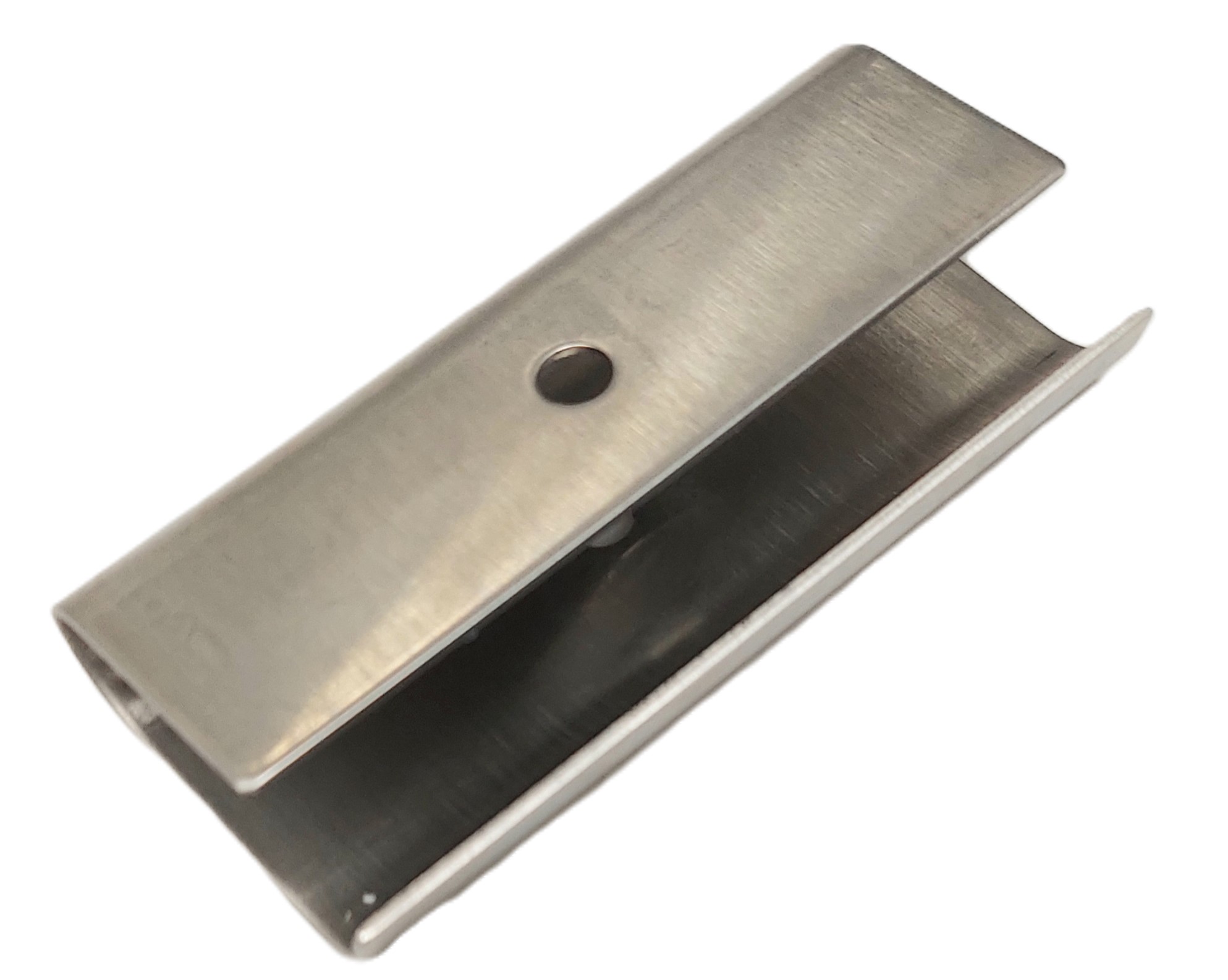

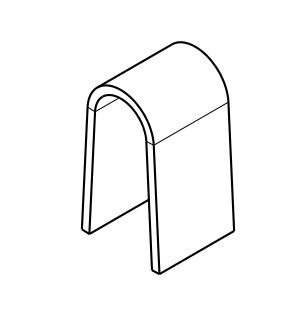

16	02 02181 GUARD=SHELL MOUNT RING CLIP

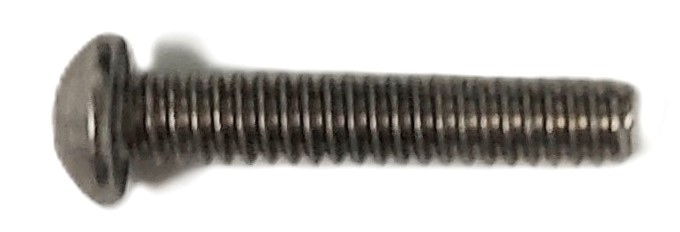

17	15N146 RDMACHSCR 10-24UNC2X1 SS18-8

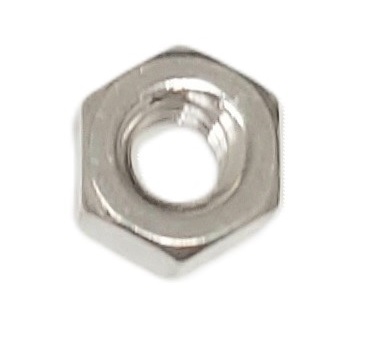

18	15G130 HEXMACHSCRNUT 10-24UNC2 SS18-8
19	15K046S HEXCAPSCR 1/4-20UNC2A X 2.25 S OR 15N200 FILMACSCR 1/4-20UNCX2 SS18-8 S	OR

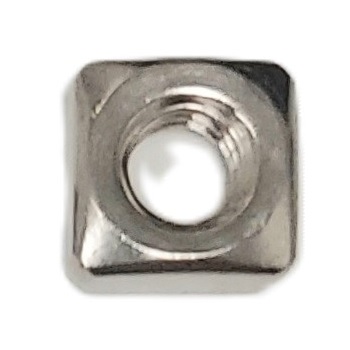

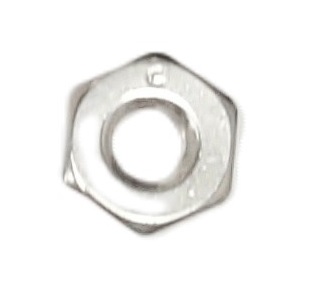

20	15G170 - HEXNUT 1/4-20UNC2 SS18-8 OR 15G168 SQNUT 1/4-20UNC2 SS18-8	OR
