ELECTRIC INTERLOCK ASSEMBLY PART NUMBERS WITH INTERNAL PARTS BY MODEL NUMBER
Electric Interlock assembly part numbers including micro-switch, nameplate, and solenoid. Covers for new style interlocks and both microswitches
Model numbers 30010*** thru 42030***

Many Milnor washer extractors ranging from 25 pound (12 KG) to 140 pound (63 KG) use electric lock assemblies on the door.  Below is a list of interlock assemblies.  There are two styles.  One with the latch connected to the interlock assembly and the other with a star handle connected to the door.  Pictured below.

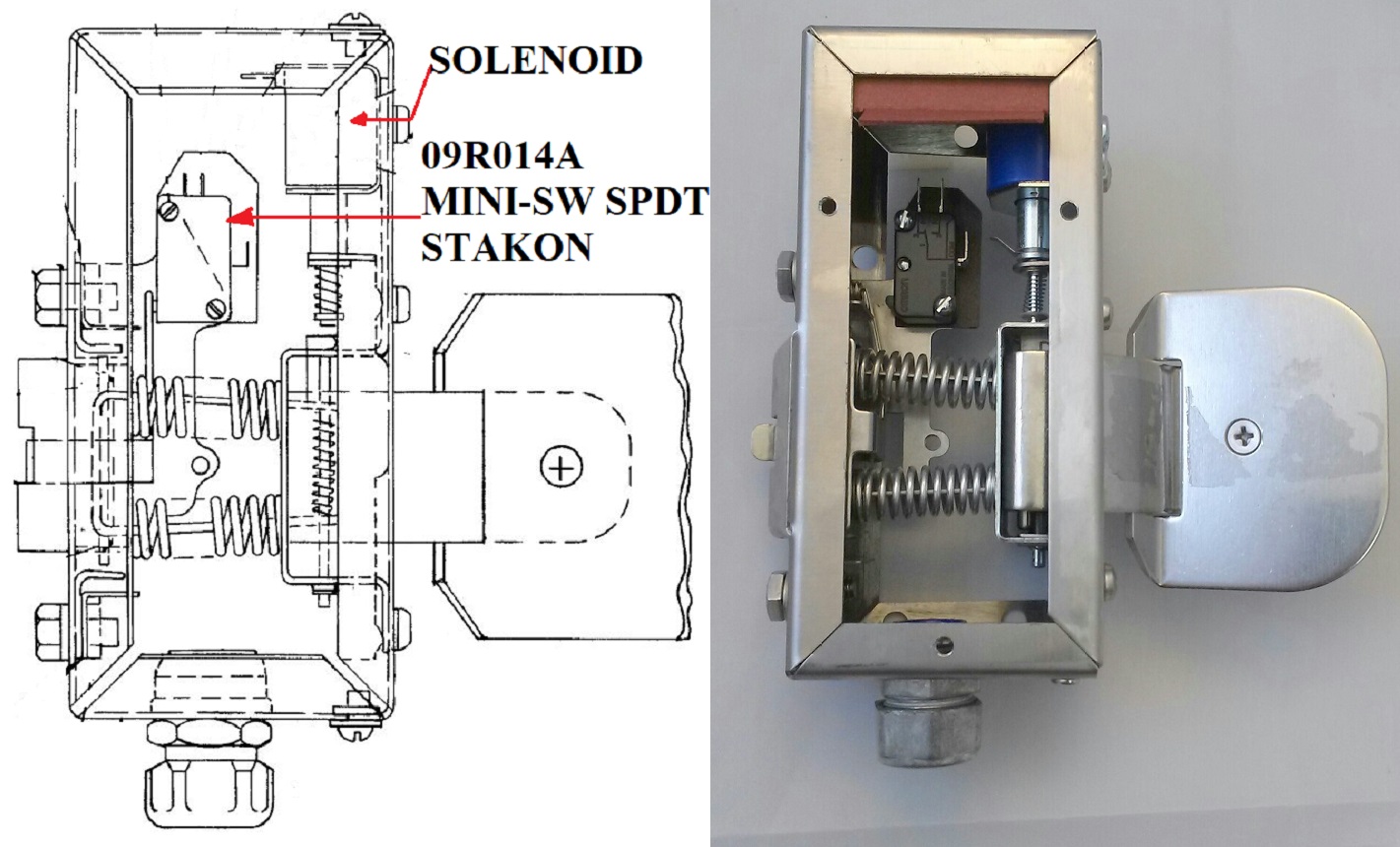

This first picture is of the older style interlock that has the latch attached to the interlock mounted on the door.  This will be referred to as the EDL series.
User-added image

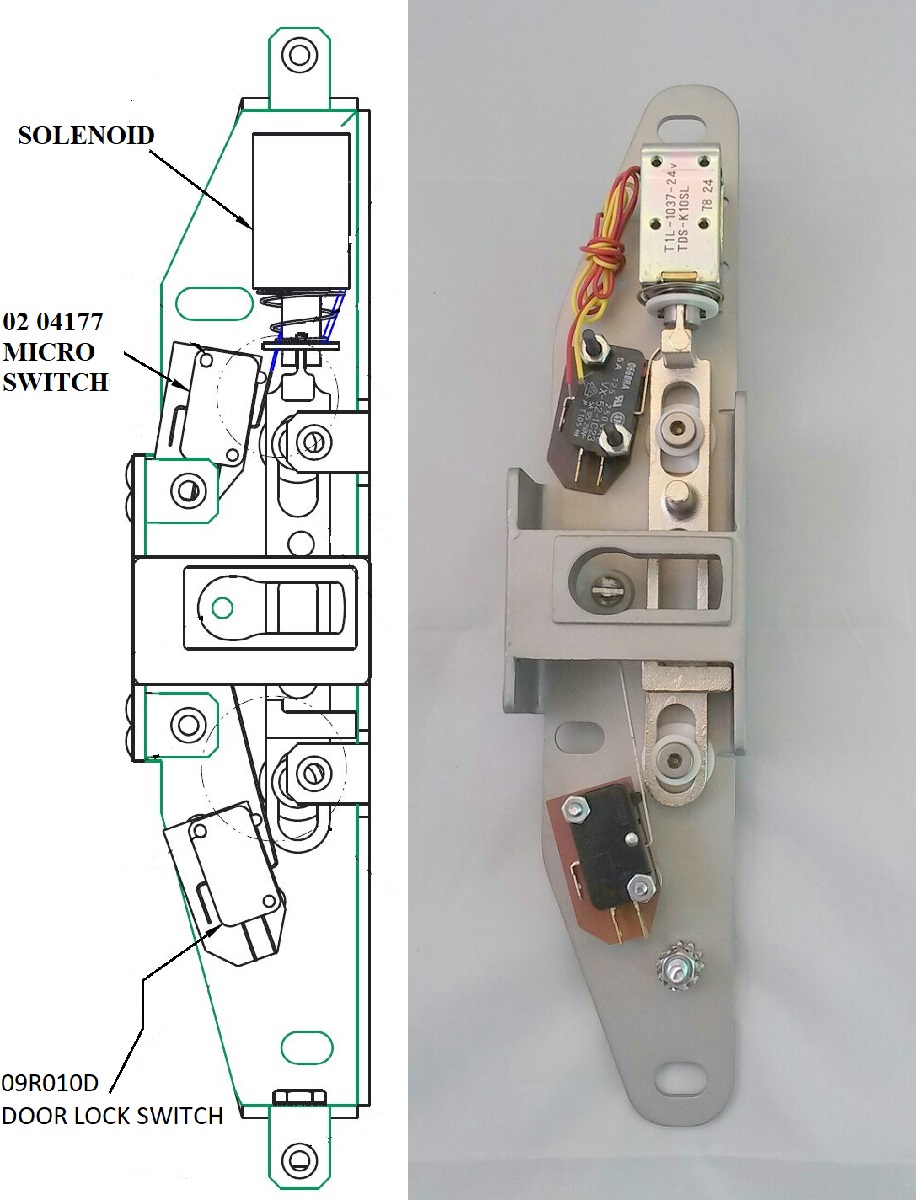

This next picture is of the new style latch that has the star handle mounted on the door and the interlock assembly mounted on the frame of the machine. This will be referred to as the 98CMCR series.
The switch part number 02 04177 is a part number 09R025 with the lever cut at the edge of the switch body.

User-added imageUser-added image

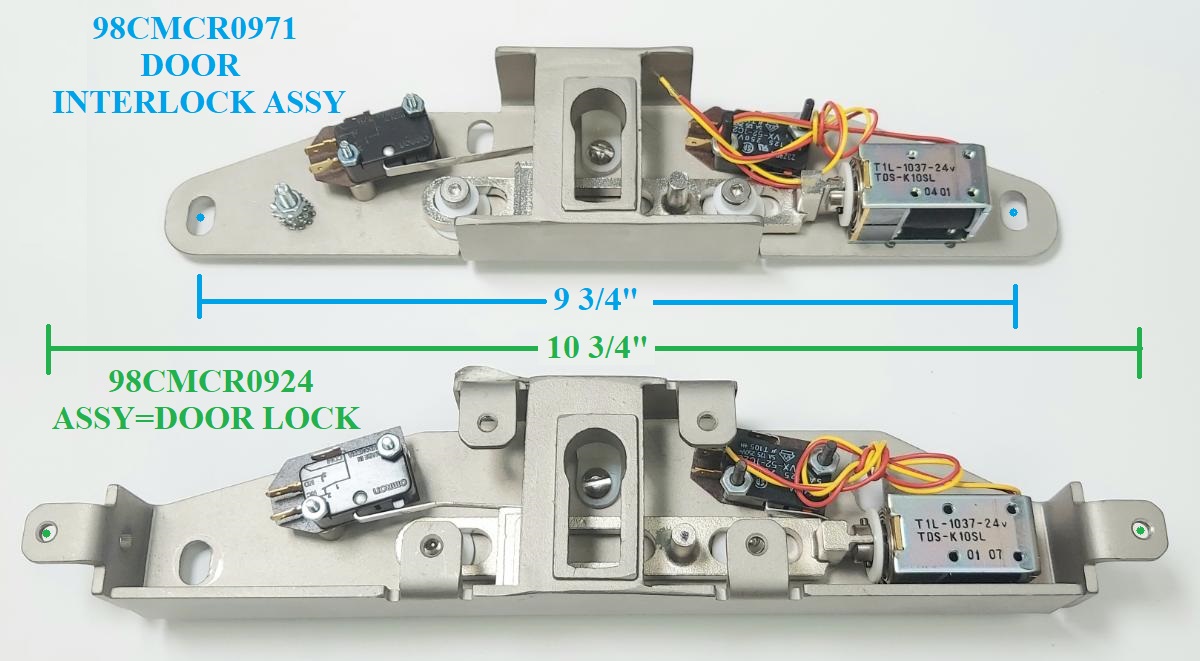

There are two versions of the 98CMCR interlock.  98CMCR0971 and 98CMCR0924.  Both use the same door handle pictured above. Be sure to compare your part with the picture below as older models may have switched from the 0924 to the 0971.

98CMCR0971 vs 98CMCR0924




The tables below are arranged by model number.

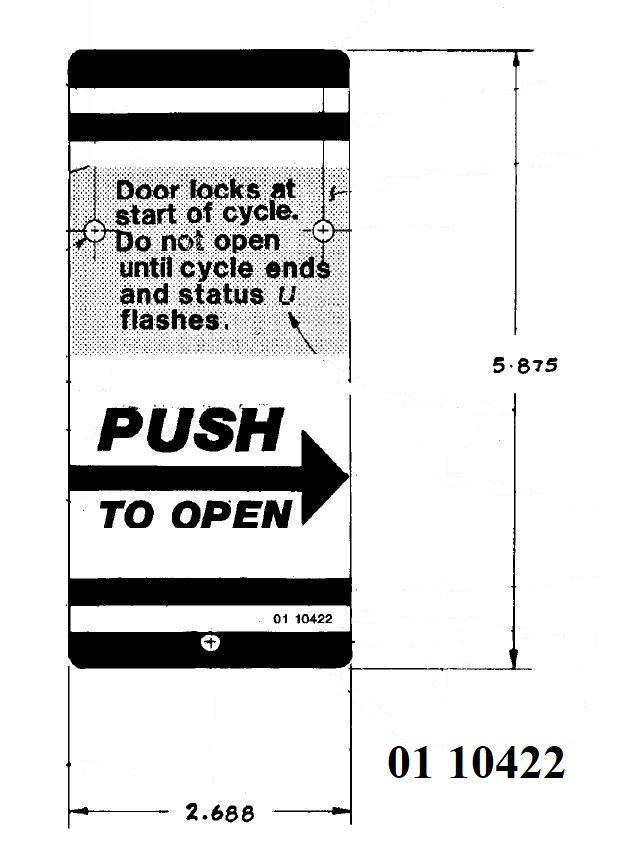

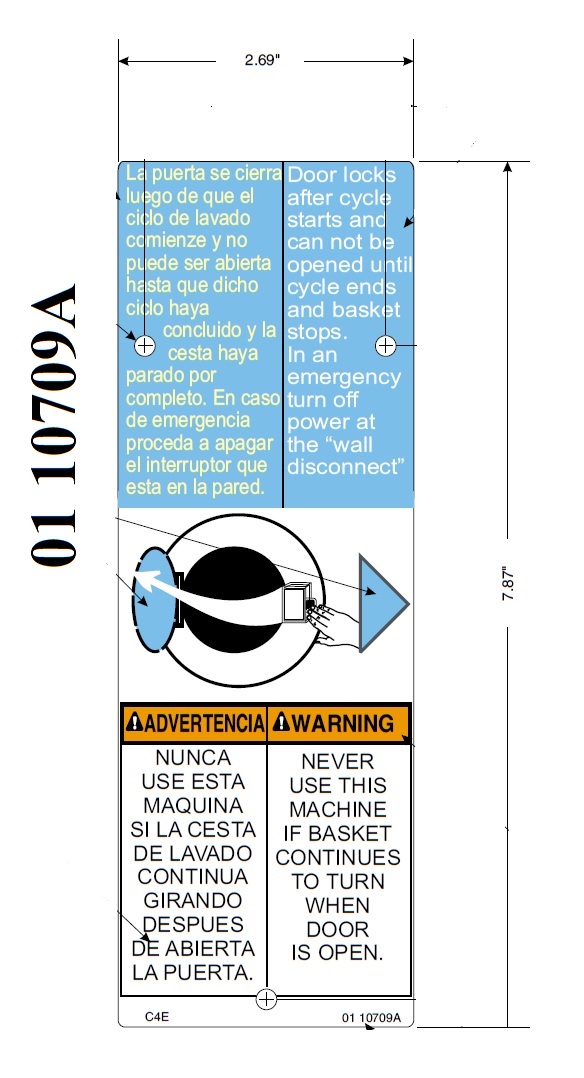

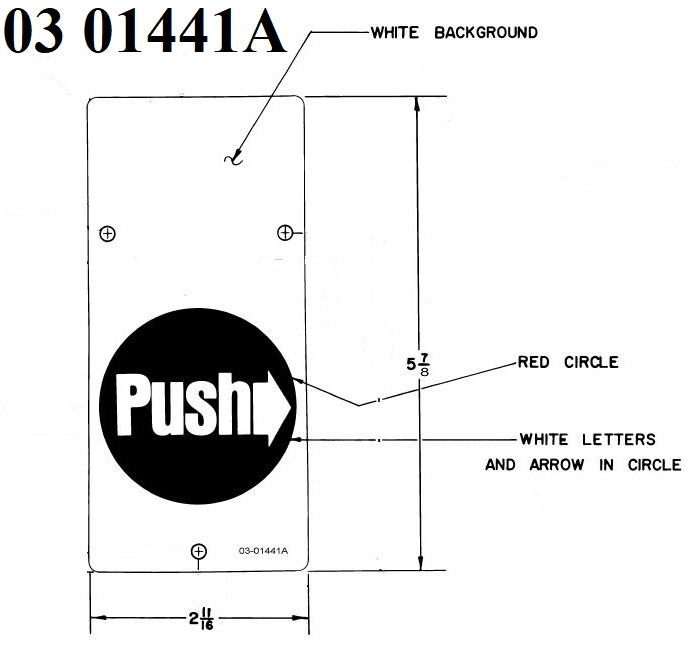

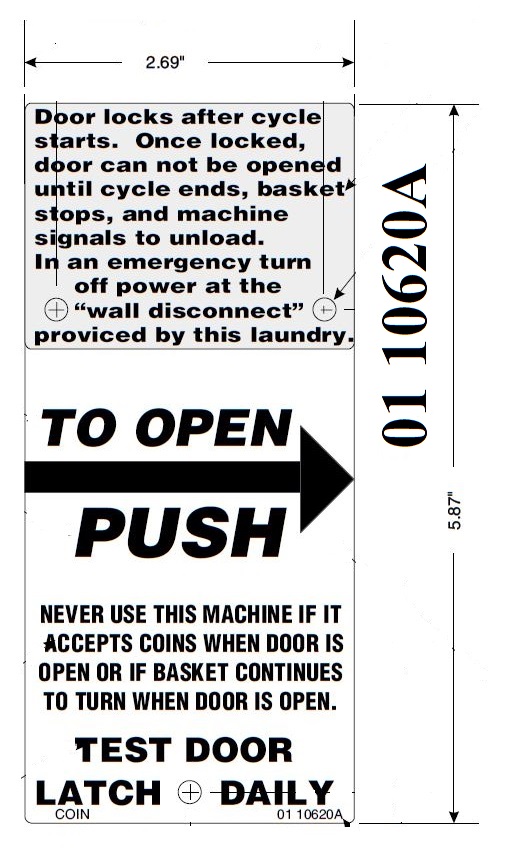

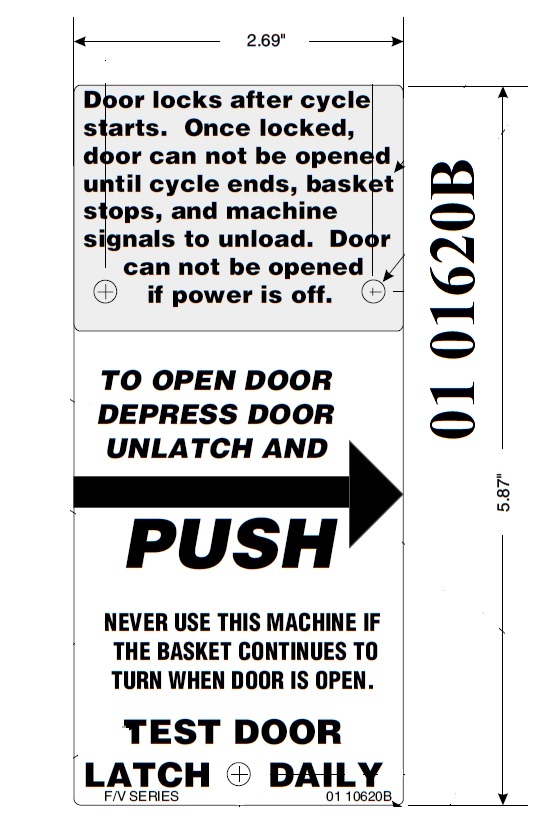

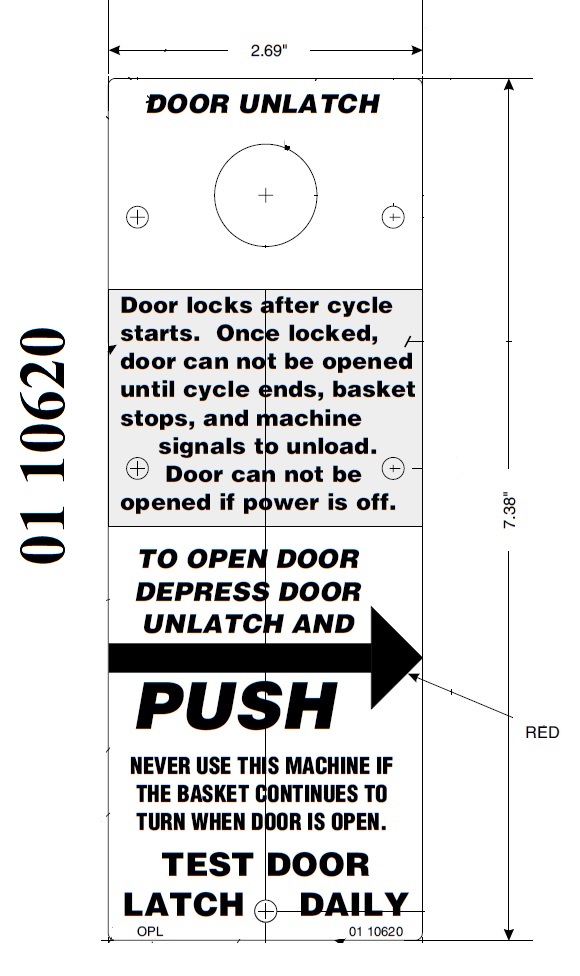

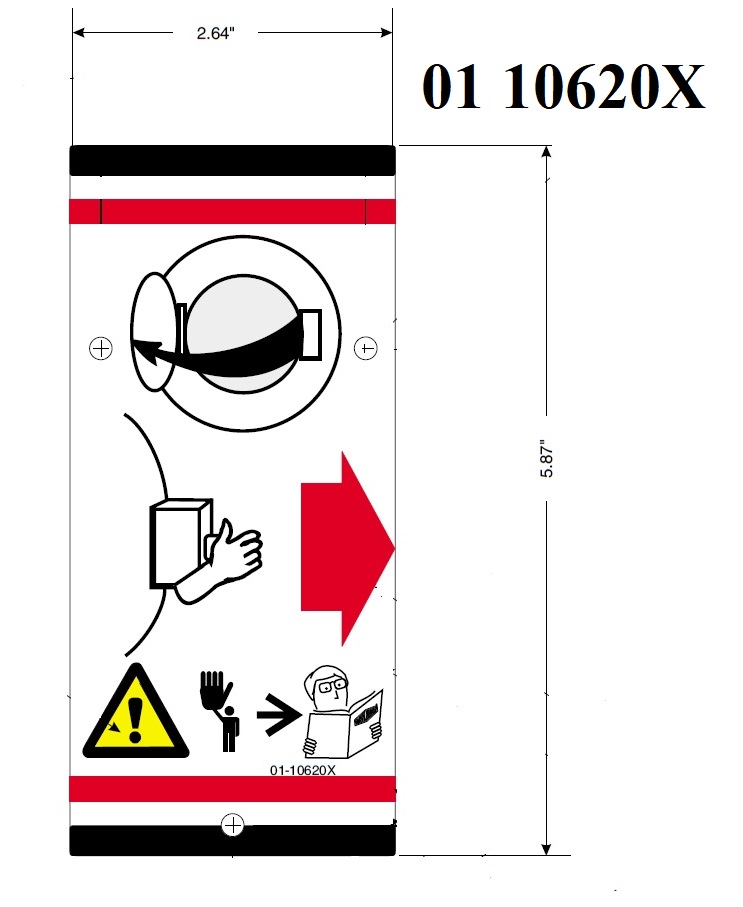

For the EDL series the parts listed will be the whole interlock assembly, the solenoid, the micro-switch, and the interlock cover.  There were a few covers over the years. They are pictured below for reference.

The EDL covers are:
User-added imageUser-added imageUser-added imageUser-added imageUser-added imageUser-added imageUser-added image



For the 98CMCR series the parts listed will be the interlock assembly, the solenoid, both micro-switches, the solid metal cover over the interlock.  The handle part number is always 98CMCR0925.

Some model's earlier versions have EDL series interlock assemblies while later versions have 98CMCR versions.  If the machine has a star handle assembly it will be the new version with the 98CMCR configuration.

MODEL NUMBERS THAT HAVE SHIPPED WITH BOTH TYPES OF INTERLOCK ASSEMBLIES.
MODEL / DESCRIPTIONINTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSTAR DOOR HANDLE ASSEMBLYSOLENOID
36021V5JEDL0033709R014AN/A01 10620XN/A09K062B37
36021V5J W/ STAR HANDLE98CMCR097102 0417709R010D02 1199698CMCR092509K063C24
36021V7JEDL0033709R014AN/A01 10620XN/A09K062B37
36021V7J W/ STAR HANDLE98CMCR097102 0417709R010D02 1199698CMCR092509K063C24
36026V5JEDL0027109R014AN/A01 10620XN/A09K062B37
36026V5J W/ STAR HANDLE98CMCR097102 0417709R010D02 1199698CMCR092509K063C24
36026V7JEDL0033709R014AN/A01 10620XN/A09K062B37
36026V7J W/ STAR HANDLE98CMCR097102 0417709R010D02 1199698CMCR092509K063C24
42026V6JEDL0033709R014AN/A01 10620XN/A09K062B37
42026V6J
AFTER ~2016
please see pictures above		98CMCR097102 0417709R010D02 1199698CMCR092509K063C24
42030V6JEDL0033709R014AN/A01 10620XN/A09K062B37
42030V6J
AFTER ~2016
please see pictures above		98CMCR097102 0417709R010D02 1199698CMCR092509K063C24




30022H7J / 30022H8J

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR092402 0417709R010D02 03228D09K063C2498CMCR0925




30015T6X / 30015V8Z / 30015VRJ / 30015VZZ / 30022VRJ / 30022V8Z / 30022VZZ / 30022T6X / 30022X8J*** / 30022X8R / 30022X8W***

*** Models 3022X8J and X8W manufactured domestically (no 'Z' in the Alpha Code) before 2010 may have interlock part number A33 03226A / ASSY=DOOR LOCK A, 3022H8. This interlock resembles 98CMCR0924, pictured above.
INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR097102 0417709R010D02 03228D09K063C2498CMCR0925




36021V7Z / 36026V7Z / 36026V5Z / 42030V6Z / 42026V6Z

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR097102 0417709R010D02 1199609K063C2498CMCR0925




MWR09E5 / MWR12E5 / MWR12J5 / MWR12X5 / MWR16E5 / MWR16J5 / MWR16X5 / MWR18E4 / MWR18J4 / MWR18J6 / MWR18X4 / MWR18X6

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR092402 0417709R010D02 03228A09K063C2498CMCR0925




MWF27J8 / MWF27Z8 / MWR27E5 / MWR27J5 / MWR27X5 / MWR36J4

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR097102 0417709R010D02 03228D09K063C2498CMCR0925




MWT18E4 / MWT18J6 / MWT18X4 / MWT27E5 / MWT27J5 / MWT27X5

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR097102 0417709R010D02 03228E09K063C2498CMCR0925




MCT18E4 / MCT27E5

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR097802 0417709R010D02 03228E09K063D1298CMCR0925




MCR27E5 / MCR36E4

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR097102 0417709R010D02 03228D09K063D1298CMCR0925




MWT12E5 / MWT16E5 / MWT16J5 / MWT16X5

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR120502 0417709R010D03 40028A09K063C2498CMCR0925




MCT16E5

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
98CMCR120602 0417709R010D03 40028A09K063D1298CMCR0925




MCR09E5 / MCR12E5 / MCR16E5 / MCR18E4

INTERLOCK ASSYMICRO SWITCH 1MICRO SWITCH 2COVERSOLENOIDSTAR DOOR
HANDLE ASSEMBLY
A33 03227A02 0417709R010D02 03228A09K063D1298CMCR0925




30015CWE

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0013709R014A01 1042209K062B37




30015N4E / 30015N4S / 30020N5E / 30020N4S

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0013709R014A01 10620B09K062B37




30015N6E

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0013709R014A01 10620X09K062B37




36021C4E

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL00137C09R014A01 10709A09K062B37




30015C4A / 30020C4A

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0017109R014A01 10620A09K062B71




30020C5M

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0017109R014A01 10620A09K062B71




30015C4M / 30015C6M / 30015M4G / 30015M4J / 30020M5J / 30020M7J / 30020M5G / 30022M5J

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0017109R014A01 10620X09K062B71




30015G5E / 30015G5X

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL00171C09R014A01 1042209K062B71




30015C4E / 30015CGE / 30022C4E

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL00171C09R014A01 10709A09K062B71



30022F8J / 30022F8R / 30022F8S / 30022F8W / 30022J8P

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0022109R014A01 10620B09K062B71



36030F8J / 36030F8R / 36030F8S / 36030F8W

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0022109R014A01 10620X09K062B71




30010CGE / 30010G5E / 30010G5X

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0027109R014A01 1042209K062B71



30015T5J / 30015T5X / 30015V7J / 30022V6J / 30022T5X

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0027109R014A01 10620B09K062B71




30022T5E / 30015T5E

Note that older model 30022T5E models may use cover part number 01 10620B.
Reference cover pictures at top of page to confirm.
INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0027109R014A01 10620X09K062B71




36026QWE / 36026SWE

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0027109R014A03 01441A09K062B71



30015J4P / 36021CPE / 36021CME / 36021NSP / 36021NSE / 36026Q4G / 36026Q4J / 36026Q6G / 36026Q6J / 36026Q4P / 36026Q6P / 36026V6J / 42026Q4G / 42026Q4J / 42026Q4P / 42026Q6G / 42026Q6J / 42026Q6P / 42026RWE / 42026RWP / 42026V6W / 36021RWE / 36021RWP / 36021Q4J / 36021Q6J / 36021Q4G / 36021BWE / 36021BWP

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0033709R014A01 10620X09K062B37




30022S4J / 30022S5G / 30022S5J

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0037109R014A01 10620X09K062B71




30015S5J / 30015S5G

INTERLOCK ASSYMICRO SWITCHCOVERSOLENOID
EDL0037109R014A01 1062009K062B71
