Down Lock Guide - Repair Tap Block for 2 Stage Presses
Repair a 2 Stage press down lock guide block mounting hole
The 2 stage press uses UHMW guide blocks to guide the the down locks.  If the bolts break in the dome top, removal and repair may be tricky.
A repair tap block is available to weld in place on the dome top if the original holes are unusable.

Order part number 07 20552D for the repair tap plate.

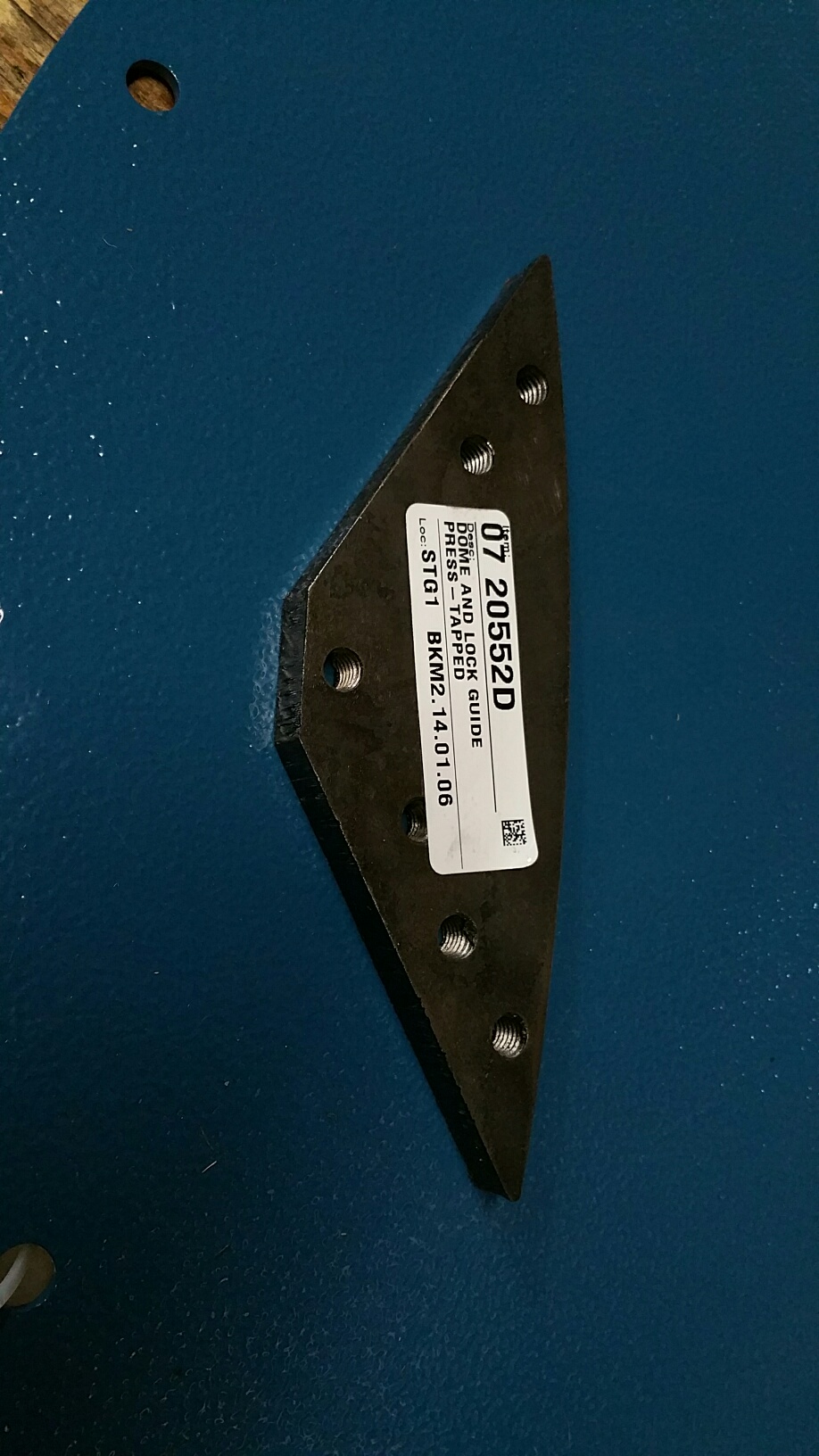

Picture of Tap Block

Part number 07 20552A mounts on this plate along with the dome guide roller assembly.
