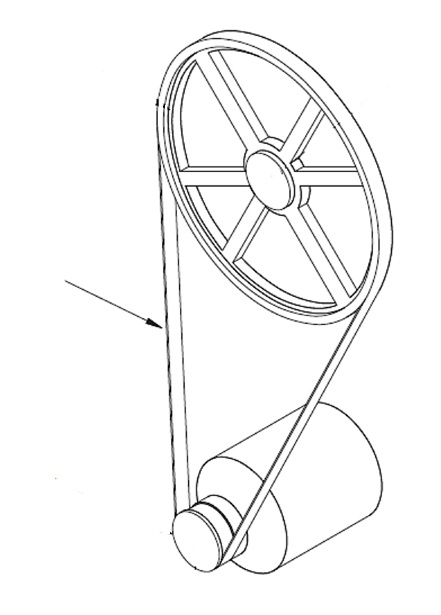

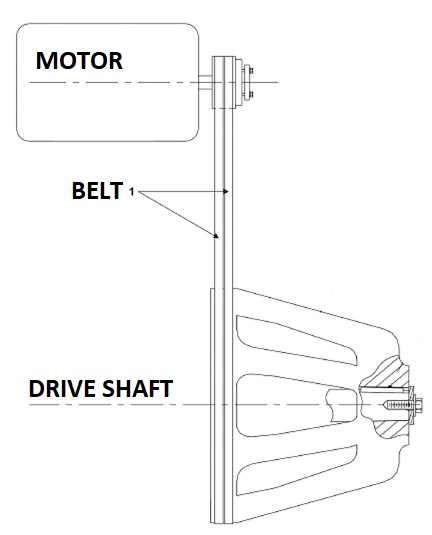

Some Milnor Washer-Extractors use a single motor with a belt drive. The power is transferred from a pulley on the motor to a pulley on the drive shaft with a single belt or a single set of belts.
Below is a list of Milnor Drive Belt Part numbers. They are associated with the Model numbers that use the particular part number. Please search for your model number. The Belt part number and description will be in the table directly below.
Remember, some machines have configurations designed for specific customer needs. Please compare the part number with the information found on your belt.
30010CGE / 30010G5E / 30010G5X / 30015G5E / 30015G5X / 30015CGE
| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| 56VR0800M2 | VBELT 3V800 EA=1BLT | USES TWO BELTS |
30015S4A / 30015S4G / 30015S4J / 30015S4T / 30022S4A / 30022S4G / 30022S4J / 30022S4T
| 56VR080XB3 | VBAND 3R3VX800 EA= 1 BELT | 3 BANDED / COGGED |
30015C4E / 30022C4E / 30015T5E / 30015T5J / 30022T5E / 30022T5J / 30015T5X / 30022T5X
| 56VR082XB3 | WEDGE COG BAND 3R3VX820 EA = 1 BELT | 3 BANDED / COGGED |
30015T6X / 30022T6X
| 56VR075XB3 | WEDGE COG BAND 3R3VX750 EA = 1 BELT | 3 BANDED / COGGED |
30015V7J / 30022V6J
| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| 56VB071XM2 | VBELT BX71 EA=1BELT | USES TWO BELTS |
30015VRJ / 30015V8Z / 30015VZZ / 30022VRJ / 30022V8Z / 30022VZZ
| 56VB073XM2 | VBELT BX73 EA=1BELT | USES TWO BELTS |
30022H7J / 30022H8J
| 56VB085X | VBELT BX85 RAWEDGE COG | Uses two belts on units
manufactured after 10/23/2001 |
| 56VB078X | VBELT BX78 RAWEDGE COG | Uses two belts on units
manufactured until 10-22-2001 |
30022F8J / 30022F8W / 30022J8P / 30022F8R
| PART NUMBER | DESCRIPTION | ADDTIONAL INFO |
|---|
| 56VB081X | VBELT BX81 RAWEDGE COG | USES TWO BELTS |
30022X8J / 30022X8R / 30022X8W
| 56VB082XM2 | VBELT BX82 EA=1BELT | USES TWO BELTS |
36026V7J / 36026V7W / 36026V7Z / 36021V7J / 36021V7J / 36021V7Z / 42026V6J / 42026V6W / 42026V6Z
| 56VB093X | VBELT BX93 RAWEDGE COG | USES THREE BELTS |
36021V5Z / 36026V5J
| 56VB095X | VBELT BX95 RAWEDGE COG | 36021V5Z Uses 2 Belts
36026V5J Uses 3 Belts |
36021C4E / 36021V5J
| PART NUMBER | DESCRIPTION | ADDTIONAL INFO |
|---|
| 56VB095X | VBELT BX95 RAWEDGE COG | Uses two belts on units
manufactured after 1/31/2004 |
| 56VB095XM2 | VBELT BX95 EA=1BELT | Uses two belts on units
manufactured until 1/31/2004 |
36030F8R / 36030F8S / 36030F8J / 36030F8W / 36030J8P
| 56VB116XB3 | VBAND 3RBX116 EACH=1 | 3 BANDED / COGGED |
36026X8J / 36026X8R / 36026X8W
| 56VB122XM3 | 3/BX122 VBELT MATSET=3;EA=1SET | sold as set of 3 belts |
42030V6Z / 42030V6J
| 56VB091XB4 | VBAND 4RBX91 EACH=1 (WT.=4.5 LBS.) | 4 BANDED / COGGED |
42032F7W / 42032F7J / 42032F7R / 42032F7S / 42032F7R / 42032F7S / 42032F7W / 42032J7P
| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| 56VB124XB3 | VBAND 3RBX124 EACH=1 | 3 BANDED / COGGED |
42026X7J / 42026X7R / 42026X7W / 42032X7J / 42032X7R / 42032X7W
| 56VB131XB3 | GOLD RIBBON COG3STRANDBX131 EA=1 (RBX-131-3RIB) | 3 BANDED / COGGED |
48040F7B / 48040F7D / 48040F7J / 48040F7N / 48040F7W / 48040F7Z / 48040H7K / 48040H7N / 48040H7R / 48040H7W / 48040M7K
| 56VB147XB4 | VBAND 4RBX147 EACH = 1 | 4 BANDED / COGGED |
68036F5N / 68036F5P / 68036H5K / 68036H5N / 68036M5K
| 56VB171XB4 | VBAND 4RBX171 EACH =1 | 4 BANDED / COGGED
USES TWO BELTS |
MCR12E5 / MWR12E5 / MCT12E5 / MWT12E5 / MWR09E5 / MWR12J5 / MWR12X5
| PART NUMBER | DESCRIPTION | ADDTIONAL INFO |
|---|
| 98CMCR0909 | SINGLE DRIVE BELT SPZ1362LW | USES TWO BELTS |
MCR16E5 / MWR16E5 / MCT16E5 / MWT16E5 / MWR16J5 / MWR16X5 / MWT16J5 / MWT16X5
| 98CMCR1609 | SINGLE DRIVE BELT SPZ1340LW | USES TWO BELTS |
MCR18E4 / MWR18E4 / MCT18E4 / MWT18E4 / MWR18X4 / MWR18J4 / MWT18X4 / MWT18J4 / MWR18J4 / MWR18J6 / MWR18X4 / MWR18X6 / MWT18E4 / MWT18J6 / MWT18X4 / MWR18E5 / MWR18X5 / MWR18J5
| 98CMCR1809 | SINGLE DRIVE BELT SPZ1937LW | USES TWO BELTS |
MCR27E5 / MCR36E4 / MCT27E5 / MWR27E5 / MWR27J5 / MWR27X5 / MWR36J4 / MWT27E5 / MWT27J5 / MWT27X5
| 98CMCR2711 | VBELT SPZ 2120 1 BELT, MCR27 | USES THREE BELTS |
MWF27J8 / MWF27Z8
| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
| 56VB082XM2 | VBELT BX82 EA=1BELT | USES TWO BELTS |
MWF45J8 / MWF45Z8
| 56VB116XB3 | VBAND 3RBX116 EACH=1 | 3 BANDED / COGGED |
MWF63C7 / MWF63J7 / MWF63Y7 / MWF63Z7 / MWF77C7 / MWF77J7 / MWF77Y7 / MWF77Z7
| 56VB124XB3 | VBAND 3RBX124 EACH=1 | 3 BANDED / COGGED |
