Milnor has a number of washer/extractors that have divided cylinders. These models include, but are not limited to, 42044CP2, 42044CP3, 42044NP2, 42044NP3, 42044SP2, 42044SP3, 42044SR2, 42044SR3, 42044WP2, 42044WP3, 42044WR2, 42044WR3, 60044SP2, 60044SP3, 60044SR2, 60044SR3, 60044WP2, 60044WP3, 60044WR2, 60044WR3, 72044SP2, 72044SP3, 72044SR3, 72044WP2, .72044WP3, 72044WR2, 72044WR3.

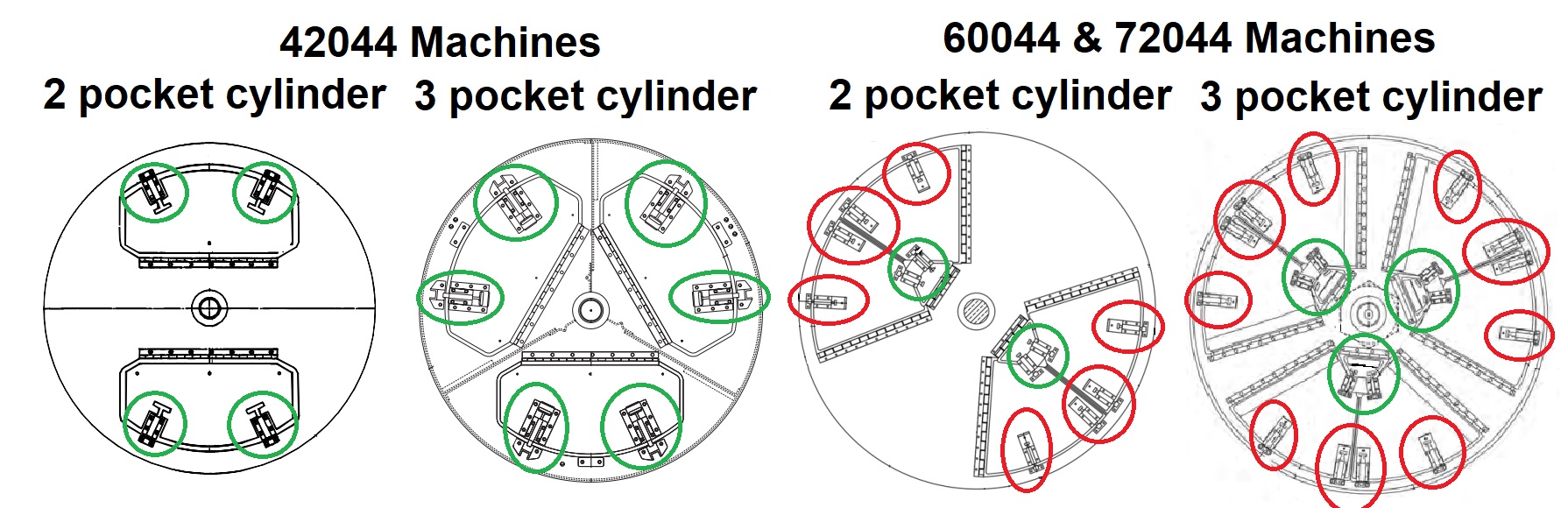

The cylinders are divided into pockets, either two or three. Each pocket has its own internal cylinder door. This knowledge article is about the latch assemblies on those cylinder doors. In the diagram below, those latch assemblies are circled. Note that staph machines have one cylinder door on the load (soil) side and the other on the unload (clean) side. Not represented in the diagram below.
For Hook Latches, click HERE
Those circled in
RED are the larger style. Those Circled in
GREEN are the smaller style.
To repair the latch assemblies Milnor provides two kits.

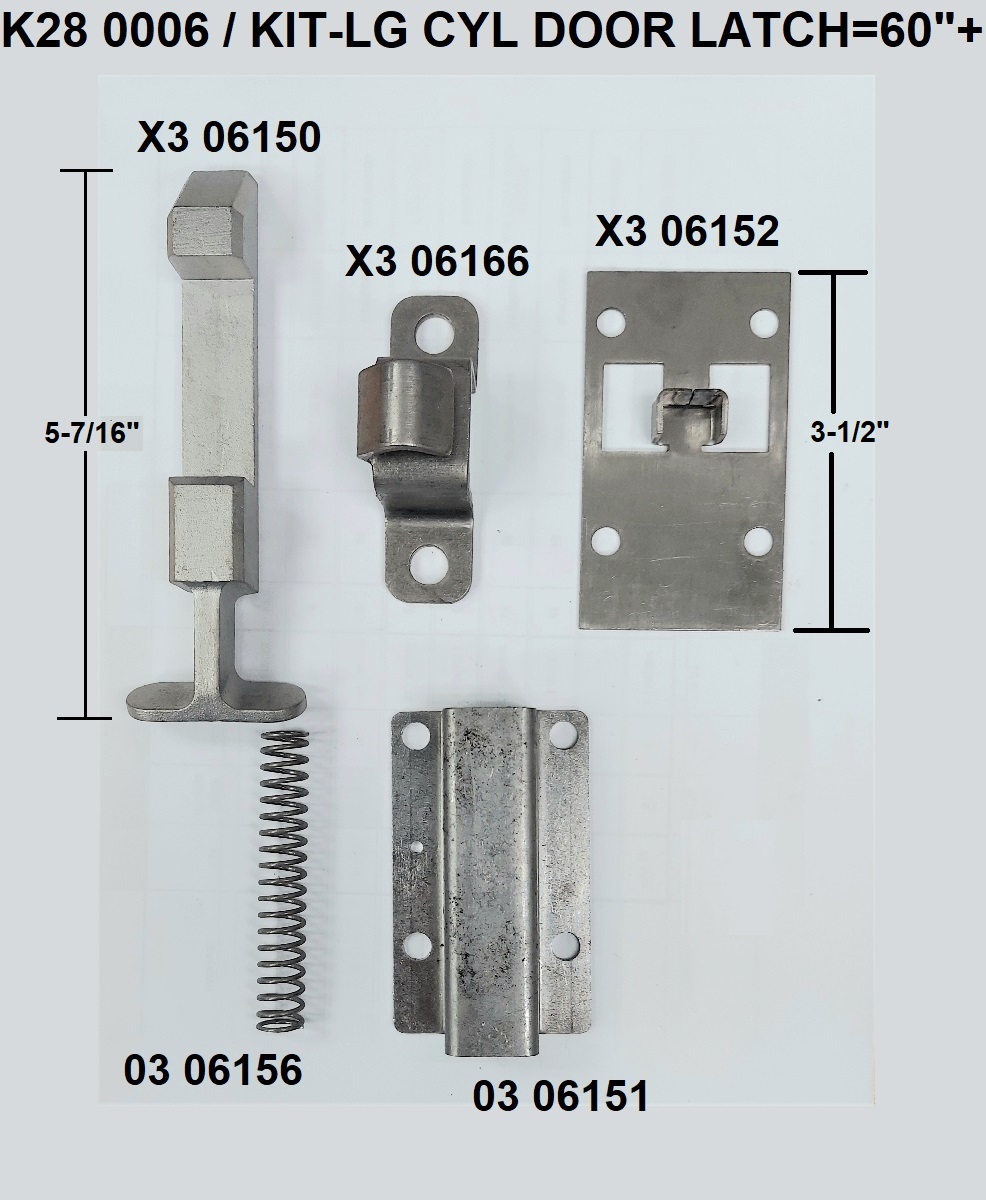

For the Larger latch, Kit number K28 0006 / KIT-LG CYL DOOR LATCH=60"+
For other common parts associated with this kit click
HERE.

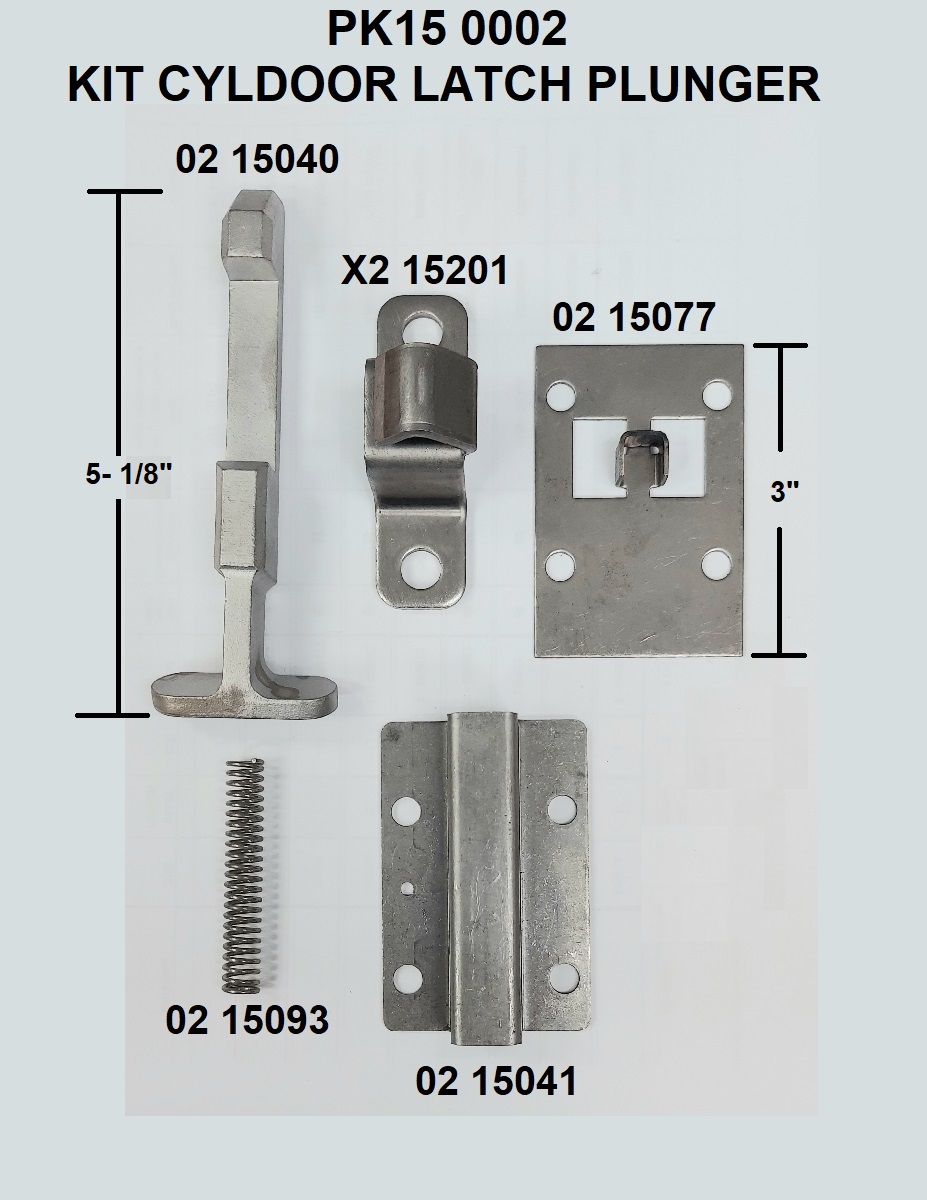

The smaller latch kit is PK15 0002 / KIT CYLDOOR LATCH PLUNGER
For other common parts associated with this kit click
HERE.
Parts Associated with Kit K28 0006

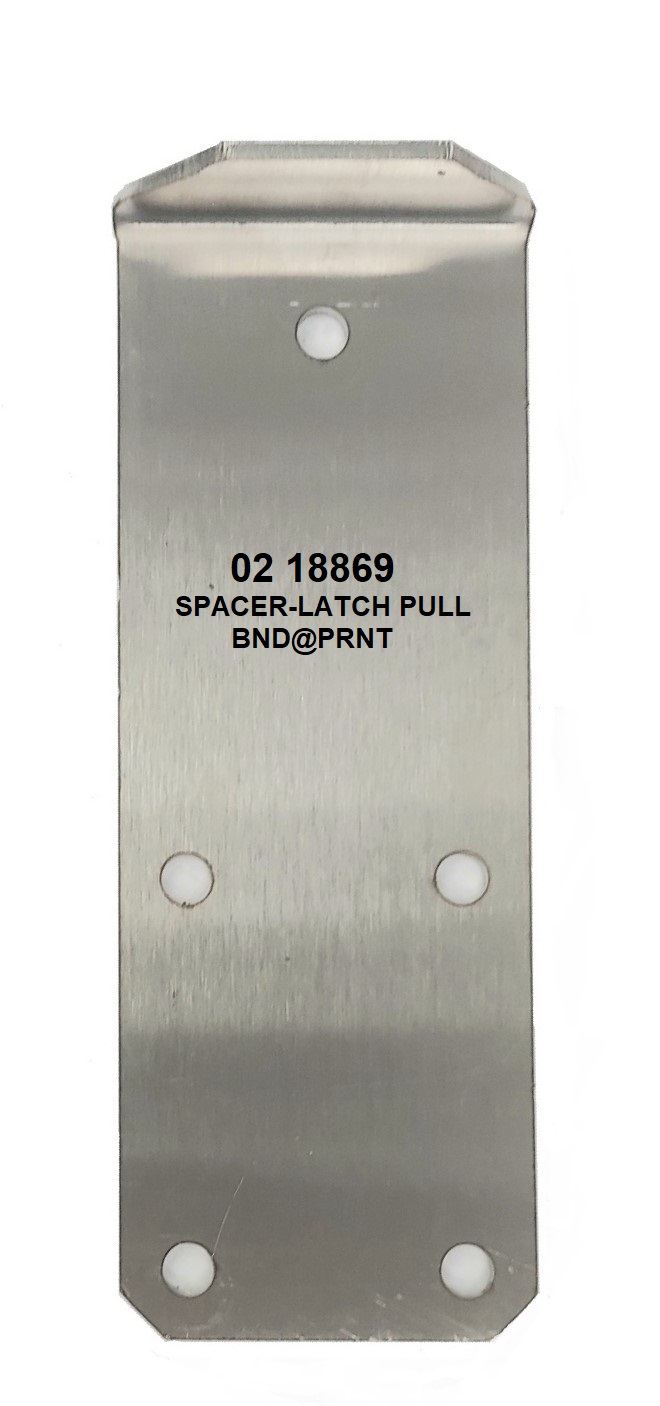

Latch Pull Spacer - 02 18869

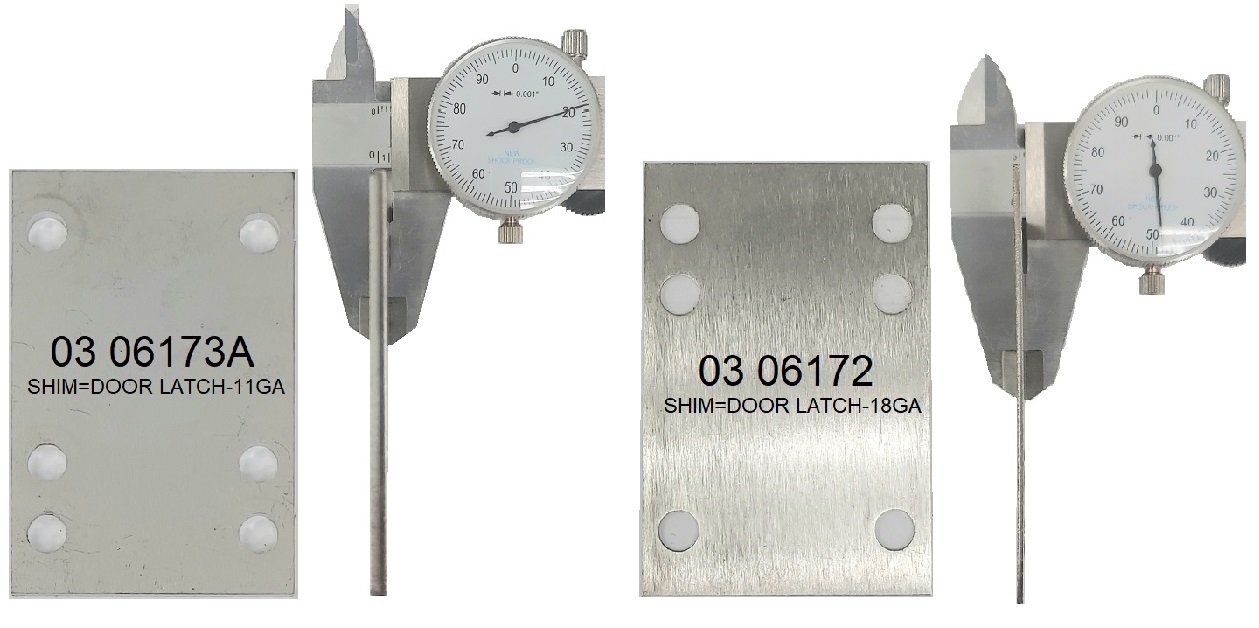

Shims 11 gauge - 03 06173A and 18 gauge - 03 06172

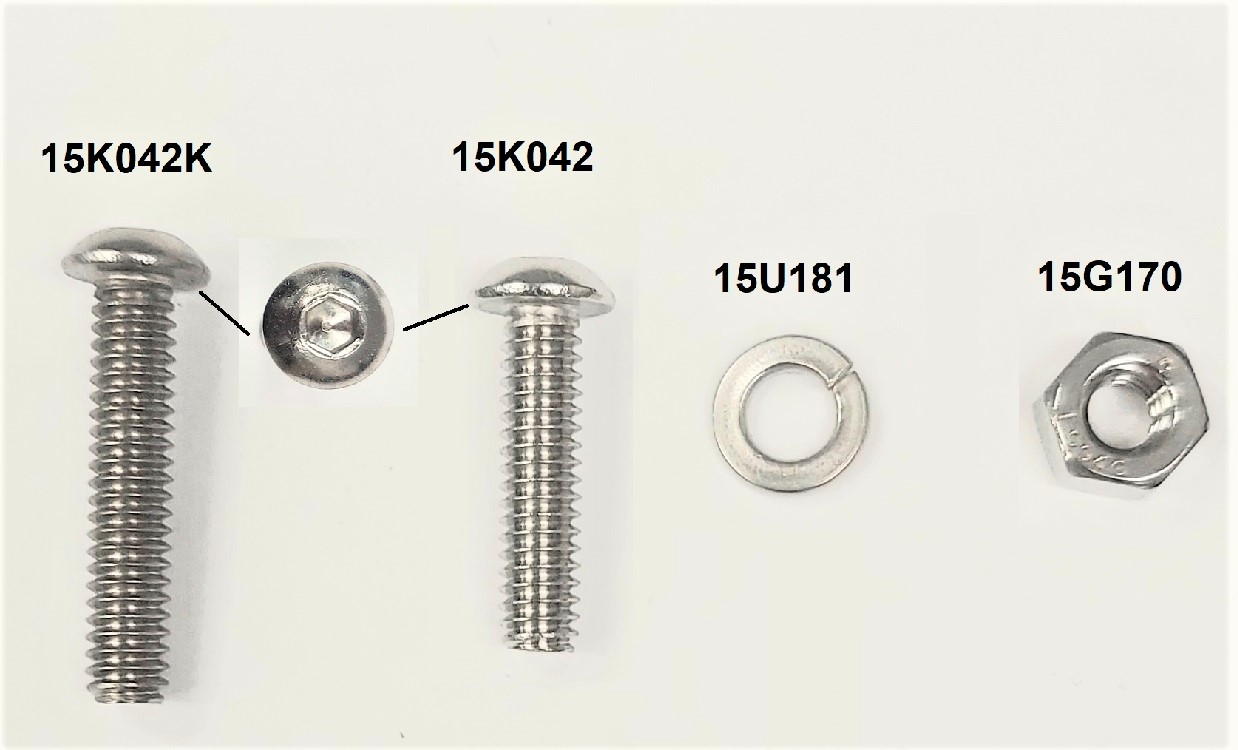

Hardware: Qty 8 - 15K042K, QTY 2 - 15K042, Qty 10 - 15U181, and Qty 12 - 15G170
Parts Associated with Kit PK15 0002

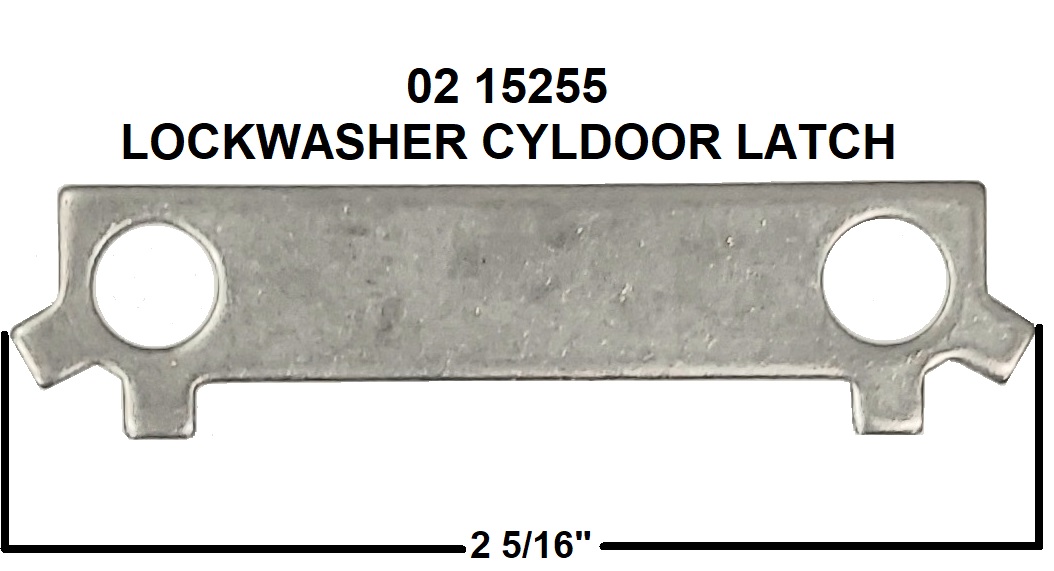

02 15255 - LOCKWASHER CYLDOOR LATCH Qty 4 where applicable.

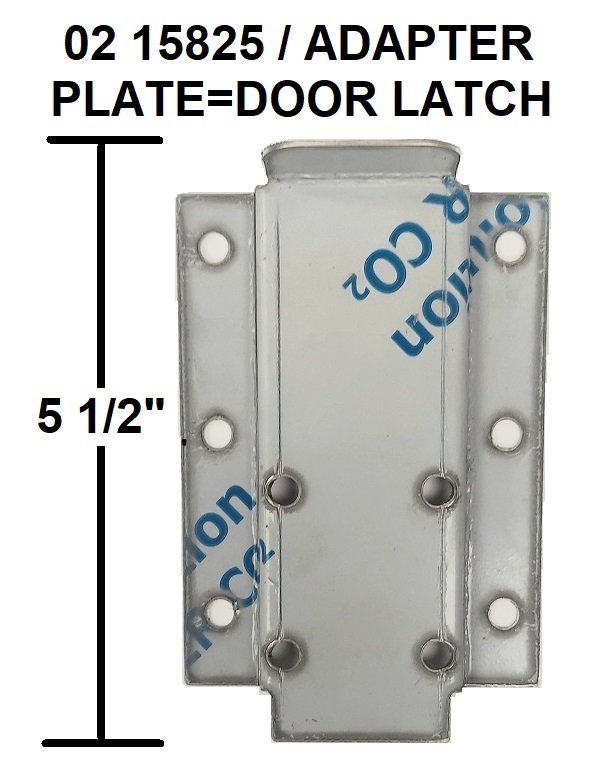

02 15825 - ADAPTER PLATE=DOOR LATCH Qty 1 for each latch
Shims 11 gauge - 03 06173A and 18 gauge - 03 06172 where applicable.
HOOK LATCHES

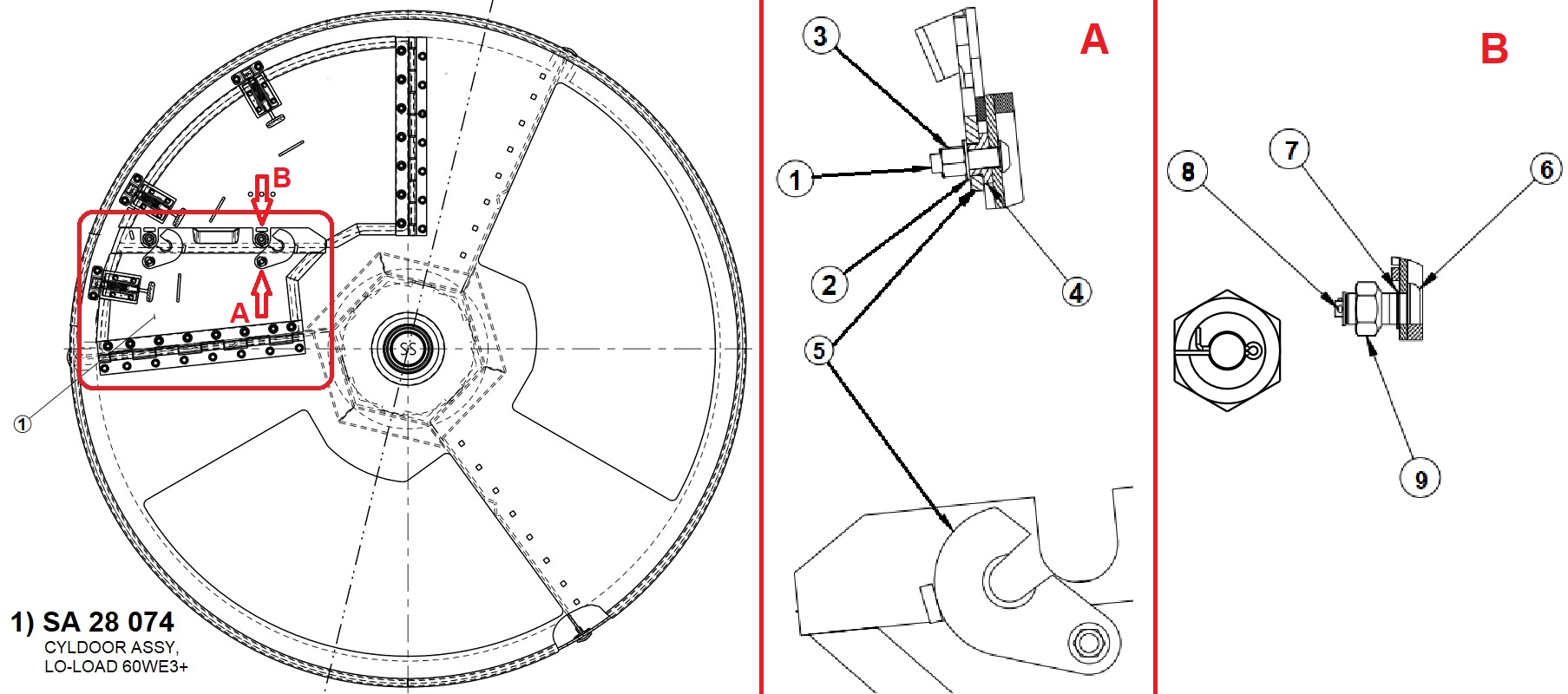

60044SP3, 60044SR3, 60044WP3, and 60044WR3 have secondary doors within the main cylinder door. These close and secure with hook latch mechanisms. Attached to the secondary door is the hook mechanism (A). And attached to the main door are the studs that are hooked onto (B). See diagram below.
| Diagram Item # | Part Number | Description | Additional Info |
|---|

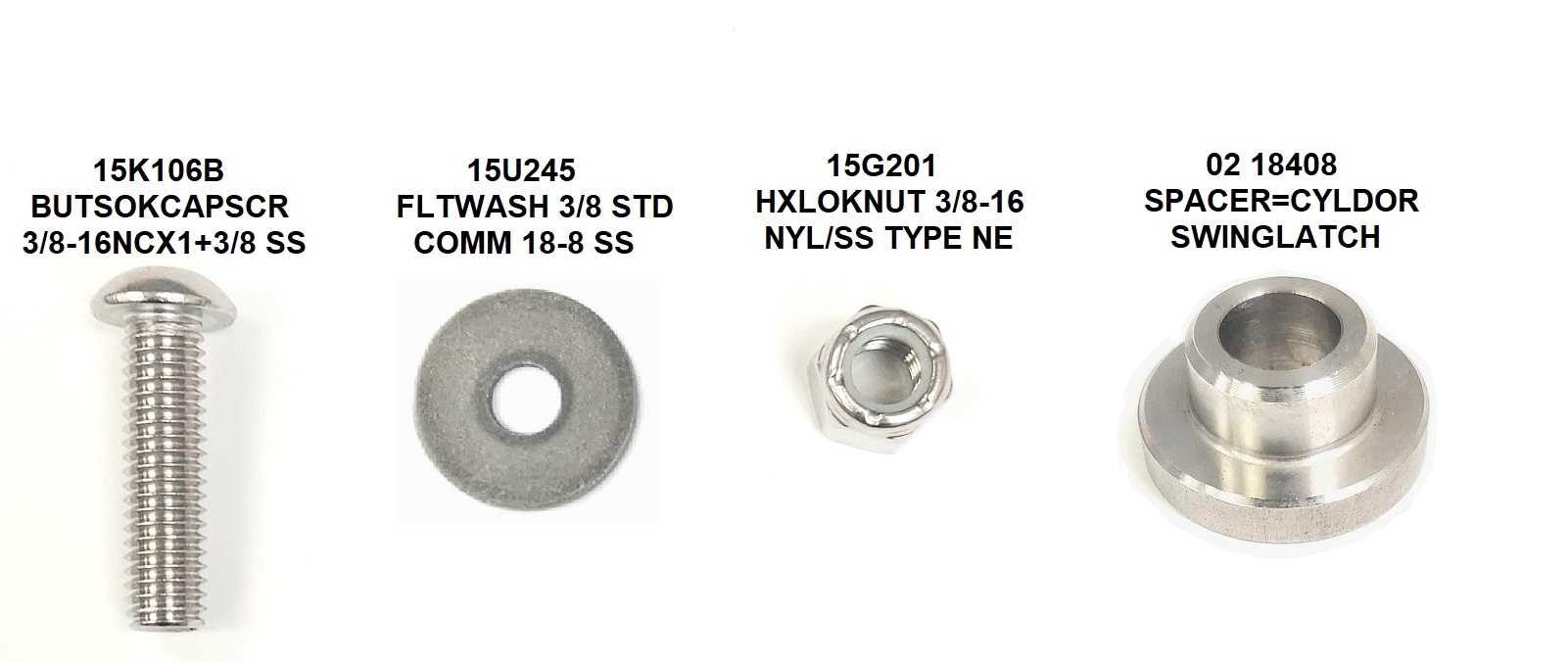

| 1 | 15K106B | BUTSOKCAPSCR 3/8-16NCX1+3/8 SS | |
|---|
| 2 | 15U245 | FLTWASH 3/8 STD COMM 18-8 SS | |
|---|
| 3 | 15G201 | HXLOKNUT 3/8-16 NYL/SS TYPE NE | |
|---|
| 4 | 02 18408 | SPACER=CYLDOR SWINGLATCH | |
|---|

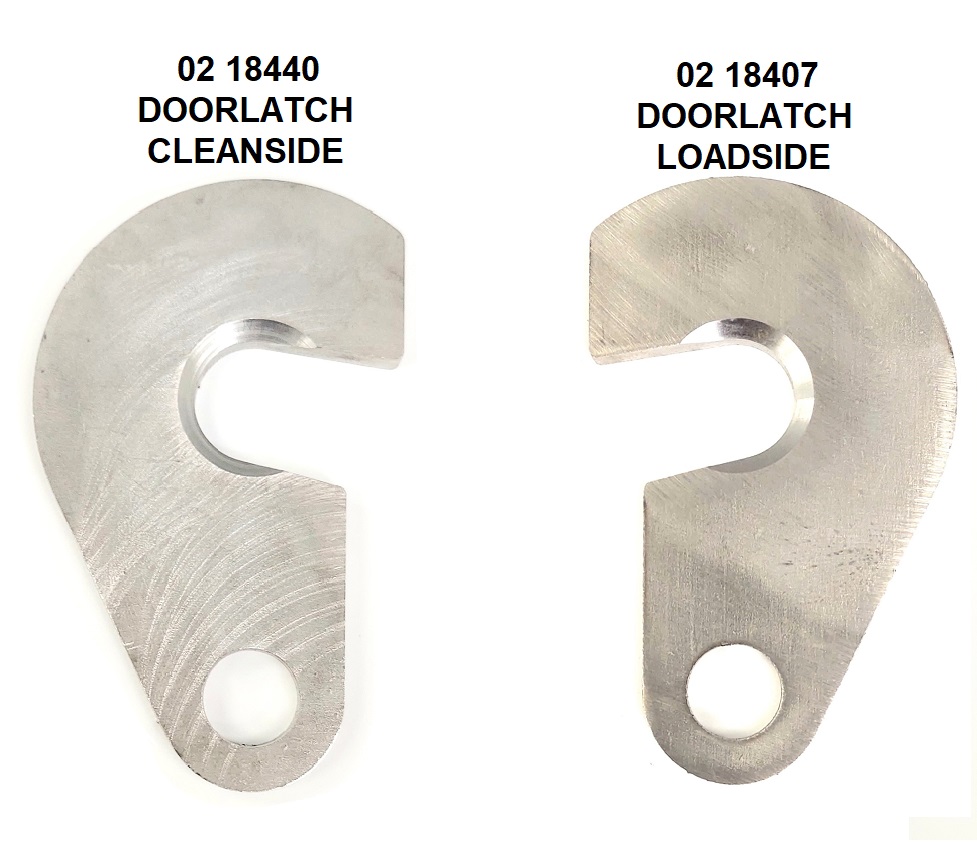

| 5 | 02 18440
02 18407 | DOOR LATCH CLEAN SIDE
DOOR LATCH SOIL (LOAD) SIDE | SA 28 076 / CYLDOOR ASSY,LO-CLEAN 60SG3
SA 28 074 / CYLDOOR ASSY,LO-LOAD 60WE3+ |
|---|

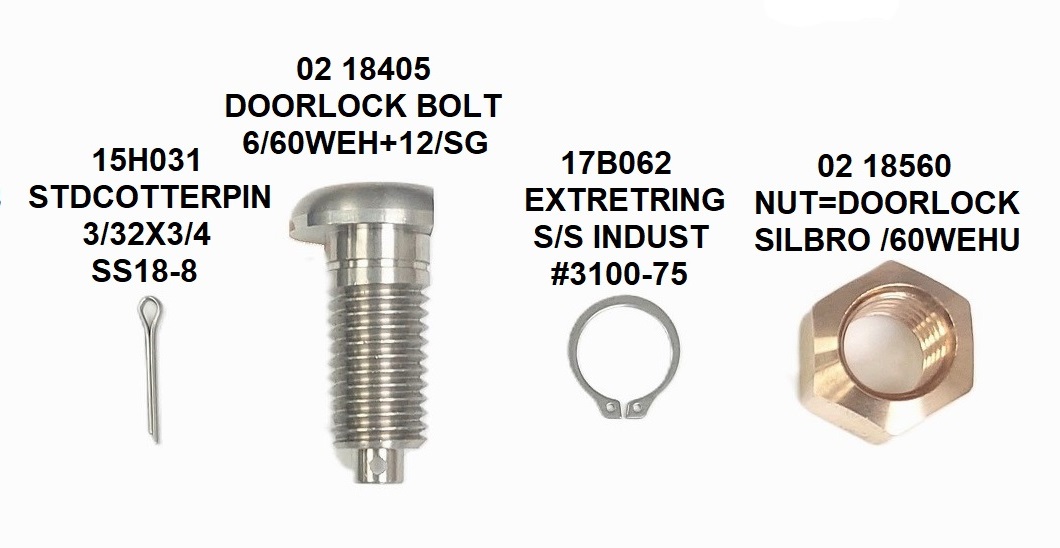

| 6 | 02 18405 | DOORLOCK BOLT 6/60WEH+12/SG | |
|---|
| 7 | 17B062 | EXTRETRING S/S INDUST#3100-75- | |
|---|
| 8 | 15H031 | STDCOTTERPIN 3/32X3/4 SS18-8 | |
|---|
| 9 | 02 18560 | NUT=DOORLOCK SILBRO 6/60WEHU | |
|---|
