| Coin Acceptor/Rejecter and Component Part Number Information | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Parts information for coin systems including acceptor / rejecter, vault, key alike, key consecutive, key shaft and weldment information. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

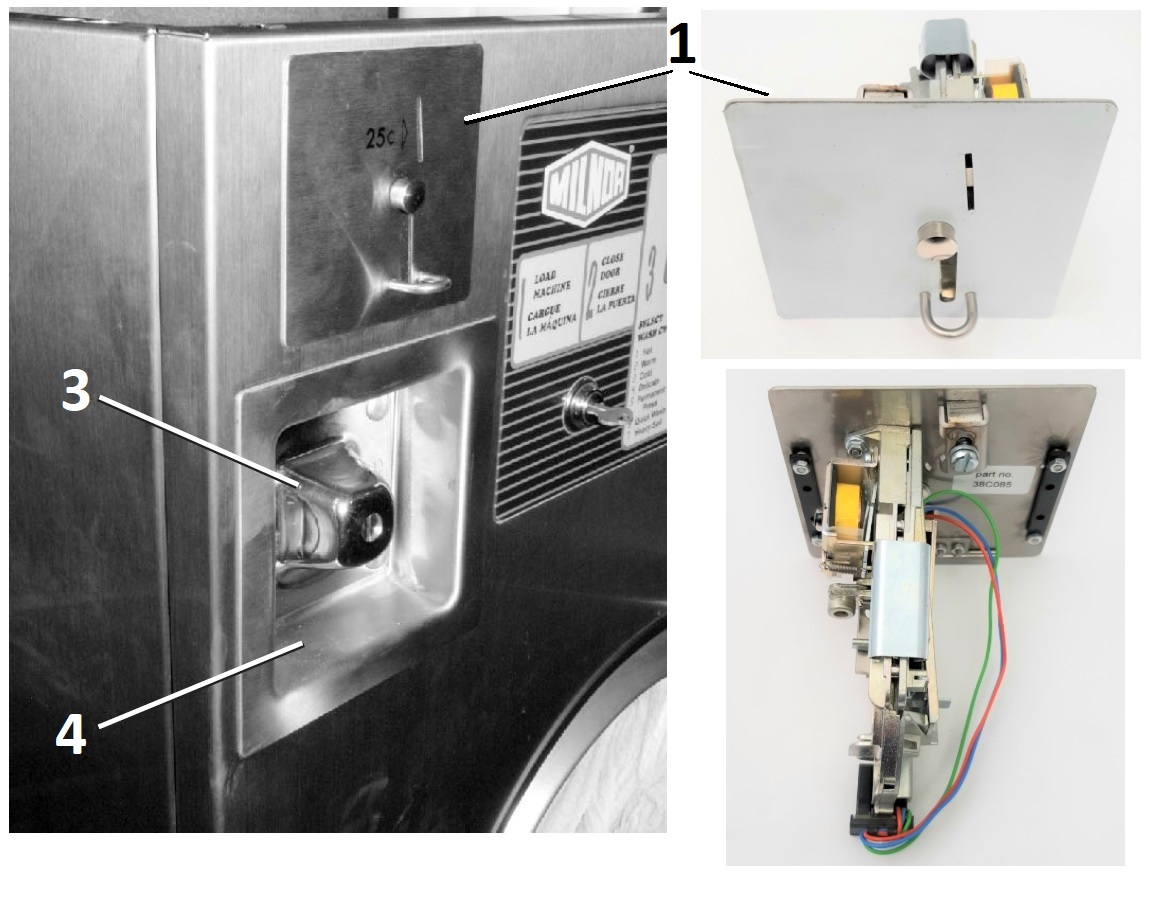

| PICTURE LIST NUMBER | COMPONENT | DESCRIPTION | QTY | Additional Info |
|---|---|---|---|---|
| 1 | 38C080 | REJ .25 US DOLLAR W/LOCKING MEC 240V | 1 | COIN VARIATIONS LISTED BELOW IN GREEN |
| 2 | W3 40029 | 2314MCR09 COIN VAULT WELD | 1 | |
| 3 | 38C152KI | COIN LOC BX KEYED-INDIVIDUAL | 1 | 38C152KA / Keyed Alike |
| 4 | 03 40029B | CSX BEZZLE COIN VAULT | 1 |
| PART NUMBER | DESCRIPTION | PART NUMBER | DESCRIPTION | ||
|---|---|---|---|---|---|
| 38C080 | REJ .25 US DOLLAR W/LOCKING MEC 240V | DOMESTIC | 38C085CAN | REJ.W/LOCK-MECH 230V CANADIAN QTR | IMPORTED |
| 38C080A | REJ .25 USDOLLAR W/LOCKING MEC 120V | DOMESTIC | 38C085CAND | REJ.W/LOCK-MECH 230V CANADIAN LOON | IMPORTED |

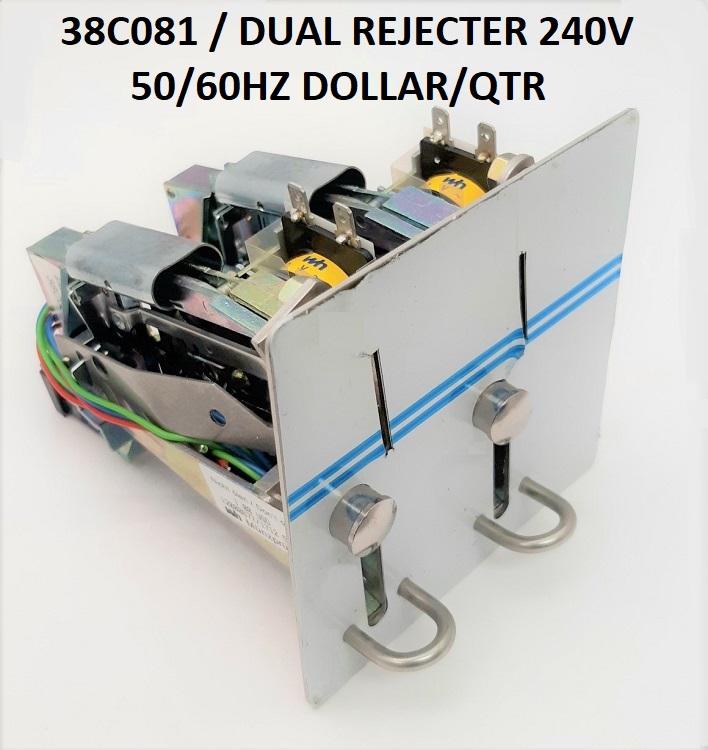

| 38C081 | DUAL REJECTER 240V 50/60HZ US DOLLAR/QTR | DOMESTIC | 38C085CNY | REJ.W/LOCK-MECH 230V CASTIC CHINESE YUAN | IMPORTED |
| 38C082 | DUAL REJECTER 120V 50/60HZ US DOLLAR/QTR | DOMESTIC | 38C085ECU | ECUD REJ 0.25 ECS/USD 240V | IMPORTED |
| 38C085 | REJ.W/LOCK-MECH 230V CASTIC US QTR | IMPORTED | 38C085ECUD | ECUDORIAN DUAL REJECTER 240V | IMPORTED |
| 38C085CAD | CANADIAN QTR, LOONIE DUAL REJECTER 240V | IMPORTED | 38C085CAD2 | REJ.W/LOCK-MECH 230V CAND TOONIE | IMPORTED |
EXAMPLE OF DUAL ACCEPTOR/REJECTOR
30015C4E, 30022C4E, 36021C4E
| LOCK & KEY | COIN ACCEPTOR/REJECTOR | COIN VAULT | |
|---|---|---|---|

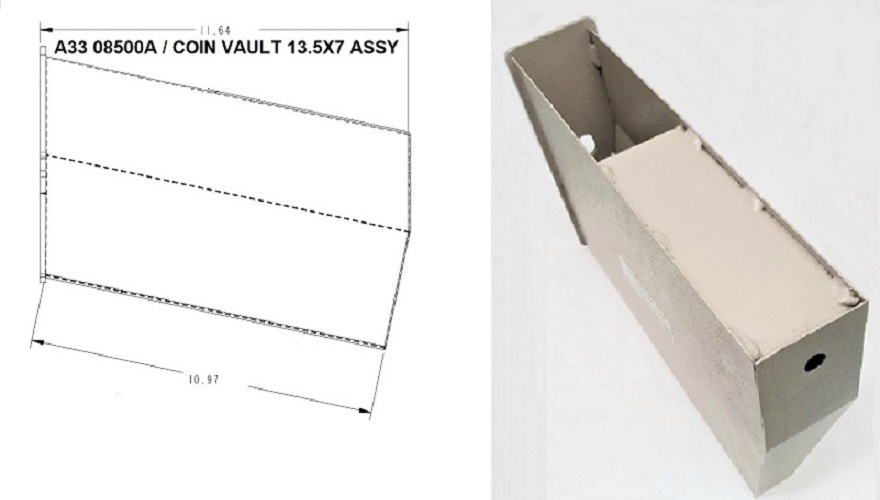

| PART NUMBER | 38C152C / KEYED CONSECUTIVE | 38C080 | A33 08500A |
| VARIATION | 38C152CK / KEYED ALIKE MORE VARIATIONS IN TABLE BELOW | VARIATIONS IN GREEN ABOVE |
| PART NUMBER | DESCRIPTION | PART NUMBER | DESCRIPTION | |
|---|---|---|---|---|

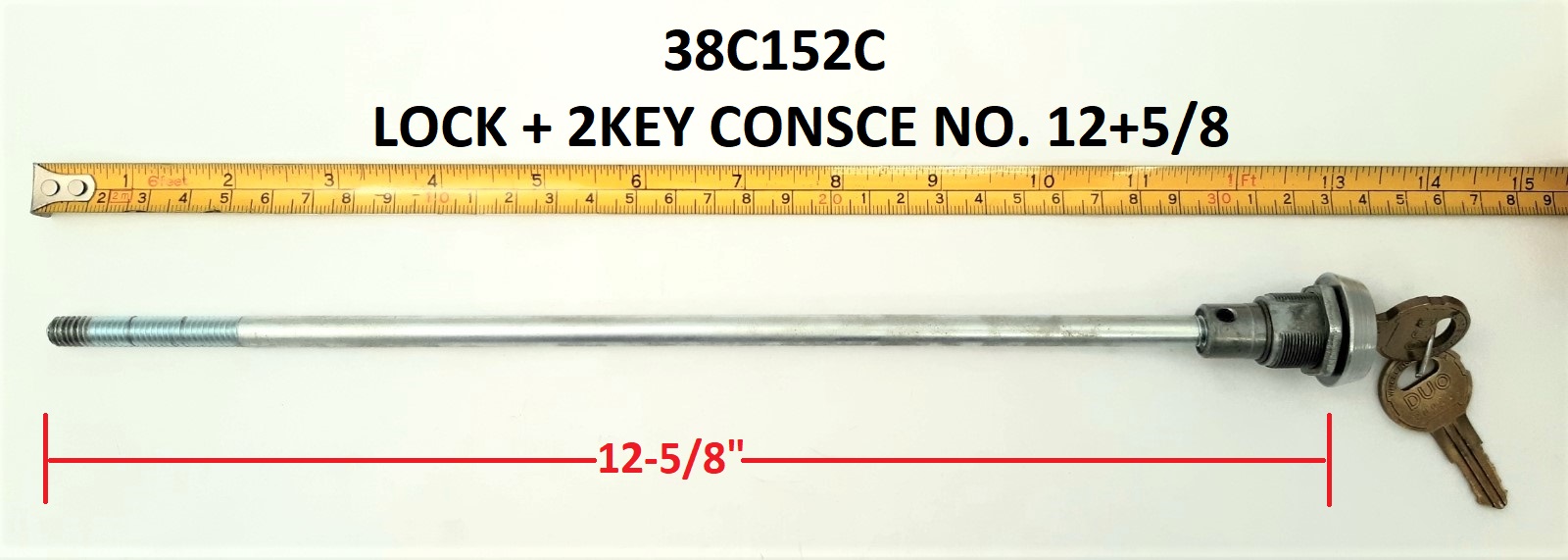

| 38C151 | LOCK +2KEY=CWE KEY ALIKE=50 8.5" LONG | 38C152C | LOCK +2KEY CONSECUTIVE NO. 12+5/8" LONG (PICTURED ABOVE) | |
| 38C151A | LOCK+2KEY=CWE CONSECUTIVE NO. 8.5" LONG | 38C152CK | LOCK +2KEYS-KEYED ALIKE 12+5/8" LONG | |
| 38C152 | LOCK +2KEY KEYED ALIKE 15+1/8" LONG | 38C152D | LOCK +2KEYS CONSECUTIVE NO. 7" LONG | |
| 38C152A | LOCK+2KEY CONSECUTIVE NO.15+1/8" LONG | 38C153 | LOCK+2KEYS KEYED ALIKE 2+1/4" LONG KEY ALIKE MCR/MWR |
LEGACY MACHINE (EARLY MODELS)
30015C4A, 30022C4A, 30015C4T, 30022C4T, 30015K4T, 30015K4A, 30022K4A
| PICTURE LIST NUMBER | COMPONENT | DESCRIPTION | Additional Info |
|---|---|---|---|

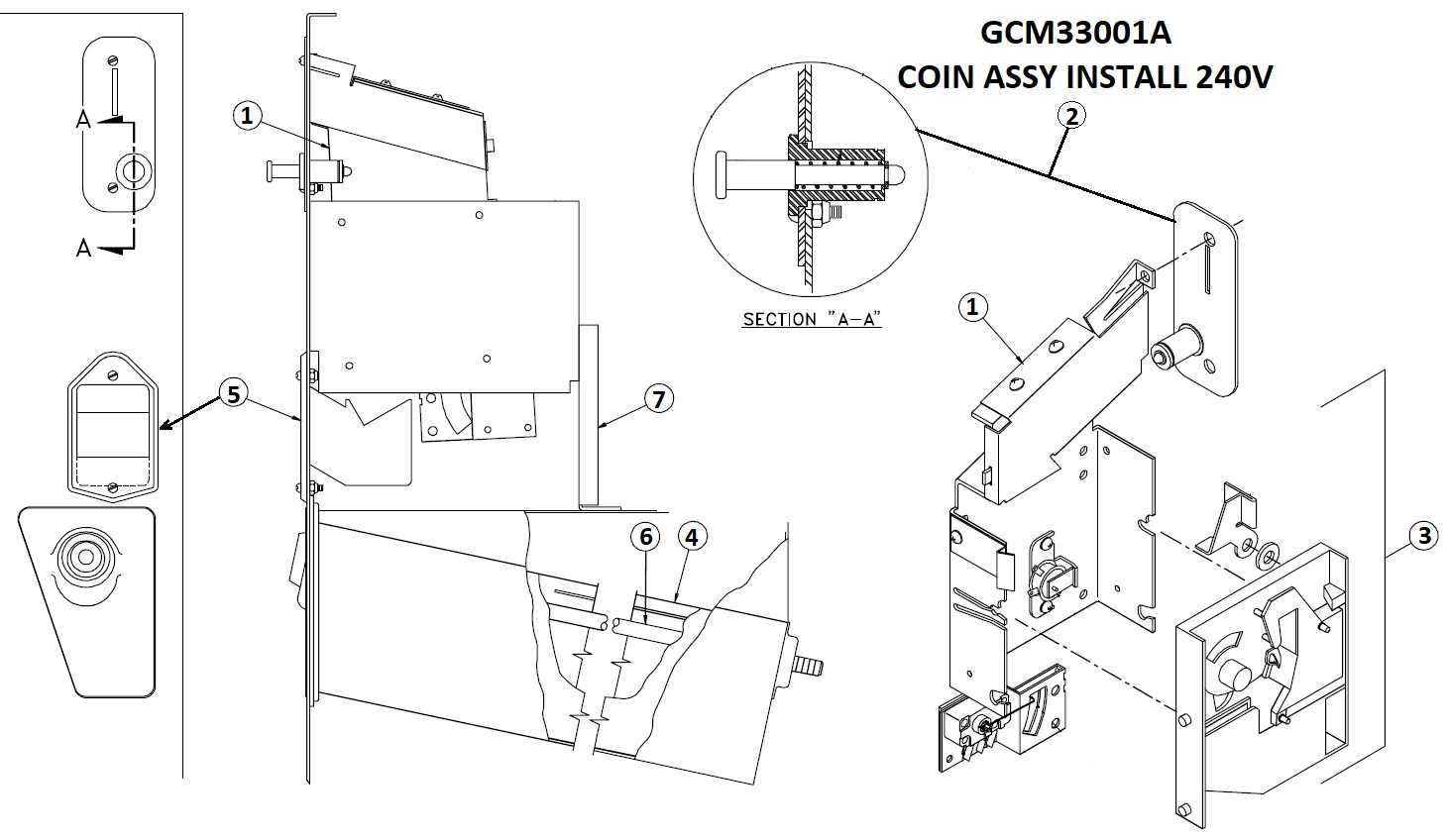

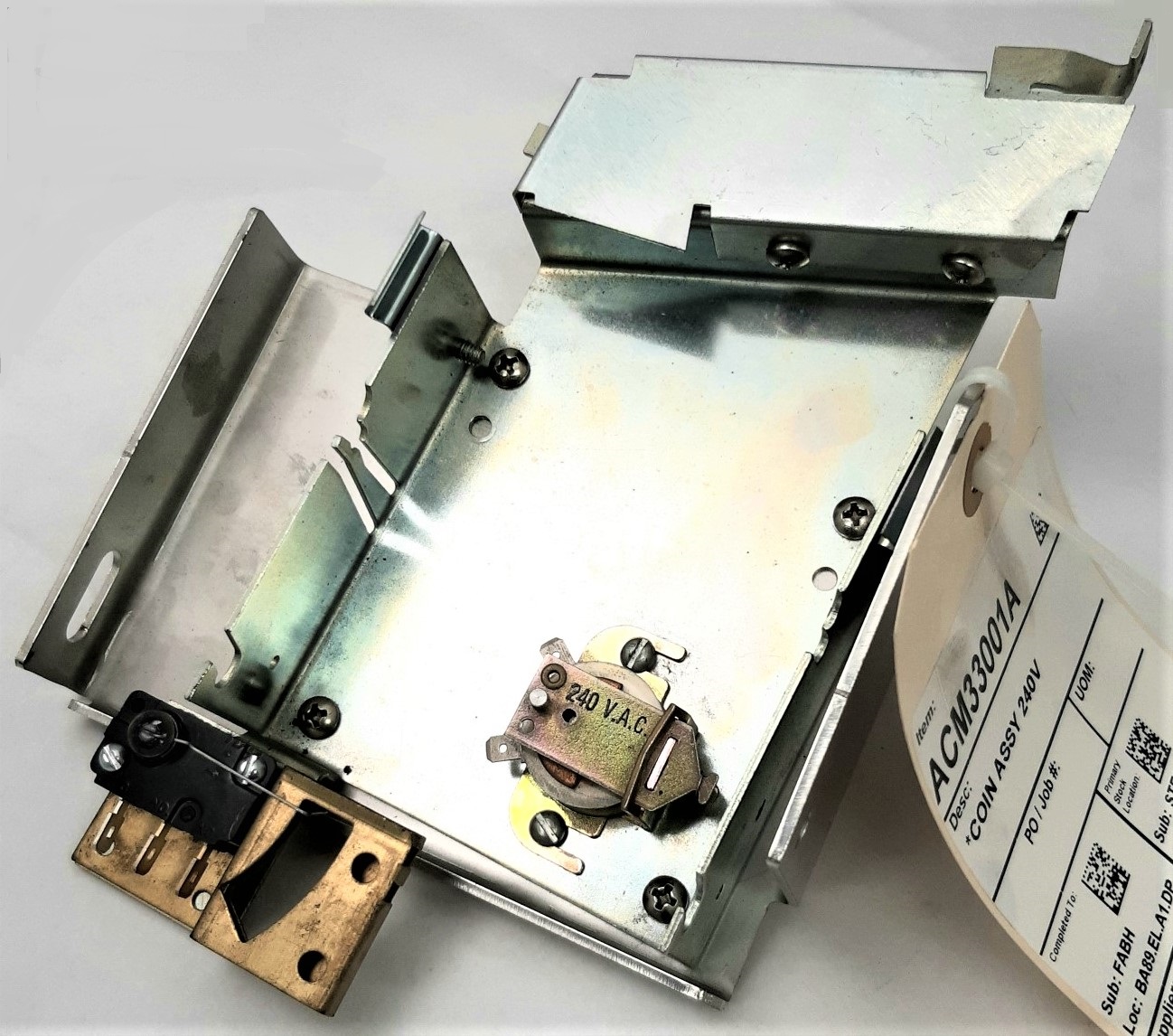

| 1 | ACM33001A | *COIN ASSY 240V | |

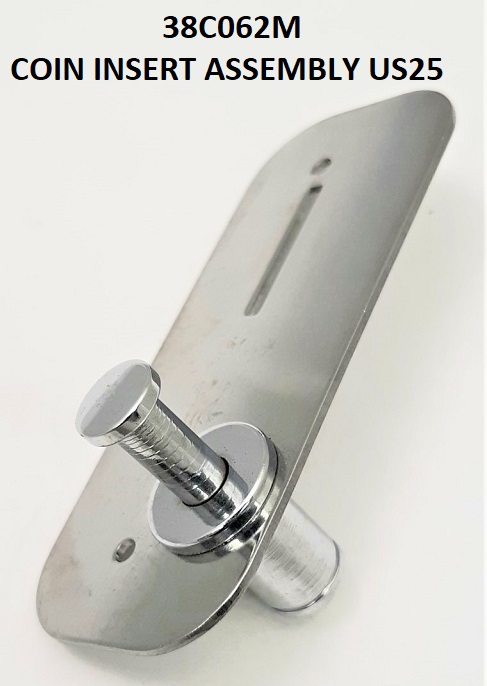

| 2 | 38C062M | *COIN INSERT ASSEMBLY US25 | |

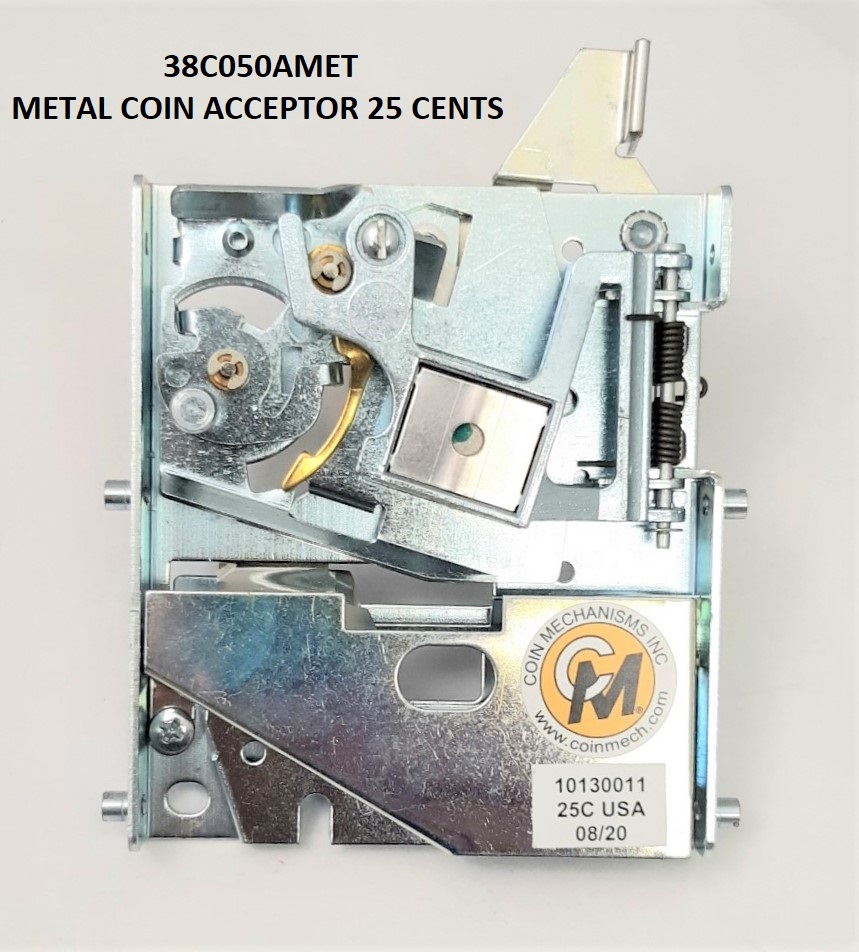

| 3 | 38C050AMET | METAL COIN ACCEPTOR 25 CENTS | K33 0016 = US$ 0.25 SA 33 068 = CAN$ 0.25 |

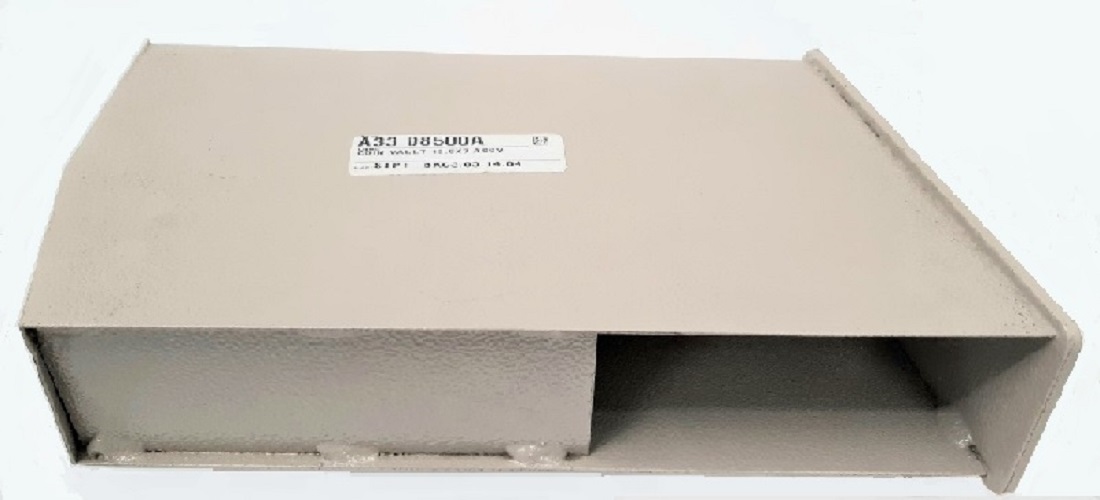

| 4 | A33 08500 | COIN BOX ASSY-13.5"LONG | |

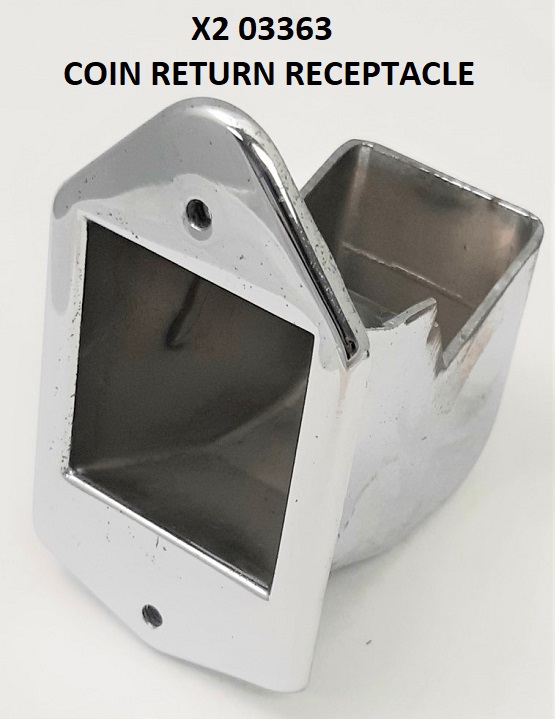

| 5 | X2 03363 | COIN RETURN RECEPTACLE | |
| 6 | 38C152A | LOCK+2KEY CONSEC NO.15+1/8"LG | |
| 7 | 02 03761A | REAR SUPT=COIN REJECTOR BKT |
