CHEM INLET DIAGRAM BMP000043

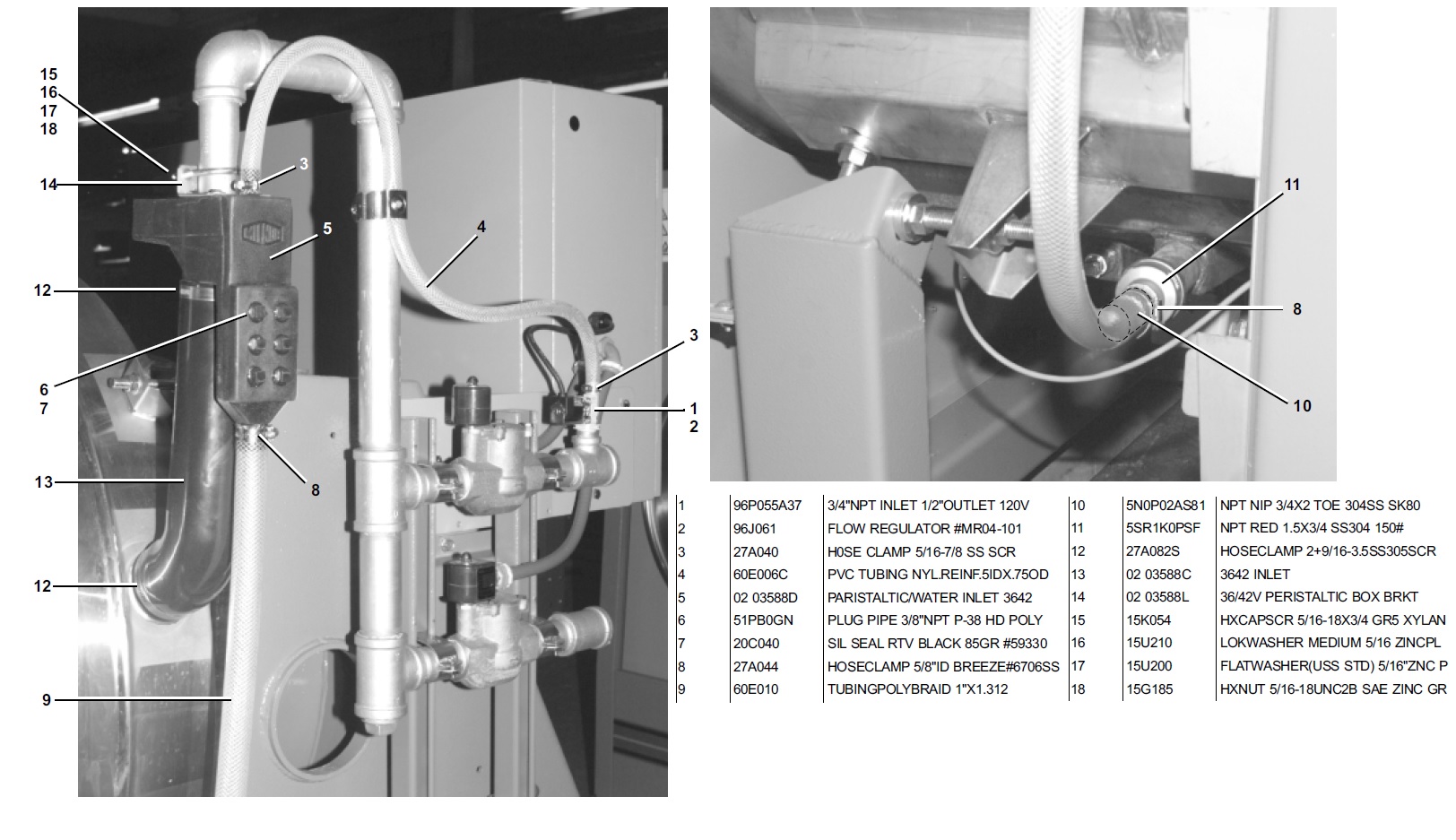

THE PERISTALTIC PARTS DIAGRAM BELOW IS FOR MODELS 36026V6J AND 36026V7W.
AS WELL AS THE EARLY VERSIONS OF THE FOLLOWING:
36021V5J thru Model AAK
36021V7J thru Model AAB
36026V5J thru Model AAY
36026V7J thru Model AAT

FOR THE PERISTALTIC PARTS DIAGRAM FOR MODELS 36021V5Z AND 36026V5Z,
AS WELL AS THE LATER VERSIONS OF THE FOLLOWING:
36021V5J Model AAL & after
36021V7J Model AAC & after
36026V5J Model AAZ & after
36026V7J Model AAU & after   --  CLICK HERE

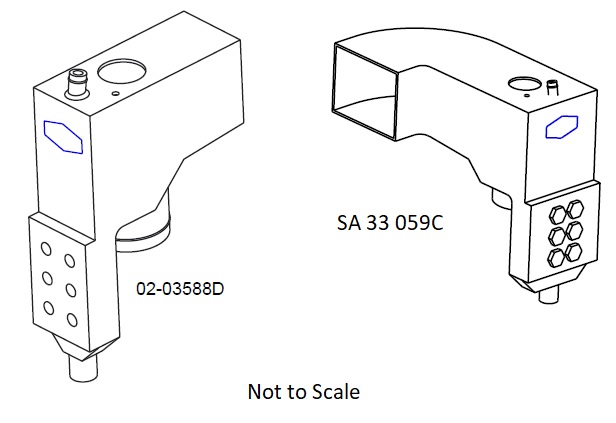

02 03588D IS USED IN DIAGRAM ABOVE

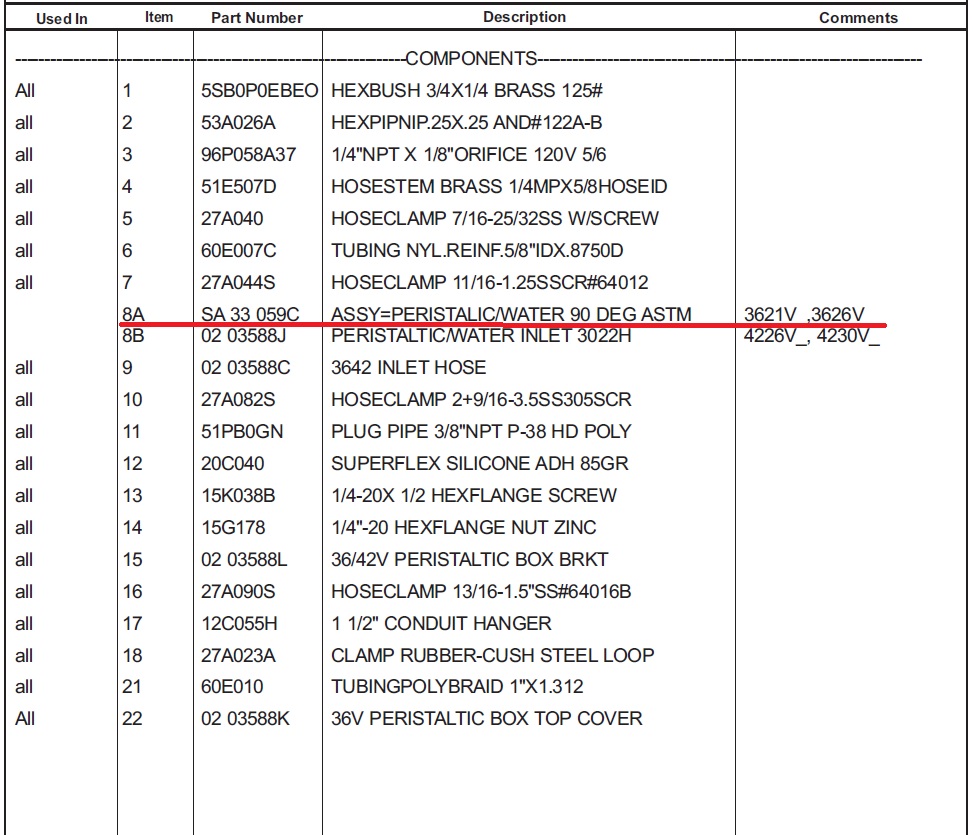

SA 33 059C IS USED IN DIAGRAM BELOW

THE PERISTALTIC PARTS DIAGRAM BELOW IS FOR MODELS 36021V5Z AND 36026V5Z,
AS WELL AS THE LATER VERSIONS OF THE FOLLOWING:
36021V5J Model AAL & after
36021V7J Model AAC & after
36026V5J Model AAZ & after
36026V7J Model AAU & after
