When the photo eye system has a fault, it may not be necessary to replace the entire assembly. (Part Number RKCBWLCPE1)
It may well be that only 1 component part needs to be replaced. Below is the list of parts within the photo eye assembly and their associated pictures. There are five parts.
For part number information on other light sensor systems, including reflective, fixed background, light curtains, and other emitter/receiver systems, click LIGHT SENSOR SYSTEMS PART NUMBER INFORMATION
| Part Number | Picture | Additional Info |
|---|
09RPE006A

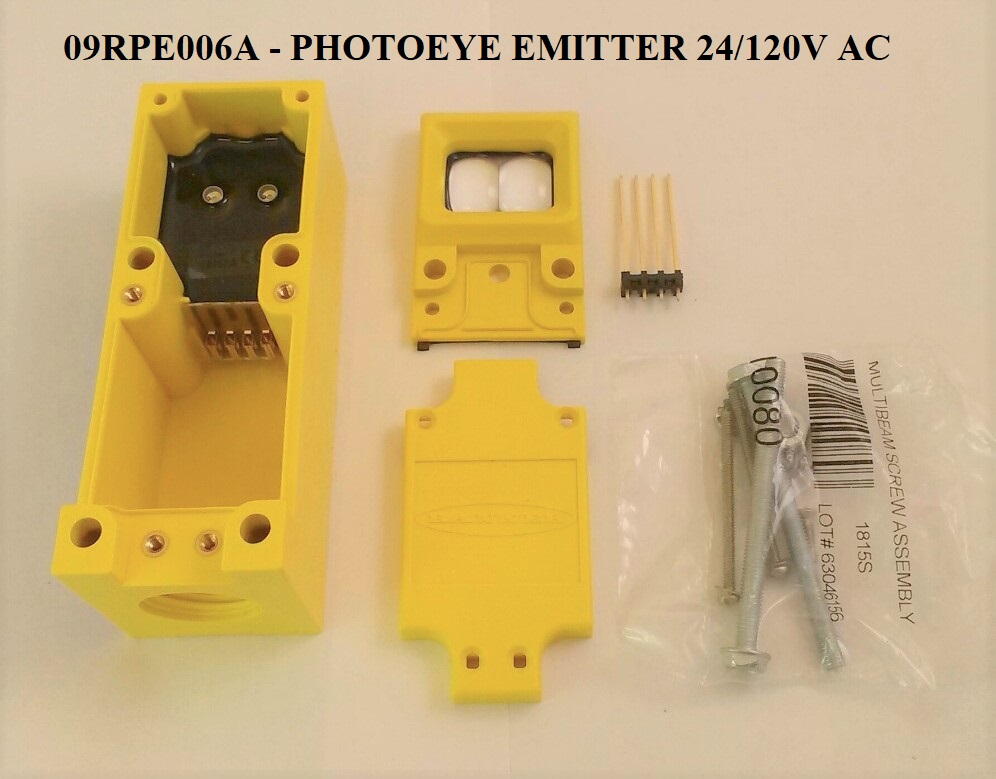

Emitter case only. A complete emitter will be 2 parts:
09RPE006A (Case)
09RPE007A (Power Block)
|  | |

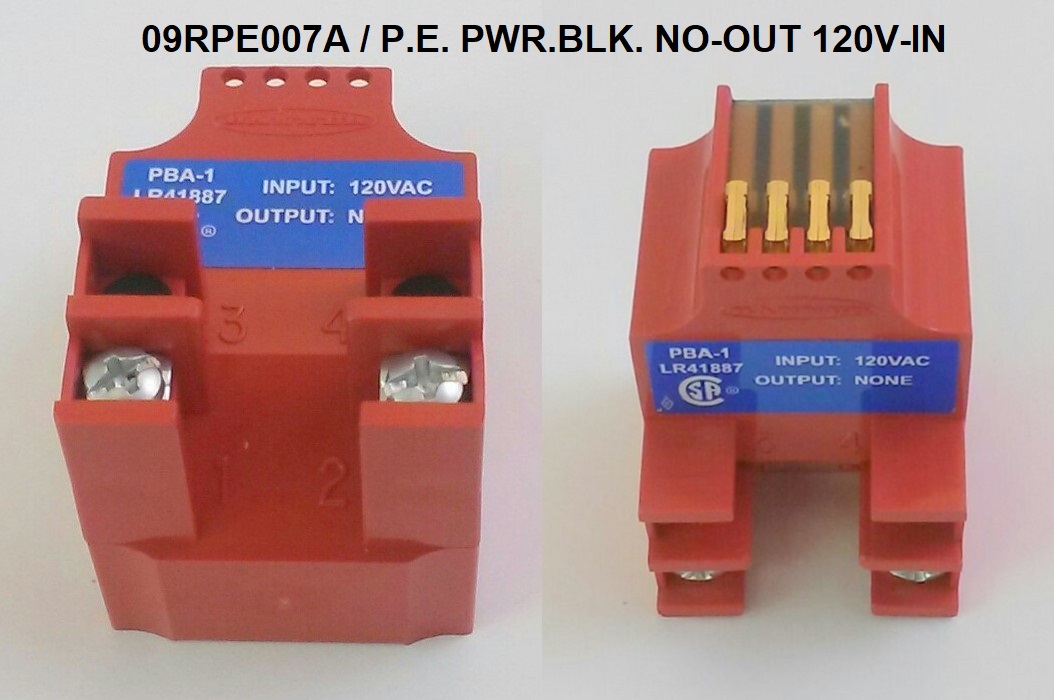

120 Volt - 09RPE007A (pictured)
Photo Eye Power Block - 120VAC
-----------------------------------------------------------------
24 Volt - 09RPE006A1
PHOTOEYE POWER BLOCK 24V AC
-----------------------------------------------------------------
240 Volt - 09RPE007C
P.E. PWR.BLK. NO-OUT 240V-IN
|  | 120V
(Pictured) used in kit
RKCBWLCPE1
SERIAL CBW LOAD CHUTE PHOTOEYE
----------------------------------------
24 V used in kit
RKCBWLCPE
RETRO CBW LOAD CHUTE PHOTOEYE
----------------------------------------
240 V primarily used in Dryell sytems for washer extractors |
| 09RPE006B

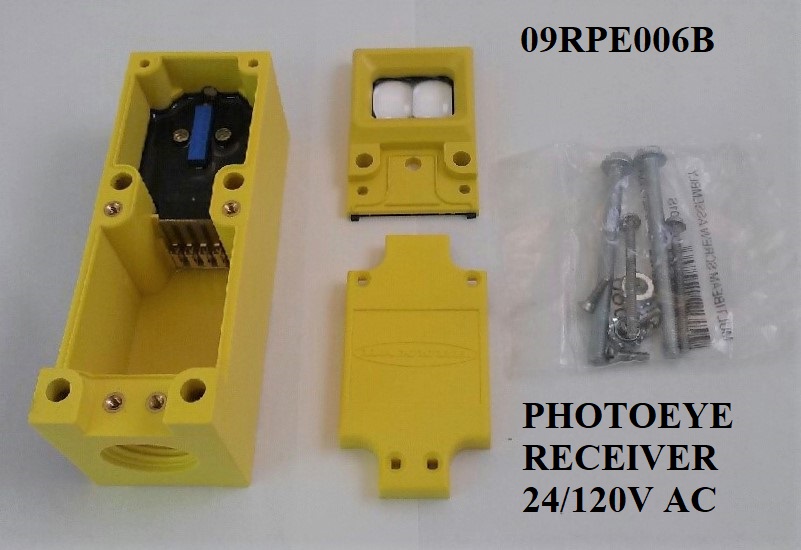

Receiver case only. A complete receiver will be 3 parts:
09RPE006B (Case)
09RPE007B1 (Power Block)
09RPE006B2 (Logic Module)
|  | |
|
09RPE006B2

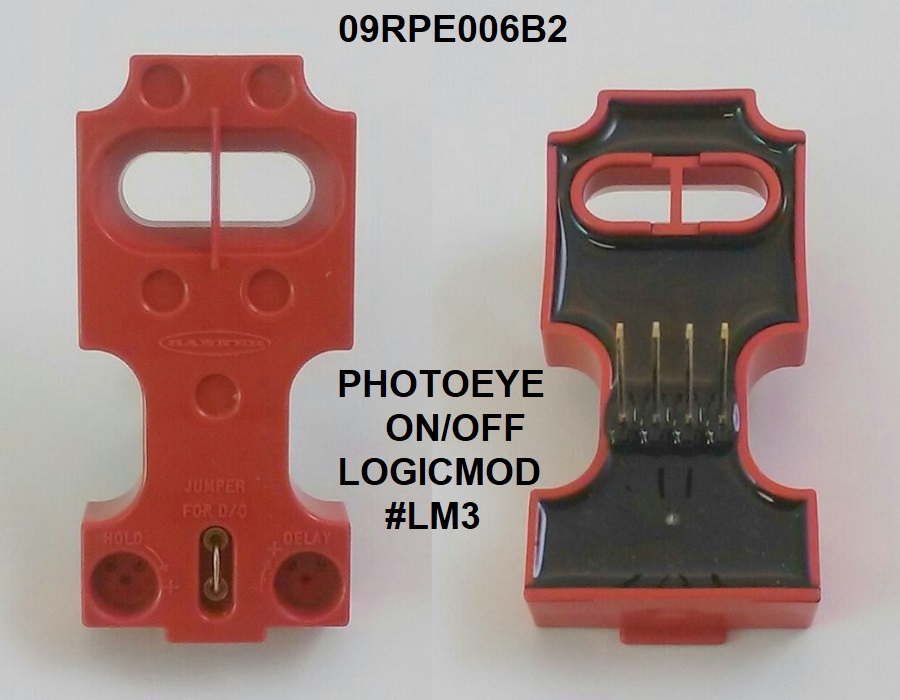

Photo eye On/Off logic module LM3
|  | |
|

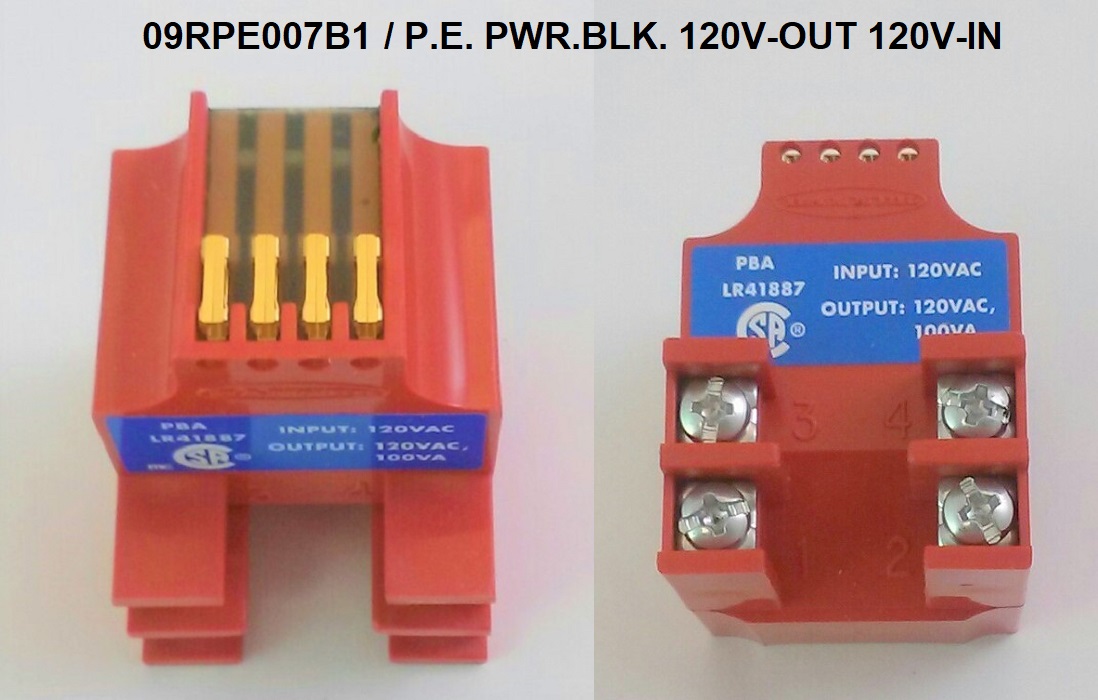

09RPE007B1 - Photo Eye Power Block - 120VAC Input - 120VAC Output
----------------------------------------------------------------
09RPE006B1 - P.E. POWER BLK 120V-OUT 24V-IN
-----------------------------------------------------------------
09RPE007C1 - P.E. PWR.BLK. 240V-OUT 240V-IN
|  | 120V
(Pictured) used in kit
RKCBWLCPE1
SERIAL CBW LOAD CHUTE PHOTOEYE
----------------------------------------
24 V used in kit
RKCBWLCPE
RETRO CBW LOAD CHUTE PHOTOEYE
----------------------------------------
240 V primarily used in Dryell sytems for washer extractors |
