Bonomi actuator ball valve repair parts and repair kits

Bonomi provides repair kits for their ball valves and o-ring kits for their actuators.
Here are some examples of Bonomi Valve/Actuators

Bronze 2 inch valve (96D088)                                                                                                       Stainless Steel 1.25 inch valve (96D086)


The repair kits are for 1.25", 1.5", and 2" ball valves.  The o-ring kits work on SR52V and SR63V actuators.  These actuators are on 1" - 1.25" valves and 1.5" - 2" valves respectively.

Below is a chart with the kit numbers and the products they are meant to repair.
The part numbers will be links to their pictures.

Ball Valve Repair Kits:

KIT PART NUMBER	DESCRIPTION	FOR VALVE PART NUMBERS...
96V086FSA	REPKIT 1.25VALAC BONOMI#R12207	96D086FSA, 96D086FBA, 96D086FBAO, 96D086FSAC, 96D086FSAO

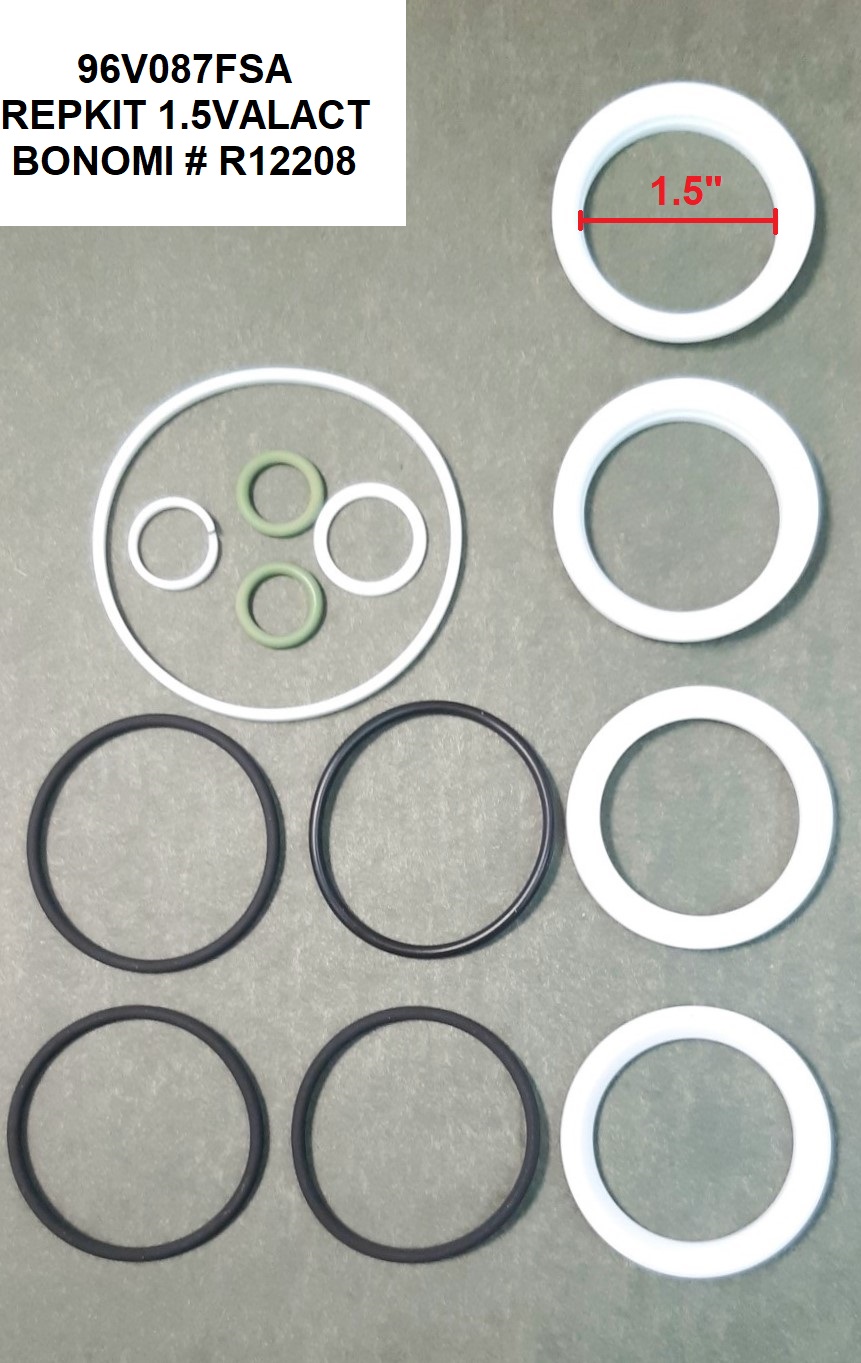

96V087FSA	REPKIT 1.5VALACT BONOMI#R12208	96D087FBA & 96D087FBAO, 96D087FSA
96V088FSA	REPKIT 2" VAL/ACTBONOMI#R2209	96D088FSA AND 96D088FBA

Actuator O-Ring Kits

KIT PART NUMBER	DESCRIPTION	FOR VALVE PART NUMBERS...

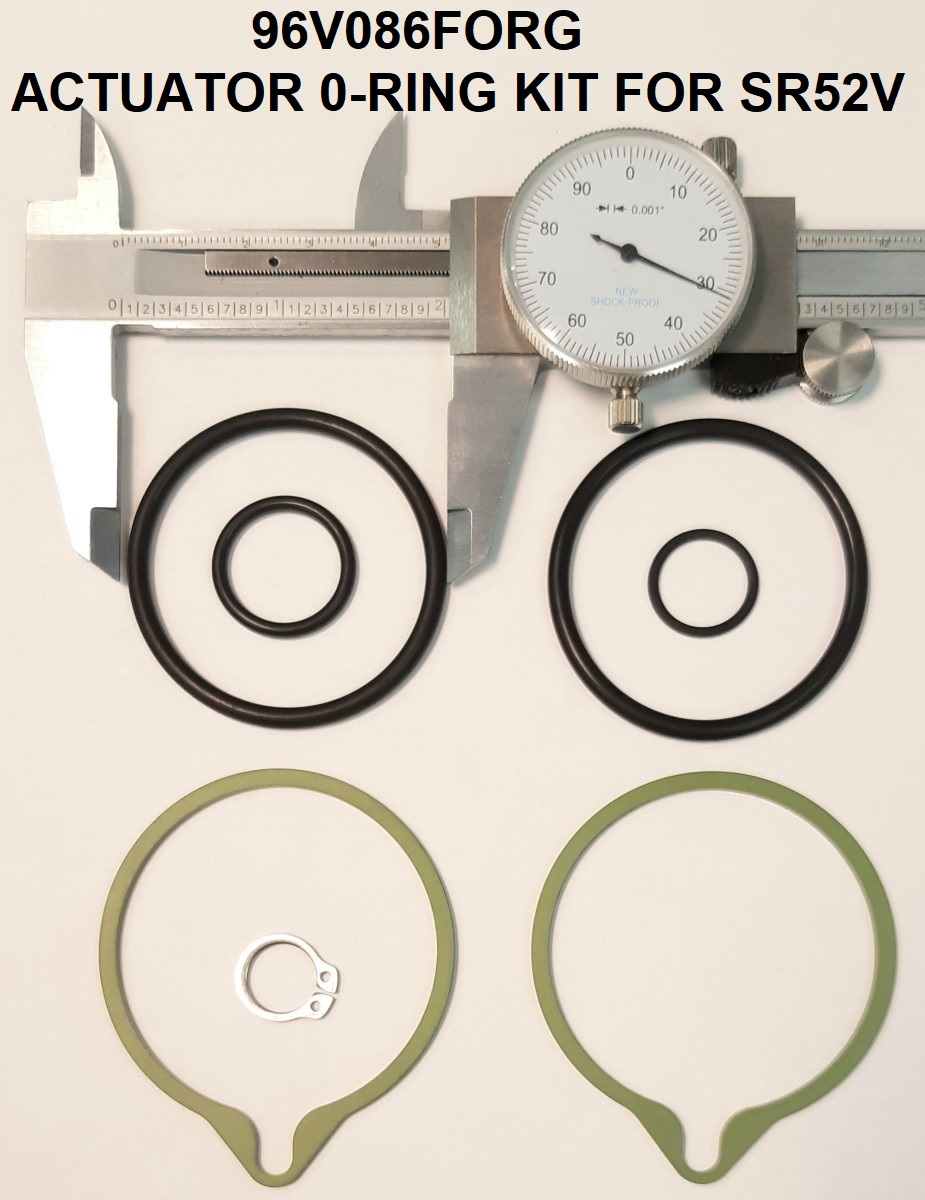

96V086FORG	ACTUATOR 0-RING KIT FOR SR52V	1 inch and 1.25 inch valve actuators (96D085*** and 96D086***)
96V087FORG	ACTUATOR 0-RING KIT FOR BONOMI SR63V	1.5 inch and 2 inch valve actuators (96D087*** and 96D088***)



Actuator Replacement Parts

PART NUMBER	DESCRIPTION	FOR VALVE PART NUMBERS * = letter configuration
96V086FASR	ACTUATOR FOR 1" & 1.25" SR52V	96D085***, 96D086***
96V087FASR	ACTUATOR FOR 1.5"& 2" SR63V	96D087***, 96D088***



There are also limited Ball Valve replacements.  (not pictured)
96D087FBAA / BALL VALVE ONLY FOR 96D087FBA - BONOMI 1.5" BRONZE SPRING RETURN
96D090FBAB / BALL VALVE ONLY FOR 96D090FBA - BONOMI 3" BRONZE SPRING RETURN
