'M' model Washer-Extractors are imported. Search for your 'M' model number below. The tables are arranged by the bearing assembly size and the corressponding model numbers are in the header of the table. Bearing Assembly information for Domestic Washer-Extractors can be found here,
BEARING KITS BY MODEL NUMBER
MCR09E5 / MCR12E5 / MCR18E4 / MCT12E5 / MCT18E4 / MWR09E5 / MWR12E5 / MWR12J5 / MWR12X5 / MWR18E4 / MWR18J4 / MWR18X4 / MWT12E5 / MWT12J5 / MWT12X5 / MWT18E4 / MWT18X4
| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
|---|
9 KG, 12 KG, AND 20 KG MACHINES| KECDBRASSY | 9KG/18KG BEARING ASSY | PULLING FIXTURE PART NUMBER: KECDPULLER |
MCR16E5 / MCT16E5 / MWR16E5 / MWR16J5 / MWR16X5 / MWT16E5 / MWT16J5 / MWT16X5
16 KG MACHINES| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
| KEBDBRASSY | BEARING ASSY MXR16 | |
MWR18J6 / MWR18X6 / MWT18J6 / MWT18X6
20 KG MACHINES| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
| 98CMCR1807 | MWR18J6 BEARING HOUSE ASSY |
Additional Parts Required:
24S053 - Qty 2
60C166B - Qty 1
60C160J - Qty 1
15G004HB - Qty 12
15N110H - Qty 12
24G027N - Qty 6
|
MCR27E5 / MWR27E5 / MWR27J5 / MWR27X5 / MCT27E5 / MWT27E5 / MWT27J5 / MWT27X5
27 KG MACHINES| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
| KECEBRASSY | MCR27 BEARING HOUSE ASSY | US BUILT UNITS USE KECEBRAS01 (SEE NOTE BELOW) |

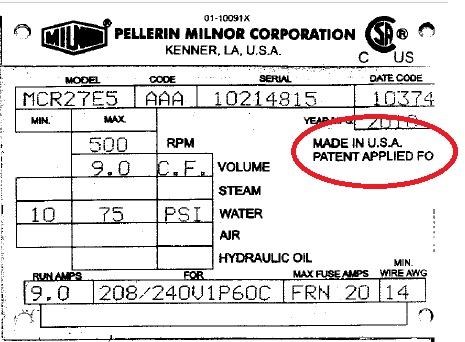

Some early M*R27 units from 2009/2010 were built in the U.S. and use standard (SAE) measurements; not metric.
The nameplates will say 'Made in the USA'. If this is the case, purchase KECEBRAS01 / M*R27 BEARING HOUSING SAE THREADS
MWF27J8 / MWF27Z8
27 KG HIGH EXTRACT MACHINES| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
| 98CMCR3015 | MAIN BEARING ASSY=30X8 | EXTRACTION GROUP - HIGH |
MWF45J8 / MWF45Z8
45 KG MACHINES| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
| 98MW3601 | MAIN BEARING ASSY=MWF45 | EXTRACTION GROUP - HIGH |
MWF63C7 / MWF63J7 / MWF63Y7 / MWF63Z7 / MWF77C7 / MWF77J7 / MWF77Y7 / MWF77Z7
63 KG AND 77 KG MACHINES| PART NUMBER | DESCRIPTION | ADDITIONAL INFO |
| 98MW4201 | MAIN BEARING ASSY=MWF77 | PULLING FIXTURE KMBRGPULLR |
