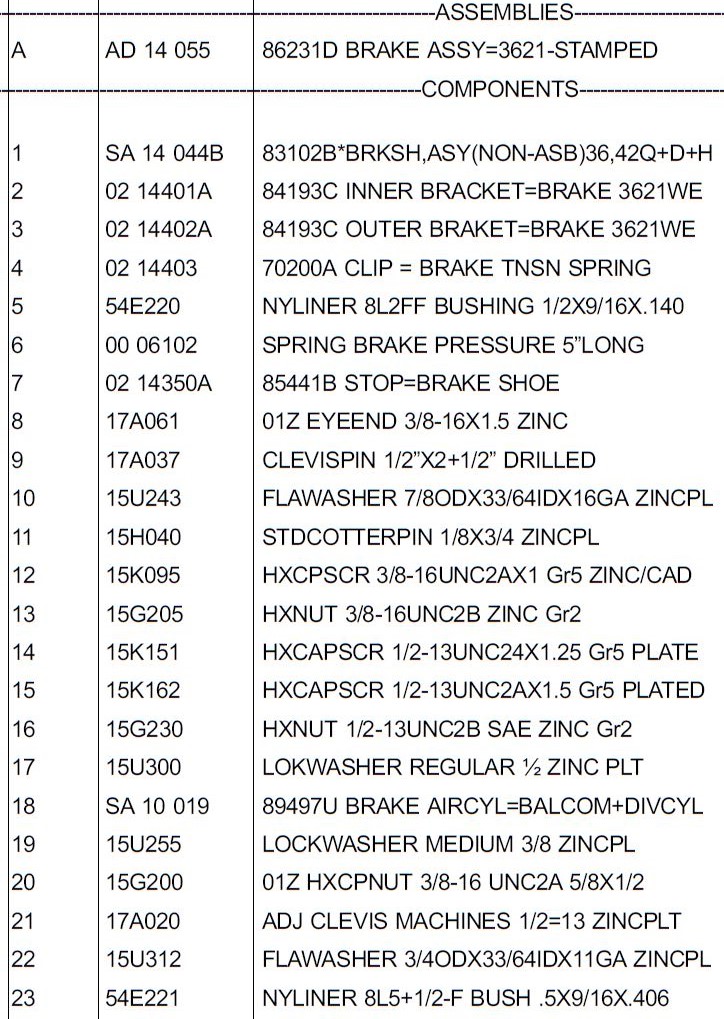

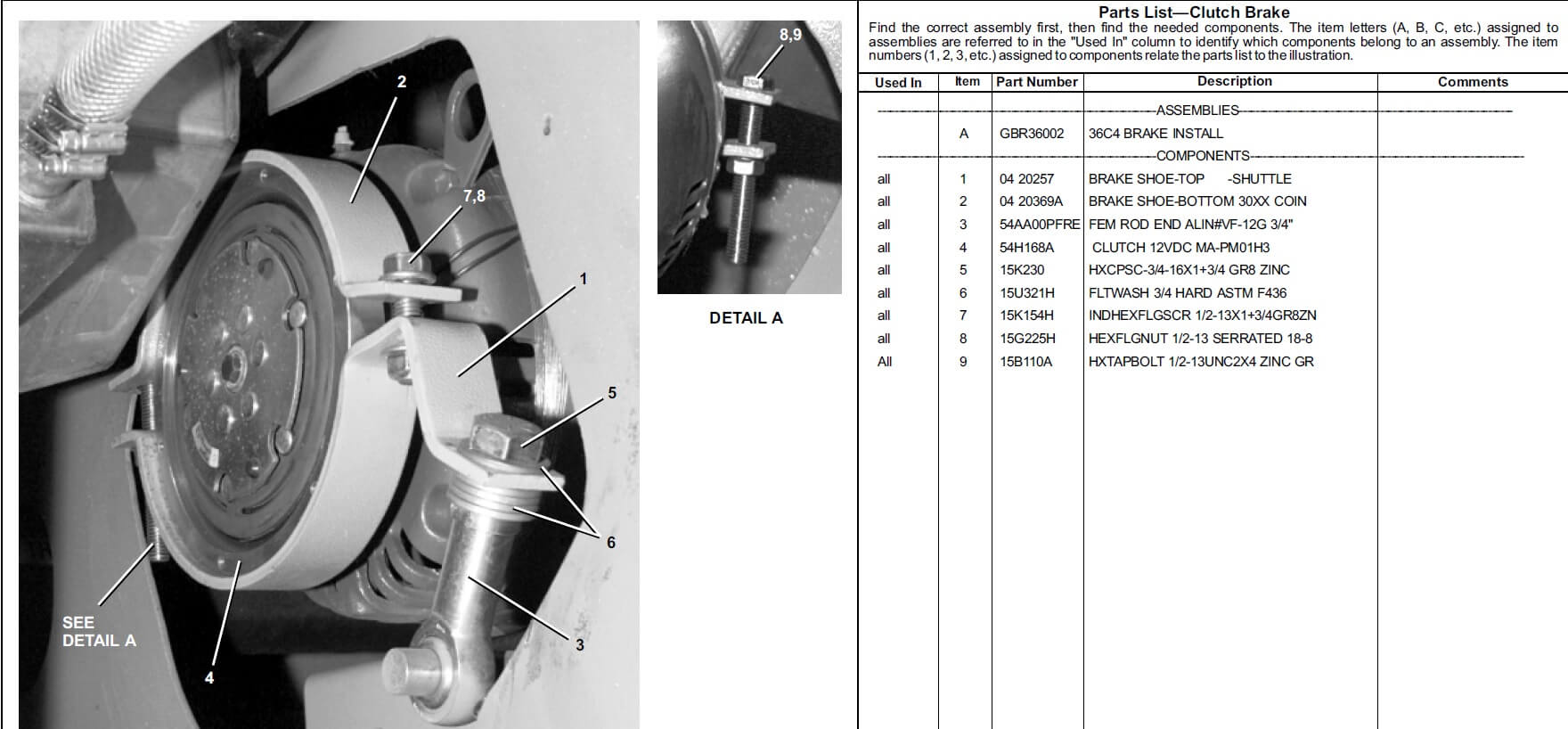

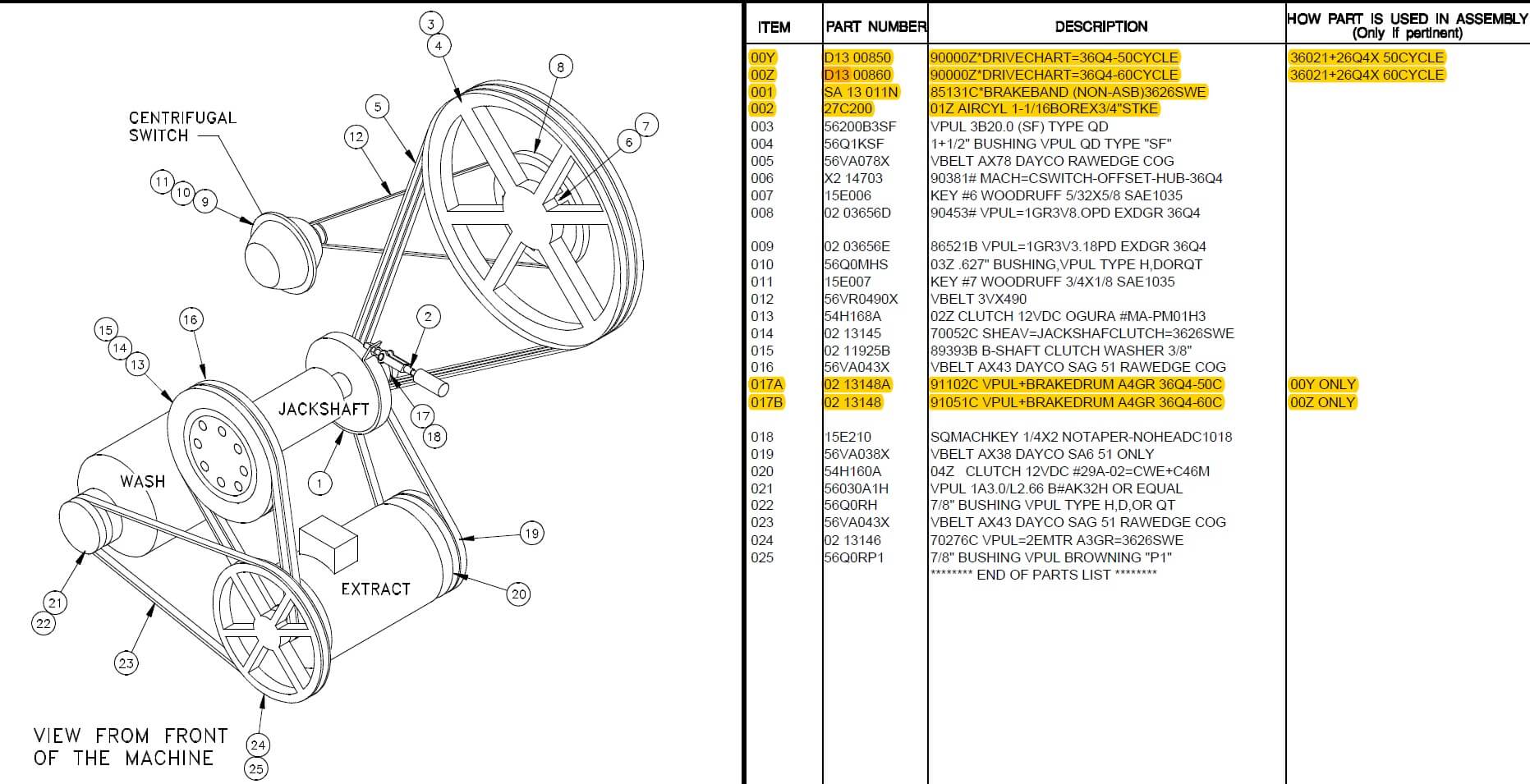

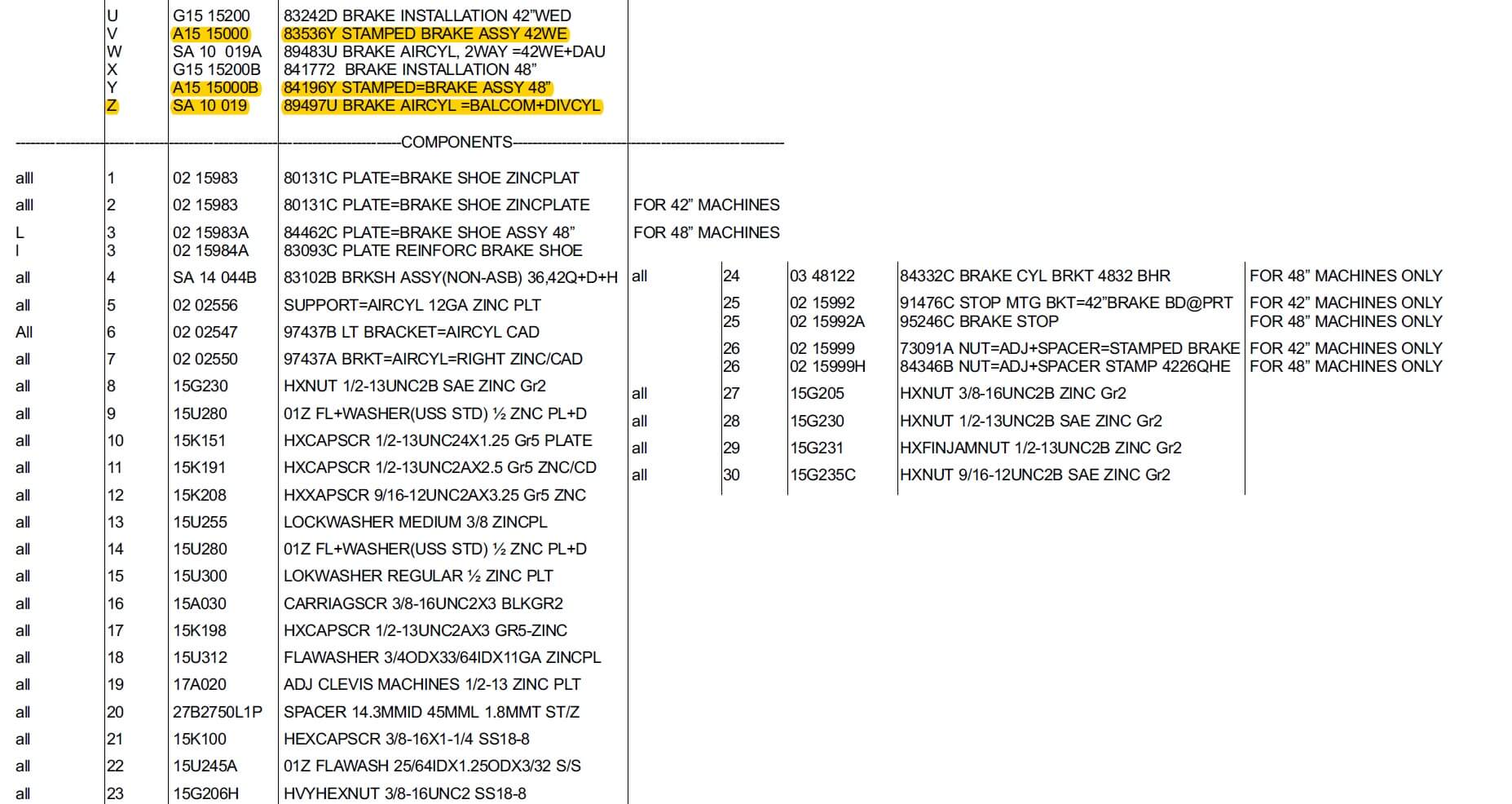

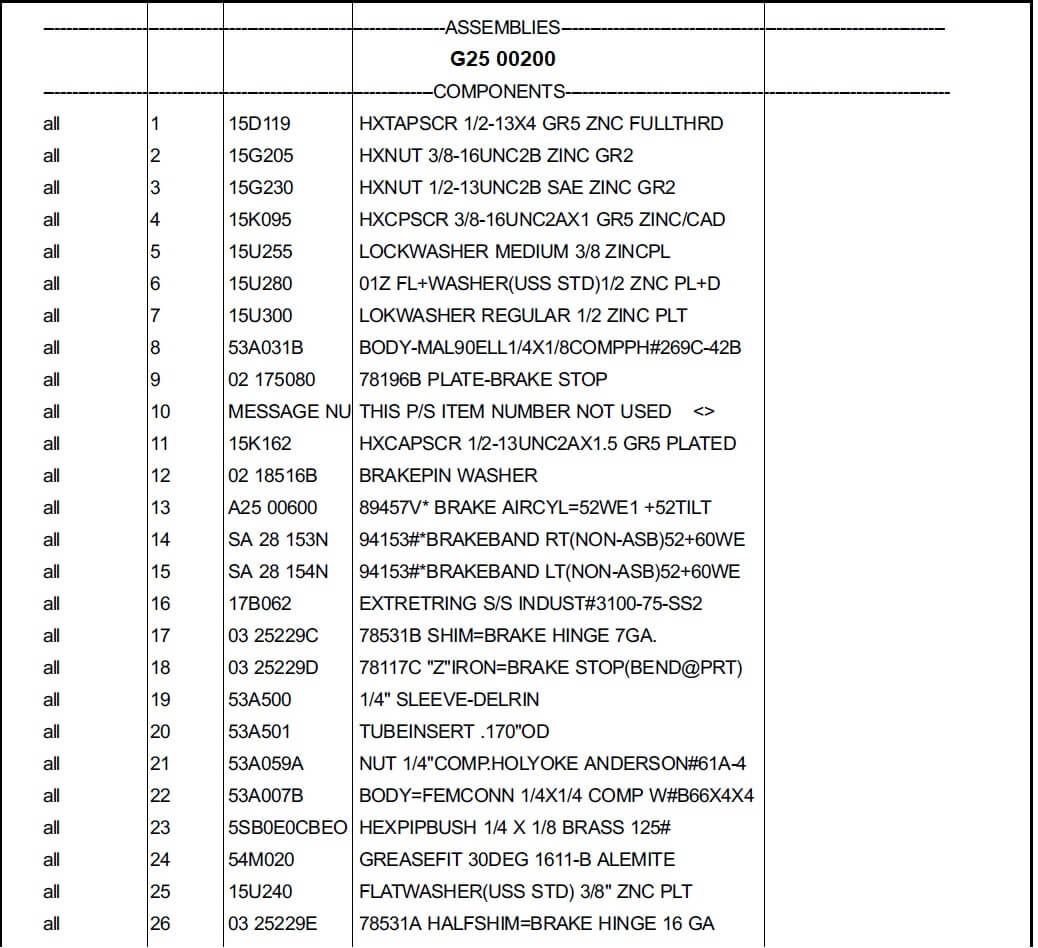

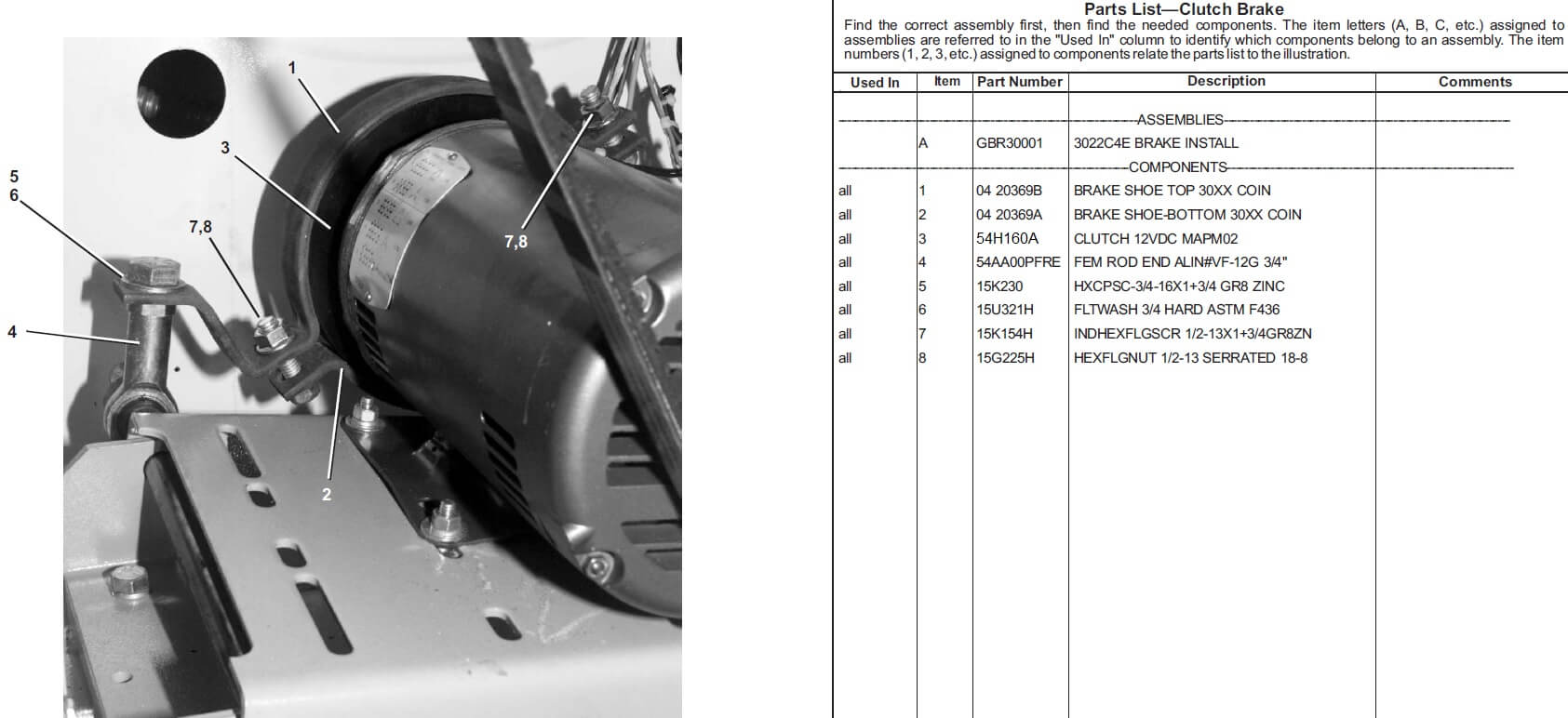

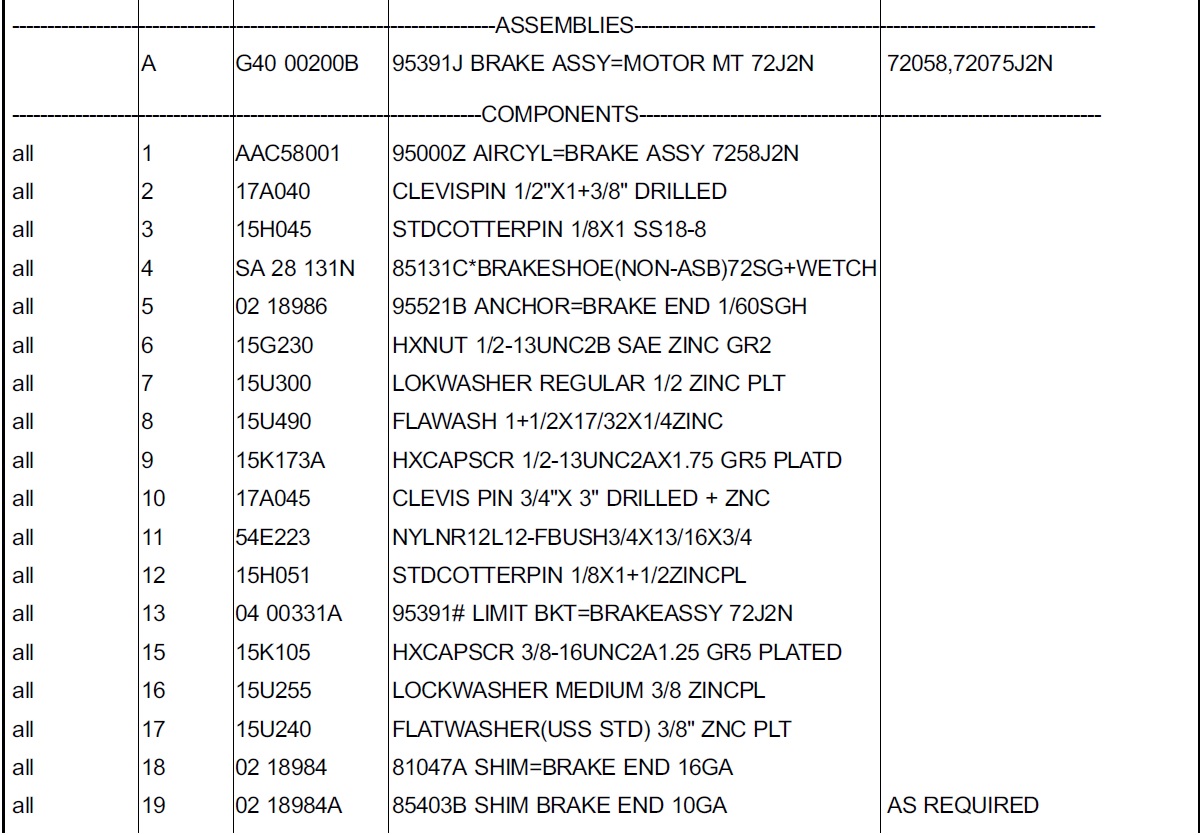

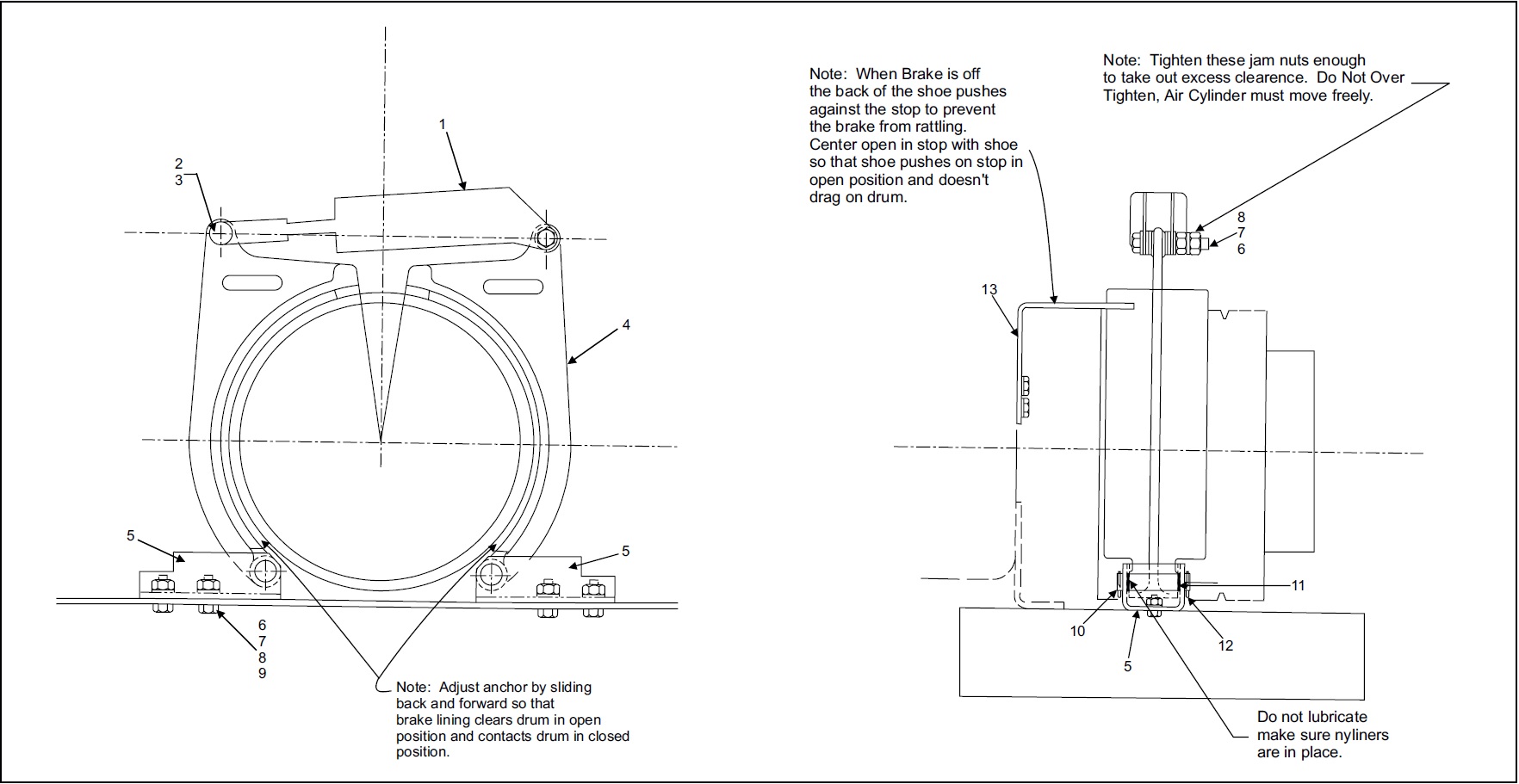

| Electric Clutch and Band Brake systems parts list and diagrams | ||

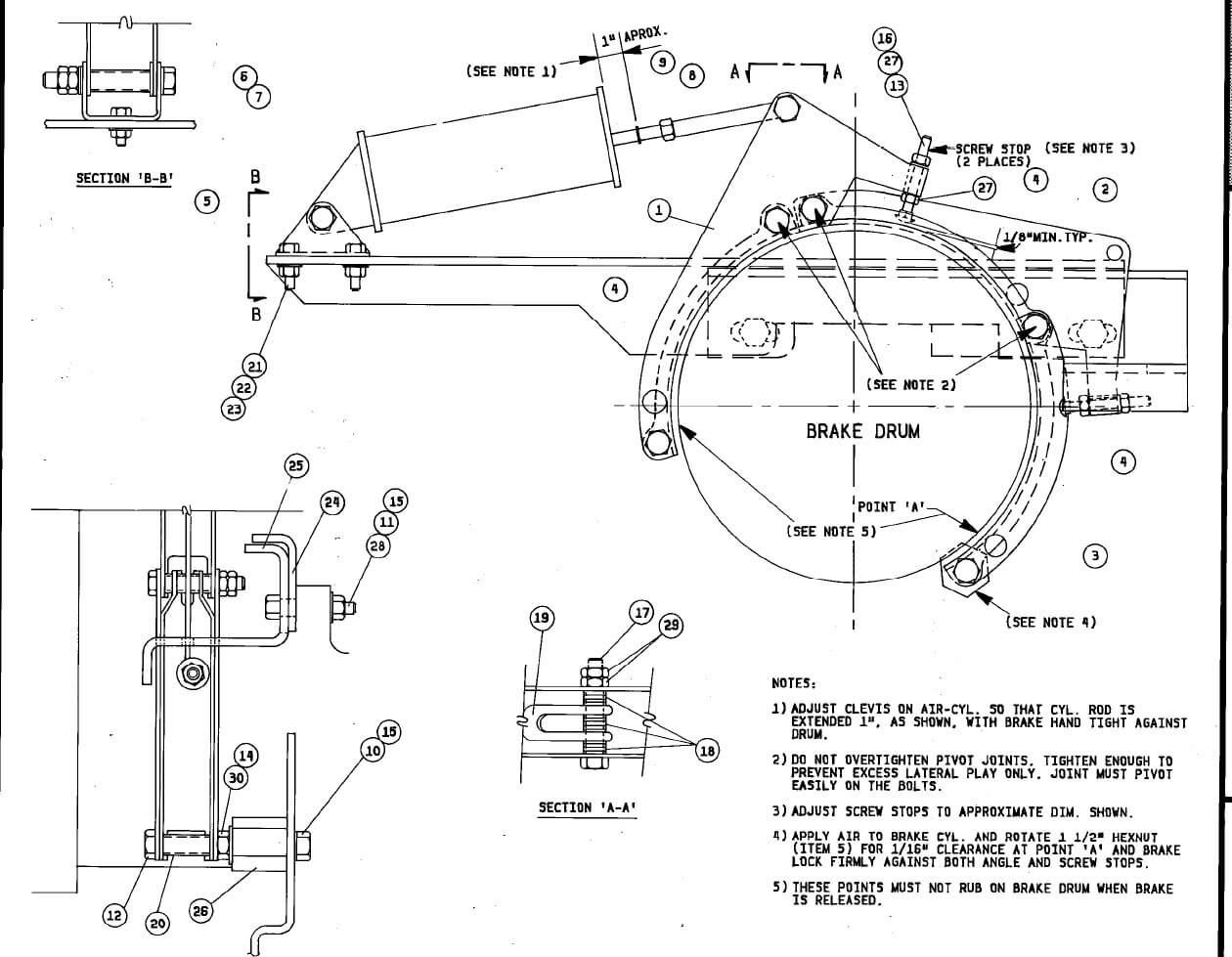

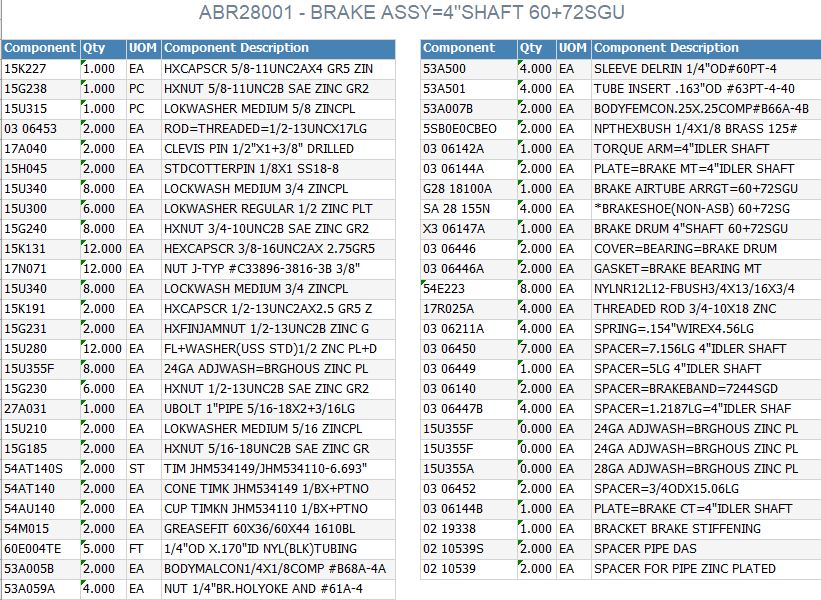

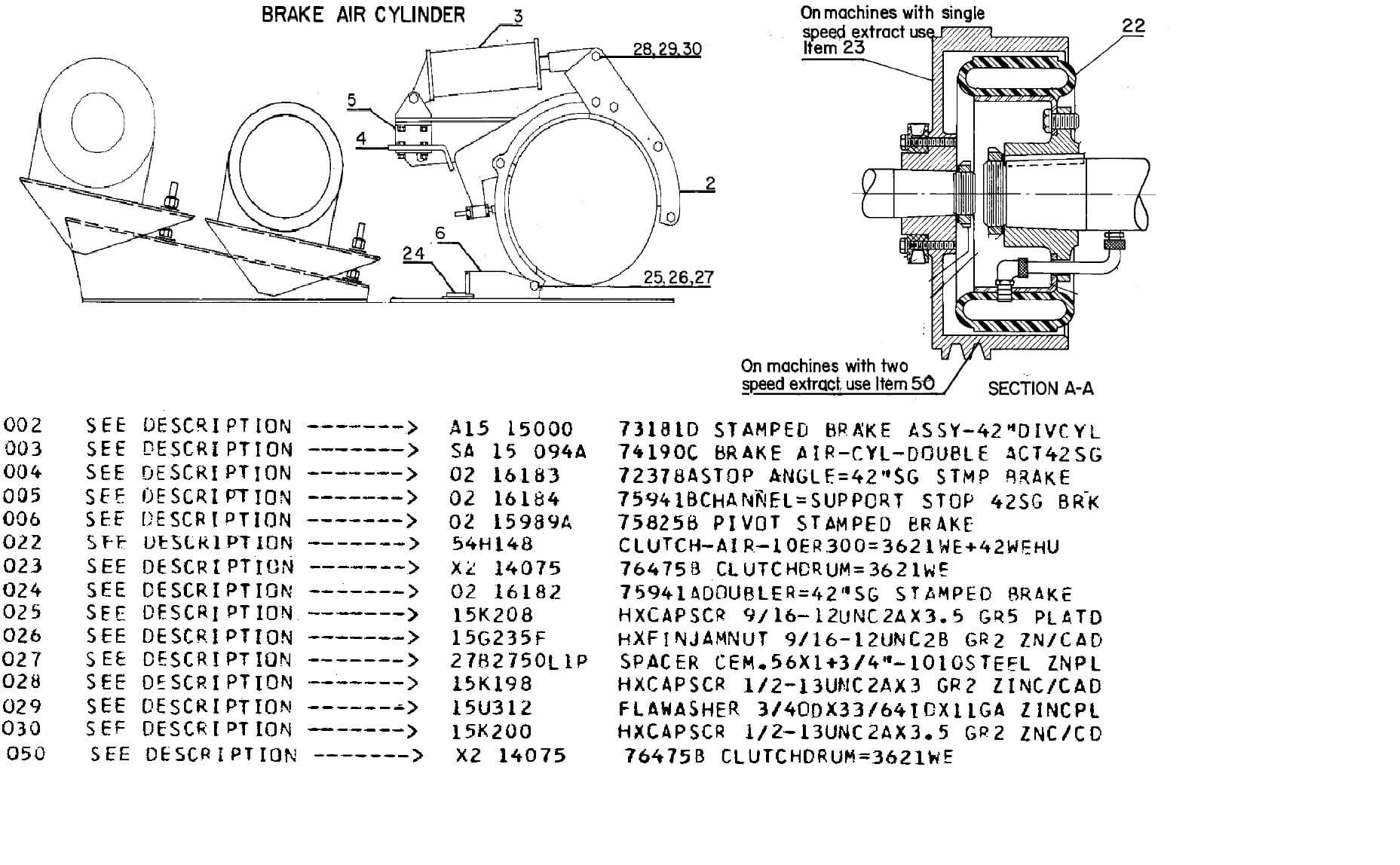

| Diagrams and Parts List for Electric Clutch and Band (drum) Brake Systems. Electric braking systems are normally for safety only and not used as a brake to slow a machine. These electric clutches are used to stop and hold a machine if the door is opened. | ||
