| Information |
| Validated | |
| Published | |
| BMP020048-48040F7B-48040F7J-48040F7J-AZ-48040F7B-AZ-48040F7N-AZ-48040F7N-48040F7W-AZ-48040F7W-48040H7K-48040H7N-48040H7R-48040H7W-68036M5K | |
| Article Details |
| 000001704 | ||
| BMP020048 AD 15 090K | ||

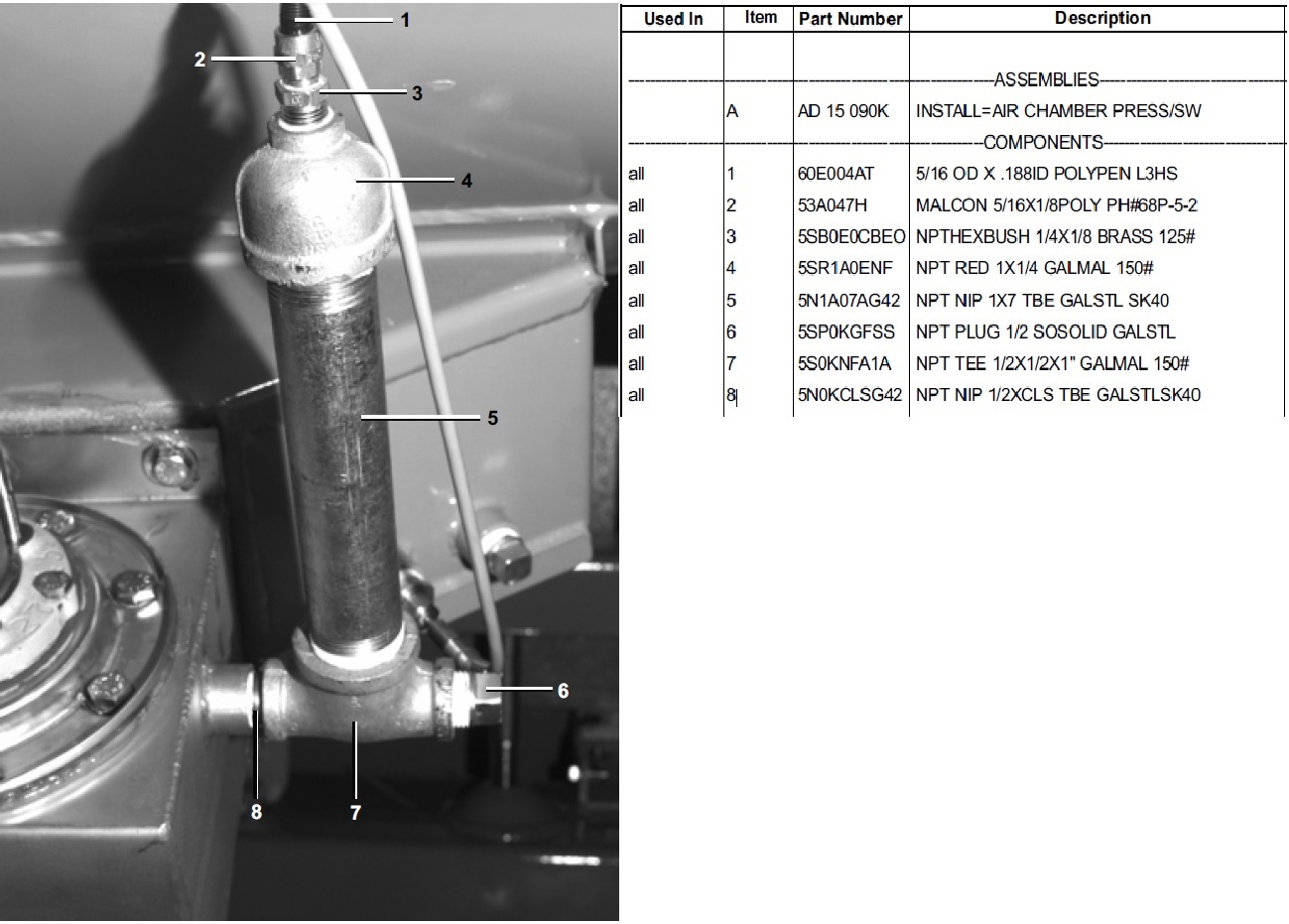

| AIR CHAMBER PRESSURE SWITCH PARTS DIAGRAM AD 15 090K FOR MODELS 48040F7B AZ, 48040F7N AZ, 48040F7N, 48040F7W AZ, 48040F7W, 48040H7K, 48040H7N, 48040H7R, 48040H7W, 68036M5K. WHERE AZ INDICATES THE FIRST TWO LETTERS OF THE MODEL CODE. | ||
